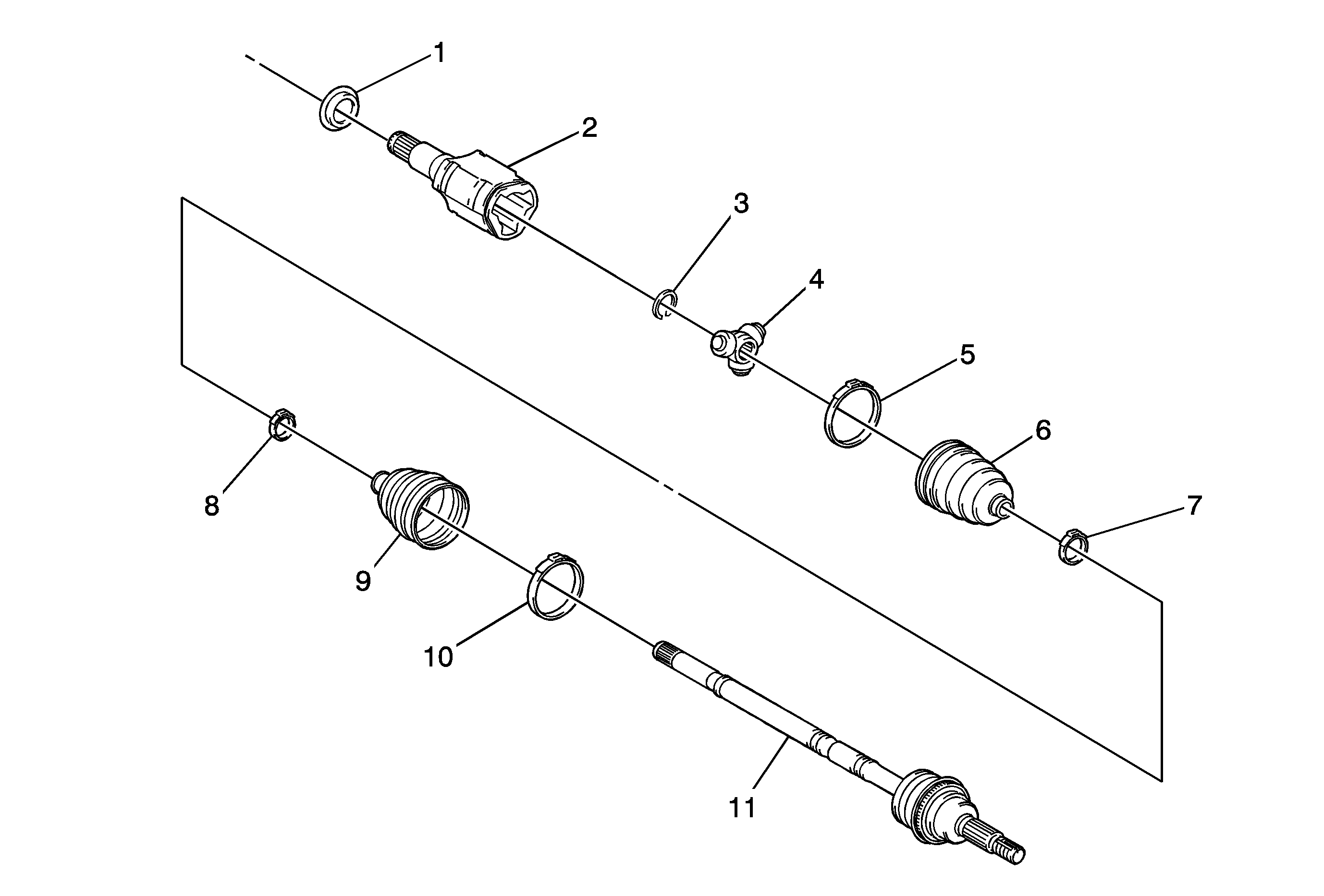

| (1) | Rear Drive Shaft Dust Cover |
| (2) | Rear Drive Shaft Inboard Joint Assembly |
| (3) | Snap Ring |
| (4) | Tripod Joint |
| (5) | No. 2 Rear Drive Shaft Inboard Joint Boot Clamp |
| (6) | Inboard Joint Boot |
| (7) | Rear Drive Shaft Inboard Joint Boot Clamp |
| (8) | Rear Drive Shaft Outboard Joint Boot Clamp |
| (9) | Outboard Joint Boot |
| (10) | No. 2 Rear Drive Shaft Outboard Joint Boot Clamp |
| (11) | Rear Drive Shaft Outboard Joint Shaft |
