Makes 🢒 Pontiac 🢒 2009 🢒 Vibe - AWD 🢒 Transmission 🢒 Automatic Transmission - MVB 4 Speed 🢒 Disassembled Views

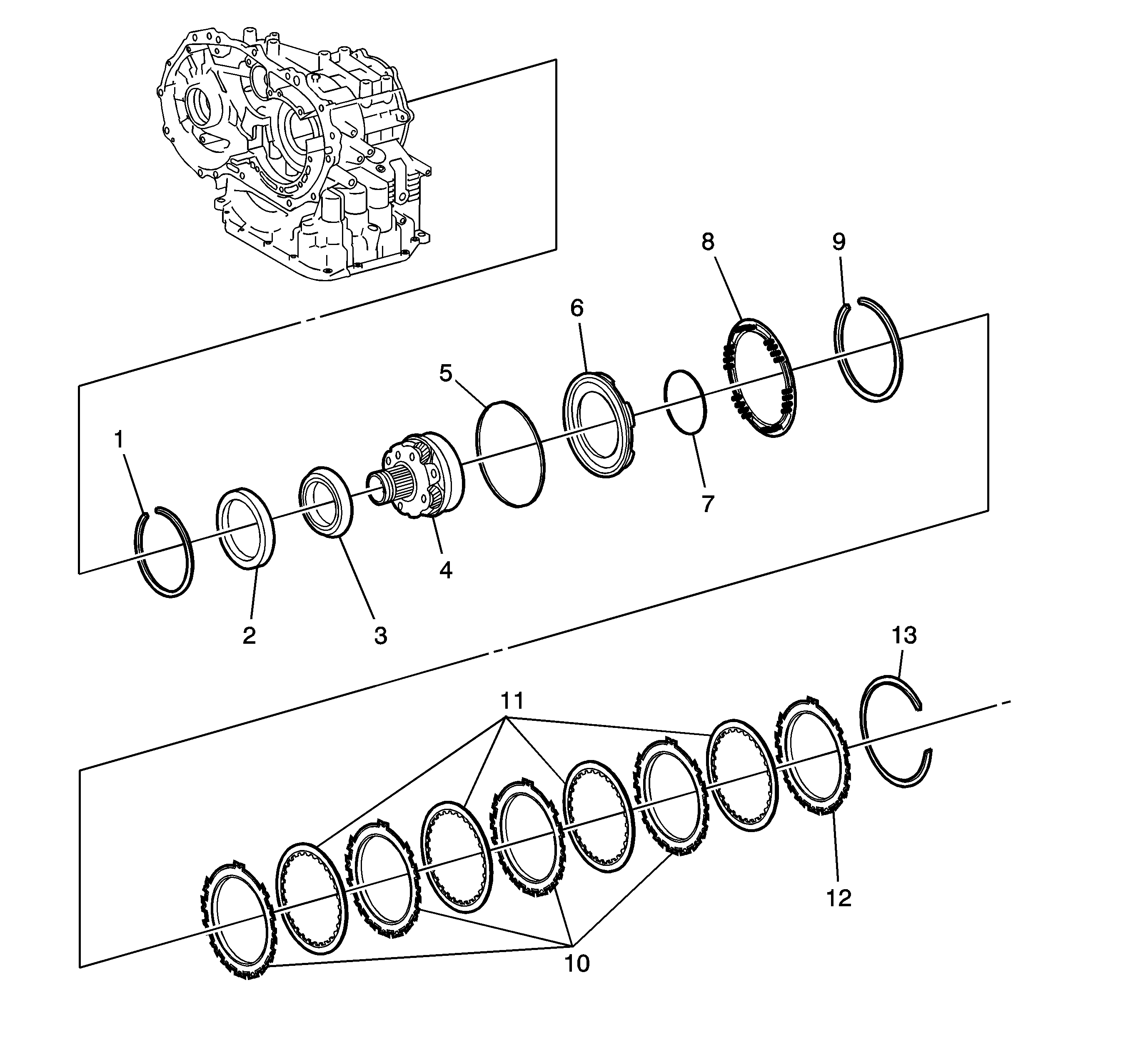

Figure 1:

1st and Reverse Brake Assembly
Object Number: 2012162 Size: FP
(1)Counter Drive Gear Hole Snap Ring
(2)Counter Drive Gear Bearing Outer Race LH
(3)Counter Drive Gear Bearing LH
(4)Planetary Gear Assembly
(5)No. 2 1st and Reverse Brake Piston O-ring
(6)No. 2 1st and Reverse Brake Piston
(7)No. 2 1st and Reverse Brake Piston O-ring
(8)1st and Reverse Brake Return Spring Sub-Assembly
(9)Snap Ring
(10)1st and Reverse Brake Plate
(11)1st and Reverse Brake Disc
(12)1st and Reverse Brake Flange
(13)Snap Ring

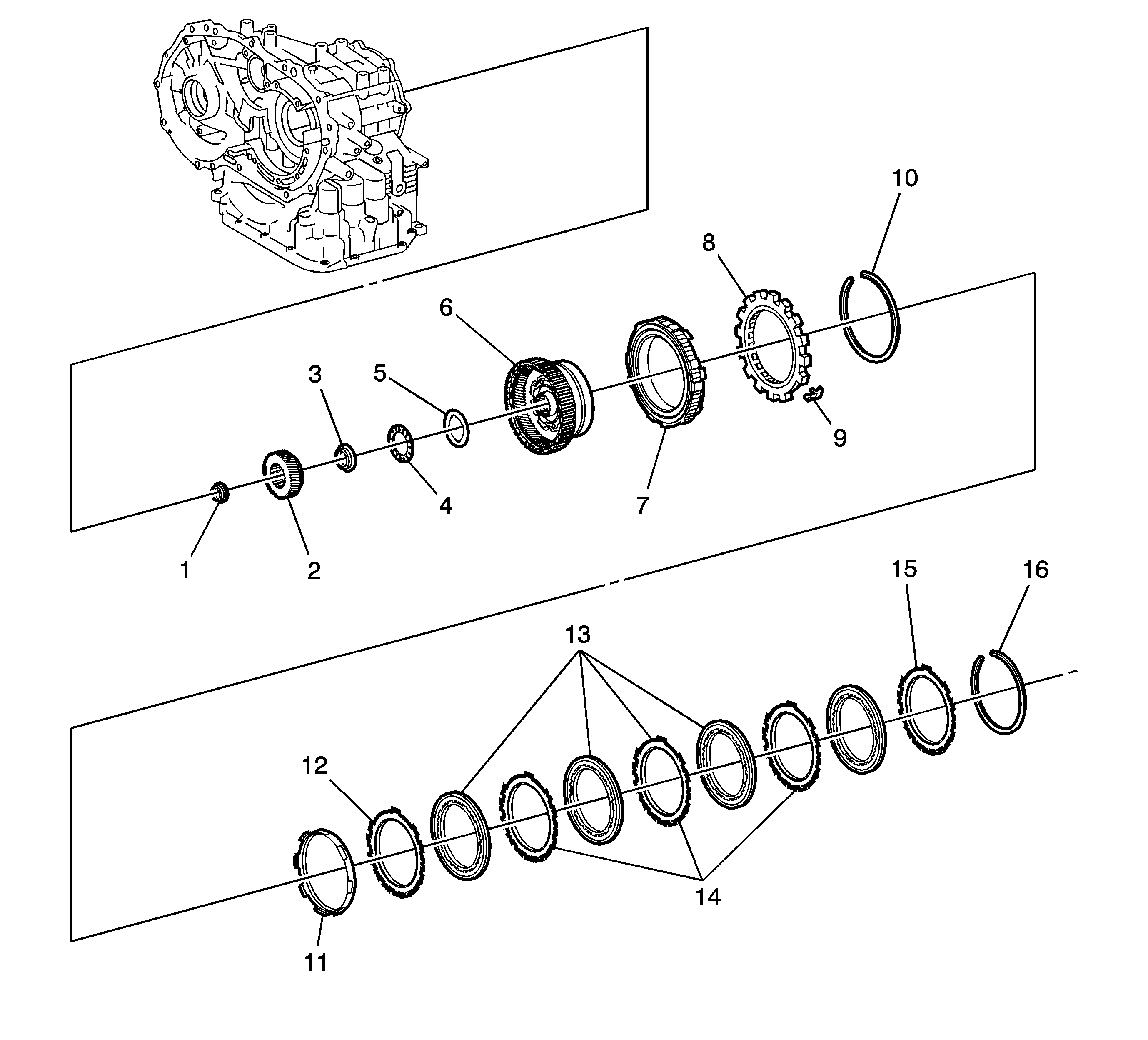

Figure 2:

2nd Brake Assembly
Object Number: 2012157 Size: FP
(1)Front Planetary Gear Thrust Needle Roller Bearing
(2)Front Planetary Sun Gear
(3)Thrust Bearing Race
(4)Rear Planetary Gear Thrust Needle Roller Bearing
(5)No. 2 Thrust Bearing Race
(6)Rear Planetary Gear Assembly
(7)2nd Brake Assembly
(8)No. 2 One-Way Clutch
(9)Outer Race Retainer
(10)Snap Ring
(11)2nd Brake Piston Sleeve
(12)2nd Brake Flange
(13)2nd Brake Disc
(14)No. 1 2nd Brake Flange
(15)2nd Brake Flange
(16)Snap Ring

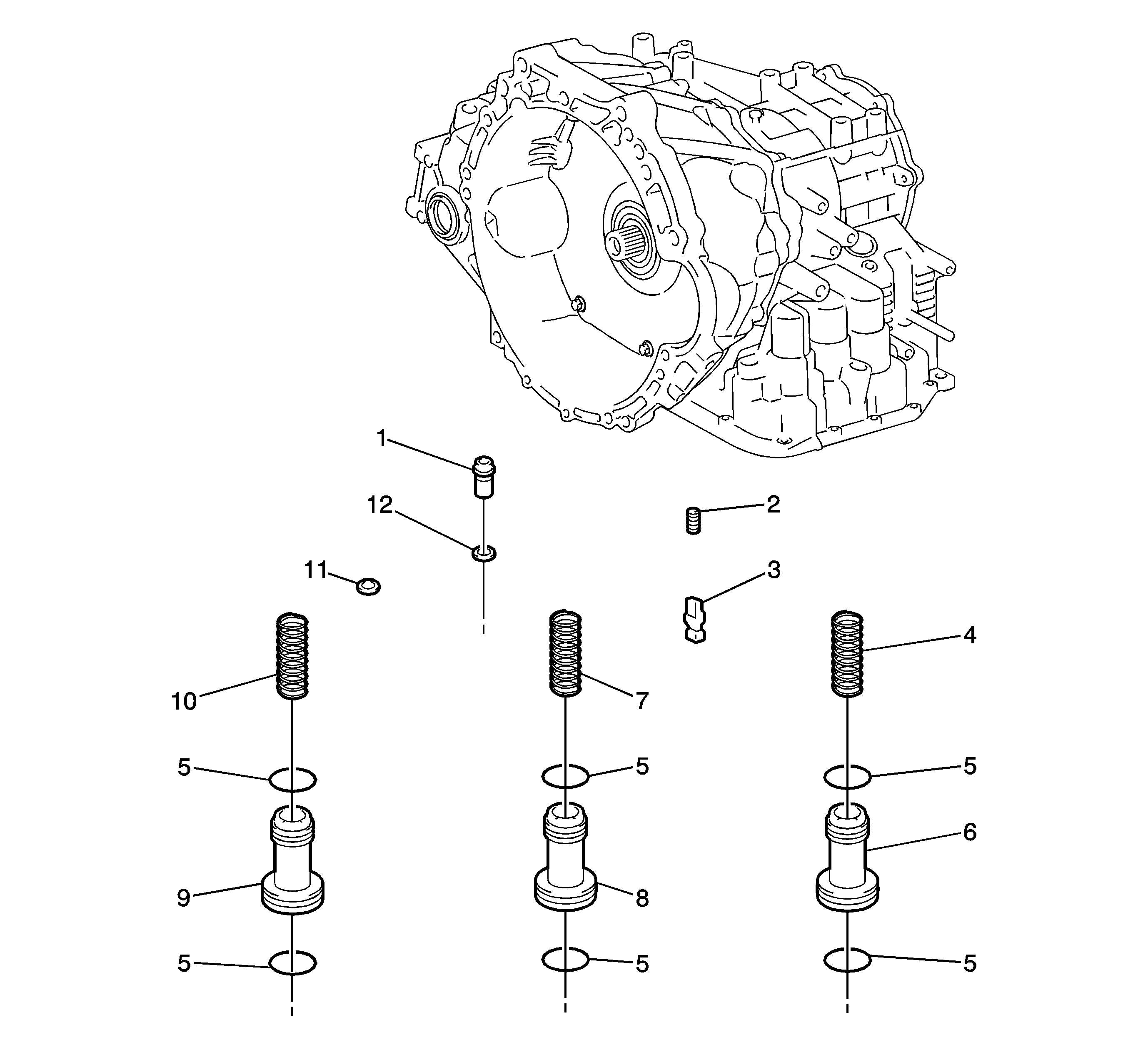

Figure 3:

Accumulator Component View
Object Number: 2012137 Size: FP
(1)Brake Drum Gasket
(2)Check Ball Body Compression Spring
(3)Check Ball Body
(4)C-2 Accumulator Piston Compression Spring
(5)O-ring
(6)C-2 Accumulator Piston
(5)O-ring
(7)C-3 Accumulator Piston Compression Spring
(5)O-ring
(8)C-3 Accumulator Piston
(5)O-ring
(5)O-ring
(9)B-2 Accumulator Piston
(5)O-ring
(10)B-2 Accumulator Piston Compression Spring
(11)Transaxle Case 2nd Brake Gasket
(12)Transaxle Case Gasket

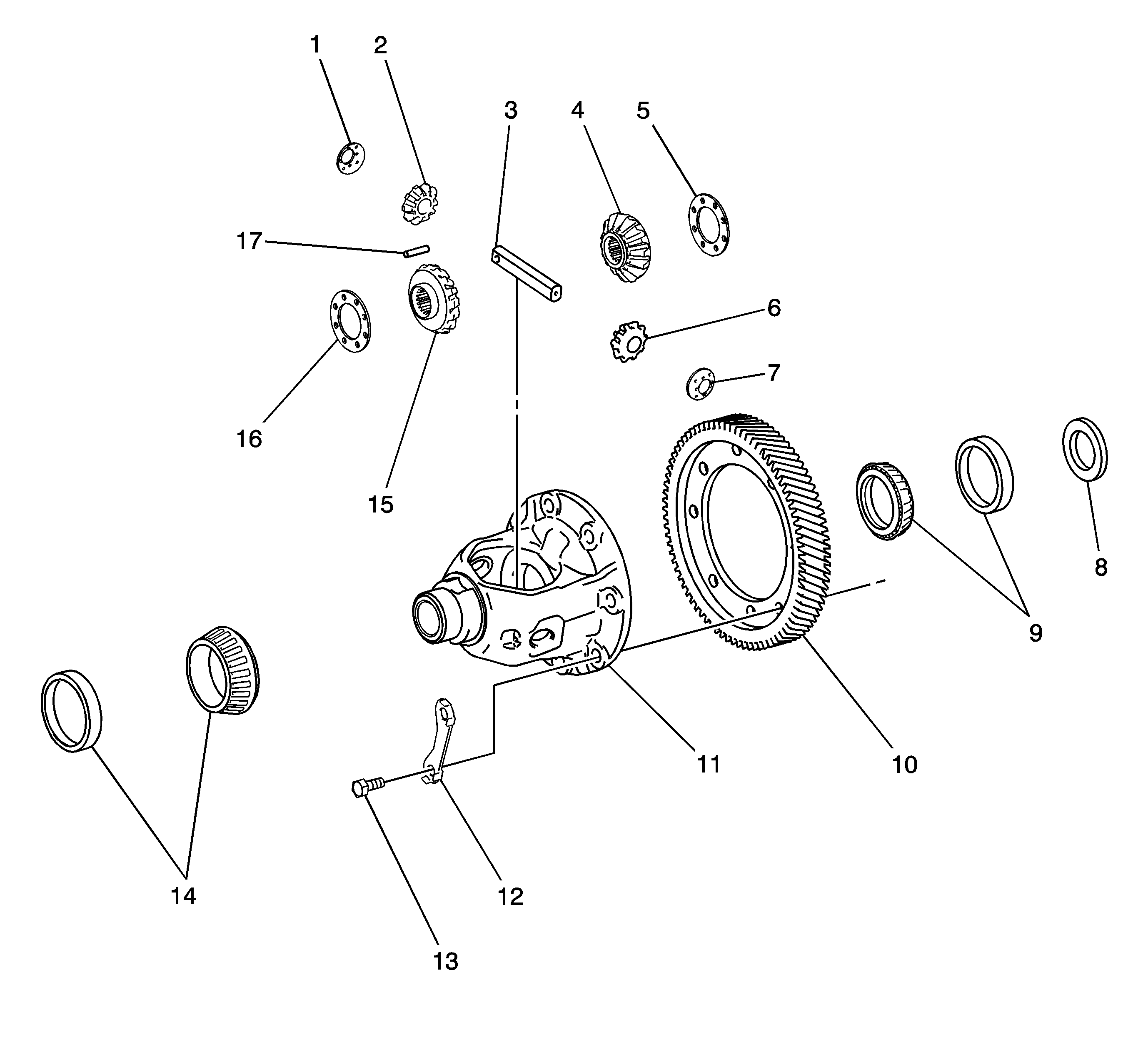

Figure 4:

Differential Case
Object Number: 2012773 Size: FP
(1)Front Differential Pinion Thrust Washer
(2)Front Differential Pinion
(3)Front No. 1 Differential Pinion Shaft
(4)Front Differential Side Gear
(5)Front Differential Side Gear Thrust Washer
(6)Front Differential Pinion
(7)Front Differential Pinion Thrust Washer
(8)Front Differential Rear Case Shim
(9)Front Differential Case Rear Tapered Roller Bearing
(10)Front Differential Ring Gear
(11)Differential Case
(12)Ring Gear Lock Plate
(13)Bolt
(14)Front Differential Case Front Tapered Roller Bearing
(15)Front Differential Side Gear
(16)Front Differential Side Gear Thrust Washer
(17)Front Differential Pinion Shaft Straight Pin

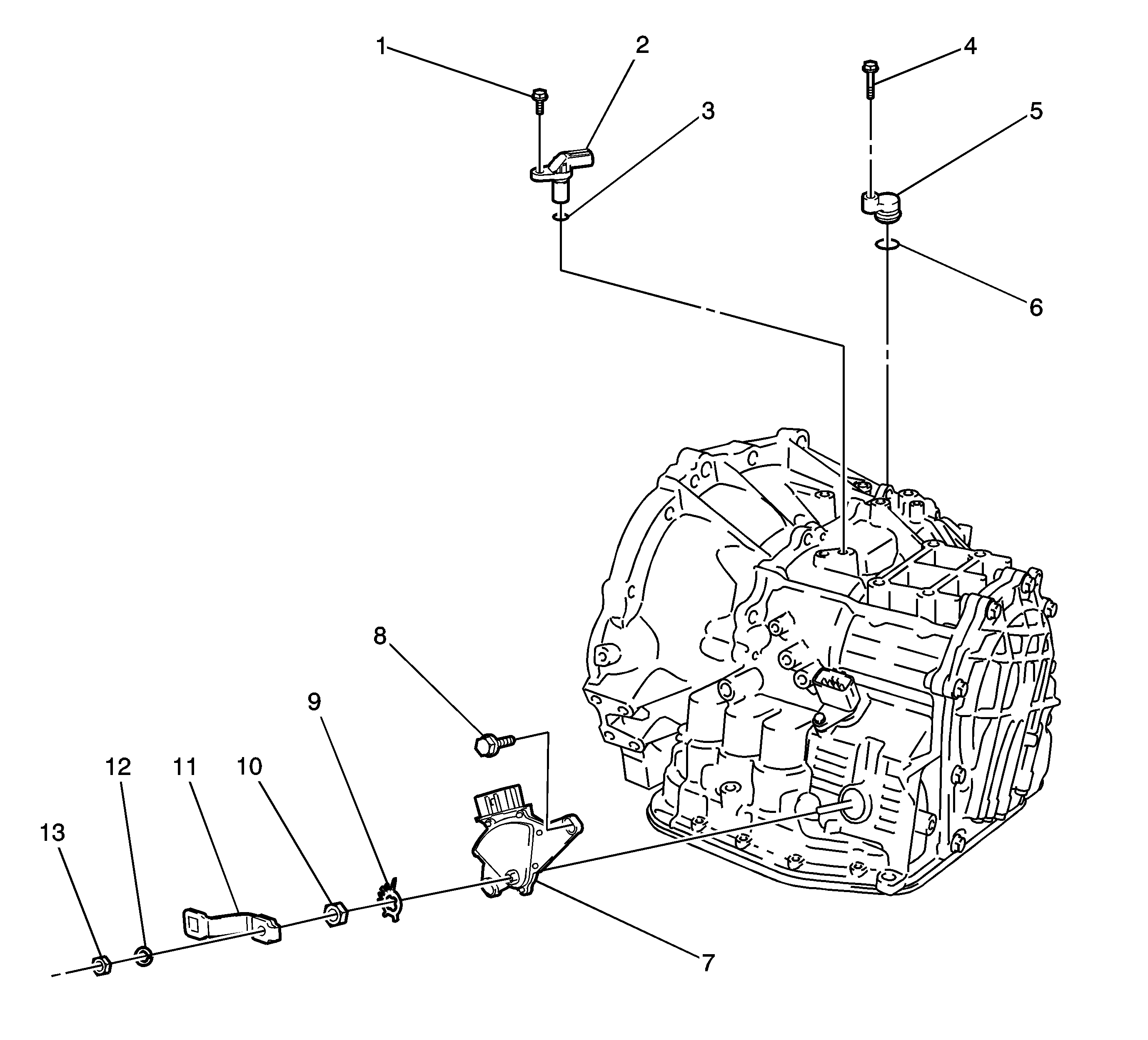

Figure 5:

External Electrical Component Locations
Object Number: 2012133 Size: LF
(1)Bolt
(2)Speed Sensor
(3)O-ring
(4)Screw
(5)Speedometer Driven Hole Cover Sub-Assembly
(6)O-ring
(7)Park/Neutral PositionSwitch Assembly
(8)Bolt
(9)Lock Plate
(10)Nut
(11)Control Shaft Lever
(12)Washer
(13)Nut

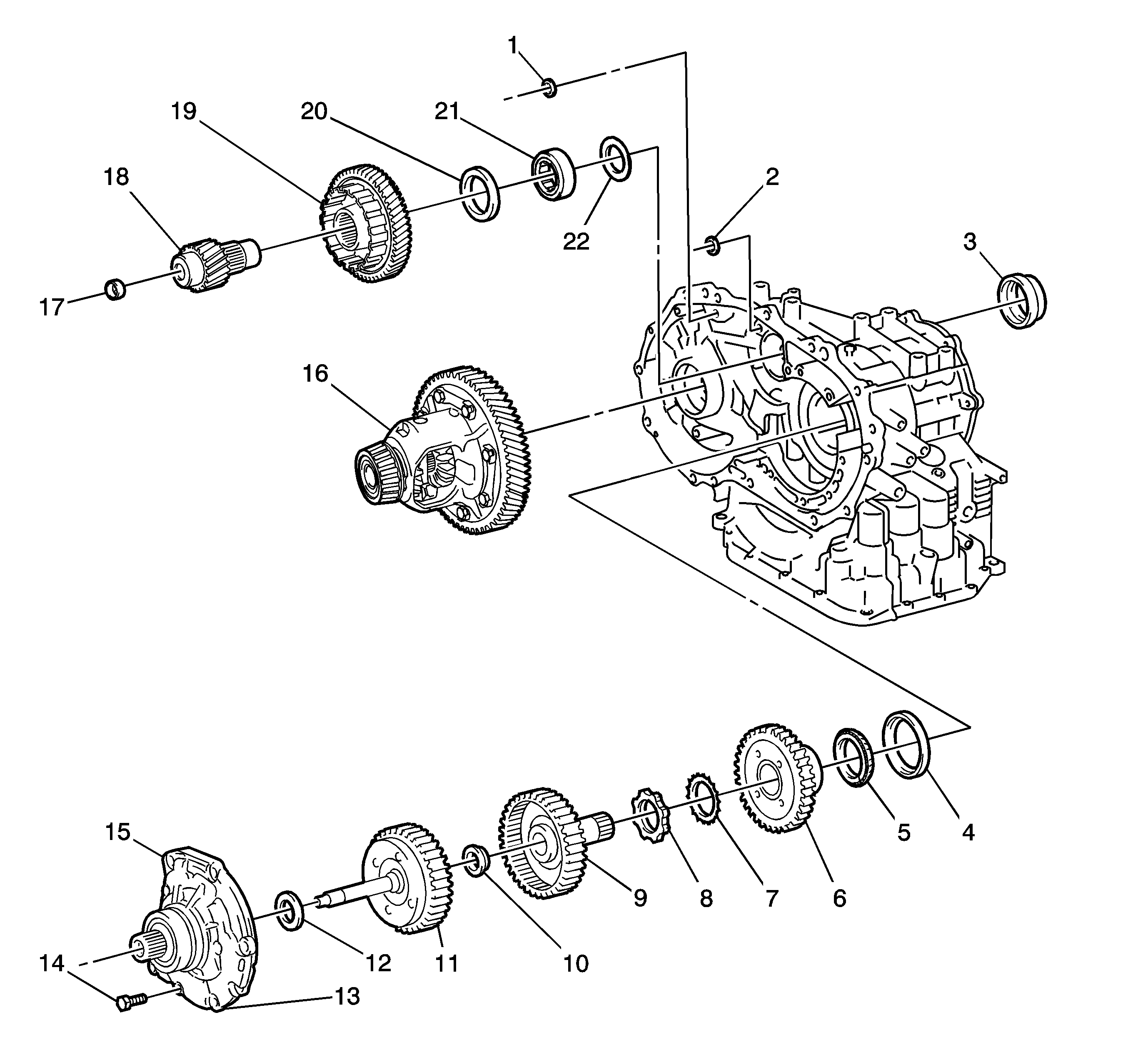

Figure 6:

Forward Clutch Hub and Related Components
Object Number: 2012145 Size: FP
(1)Overdrive Brake Gasket
(2)Overdrive Brake Gasket
(3)Front Transaxle Case Oil Seal
(4)Counter Drive Gear Bearing Outer Race RH
(5)Counter Drive Gear Bearing RH
(6)Counter Drive Gear
(7)Counter Drive Gear Lock Nut Washer
(8)Counter Drive Gear Nut
(9)Forward Clutch Hub Sub-Assembly
(10)Forward Clutch Hub Thrust Needle Roller Bearing
(11)Input Shaft Assembly
(12)Stator Shaft Thrust Needle Roller Bearing
(13)Oil Pump Assembly Gasket
(14)Bolt
(15)Oil Pump Assembly
(16)Differential Gear Assembly
(17)Differential Drive Pinion Plug
(18)Differential Drive Pinion
(19)Counter Driven Gear
(20)Drive Pinion Thrust Bearing LH
(21)Front Drive Pinion Rear Tapered Roller Bearing
(22)No. 1 Transaxle Case Plate

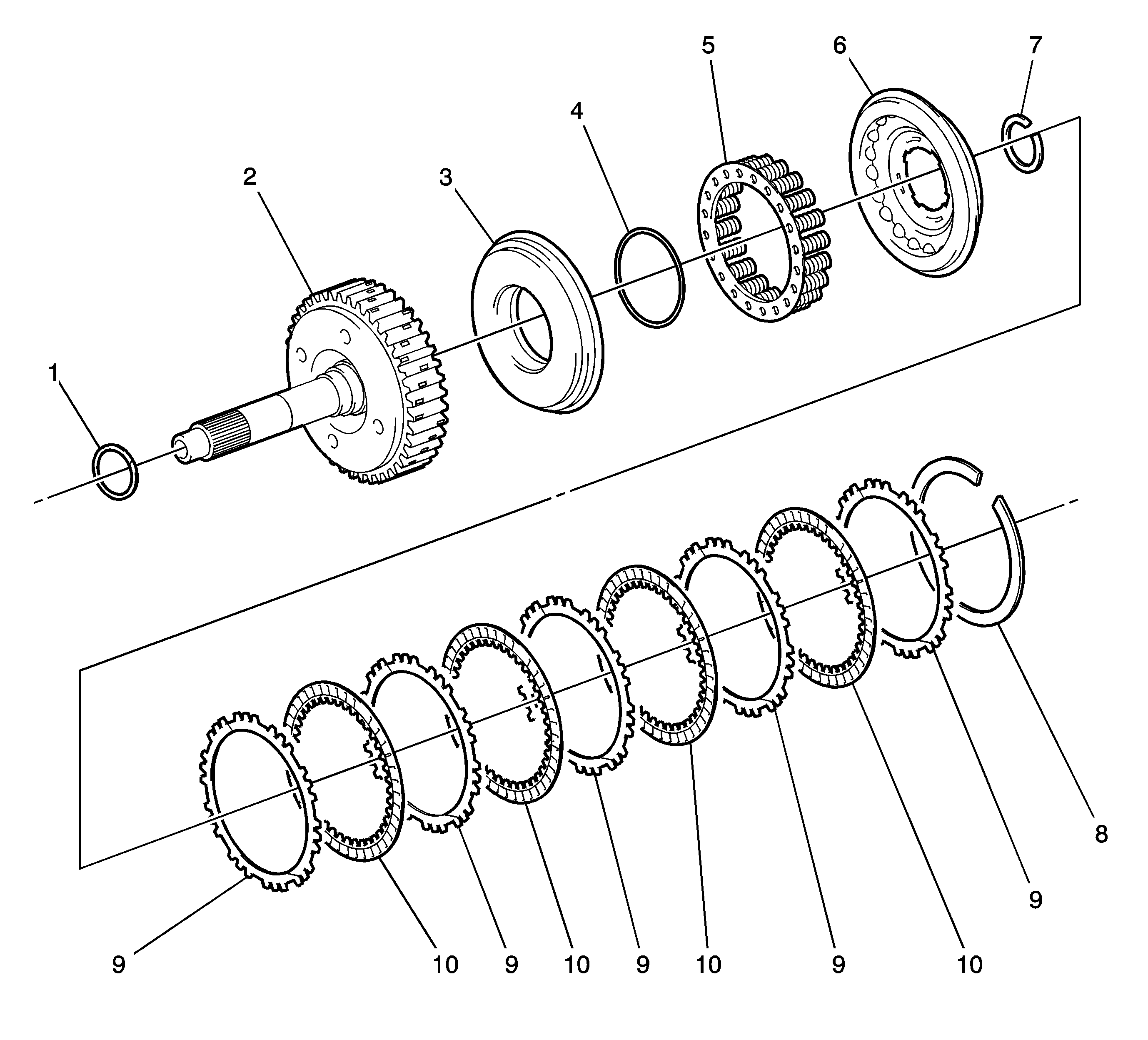

Figure 7:

Input Shaft Assembly
Object Number: 2012147 Size: FP
(1)Input Shaft Oil Seal Ring
(2)Input Shaft
(3)Forward Clutch Piston
(4)Forward Clutch Piston O-ring
(5)Forward Clutch Return Spring Sub-Assembly
(6)No. 1 Clutch Balancer
(7)Snap Ring
(8)Snap Ring
(9)Forward Clutch Flange
(10)Front Clutch Disc
(9)Forward Clutch Flange
(10)Front Clutch Disc
(9)Forward Clutch Flange
(10)Front Clutch Disc
(9)Forward Clutch Flange
(10)Front Clutch Disc
(9)Forward Clutch Flange

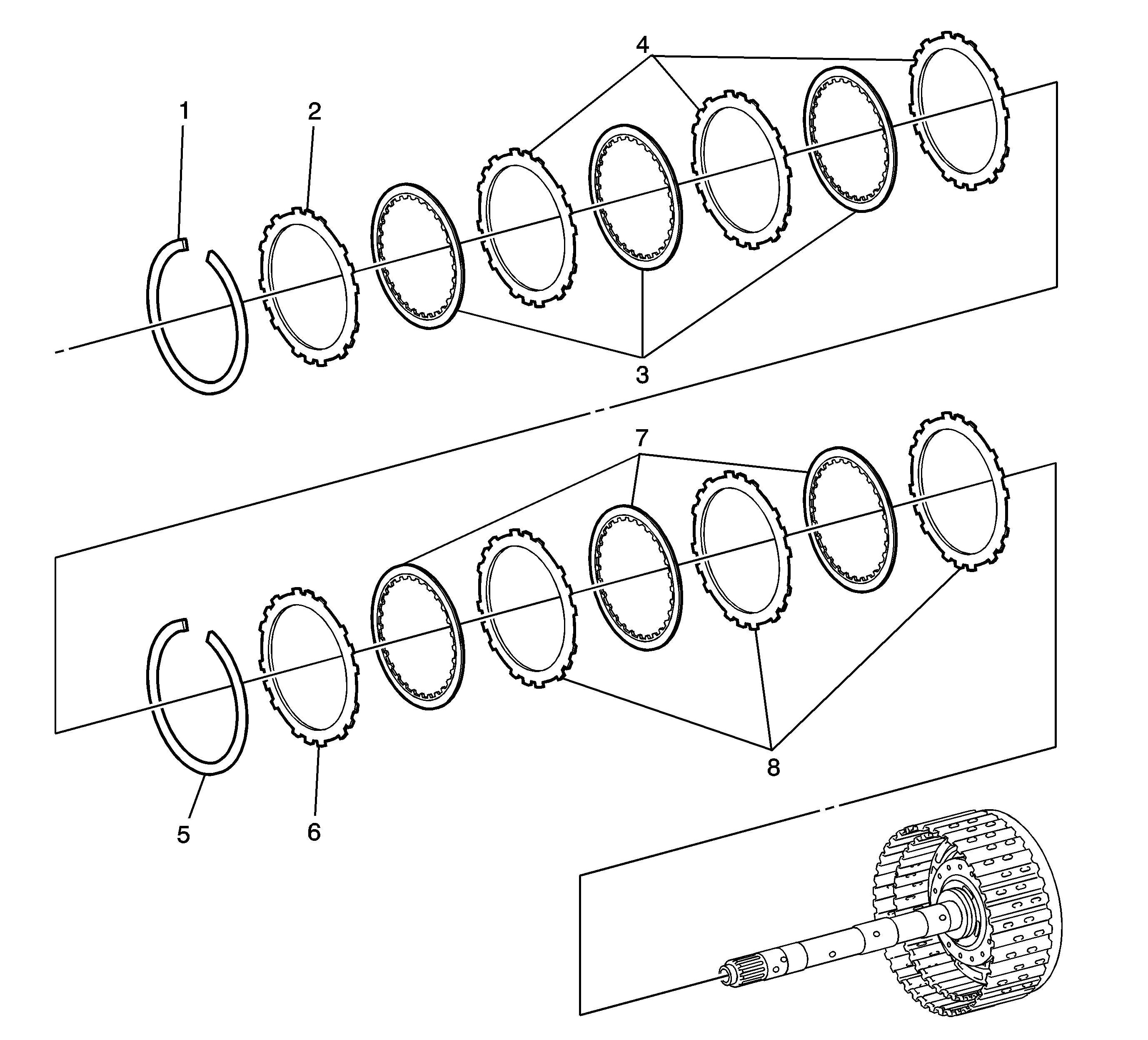

Figure 8:

Intermediate Shaft Assembly Part 1 of 3
Object Number: 2012152 Size: FP
(1)Snap Ring
(2)Reverse Clutch Flange
(3)Reverse Clutch Disc
(4)No. 3 Clutch Plate
(5)Snap Ring
(6)Direct Clutch Flange
(7)Direct Clutch Disc
(8)Rear Clutch Flange

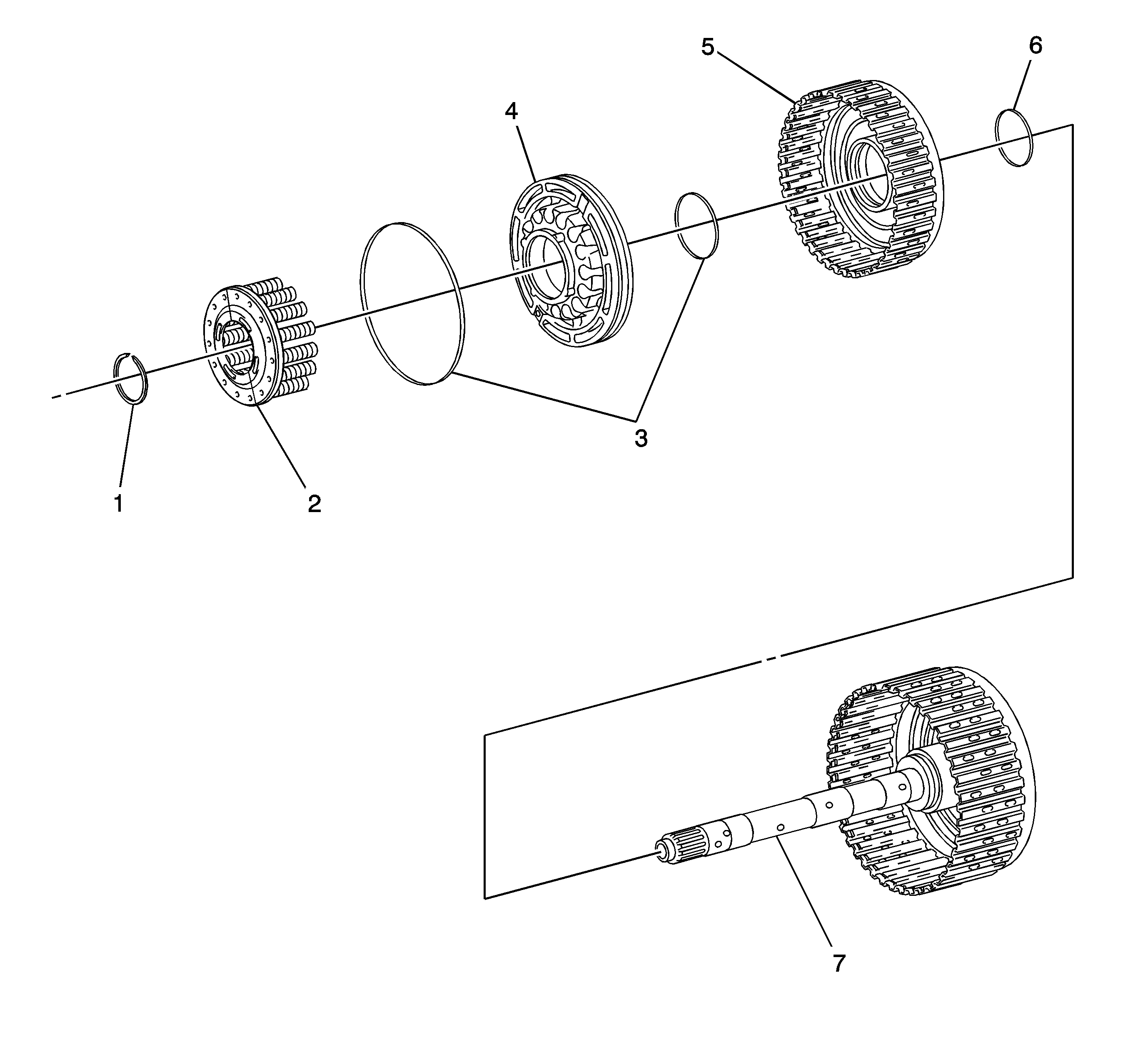

Figure 9:

Intermediate Shaft Assembly Part 2 of 3
Object Number: 2012154 Size: FP
(1)Snap Ring
(2)Direct Clutch Return Spring Sub-Assembly
(3)Direct Clutch Piston O-Ring
(4)Direct Clutch Piston Sub-Assembly
(5)Direct Clutch Drum Sub-Assembly
(6)Direct Clutch Drum O-Ring
(7)Intermediate Shaft

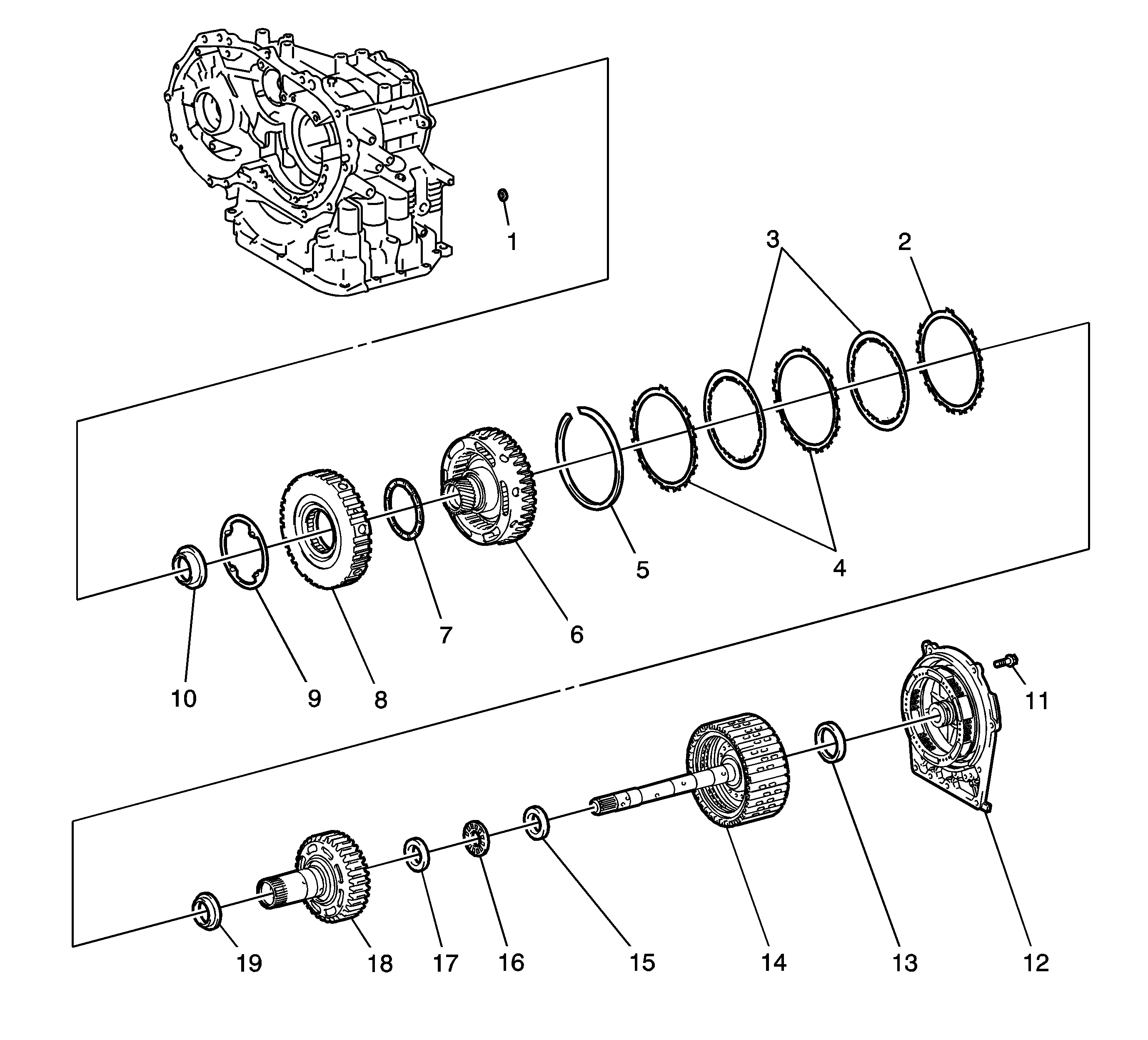

Figure 10:

Intermediate Shaft Assembly Part 3 of 3
Object Number: 2012150 Size: FP
(1)Transaxle Case Gasket
(2)2nd Coast and Overdrive Brake Flange
(3)2nd Coast and Overdrive Brake Disc
(4)No. 2 2nd Coast and Overdrive Brake Flange
(5)Snap Ring
(6)Rear Planetary Sun Gear Assembly
(7)No. 2 Planetary Carrier Thrust Washer
(8)One-Way Clutch Assembly
(9)No. 1 Planetary Carrier Thrust Washer
(10)Rear Planetary Sun Gear Thrust Needle Roller Bearing
(11)Bolt
(12)Rear Transaxle Cover Assembly
(13)Rear Clutch Drum Thrust Needle Roller Bearing
(14)Intermediate Shaft Assembly
(15)C-2 Hub Thrust Bearing Race
(16)Thrust Needle Roller Bearing
(17)No. 3 Thrust Bearing Race
(18)Direct Clutch Hub
(19)Rear No. 2 Planetary Sun Gear Thrust Needle Roller Bearing

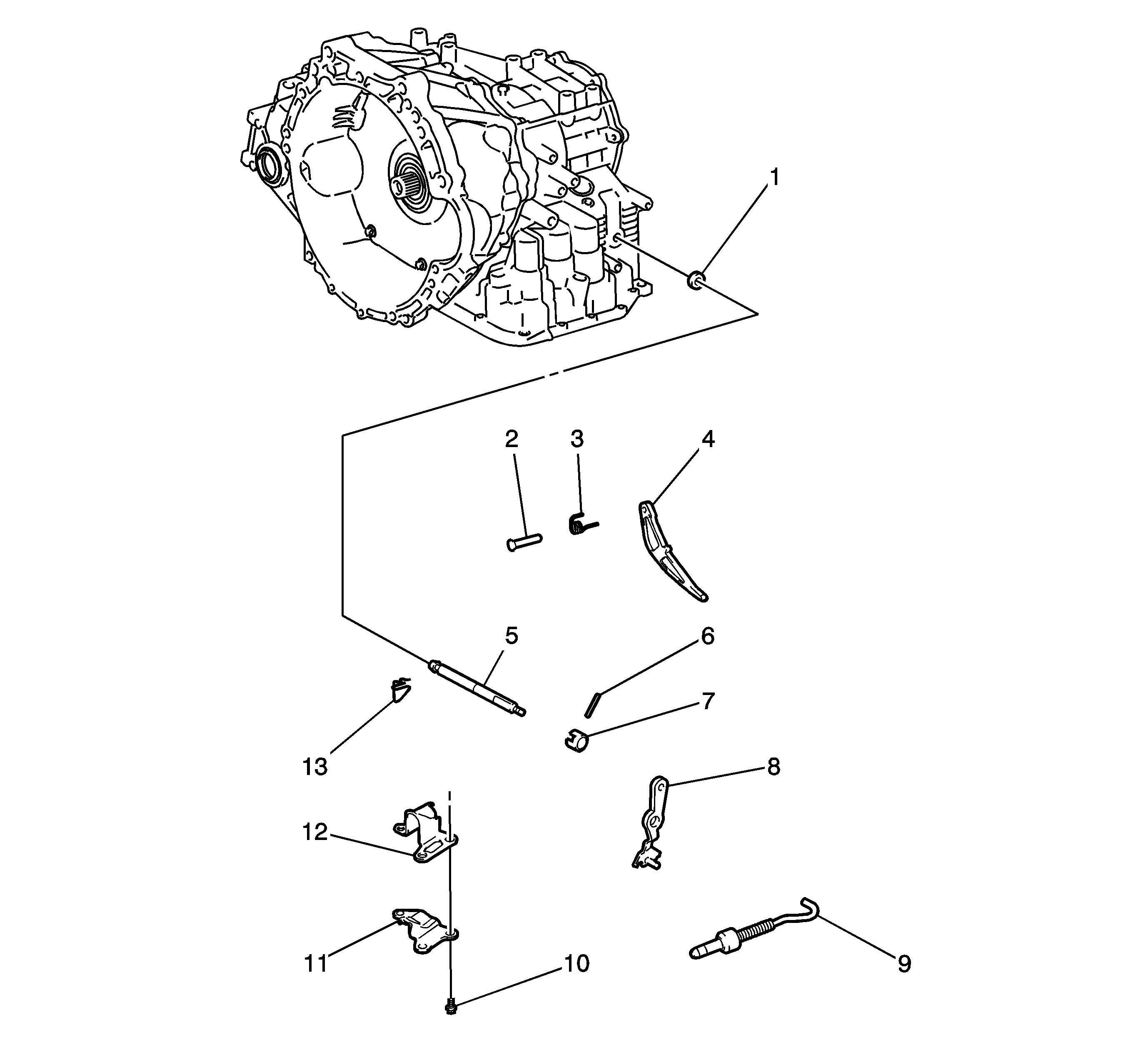

Figure 11:

Manual Lever Component View
Object Number: 2012140 Size: FP
(1)Manual Valve Lever Shaft Oil Seal
(2)Parking Lock Pawl Shaft
(3)Parking Lock Pawl Shaft Torsion Spring
(4)Parking Lock Pawl
(5)Manual Valve Lever Shaft
(6)Manual Valve Lever Shaft Spring Pin
(7)Manual Valve Lever Shaft Spacer
(8)Manual Valve Lever Sub-Assembly
(9)Parking Lock Rod Sub-Assembly
(10)Bolt
(11)Parking Lock Pawl Bracket
(12)Parking Lock Cam Guide
(13)Manual Valve Lever Shaft Retainer Spring

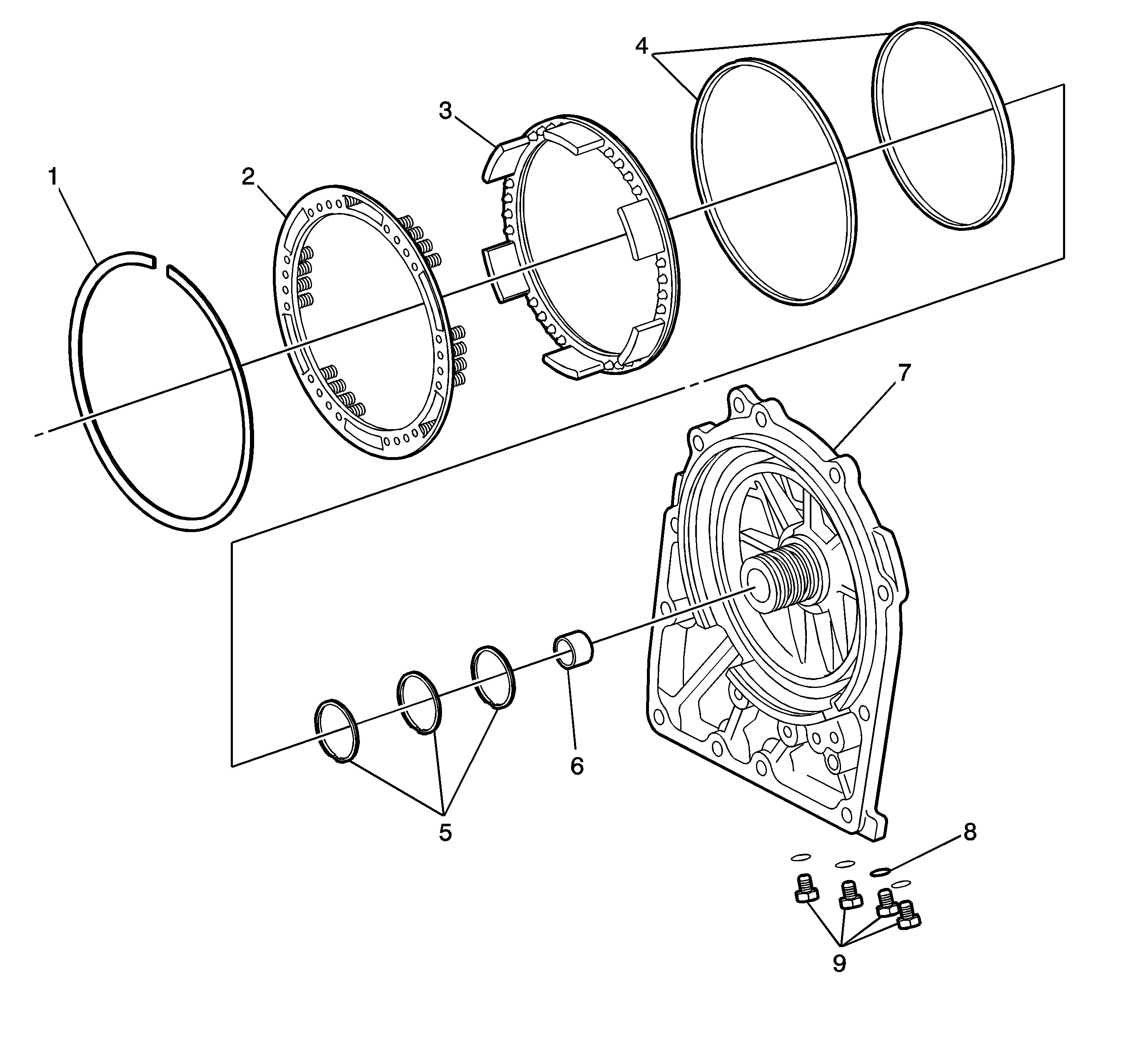

Figure 12:

Rear Transaxle Cover Assembly
Object Number: 2012156 Size: FP
(1)Snap Ring
(2)Overdrive Brake Return Spring Sub-Assembly
(3)2nd Coast and Overdrive Brake Piston
(4)2nd Coast and Overdrive O-ring
(5)Clutch Drum Oil Seal Ring
(6)Rear Transaxle Cover Needle Roller Bearing
(7)Rear Transaxle Cover
(8)O-ring
(9)Rear Transaxle Cover Plug

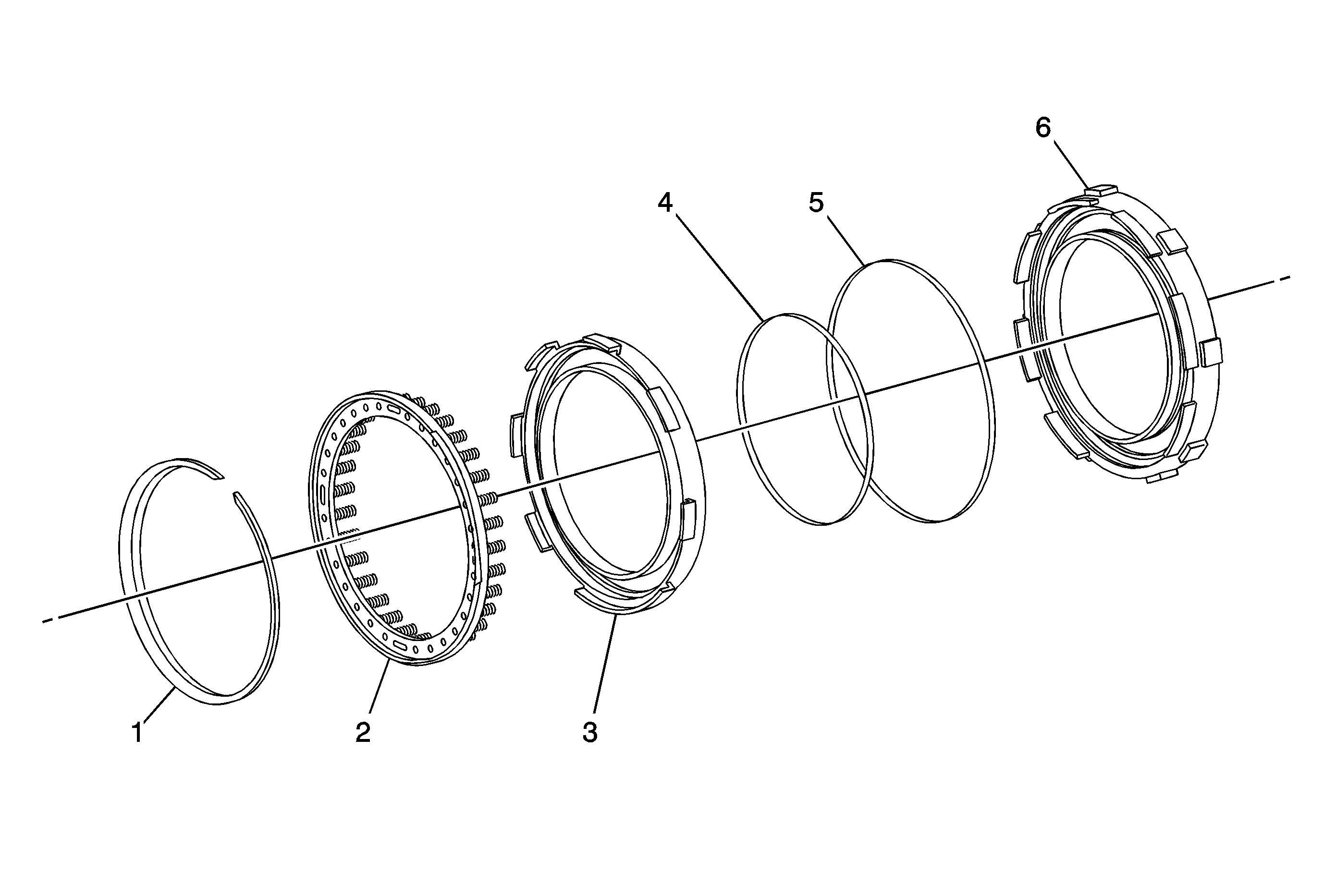

Figure 13:

Second Brake Piston Assembly
Object Number: 2012159 Size: MF
(1)Snap Ring
(2)2nd Brake Piston Return Spring Sub-Assembly
(3)2nd Brake Piston
(4)2nd Brake Cylinder O-ring
(5)2nd Brake Cylinder O-ring
(6)2nd Brake Cylinder

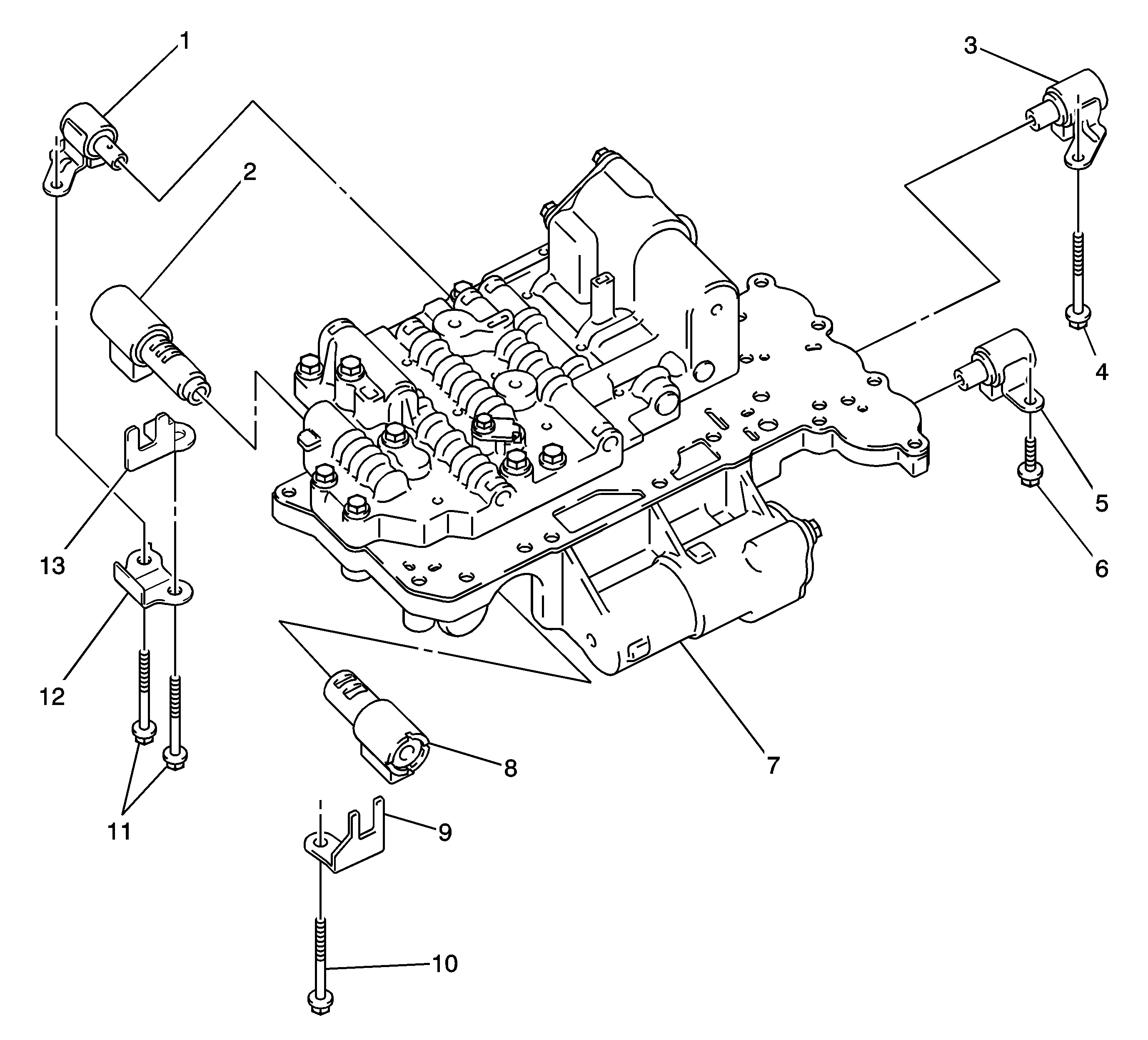

Figure 14:

Shift Solenoid Locations
Object Number: 2011818 Size: FP
(1)Shift Solenoid Valve ST
(2)Shift Solenoid Valve SLT
(3)Shift Solenoid Valve S1
(4)Shift Solenoid Valve Bolt
(5)Shift Solenoid Valve S2
(6)Shift Solenoid Valve Bolt
(7)Valve Body
(8)Shift Solenoid Valve SLU
(9)Lock Plate
(10)Lock Plate Bolt
(11)Lock Plate Bolt
(12)No. 3 Solenoid Lock Plate
(13)No. 1 Solenoid Lock Plate

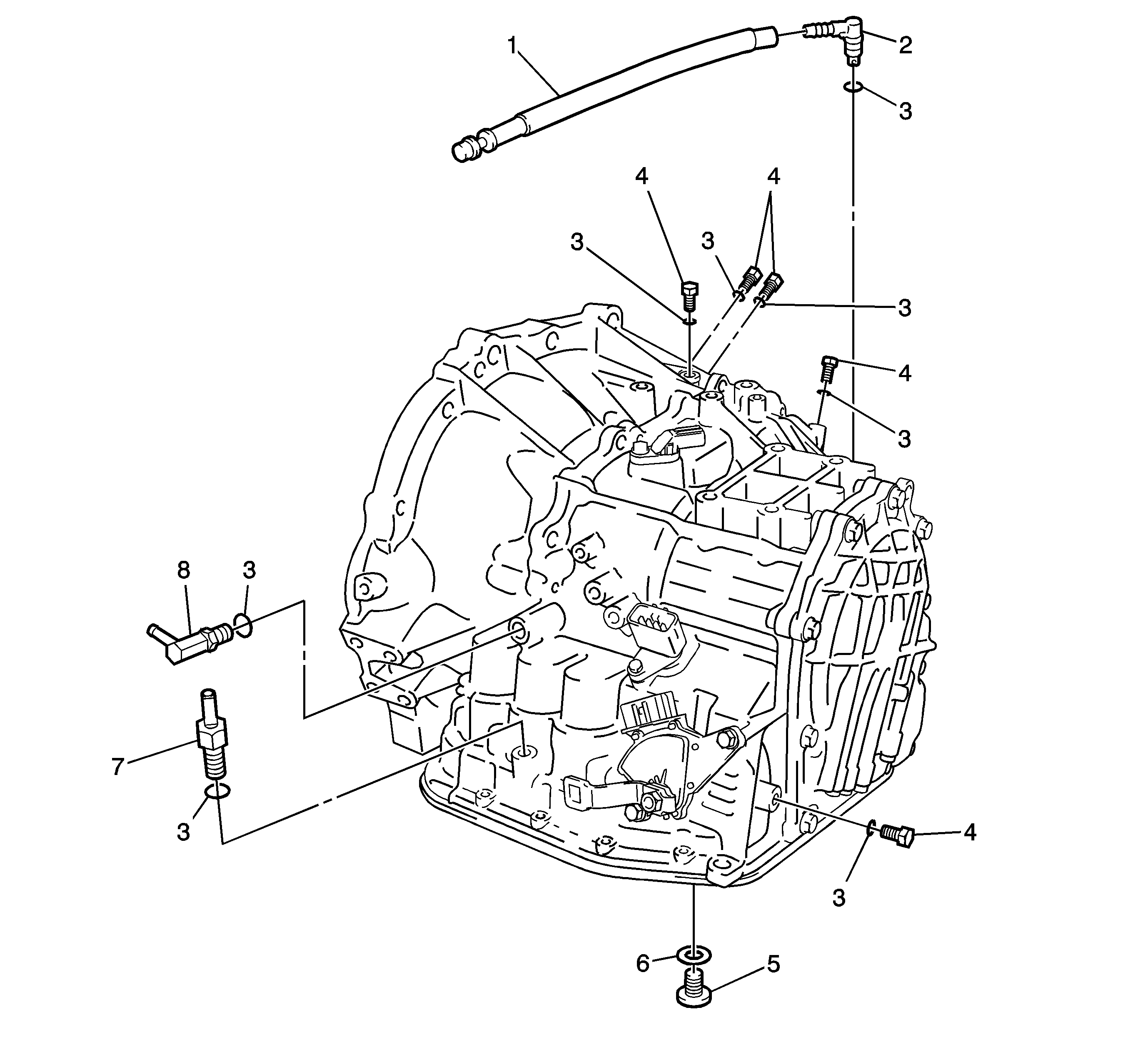

Figure 15:

Transmission Plug Locations
Object Number: 2012130 Size: LF
(1)Breather Plug Hose
(2)Breather Plug
(3)O-ring
(4)No. 1 Transaxle Case Plug
(3)O-ring
(4)No. 1 Transaxle Case Plug
(3)O-ring
(3)O-ring
(4)No. 1 Transaxle Case Plug
(3)O-ring
(3)O-ring
(3)O-ring
(3)O-ring
(4)
(5)Drain Plug
(6)Gasket
(7)Oil Cooler Tube Union
(8)Oil Cooler Tube Union

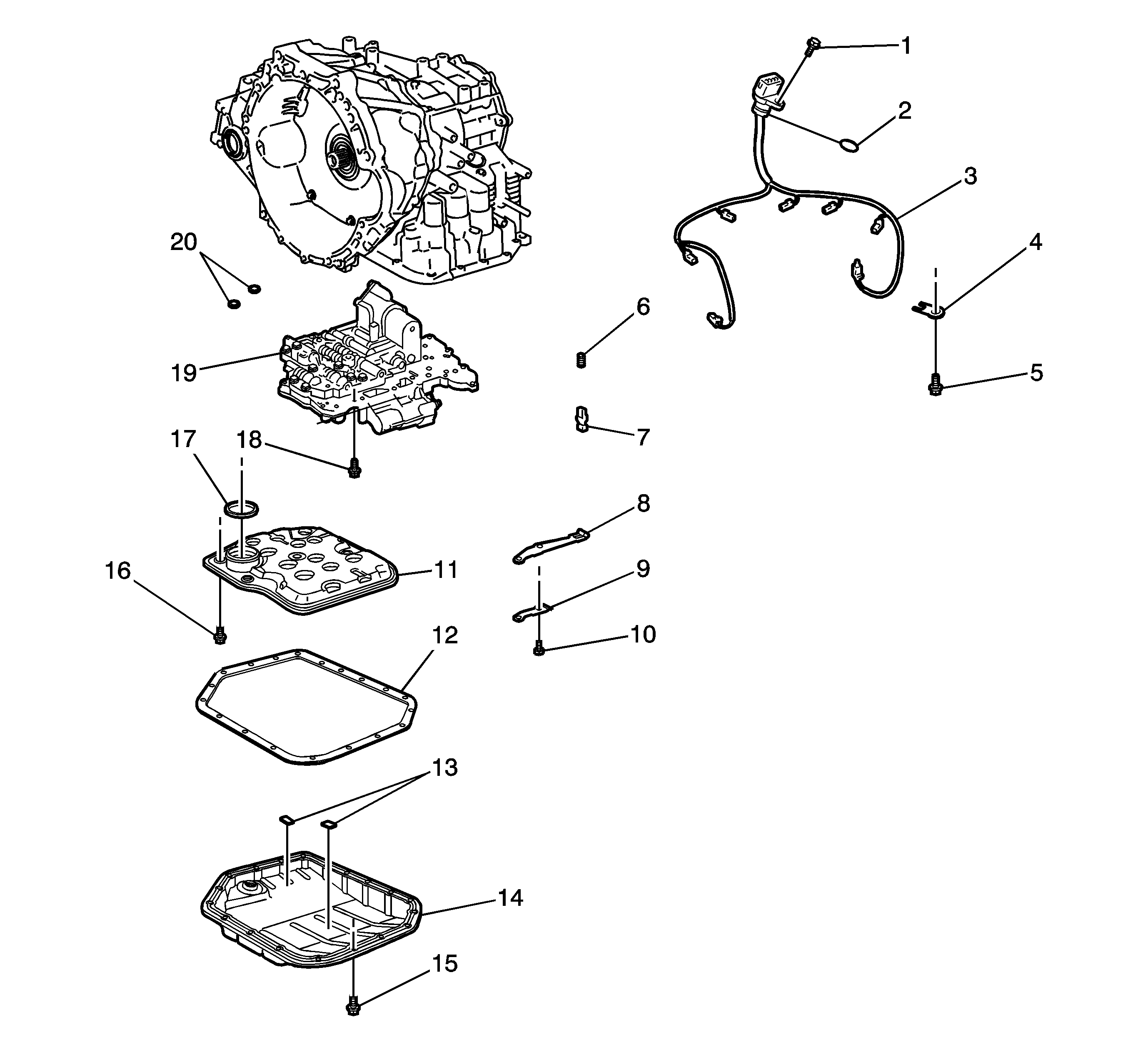

Figure 16:

Valve Body and Related Components
Object Number: 2011802 Size: FP
(1)Bolt
(2)O-ring
(3)Transmission Wire
(4)Lock Plate
(5)Bolt
(6)Check Ball Body Spring
(7)Check Ball Body
(8)Manual Detent Spring
(9)Manual Detent Spring Cover
(10)Bolt
(11)Valve Body Oil Strainer Assembly
(12)Oil Pan Gasket
(13)Magnet
(14)Automatic Transaxle Oil Pan Sub-Assembly
(15)Bolt
(16)Bolt
(17)Oil Strainer Gasket
(18)Bolt
(19)Transmission Valve Body Assembly
(20)Transaxle Case 2nd Brake Gasket
