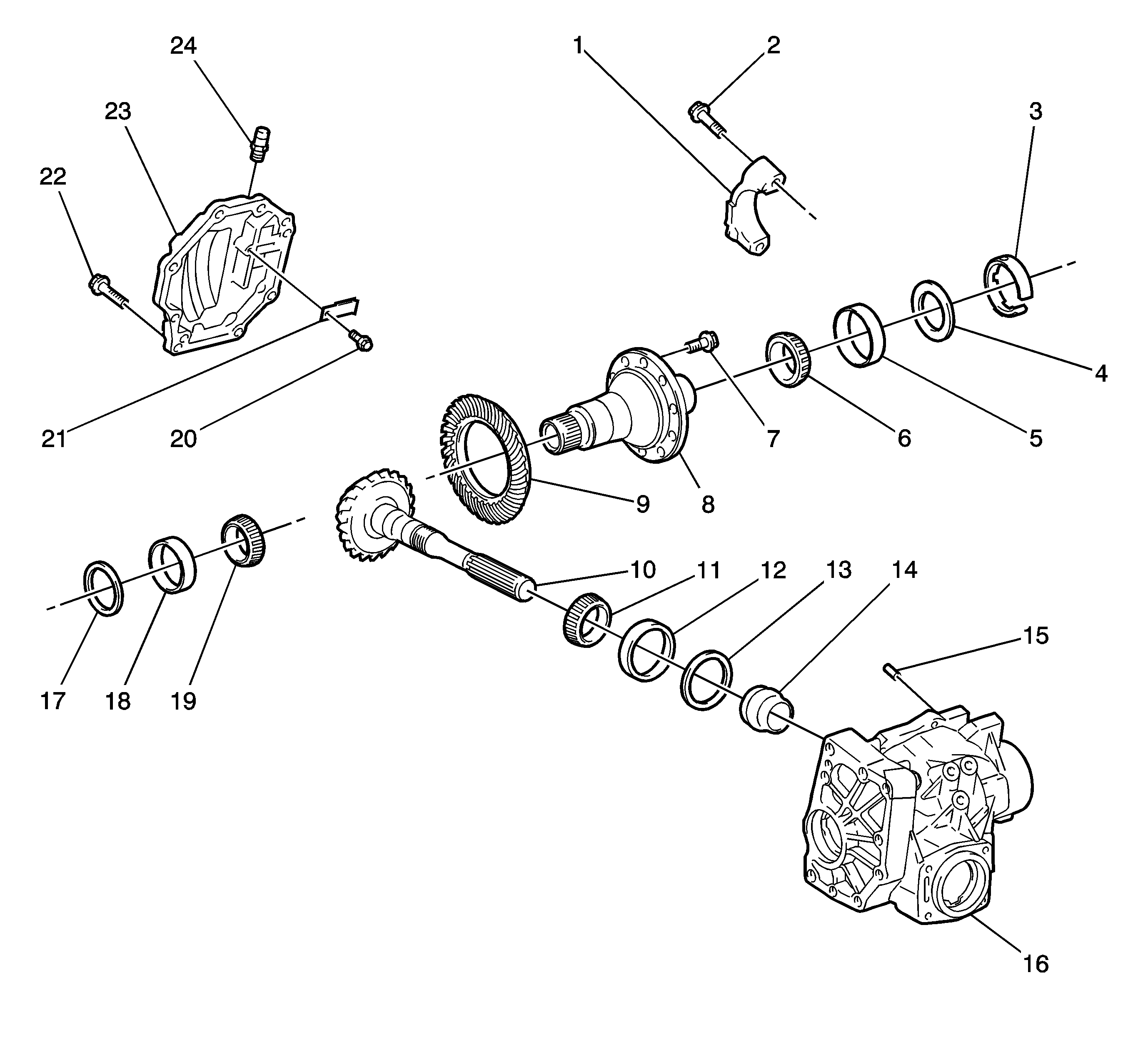

| (1) | Bearing Cap |
| (2) | Bolt |
| (3) | No. 1 Transfer Output Shaft Spacer |
| (4) | No. 2 Transfer Ring Gear Mounting Case Washer |
| (5) | Ring Gear Mounting Case Bearing |
| (6) | Ring Gear Mounting Case Bearing |
| (7) | Bolt |
| (8) | Transfer Ring Gear Mounting Case |
| (9) | Ring Gear |
| (10) | Driven Pinion |
| (11) | Transfer Driven Pinion Front Bearing |
| (12) | Transfer Driven Pinion Front Bearing |
| (13) | Transfer Output Shaft Washer |
| (14) | Transfer Pinion Bearing Spacer |
| (15) | Transfer Case Straight Pin |
| (16) | Transfer Case |
| (17) | Ring Gear Mounting Case Plate Washer |
| (18) | Ring Gear Mounting Case Bearing |
| (19) | Ring Gear Mounting Case Bearing |
| (20) | Bolt |
| (21) | Breather Oil Deflector |
| (22) | Bolt |
| (23) | No. 1 Transfer Case Cover |
| (24) | Transfer Case Breather Plug |
