| Table 1: | Underbody Dimensions 2-Wheel Drive 1 |
| Table 2: | Underbody Dimensions 2-Wheel Drive 2 |
| Table 3: | Underbody Dimensions All Wheel Drive #1 |
| Table 4: | Underbody Dimensions All Wheel Drive #2 |
| Table 5: | Front Body Dimensions |
| Table 6: | Body Side Dimensions (Front Door Opening) |
| Table 7: | Body Side Dimensions (Rear Door Opening) |
| Table 8: | Rear Body Dimensions |

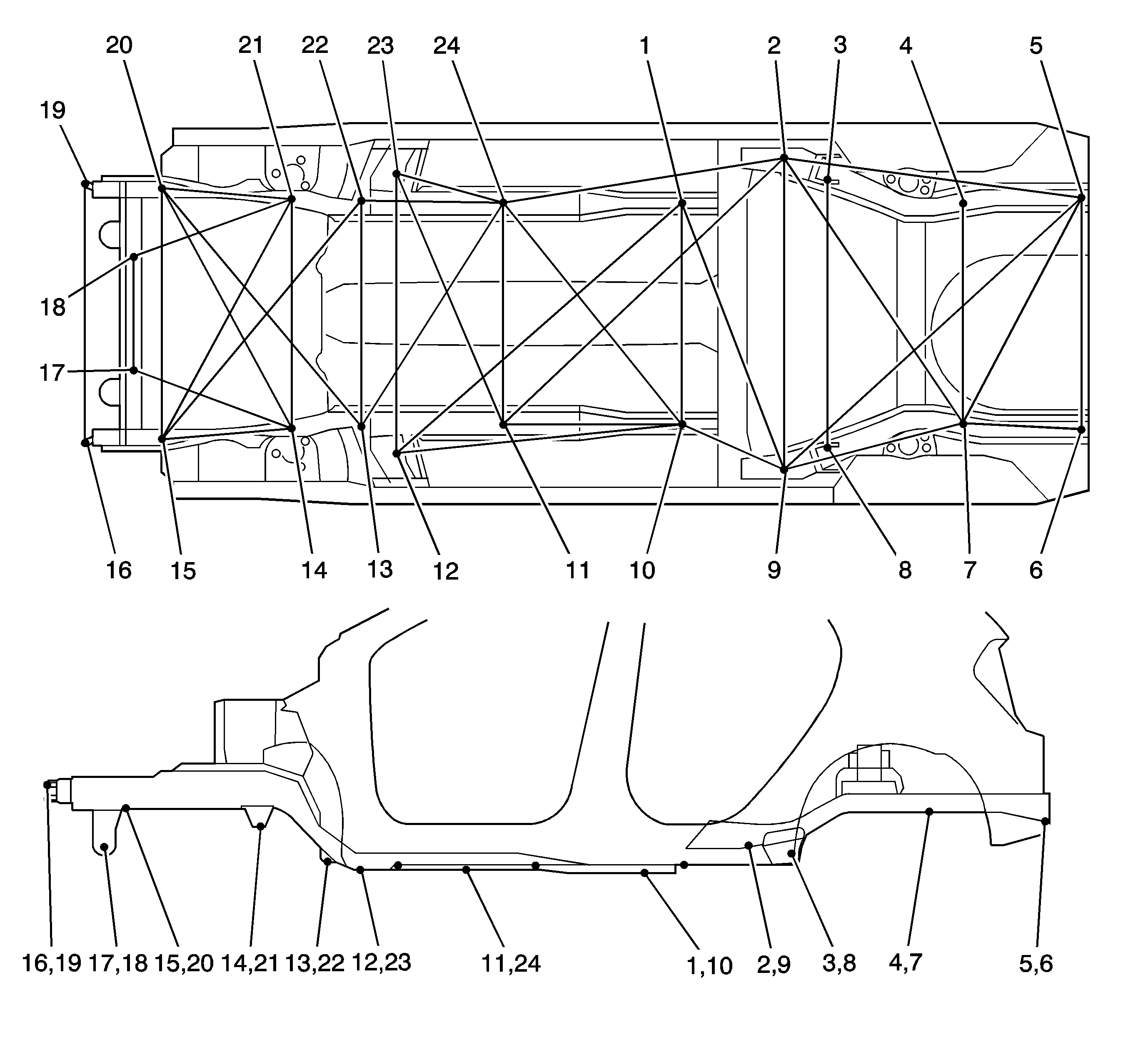

Underbody Dimensions 2-Wheel Drive
Measurement Points | Distance from Centerline | Measurement Points | Distance from Vertical Imaginary Standard Line |
|---|---|---|---|
1, 10 | 870 mm (34.25 in) | 1, 10 | 53 mm (2.09 in) |
2, 9 | 1,228 mm (48.35 in) | 2, 9 | 147 mm (5.79 in) |
3, 8 | 1,035 mm (40.75 in) | 3, 8 | 125 mm (4.92 in) |
4, 7 | 874 mm (34.41 in) | 4, 7 | 299 mm (11.77 in) |
5, 6 | 929 mm (36.57 in) | 5, 6 | 263 mm (10.35 in) |
11, 24 | 870 mm (34.25 in) | 11, 24 | 59mm (2.32 in) |
12, 23 | 1,100 mm (43.31 in) | 12, 23 | 65 mm (2.56 in) |
13, 22 | 890 mm (35.04 in) | 13, 22 | 92 mm (3.62 in) |
14, 21 | 912 mm (35.91 in) | 14, 21 | 233 mm (9.17 in) |
15 , 20 | 985 mm (38.78 in) | 15 , 20 | 321 mm (12.64 in) |
16, 19 | 1,013 mm (39.88 in) | 16, 19 | 396 mm (15.59 in) |
17, 18 | 517 mm (20.35 in) | 17, 18 | 151 mm (5.94 in) |
Underbody Dimensions 2-Wheel Drive
Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
1-9 | 1,129 mm (44.45 in) | 10-12 | 1,126 mm (44.33 in) |
1-10 | 870 mm (34.25 in) | 10-24 | 1,116 mm (43.94 in) |
1-12 | 1,491 mm (58.70 in) | 11-23 | 1,071 mm (42.17 in) |
2-5 | 1,204 mm (47.40 in) | 11-24 | 870 mm (34.25 in) |
2-7 | 1,282 mm (50.47 in) | 12-23 | 1,100 mm (43.31 in) |
2-19 | 1,228 mm (48.35 in) | 13-20 | 1,263 mm (49.72 in) |
2-11 | 1,527 mm (60.12 in) | 13-22 | 890 mm (35.04 in) |
2-24 | 1,125 mm (44.29 in) | 13-24 | 1,042 mm (41.02 in) |
3-8 | 1,035 mm (40.75 in) | 13-15 | 985 mm (33.03 in) |
4-7 | 874 mm (34.41 in) | 14-15 | 533 mm (20.98 in) |
5-6 | 929 mm (36.57 in) | 14-17 | 660 mm (25.98 in) |
5-7 | 1,018 mm (40.08 in) | 14-20 | 1,093 mm (43.03 in) |
5-9 | 1,609 mm (63.35 in) | 14-21 | 912 mm (35.91 in) |
6-7 | 473 mm (18.62 in) | 15-20 | 985 mm (38.78 in) |
7-9 | 754 mm (29.69 in) | 15-21 | 1,106 mm (43.54 in) |
9-10 | 455 mm (17.91 in) | 15-22 | 1,252 mm (42.29 in) |
16-19 | 1,013 mm (39.88 in) | 20-22 | 840 mm (33.07 in) |
17-18 | 517 mm (20.35 in) | 0-0 | 0 mm (0.0 in) |
Underbody Dimensions All Wheel Drive
Measurement Points | Distance from Centerline | Measurement Points | Distance from Vertical Imaginary Standard Line |
|---|---|---|---|
1, 10 | 870 mm (34.25 in) | 1, 10 | 53 mm (2.09 in) |
2, 9 | 1,228 mm 48.35 in) | 2, 9 | 147 mm (5.79 in) |
3, 8 | 1,243 mm (48.94 in) | 3, 8 | 141 mm (5.55 in) |
4, 7 | 874 mm (34.41 in) | 4, 7 | 299 mm (11.77 in) |
5, 6 | 929 mm (36.57 in) | 5, 6 | 263 mm (10.35 in) |
11, 24 | 870 mm (34.25 in) | 11,24 | 59 mm (2.32 in) |
12 , 23 | 1,100 mm (43.31 in) | 12 , 23 | 65 mm (2.56 in) |
13, 22 | 890 mm (35.04 in) | 13, 22 | 92 mm (36.2 in) |
14 , 21 | 912 mm (35.91 in) | 14 , 21 | 233 mm (9.17 in) |
15 , 20 | 985 mm (38.78 in) | 15 , 20 | 321 mm (12.64 in) |
17, 18 | 517 mm (20.35 in) | 17, 18 | 151 mm (5.94 in) |
16, 19 | 1,013 mm (39.88 in) | 16, 19 | 396 mm (15.59 in) |
Underbody Dimensions All Wheel Drive
Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
1-9 | 1,129 mm (44.45 in) | 10-12 | 1,126 mm (44.33 in) |
1-10 | 870 mm (34.25 in) | 10-24 | 1,116 mm (43.94 in) |
1-12 | 1,491 mm (58.70 in) | 10-11 | 700 mm (27.56 in) |
2-5 | 1,204 mm (47.40 in) | 11-23 | 1,071 mm (42.17 in) |
2-7 | 1,282 mm (50.47 in) | 11-24 | 870 mm (34.25 in) |
2-9 | 1,228 mm (48.35 in) | 12-23 | 1,100 mm (43.31 in) |
2-11 | 1,527 mm (60.12 in) | 13-15 | 839 mm (33.03 in) |
2-24 | 1,125 mm (44.29 in) | 13-20 | 1,263 mm (49.72 in) |
3-8 | 1,243 mm (48.94 in) | 13-22 | 890 mm (35.04 in) |
4-7 | 874 mm (34.41 in) | 14-15 | 533 mm (20.98 in) |
5-6 | 929 mm (36.57 in) | 14, 17 | 660 mm (24.98 in) |
5-7 | 1,018 mm (40.08 in) | 14-20 | 1,093 mm (43.03 in) |
5-9 | 1,609 mm (63.35 in) | 14-21 | 912 mm (35.91 in) |
6, 7 | 473 mm (18.62 in) | 15, 20 | 985 mm (38.78 in) |
7-9 | 754 mm (29.69 in) | 15-21 | 1,106 mm (43.54 in) |
9-10 | 455 mm (17.91 in) | 15-22 | 1,252 mm (49.29 in) |
16-19 | 1,013 mm (39.88 in) | 20-22 | 840 mm (33.07 in) |
17-18 | 517 mm (20.35 in) | 22-24 | 559 mm (22.01 in) |
18-21 | 659 mm (25.94 in) | 23-24 | 436 mm (17.17 in) |
20-21 | 531 mm (20.91 in) | 0-0 | 0 mm (0.0 in) |

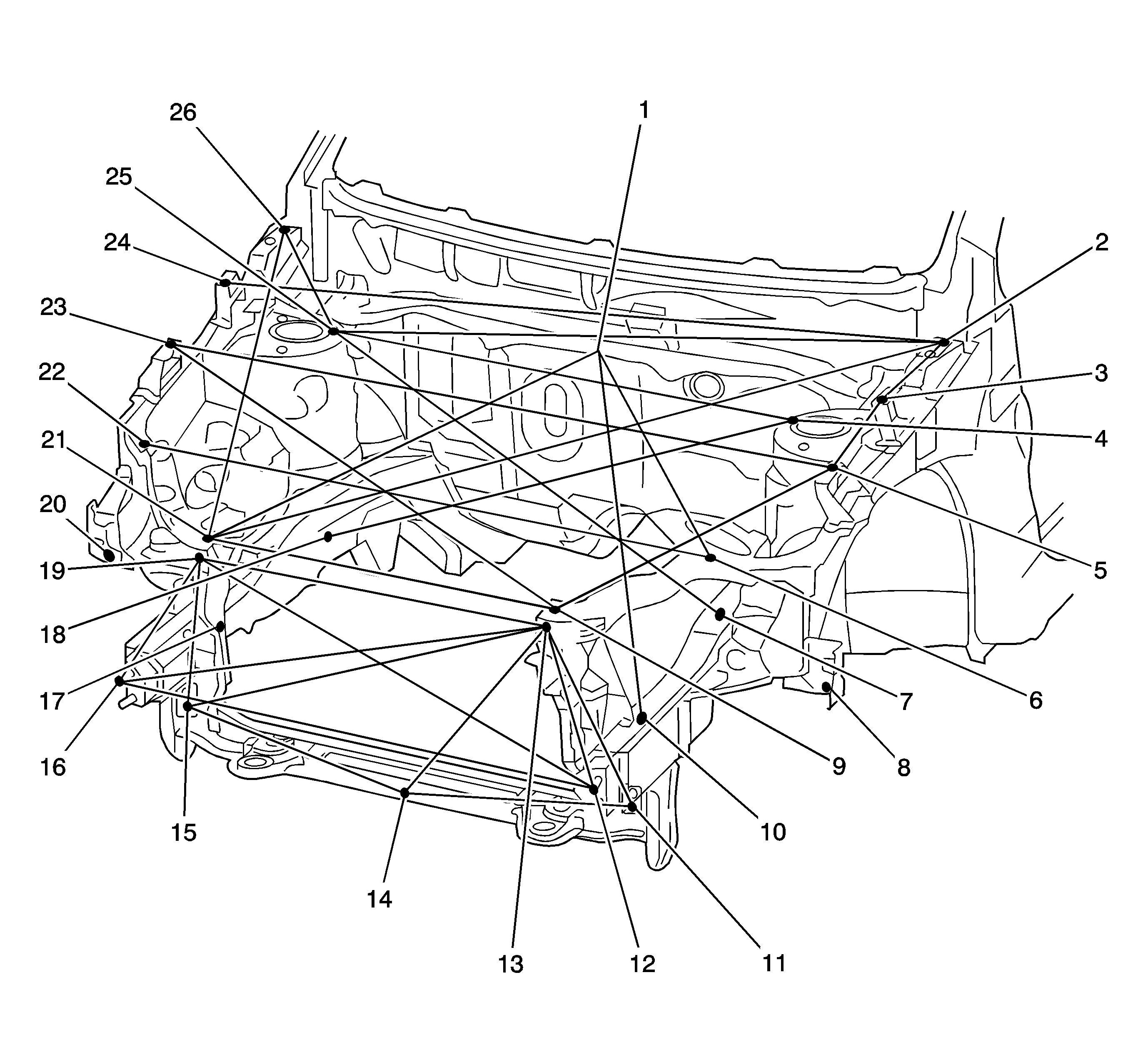

Front Body Dimensions
Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
1-6 | 866 mm (34.09 in) | 7-25 | 1,010 mm (39.76 in) |
1-10 | 891 mm (35.08 in) | 8-20 | 1,532 mm (60.31 in) |
1-21 | 879 mm (34.61 in) | 9-23 | 1,169 mm (46.02 in) |
2-3 | 244 mm (9.61 in) | 9-21 | 728 mm (28.66 in) |
2-21 | 1,417 mm (55.79 in) | 11-13 | 394 mm (15.51 in) |
2-25 | 1,254 mm (49.37 in) | 11-14 | 481 mm (18.94 in) |
2-24 | 1,458 mm (57.40 in) | 12-13 | 297 mm (11.69 in) |
2-26 | 1,446 mm (56.93 in) | 12-16 | 1,013 mm (39.88 in) |
2-23 | 1,506 mm (59.29 in) | 13-14 | 593 mm (23.35 in) |
3-5 | 213 mm (8.39 in) | 13-15 | 918 mm (36.14 in) |
3-24 | 1,429 mm (56.26 in) | 13-16 | 917 mm (36.10 in) |
5-9 | 574 mm (22.60 in) | 13-19 | 728 mm (28.66 in) |
5-23 | 1,425 mm (56.10 in) | 14-15 | 496 mm (19.53 in) |
6-22 | 1,307 mm (51.46 in) | 15-19 | 399 mm (15.71 in) |
16-19 | 303 mm (11.93 in) | 25-26 | 304 mm (11.97 in) |
21-26 | 977 mm (34.46 in) | 0-0 | 0 mm (0.0 in) |

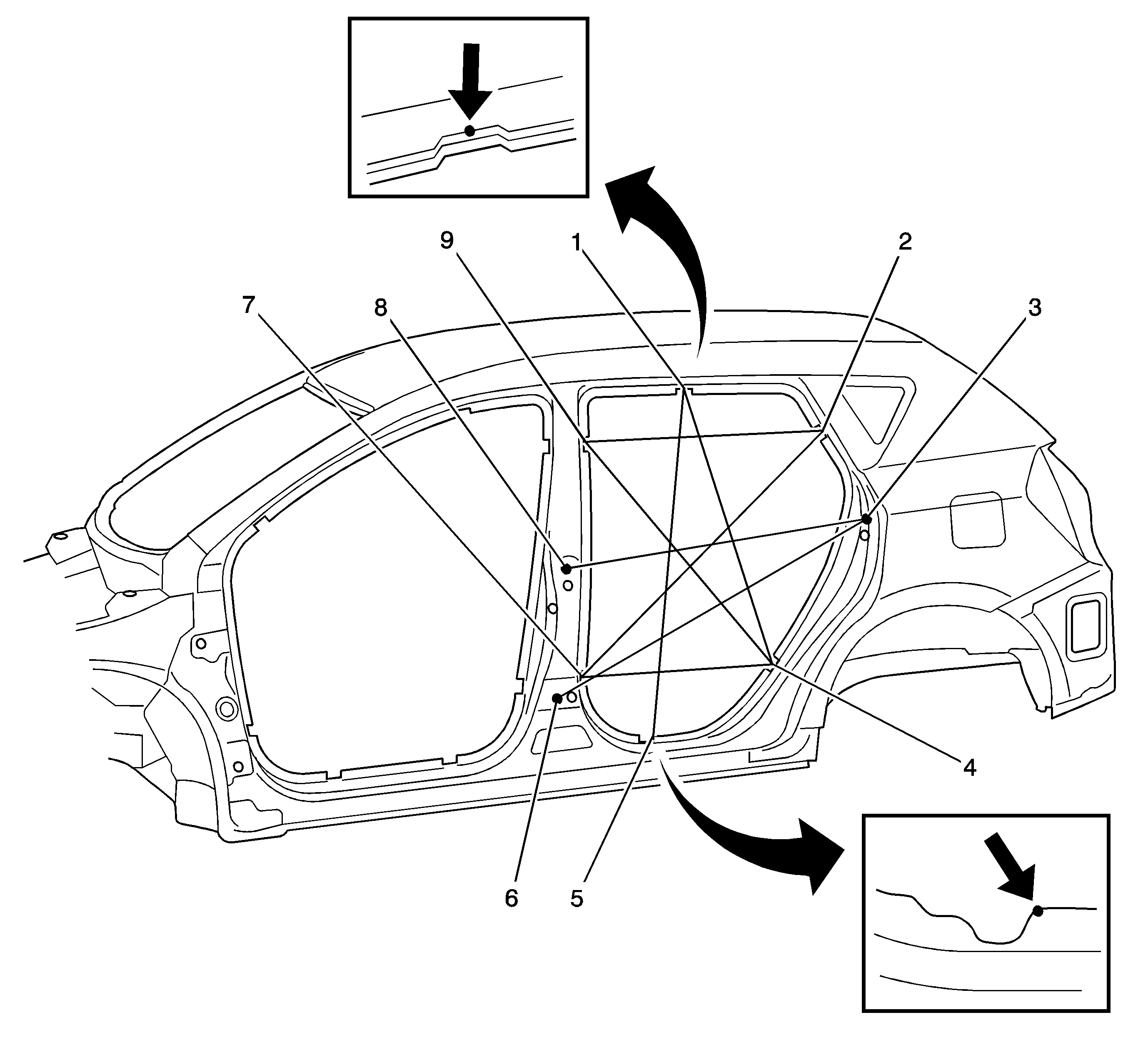

Body Side Dimensions
Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
1-2 | 1,088 mm (42.83 in) | 6-10 | 1,058 mm (41.65 in) |
1-14 | 879 mm (34.61 in) | 6-12 | 1,038 mm (40.87 in) |
2-14 | 1,531 mm (60.28 in) | 7-10 | 996 mm (39.21 in) |
3-9 | 1,048 mm (41.26 in) | 8-11 | 822 mm (32.26 in) |
4-10 | 1,218 mm (47.95 in) | 8-15 | 931 mm (36.65 in) |
4-15 | 901 mm (35.47 in) | 9-15 | 918 mm (36.14 in) |
5-12 | 1,086 mm (42.76 in) | 13-14 | 1,446 mm (56.93in) |

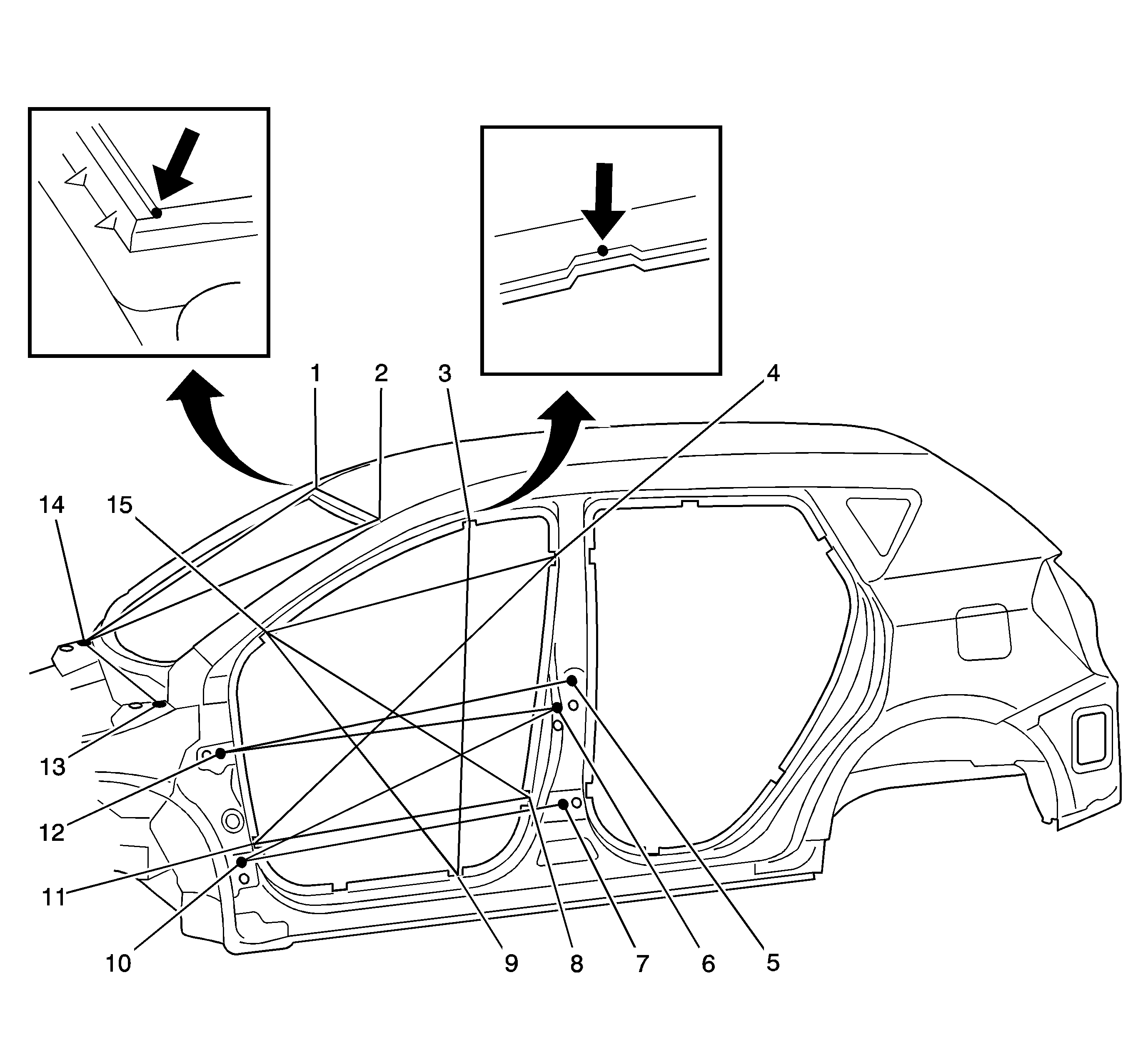

Body Side Dimensions
Measurement Points | Distance Between Control Points | Measurement Points | Distance Between Control Points |
|---|---|---|---|
1-4 | 866 mm (34.09 in) | 4-7 | 595 mm (23.43 in) |
1-5 | 1,050 mm (41.34 in) | 2-6 | 1,043 mm (41.06 in) |
2-9 | 732 mm (28.82 in) | 3-6 | 1,077 mm (42.40 in) |
3-8 | 949 mm (37.36 in) | 4-9 | 888 mm (34.96 in) |

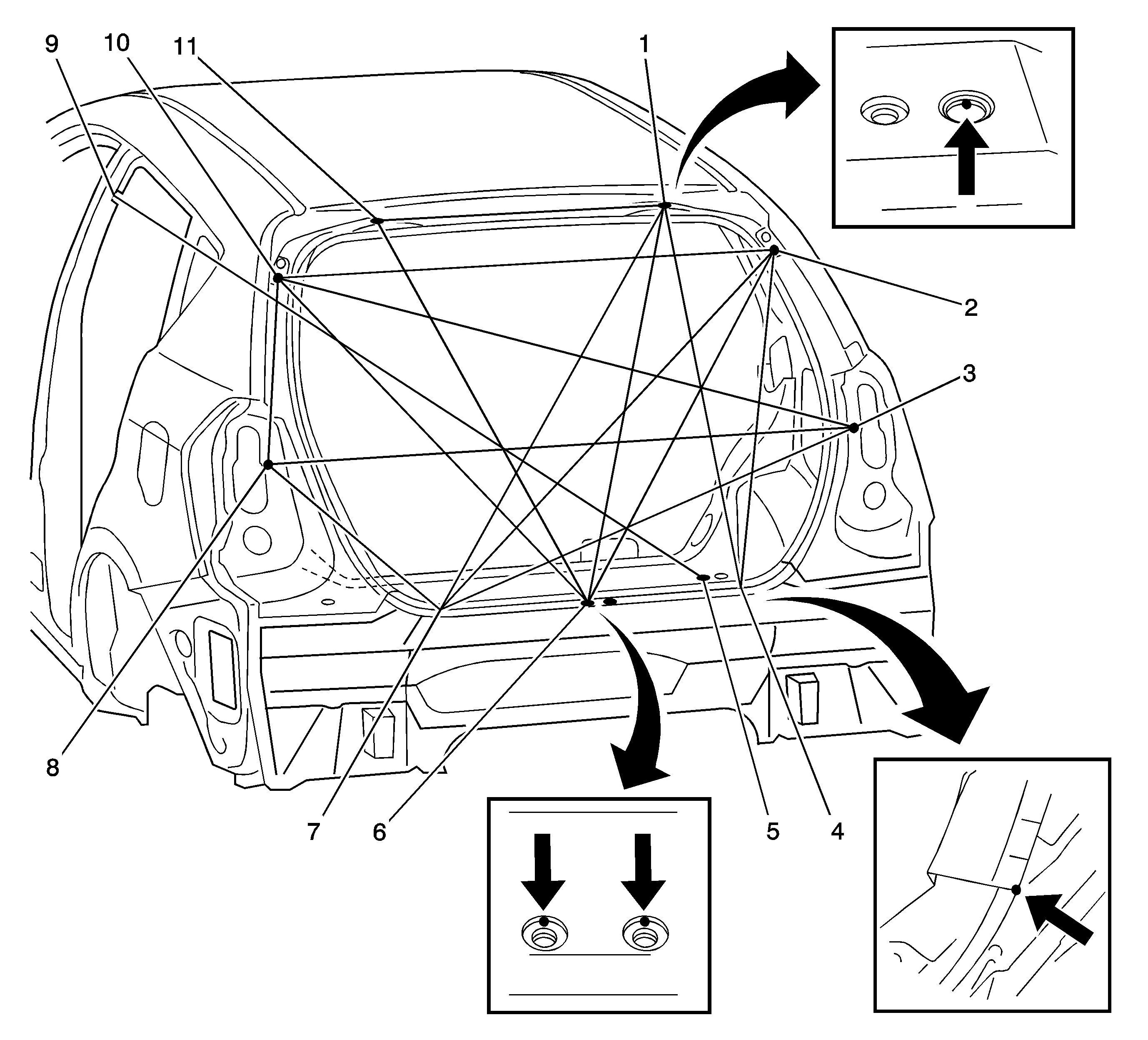

Rear Body Dimensions
Measurement Points | Distance Between Control Points |
|---|---|
1-4 | 864 mm (34.02 in) |
1-6 | 943 mm (37.13 in) |
1-7 | 1,120 mm (44.09 in) |
1-11 | 626 mm (24.65 in) |
2-4 | 793 mm (31.22 in) |
2-6 | 980 mm (35.58 in) |
2-7 | 1,226 mm (48.27 in) |
2-10 | 1,076 mm (42.36 in) |
3-7 | 1,102 mm (43.39 in) |
3-8 | 1,298 mm (51.10 in) |
3-10 | 1,274 mm (50.16 in) |
5-9 | 1,661 mm (65.39 in) |
6-11 | 930 mm (36.61 in) |
6-10 | 958 mm (37.72 in) |
7-8 | 402 mm (15.83 in) |
8-10 | 475 mm (18.70 in) |
