Makes 🢒 Pontiac 🢒 2009 🢒 Vibe - AWD 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Passenger Compartment/Roof Component Views

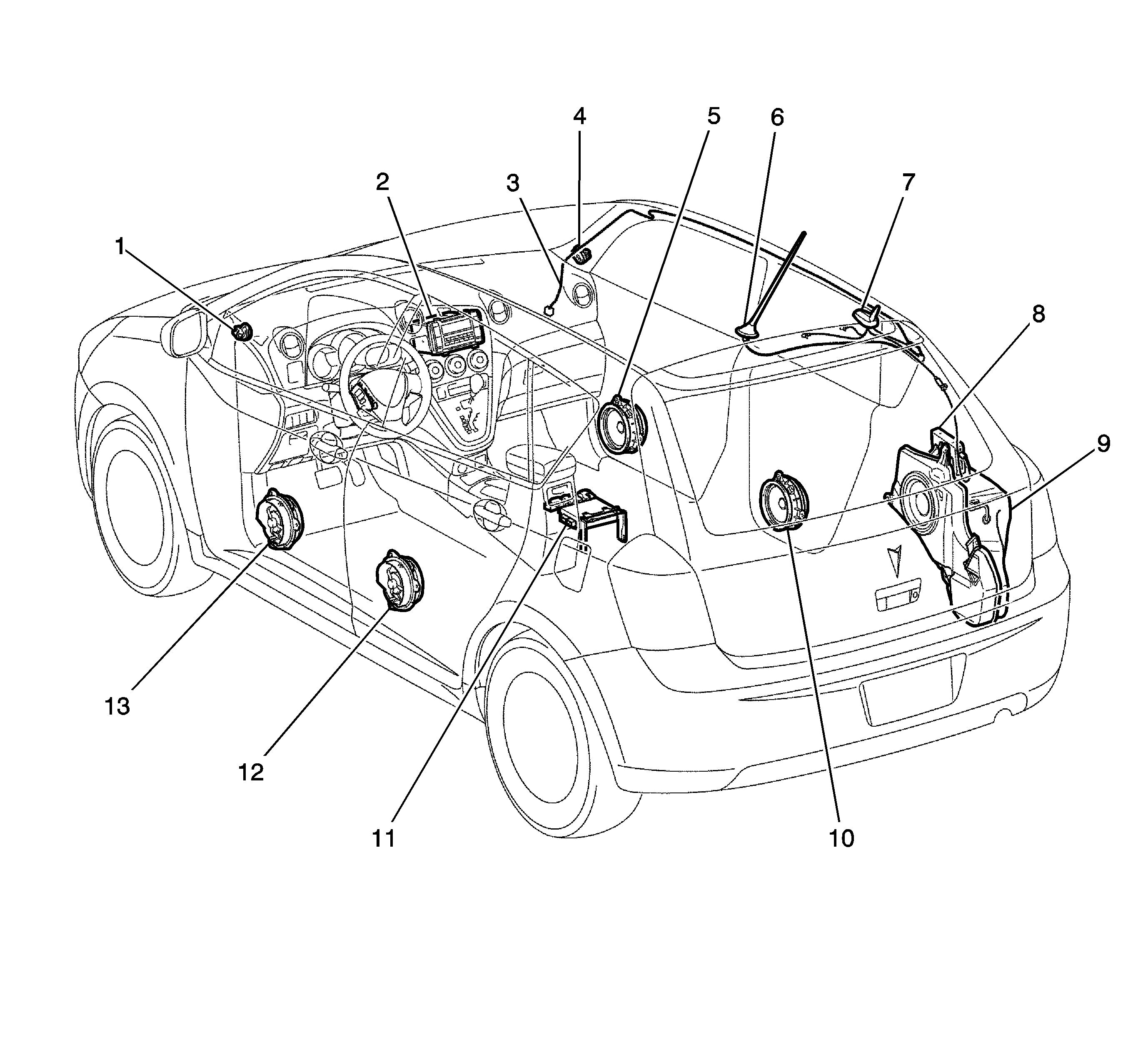

Figure 1:

Audio Components
Object Number: 2023993 Size: LF
(1)Speaker - Tweeter Left Front
(2)Radio
(3)Antenna Cable
(4)Speaker - Tweeter Right Front
(5)Speaker - Right Front
(6)Radio Antenna
(7)Digital Radio Antenna
(8)Digital Radio Receiver
(9)Speaker - Subwoofer
(10)Speaker - Right Rear
(11)Audio Amplifier
(12)Speaker - Left Rear
(13)Speaker - Left Front

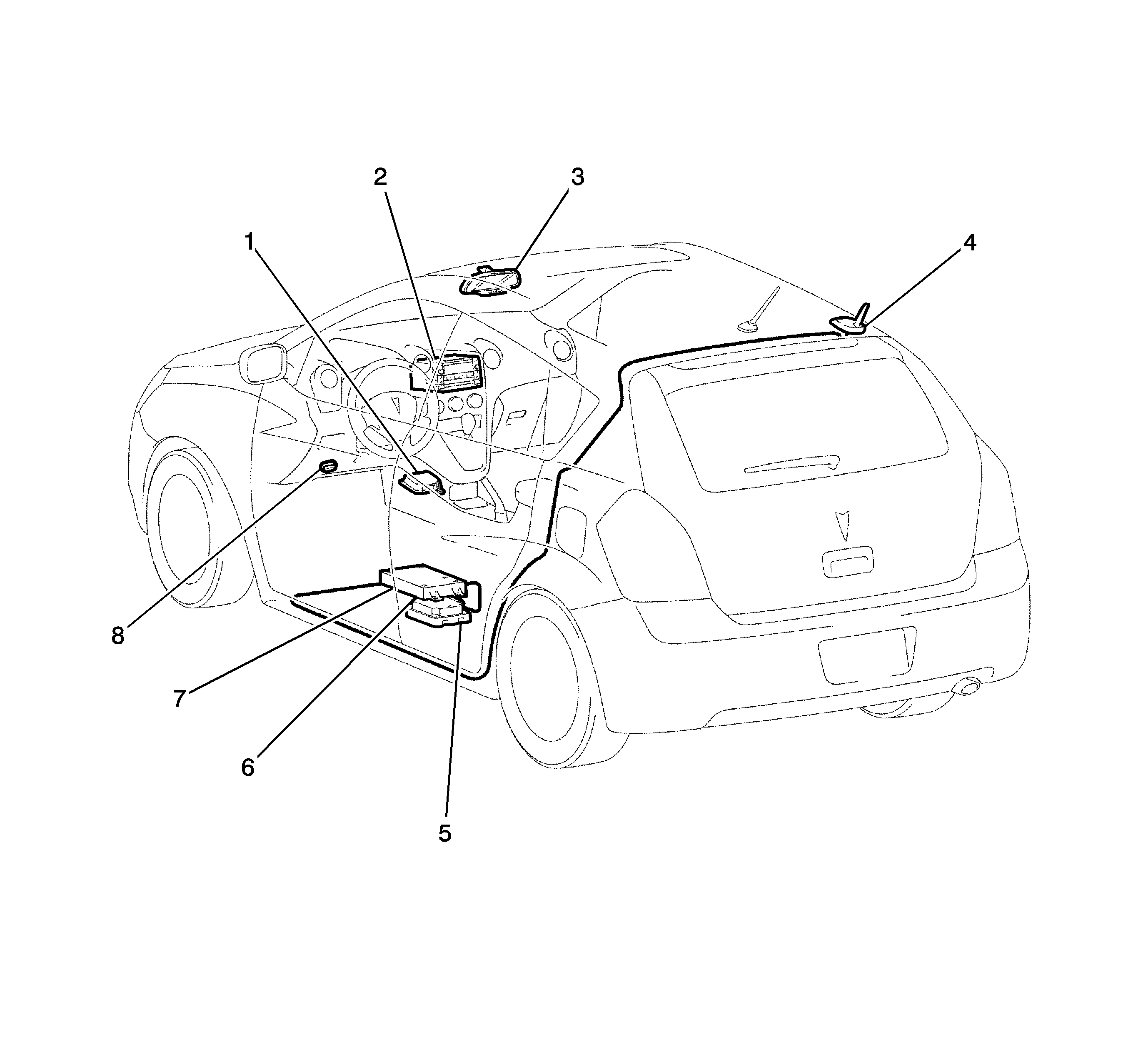

Figure 2:

Cellular Communication
Object Number: 2024056 Size: LF
(1)Inflatable Restraint Sensing and Diagnostic Module
(2)Radio
(3)Inside Rearview Mirror (ISRVM) (Onstar)
(4)Cellular and Navigation Antenna
(5)Vehicle Interface Unit
(6)Accessory Power Inverter Module
(7)Vehicle Communication Interface Module (VCIM)
(8)Data Link Connector (DLC)

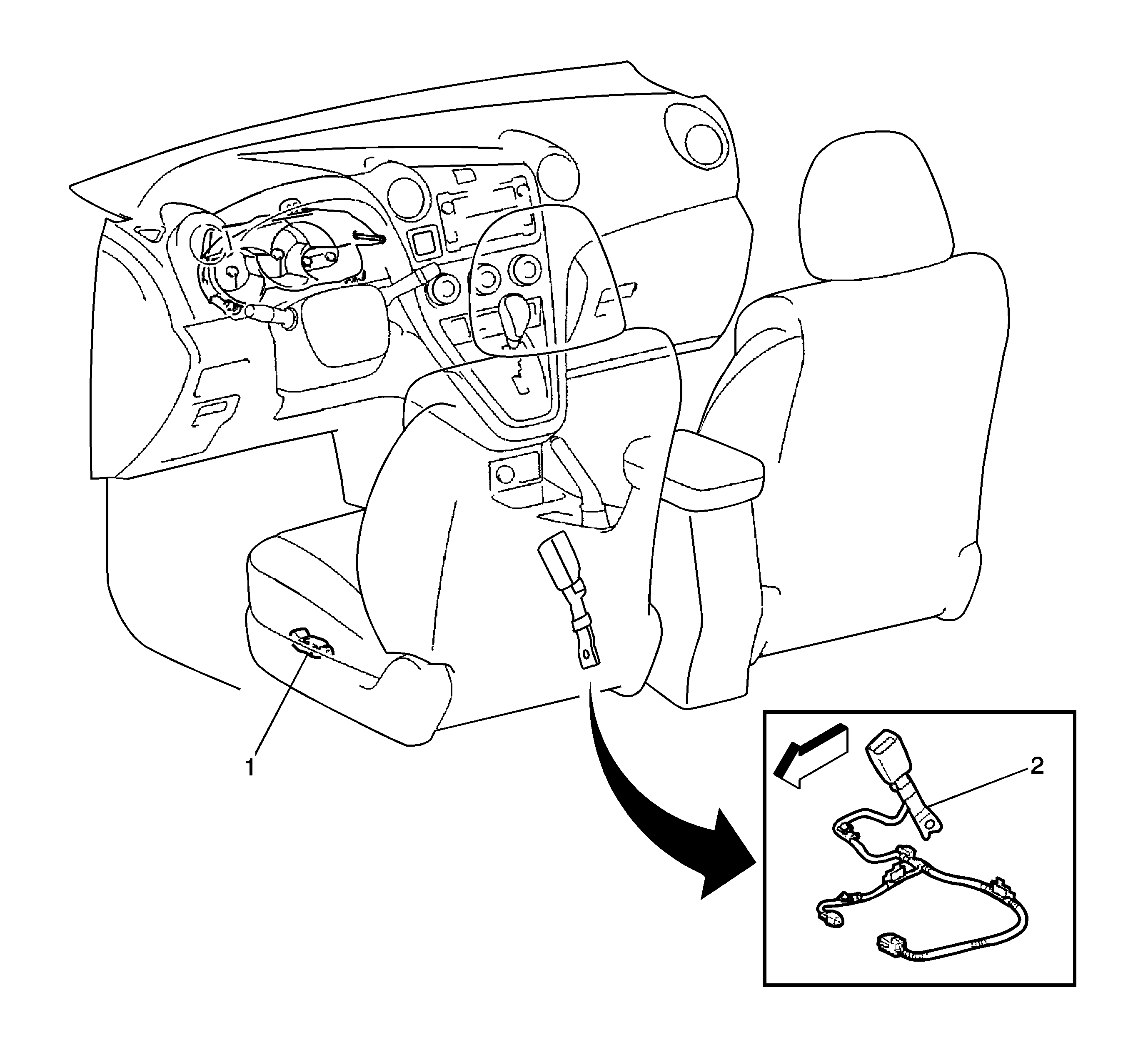

Figure 3:

Driver Seat Components
Object Number: 2023074 Size: LF
(1)Seat Position Airbag Sensor
(2)Seat Belt Buckle - Driver

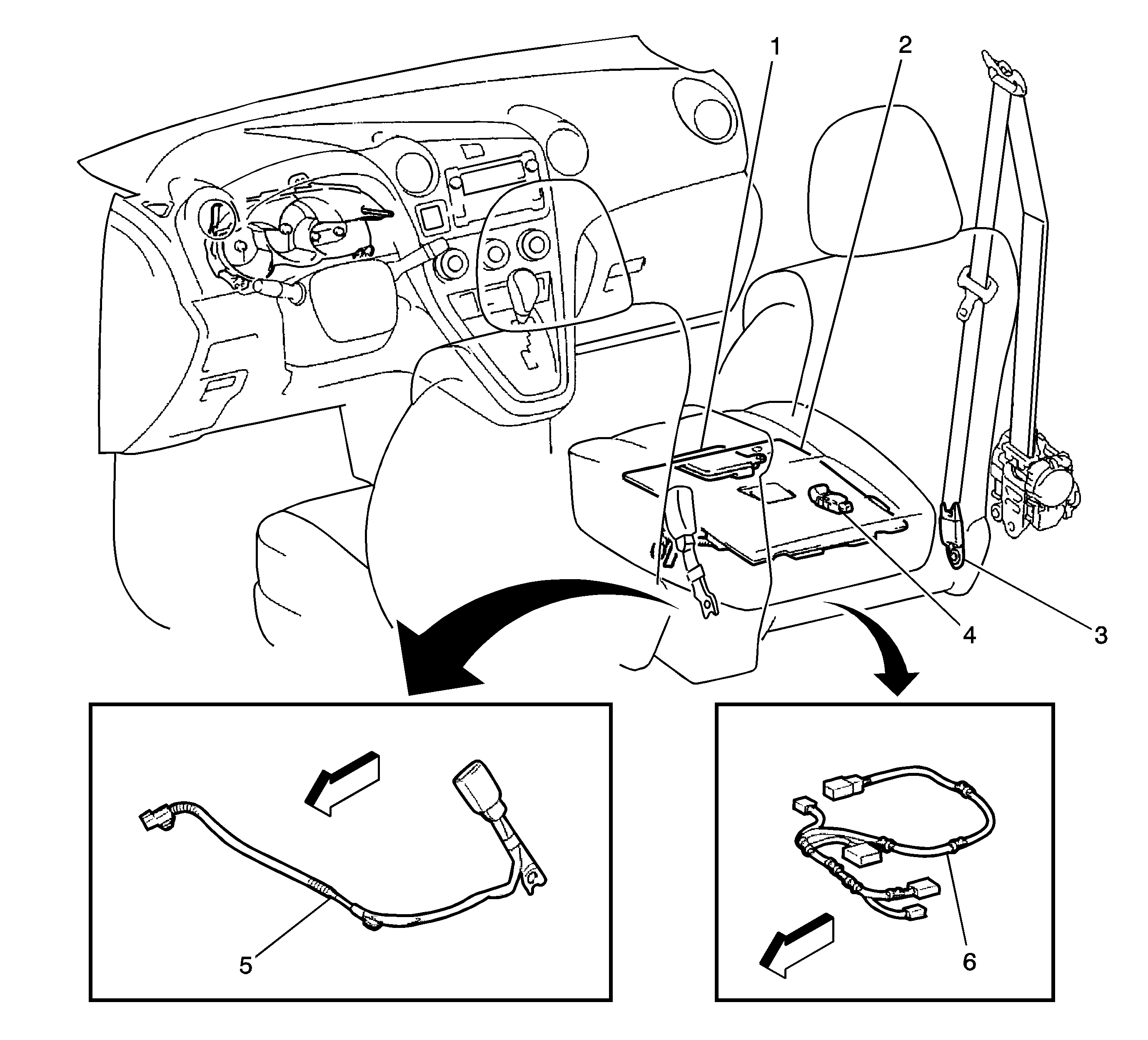

Figure 4:

Front Passenger Seat Components
Object Number: 2023076 Size: LF
(1)Inflatable Restraint Front Passenger Presence System (PPS) Module
(2)Inflatable Restraint Front Passenger Presence System (PPS) Sensor
(3)Seat Belt Pretensioner - Passenger
(4)Seat Position Airbag Sensor
(5)Seat Belt Buckle - Passenger
(6)Front Seat Wire - Passenger

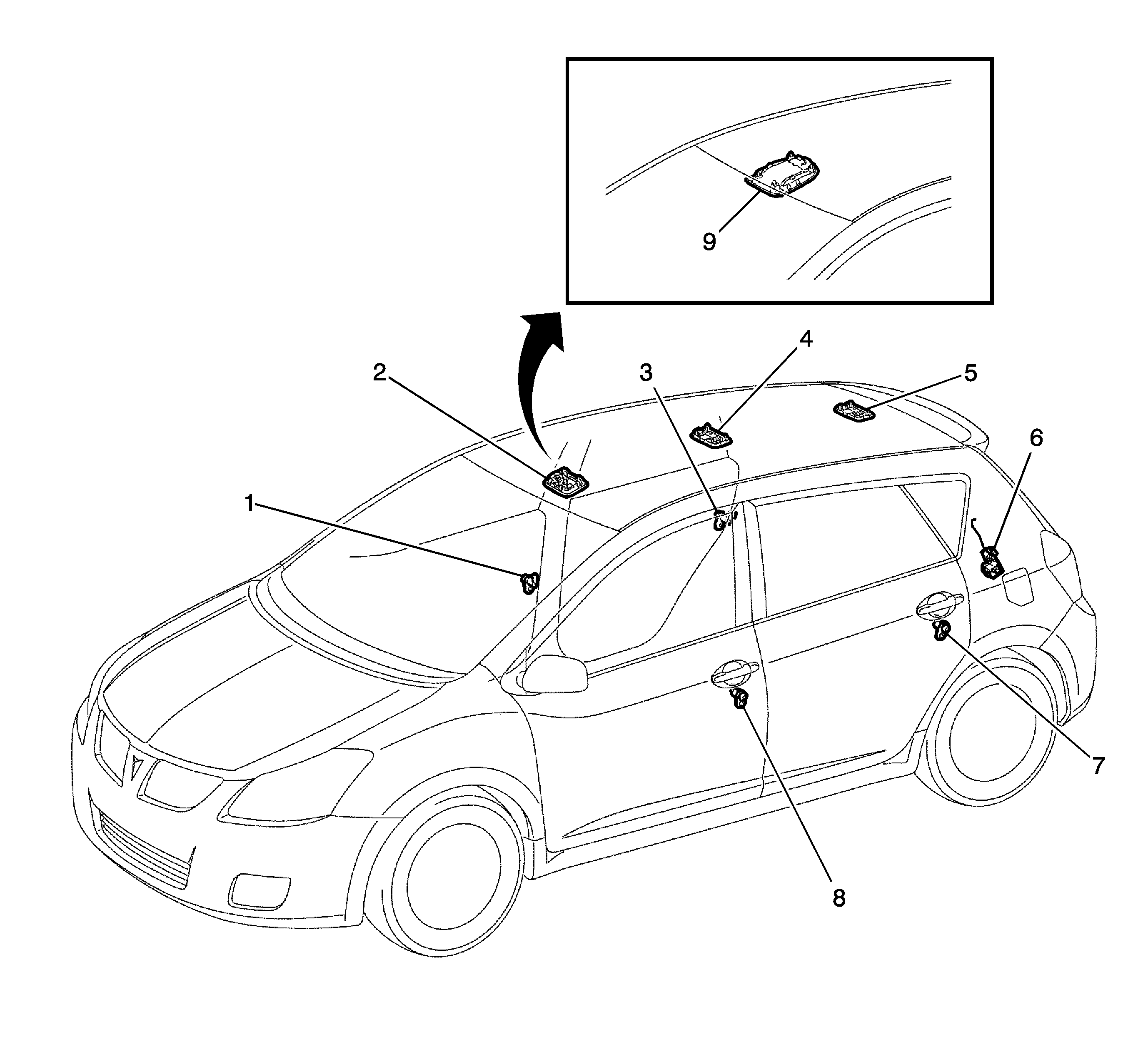

Figure 5:

Interior Lighting
Object Number: 2024059 Size: LF
(1)Door Jamb Switch - Passenger
(2)Courtesy Reading Lamp (-CF5)
(3)Door Jamb Switch - Right Rear
(4)Courtesy Reading Lamp - 2nd Row
(5)Courtesy Reading Lamp - 3rd Row
(6)Liftgate Latch Assembly
(7)Door Jamb Switch - Left Rear
(8)Door Jamb Switch - Driver
(9)Courtesy Reading Lamp (CF5)

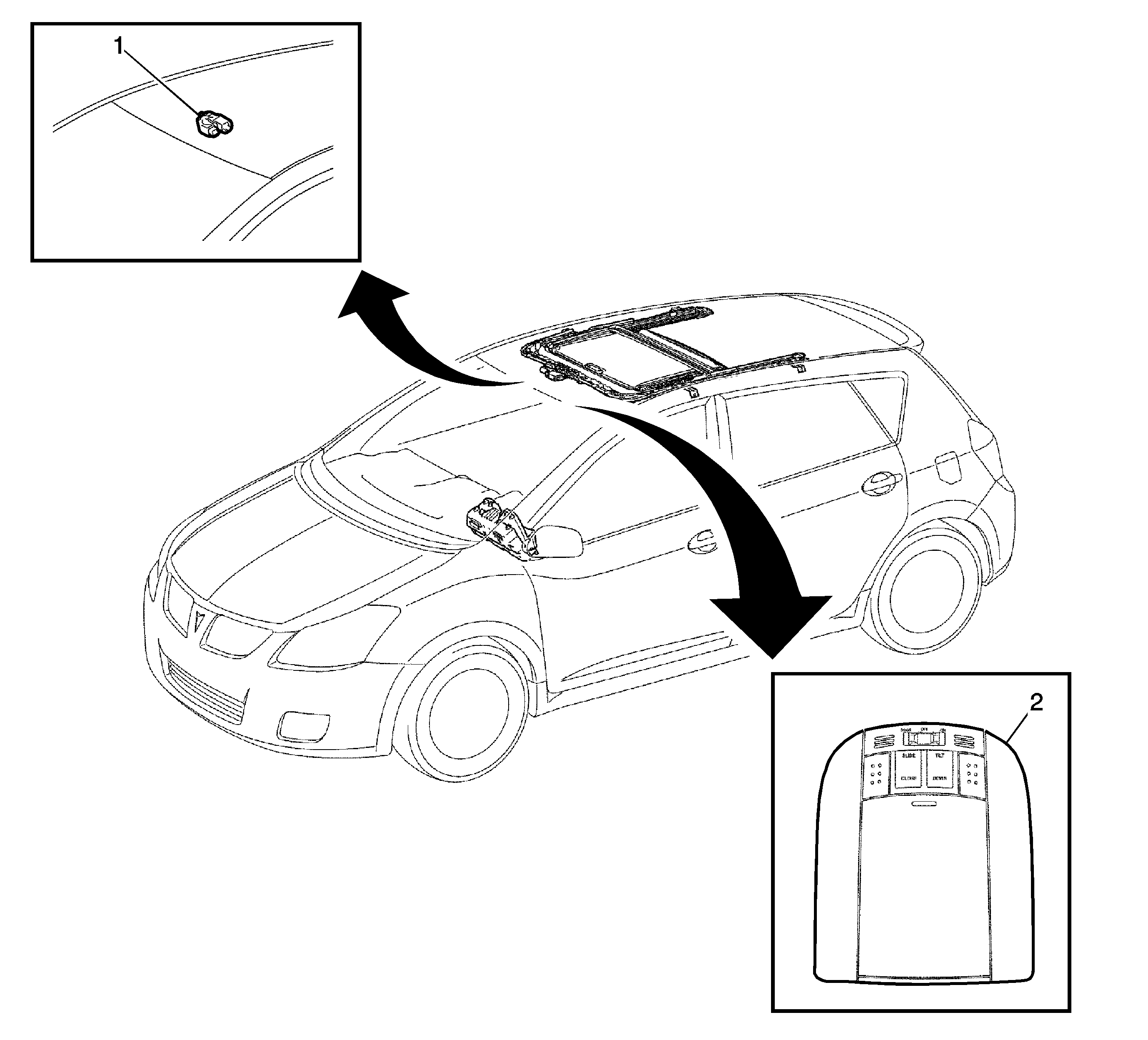

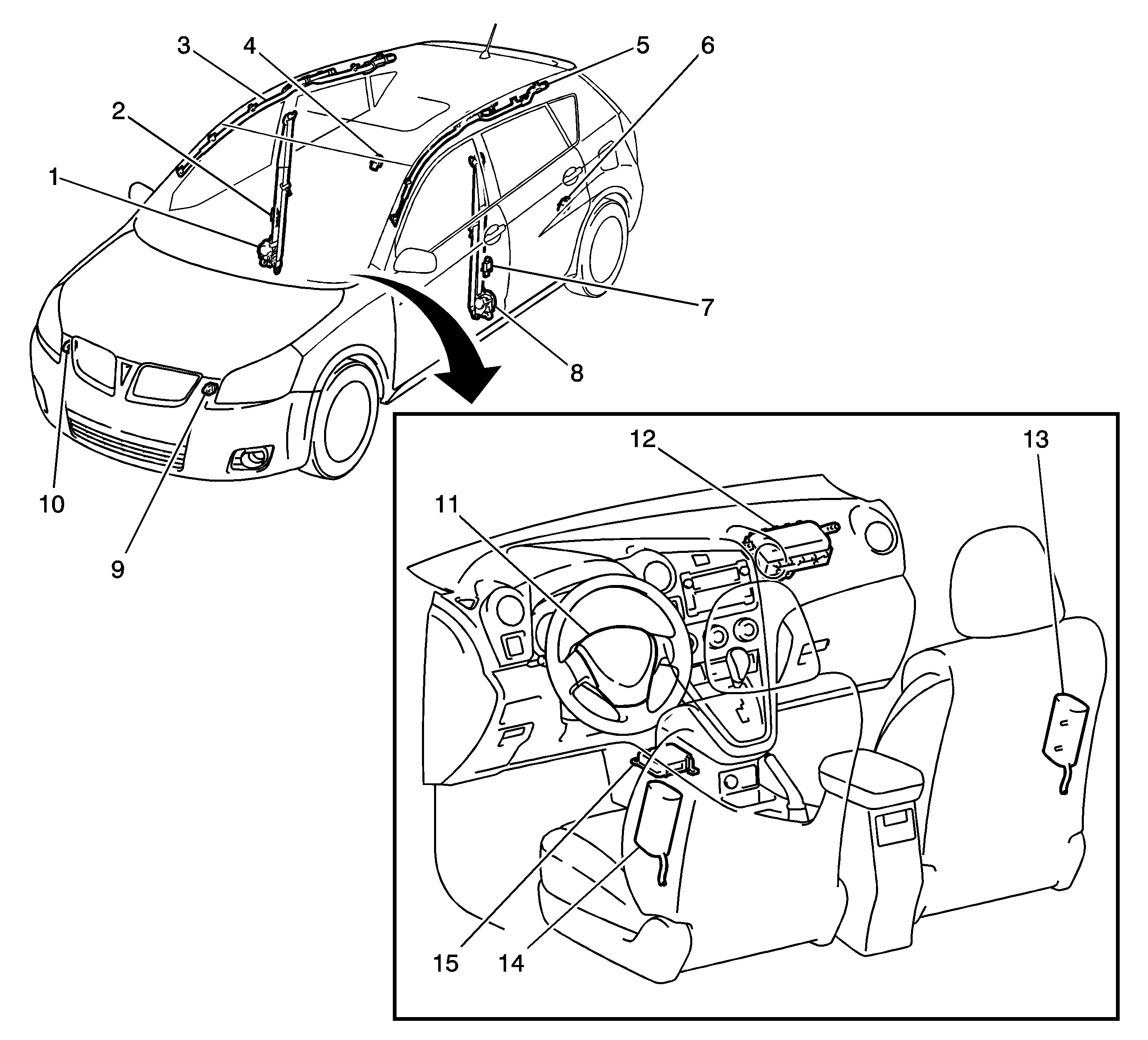

Figure 6:

Sunroof Components
Object Number: 2024075 Size: LF
(1)Sunroof Control Module
(2)Courtesy Reading Lamp (CF5)
Figure 7:

Supplemental Inflatable Restraints Components
Object Number: 2022805 Size: LF
(1)Seat Belt Pretensioner - Passenger
(2)Inflatable Restraint Side Impact Sensor (SIS) - Right
(3)Inflatable Restraint Roof Rail Module - Passenger
(4)Inflatable Restraint Rear Impact Sensor - Right
(5)Inflatable Restraint Roof Rail Module - Driver
(6)Inflatable Restraint Rear Impact Sensor - Left
(7)Inflatable Restraint Side Impact Sensor (SIS) - Left
(8)Seat Belt Pretensioner - Driver
(9)Inflatable Restraint Front End Sensor - Left
(10)Inflatable Restraint Front End Sensor - Right
(11)Inflatable Restraint Steering Wheel Module
(12)Inflatable Restraint I/P Module
(13)Inflatable Restraint Side Impact Module - Right
(14)Inflatable Restraint Side Impact Module - Left
(15)Inflatable Restraint Sensing and Diagnostic Module
