Radio/Audio System Schematics. Pontiac Vibe - FWD 2006

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2006 🢒 Vibe - FWD 🢒 Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

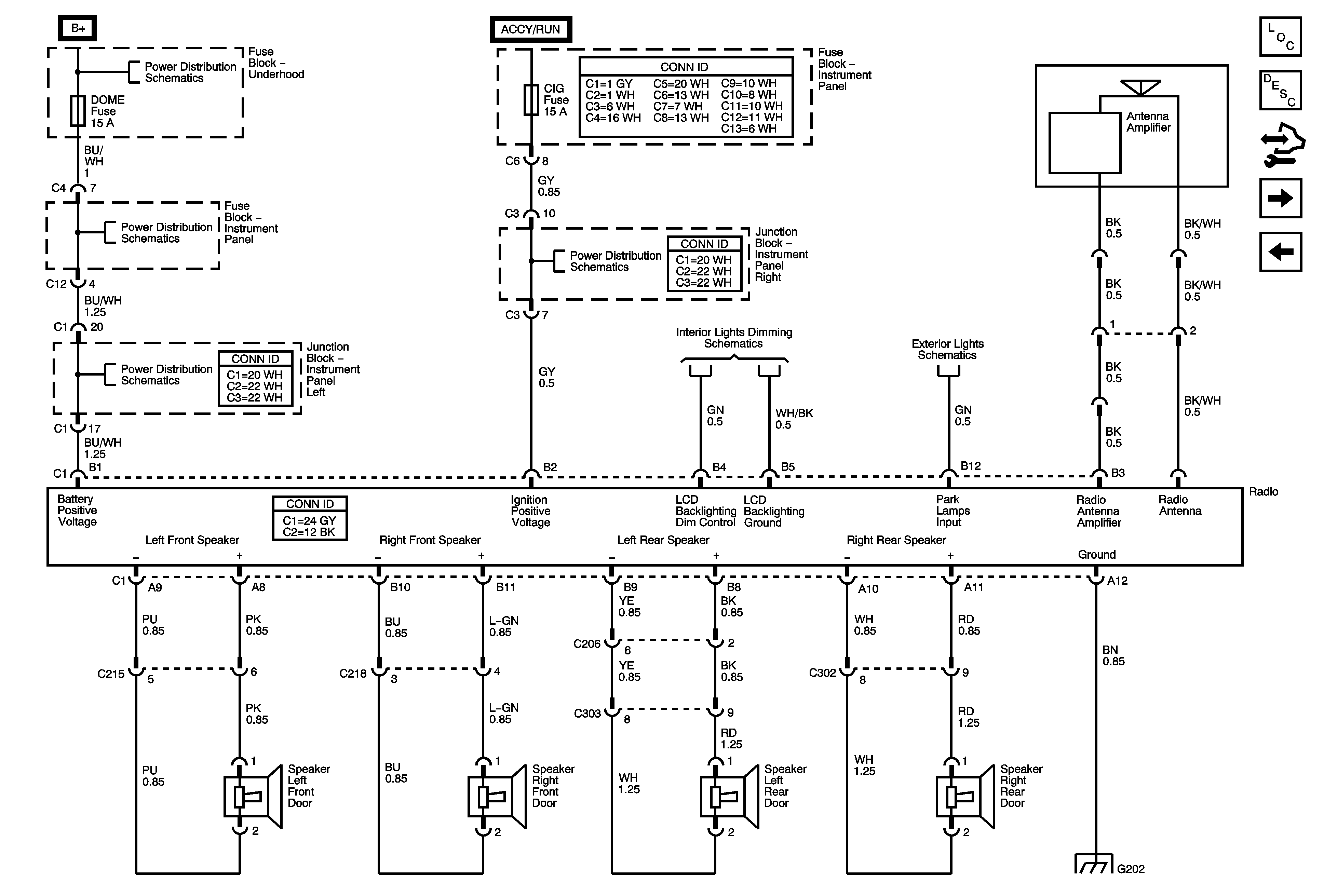

Figure 1:	Radio UC6, US8, Speakers UW4 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio U1P, Speakers UW4 Horn, Dome, Main, Amp, OnStar Fuses Horn, Dome, Main, Amp, OnStar Fuses Junction Block - Instrument Panel Right IP Lamp Dimmer Park Lamps Horn, Dome, Main, Amp, OnStar Fuses G202, G300, G301, G302

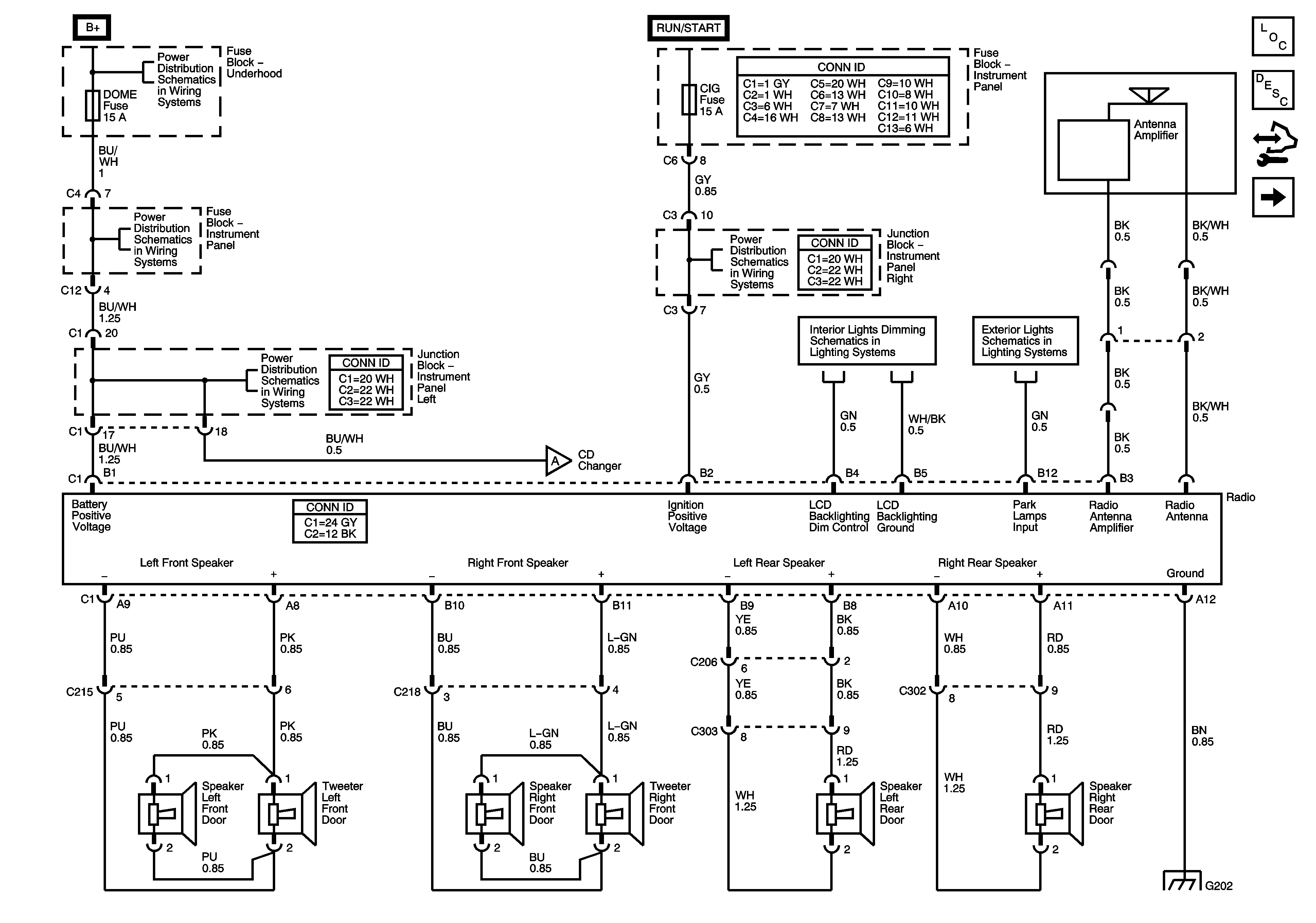

Figure 2:	Radio U1P, Speakers UW4 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio Monsoon U1P, Speakers U65 Radio UC6, US8, Speakers UW4 Horn, Dome, Main, Amp, OnStar Fuses Horn, Dome, Main, Amp, OnStar Fuses Junction Block - Instrument Panel Right IP Lamp Dimmer Park Lamps Horn, Dome, Main, Amp, OnStar Fuses G202, G300, G301, G302

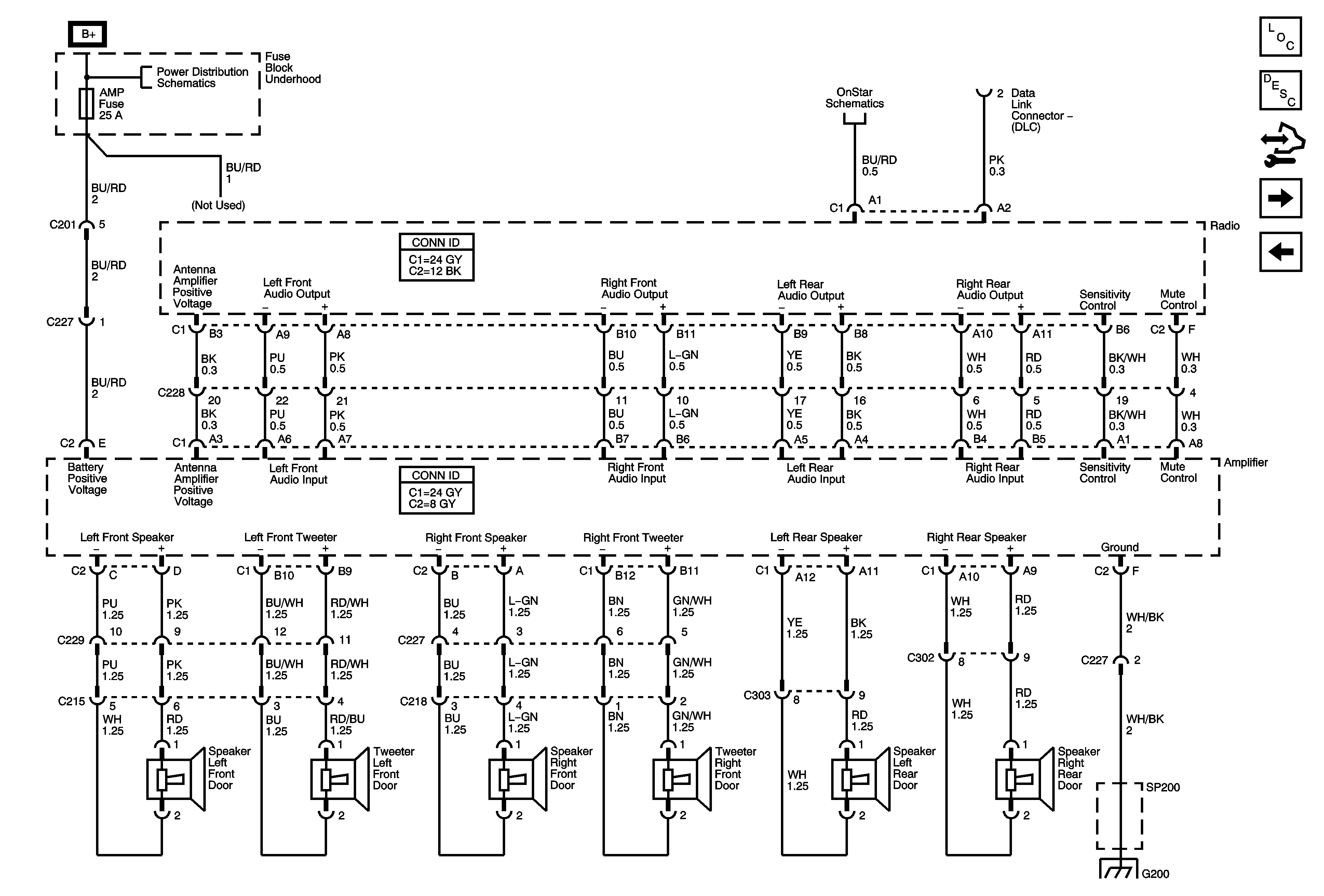

Figure 3:	Radio Monsoon U1P, Speakers U65 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Digital Radio Receiver and Subwoofer U1P, U2K, U65 Radio U1P, Speakers UW4 Horn, Dome, Main, Amp, OnStar Fuses Cellular Communication OnStar Schematic Figure for Graphic 1424554 SP200 and G200

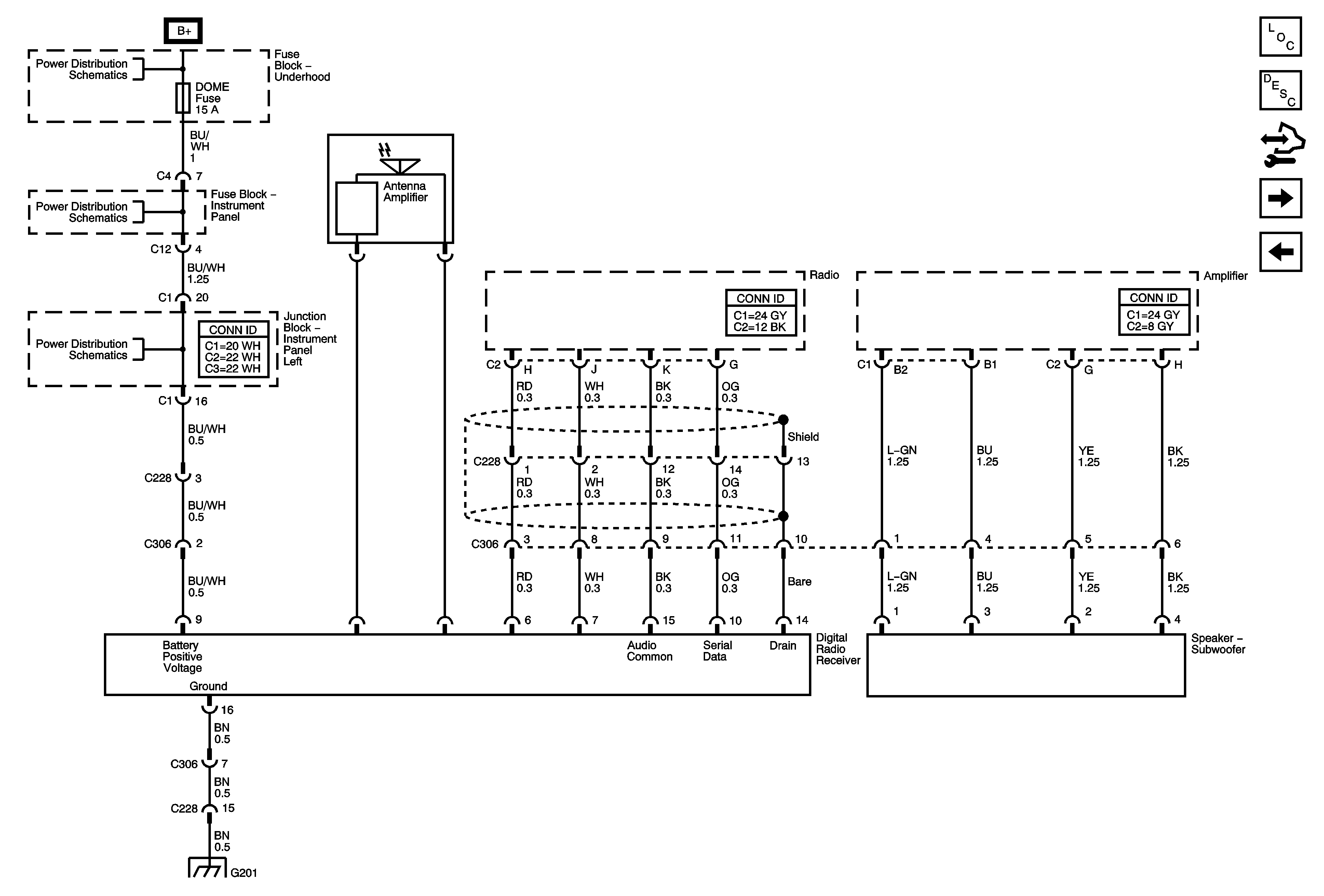

Figure 4:	Digital Radio Receiver and Subwoofer U1P, U2K, U65 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio and Remote CD Changer UC6 Radio Monsoon U1P, Speakers U65 Horn, Dome, Main, Amp, OnStar Fuses Horn, Dome, Main, Amp, OnStar Fuses Horn, Dome, Main, Amp, OnStar Fuses SP201 and G201

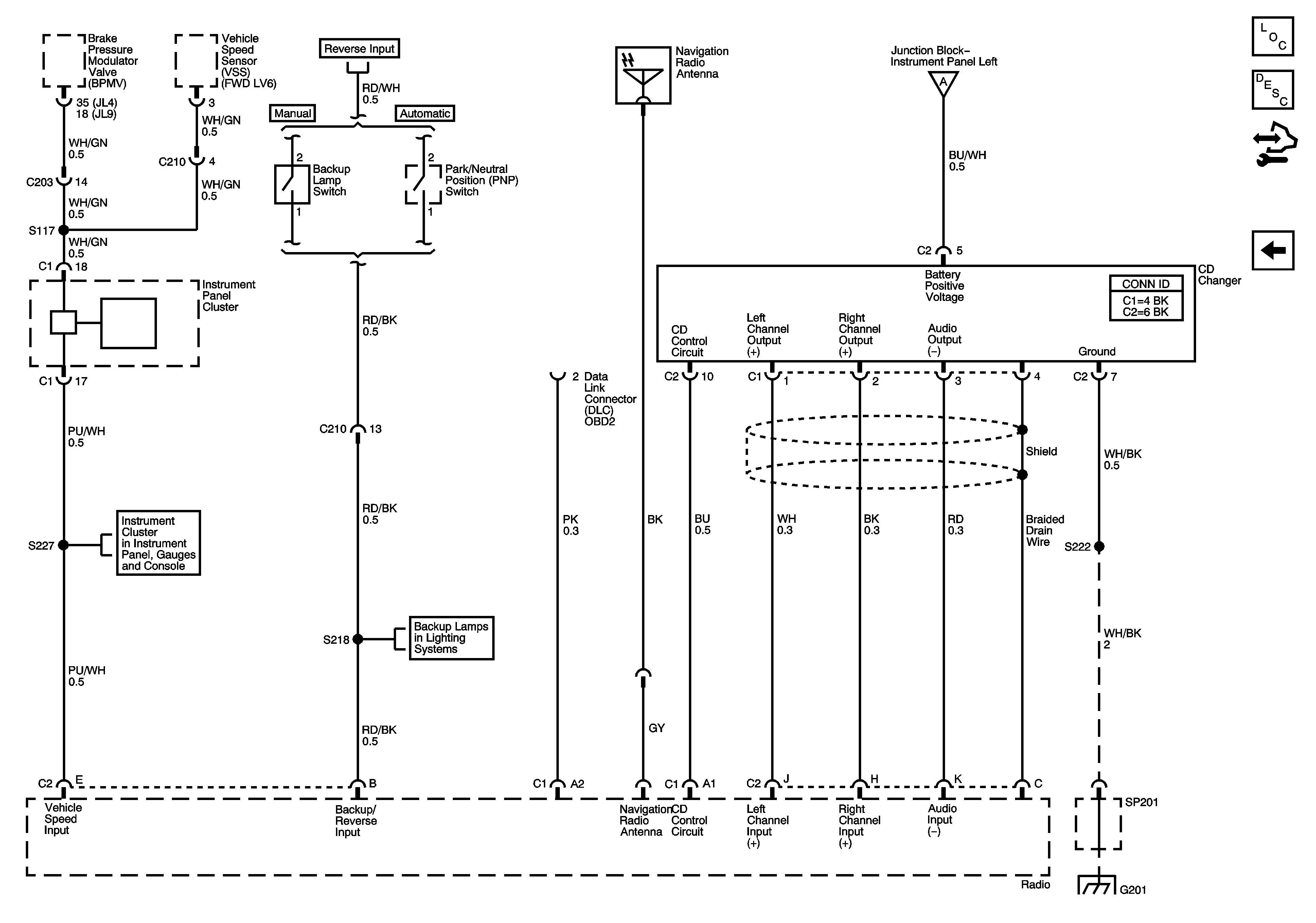

Figure 5:	Radio and Remote CD Changer UC6 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Digital Radio Receiver and Subwoofer U1P, U2K, U65 SP201 and G201
