Instrument Cluster Schematics. Pontiac Vibe - FWD 2008

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 Vibe - FWD 🢒 Driver Information and Entertainment 🢒 Displays and Gages 🢒 Instrument Cluster Schematics

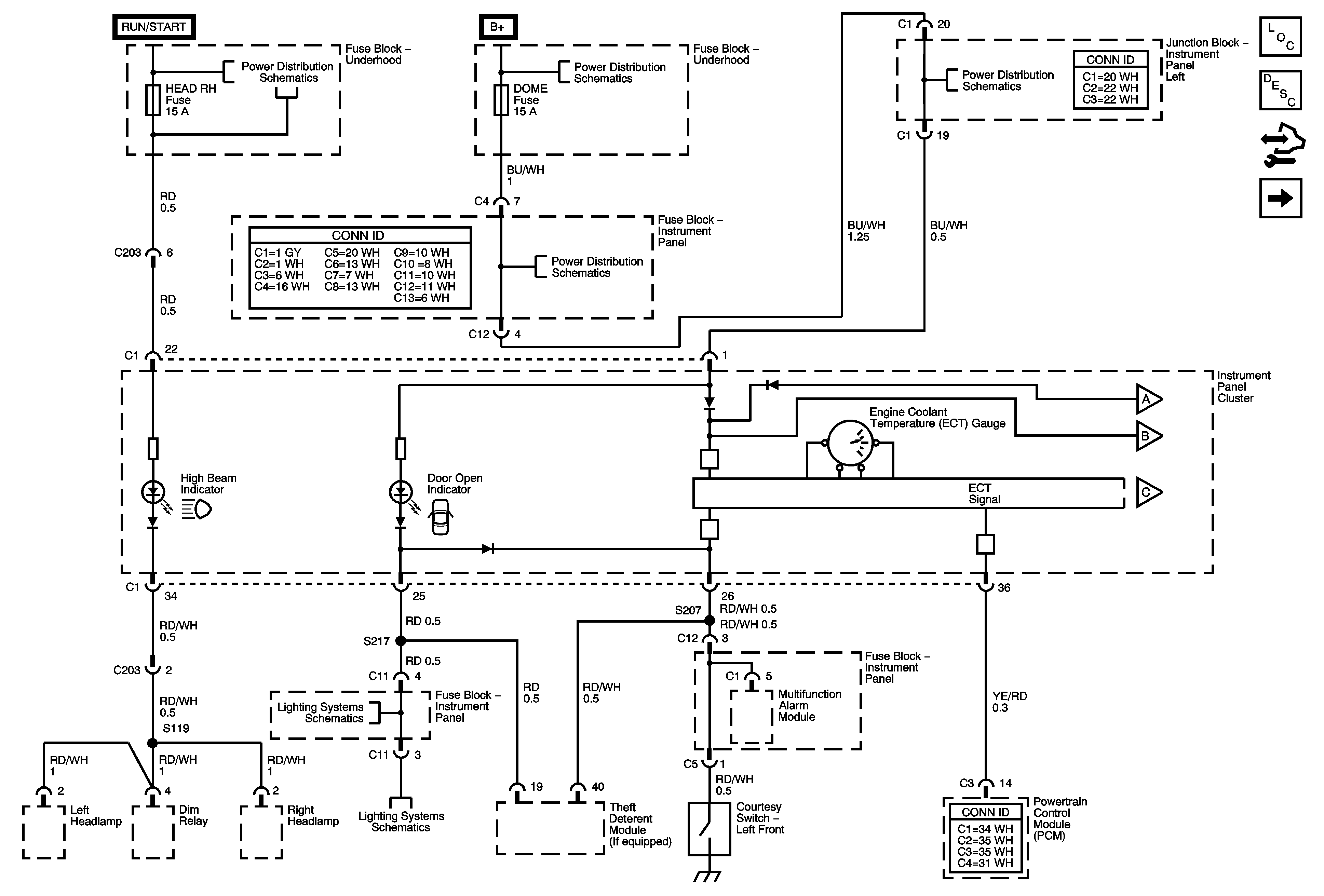

Figure 1:	High Beam Door Open, Engine Coolant Temperature (ECT) Indicators Master Electrical Component List Instrument Cluster Description and Operation Control Module References Fuel Gage, Seat Belt, Low Fuel, Passenger Seat Belt Indicators Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Dome and Courtesy Lamp Switches Dome and Courtesy Lamp Switches
Figure 2:	Fuel Gage, Seat Belt, Low Fuel, Passenger Seat Belt Indicators Master Electrical Component List Instrument Cluster Description and Operation Control Module References Low Washer Fluid Level, Oil Pressure Indicators, IPC Illumination High Beam Door Open, ECT Indicators Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses G100, G101, G102
Figure 3:	Low Washer Fluid Level, Oil Pressure Indicators, IPC Illumination Master Electrical Component List Instrument Cluster Description and Operation Charge, Air Bag, Malfunction, O/D Off, Cruise Indicators Fuel Gage, Seat Belt, Low Fuel, Passenger Seat Belt Indicators G100, G101, G102

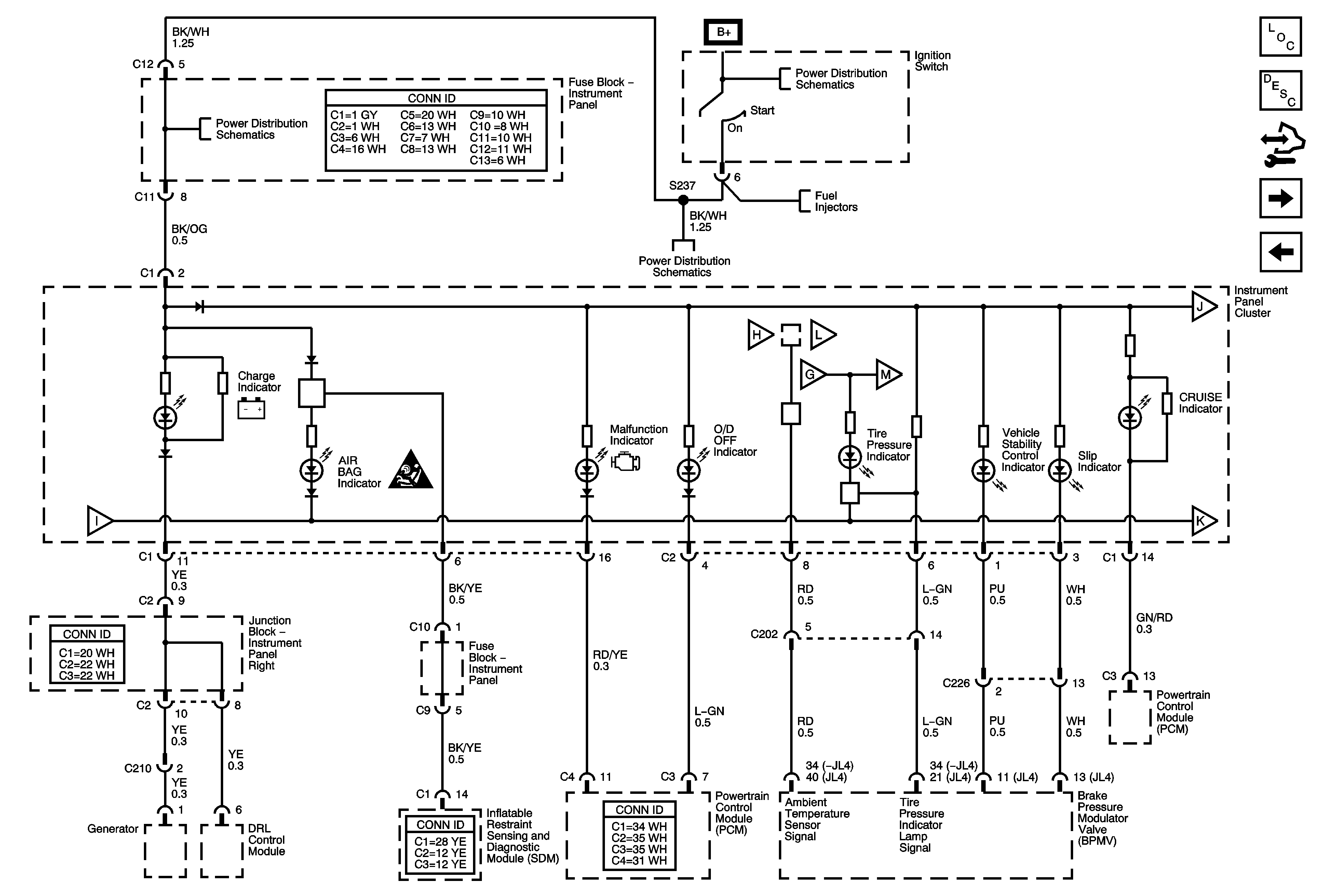

Figure 4:	Charge, Air Bag, Malfunction, O/D OFF, Cruise Indicators Master Electrical Component List Instrument Cluster Description and Operation Control Module References Brake, ABS, Turn Indicators Low Washer Fluid Level, Oil Pressure Indicators, IPC Illumination Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses Fuel Injectors Air Pump, ETCS, Head, ALTS, EF1 Hazard EF2 Fuses

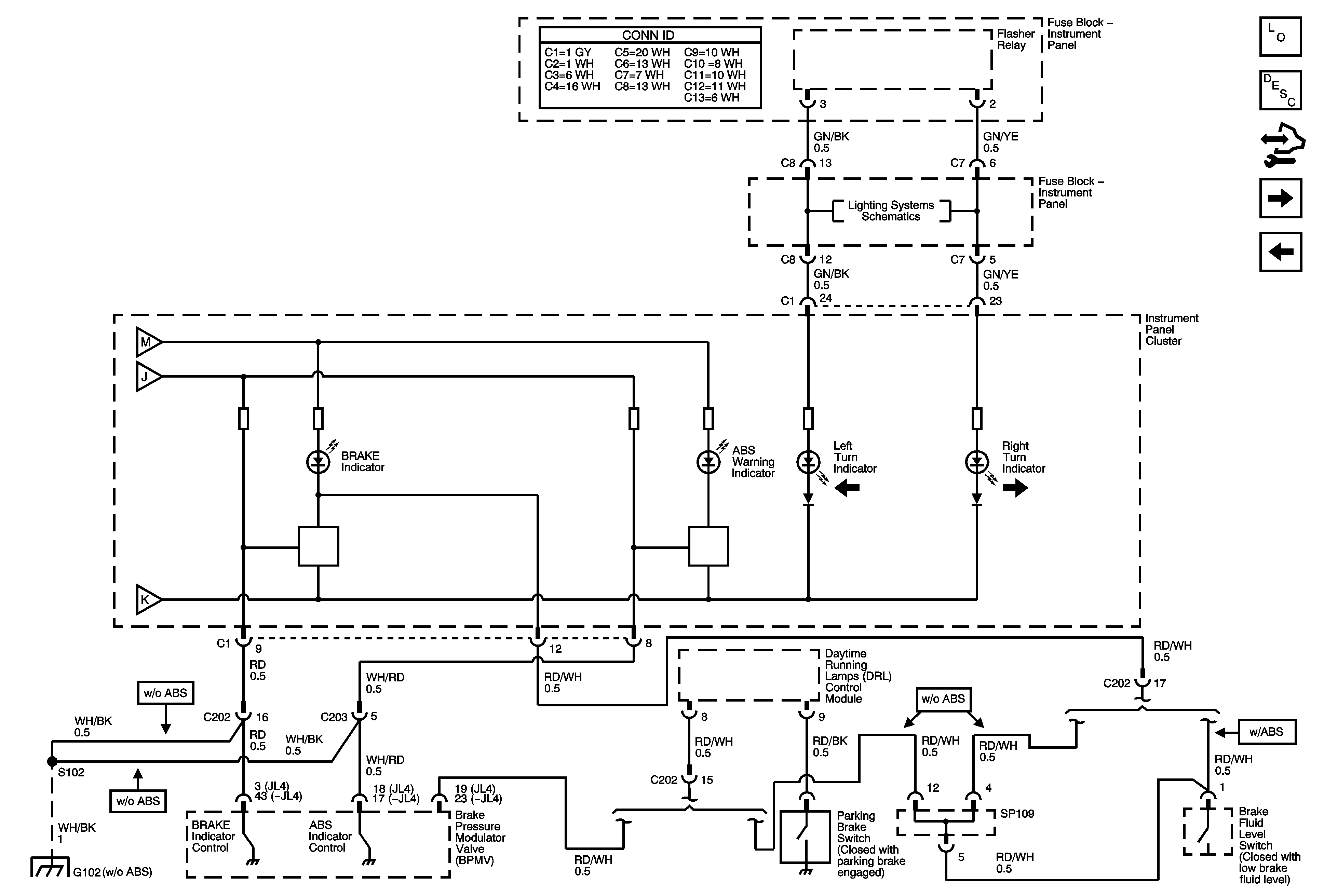

Figure 5:	Brake, ABS, Turn Indicators Master Electrical Component List Instrument Cluster Description and Operation Control Module References Headlights On Indicator, Crank Signal, Vehicle Speed Signal Charge, Air Bag, Malfunction, O/D Off, Cruise Indicators Turn Indicators and Lamps

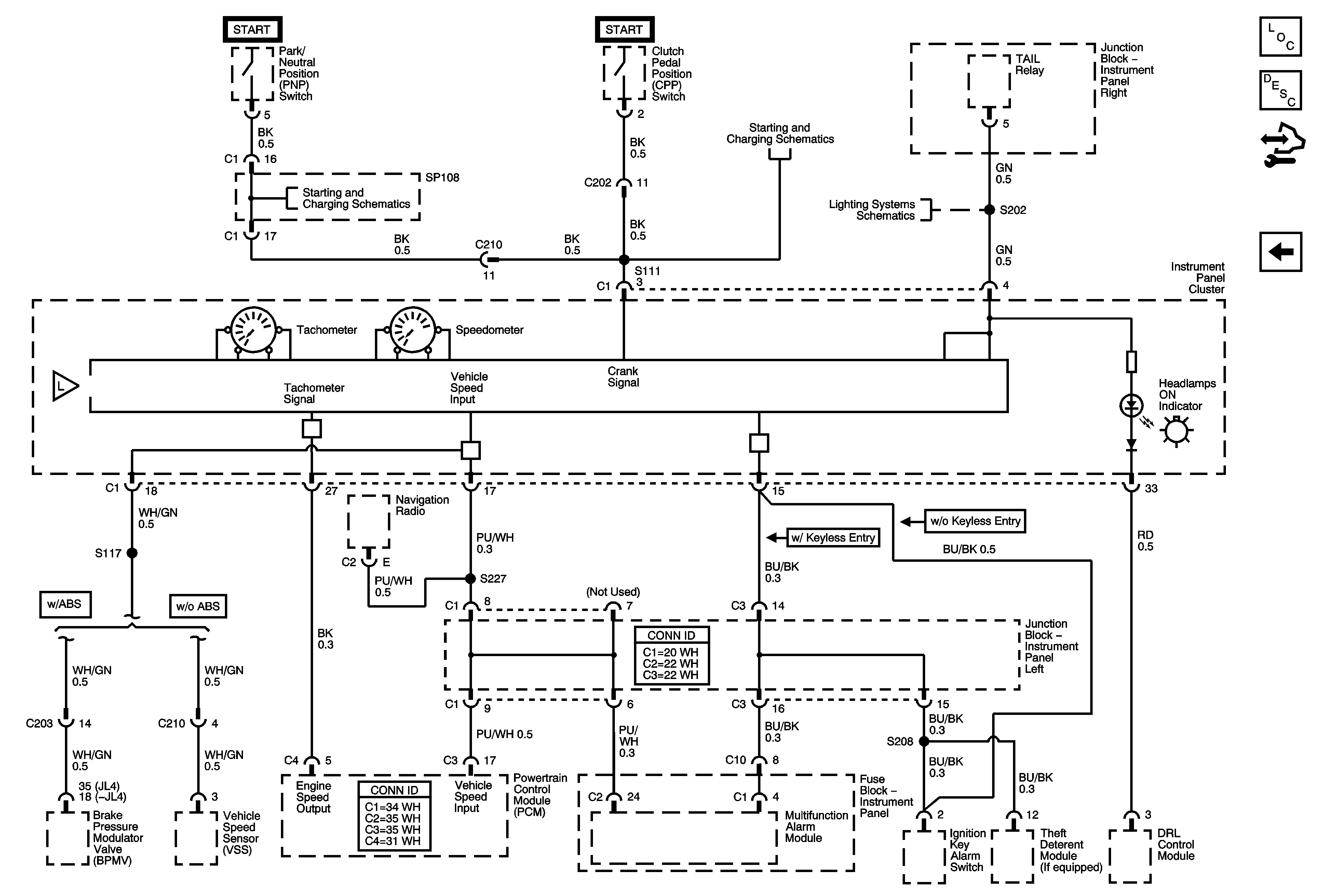

Figure 6:	Headlamps ON Indicator, Crank Signal, Vehicle Speed Signal Master Electrical Component List Instrument Cluster Description and Operation Control Module References Brake, ABS, Turn Indicators Starting System Starting System Park Lamps
