Tools Required

J 21104-B (KM 475-B) Weatherstrip Remover Universal

Removal Procedure

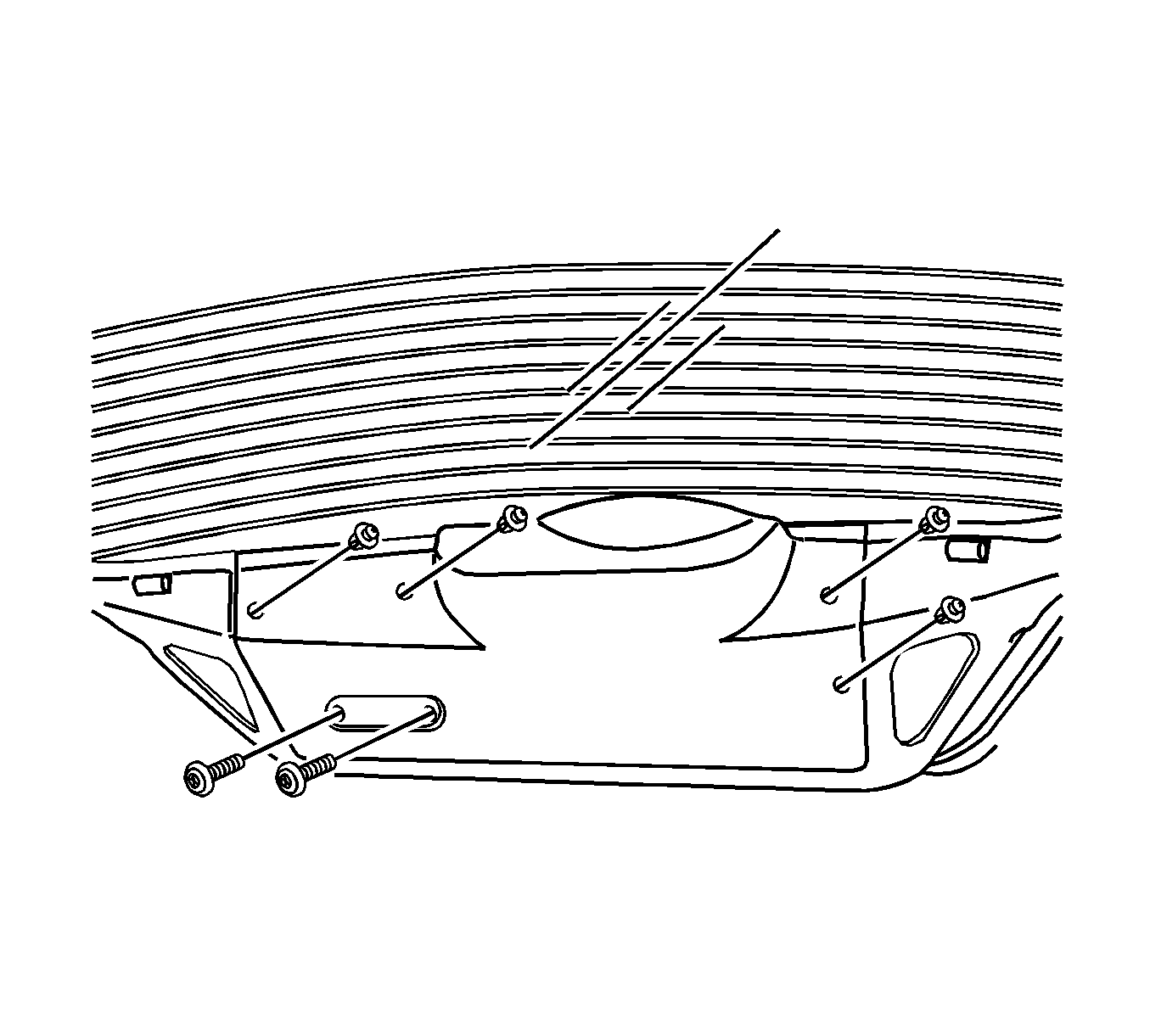

    Object Number: 1248483 Size: SH
  1. Open the hatchback door.
  2. Remove the lower garnish molding clips using J 21104-B .
  3. Remove the lower garnish molding.

Installation Procedure

    Object Number: 1248483 Size: SH
  1. Install the lower garnish molding with the clips.
  2. Close the hatchback door.
