Makes 🢒 Pontiac 🢒 2008 🢒 Wave 🢒 HVAC 🢒 HVAC - Automatic 🢒 Temperature Valve Actuator Replacement

Removal Procedure

    Caution: Refer to Battery Disconnect Caution in the Preface section.

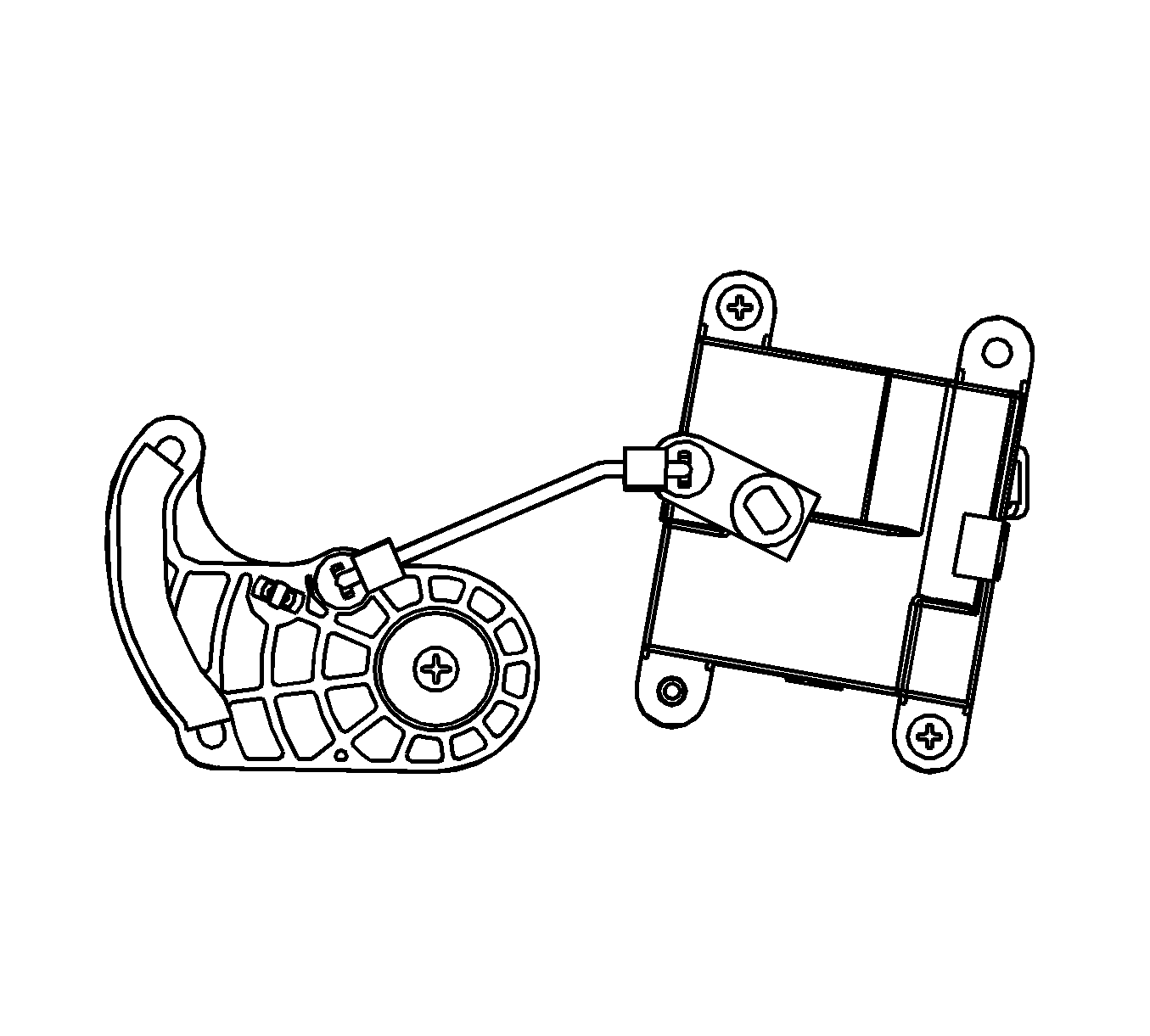

    Object Number: 1817425 Size: SH
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
  3. Disconnect the electrical connector.
  4. Remove the actuating rod by snapping it out of the lever with needle-nose pliers.
  5. Remove the air temperature actuator retaining screws.
  6. Remove the air temperature actuator.

Installation Procedure

    Object Number: 1817425 Size: SH
  1. Install the air temperature actuator.
  2. Install the retaining screws and tighten.
  3. Install the actuating rod.
  4. Connect the electrical connector.
  5. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
  6. Connect the negative battery cable.
