Automatic Transmission Controls Schematics. Saturn AURA 2007

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2007 🢒 AURA 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T45-E 🢒 Automatic Transmission Controls Schematics

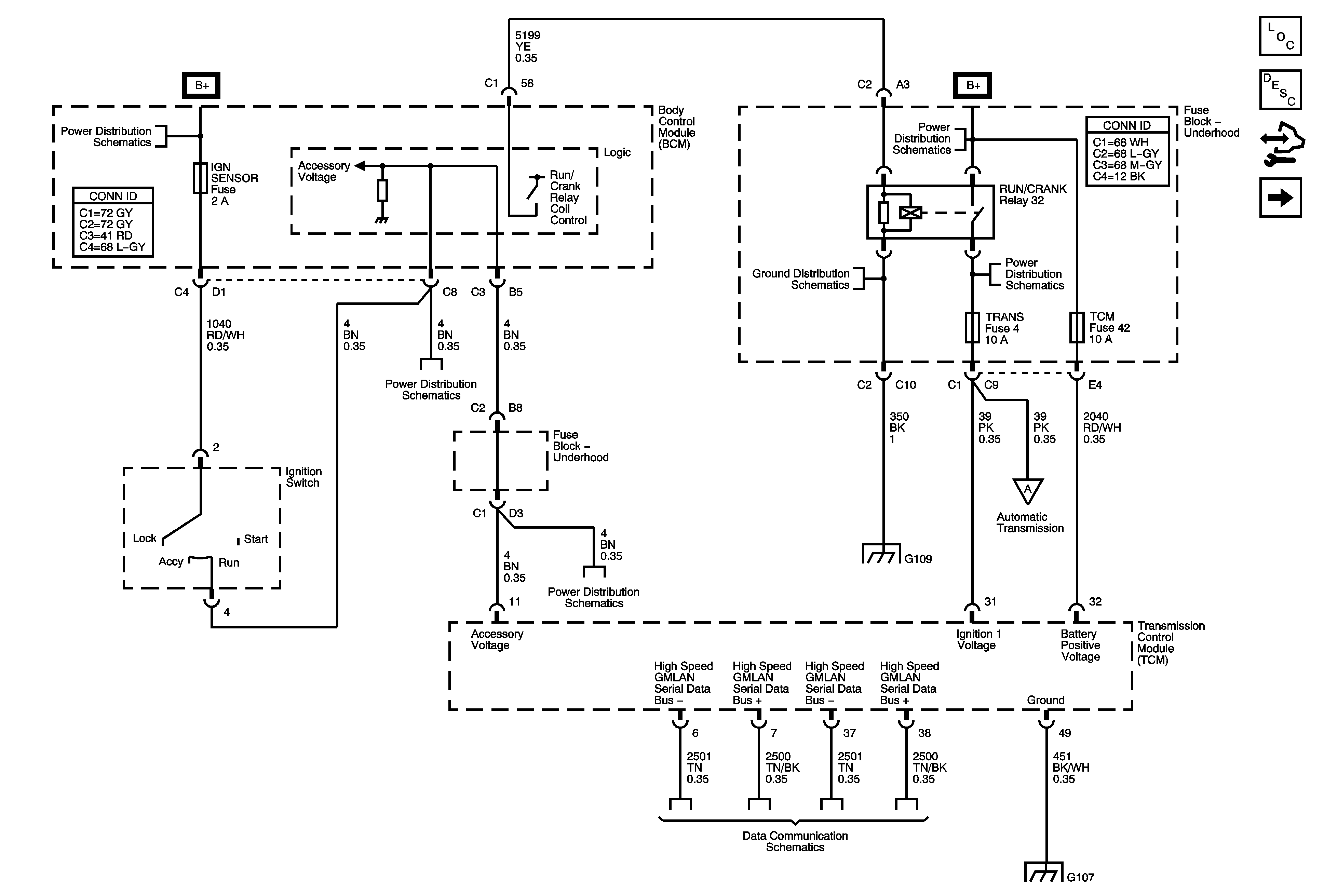

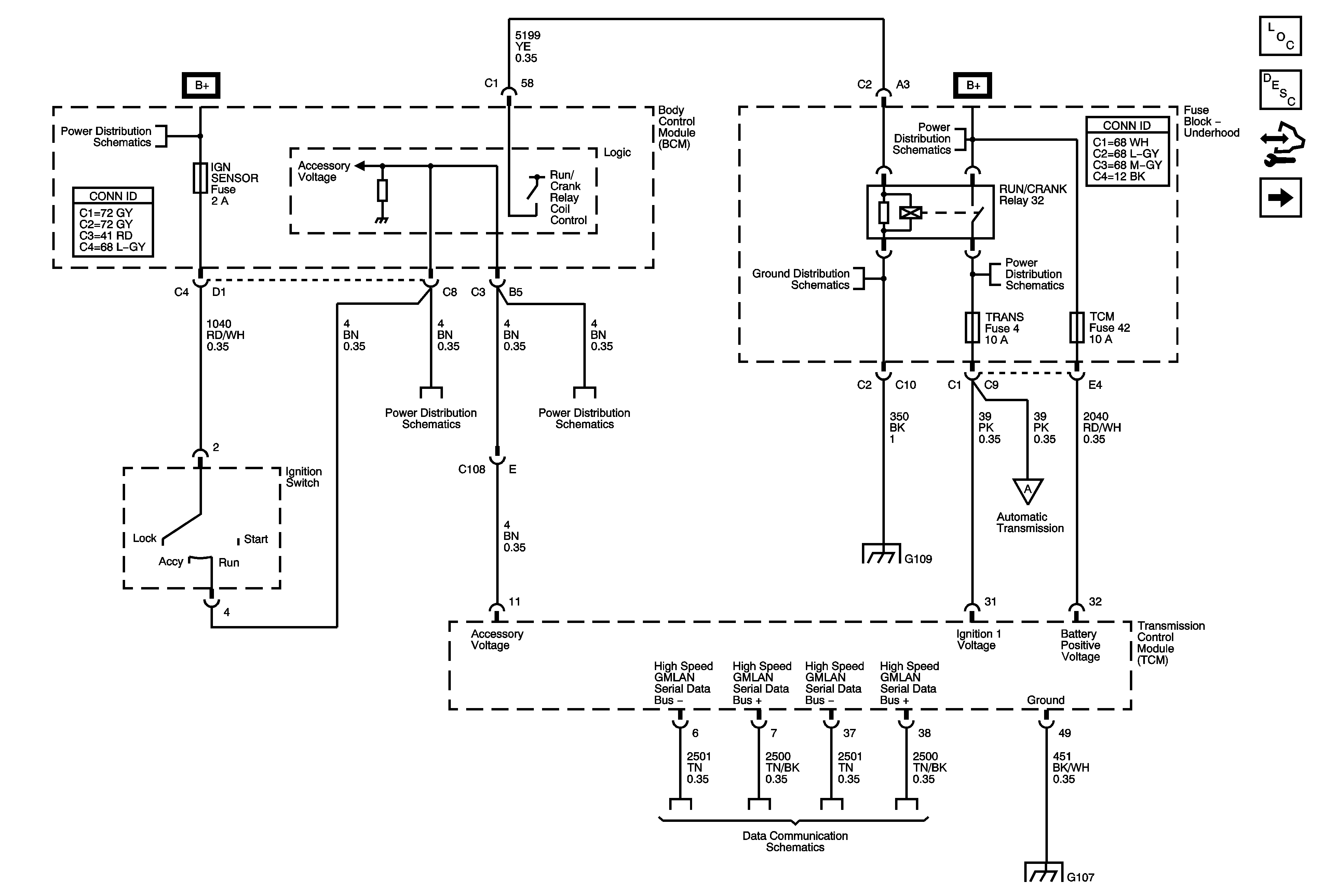

Figure 1:	Power, Ground and Serial Data (ME7) Master Electrical Component List Control Module References Shift Solenoids and (TCC PWM) Solenoid Valve Underhood Fuse Block IBCM1, Body Control Module (BCM) AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR and RADIO Fuses Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses G109 Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses Underhood Fuse Block IBCM1, Body Control Module (BCM) AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR and RADIO Fuses G109 Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses Power, Ground and High Speed Serial Data G103, G104 and G105
Figure 2:	Power, Ground and Serial Data (MN5) Master Electrical Component List Data Link Communications Description and Operation Control Module References Shift Solenoids and (TCC PWM) Solenoid Valve Underhood Fuse Block IBCM1, Body Control Module (BCM) AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR and RADIO Fuses Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses G109 Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses Underhood Fuse Block IBCM1, Body Control Module (BCM) AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR and RADIO Fuses G109 Underhood Fuse Block RUN/CRANK Relay, ABS, BAS PMP MAF, ECM IGN 1, IGN 1 ECM IGN 1 BAS IGN and TRANS Fuses Power, Ground and High Speed Serial Data G103, G104 and G105

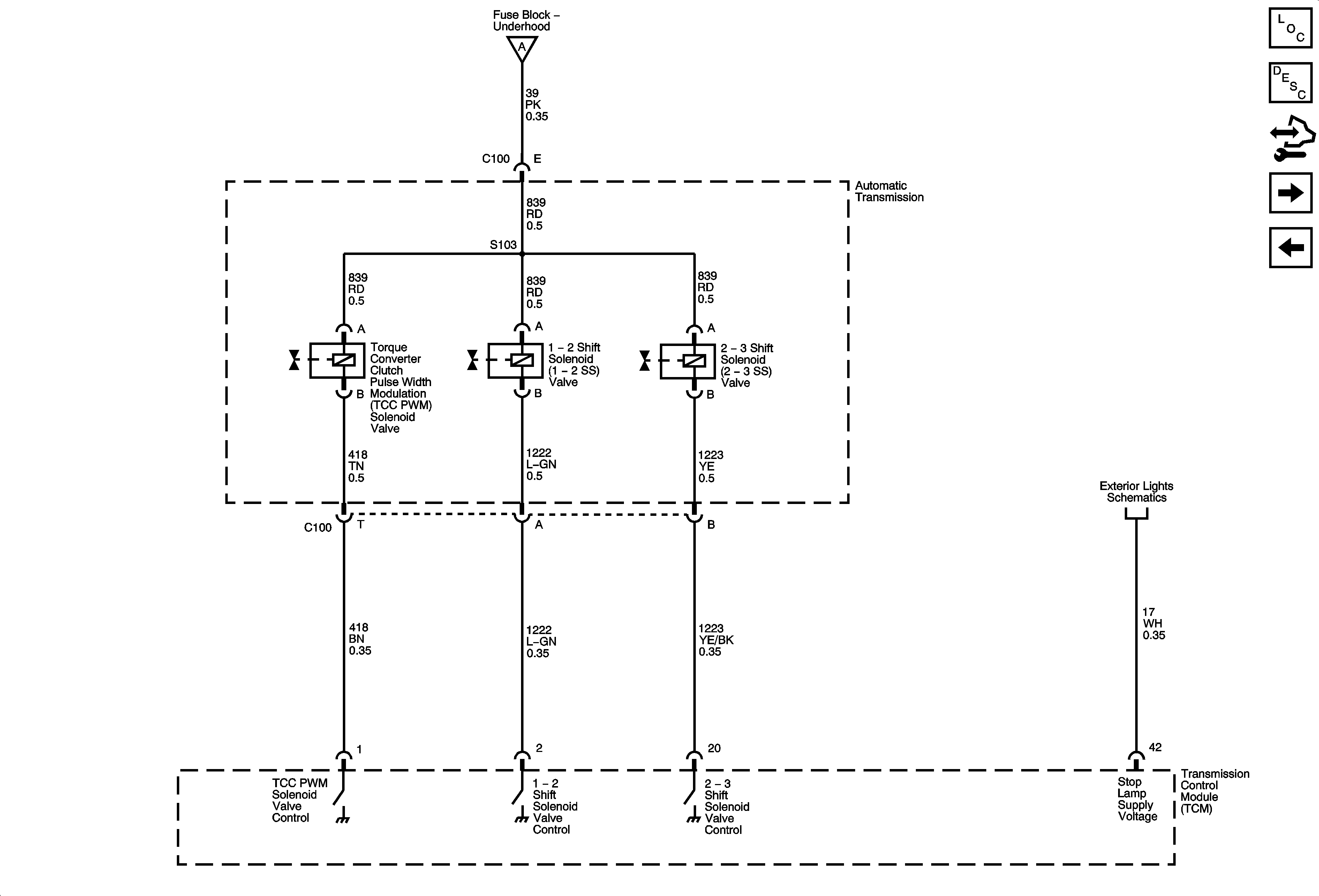

Figure 3:	Shift Solenoids and (TCC PWM) Solenoid Valve (ME7) Master Electrical Component List Control Module References Transmission Switches, TFT and A/T ISS Sensor Power, Ground and Serial Data Power, Ground and Serial Data Stop Lamps

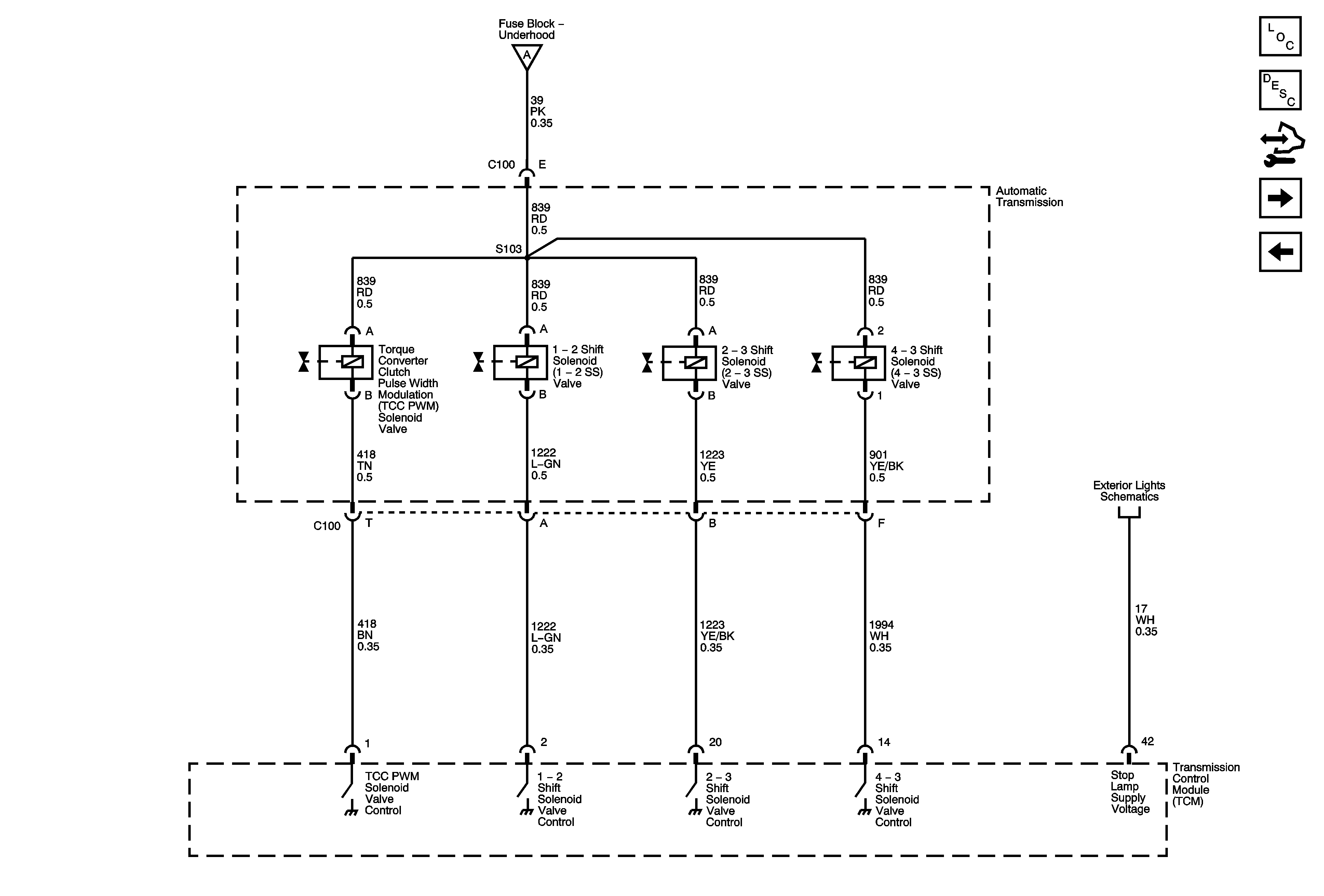

Figure 4:	Shift Solenoids and (TCC PWM) Solenoid Valve (MN5) Master Electrical Component List Electronic Component Description Control Module References Transmission Switches, TFT and A/T ISS Sensor Power, Ground and Serial Data Power, Ground and Serial Data Stop Lamps

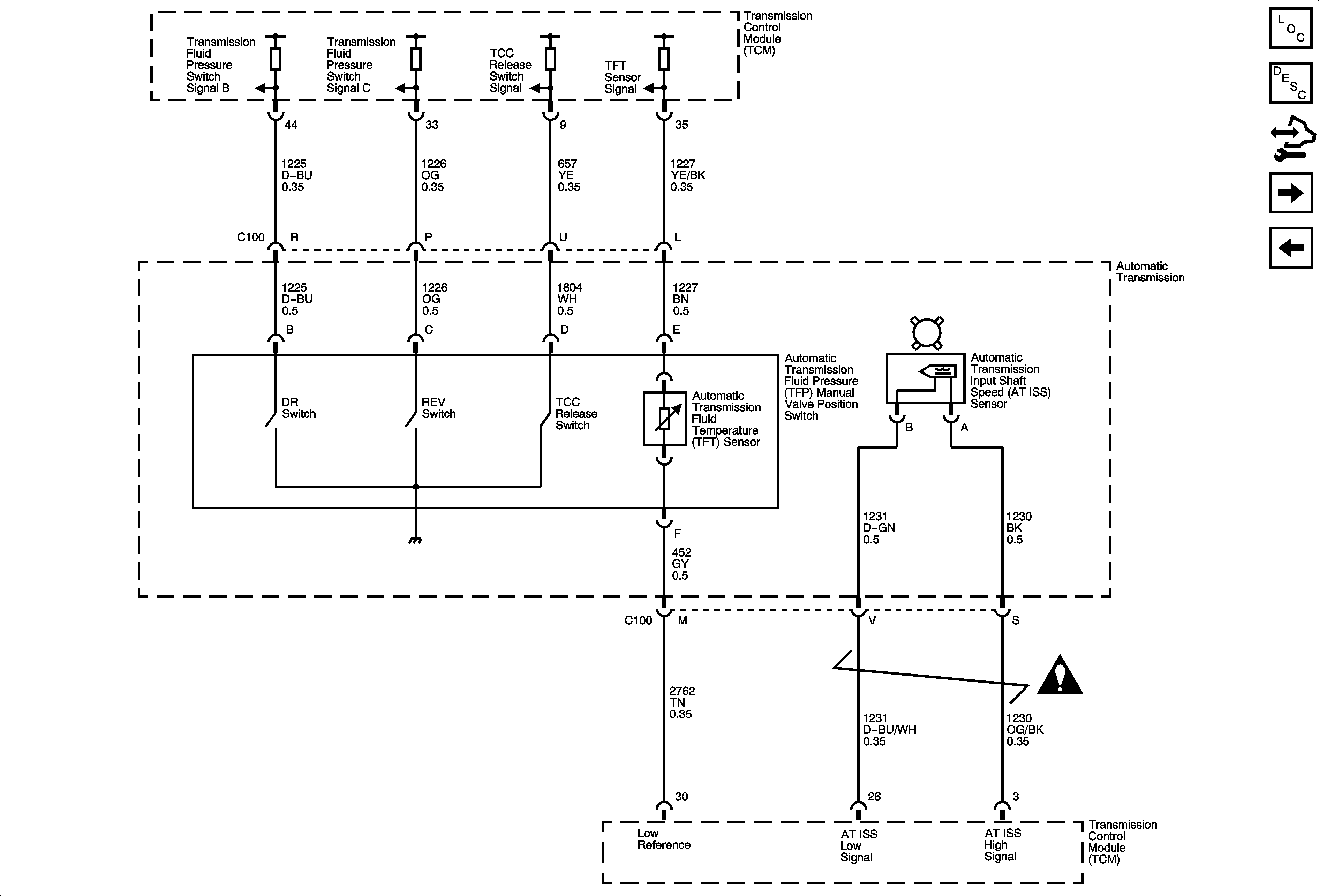

Figure 5:	Transmission Switches, TFT and A/T ISS Sensor (ME7) Master Electrical Component List Control Module References Pressure Control and VSS Shift Solenoids and (TCC PWM) Solenoid Valve
Figure 6:	Transmission Switches, TFT and A/T ISS Sensor (MN5) Master Electrical Component List Electronic Component Description Control Module References Pressure Control and VSS Shift Solenoids and (TCC PWM) Solenoid Valve Automatic Transmission Schematic Icons

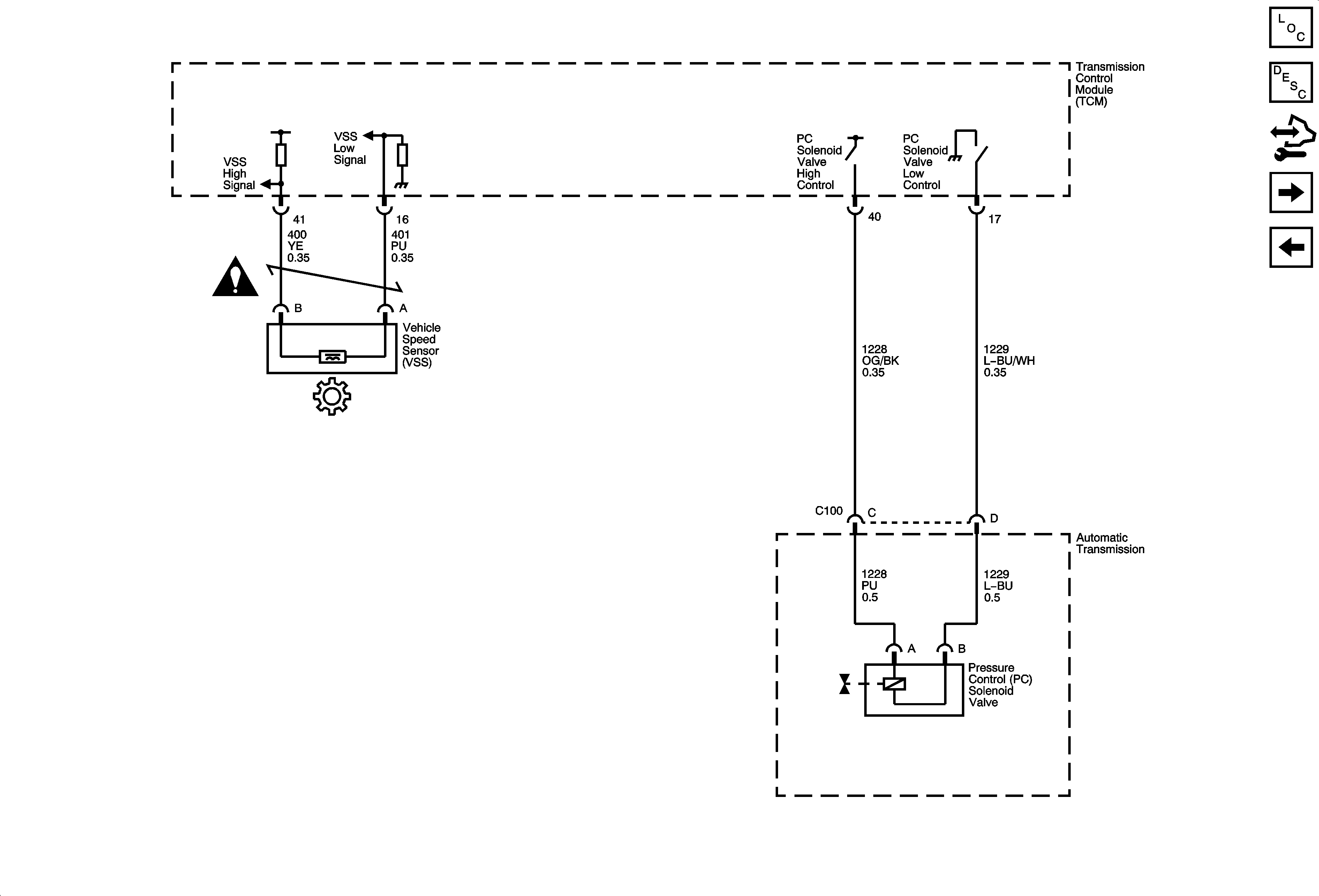

Figure 7:	Pressure Control and VSS (ME7) Master Electrical Component List Control Module References PNP Switch Transmission Switches, TFT and A/T ISS Sensor

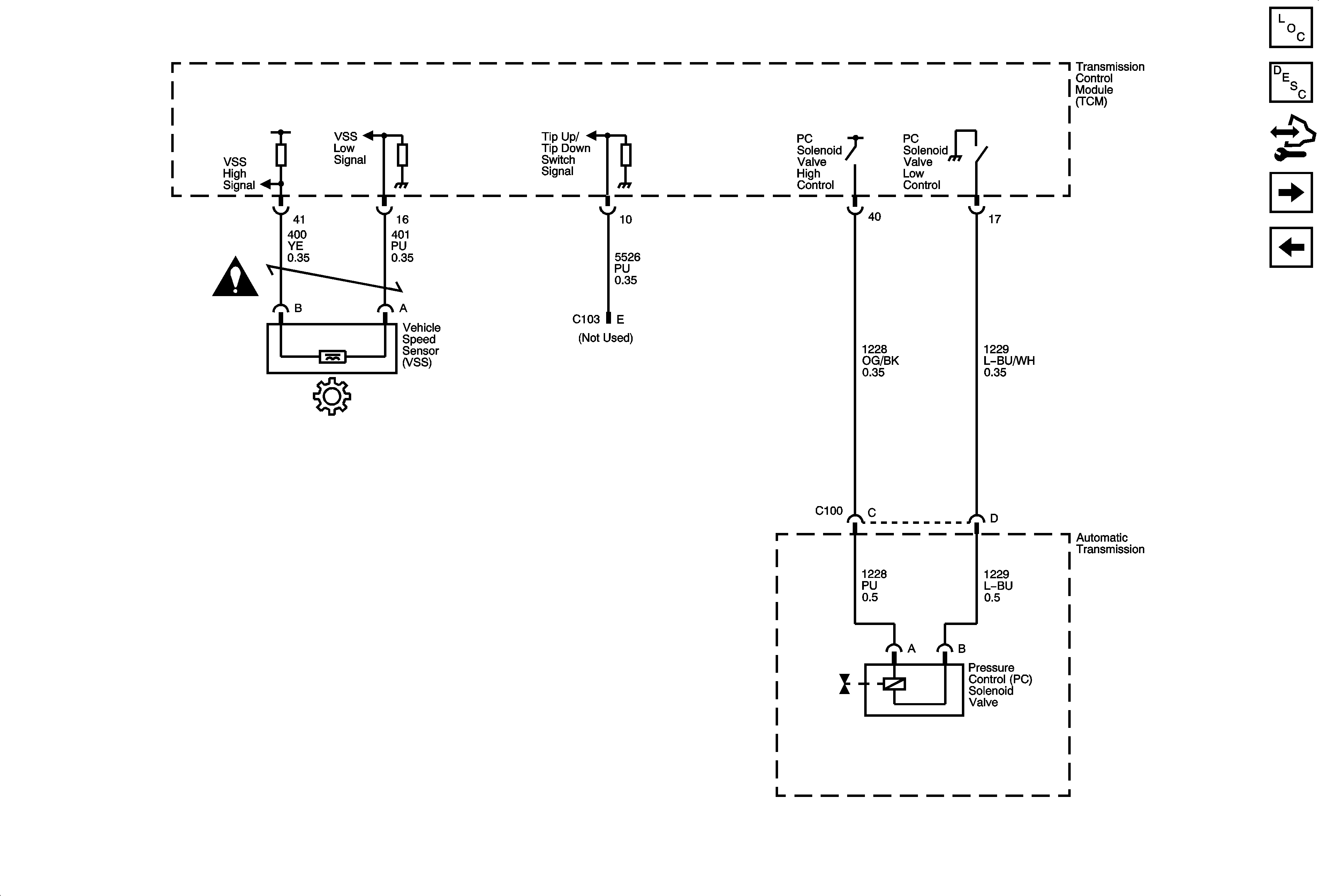

Figure 8:	Pressure Control and VSS (MN5) Master Electrical Component List Electronic Component Description Control Module References PNP Switch Transmission Switches, TFT and A/T ISS Sensor Automatic Transmission Schematic Icons

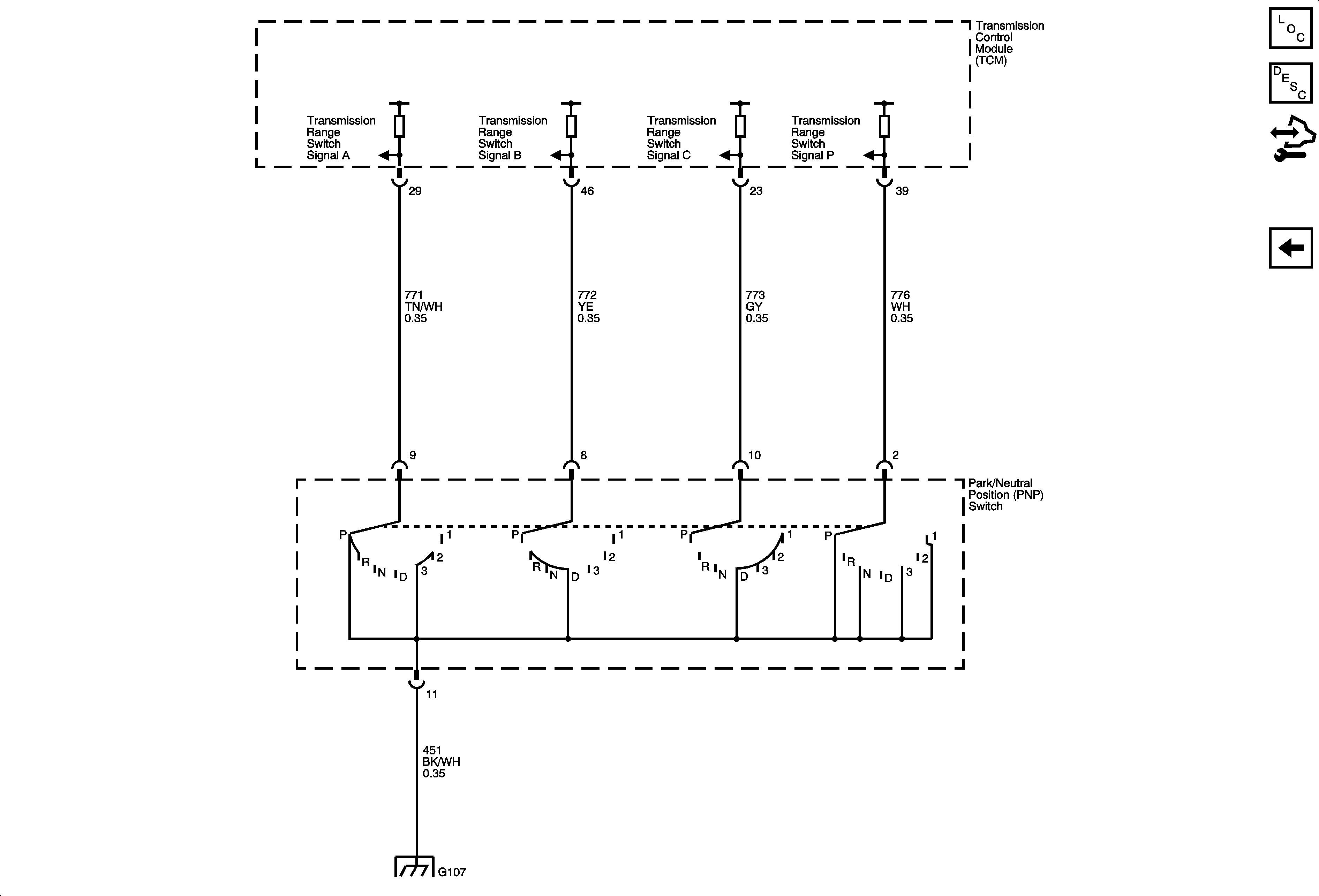

Figure 9:	PNP Switch (ME7) Master Electrical Component List Control Module References Pressure Control and VSS G103, G104 and G105

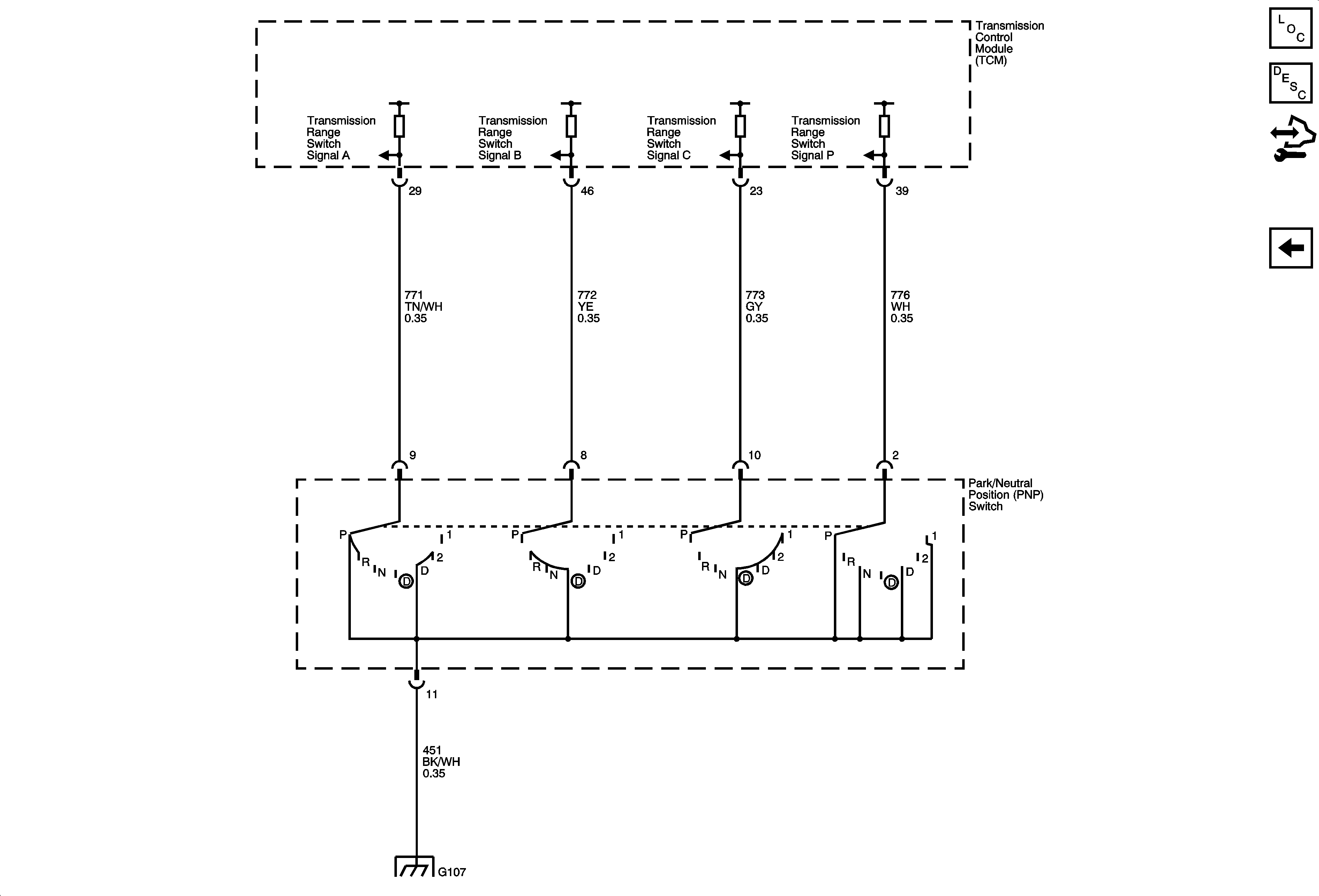

Figure 10:	PNP Switch (MN5) Master Electrical Component List Electronic Component Description Control Module References Pressure Control and VSS G103, G104 and G105
