Engine Controls Schematics. Saturn AURA 2008

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2008 🢒 AURA 🢒 Engine 🢒 Engine Controls and Fuel - 2.8L, 3.0L, 3.2L, or 3.6L 🢒 Engine Controls Schematics

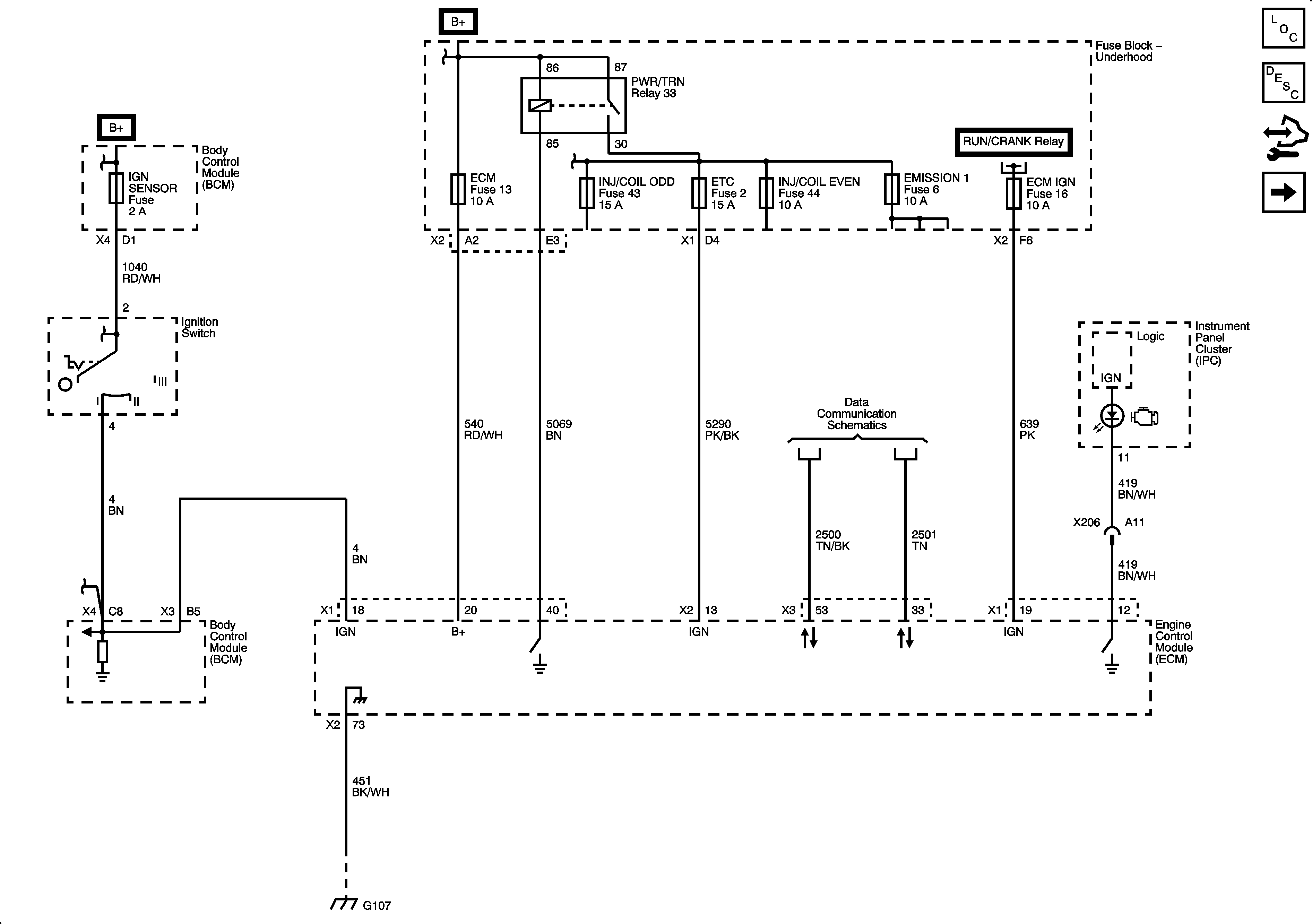

Figure 1:	Module Power, Ground, Serial Data and MIL Master Electrical Component List Engine Control Module Description Control Module References 5-Volt and Low References

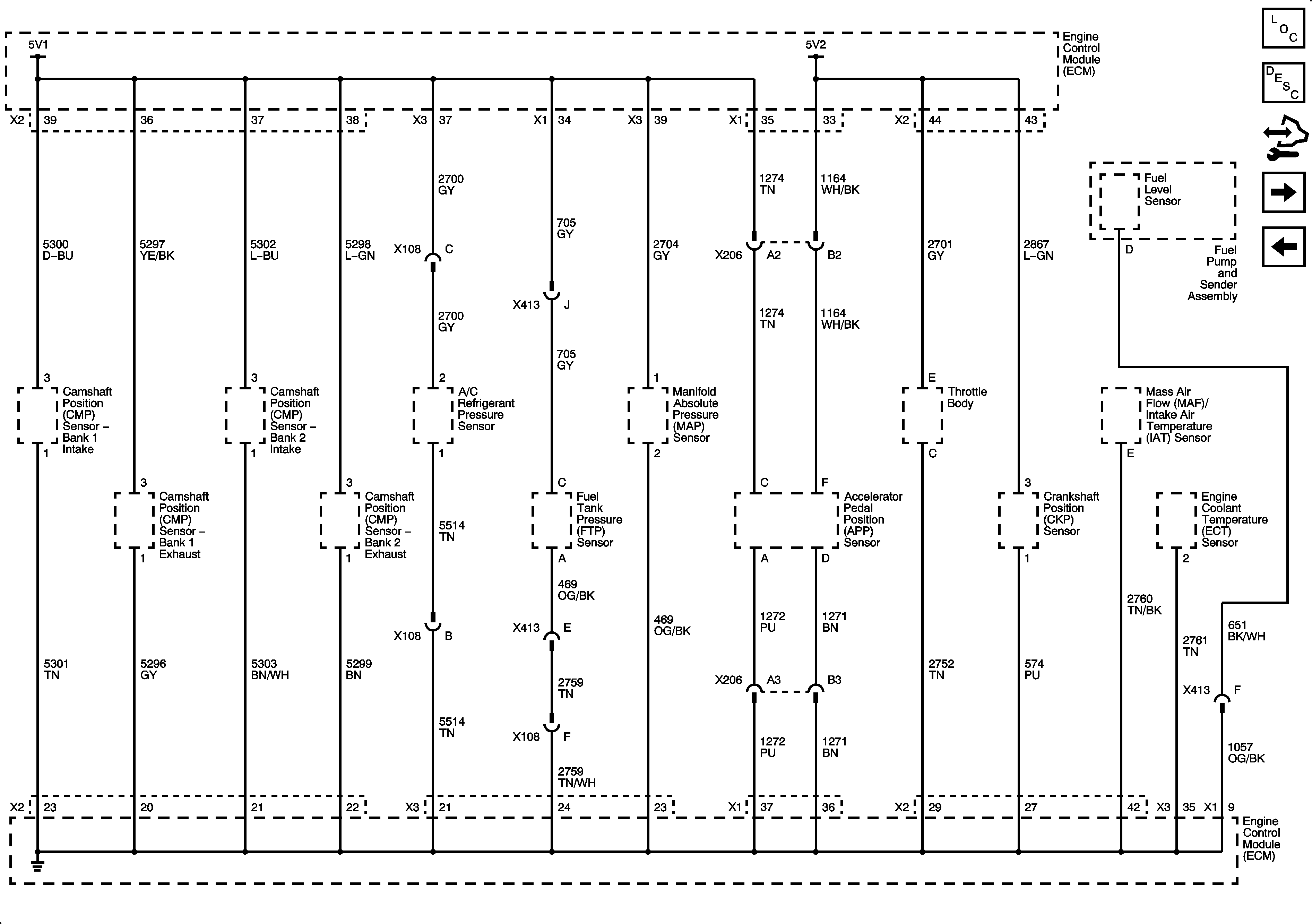

Figure 2:	5-Volt and Low References Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Pressure, Temperature, and Throttle Controls Module Power, Ground, Serial Data and MIL

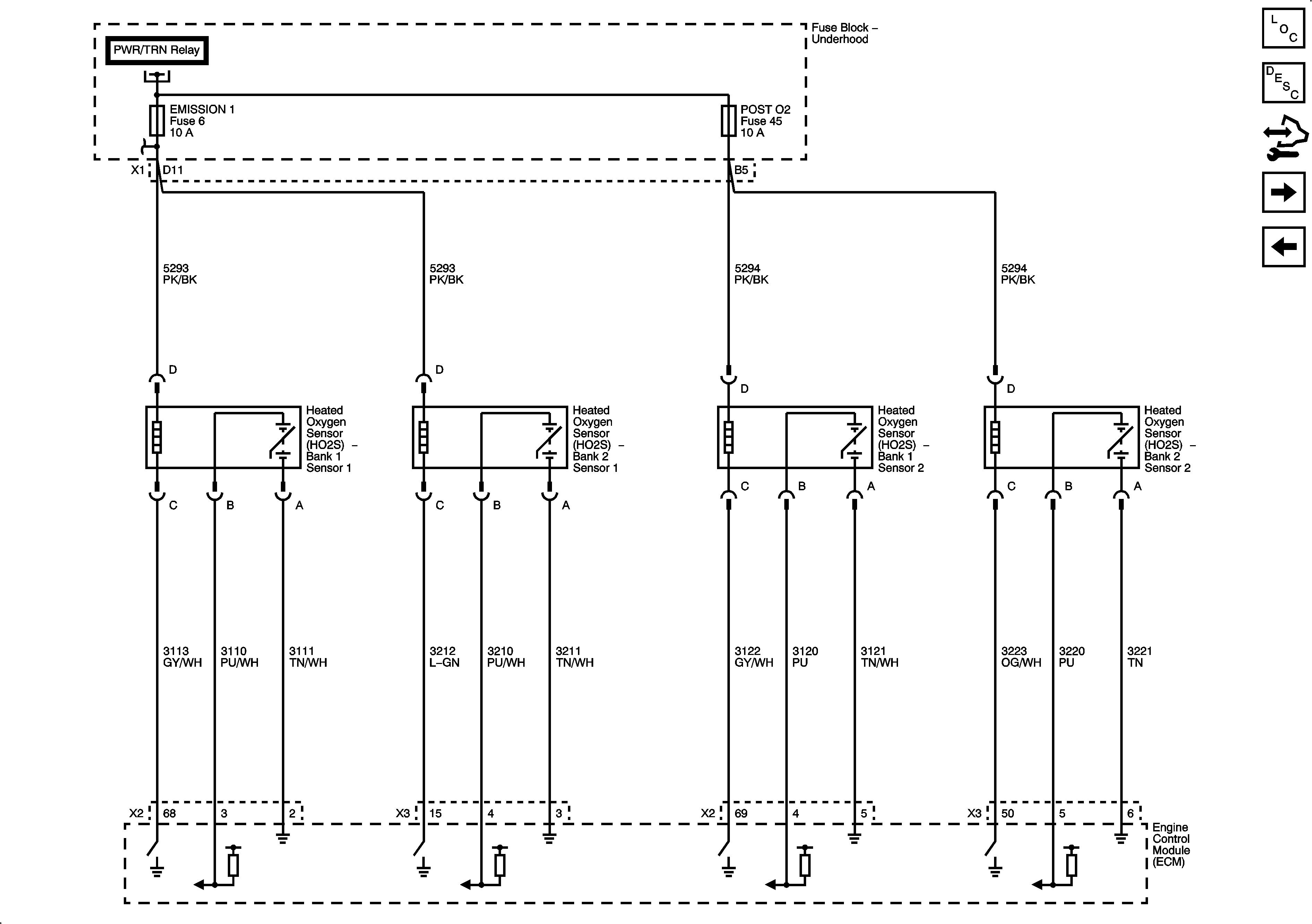

Figure 3:	Engine Data Sensors - Pressure, Temperature, and Throttle Controls Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - HO2S 5-Volt and Low References

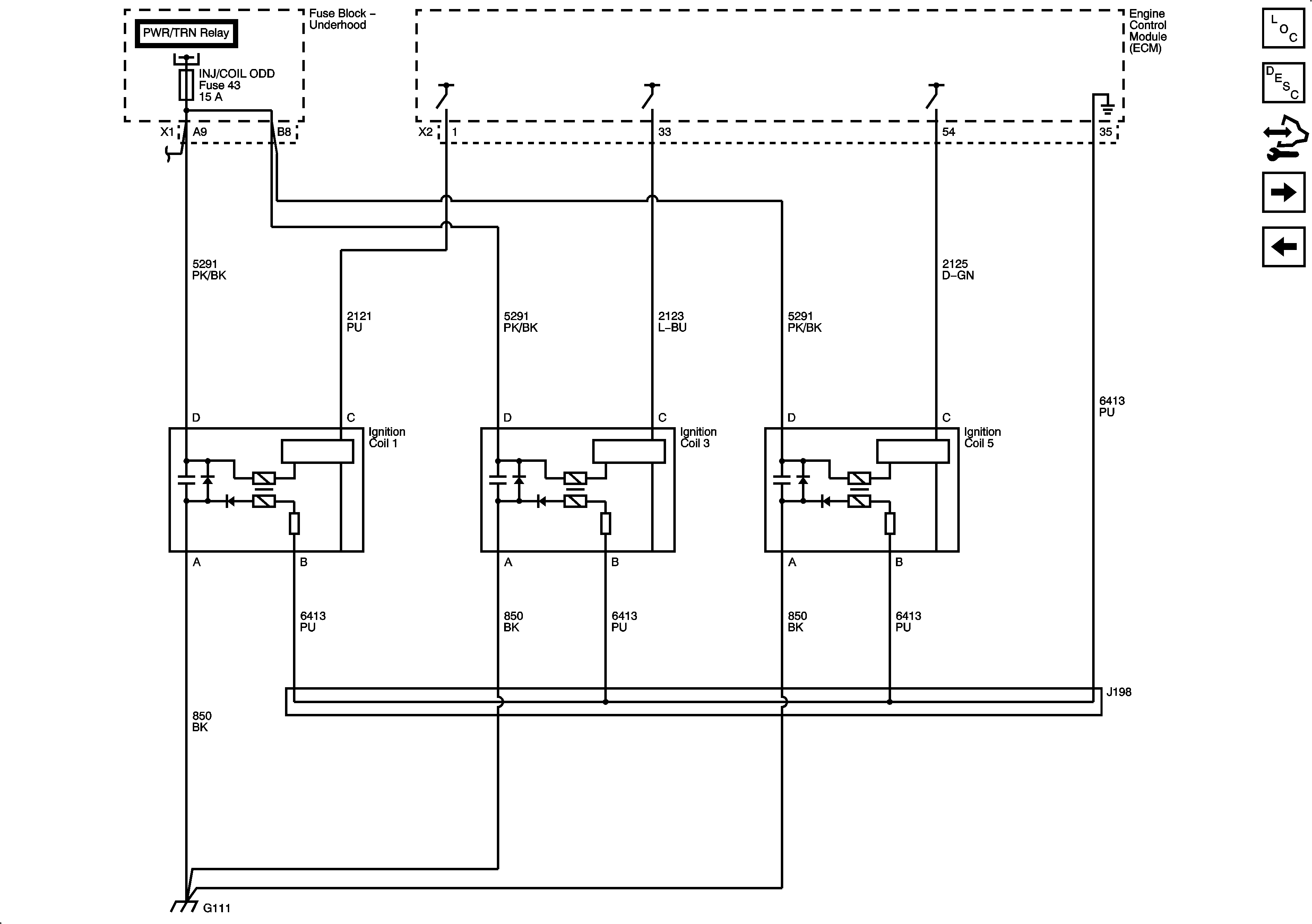

Figure 4:	Engine Data Sensors - HO2S Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls - Ignition System Coils 1, 3, and 5 Engine Data Sensors - Pressure, Temperature, and Throttle Controls
Figure 5:	Ignition Controls - Ignition System Coils 1, 3, and 5 Master Electrical Component List Engine Control Module Description Control Module References Ignition System Coils 2, 4, and 6 Engine Data Sensors - HO2S

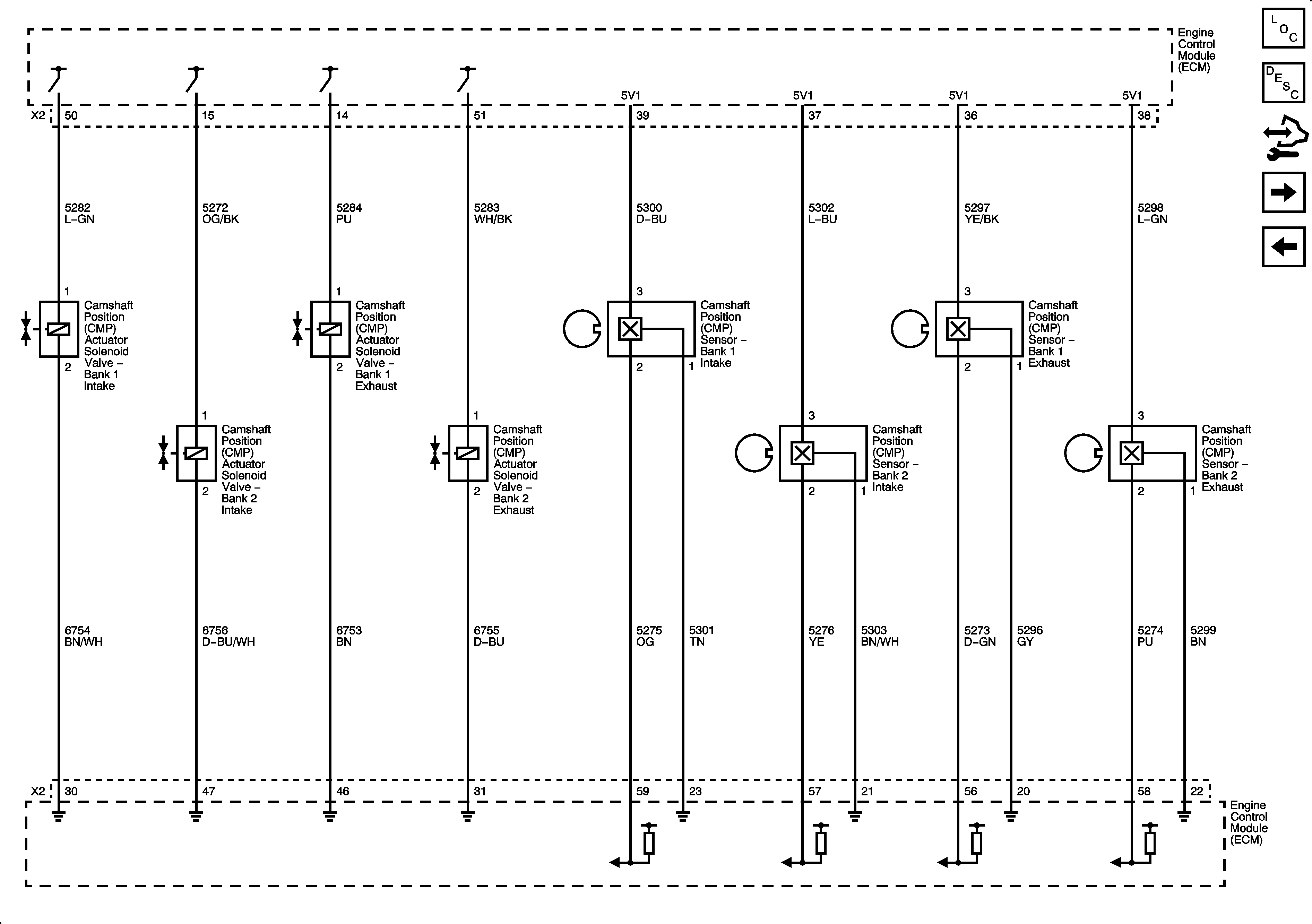

Figure 6:	Ignition Controls - Ignition System Coils 2, 4, and 6 Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls - Camshaft Sensors/Actuators Ignition Controls - Ignition System Coils 1, 3, and 5

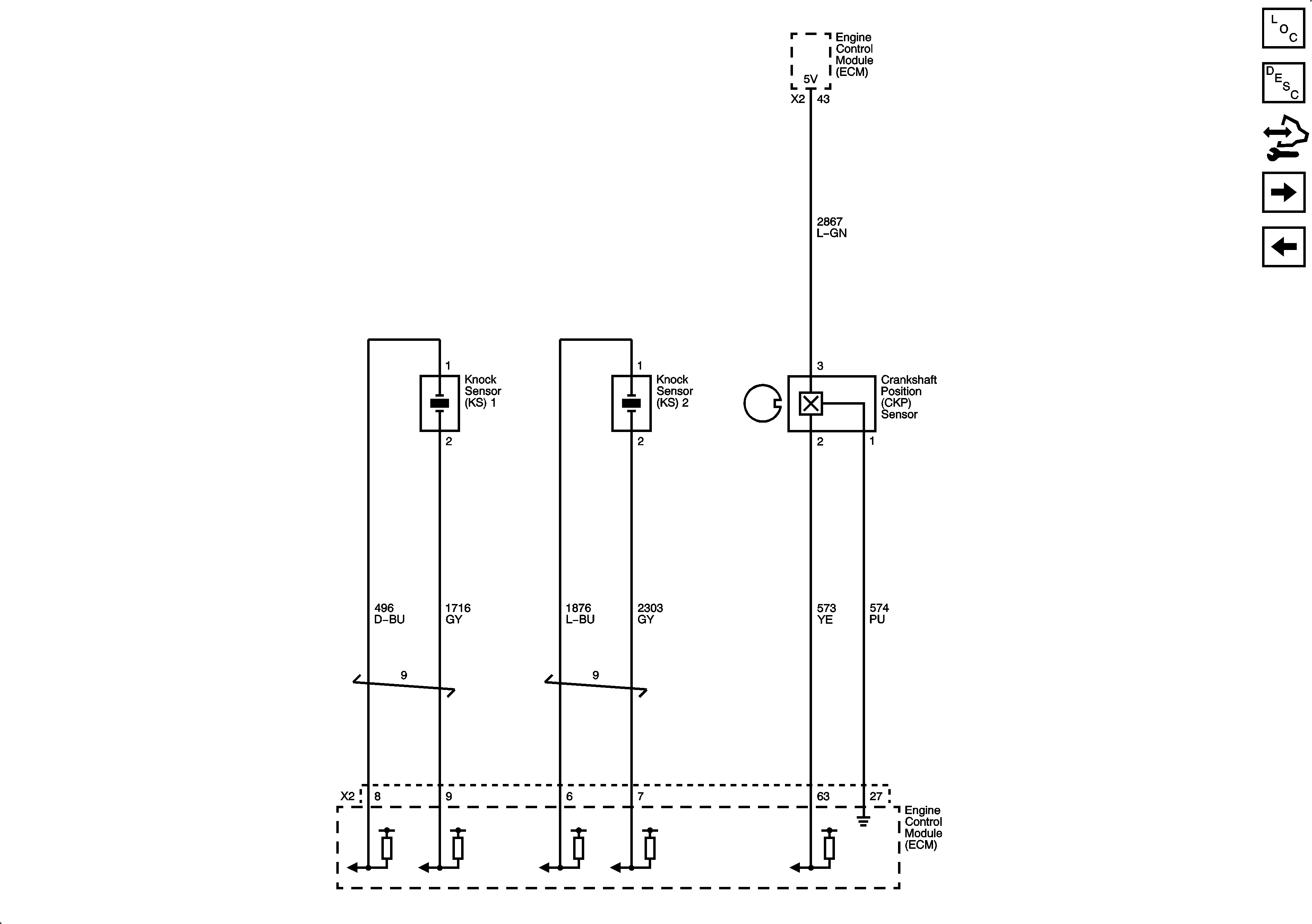

Figure 7:	Ignition Controls - Camshaft Sensors/Actuators Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls - Crankshaft/Knock Sensors Ignition System Coils 2, 4, and 6

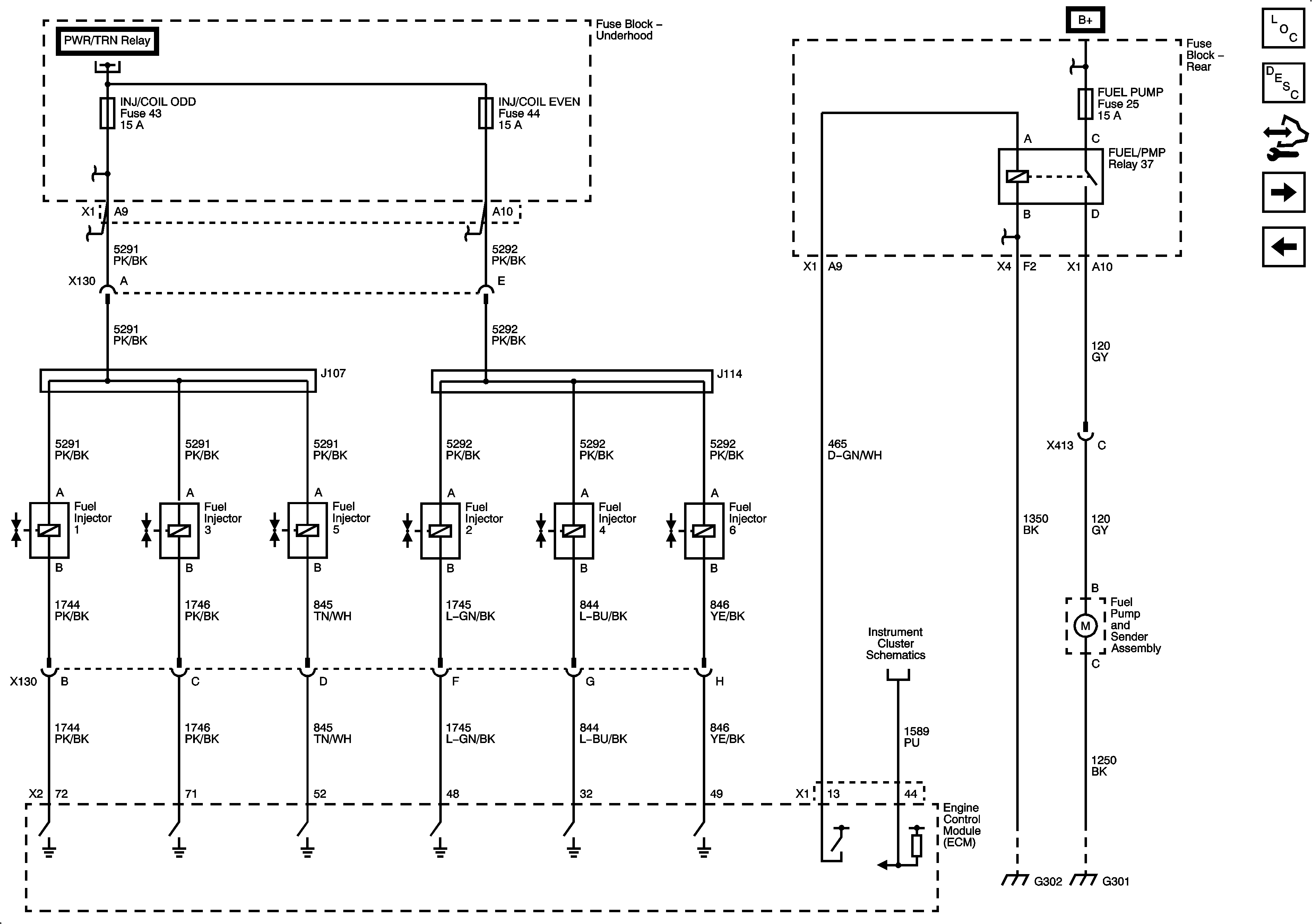

Figure 8:	Ignition Controls - Crankshaft/Knock Sensors Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - Fuel Injectors and Fuel Pump Ignition Controls - Camshaft Sensors/Actuators
Figure 9:	Fuel Controls - Fuel Injectors and Fuel Pump Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls and Manifold Tuning Ignition Controls - Crankshaft/Knock Sensors

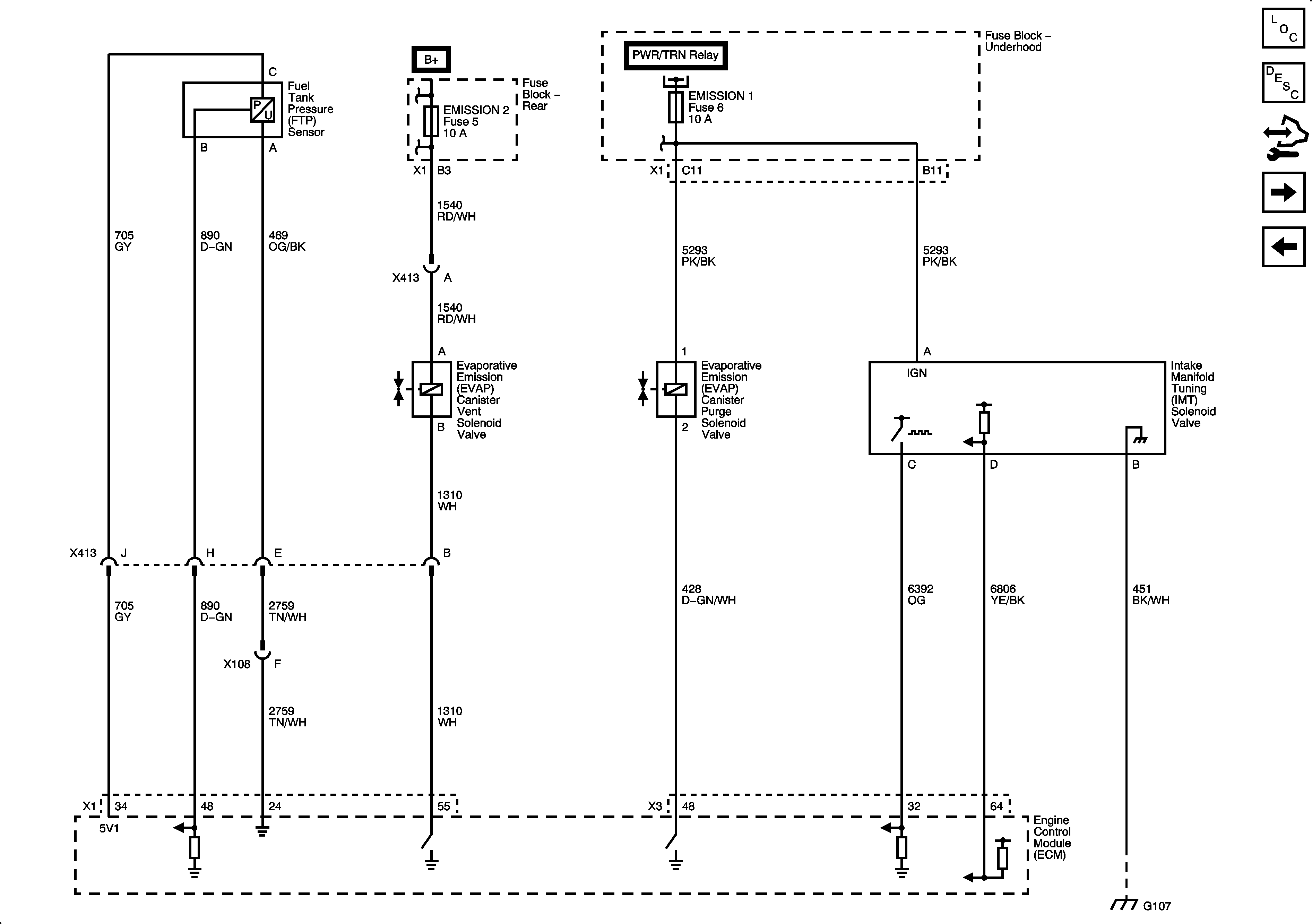

Figure 10:	Fuel Controls - EVAP Controls and Manifold Tuning Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls and Manifold Tuning Fuel Controls - Fuel Injectors and Fuel Pump

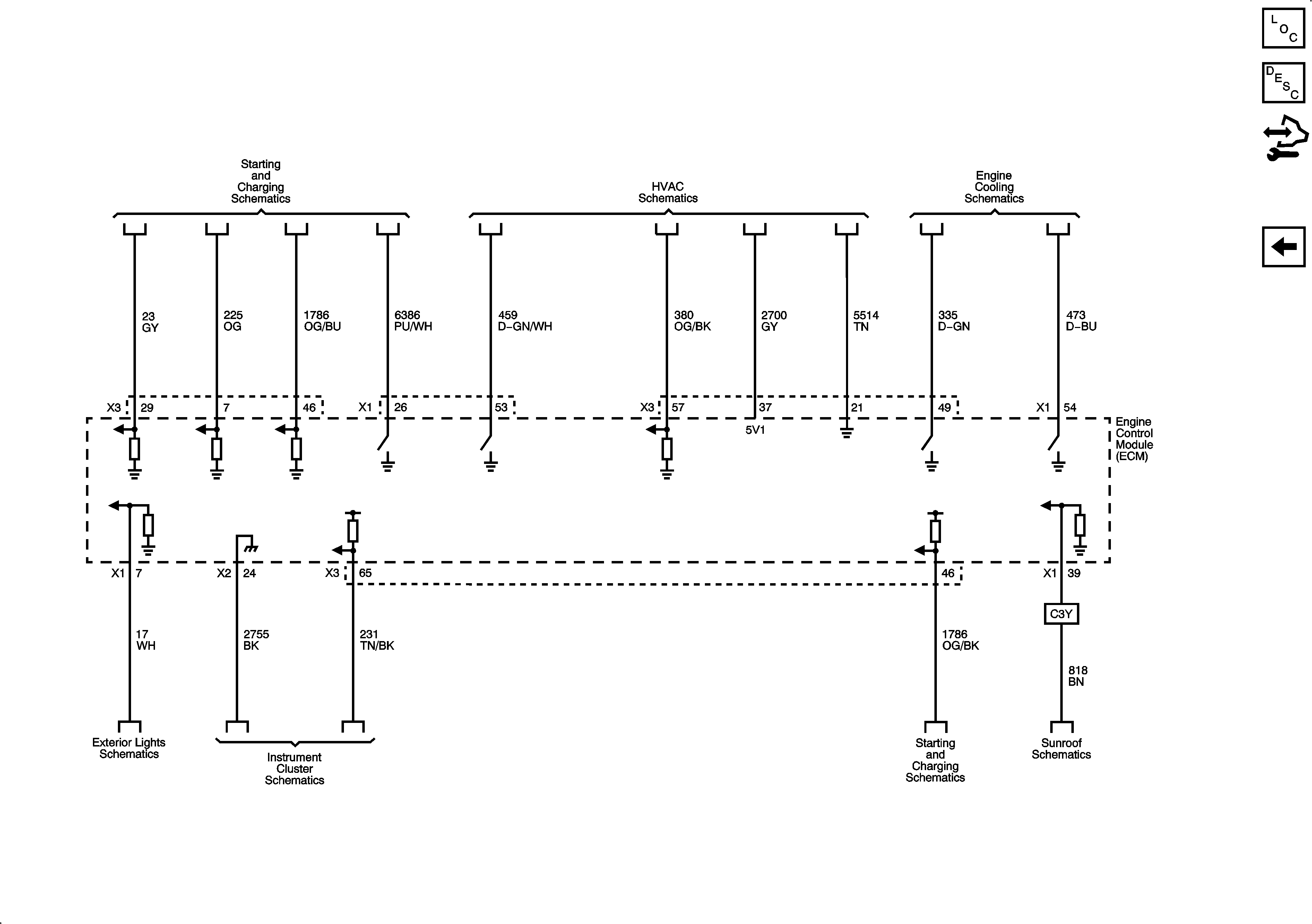

Figure 11:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls and Manifold Tuning
