Ground Distribution Schematics. Saturn AURA 2008

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2008 🢒 AURA 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

Figure 1:	G101 and G102 Master Electrical Component List Control Module References G103, G104, and G105
Figure 2:	G103, G104, G105, and G107 Master Electrical Component List Control Module References G106 G101 and G102
Figure 3:	G106 Master Electrical Component List Control Module References G109 G103, G104, and G105
Figure 4:	G109 Master Electrical Component List Control Module References G110, G111, and G113 G106
Figure 5:	G110, G111, and G113 Master Electrical Component List Control Module References G201 G109
Figure 6:	G201 Master Electrical Component List Control Module References G103, G104, G105, and G107 G110, G111, and G113
Figure 7:	G203 Master Electrical Component List Control Module References G301 G201
Figure 8:	G301 Master Electrical Component List Control Module References G302 G103, G104, G105, and G107
Figure 9:	G302 Master Electrical Component List Control Module References G303 G301
Figure 10:	G303 Master Electrical Component List Control Module References G304, G305, and G306 G302
Figure 11:	G304, G305, and G306 Master Electrical Component List Control Module References G401 and G403 G303

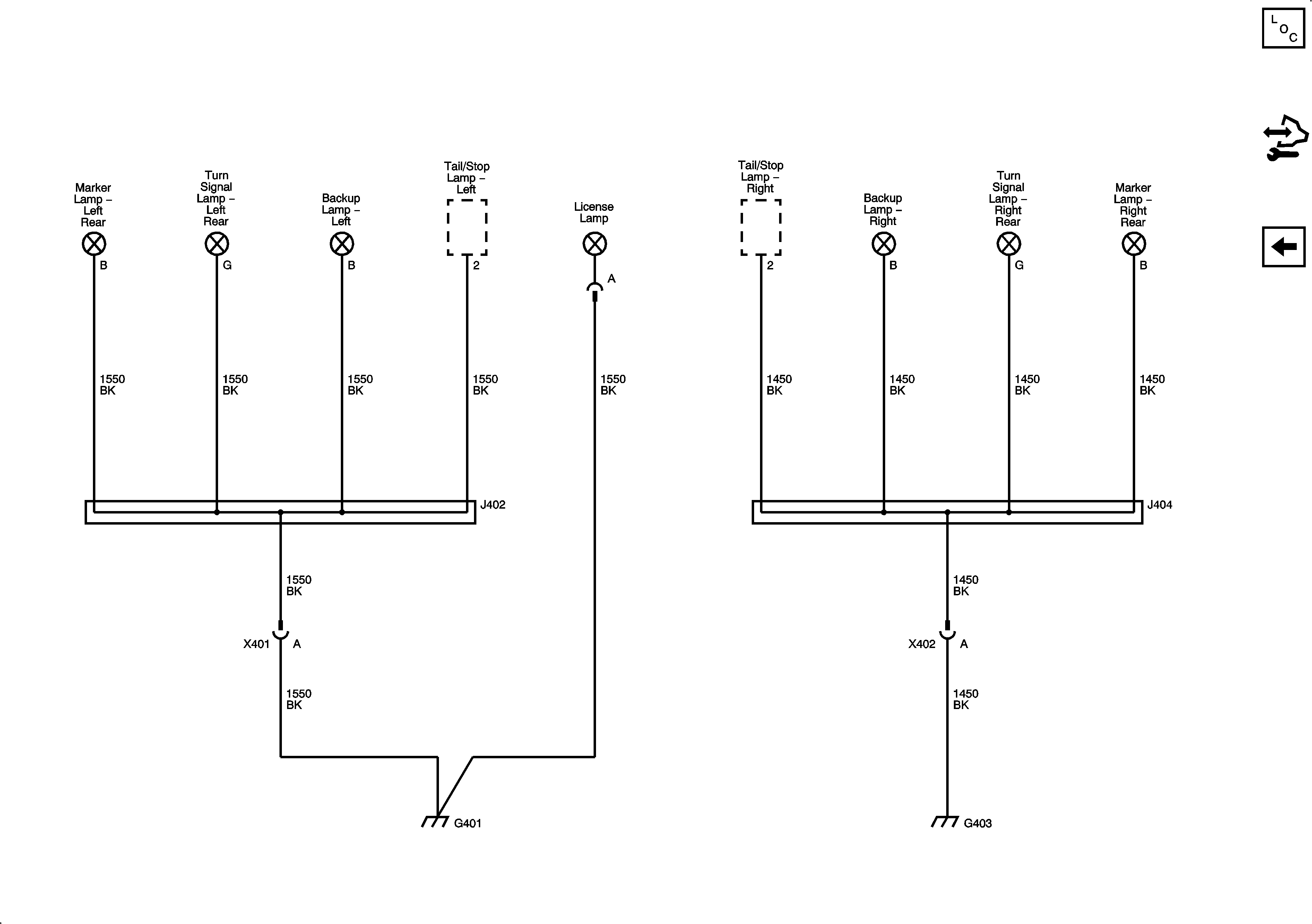

Figure 12:	G401 and G403 Master Electrical Component List Control Module References G304, G305, and G306
