Makes 🢒 Saturn 🢒 2008 🢒 AURA 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views
Figure 1:

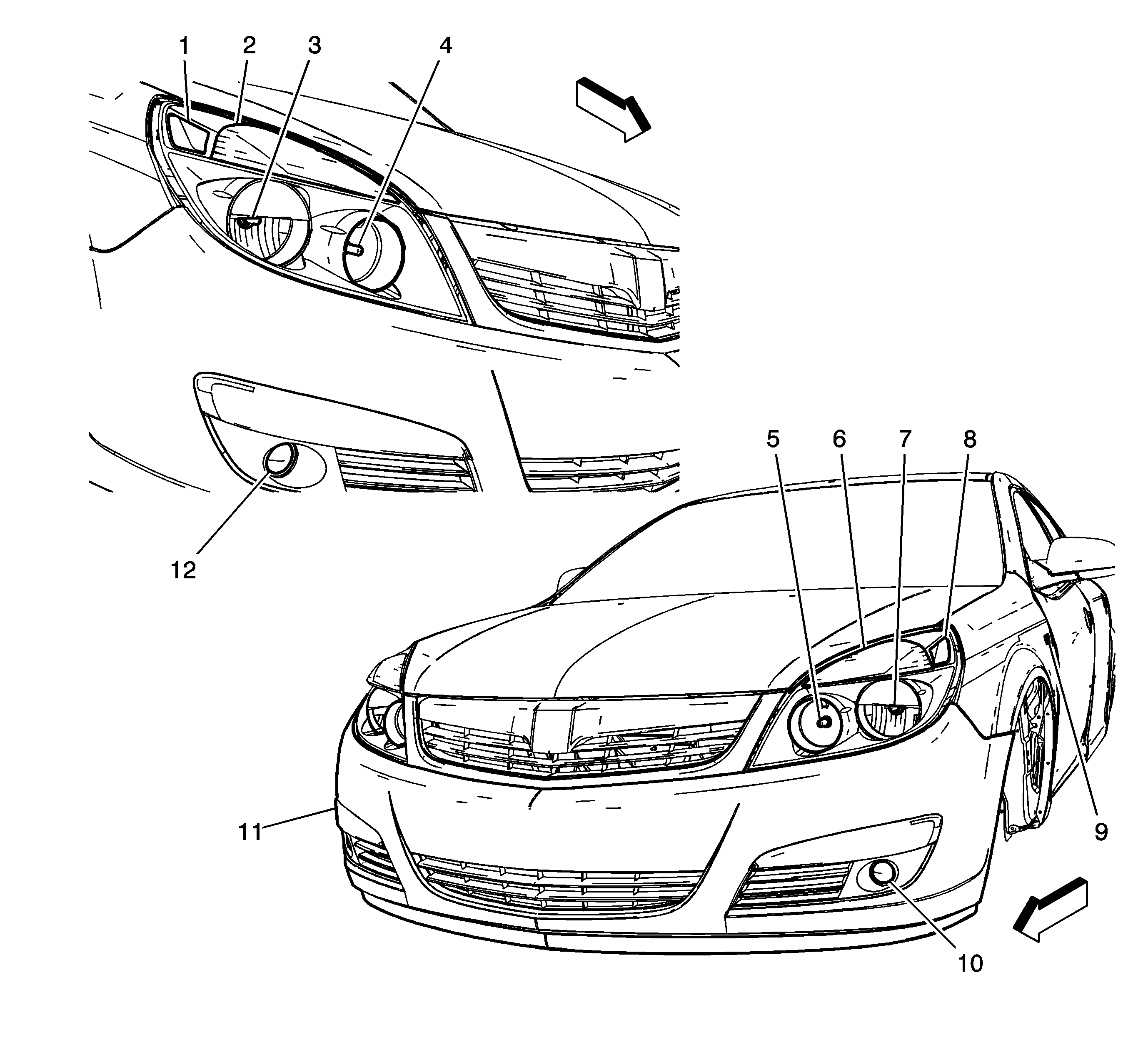

Front Exterior Lights
Object Number: 1832294 Size: LF
(1)Marker Lamp - Right Front
(2)Park/Turn Signal Lamp - Right Front
(3)Headlamp - Low Beam - Right
(4)Headlamp - High Beam - Right
(5)Headlamp - High Beam - Left
(6)Park/Turn Signal Lamp - Left Front
(7)Headlamp - Low Beam - Left
(8)Marker Lamp - Left Front
(9)Repeater Lamp - Left Front (Right Similar)
(10)Fog Lamp - Left Front (T96)
(11)Front Fascia
(12)Fog Lamp - Right Front (T96)

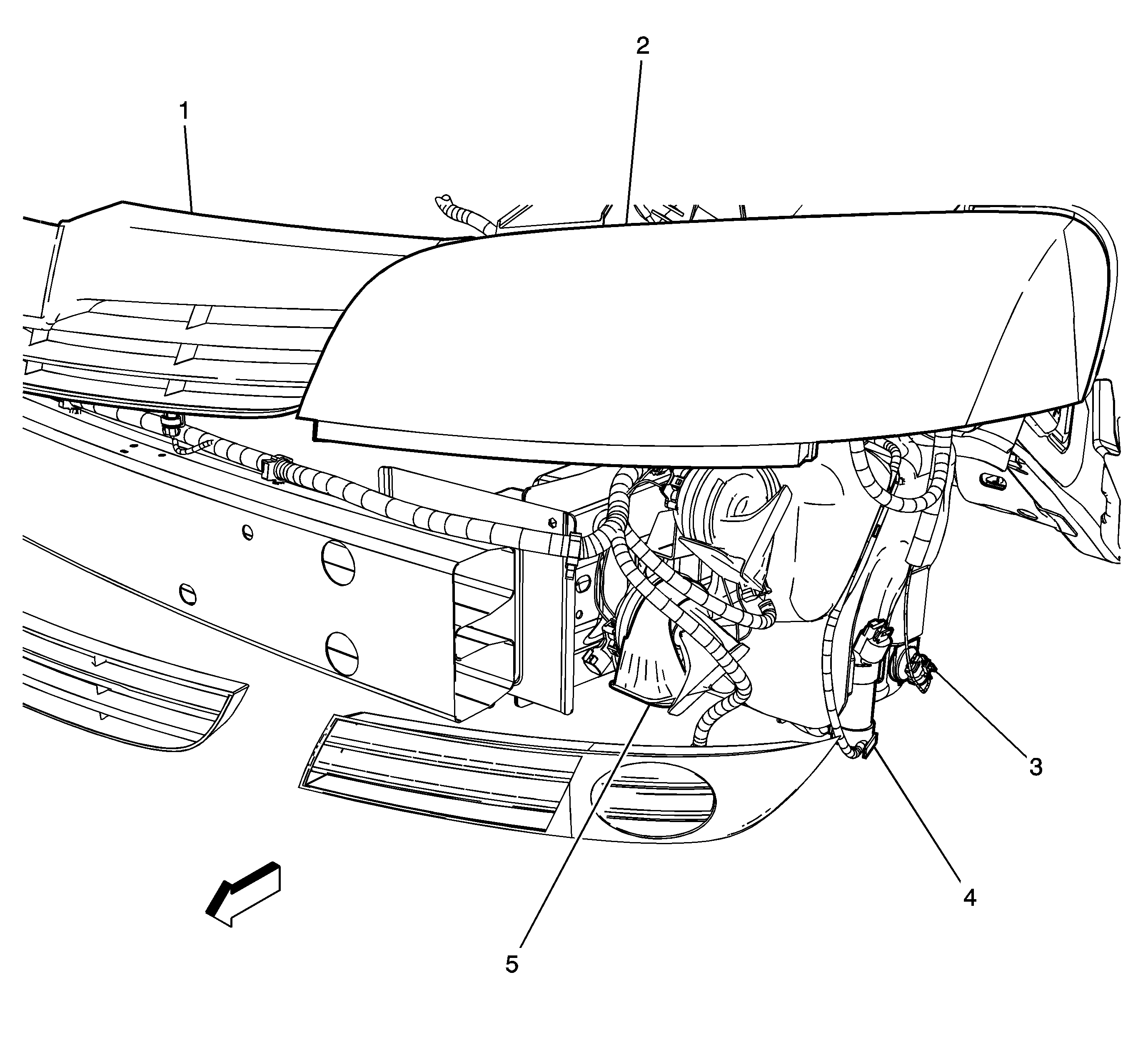

Figure 2:

Horn Assembly, Windshield Washer Fluid Pump, and Windshield Washer Fluid Level Switch
Object Number: 1832310 Size: LF
(1)Front Fascia Trim
(2)Left Front Headlamp
(3)Windshield Washer Fluid Level Switch
(4)Windshield Washer Fluid Pump
(5)Horn Assembly
Figure 3:

Hood Adjar Switch, A/C Condenser, and Ambient Air Temperature Sensor
Object Number: 1832327 Size: LF
(1)Hood Ajar Switch (AP3/AP8)
(2)A/C Condenser
(3)Ambient Air Temperature Sensor
Figure 4:

Rear of Engine Compartment Components
Object Number: 1832301 Size: LF
(1)Instrument Panel Trim
(2)Theft Deterrent Control Module
(3)Steering Column
(4)Ignition Switch
(5)Body Control Module (BCM)
Figure 5:

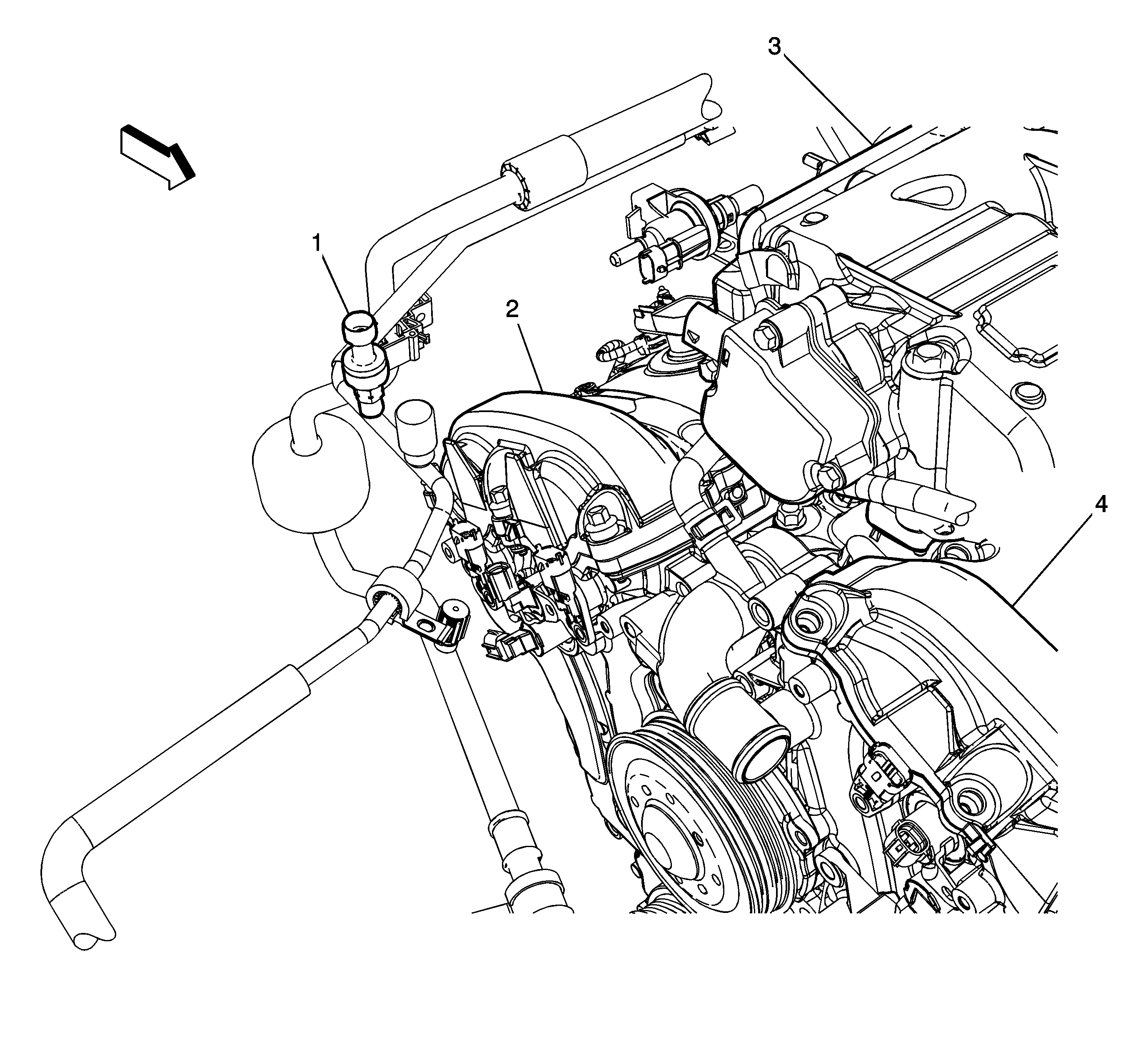

A/C Refrigerant Pressure Sensor (LY7)
Object Number: 1832328 Size: LF
(1)A/C Refrigerant Pressure Sensor
(2)Rear Valve Cover
(3)Upper Intake Manifold
(4)Front Valve Cover
Figure 6:

Windshield Wiper Motor Assembly
Object Number: 1868909 Size: LF
(1)Windshield Wiper Motor Assembly
Figure 7:

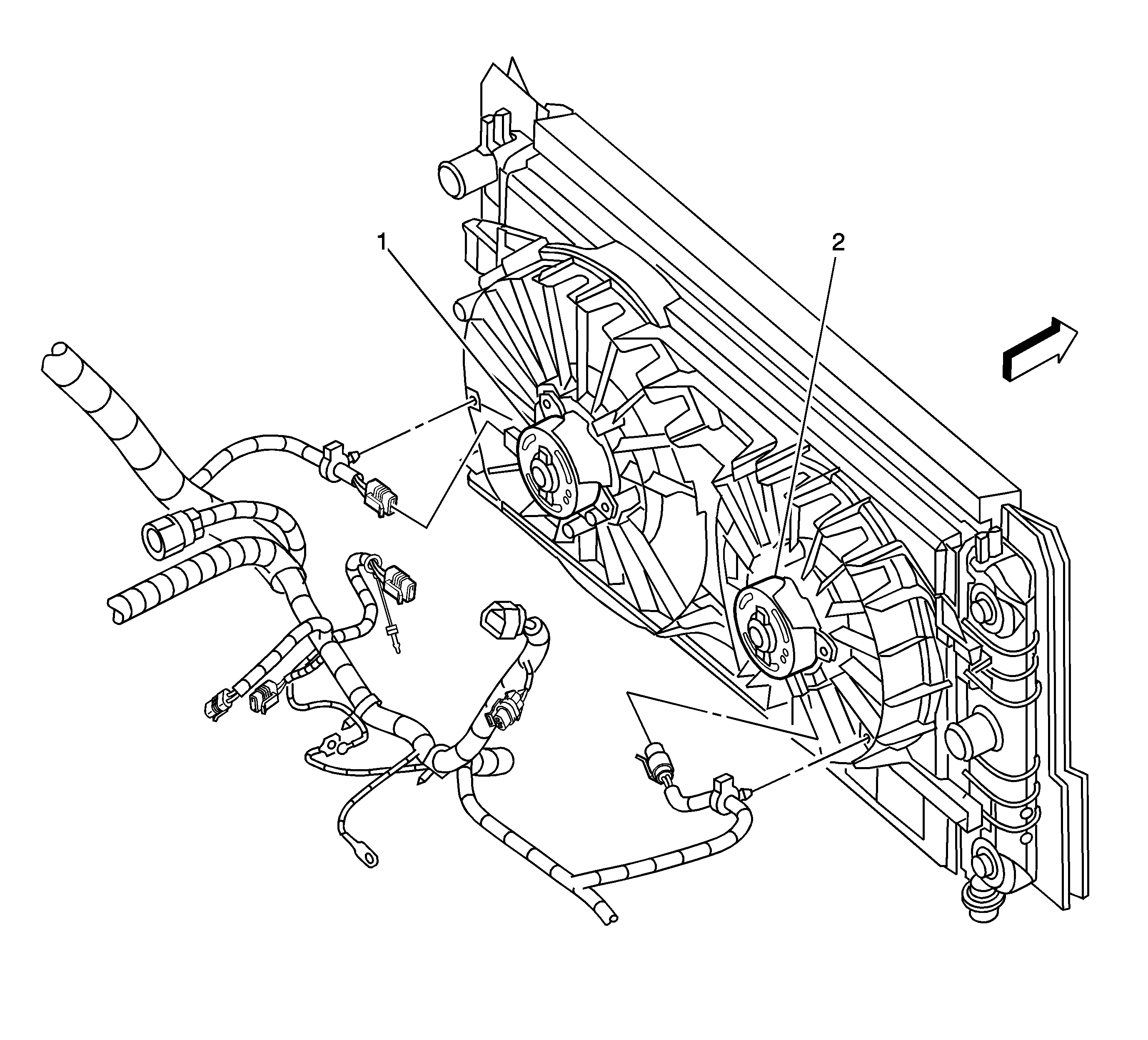

Cooling Fans
Object Number: 1869020 Size: LF
(1)Cooling Fan - Left
(2)Cooling Fan - Right

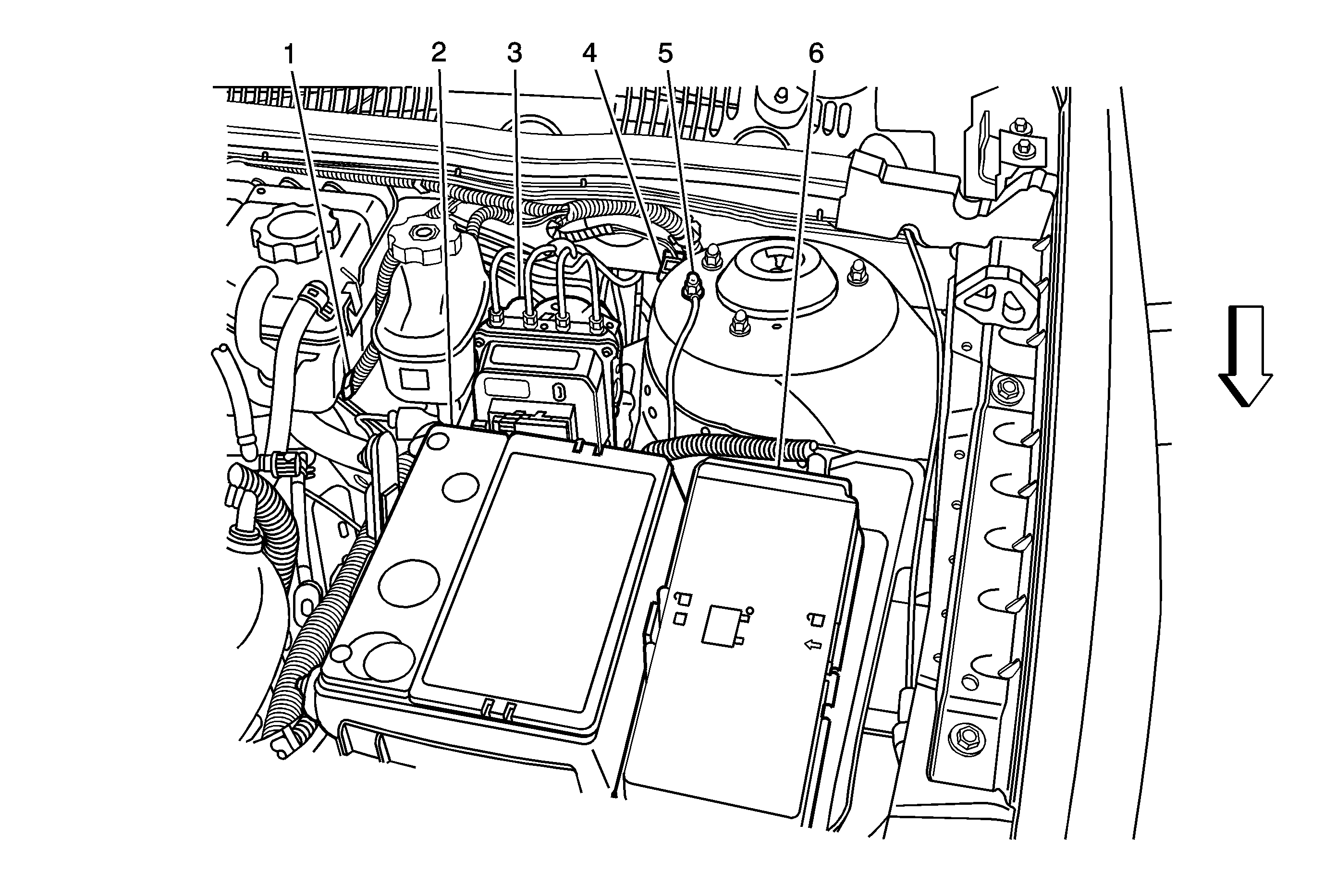

Figure 8:

Left Rear of Engine Compartment Components 1 of 2
Object Number: 1869636 Size: MF
(1)Coolant Level Switch
(2)Battery
(3)Electronic Brake Control Module (EBCM)
(4)X101
(5)G103 (NV7)
(6)Fuse Block - Underhood

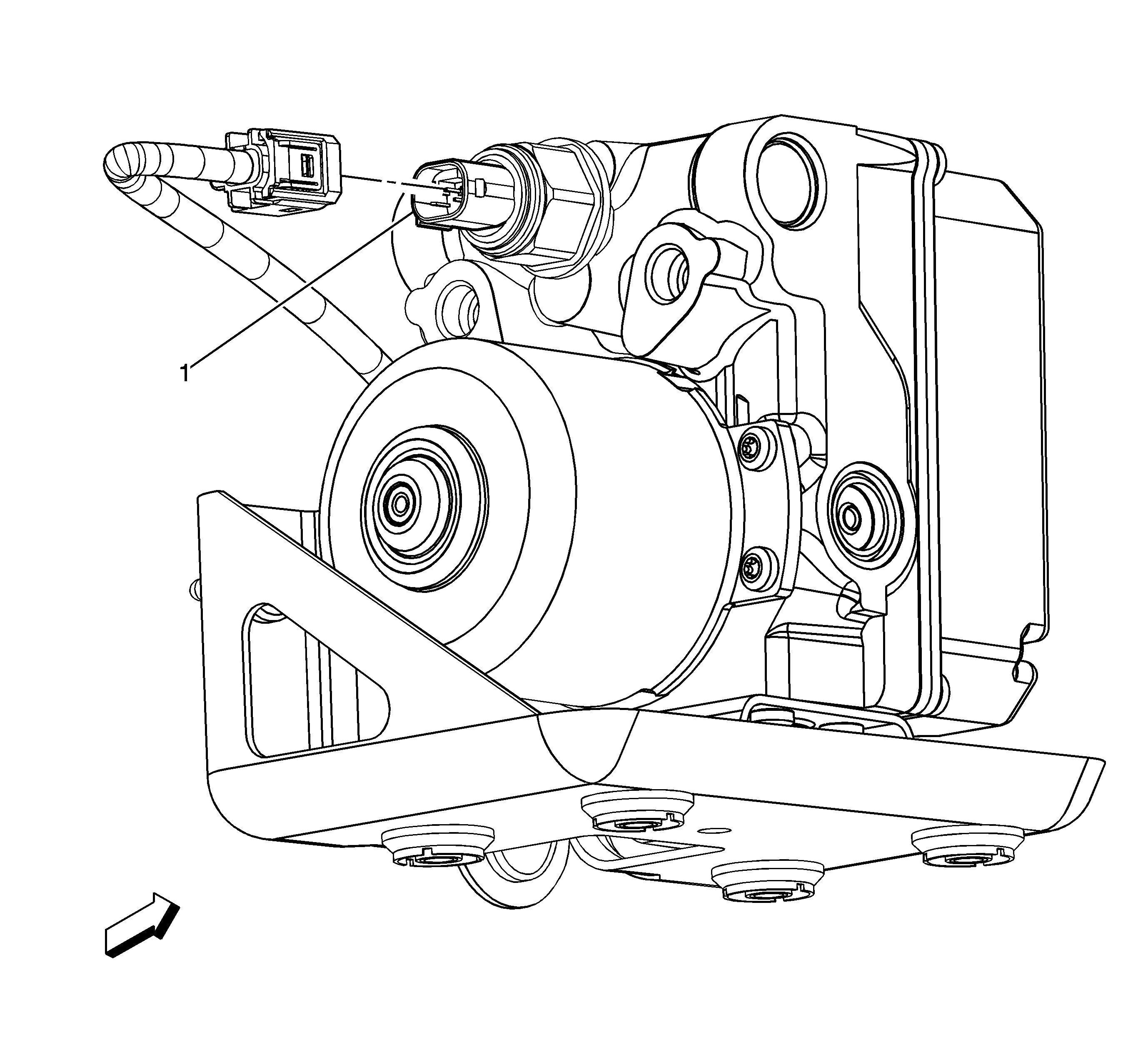

Figure 9:

Left Rear of Engine Compartment Components 2 of 2
Object Number: 1869058 Size: LF
(1)Brake Fluid Pressure Sensor (FX3)
Figure 10:

Brake Fluid Level Switch
Object Number: 1266789 Size: MF
(1) Brake Fluid Level Switch
Figure 11:

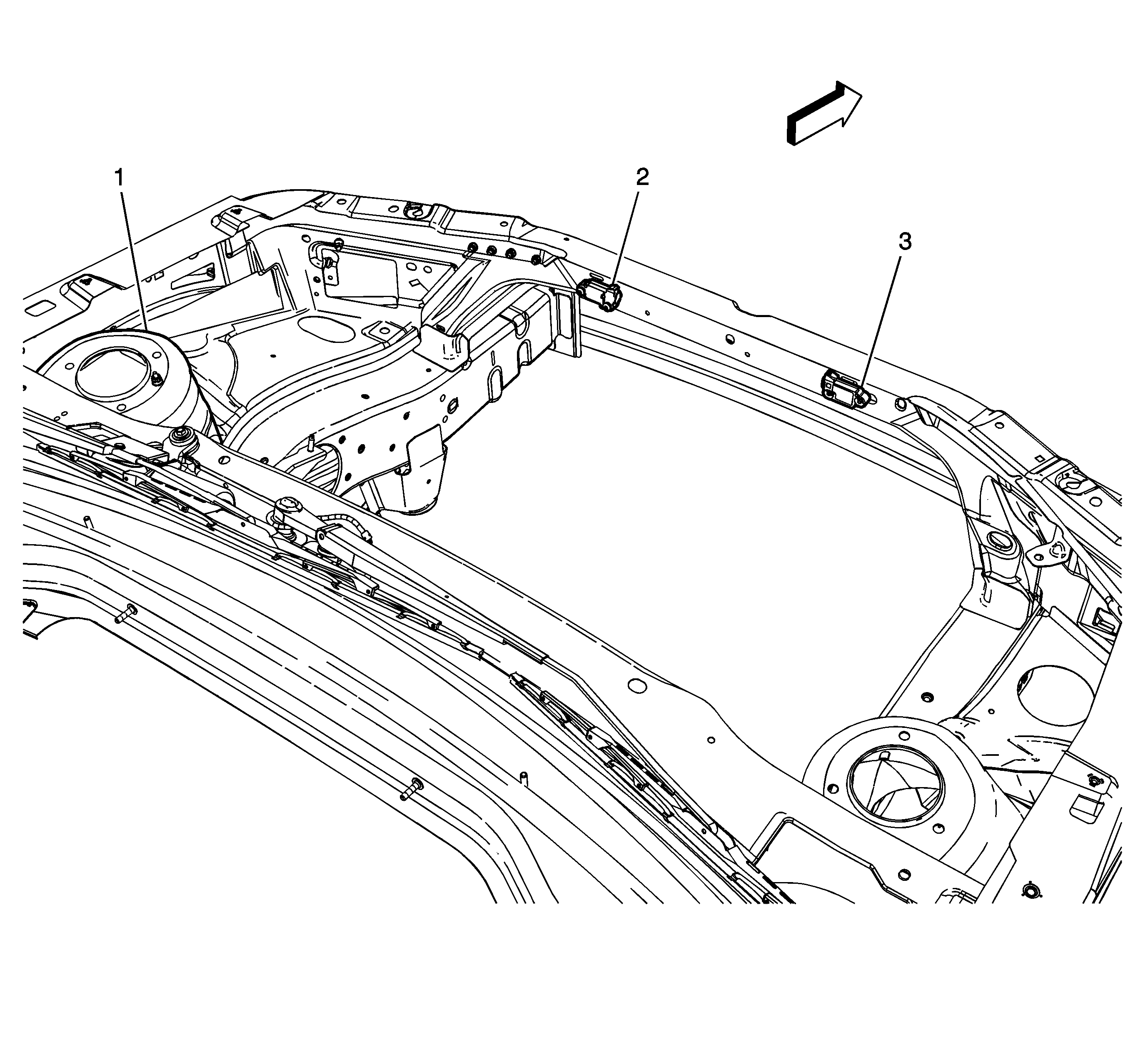

Inflatable Restraint Front End Sensors Components
Object Number: 1832309 Size: LF
(1)Left Front Strut Tower
(2)Inflatable Restraint Front End Sensor - Left
(3)Inflatable Restraint Front End Sensor - Right

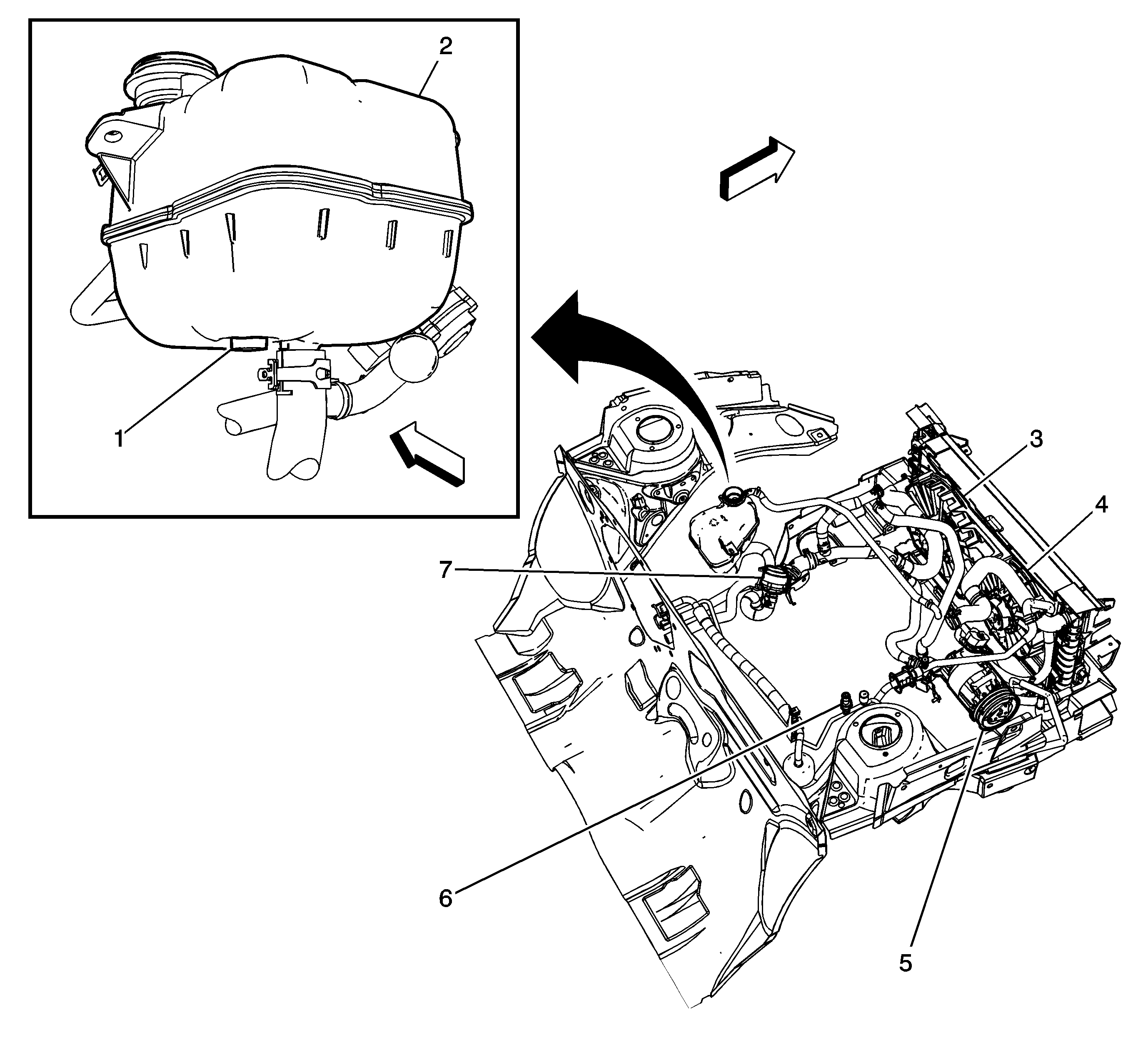

Figure 12:

Front Engine Compartment Components (LAT)
Object Number: 1873392 Size: LF
(1)Coolant Level Switch
(2)Coolant Surge Tank
(3)Cooling Fan - Left
(4)Cooling Fan - Right
(5)A/C Compressor Clutch
(6)A/C Refrigerant Pressure Sensor (C68)
(7)Starter Generator Control Module (SGCM) Cooling Pump
