Makes 🢒 Saturn 🢒 2009 🢒 AURA 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Ground Views

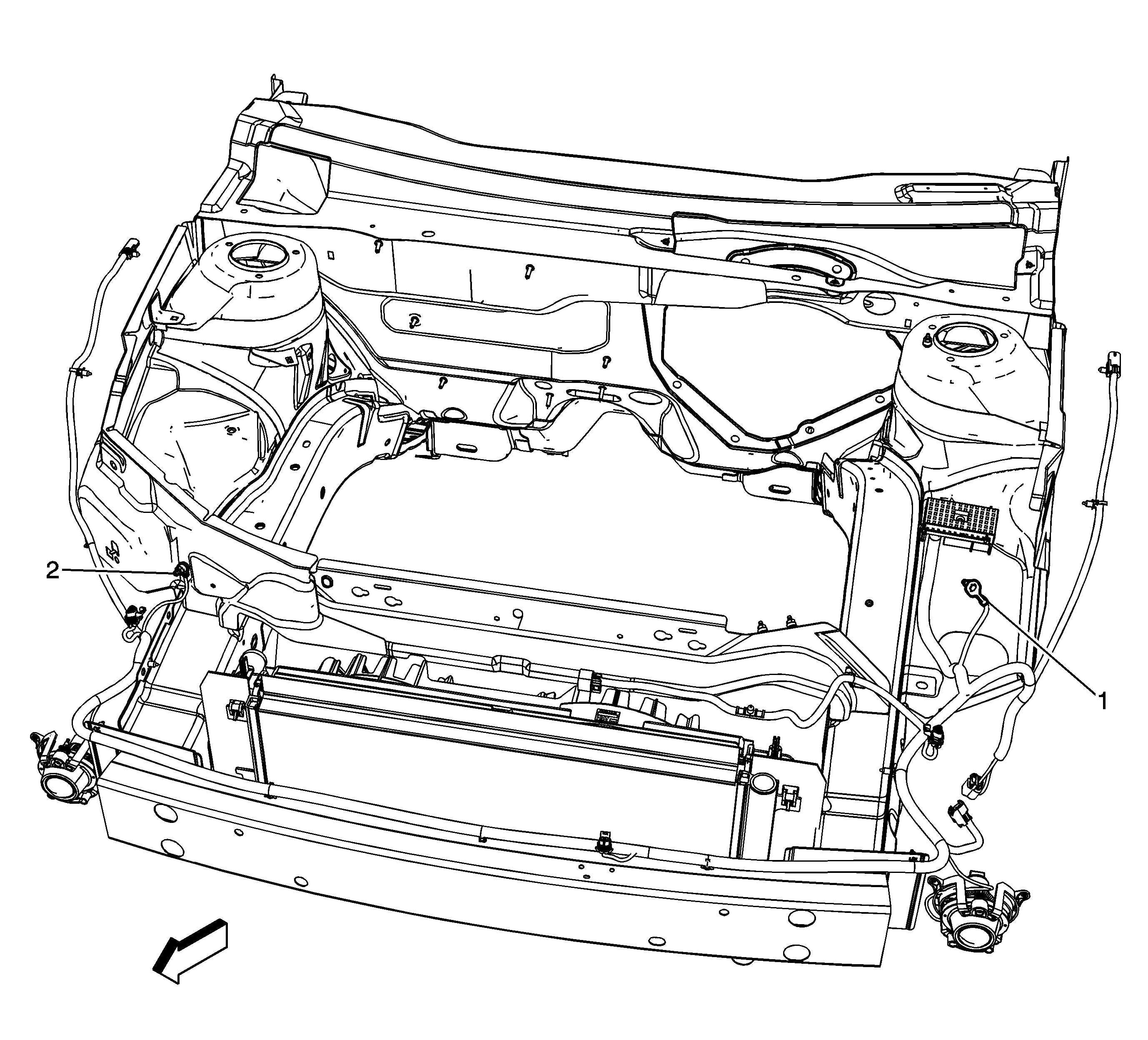

Figure 1:

G101 and G102
Object Number: 2148374 Size: LF
(1)G101
(2)G102

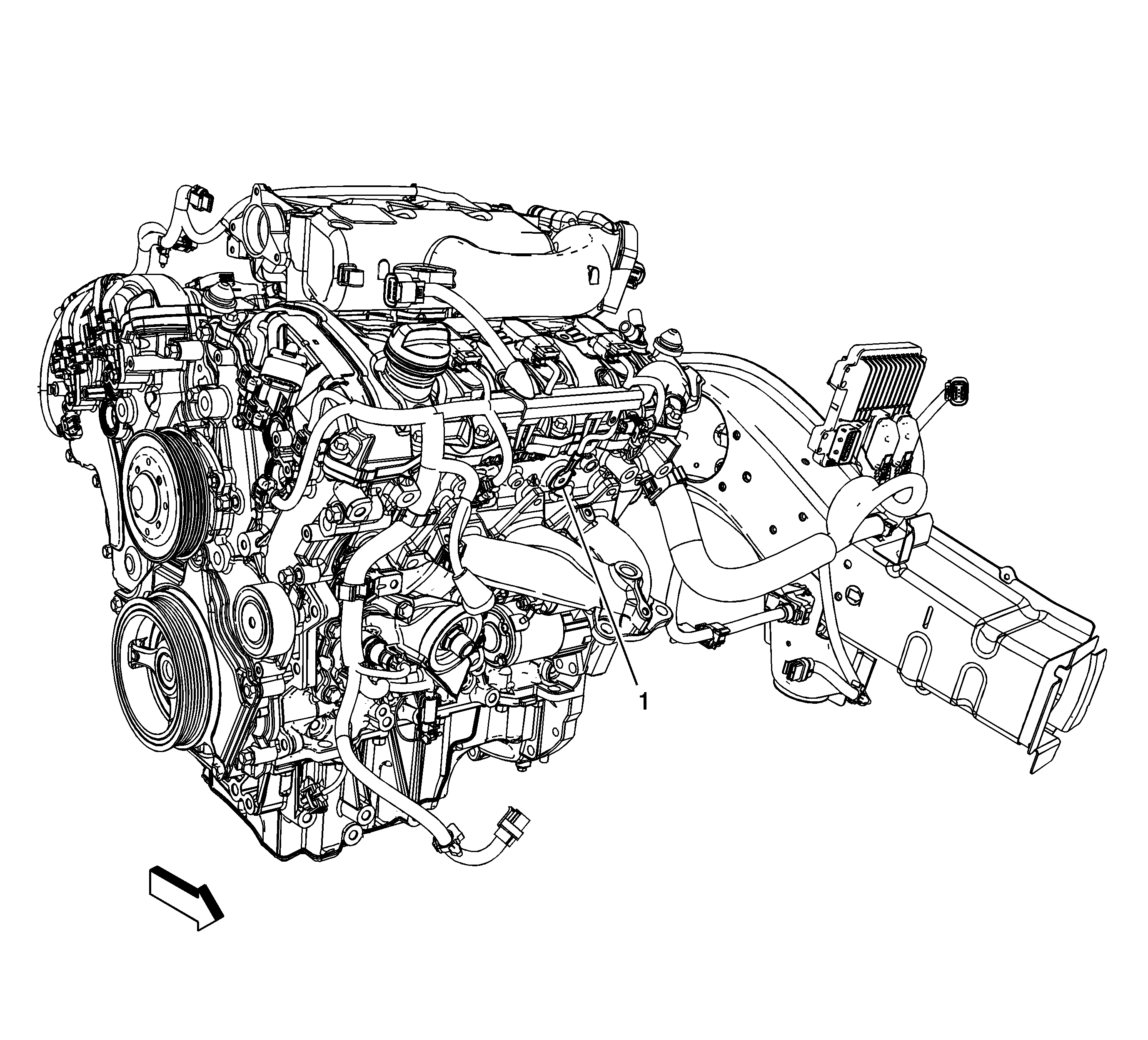

Figure 2:

G113 (LY7)
Object Number: 2148397 Size: LF
(1)G113

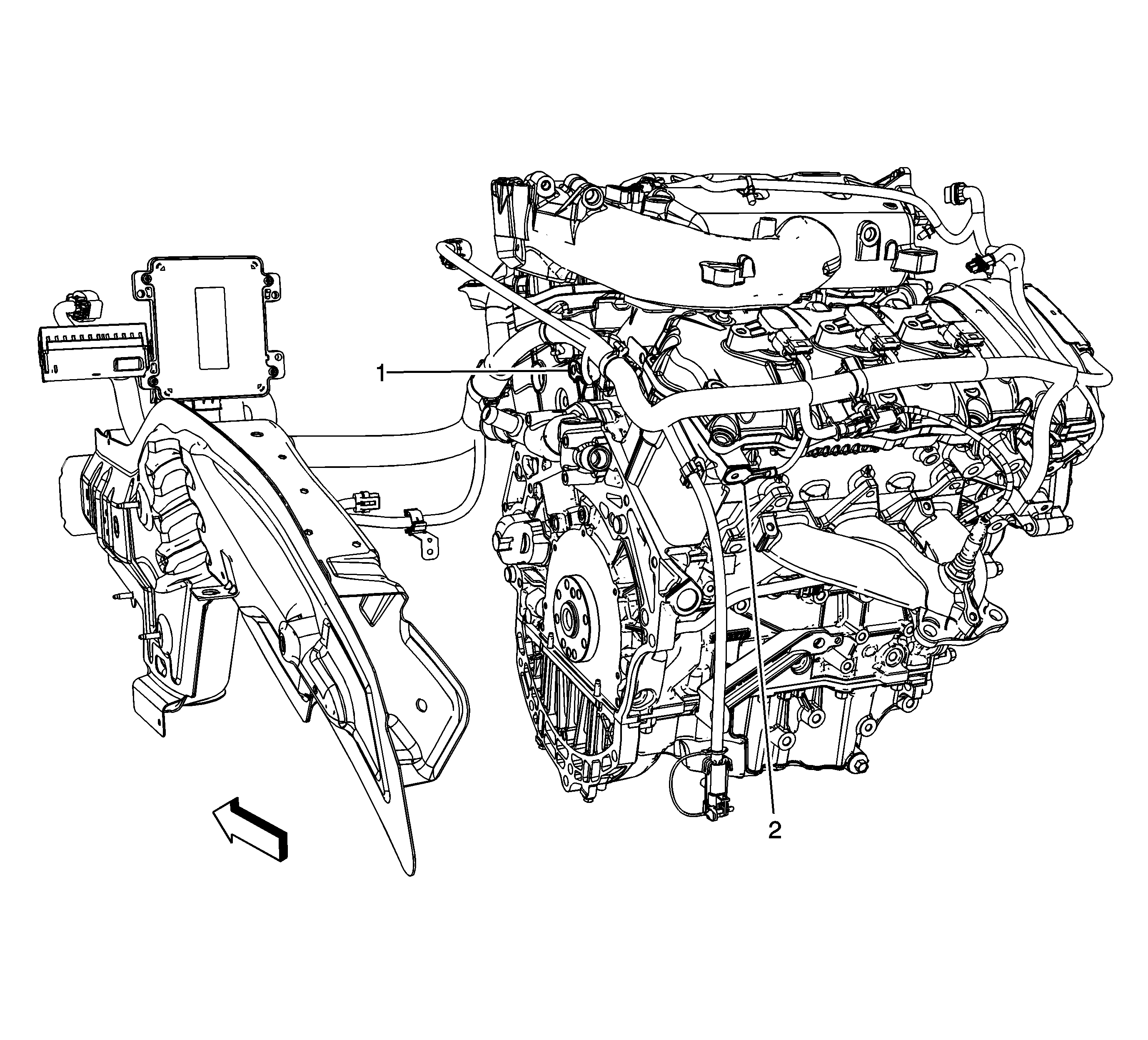

Figure 3:

G105 and G111 (LY7)
Object Number: 2148401 Size: LF
(1)G105
(2)G111

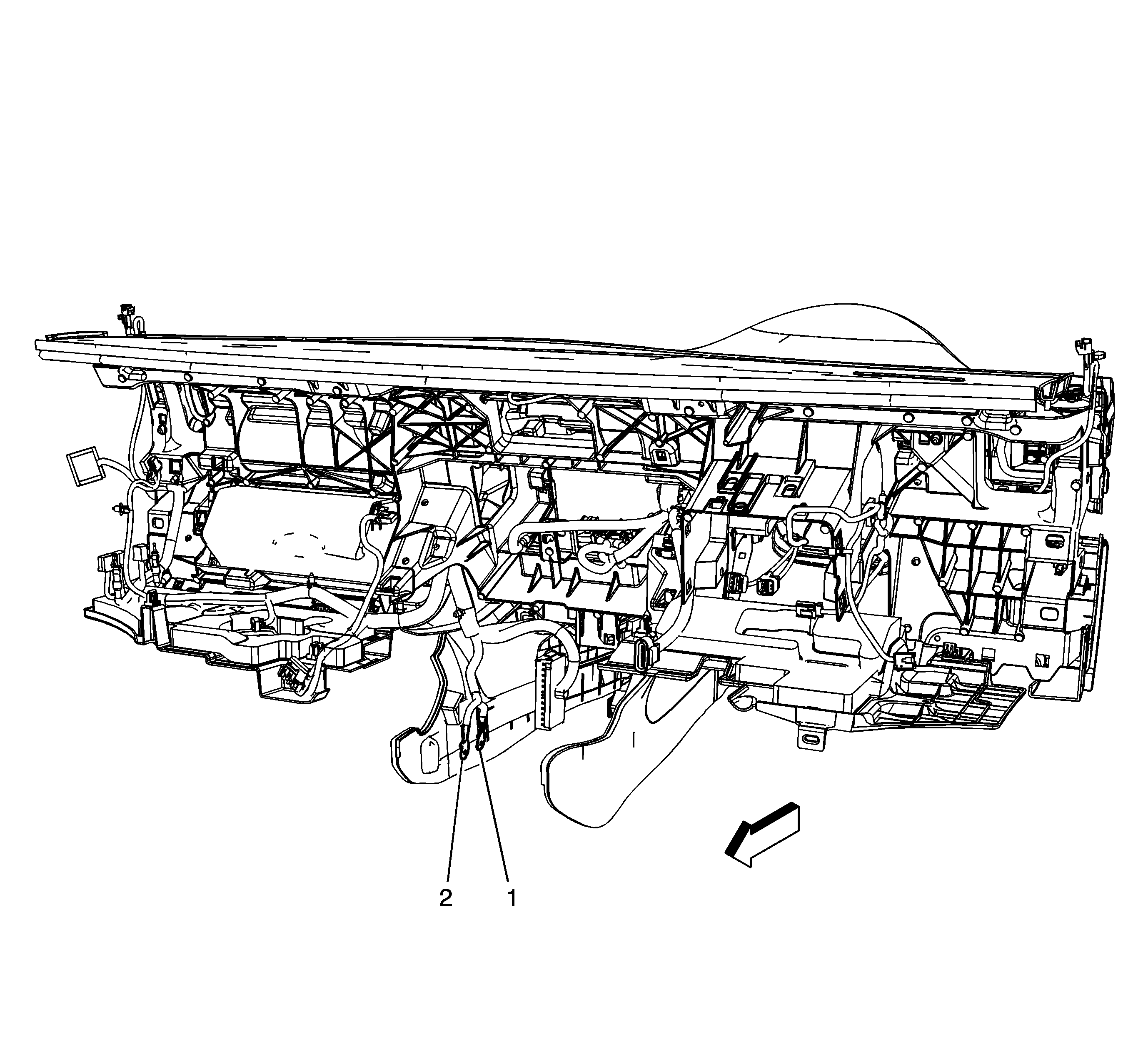

Figure 4:

G201 and G203
Object Number: 2148405 Size: LF
(1)G201
(2)G203

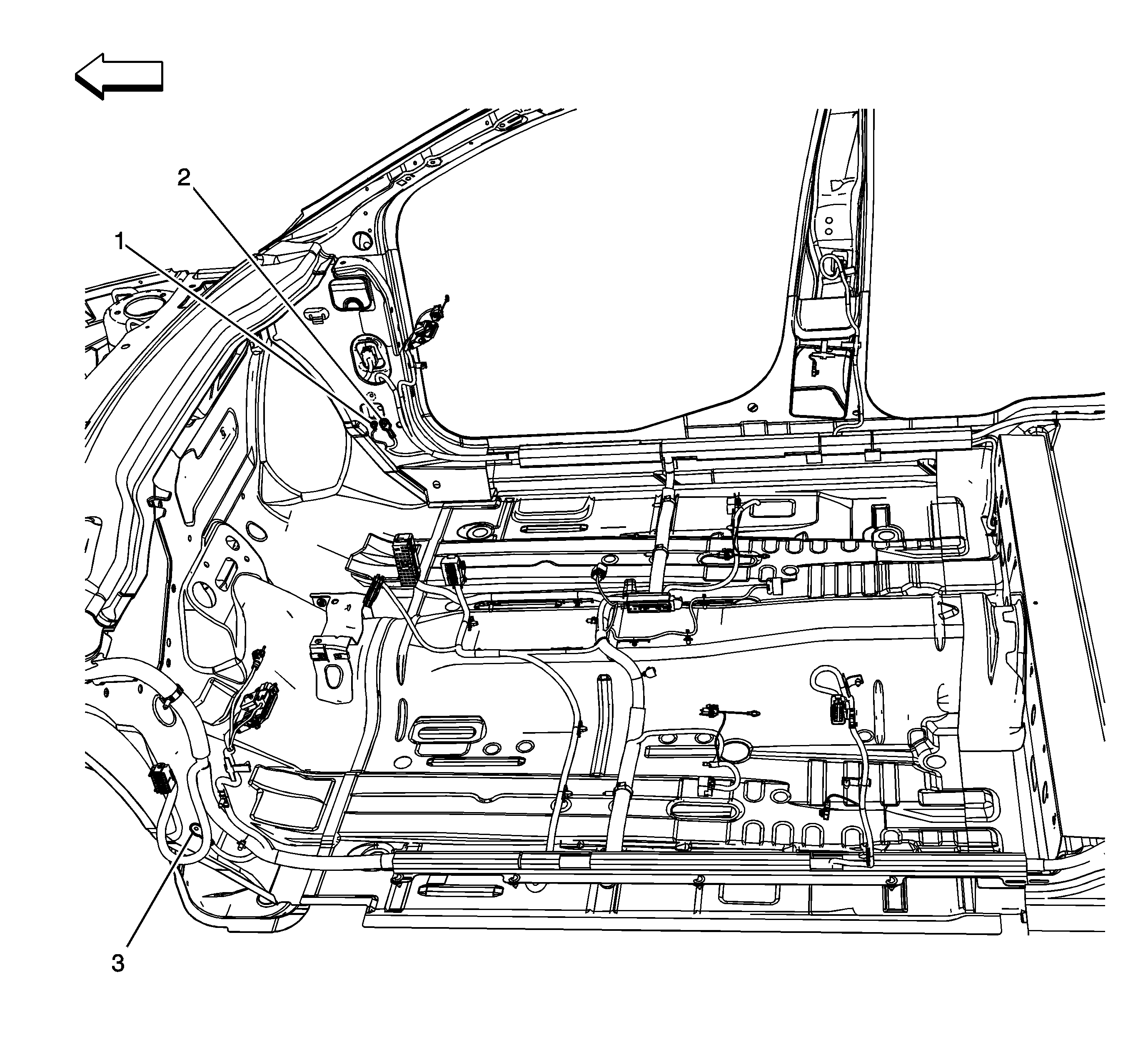

Figure 5:

G303, G304 and G305
Object Number: 2148407 Size: LF
(1)G305
(2)G304
(3)G303
Figure 6:

G401 and G403
Object Number: 2148410 Size: LF
(1)G401
(2)G403

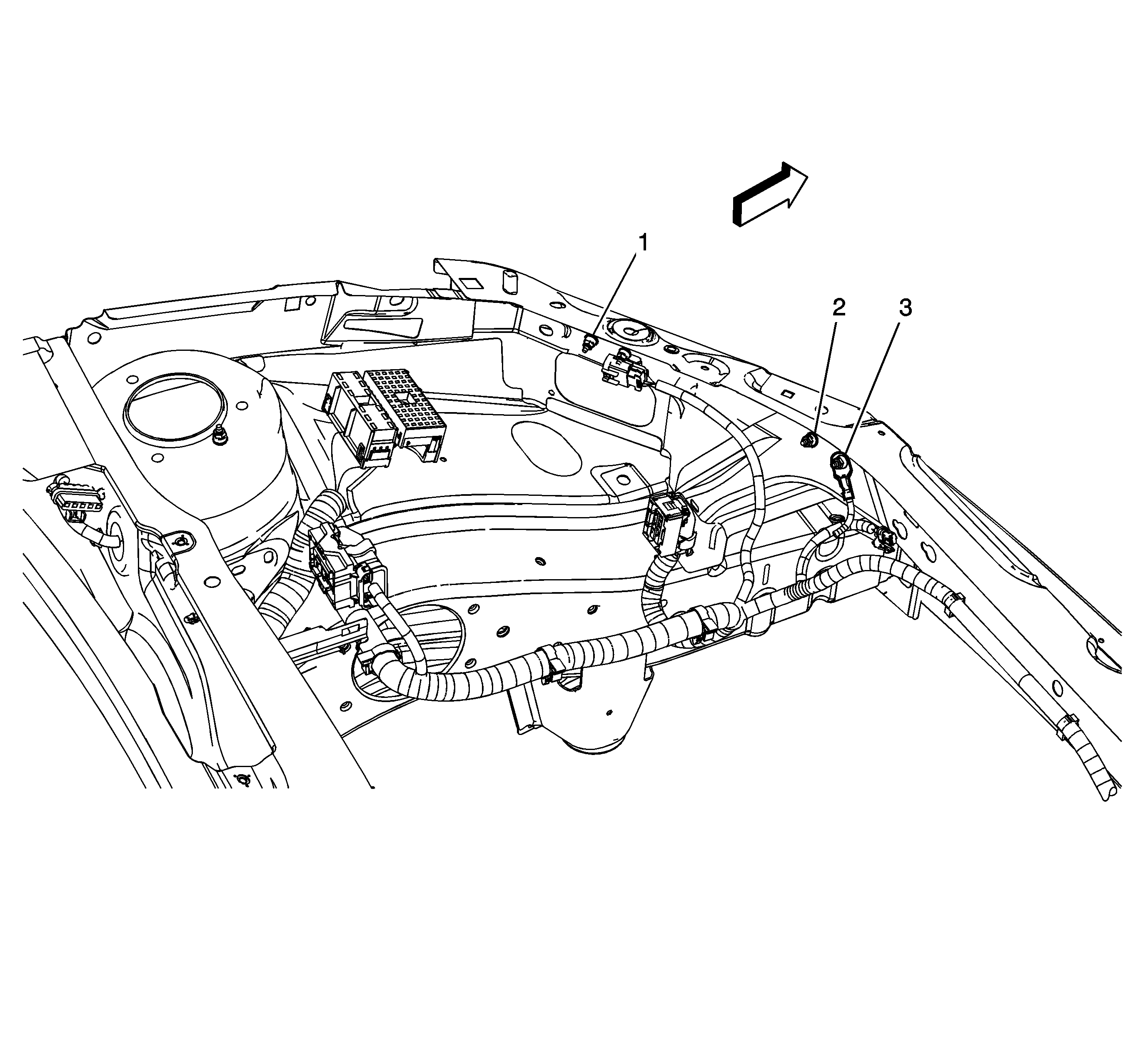

Figure 7:

G101, G104 and G109
Object Number: 2148415 Size: LF
(1)G101
(2)G104
(3)G109
Figure 8:

G104 and G105 (LY7)
Object Number: 2148412 Size: LF
(1)G105
(2)G104

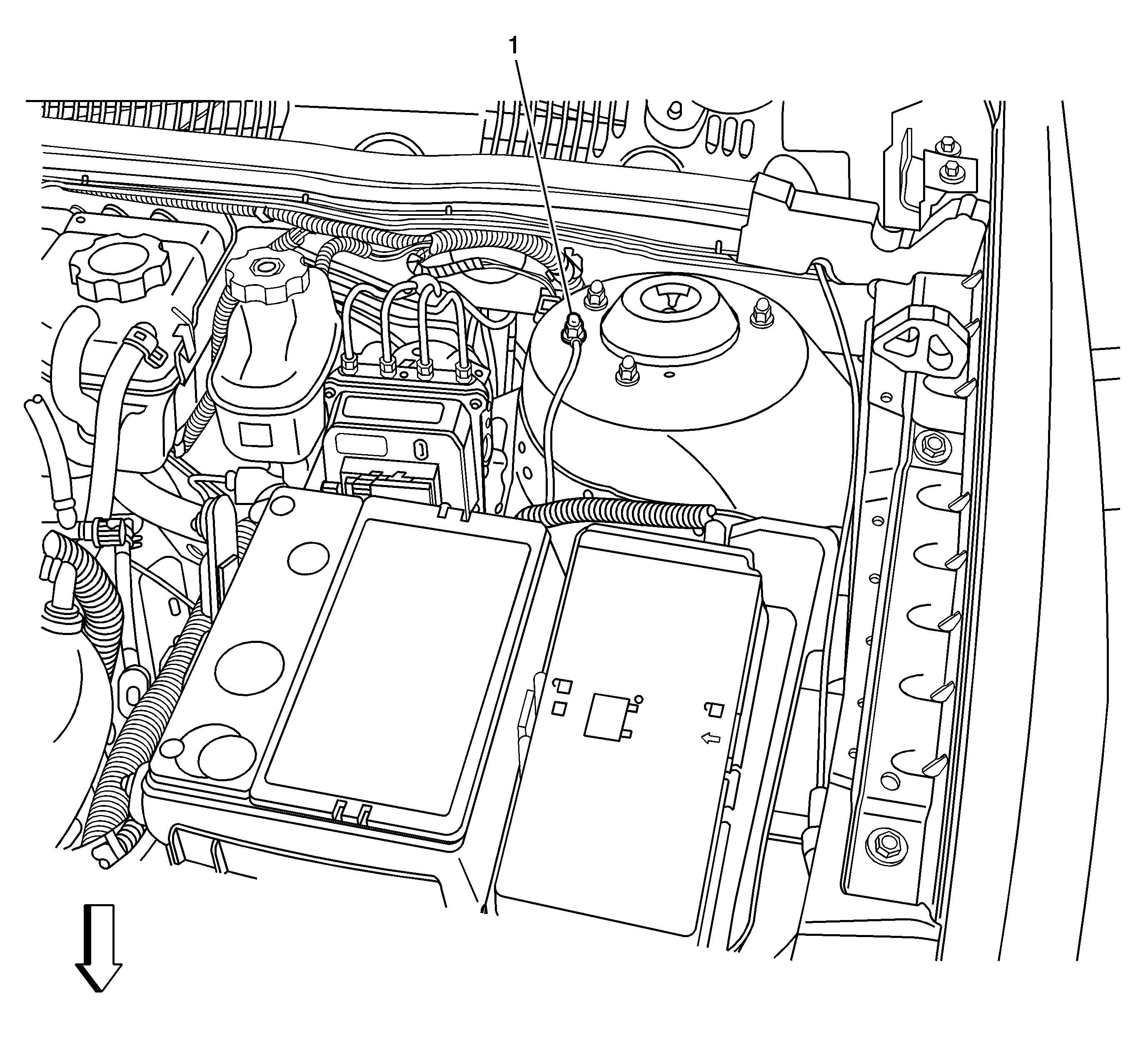

Figure 9:

G103 (NV7)
Object Number: 2148420 Size: LF
(1)G103

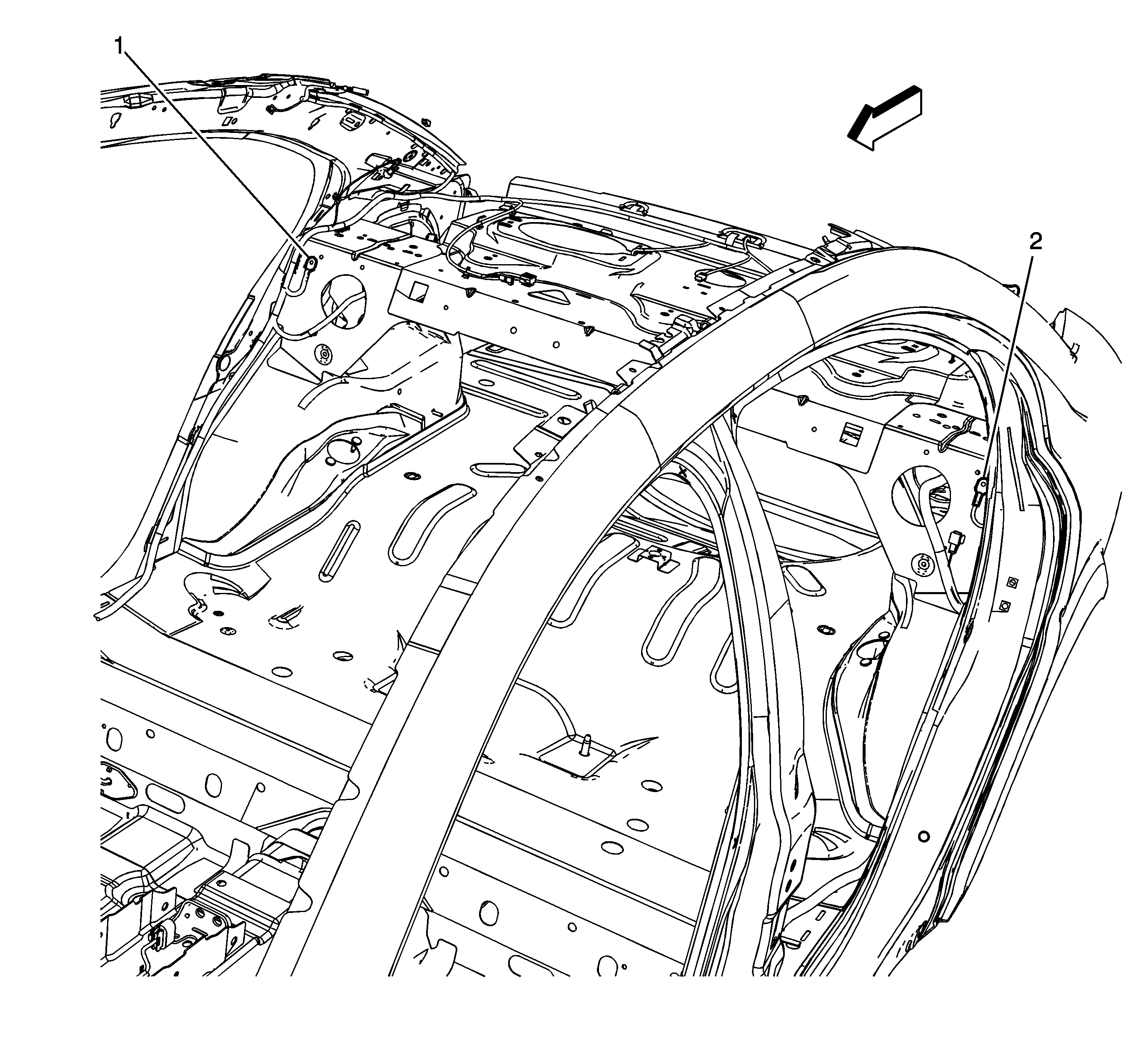

Figure 10:

G301 and G302
Object Number: 2148426 Size: LF
(1)G301
(2)G302

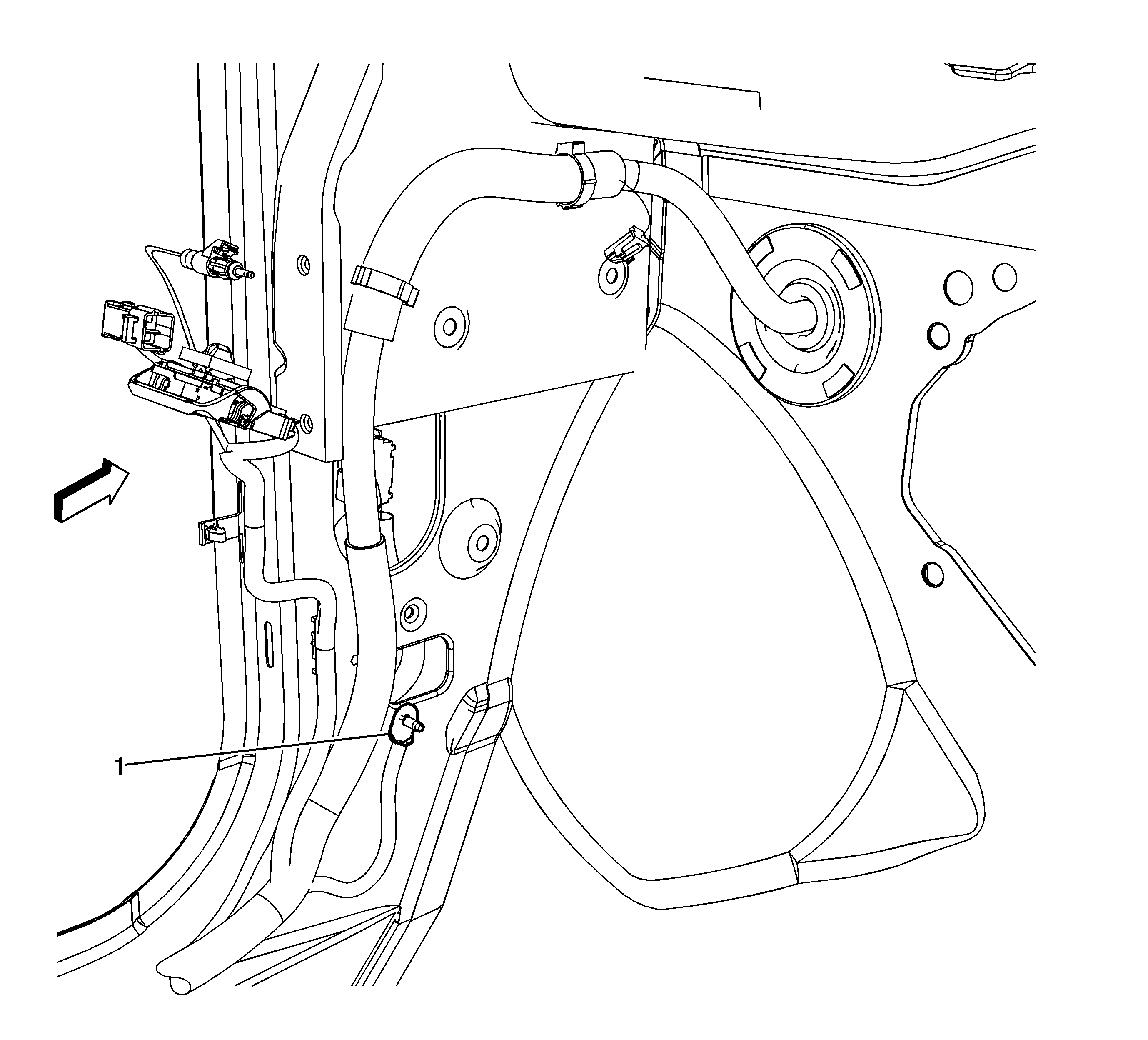

Figure 11:

G303
Object Number: 2148427 Size: LF
(1)G303
Figure 12:

G304 and G305
Object Number: 2148430 Size: LF
(1)G305
(2)G304
Figure 13:

G107 and G110 (LE5)
Object Number: 2148435 Size: LF
(1)G110
(2)G107

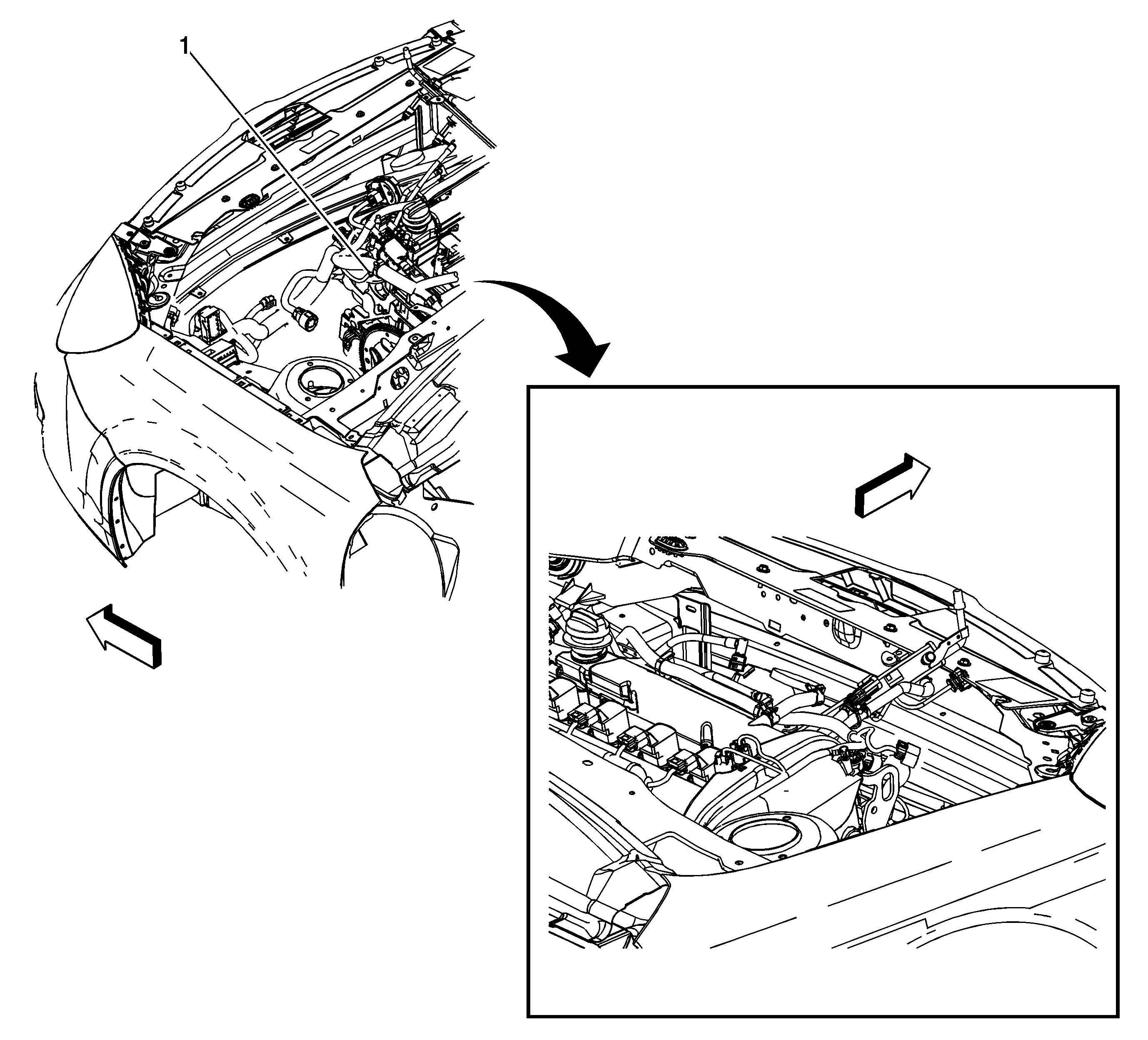

Figure 14:

G106
Object Number: 2148439 Size: LF
(1)G106
