Ground Distribution Schematics. Saturn Astra 2008

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2008 🢒 Astra 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

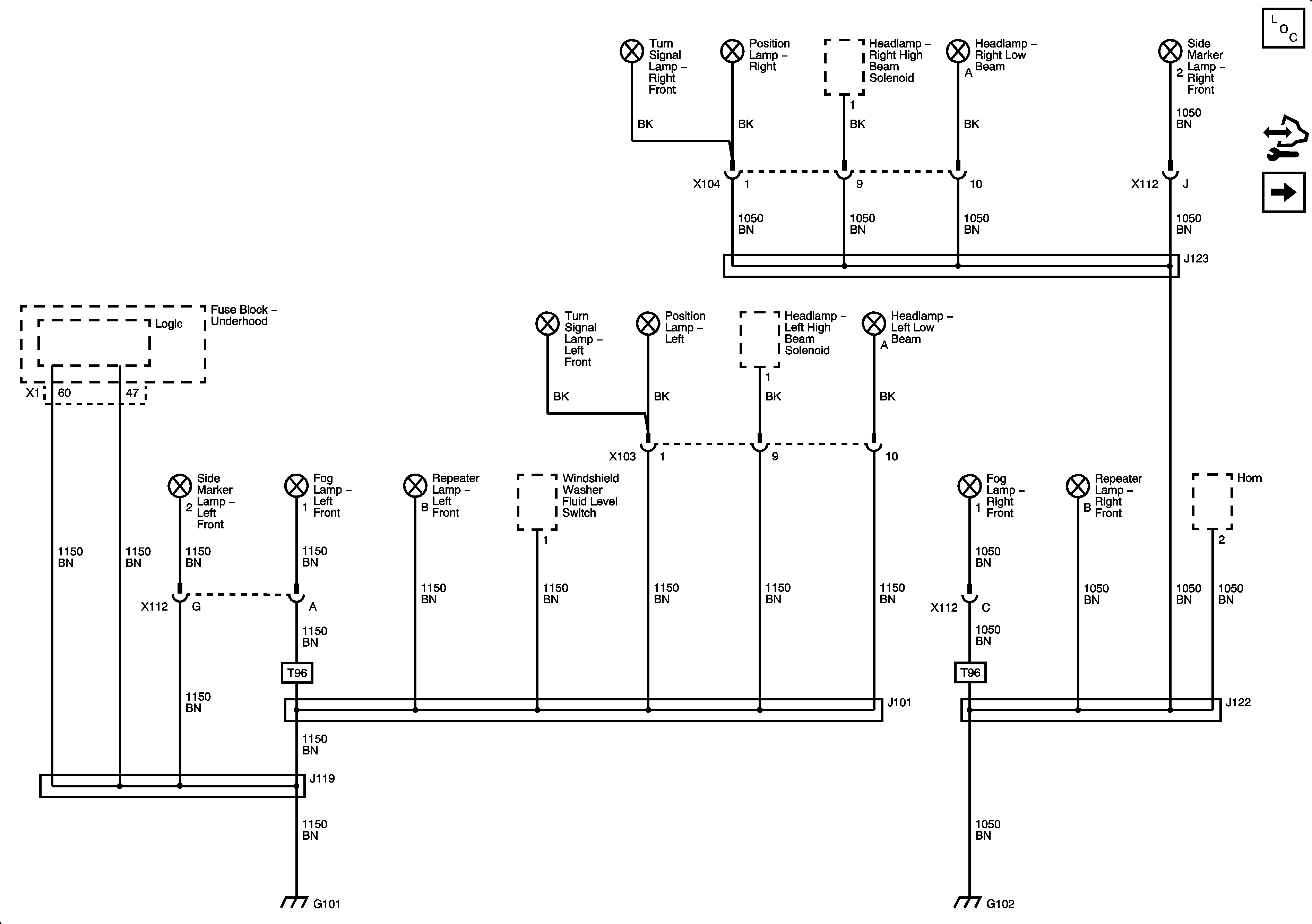

Figure 1:	G101 and G102 Master Electrical Component List Control Module References G100, G103, G104, G105 and G106

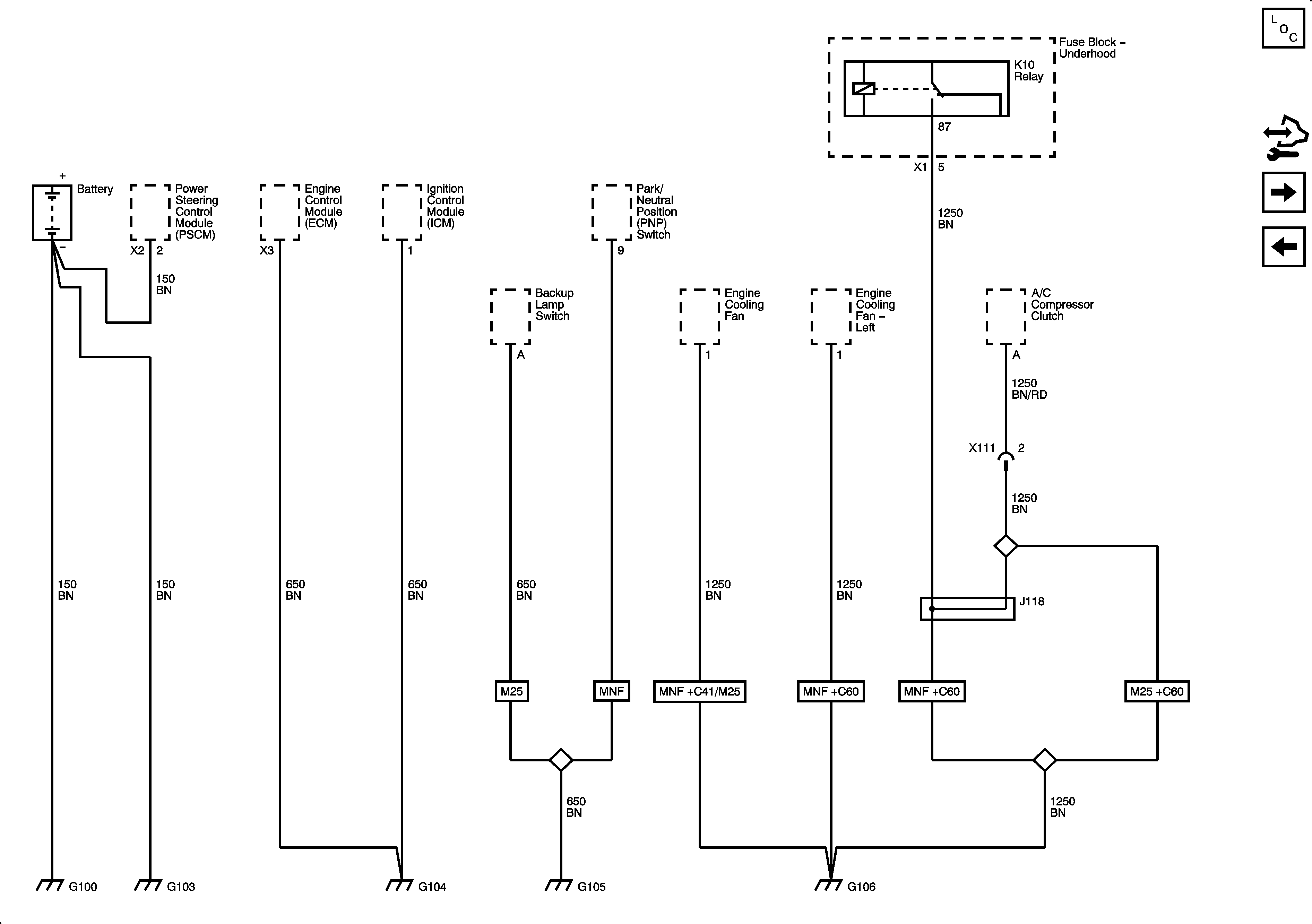

Figure 2:	G100, G103, G104, G105, and G106 Master Electrical Component List Control Module References G109 and G110 G101 and G102
Figure 3:	G109 and G110 Master Electrical Component List Control Module References G201 and G202 G100, G103, G104, G105 and G106

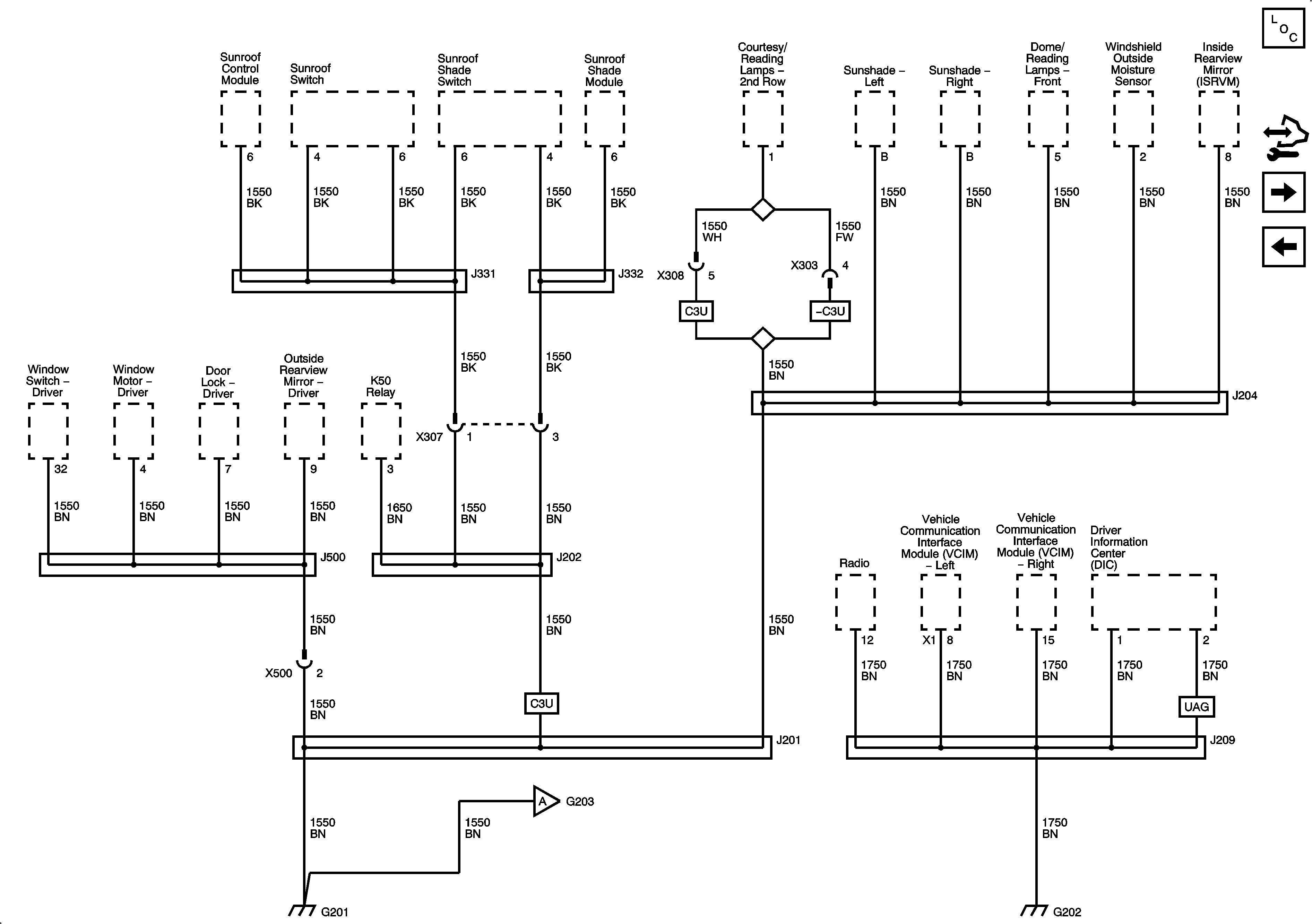

Figure 4:	G201 and G202 Master Electrical Component List Control Module References G203, G204, and G205 G109 and G110 G203, G204, and G205
Figure 5:	G203, G204, and G205 Master Electrical Component List Control Module References G302 and G303 G201 and G202 G201 and G202
Figure 6:	G302 and G303 Master Electrical Component List Control Module References G305 G203, G204, and G205

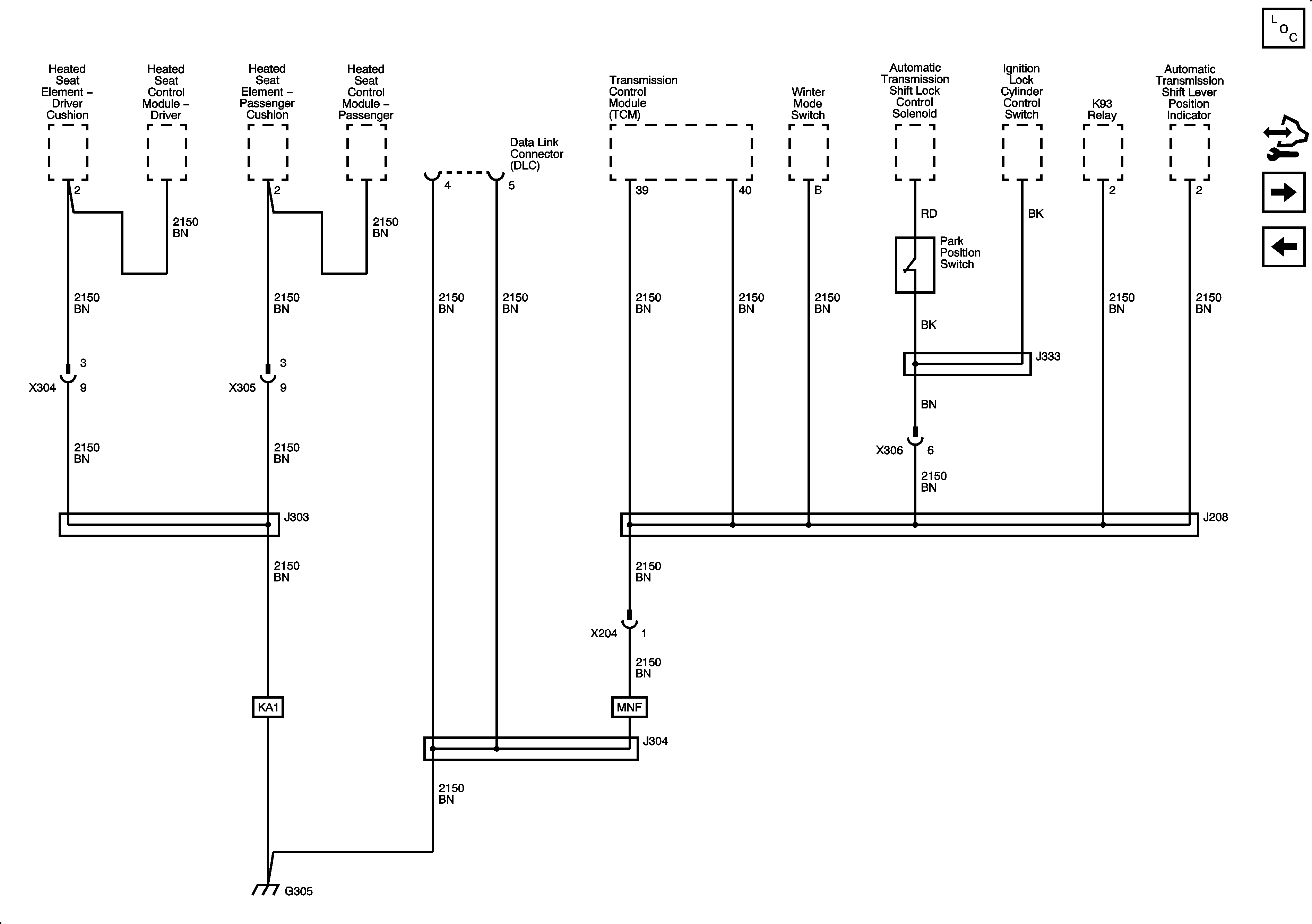

Figure 7:	G305 Master Electrical Component List Control Module References G401 G302 and G303
Figure 8:	G401 Master Electrical Component List Control Module References G403 G305
Figure 9:	G403 Master Electrical Component List Control Module References G401
