Removal Procedure
Remove the front grille speaker.

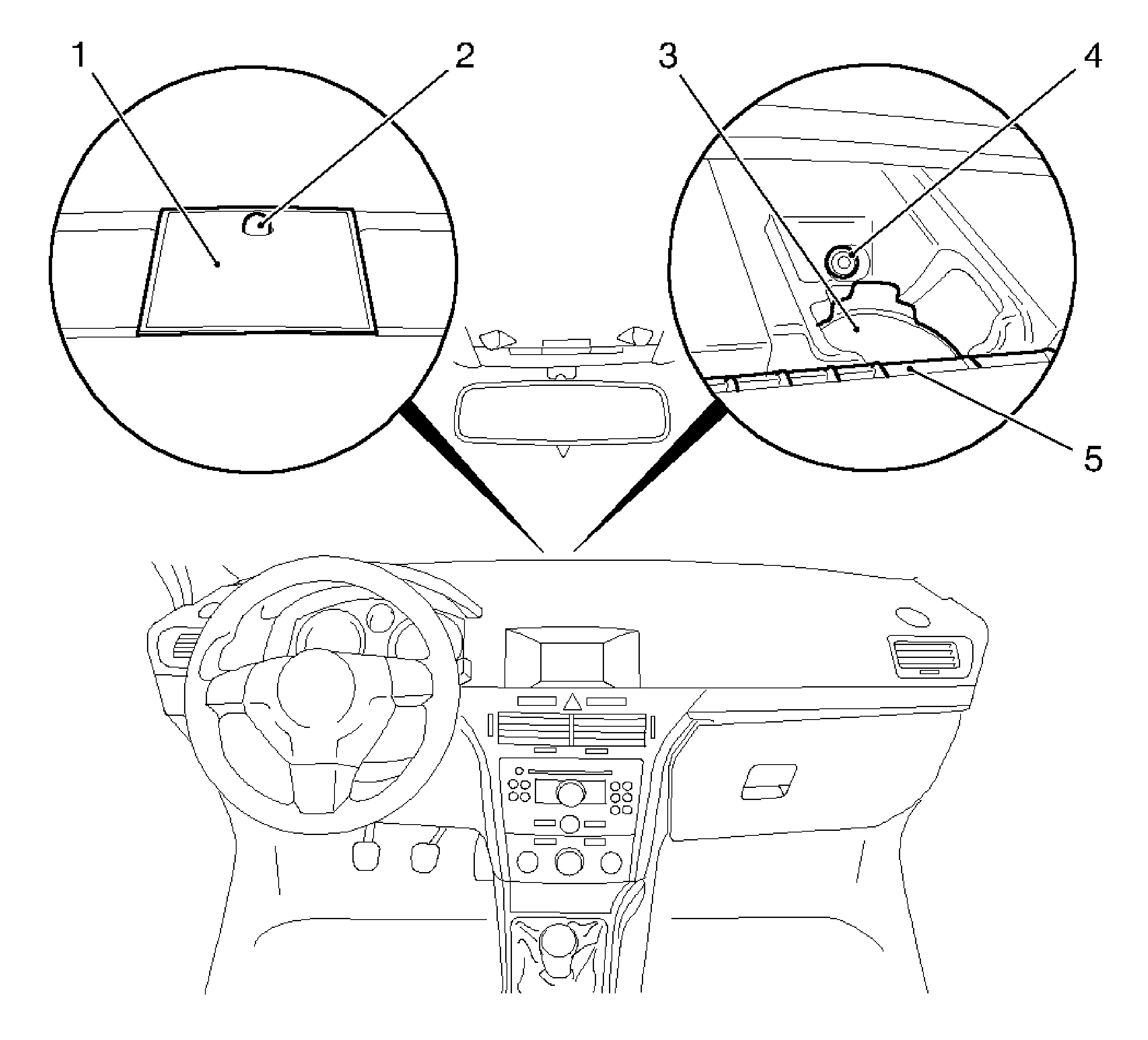

| • | Remove the grille for the speaker (1). |
| • | Remove the ambient light sensor. |
| • | Remove the defroster panel (5) and unscrew the underlying bolt. |
| • | Remove the front speaker. |
| • | Disconnect the wiring harness plug. |
Installation Procedure
Notice: Refer to Fastener Notice in the Preface section.
Install the front speaker.
| • | Insert the front speaker. |
| • | Connect the wiring harness plug. |
Tighten
Tighten the 2 screws to 4 N·m (35 lb in).
| • | Install the defroster panel. |
| • | Install the ambient light sensor. |
| • | Install the front speaker grille. |
