Makes 🢒 Saturn 🢒 2008 🢒 Astra 🢒 Transmission/Transaxle 🢒 Automatic Transmission - AF17-4 🢒 Rear Planetary Ring Gear Removal

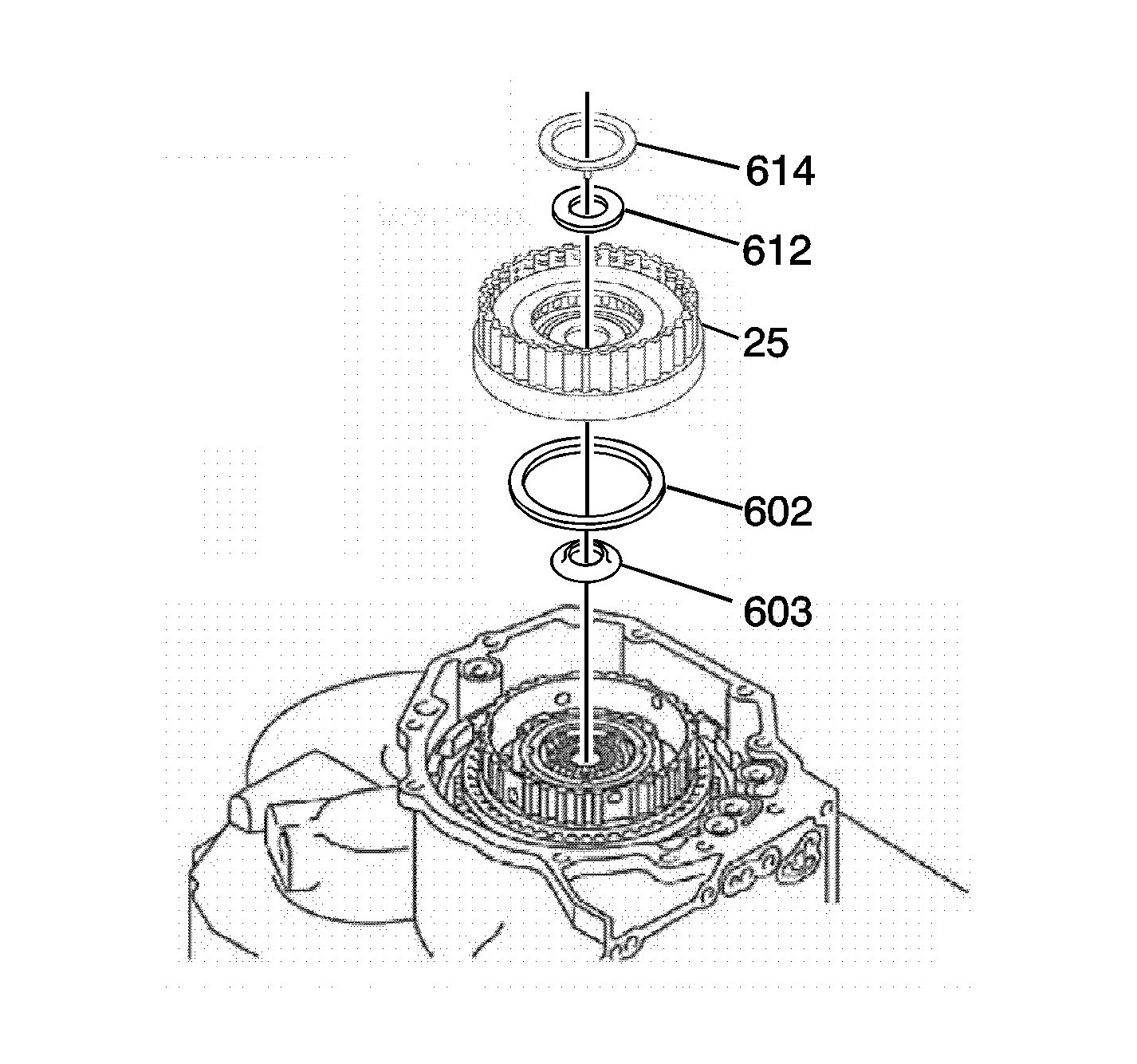

    Object Number: 2002576 Size: SH
  1. Remove the rear planetary ring gear flange thrust washer (614).
  2. Remove the rear ring gear rear thrust bearing race (612).
  3. Remove the rear ring gear assembly (25).
  4. Remove the rear planetary ring gear thrust bearing (602) and the sun gear thrust bearing race (603).
