Makes 🢒 Saturn 🢒 2008 🢒 Astra 🢒 Body Hardware and Trim 🢒 Exterior Trim 🢒 Front Side Door Emblem/Nameplate Replacement

Removal Procedure

    Object Number: 1998404 Size: LH

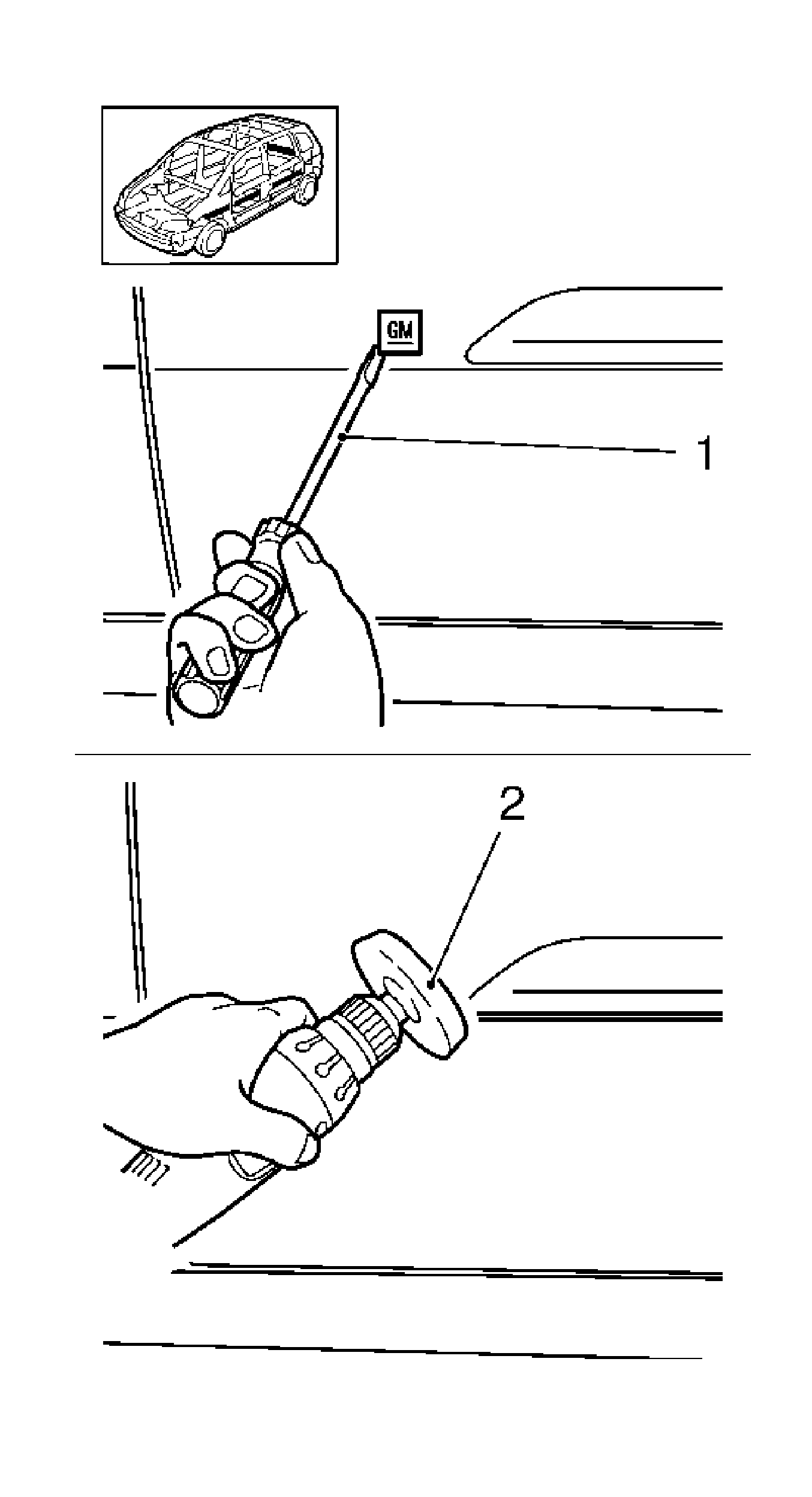

  1. Remove the front door emblem.

    2. Carefully remove emblem with a plastic wedge (1).

    Important: Ensure that the paint is not damaged.

  2. Remove the remaining glue.

    3. Remove the remaining glue from the door with a molding adhesive remover disk (2).

Installation Procedure

    Object Number: 2004207 Size: SH

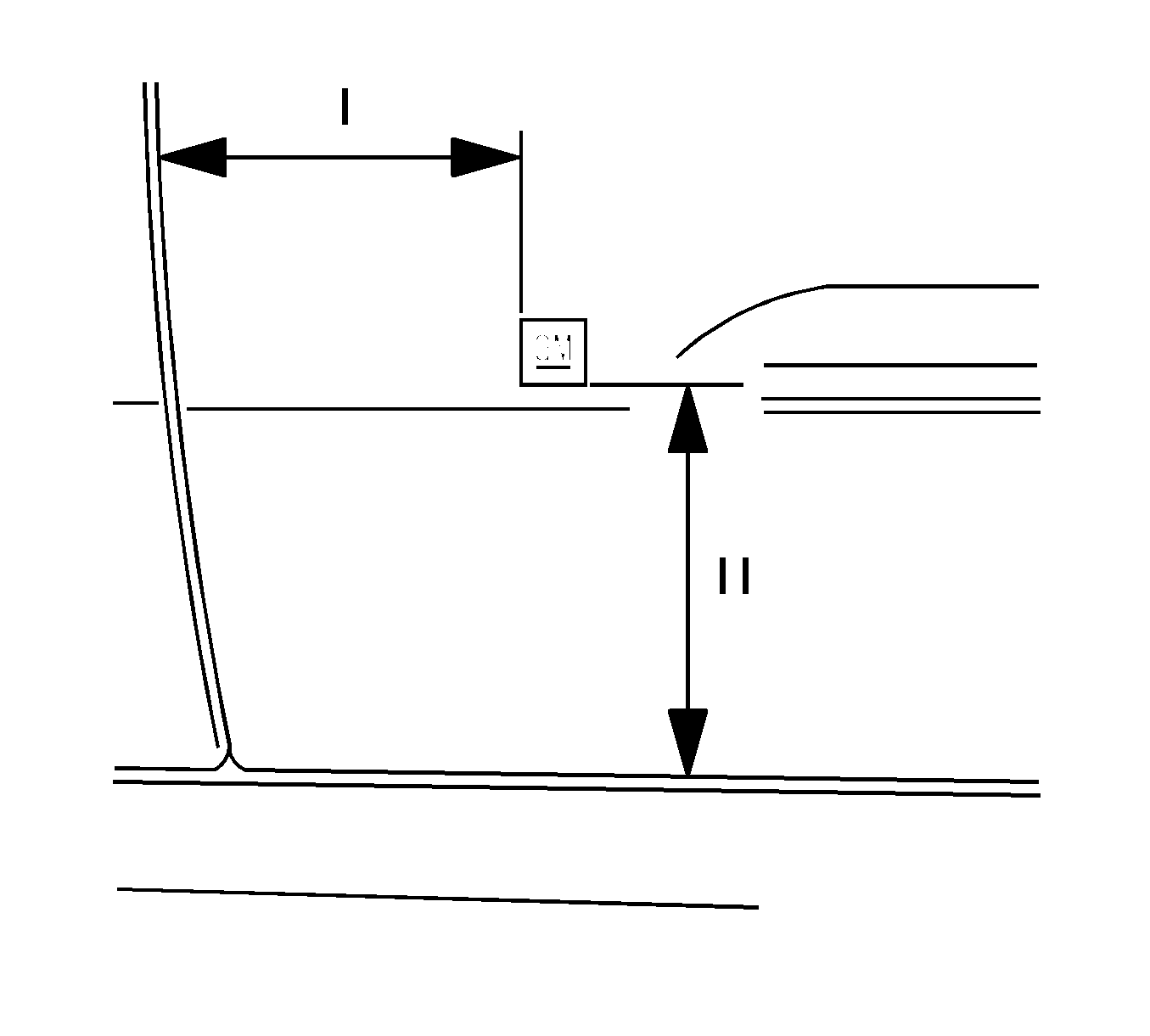

  1. Front door emblem dimensions are as follows:
    2. • Front clearance
    • Horizontal Vertical
    • I II
    • 125 mm (4.9 in) 150 mm (5.9 in)
  2. Remove the protective strips from the emblem.
  3. Install the front door emblem.

    4. Align and glue on the front door emblem.
