Removal Procedure

    Object Number: 1946283 Size: LH
  1. Remove the hand brake molding (1).

    2. Disconnect the hand brake molding.


    Object Number: 1941233 Size: SH
  2. Remove the ashtray.
    3. 2.1. Disconnect the 2 wiring harness plugs.
    2.2. Remove the ashtray.

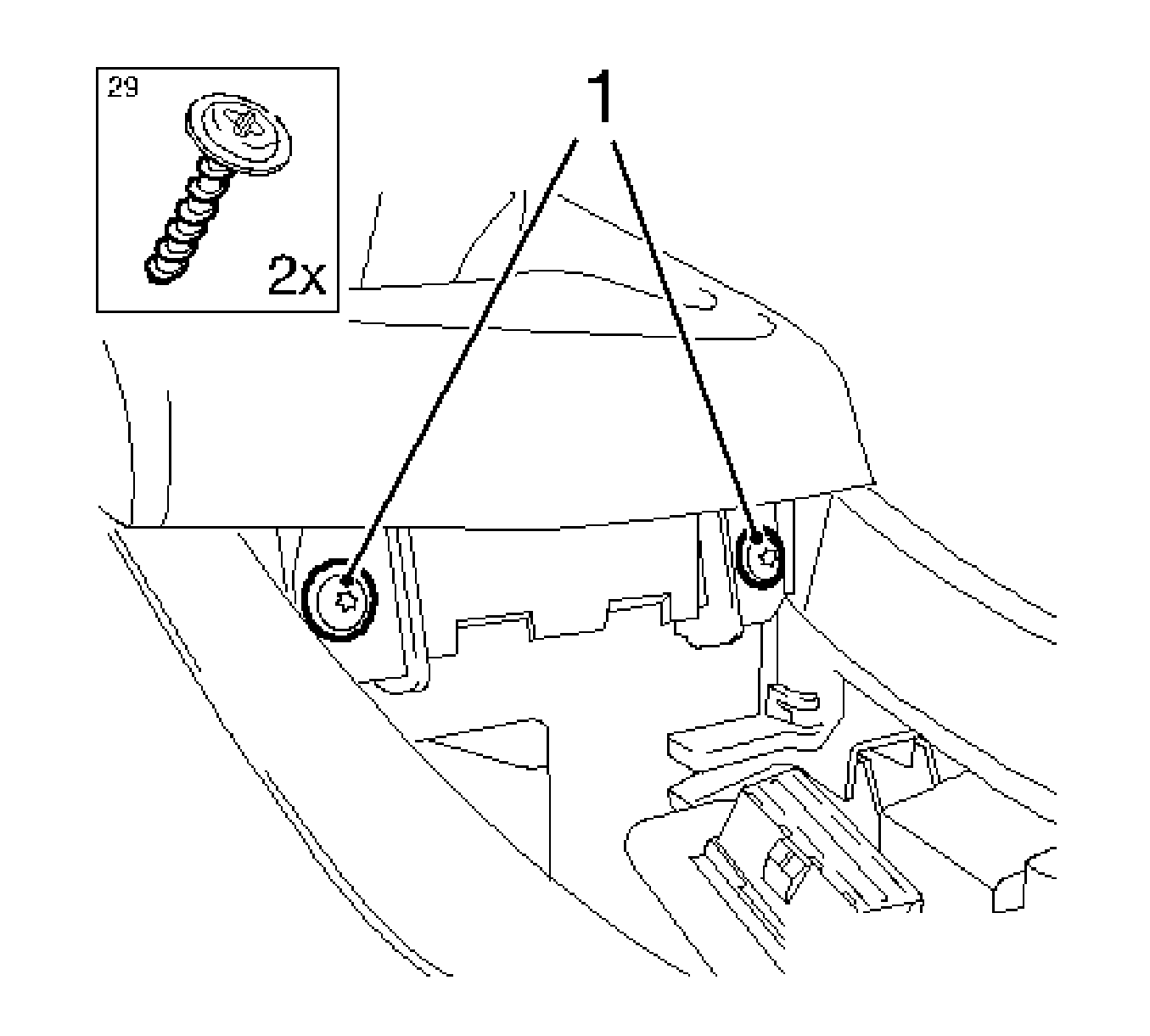

    Object Number: 1946280 Size: SH
  3. Remove the shift level bezel.

    4. Remove the 2 bolts (1).

Installation Procedure

    Notice: Refer to Fastener Notice in the Preface section.

  1. Install the shift level bezel.

    2. Tighten
    Tighten the 2 bolts to 2.5 N·m (22 lb in).

  2. Install the ashtray.
    3. 2.1. Insert the ashtray.
    2.2. Connect the 2 wiring harness plugs.
  3. Install the hand brake molding.

    4. Connect the hand brake molding.
