Makes 🢒 Saturn 🢒 2008 🢒 Astra 🢒 Body Hardware and Trim 🢒 Interior Trim and Paneling 🢒 Cargo Net Bracket Replacement

Removal Procedure

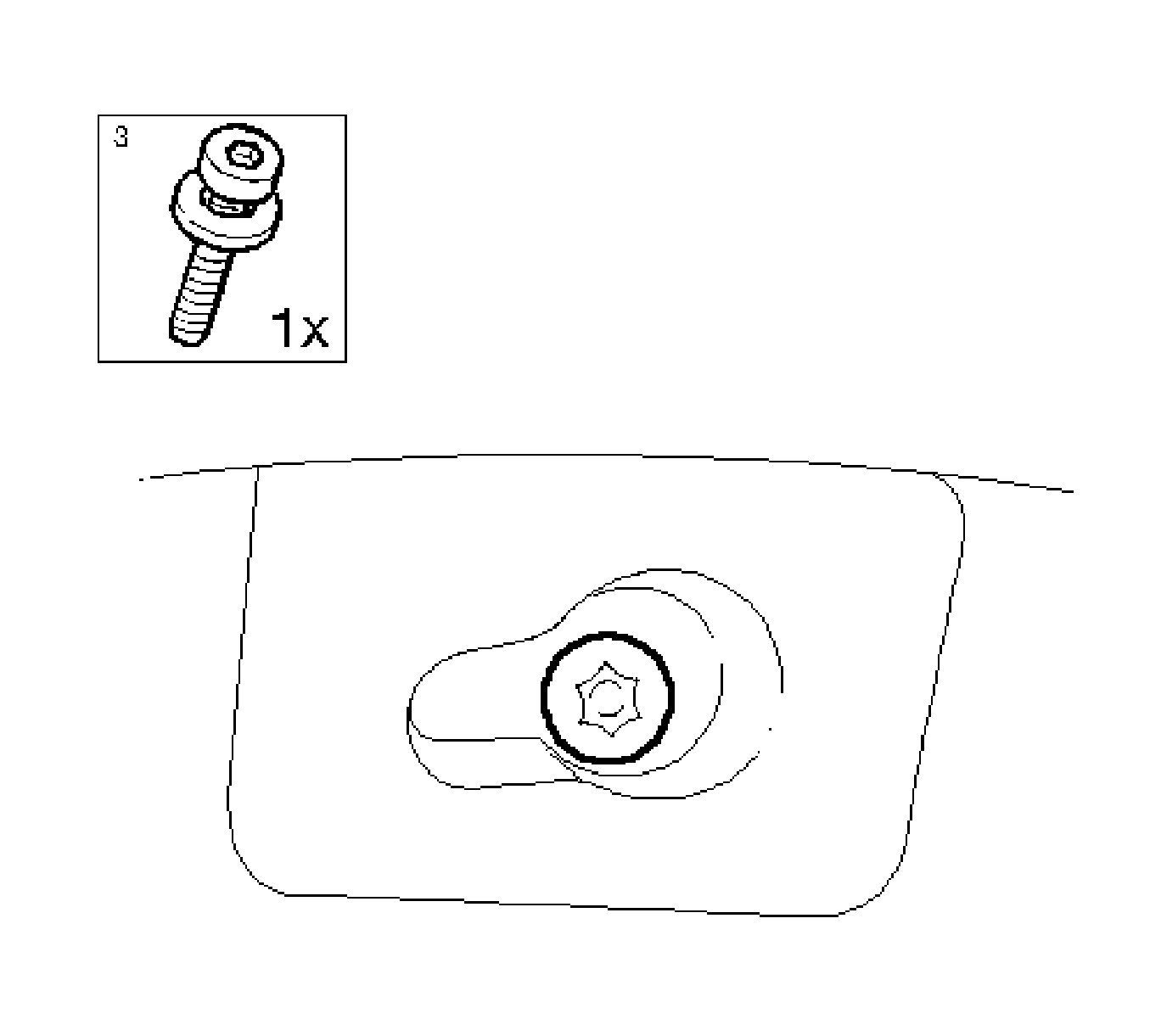

Object Number: 1946350 Size: SH

Remove the luggage retaining net bracket.

    • Remove the bolt.
    • Remove the cargo net bracket.

Installation Procedure
  1. Install the cargo net bracket.

    2. Notice: Refer to Fastener Notice in the Preface section.

    Important: Bolts are inserted with locking compound.

  2. Install the cargo net bracket.

    3. Tighten
    Tighten the bolt to 20 N·m (15 lb ft).
