Rear Bumper Fascia Center Support Replacement Coupe

Removal Procedure
  1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

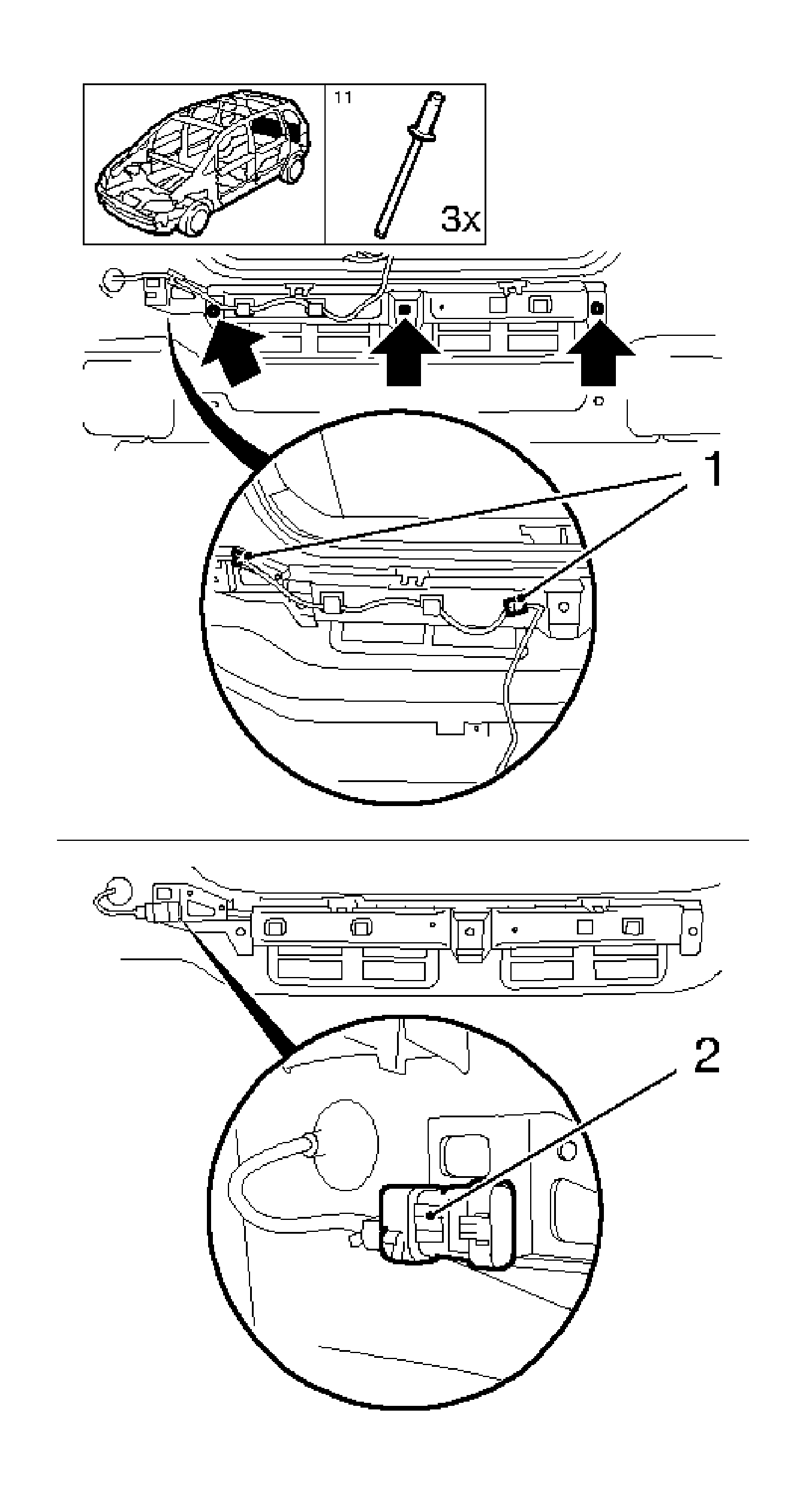

    2. Object Number: 1936381 Size: LH
  2. Remove the center support.

    3. Drill out the 3 blind rivets (arrows).

  3. Remove the wiring harness.

    4. Release the 2 cable ties (1).

  4. On vehicles with park pilot, release the wiring harness plug (2) from the bracket.

Installation Procedure
  1. Install the center support.

    2. Rivet on the 3 blind rivets.

  2. On vehicles with park pilot, fasten the wiring harness plug to the bracket.
  3. Install the wiring harness.

    4. Connect the 2 cable ties.

  4. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Bumper Fascia Center Support Replacement Sedan

Removal Procedure
  1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

    2. Object Number: 1950502 Size: LF
  2. Remove the center support.

    3. Drill out the 5 blind rivets (arrows).

  3. Remove the wiring harness.

    4. Release the 2 cable ties.

  4. Remove the bracket from wiring harness plug (1).
  5. On vehicles with park pilot, release the wiring harness plug from the bracket.

Installation Procedure
  1. Install the center support.

    2. Rivet on the 5 blind rivets.

  2. Install the bracket for the wiring harness plug.
  3. Install the wiring harness.

    4. Install the 2 cable ties.

  4. On vehicles with park pilot, fasten the wiring harness plug to the bracket.
  5. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
