For 1990-2009 cars only
To open the liftgate, See Liftgate .

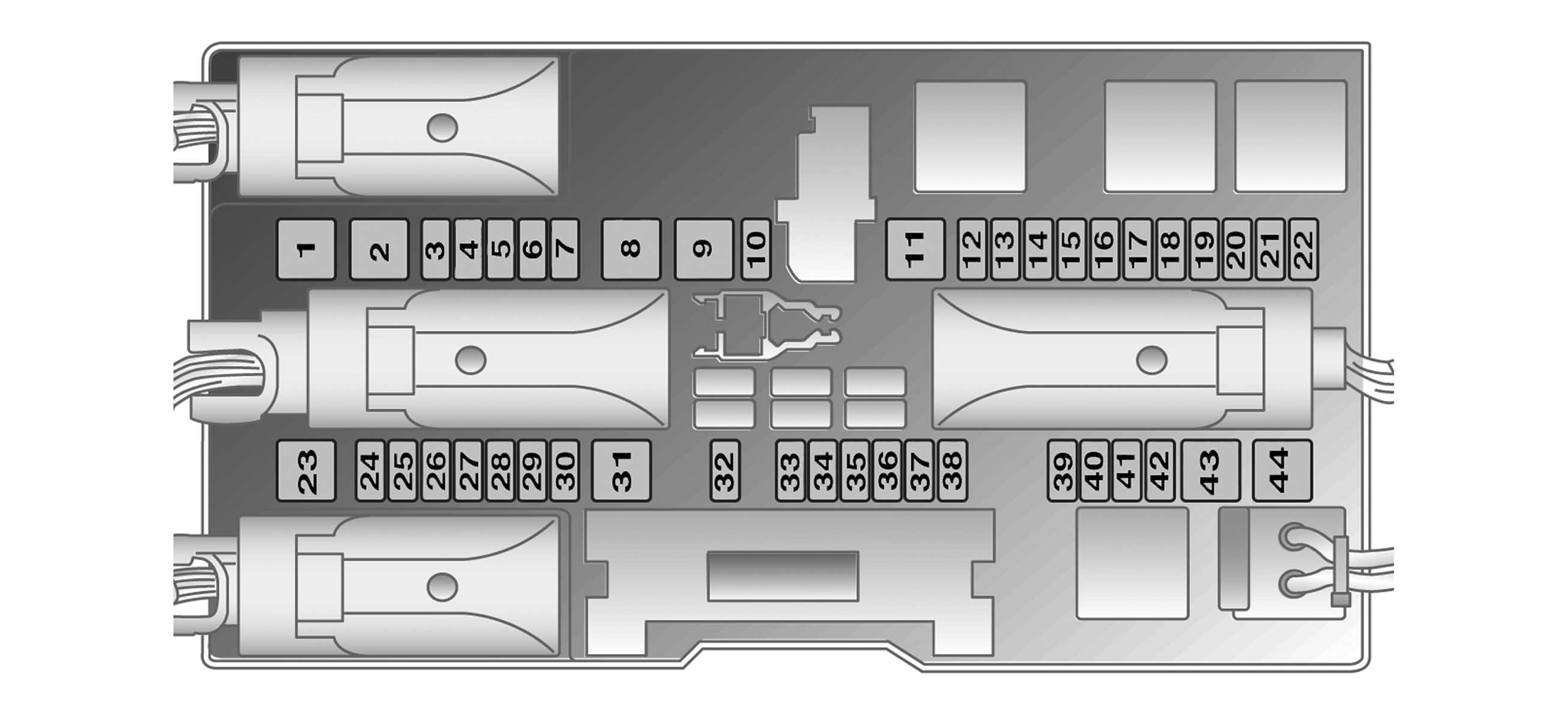

The rear compartment fuse block is located on the left side of the cargo area behind a cover.
Use the fuse puller, to remove and replace fuses.
Fuses | Usage |
|---|---|
1 | Front Power Window |
3 | Cluster |
4 | Climate Control System (Battery) |
11 | Rear Defogger |
12 | Rear Windshield Wiper |
14 | Climate Control System (Ignition) |
16 | Front Passenger Seat Detection Sensor |
17 | Tire Pressure Monitoring System (TPMS)/Rain Sensor/Inside Rearview Mirror |
18 | Interior Lights |
21 | Outside Mirror Heating |
22 | Sunroof |
23 | Rear Power Window |
24 | Diagnostic Link Connector |
29 | Accessory Power Outlet (APO) |
34 | Sunroof |
38 | Door Locks |
39 | Seat Heating Driver |
40 | Seat Heating Front Passenger |
