Removal Procedure

    Object Number: 1941211 Size: LH
  1. Remove the rear compartment sill trim plate.
    2. • Remove the liftgate weatherstrip.
    • Release the 8 clips (1, 2).
  2. Remove the right-hand rear compartment side trim panel.

    3. Release the 2 clips.

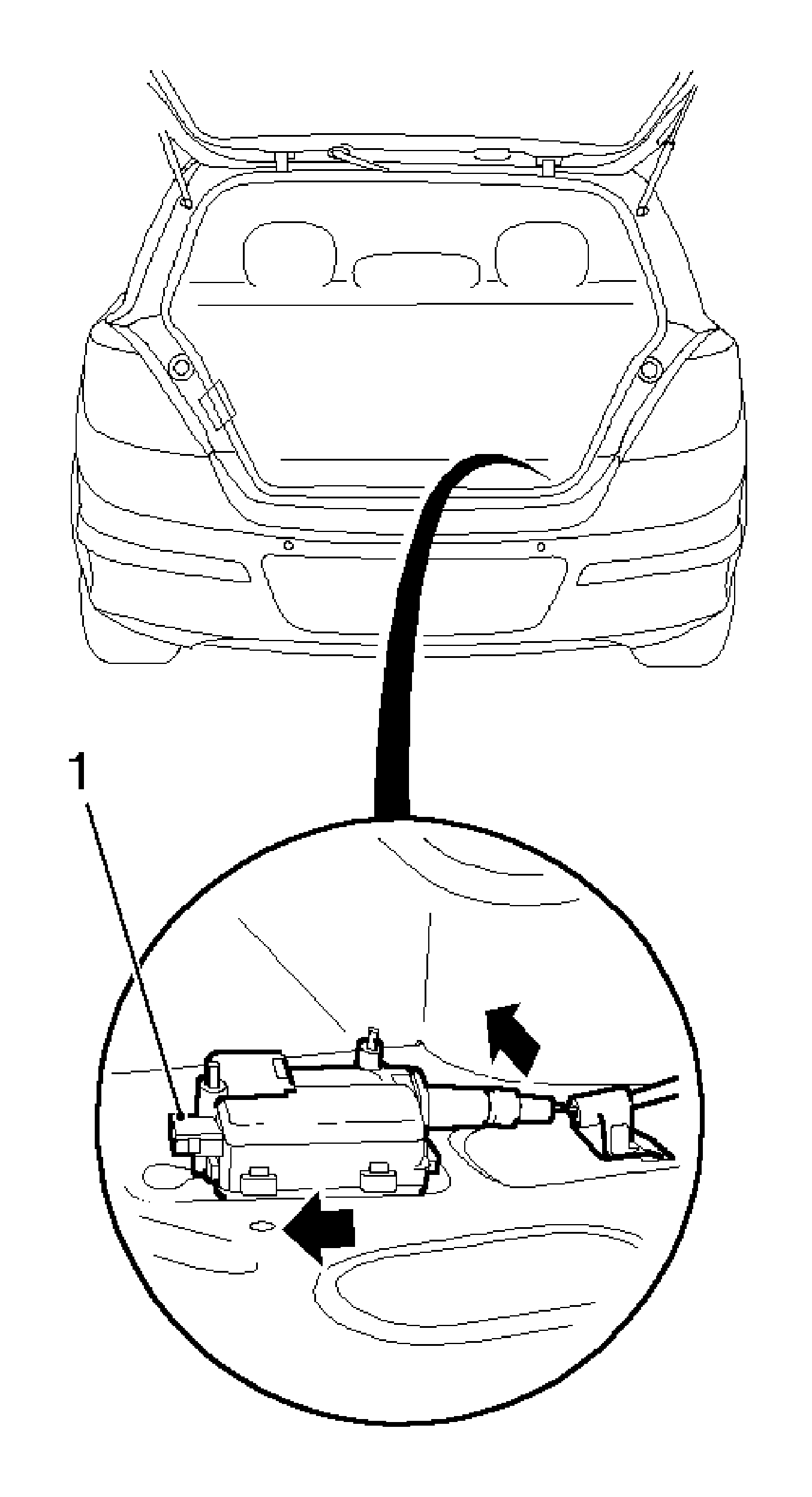

    Object Number: 1941054 Size: LH
  3. Release the servo motor.
    4. • Disconnect in the direction of the arrow.
    • Disconnect the wiring harness plug from the servo motor (1).
    • Release the wiring harness plug and disconnect.
  4. Remove the cable for filler cap control.
    5. • Release the cable in the direction of the arrow.
    • Press the servo motor in the direction of the arrow and remove.

Installation Procedure
  1. Insert the servo motor.
    2. • Press in the direction of the tail lamp.
    • Connect and lock the wiring harness plug.
  2. Install the cable for filler cap control and clip in.
  3. Install the right side rear compartment side trim panel.

    4. Fasten the 2 clips.

  4. Install the rear compartment sill trim plate.
    5. • Install the 4 clips.
    • Install the liftgate weatherstrip.
