Makes 🢒 Saturn 🢒 2009 🢒 Astra 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Radio Front Side Door Upper Speaker Replacement

Removal Procedure

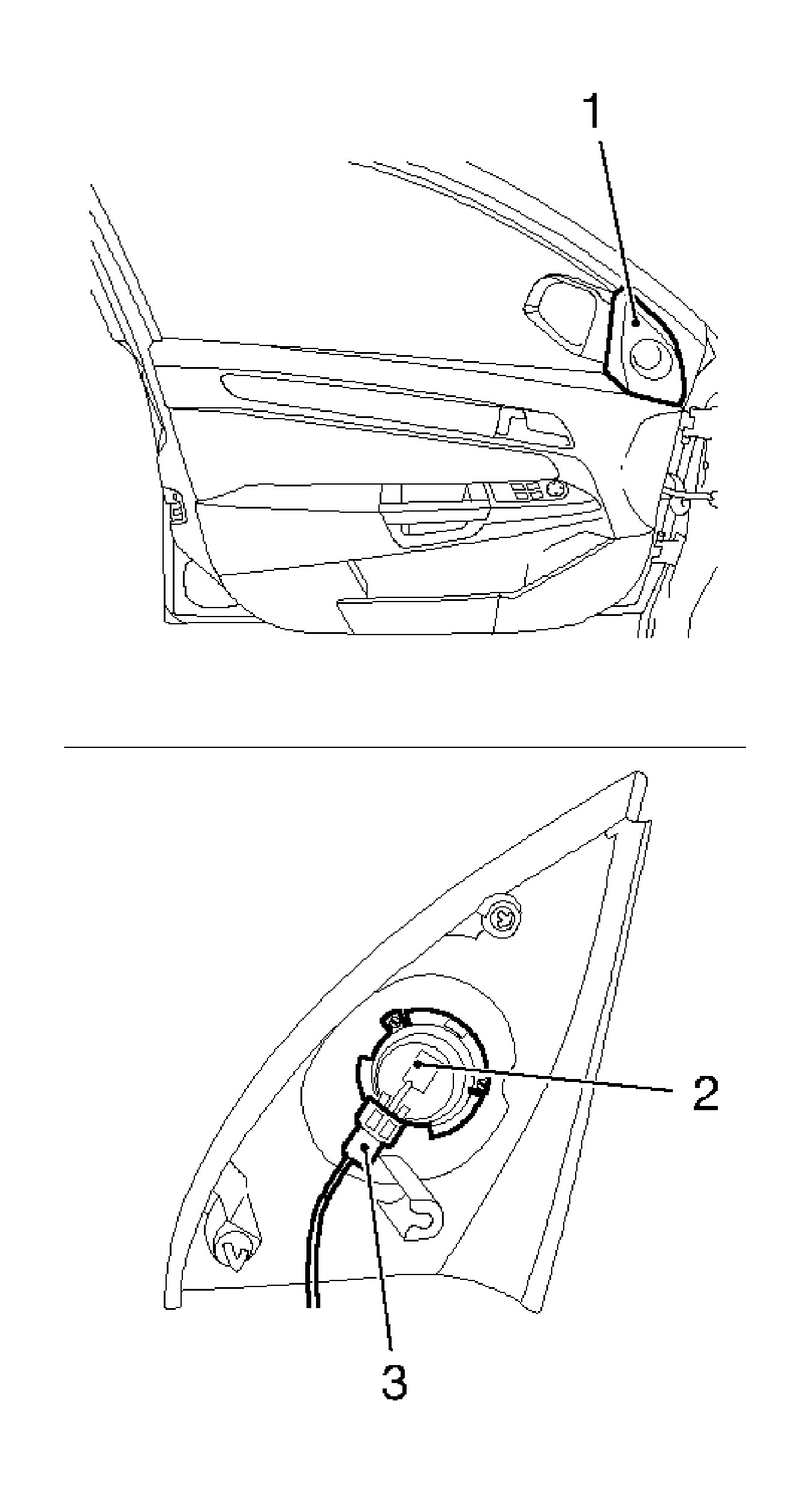

    Object Number: 1936882 Size: LH
  1. Remove the upper extension trim panel (1).
    2. • Release the 3 clips.
    • Remove the foam.
    • Disconnect the wiring harness plug (3).
  2. Release the front door upper speaker (2).

Installation Procedure
  1. Install the front door upper speaker.
  2. Install the upper extension trim panel.
    3. • Connect the wiring harness plug.
    • Replace the foam.
