Makes 🢒 Saturn 🢒 2009 🢒 Astra 🢒 Body Hardware and Trim 🢒 Interior Trim and Paneling 🢒 Center Pillar Lower Garnish Molding Replacement

Removal Procedure

    Object Number: 1941208 Size: SH
  1. Remove the door sill plate.
    2. • Loosen the 5 clips.
    • Remove the sill plate upwards.

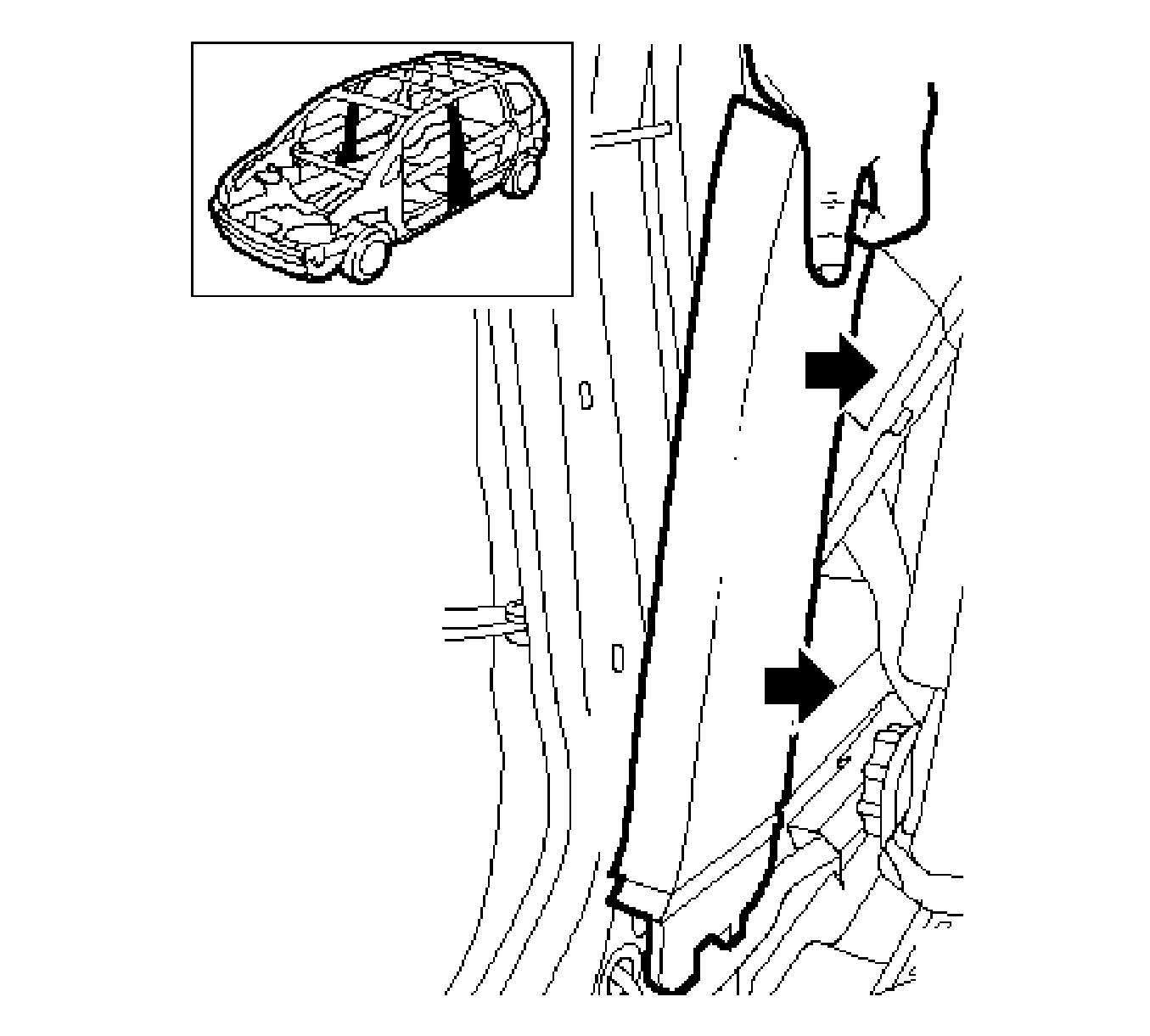

    Object Number: 1941209 Size: SH
  2. Remove the lower center pillar trim.
    3. • Loosen the upper center pillar trim in lower area and remove the lower center pillar.
    • Remove the center pillar trim.
    • Release the 4 clips.

Installation Procedure
  1. Install the lower center pillar trim.
    2. • Place the center pillar trim, install the upper center pillar trim in the lower center pillar.
    • Install the 4 clips.
  2. Install the door sill plate.

    3. Install the 5 clips.
