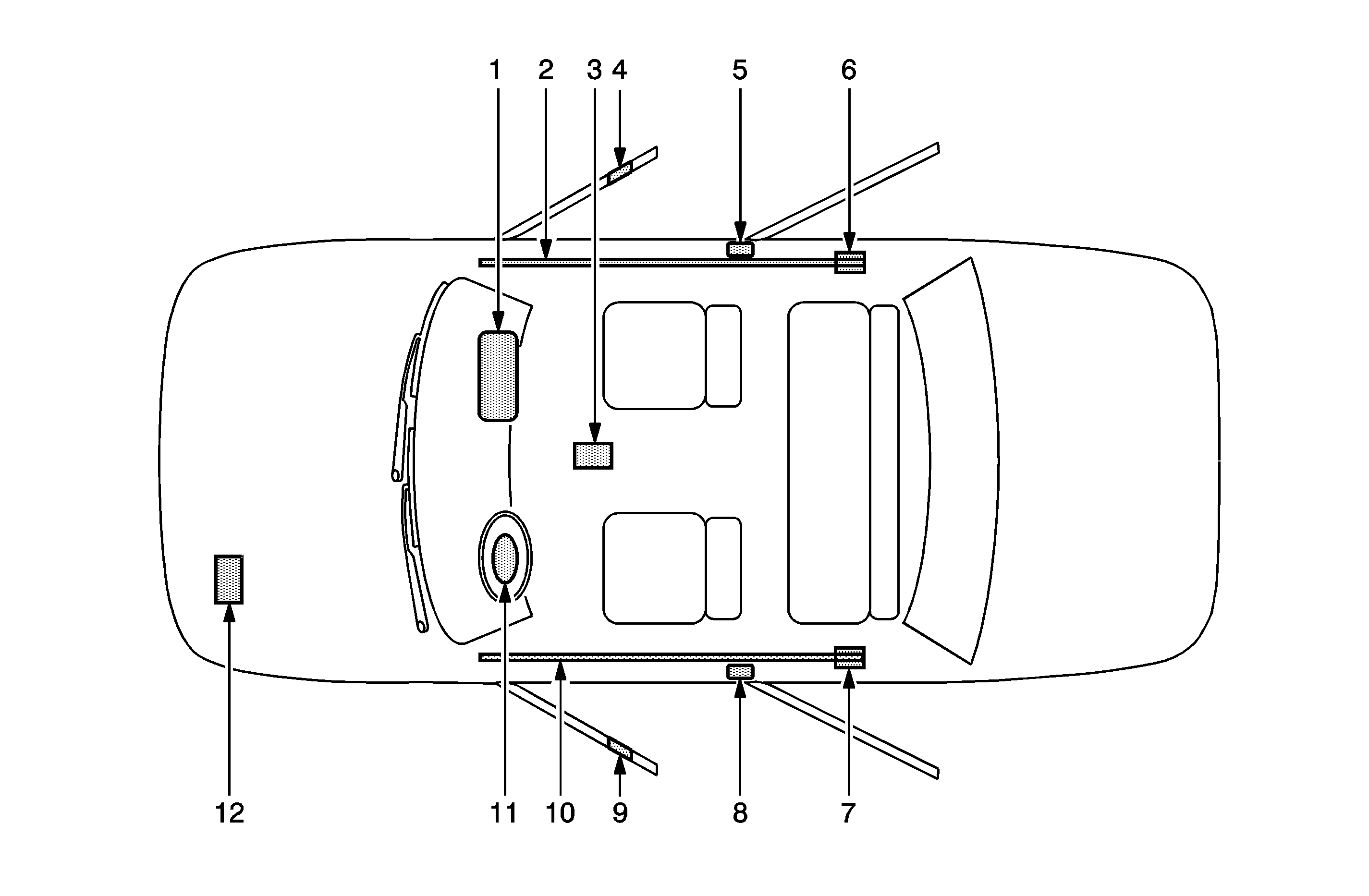

| (1) | I/P Air Bag--Located
at the top right under the instrument panel |
| (2) | Right Roof Rail
Air Bag--Located under the headliner, extending from the passenger front windshield
pillar to the passenger rear windshield pillar |
| (3) | Sensing and Diagnostic
Module (SDM)--Located underneath the vehicle carpet under the center console |
| (4) | Right Side Impact
Sensor (SIS)--Located in passenger door behind door panel trim |
| (5) | Right Seat Belt
Retractor Pretensioner--Located under headliner at top of center pillar |
| (6) | Inflator Module
for Right Roof Rail Air Bag--Located behind the garnish molding on the upper
rear pillar |
| (7) | Inflator
Module for Left Roof Rail Air Bag--Located behind the garnish molding on the
upper rear pillar |
| (8) | Left Seat
Belt Retractor Pretensioner--Located under headliner at top of center pillar |
| (9) | Left Side
Impact Sensor (SIS)--Located in driver door behind door panel trim |
| (10) | Left Roof
Rail Air Bag--Located under the headliner, extending from the driver front windshield
pillar to the driver rear windshield pillar |
| (11) | Steering
Wheel Air Bag--Located on the steering wheel |
| (12) | Vehicle
Battery--Located at the front left of the engine compartment |
The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to
SIR Disabling and Enabling
.
