Engine Controls Schematics. Saturn ION 2006

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2006 🢒 ION 🢒 Engine 🢒 Engine Controls - 2.2L (L61) 🢒 Engine Controls Schematics

Figure 1:	Power, Ground, MIL, and Serial Data Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - 5-Volt and Reference Bussing - 2.2L Engine Controls Schematic Icons B+ Bus B+ Bus B+ Bus ABS (10A), BACK UP, BOOST, ECM, TRANS 1, and TRANS 2 Fuses ABS (10A), BACK UP, BOOST, ECM, TRANS 1, and TRANS 2 Fuses Ignition Switch, RUN/CRANK Fuse, RUN/CRANK (IGN1) Relay BCM ELECT, CLUSTER/AOS, EPS (60A), FUEL PUMP, HVAC, IGN SW, IP BATT 2, RUN (IGN 3), and STOP Fuses, RUN and FUEL PUMP Relays Accessory Voltage, Stop Lamp Switch, and Serial Data B+ Bus High Speed GM LAN - 2.2L DLC Power, Ground, Class 2, and Low Speed GM LAN G103 and G105 - 2.2L, 2.4L, and G109 G101

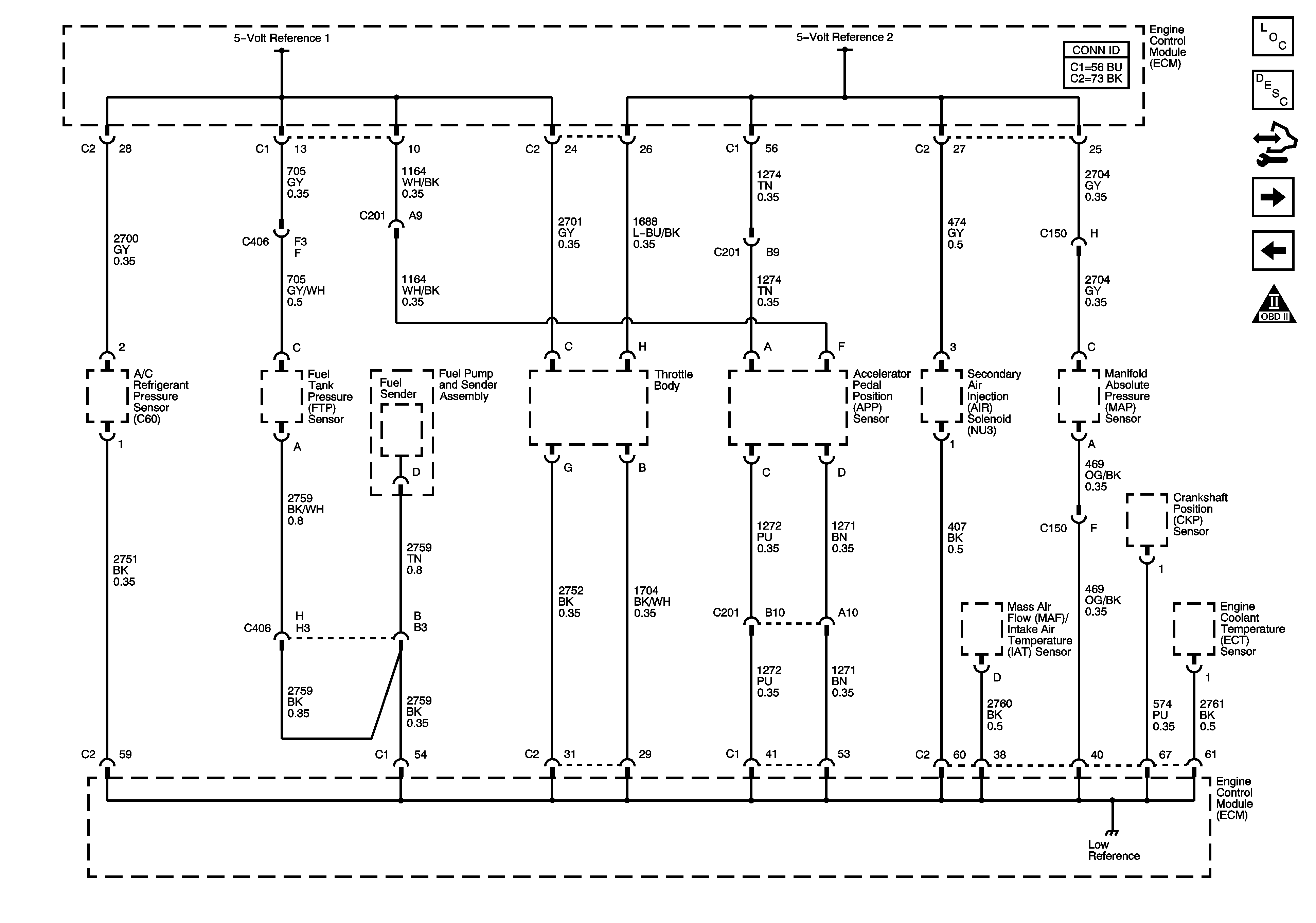

Figure 2:	Engine Data Sensors - 5-Volt and Low Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Pressure, Temperature, and MAF/IAT - 2.2L Power, Ground, MIL, and Serial Data - 2.2L Engine Controls Schematic Icons
Figure 3:	Engine Data Sensors - Pressure, Temperature, and MAF/IAT Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - HO2S - 2.2L Engine Data Sensors - 5-Volt and Reference Bussing - 2.2L Engine Controls Schematic Icons Power, Ground, MIL, and Serial Data - 2.2L AIR PUMP RLY, ECM/ETC, EMISS, IGN, and INJECTOR Fuses, AIR SOLENOID, POWERTRAIN Relays - 2.2L Fuel Level and Oil Pressure G103 and G105 - 2.2L, 2.4L, and G109
Figure 4:	Engine Data Sensors - HO2S Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors, APP and TAC - 2.2L Engine Data Sensors - Pressure, Temperature, and MAF/IAT - 2.2L Engine Controls Schematic Icons AIR PUMP RLY, ECM/ETC, EMISS, IGN, and INJECTOR Fuses, AIR SOLENOID, POWERTRAIN Relays - 2.2L
Figure 5:	Engine Data Sensors - APP and TAC Master Electrical Component List Throttle Actuator Control (TAC) System Description Control Module References Ignition Controls - 2.2L Engine Data Sensors - HO2S - 2.2L Engine Controls Schematic Icons
Figure 6:	Ignition Controls Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Secondary Air Injection System (NU3) Engine Data Sensors, APP and TAC - 2.2L Engine Controls Schematic Icons AIR BAG/AOS, CLUTCH/BRAKE/AOS, and EPS/CRUISE Fuses Power, Ground, MIL, and Serial Data - 2.2L Engine Controls Schematic Icons Engine Controls Schematic Icons G103 and G105 - 2.2L, 2.4L, and G109
Figure 7:	Secondary Air Injection System (NV3) Master Electrical Component List Secondary Air Injection System Description Control Module References Fuel Controls - 2.2L Ignition Controls - 2.2L Engine Controls Schematic Icons Power, Ground, MIL, and Serial Data - 2.2L AIR PUMP RLY, ECM/ETC, EMISS, IGN, and INJECTOR Fuses, AIR SOLENOID, POWERTRAIN Relays - 2.2L G103 and G105 - 2.2L, 2.4L, and G109

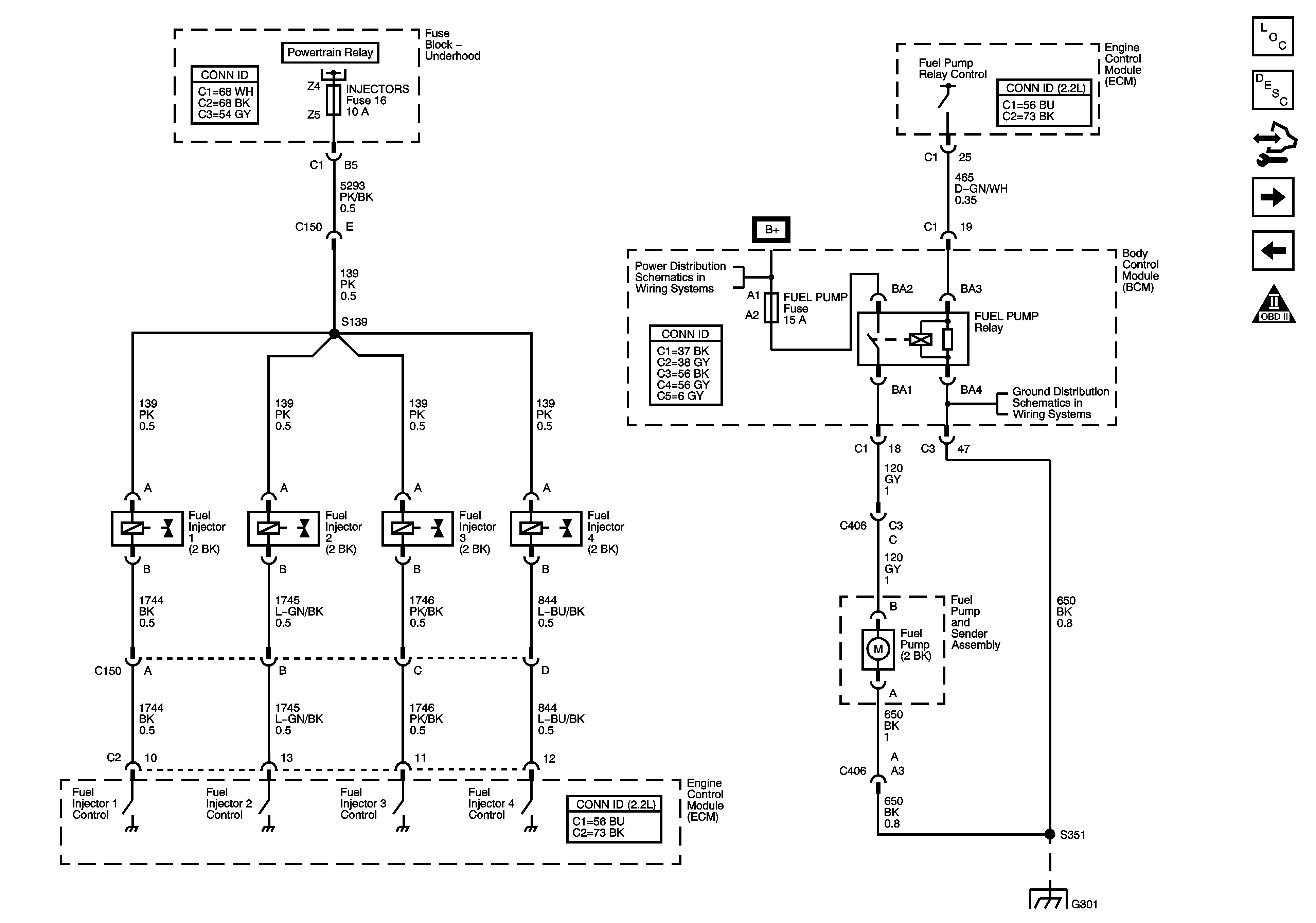

Figure 8:	Fuel Controls Master Electrical Component List Fuel System Description Control Module References EVAP Controls - 2.2L Secondary Air Injection System (NU3) Engine Controls Schematic Icons Power, Ground, MIL, and Serial Data - 2.2L BCM ELECT, CLUSTER/AOS, EPS (60A), FUEL PUMP, HVAC, IGN SW, IP BATT 2, RUN (IGN 3), and STOP Fuses, RUN and FUEL PUMP Relays G301 G301
Figure 9:	EVAP Controls Master Electrical Component List Evaporative Emission Control System Description Control Module References Controlled/Monitored Subsystem Reference - 2.2L Fuel Controls - 2.2L Engine Controls Schematic Icons BCM (PWR), DASH, IP BATT 1, IP BATT 1A, LIGHTER, ONSTAR, PARK, PWR OUTLET, PWR WINDOWS, RADIO (ACC.), RADIO (BATT), SUN ROOF, and WIPER SW Fuses Power, Ground, MIL, and Serial Data - 2.2L AIR PUMP RLY, ECM/ETC, EMISS, IGN, and INJECTOR Fuses, AIR SOLENOID, POWERTRAIN Relays - 2.2L
Figure 10:	Controlled/Monitored Subsystem Reference Master Electrical Component List Engine Control Module Description Control Module References EVAP Controls - 2.2L Engine Controls Schematic Icons Fuel Level and Oil Pressure Driver Controls Stop Lamp and Clutch Switches Engine Cooling Schematics (2.2L) A/C Compressor Controls (C60) Charging Starting Manual Transmission Schematics (M86)
