Makes 🢒 Saturn 🢒 2003 🢒 L200/LW200 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T40-E/4T45-E 🢒 Automatic Transmission Controls Schematics

Automatic Transmission Controls Schematics 2.2L

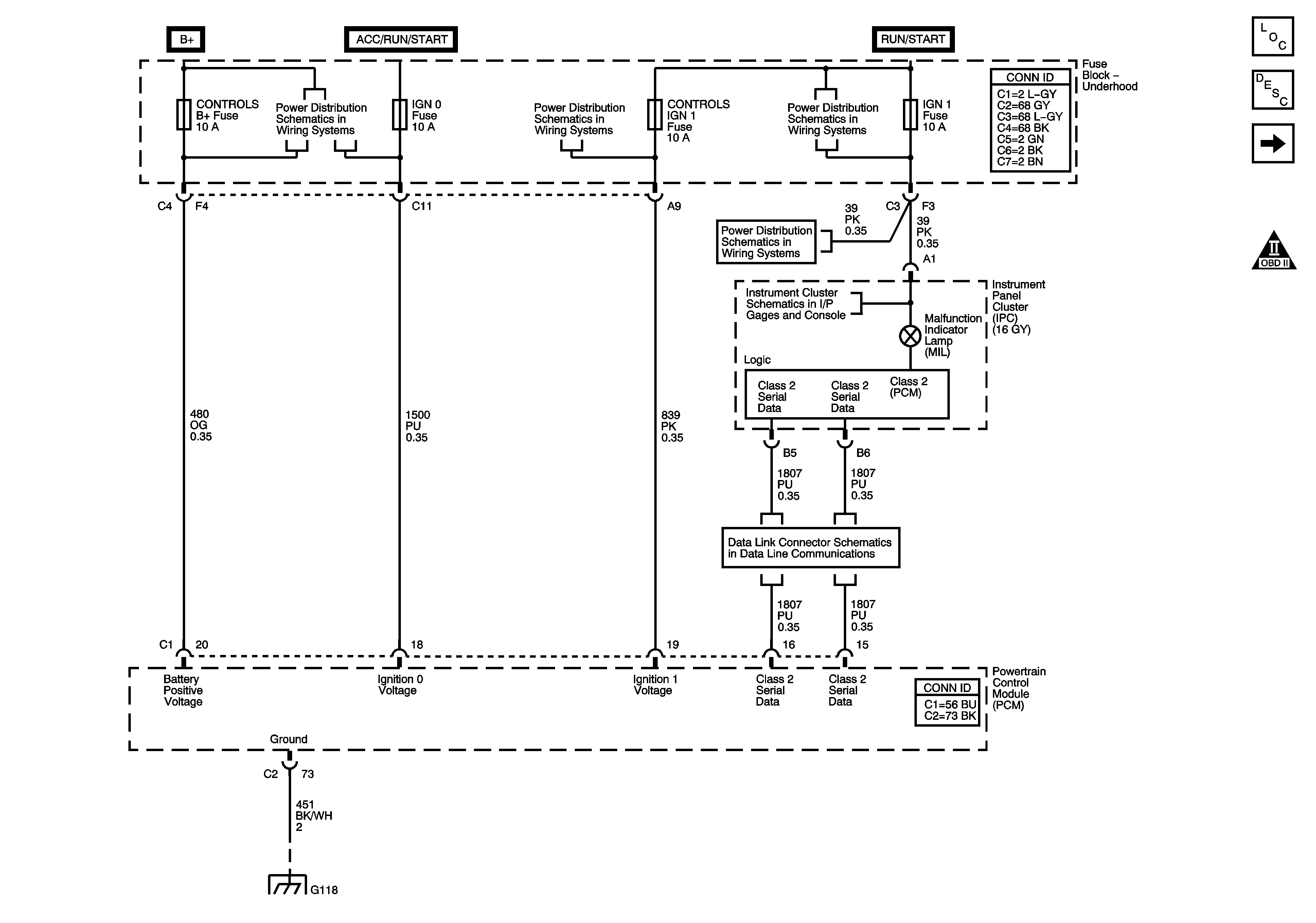

Figure 1:	PCM Power, Ground, Serial Data, and MIL Master Electrical Component List Electronic Component Description Input Solenoids,Speed Sensors, Stop Lamp Switch OBD II Symbol Description Notice Fuse Block-Underhood : Cooling Fan2, Cooling Fan1, ABS1, ABS2, Park Lamp, Hazard, Brake and Controls B+ Fuse Block-Underhood : Injector, Controls IGN1, EIS and IGN Fuse Block-Underhood : BCM/ECM/Cruise/ABS, Cruise Switch, IGN1 and Backup/Turn Fuse Block-Underhood : BCM/ECM/Cruise/ABS, Cruise Switch, IGN1 and Backup/Turn Power, Ground, and Indicators 2.2L G102, G110, G118, G114

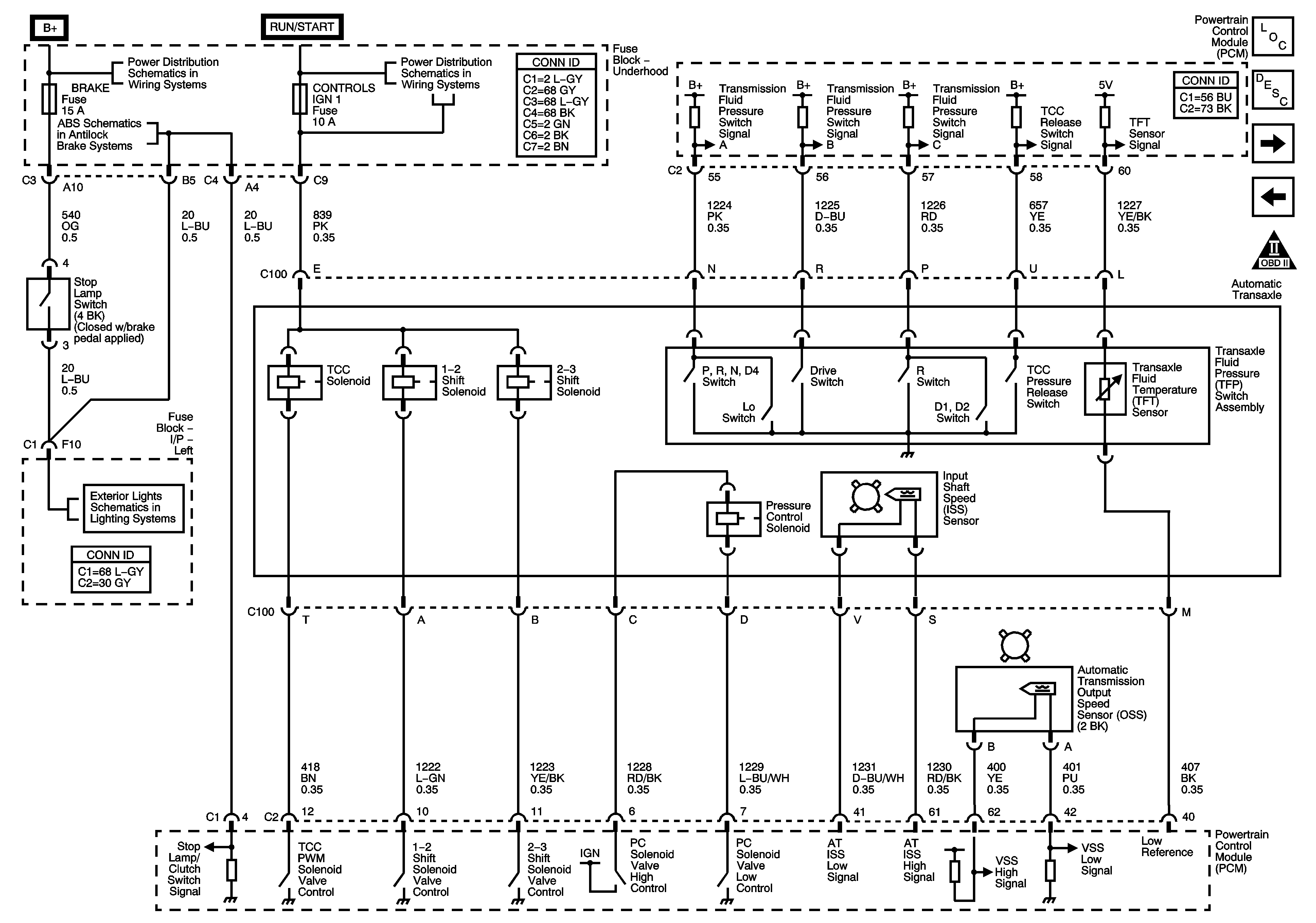

Figure 2:	Solenoid, Speed Sensors, and Stop Lamp Switch Master Electrical Component List Electronic Component Description Input PNP Switch and PRNDL PCM Power, Ground, Serial Data, MIL OBD II Symbol Description Notice Fuse Block-Underhood Bus EBCM Power, Ground, Serial Data, and Switches- 2.2L Fuse Block-Underhood : Injector, Controls IGN1, EIS and IGN Stop Lamps

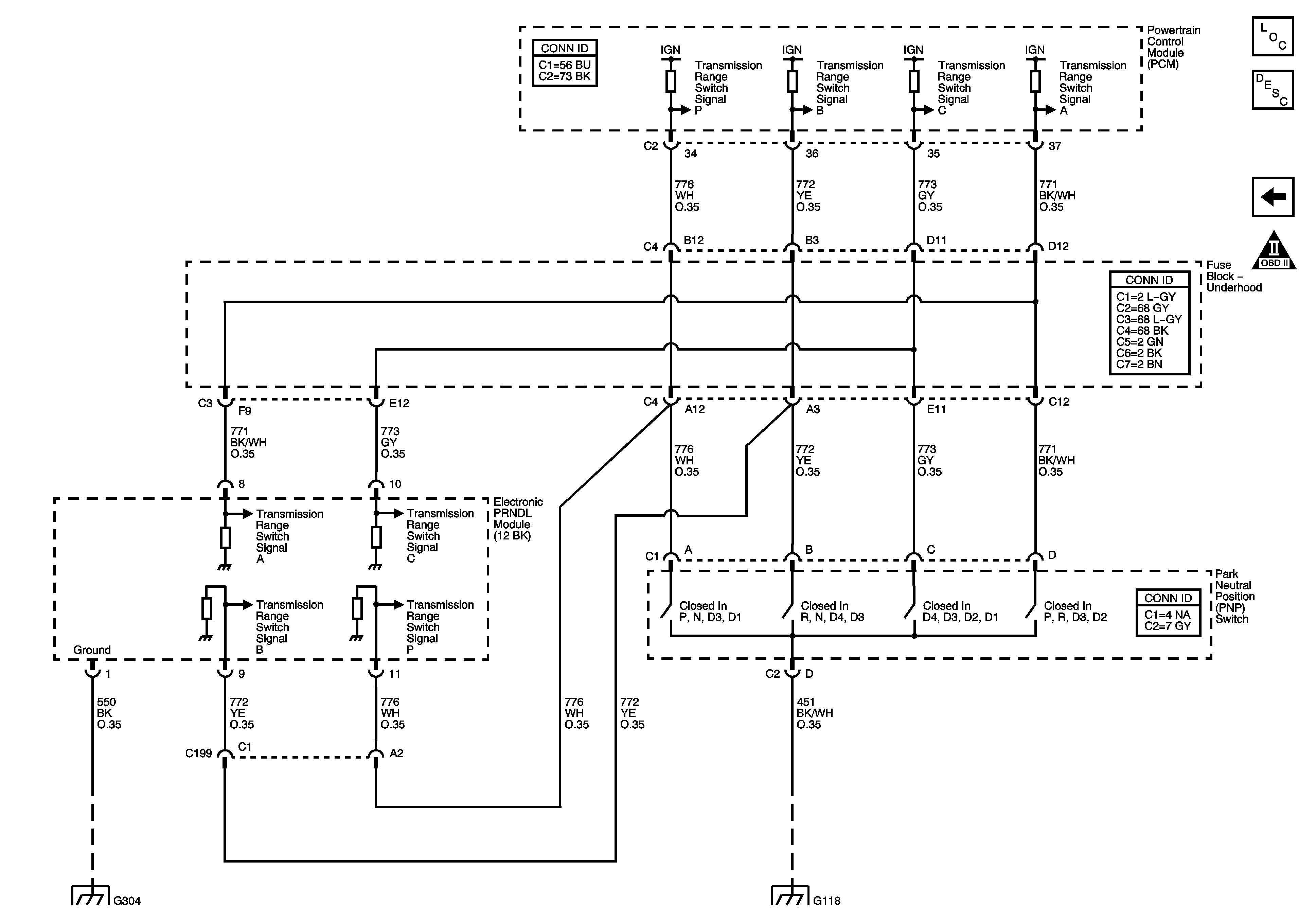

Figure 3:	PNP Switch and PRNDL Master Electrical Component List Electronic Component Description Input Solenoids,Speed Sensors, Stop Lamp Switch OBD II Symbol Description Notice G300, G304 G102, G110, G118, G114

Automatic Transmission Controls Schematics 3.0L

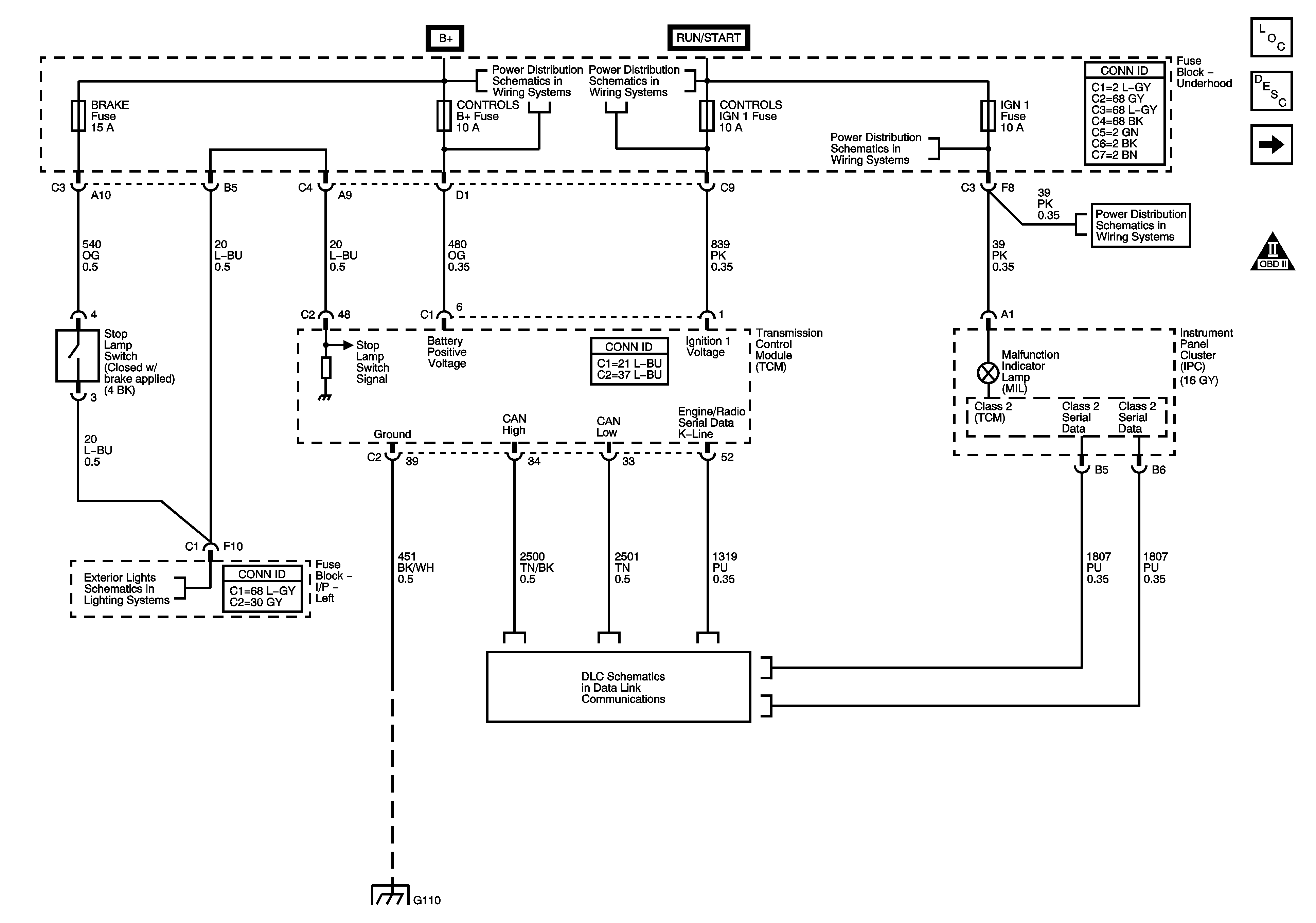

Figure 1:	TCM Power, Ground, MIL and Stop Lamp Switch Master Electrical Component List Electronic Component Description Input Sensors and Solenoids OBD II Symbol Description Notice Fuse Block-Underhood : Cooling Fan2, Cooling Fan1, ABS1, ABS2, Park Lamp, Hazard, Brake and Controls B+ Fuse Block-Underhood : Injector, Controls IGN1, EIS and IGN Fuse Block-Underhood : BCM/ECM/Cruise/ABS, Cruise Switch, IGN1 and Backup/Turn Fuse Block-Underhood : BCM/ECM/Cruise/ABS, Cruise Switch, IGN1 and Backup/Turn Stop Lamps 3.0L G102, G110, G118, G114

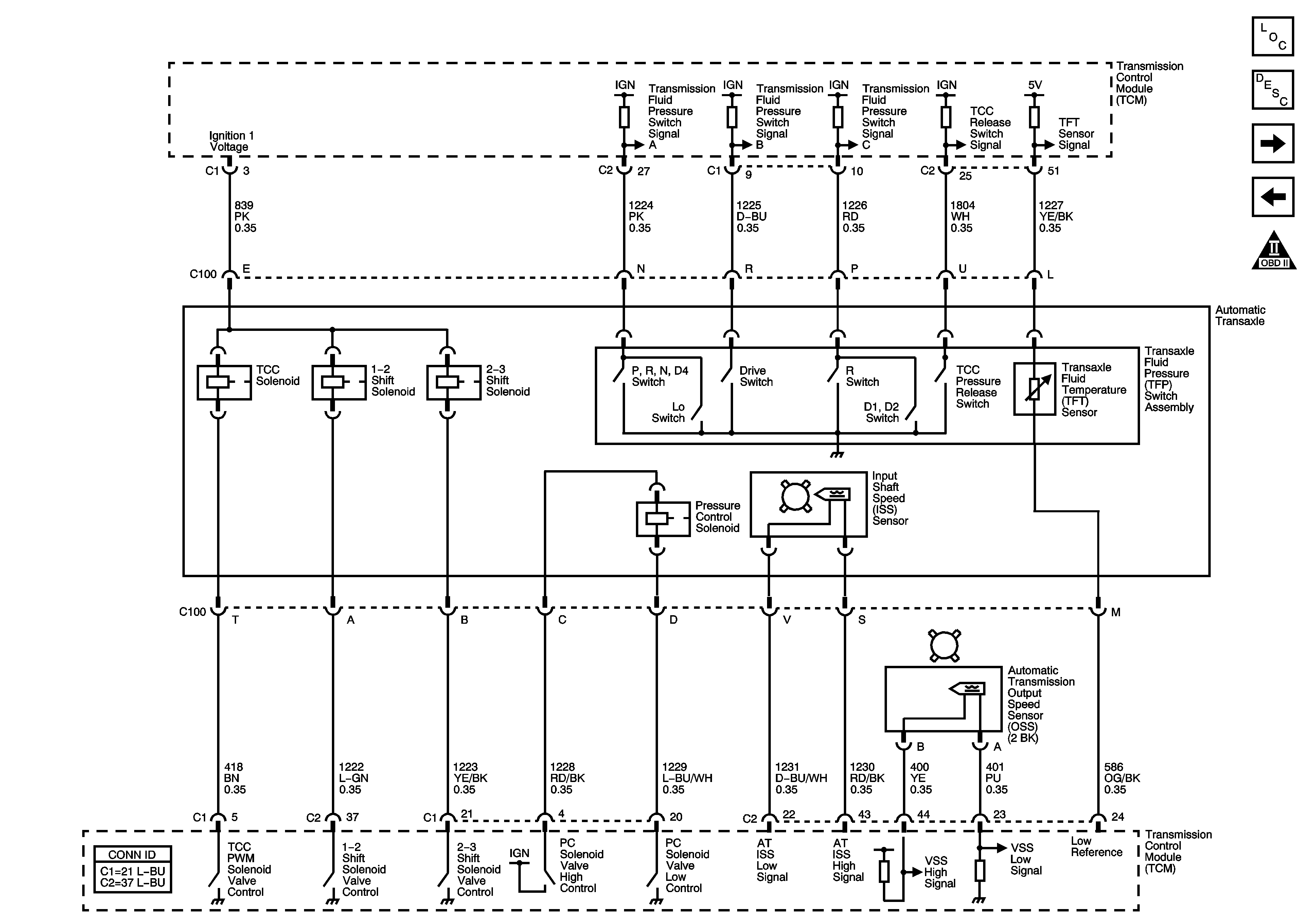

Figure 2:	Sensors and Solenoids Master Electrical Component List Electronic Component Description Input PNP Switch and PRNDL TCM Power, Ground, MIL, Stop Lamp Switch OBD II Symbol Description Notice

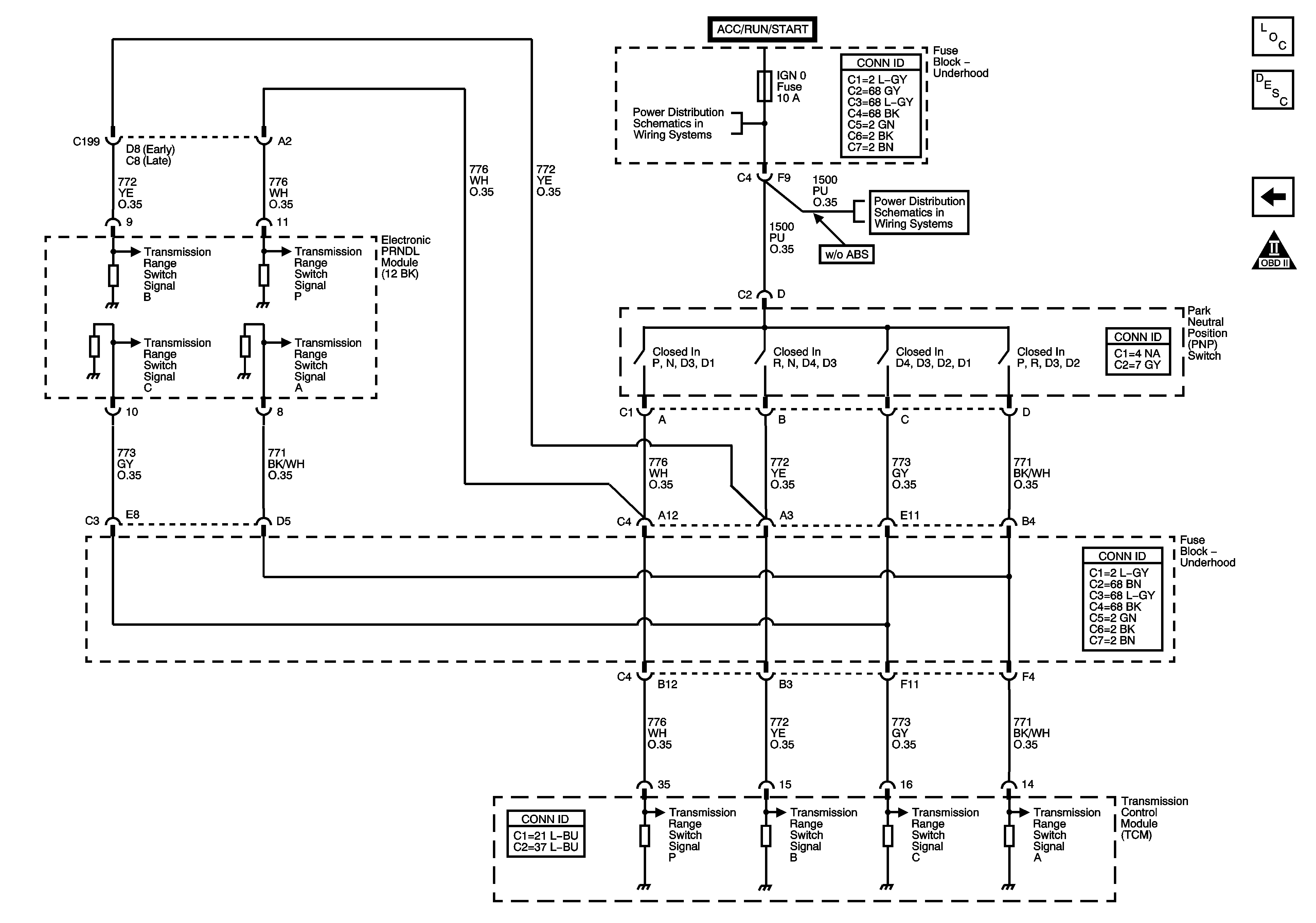

Figure 3:	PNP Switch and PRNDL Master Electrical Component List Electronic Component Description Input Sensors and Solenoids OBD II Symbol Description Notice Fuse Block-Underhood : IGN1/2, IGN0 and IGN0/3/CR - Ignition Switch
