Makes 🢒 Saturn 🢒 2002 🢒 L300/LW300 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics
Figure 1:

Parking Lamps - Common - (1 of 8)
Object Number: 895797 Size: FP
Figure 2:

Parking Lamps - Sedan - (2 of 8)
Object Number: 895799 Size: FP

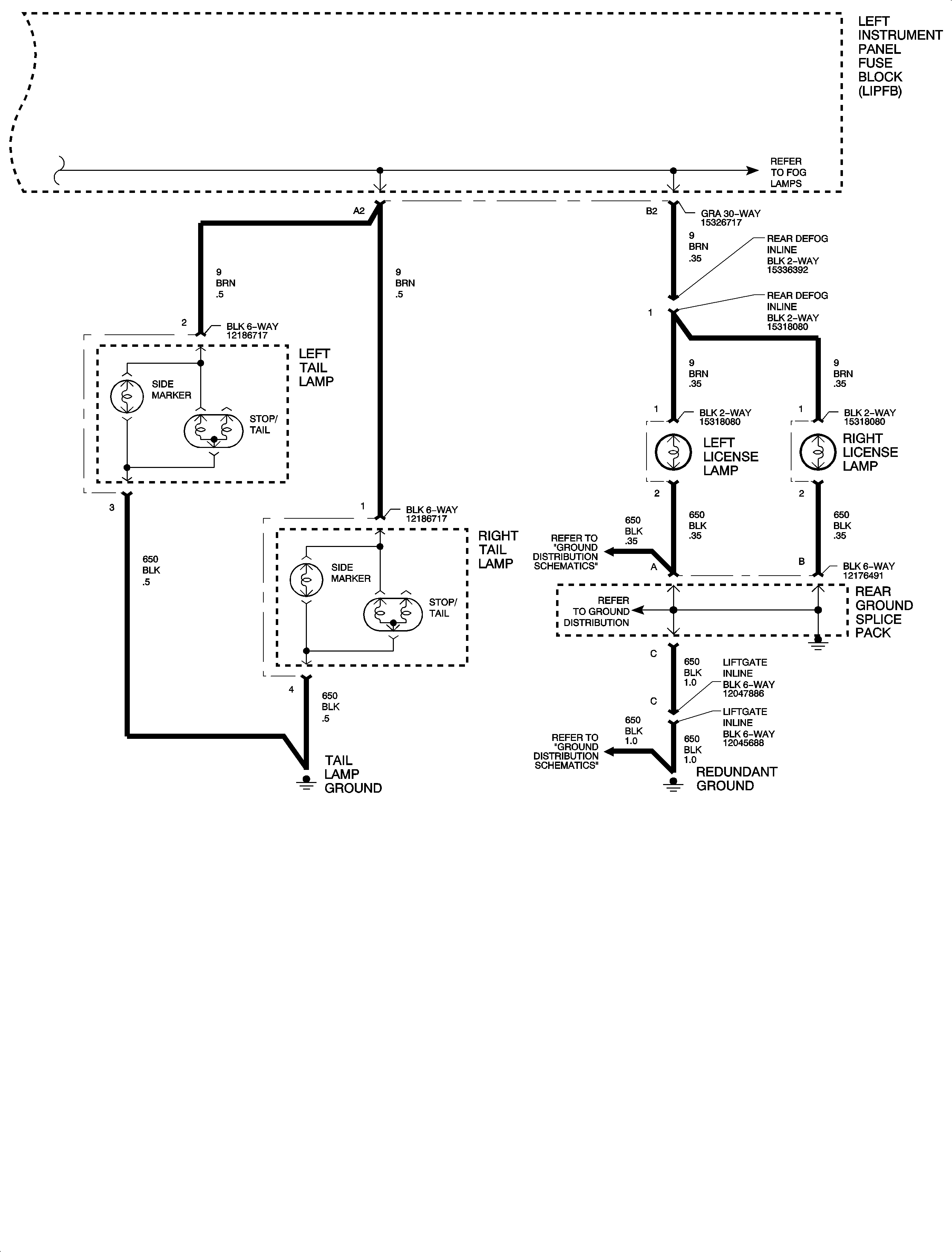

Figure 3:

Parking Lamps - Wagon - (3 of 8)
Object Number: 895800 Size: FP
Figure 4:

Stop Lamps - Sedan - (4 of 8)
Object Number: 895803 Size: FP
Figure 5:

Stop Lamps - Wagon - (5 of 8)
Object Number: 895804 Size: FP

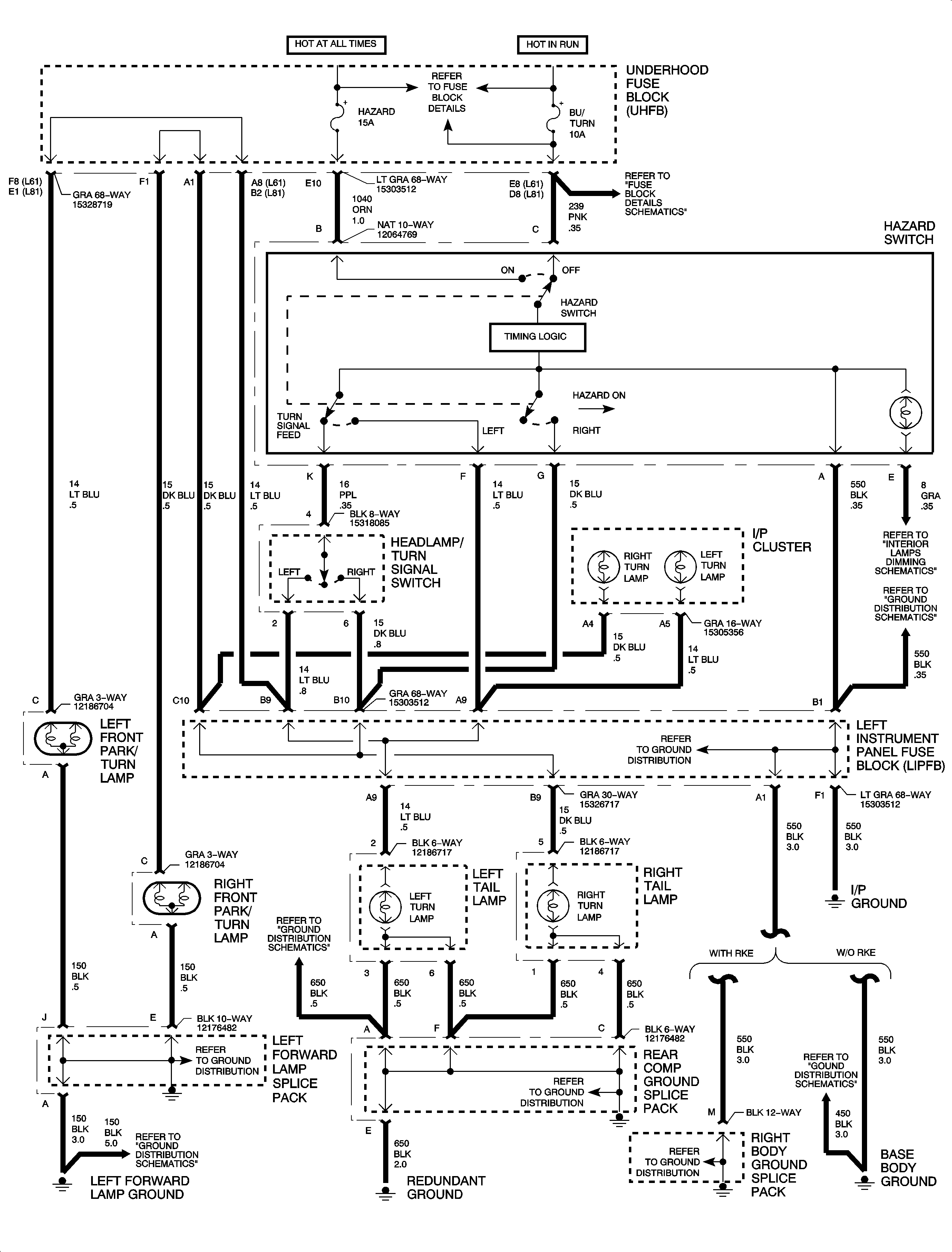

Figure 6:

Turn/Hazard Lamps - Sedan - (6 of 8)
Object Number: 895806 Size: FP

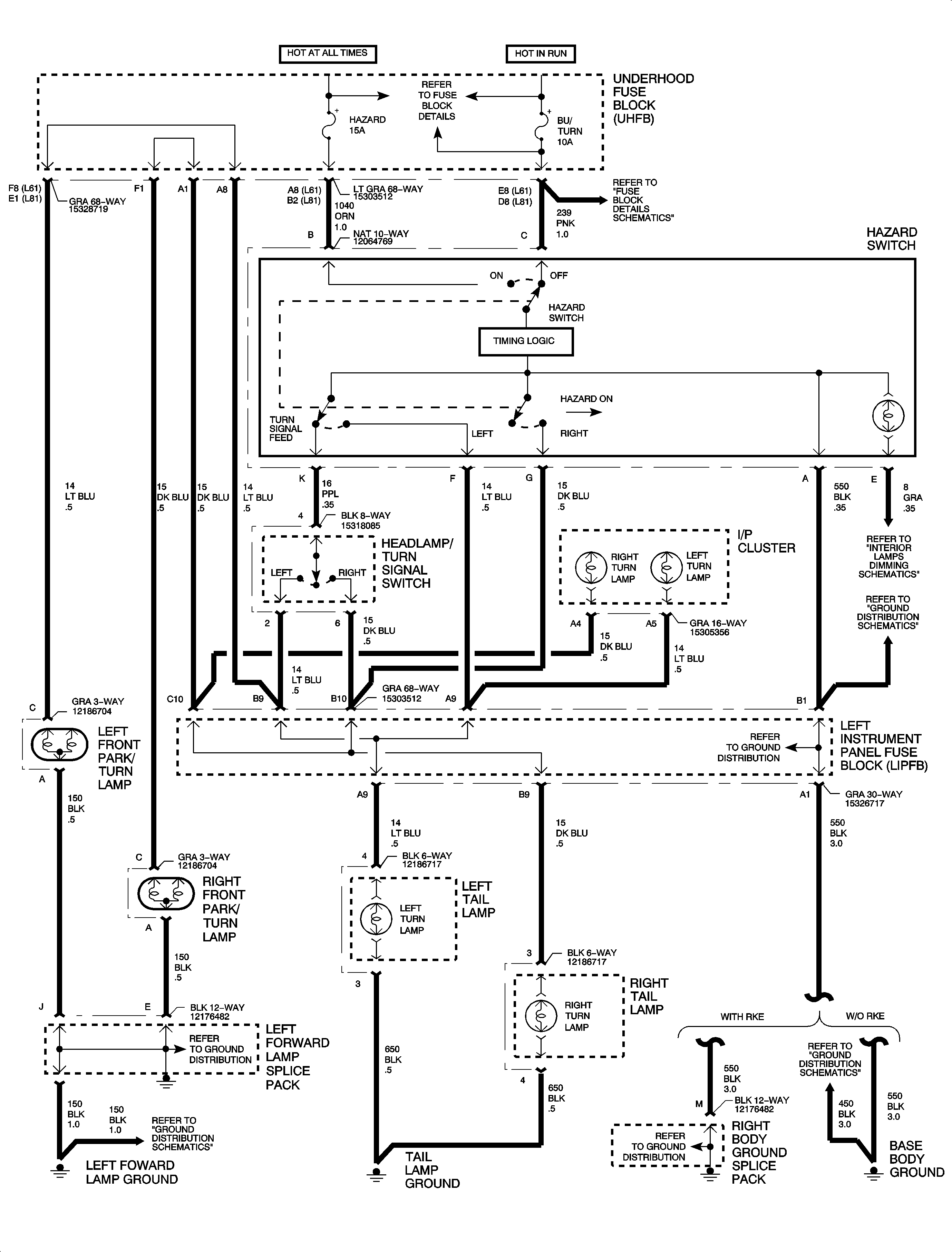

Figure 7:

Turn/Hazard Lamps - Wagon - (7 of 8)
Object Number: 895807 Size: FP

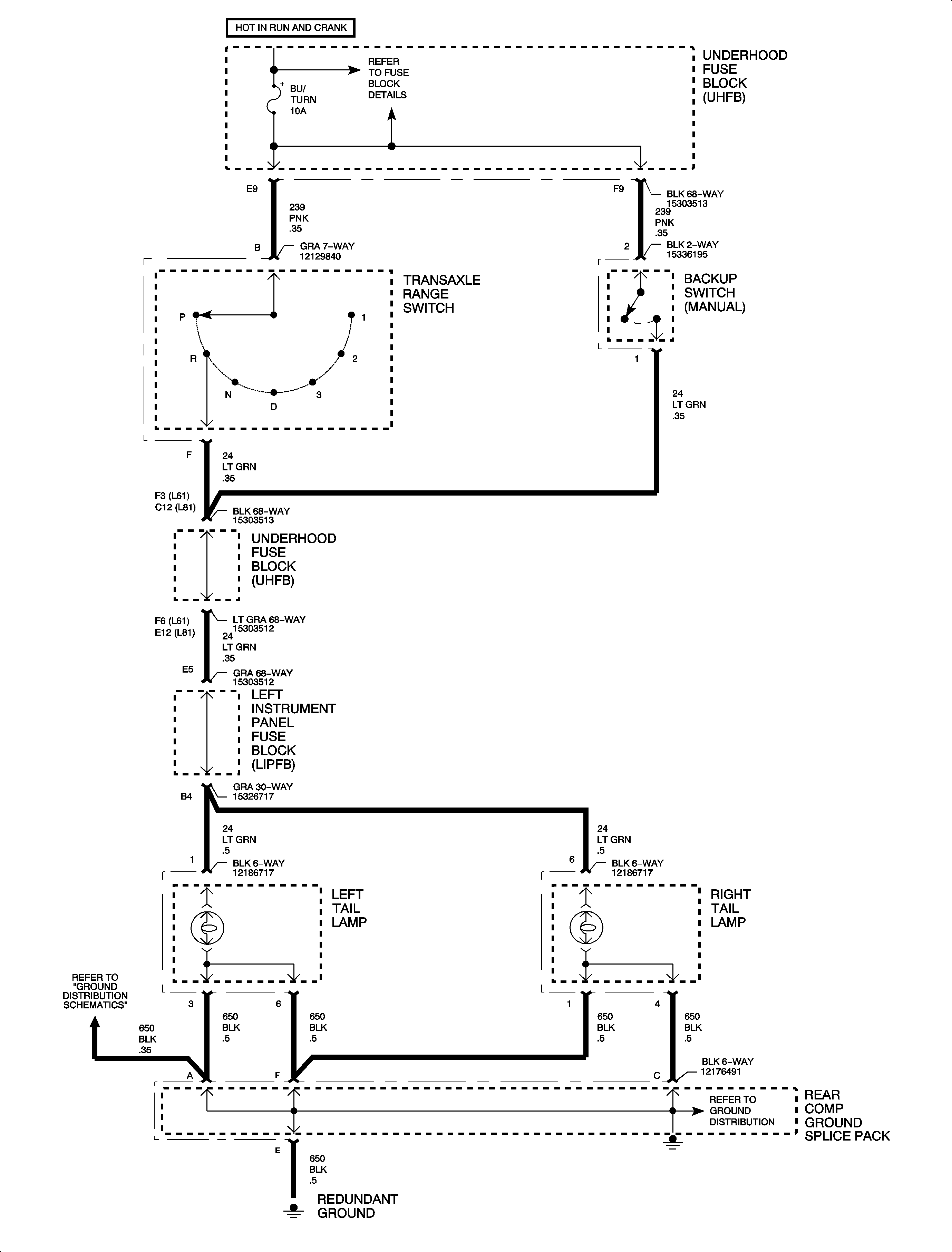

Figure 8:

Back Up Lamps - Wagon - (8 of 8)
Object Number: 895731 Size: FP
