Makes 🢒 Saturn 🢒 2004 🢒 L300/LW300 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 HVAC Component Views

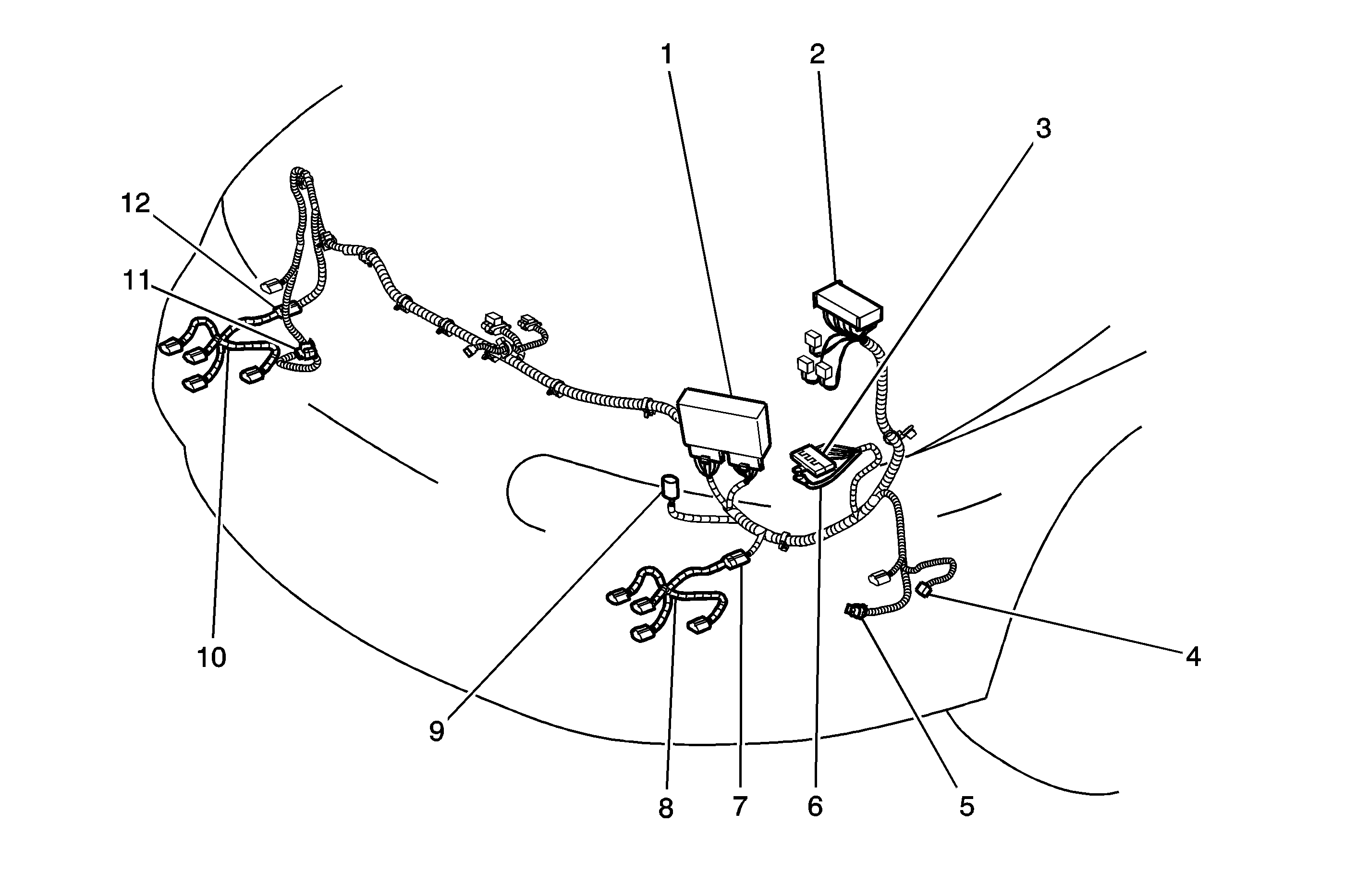

Figure 1:

Forward Lamp Harness Components
Object Number: 1261562 Size: MF
(1)Cooling Fan Control Module
(2)Fuse Block - Underhood
(3)SP103
(4)Windshield Washer Fluid Level Switch Connector
(5)Windshield Washer Fluid Pump Connector
(6)G105
(7)C103
(8)Left Headlamp Harness
(9)Ambient Air Temperature Sensor Connector
(10)Right Headlamp Harness
(11)Horn Connector
(12)C102

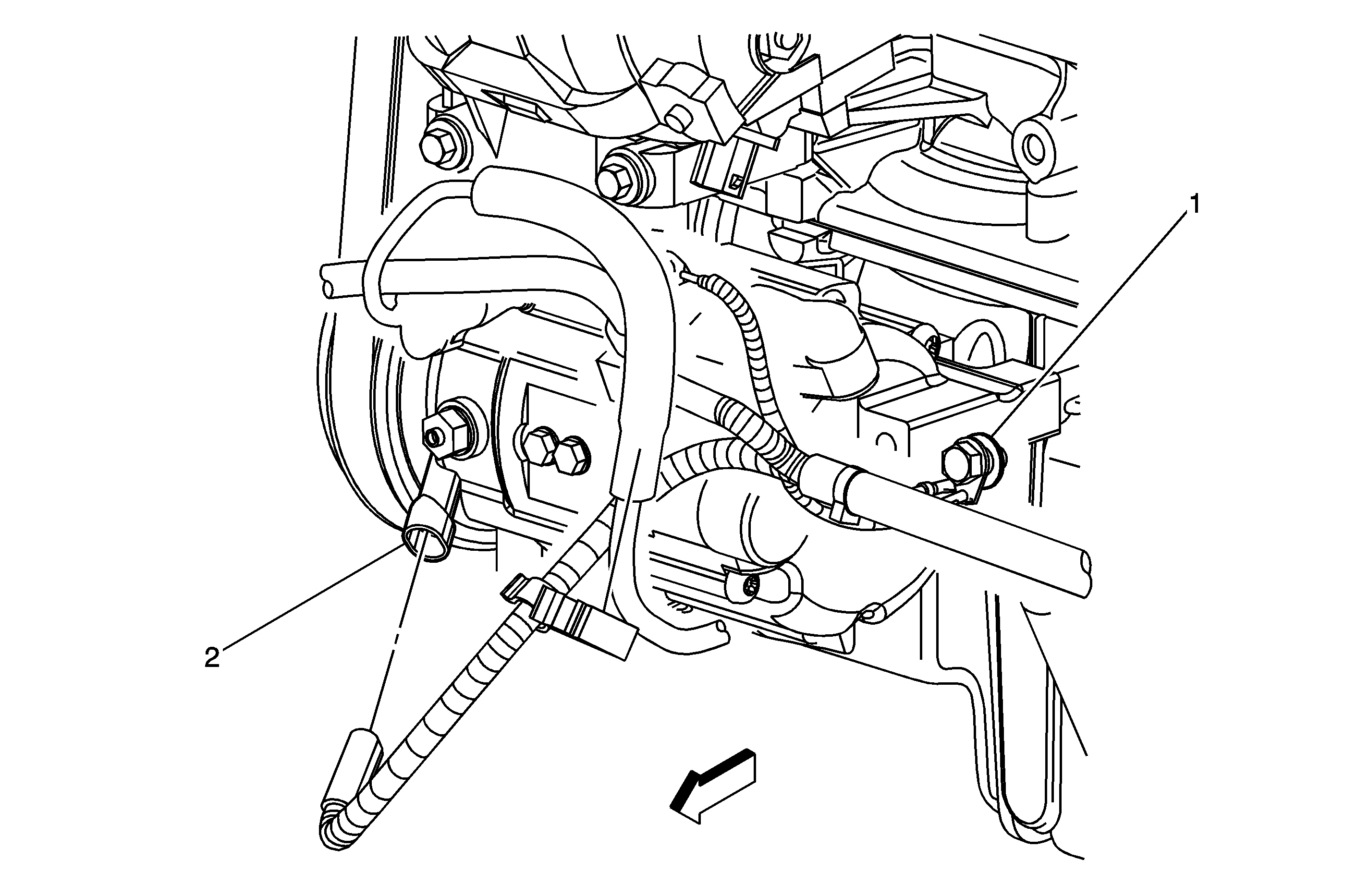

Figure 2:

Lower Right Side of the Engine Components (2.2L)
Object Number: 1335216 Size: MF
(1)G118
(2)A/C Compressor Clutch Coil
Figure 3:

2.2L Engine Front Components
Object Number: 1253898 Size: MF
(1)Spark Plugs
(2)Ignition Control Module (ICM)
(3)Fuel Injectors
(4)Manifold Absolute Pressure (MAP) Sensor
(5)Idle Air Control (IAC) Valve
(6)Throttle Position (TP) Sensor
(7)Knock Sensor (KS)
(8)Crankshaft Position (CKP) Sensor
(9)Engine Oil Pressure (EOP) Switch
(10)Starter
(11)Generator
(12)A/C Refrigerant Pressure Sensor
(13)A/C Compressor Clutch
(14)Evaporative Emissions (EVAP) Canister Purge Solenoid

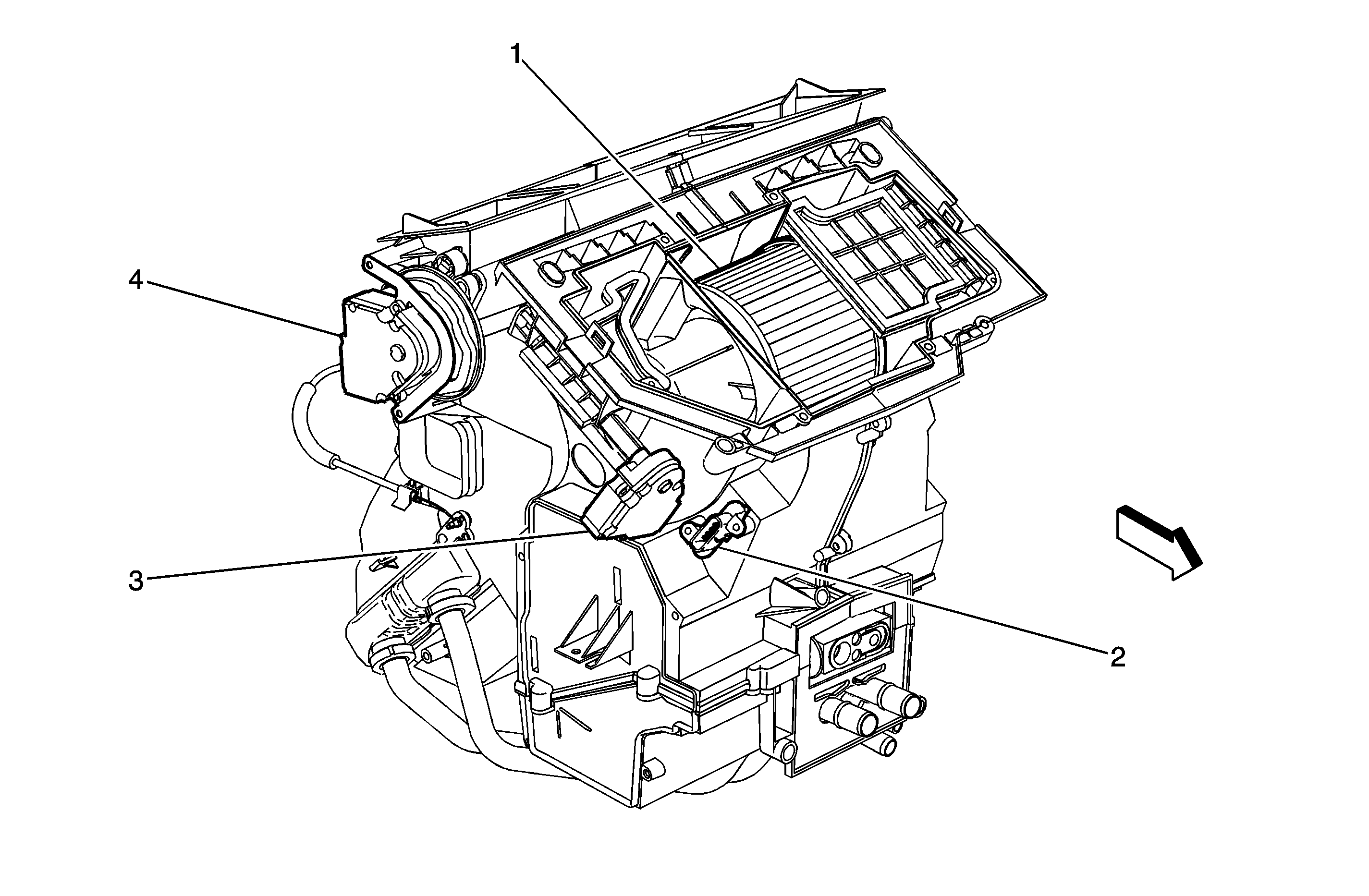

Figure 4:

HVAC Components
Object Number: 1254427 Size: MF
(1)Blower Motor
(2)Blower Motor Speed Control Module
(3)Recirculation Actuator
(4)Mode Actuator
Figure 5:

Instrument Panel Components
Object Number: 1256255 Size: MF
(1)Ambient Light Sensor
(2)Windshield Wiper/Washer Switch
(3)Left Heated Seat/Fog Lamp Switch
(4)Hazard Switch
(5)Right Heated Seat/Traction Switch
(6)Radio
(7)HVAC Control Module
(8)Headlamp/Turn Signal Switch
(9)Dimmer/Rear Compartment Lid Release Switch
(10)Instrument Panel Cluster (IPC)
(11)Ignition Lock Cylinder Solenoid
