Makes 🢒 Saturn 🢒 1998 🢒 SL 🢒 Engine 🢒 Engine Controls - 1.9L 🢒 Engine Controls Schematics

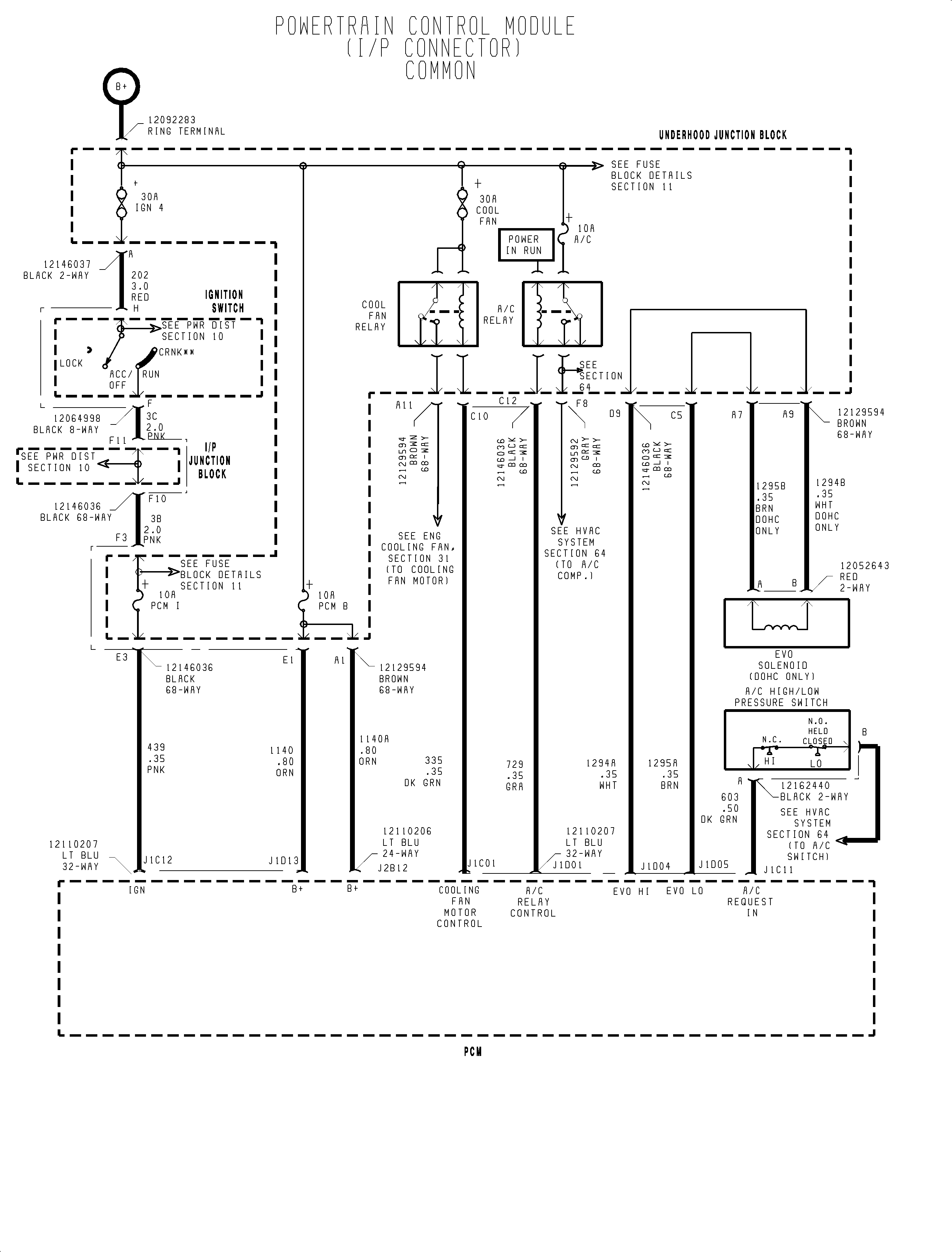

Figure 1:

Fuel Injection (1998)
Object Number: 907496 Size: FP

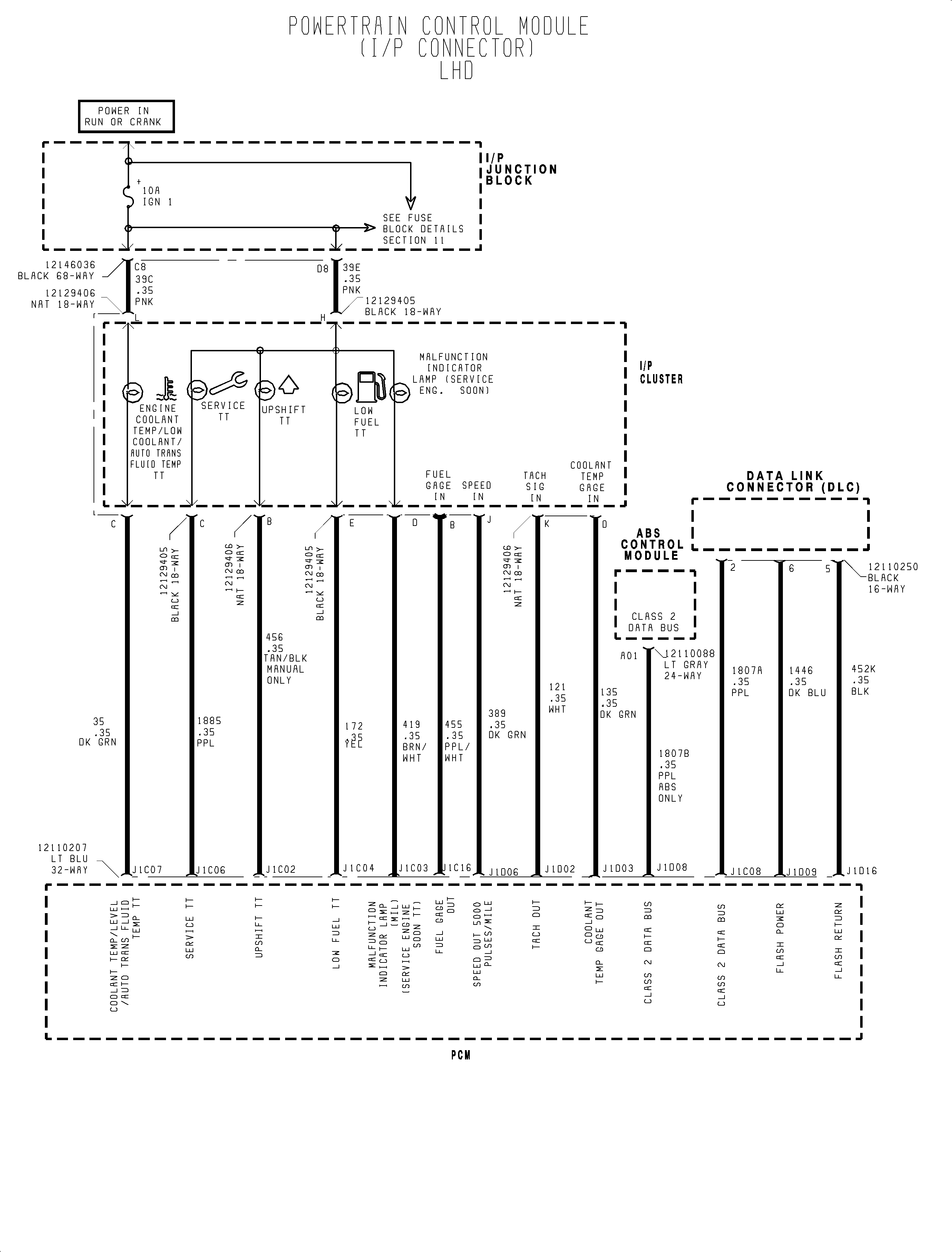

Figure 2:

Fuel Injection (1998-1999)
Object Number: 907502 Size: FP
Figure 3:

PCM (1998-1999)
Object Number: 907507 Size: FP
Figure 4:

PCM Cont'd (1998-1999)
Object Number: 907508 Size: FP

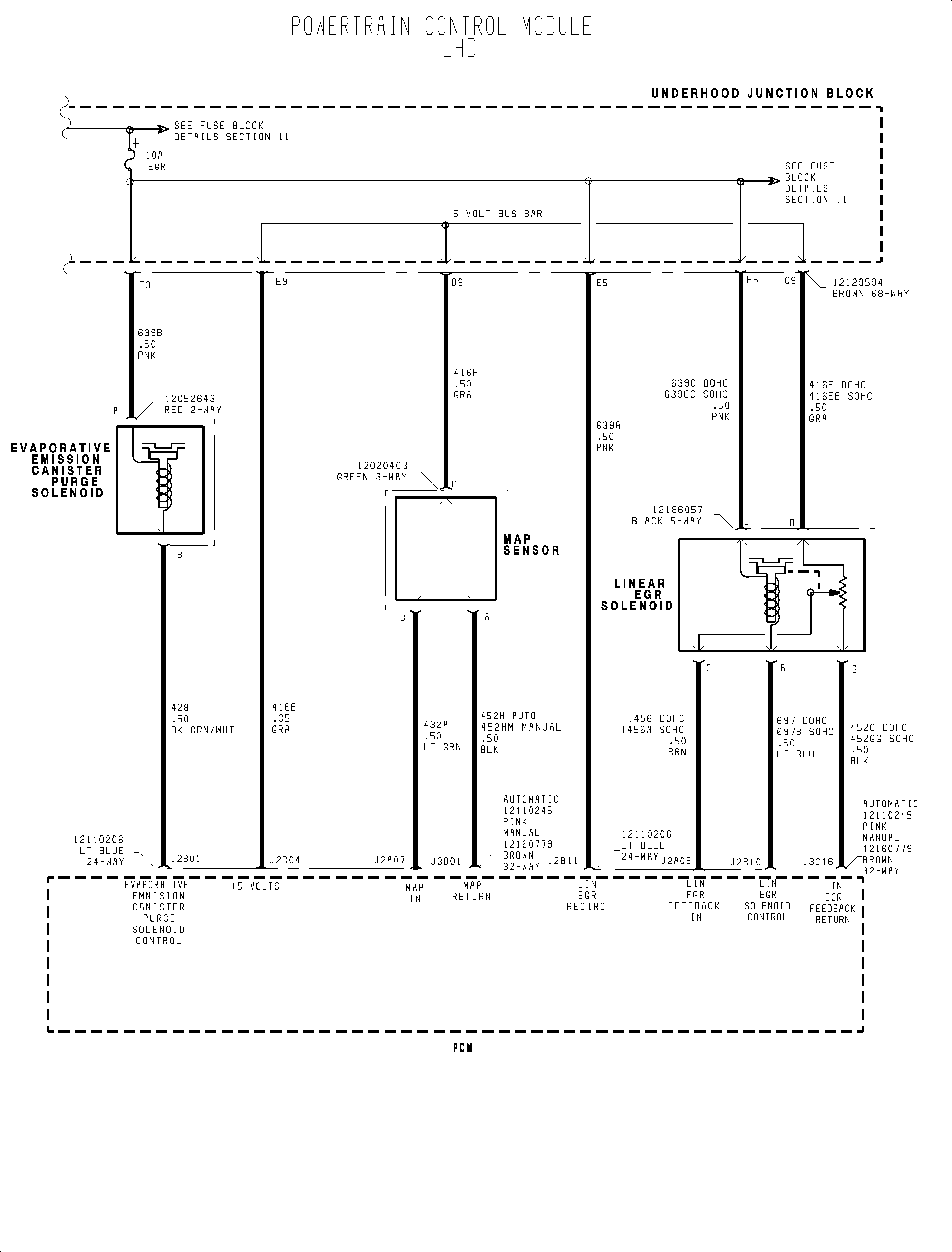

Figure 5:

PCM Cont'd (1998-1999)
Object Number: 907509 Size: FP
Figure 6:

PCM Cont'd(1998-1999)
Object Number: 907513 Size: FP

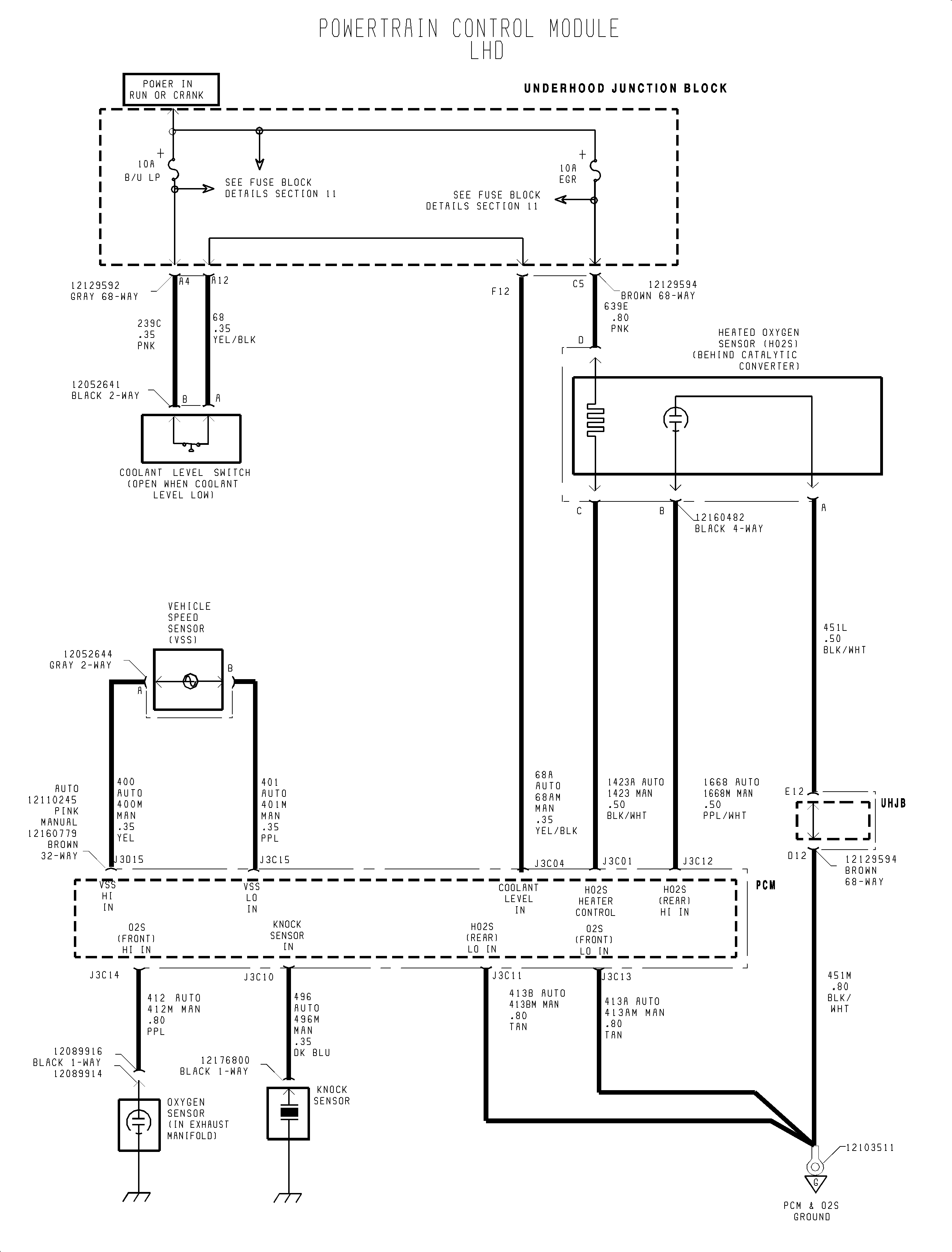

Figure 7:

PCM Cont'd (1998-1999)
Object Number: 907518 Size: FP

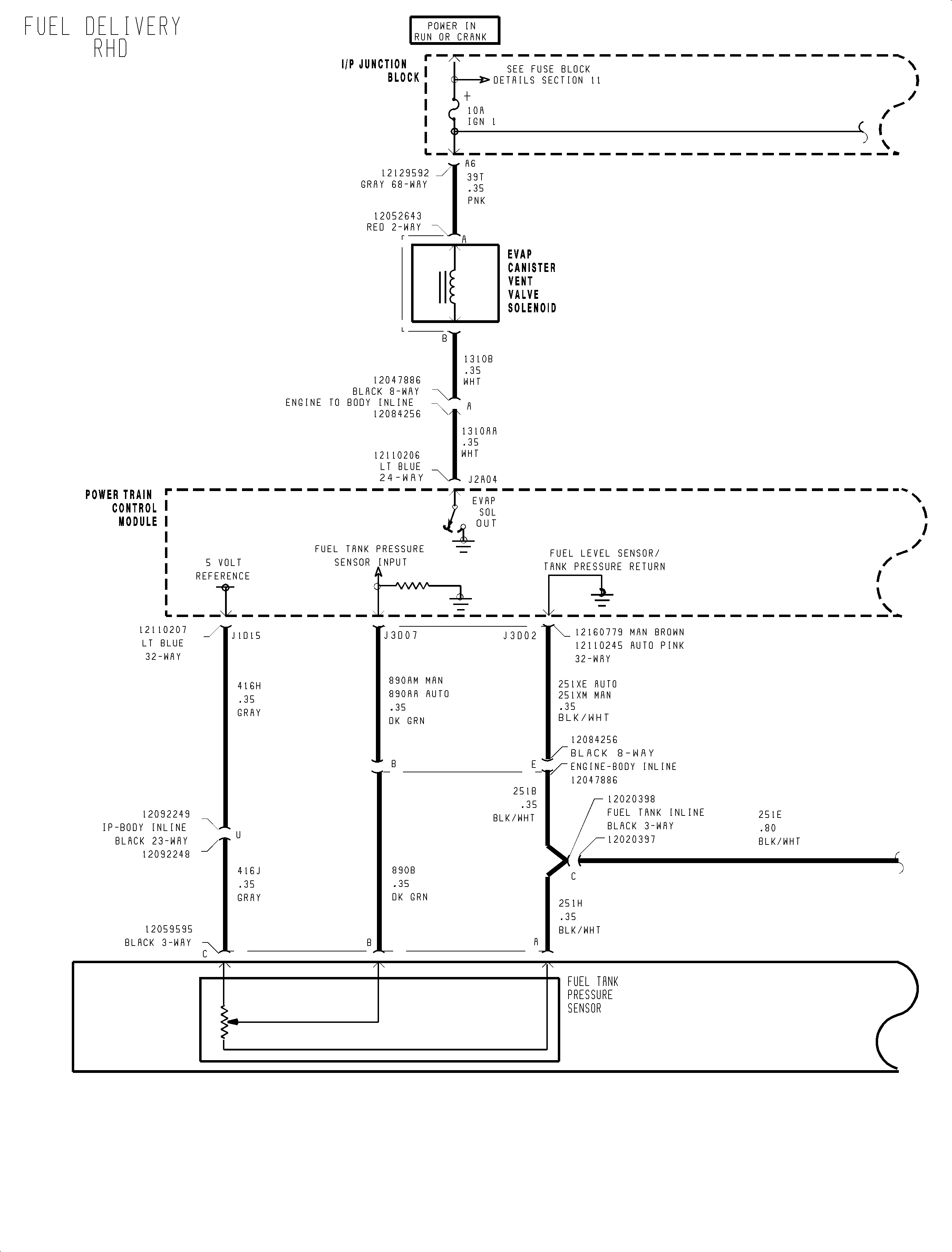

Figure 8:

Fuel System (1998)
Object Number: 907534 Size: FP
Figure 9:

Fuel System Cont'd (1998)
Object Number: 907538 Size: FP

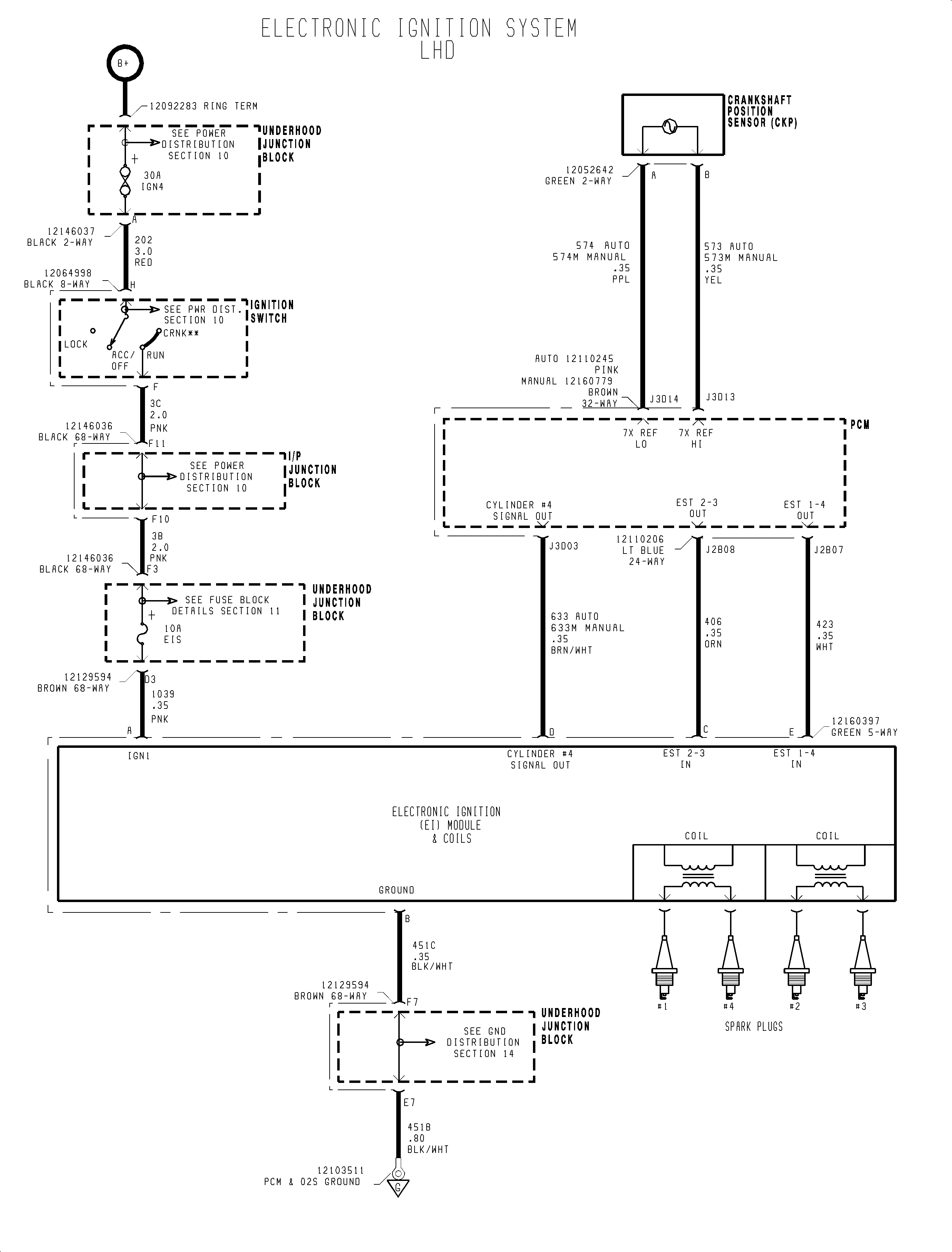

Figure 10:

Ignition System (1998-1999)
Object Number: 907550 Size: FP
