Makes 🢒 Saturn 🢒 2005 🢒 VUE - FWD 🢒 Engine 🢒 Engine Controls - 3.5L (L66) 🢒 Engine Controls Schematics
Figure 1:

Module Power, Ground, Serial Data and MIL
Object Number: 1501736 Size: FS
Figure 2:

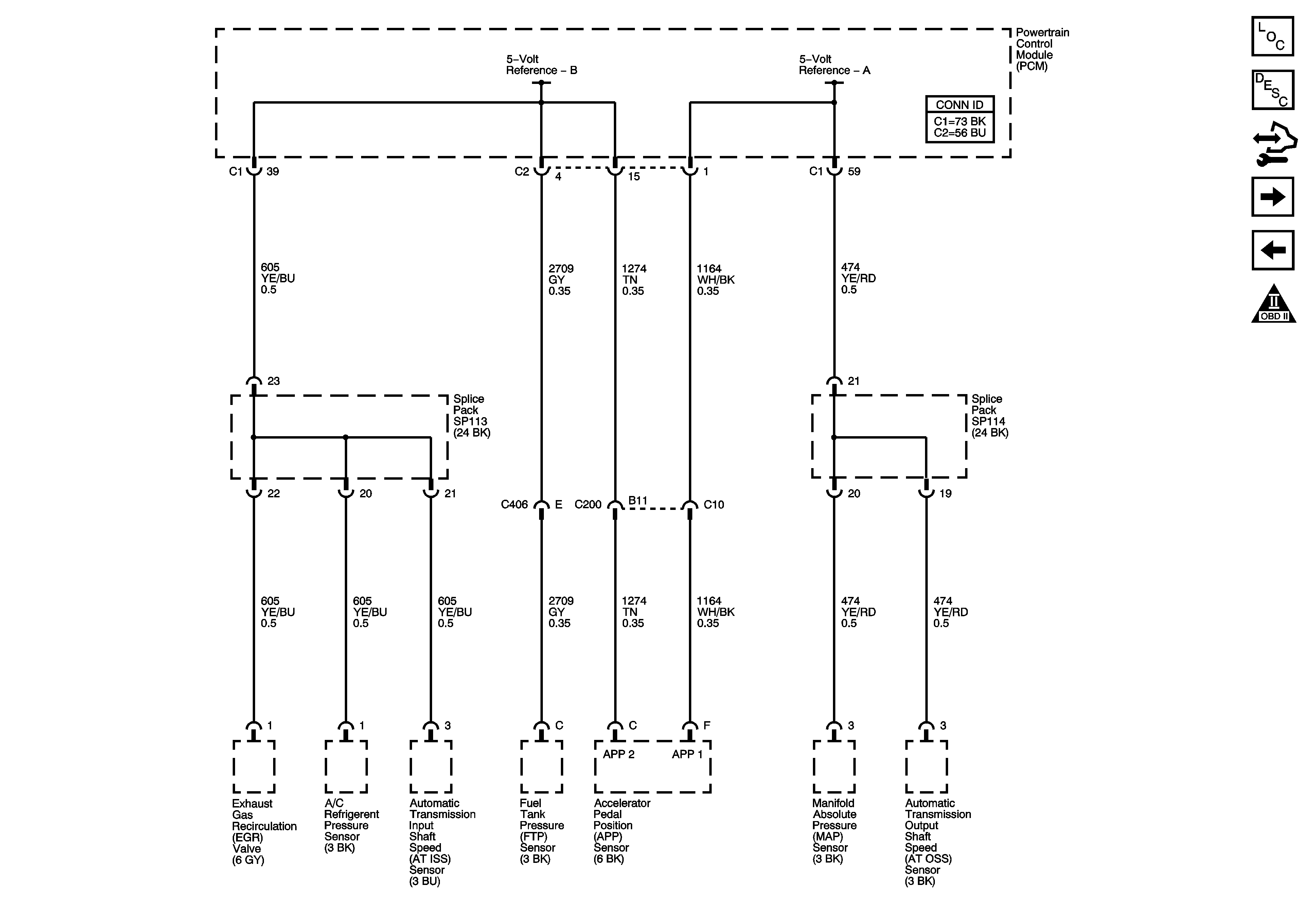

Engine Data Sensors - 5-Volt References
Object Number: 1501737 Size: FS
Figure 3:

Engine Data Sensors - Low References
Object Number: 1501738 Size: FS
Figure 4:

Engine Data Sensors - Pressure, Temperature, and Stop Lamp Switch
Object Number: 1501739 Size: FS
Figure 5:

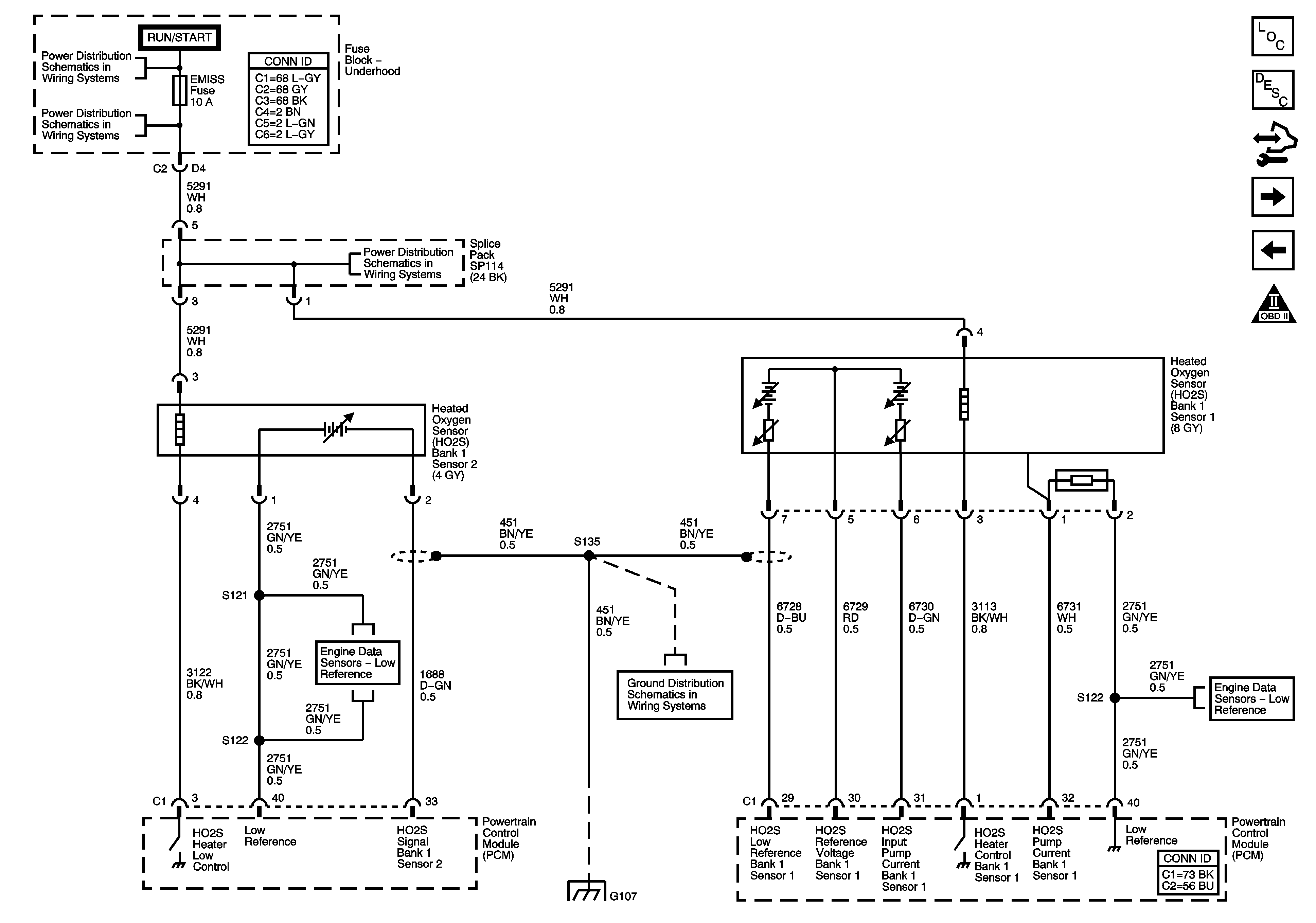

Engine Data Sensors - Bank 1 Oxygen Sensors
Object Number: 1501740 Size: FS
Figure 6:

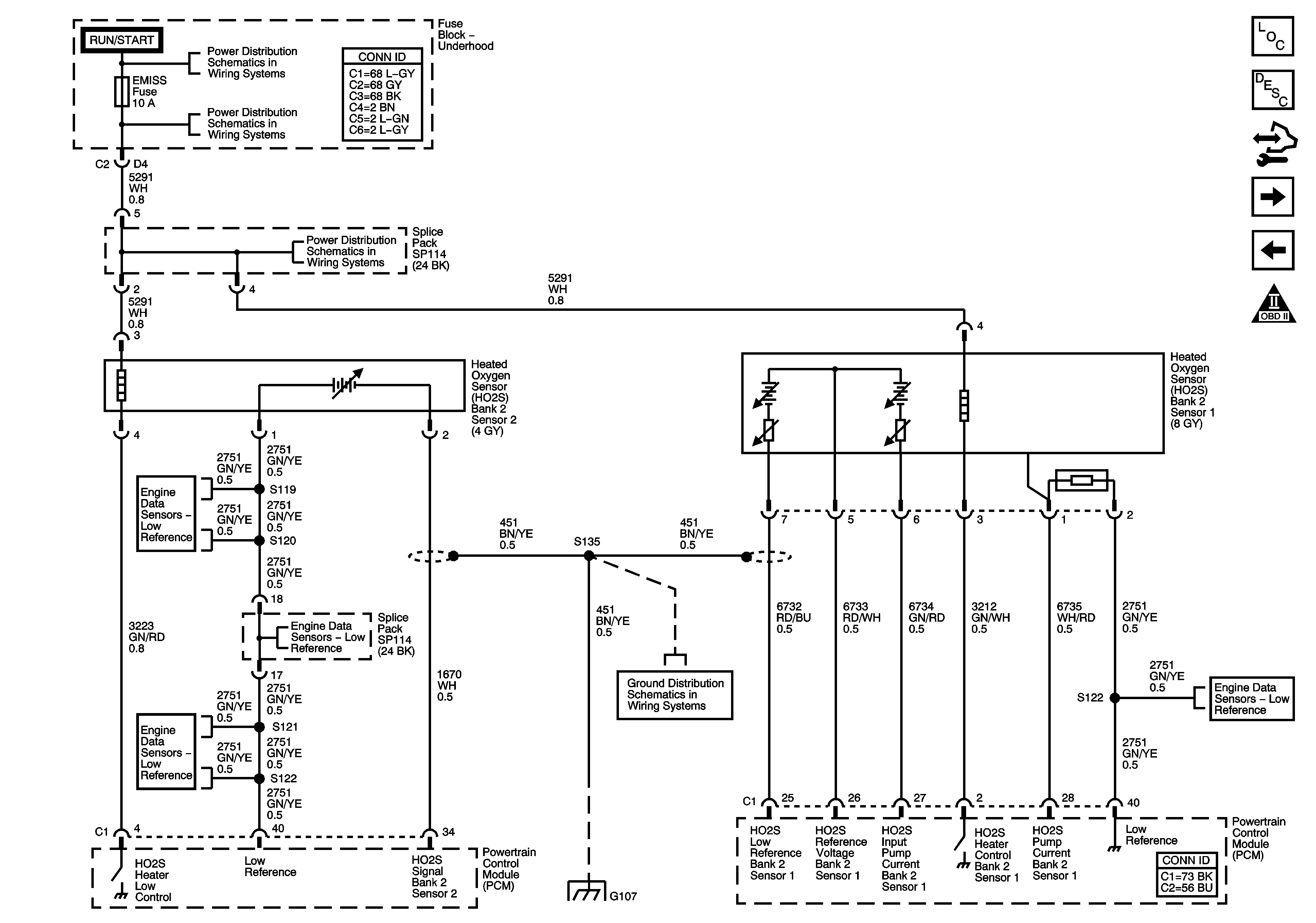

Engine Data Sensors - Bank 2 Oxygen Sensors
Object Number: 1501742 Size: FS
Figure 7:

Engine Data Sensors - Throttle Actuator Controls
Object Number: 1501744 Size: FS
Figure 8:

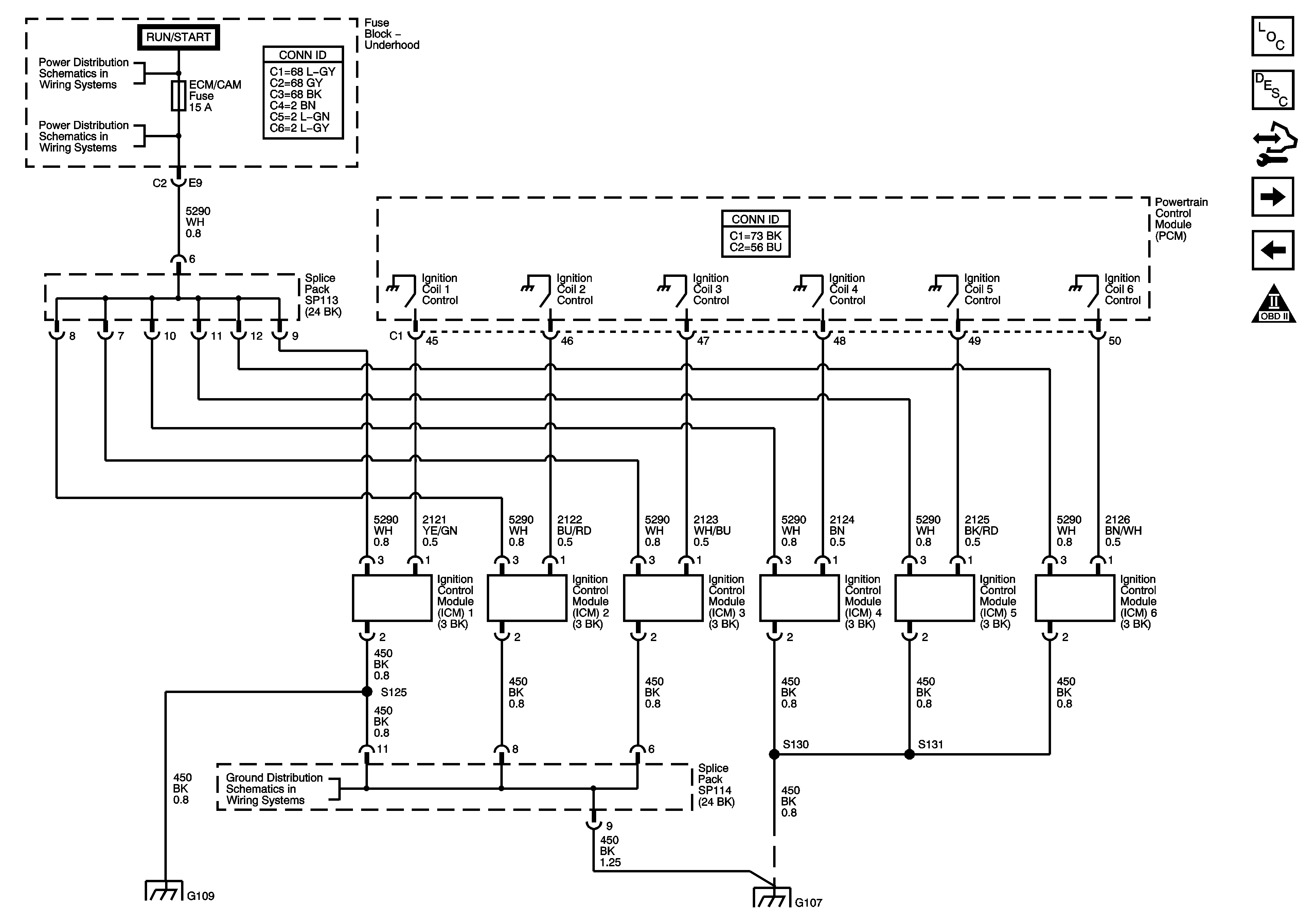

Ignition Controls - Ignition System
Object Number: 1501745 Size: FS
Figure 9:

Ignition Controls - Sensors
Object Number: 1501746 Size: FS
Figure 10:

Fuel Controls - Fuel Pump Controls, Injectors, Rocker Arm Oil Switch, and Control Solenoid
Object Number: 1501747 Size: FS
Figure 11:

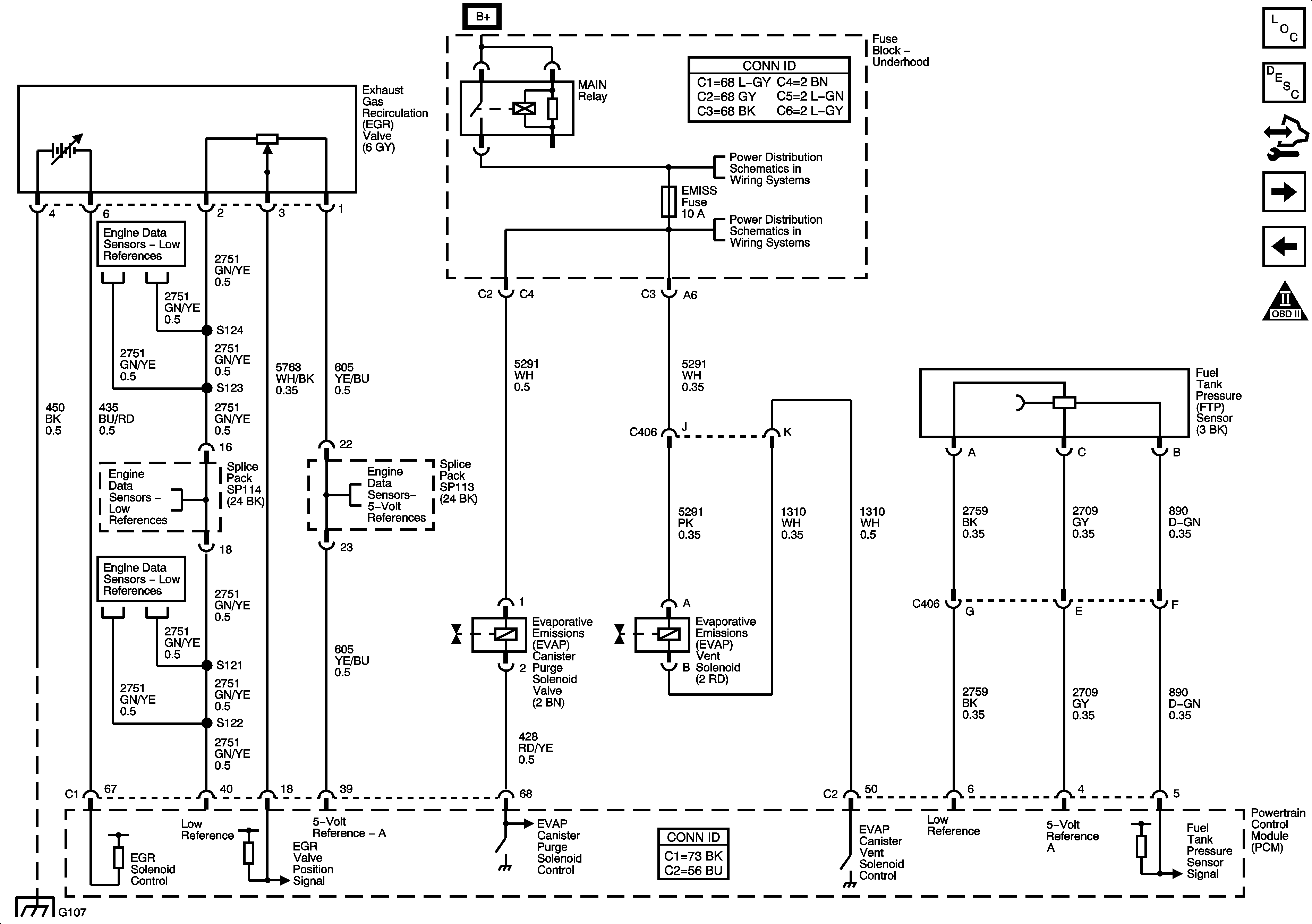

Fuel Controls - EVAP Controls
Object Number: 1501748 Size: FS
Figure 12:

Controlled/Monitored Subsystem References
Object Number: 1501749 Size: FS
Figure 13:

Transmission Controls References
Object Number: 1501750 Size: FS
