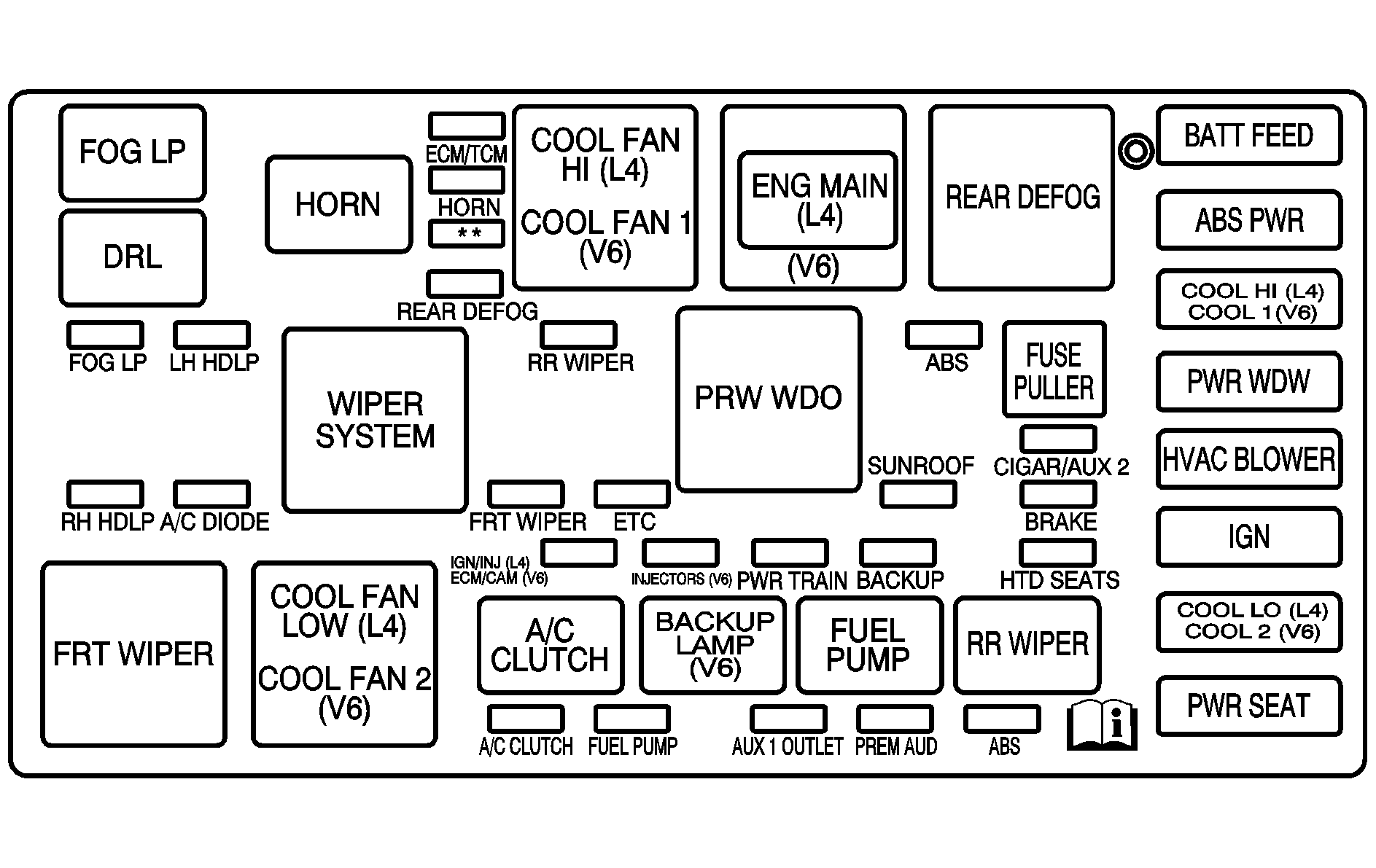

The underhood fuse block is located in the forward part of the engine compartment near the battery.
Fuses | Usage |
|---|---|
ECM/TCM | Battery Voltage to ECM, TCM, PCM (3.5L V6 (L66)) |
BATT FEED | Instrument Panel Fuse Box |
HORN | Horn |
* * | Emissions |
ABS PWR | Anti-lock Brake System Battery |
REAR DEFOG | Rear Defogger |
COOL HI (L4)/COOL 1 (V6) | Cooling Fans High (L4)/Cooling Fan 1 (V6) |
FOG LP | Fog Lamps |
LH HDLP | Driver's Side Headlamp |
RR WIPER | Rear Wiper |
ABS | Anti-lock Brake System Module |
PWR WDW | Power Window Relay and Sunroof |
CIGAR/AUX2 | Cigarette Lighter |
HVAC BLOWER | HVAC Blower Motor |
RH HDLP | Right Headlamp |
FRT WIPER | Front Wiper |
ETC | Engine Control Module (ECM), Electronic Throttle Control (V6) |
SUNROOF | Sunroof Module |
BRAKE | Stoplamps |
IGN | Ignition switch |
IGN/INJ (L4), ECM/CAM (V6) | Engine Ignition Module, Fuel Injectors (2.2L L4 (L61)) Camshaft Sensor, Main Relay Voltage To PCM, Ignition Coils 1-6 |
INJECTORS (3.5L V6 (L66)) | Fuel Injection |
PWR TRAIN | Engine Control Module (ECM), Transaxle Control Module (TCM), Transaxle, L66 Powertrain Control Module (PCM) |
BACKUP | Low Coolant Switch, Backup Lamps (2.2L L4 (L61)), Vehicle Speed Sensor (Manual), Transaxle Range Switch (2.2L L4 (L61)) |
HTD SEATS | Heated Seats |
COOL LO (L4)/COOL 2 (V6) | Cooling Fan Low (L4), Cooling Fan (V6) |
A/C CLUTCH | Air Conditioning Clutch, Back Up Lamps (3.5L V6 (L66)) |
FUEL PUMP | Fuel Pump |
AUX 1 OUTLET | Front Auxiliary Power Outlet |
PREM AUD | Premium Radio Amplifier |
ABS | Anti-lock Brake System Ignition |
PWR SEAT | Power Seats |
Relays | Usage |
|---|---|
FOG LP | Fog Lamps |
COOL FAN HI (L4) | Cooling Fan Motor High |
ENG MAIN | Engine Control Module/CAM, Emissions, Injectors, Electronic Throttle Control |
REAR DEFOG | Rear Defog System |
HORN | Horn |
DRL | Daytime Running Lamps |
COOL FAN 1 (V6) | Cooling Fan |
WIPER SYSTEM | Wiper System |
PRW WDO | Power Window Switch, Sunroof Module |
FRT WIPER | Front Wiper System |
COOL FAN LOW (L4) | Cooling Fan Motor Low |
A/C CLUTCH | Air Conditioning Clutch |
BACKUP LAMPS (V6) | Back-up Lamps (V6) |
FUEL PUMP | Fuel Pump System |
RR WIPER | Rear Wiper System |
COOL FAN 2 (V6) | Cooling Fan (V6) |
Misc. | Usage |
|---|---|
FUSE PULLER | Fuse Puller |
Diode | Air Conditioning Diode |
