Ground Distribution Schematics. Buick LeSabre 1999

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 LeSabre 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Ground Distribution Schematics

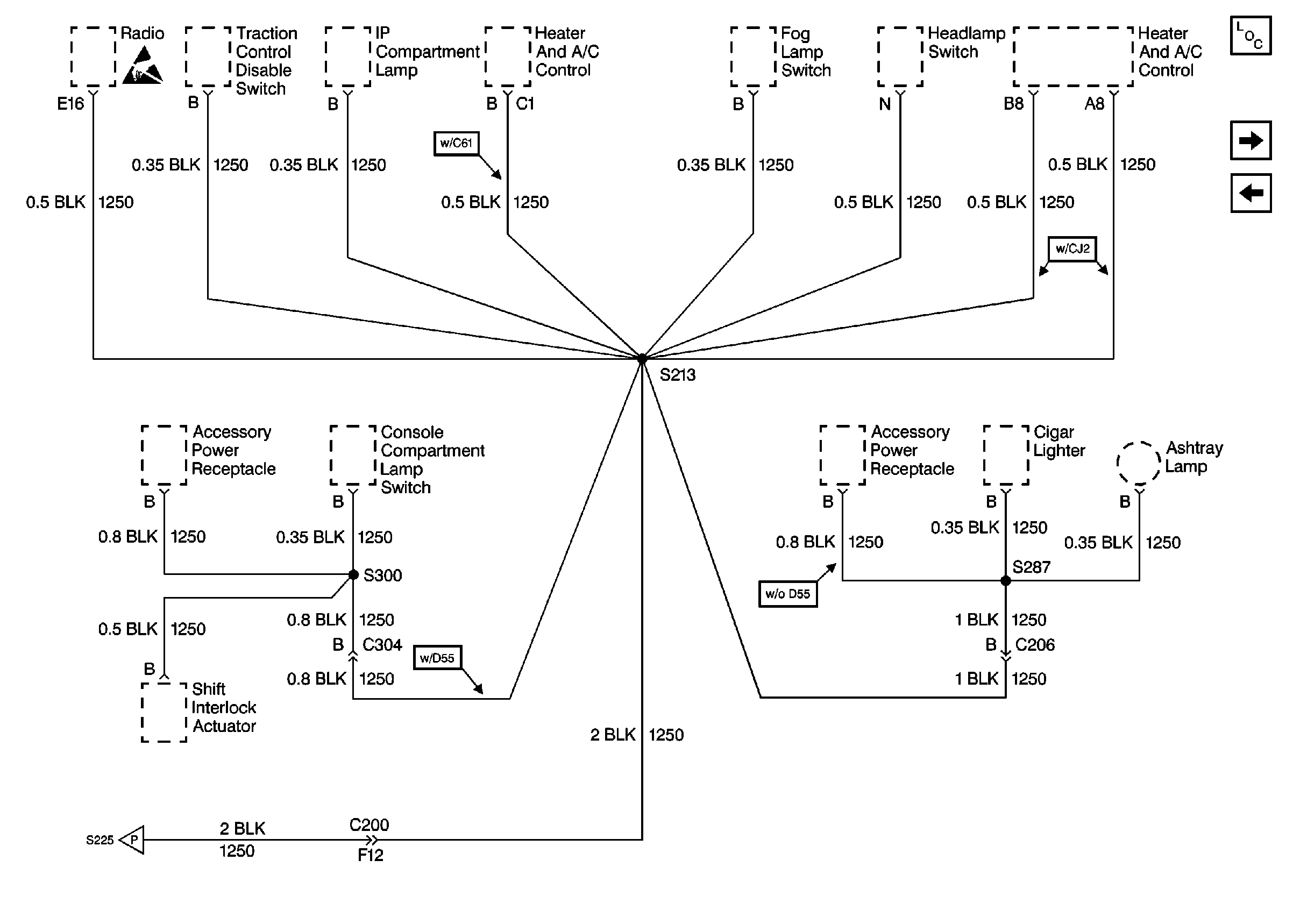

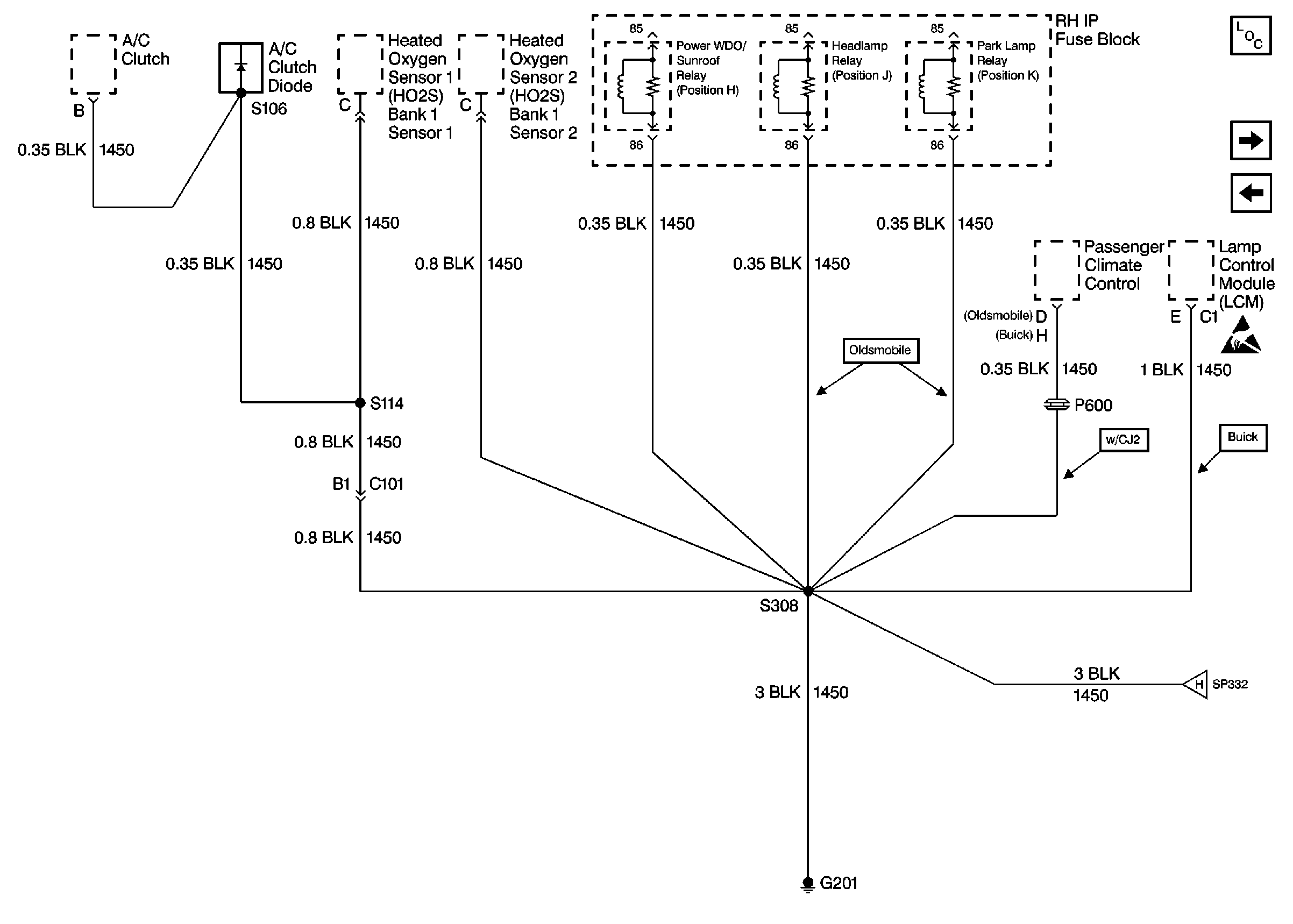

Figure 1:	Cell 14: G100, G106, G301, and G101 (1 of 2) Power and Grounding Components Cell 14: G101 (2 of 2) Cell 14: G101 (2 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Handling Caution SIR Handling Caution

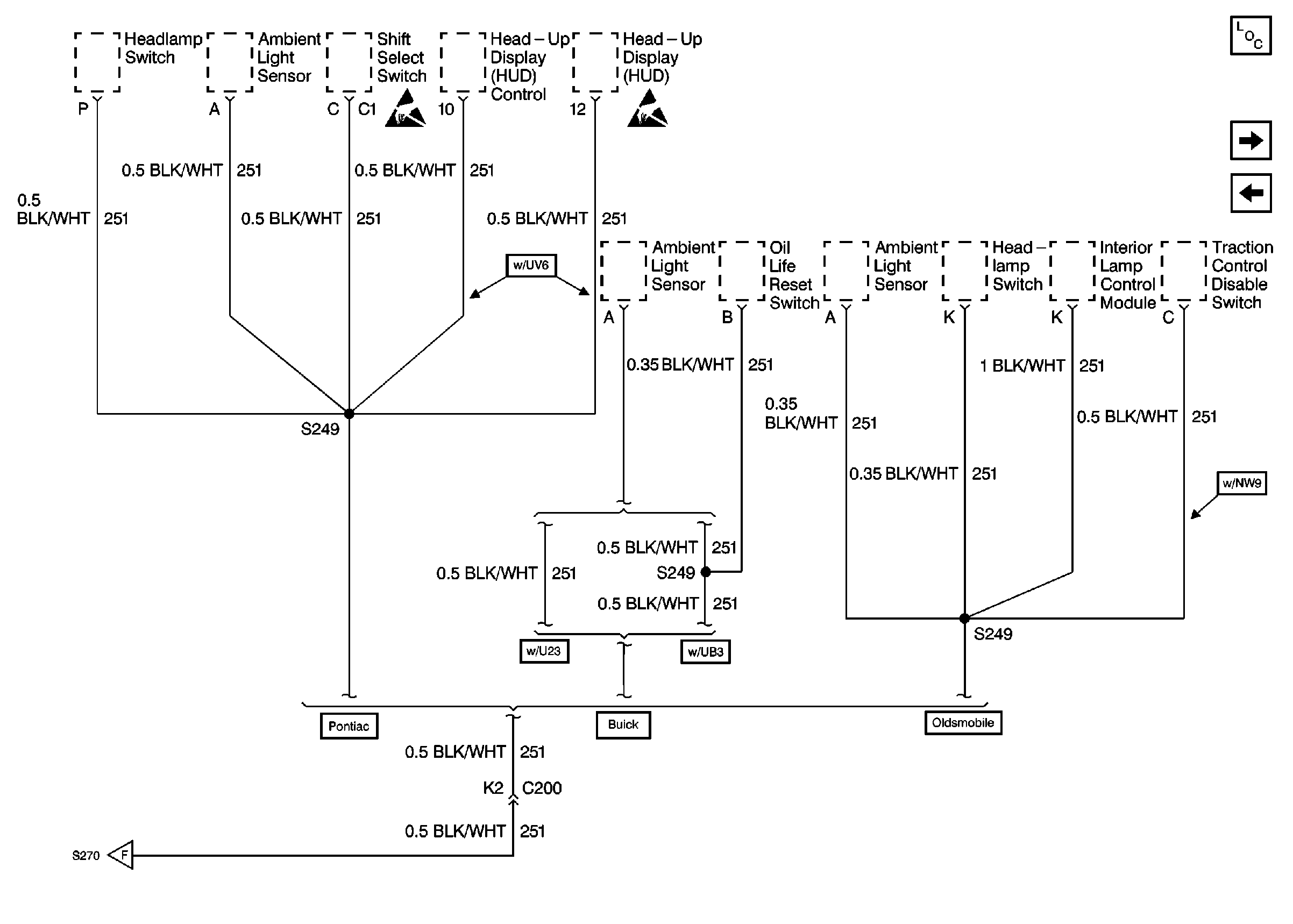

Figure 2:	Cell 14: G101 (2 of 2) Power and Grounding Components Cell 14: G104 Cell 14: G100, G106, G301, and G101 (1 of 2) Cell 14: G100, G106, G301, and G101 (1 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

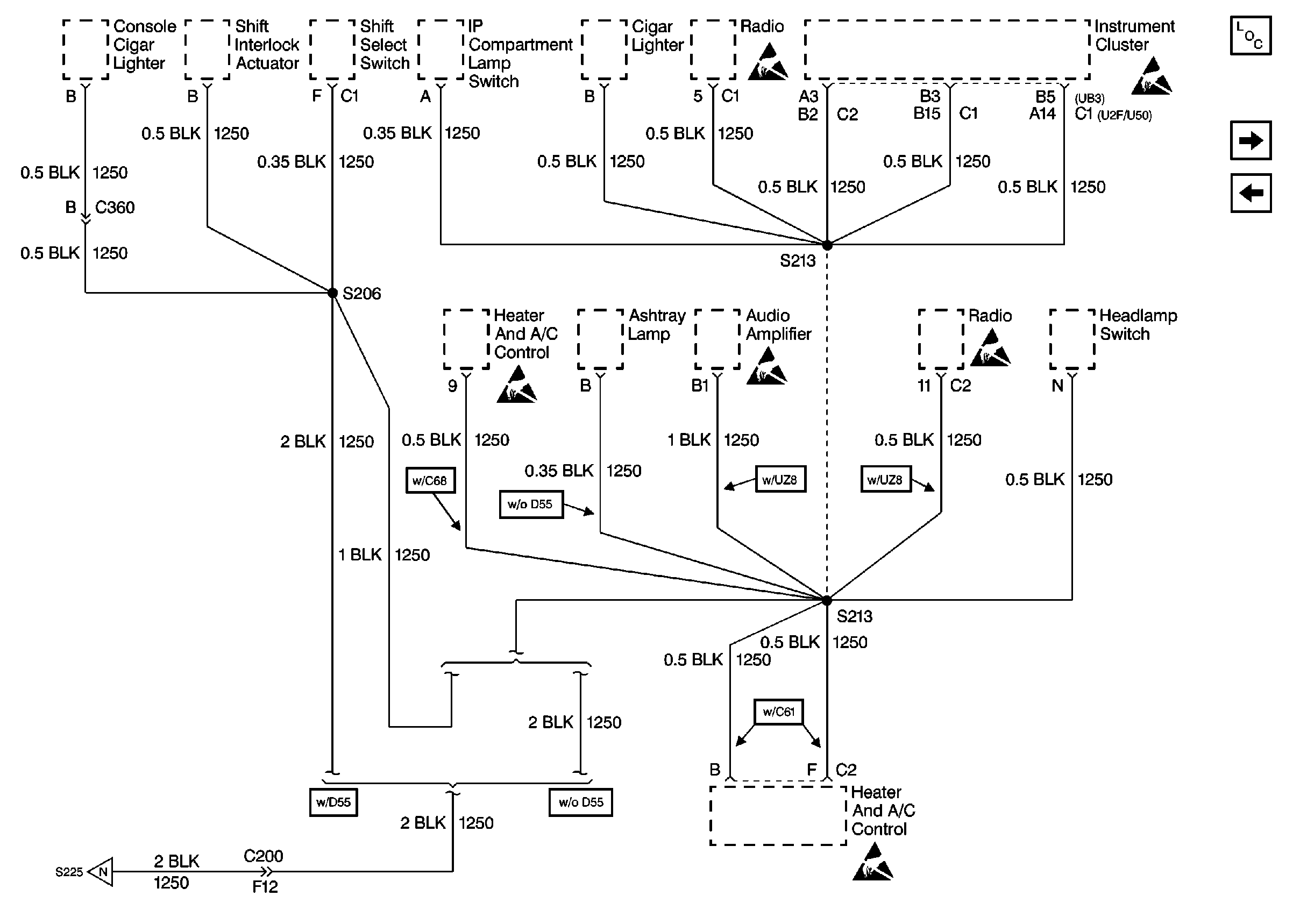

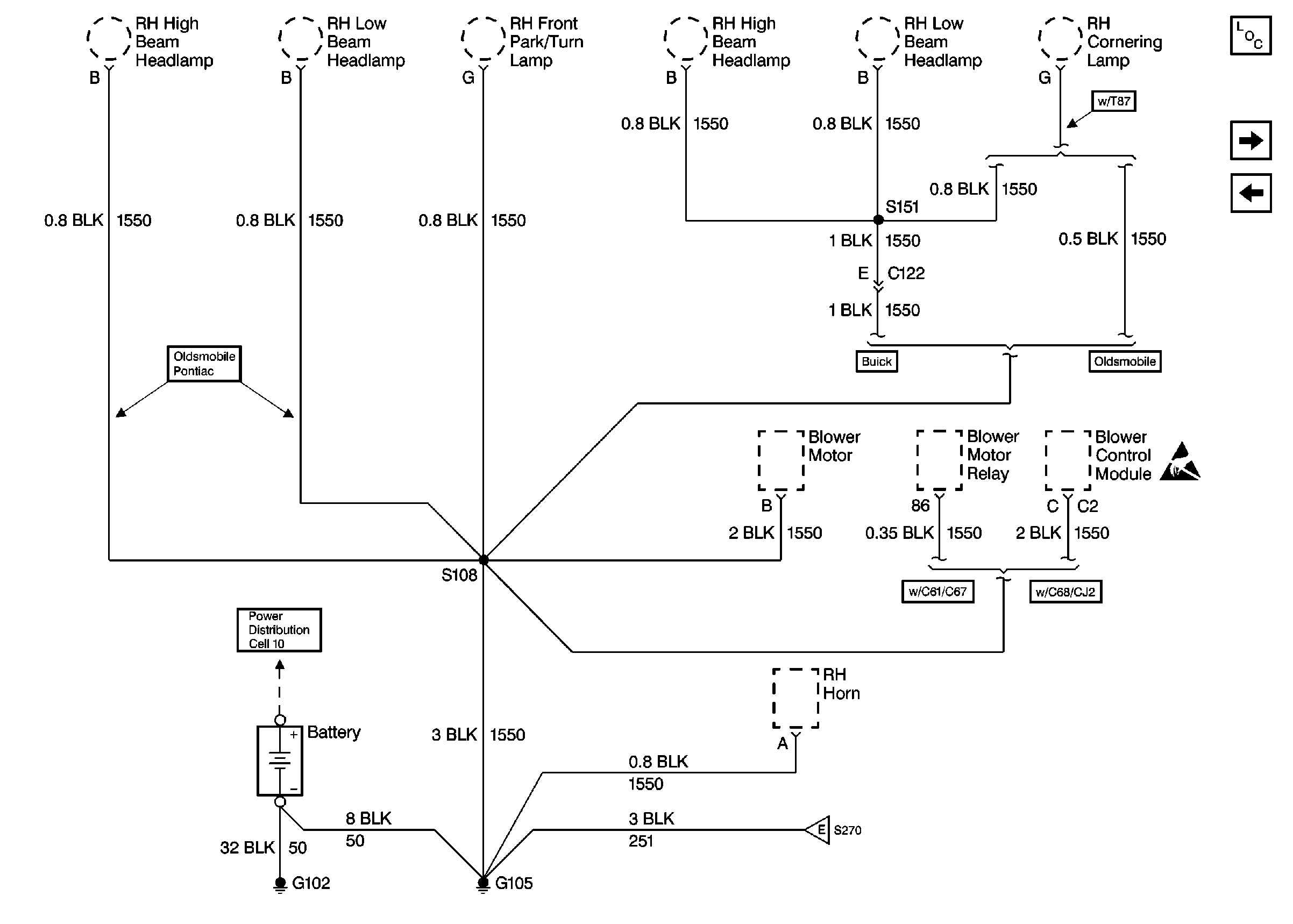

Figure 3:	Cell 14: G104 Power and Grounding Components Cell 14: G102 and G105 (1 of 4) Cell 14: G101 (2 of 2) Handling ESD Sensitive Parts Notice

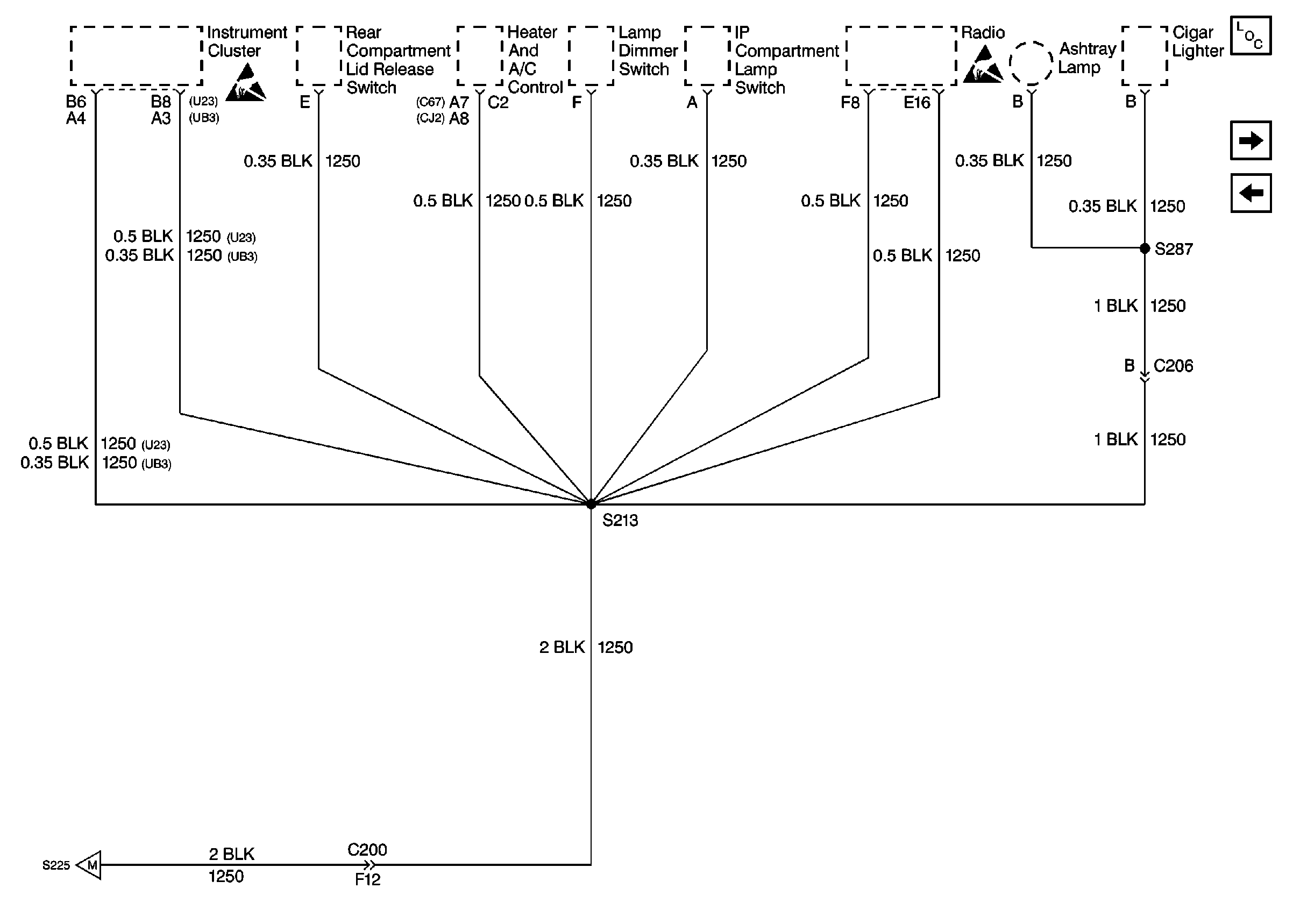

Figure 4:	Cell 14: G102 and G105 (1 of 4) Power and Grounding Components Cell 14: G105 (2 of 4) Cell 14: G104 Cell 14: G105 (2 of 4) Cell 10: Battery and Underhood Fuse Blocks Handling ESD Sensitive Parts Notice

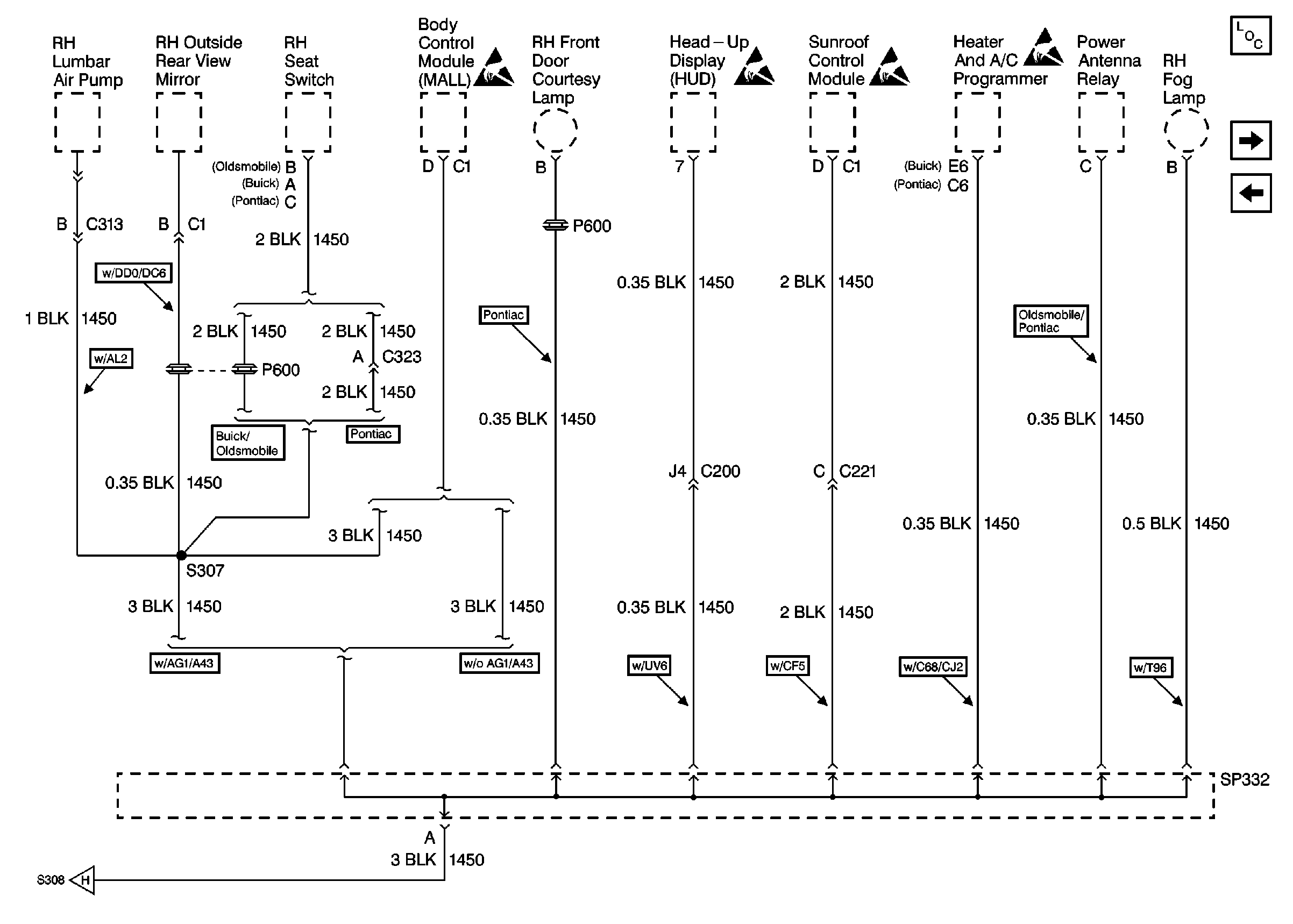

Figure 5:	Cell 14: G105 (2 of 4) Power and Grounding Components Cell 14: G105 (3 of 4) Cell 14: G102 and G105 (1 of 4) Cell 14: G105 (3 of 4) Cell 14: G105 (4 of 4) Cell 14: G102 and G105 (1 of 4) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

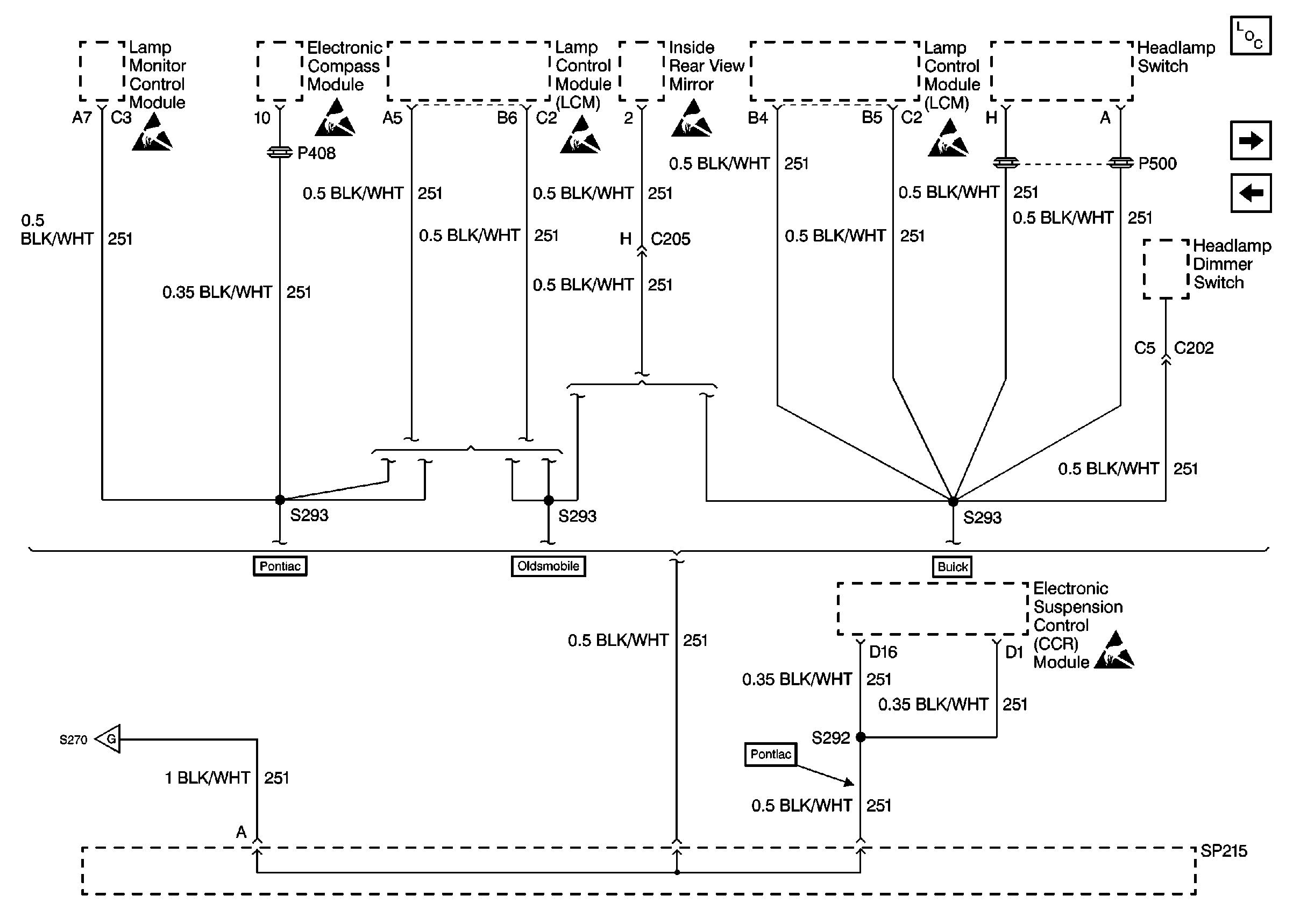

Figure 6:	Cell 14: G105 (3 of 4) Power and Grounding Components Cell 14: G105 (4 of 4) Cell 14: G105 (2 of 4) Cell 14: G105 (2 of 4) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

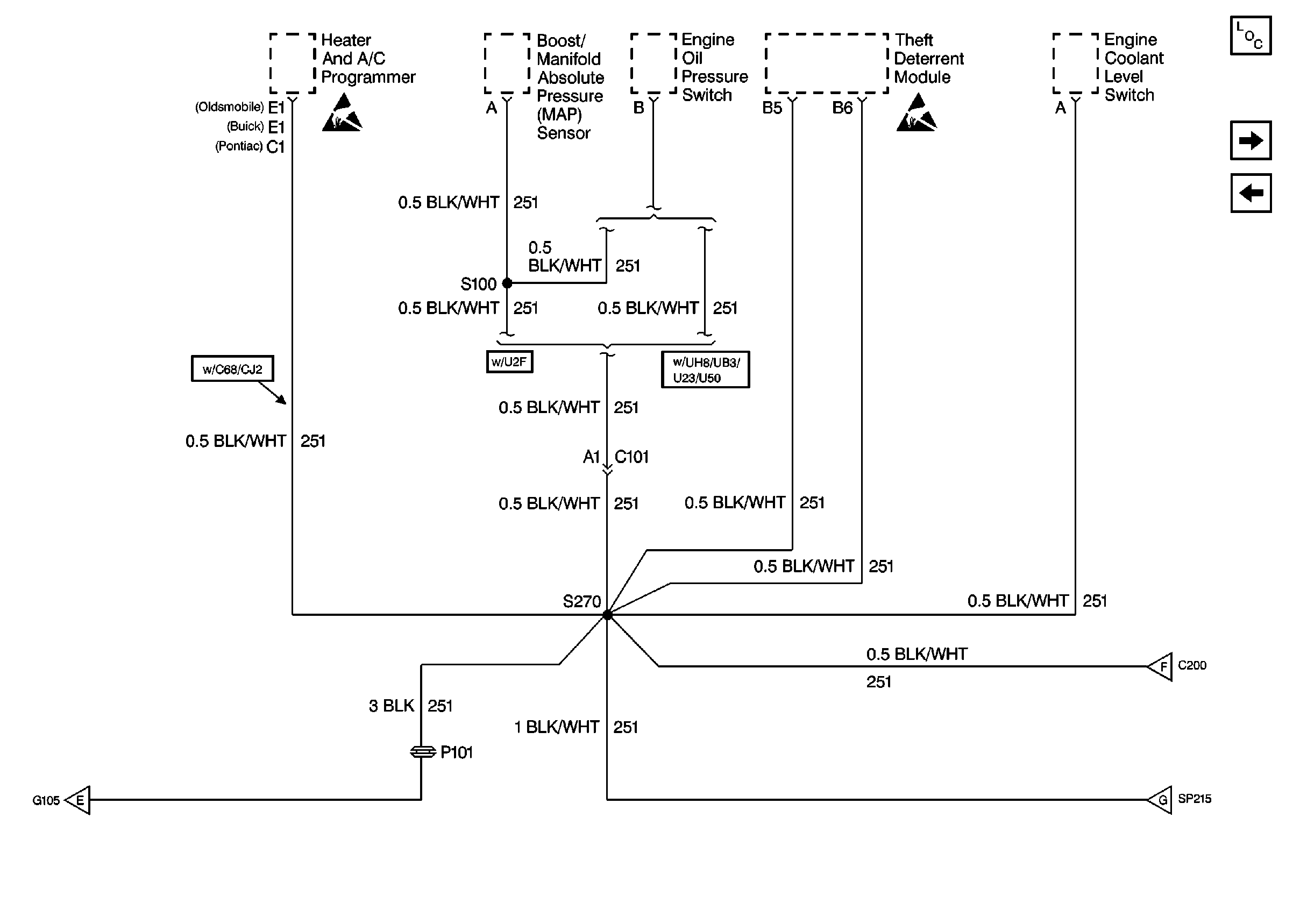

Figure 7:	Cell 14: G105 (4 of 4) Power and Grounding Components Cell 14: G201 (1 of 2) Cell 14: G105 (3 of 4) Cell 14: G105 (2 of 4) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

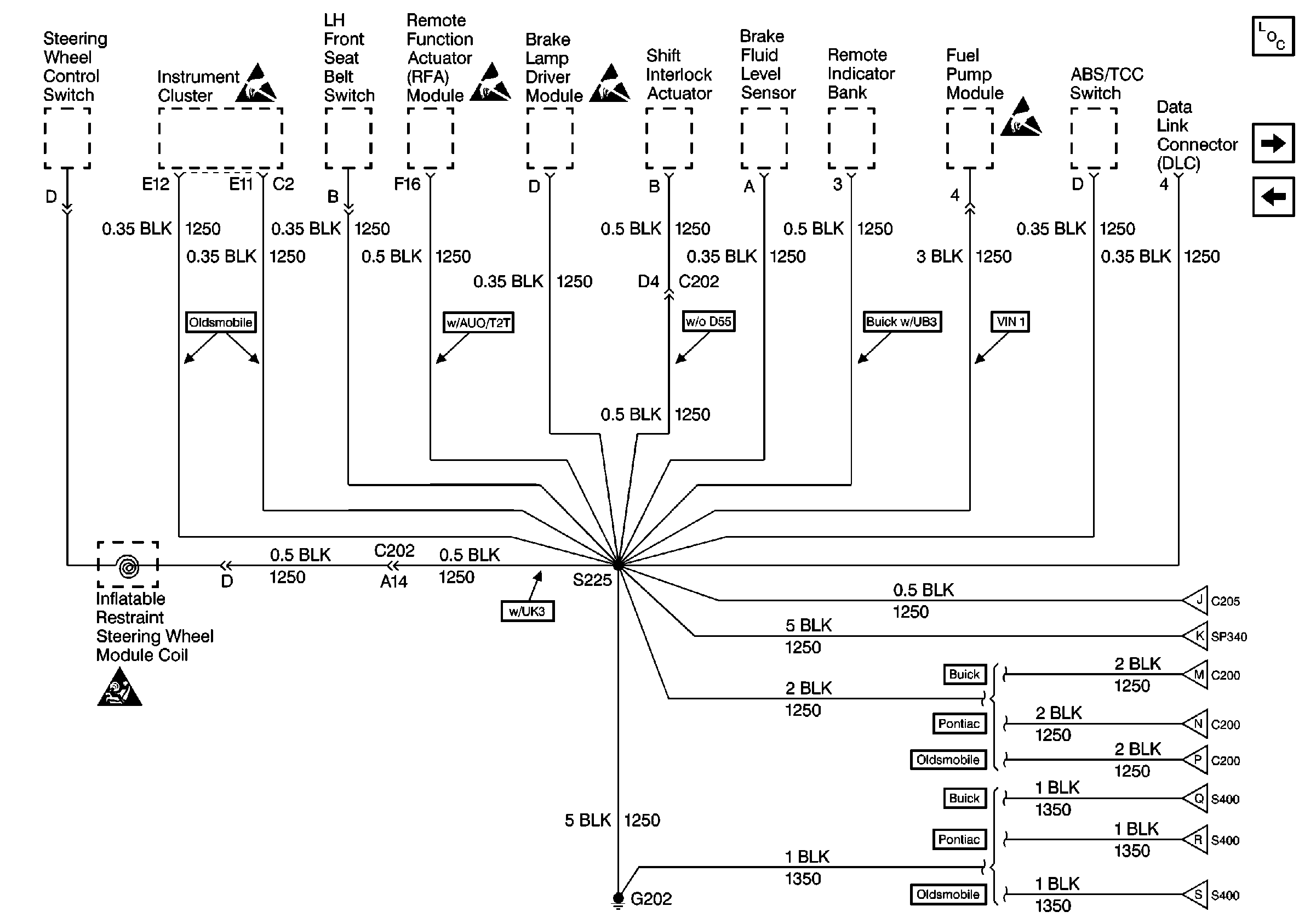

Figure 8:	Cell 14: G201 (1 of 2) Power and Grounding Components Cell 14: G201 (2 of 2) Cell 14: G105 (4 of 4) Cell 14: G201 (2 of 2) Handling ESD Sensitive Parts Notice
Figure 9:	Cell 14: G201 (2 of 2) Power and Grounding Components Cell 14: G202 Cell 14: G201 (1 of 2) Cell 14: G201 (1 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

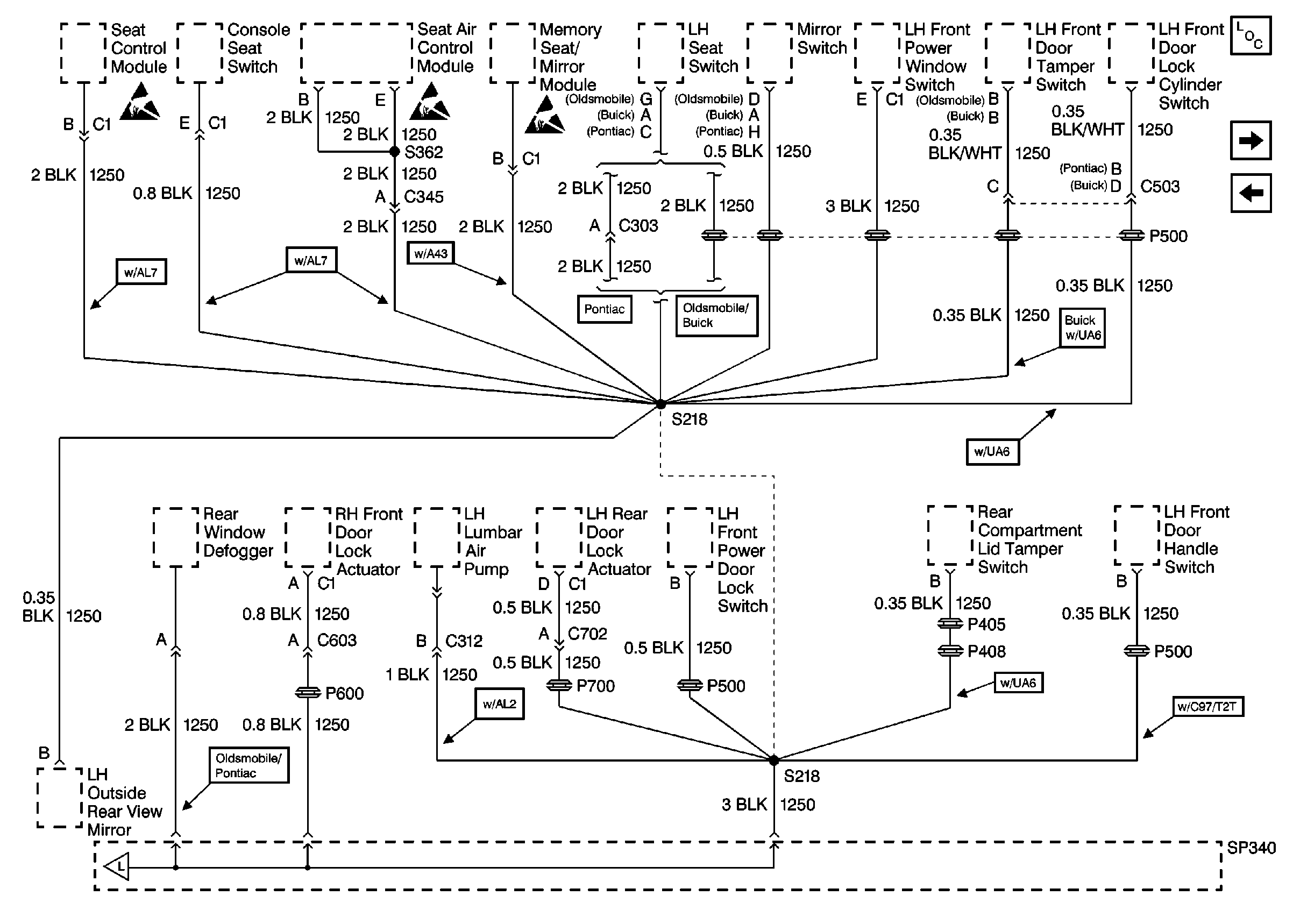

Figure 10:	Cell 14: G202 Power and Grounding Components Cell 14: G202 Continued Cell 14: G201 (2 of 2) Cell 14: G202 Continued Cell 14: G202 Continued Cell 14: G202 Continued (Buick) Cell 14: G202 Continued (Pontiac) Cell 14: G202 Continued (Oldsmobile) Cell 14: G402 (Buick) Cell 14: G402 (Pontiac) Cell 14: G402 (Oldsmobile) SIR Handling Caution Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 11:	Cell 14: G202 Continued Power and Grounding Components Cell 14: G202 Continued Cell 14: G202 Cell 14: G202
Figure 12:	Cell 14: G202 Continued Power and Grounding Components Cell 14: G202 Continued Cell 14: G202 Continued Cell 14: G202 Cell 14: G202 Continued

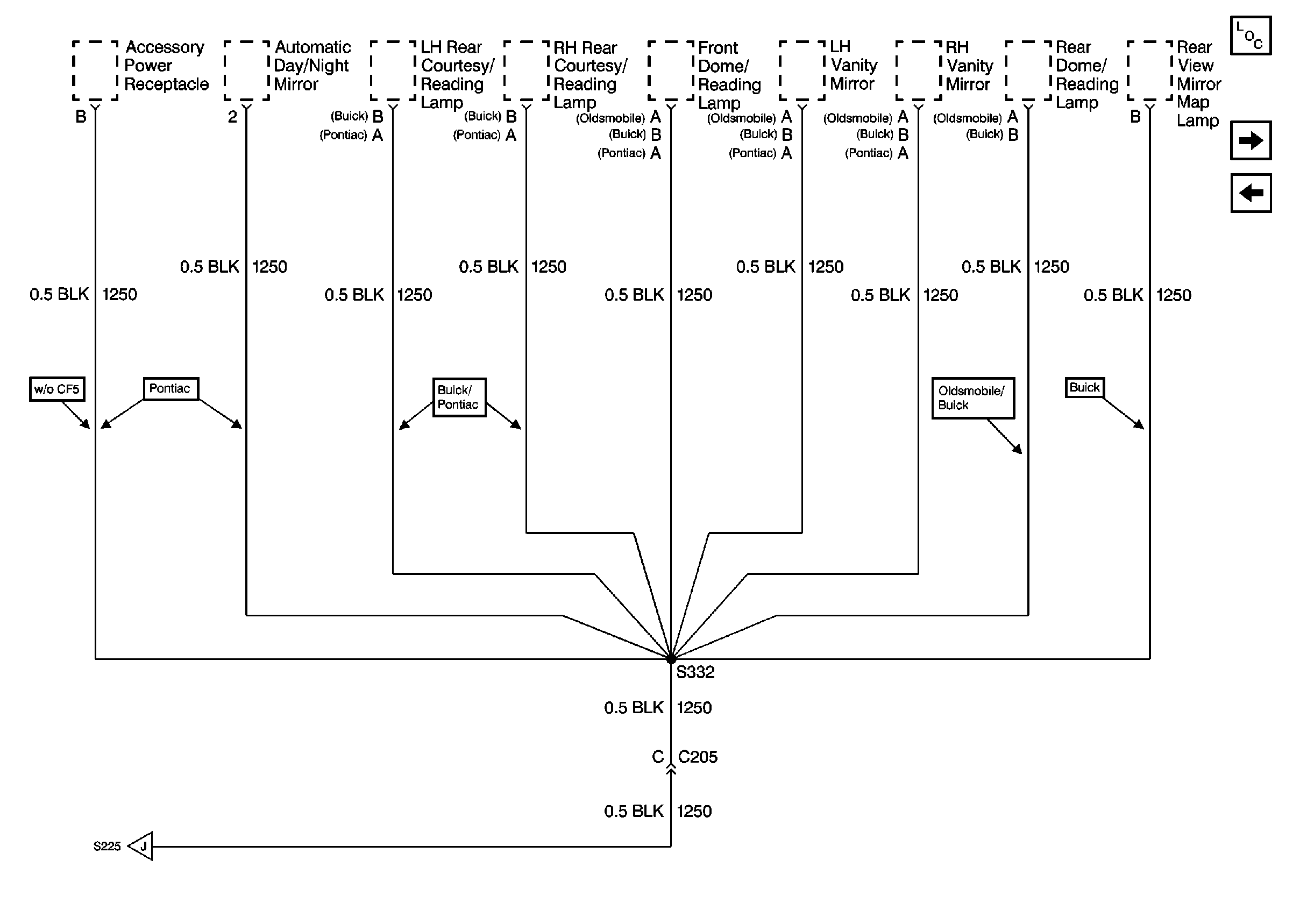

Figure 13:	Cell 14: G202 Continued Power and Grounding Components Cell 14: G202 Continued (Buick) Cell 14: G202 Continued Cell 14: G202 Continued Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

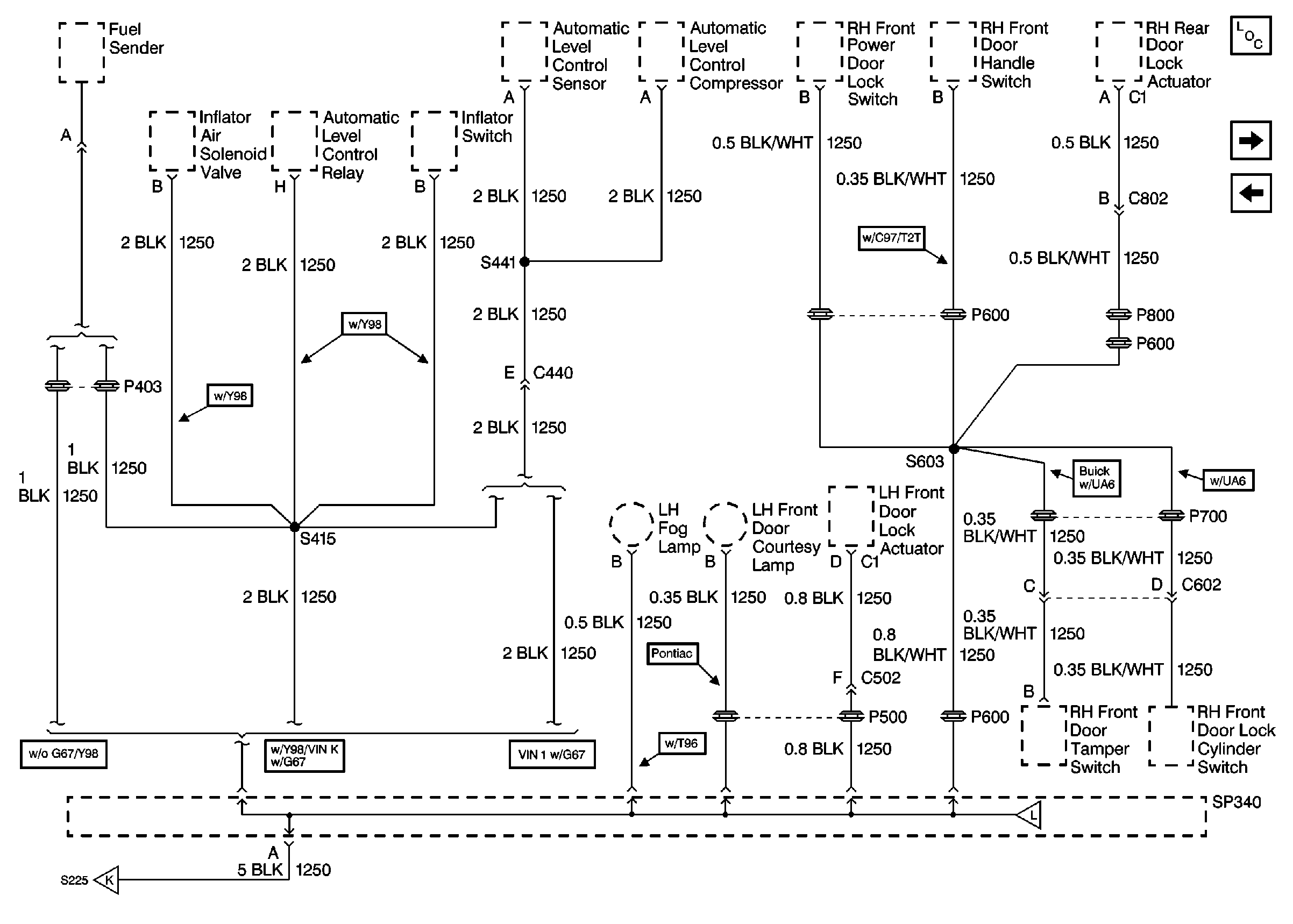

Figure 14:	Cell 14: G202 Continued (Buick) Power and Grounding Components Cell 14: G202 Continued (Pontiac) Cell 14: G202 Continued Cell 14: G202 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 15:	Cell 14: G202 Continued (Pontiac) Power and Grounding Components Cell 14: G202 Continued (Oldsmobile) Cell 14: G202 Continued (Buick) Cell 14: G202 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

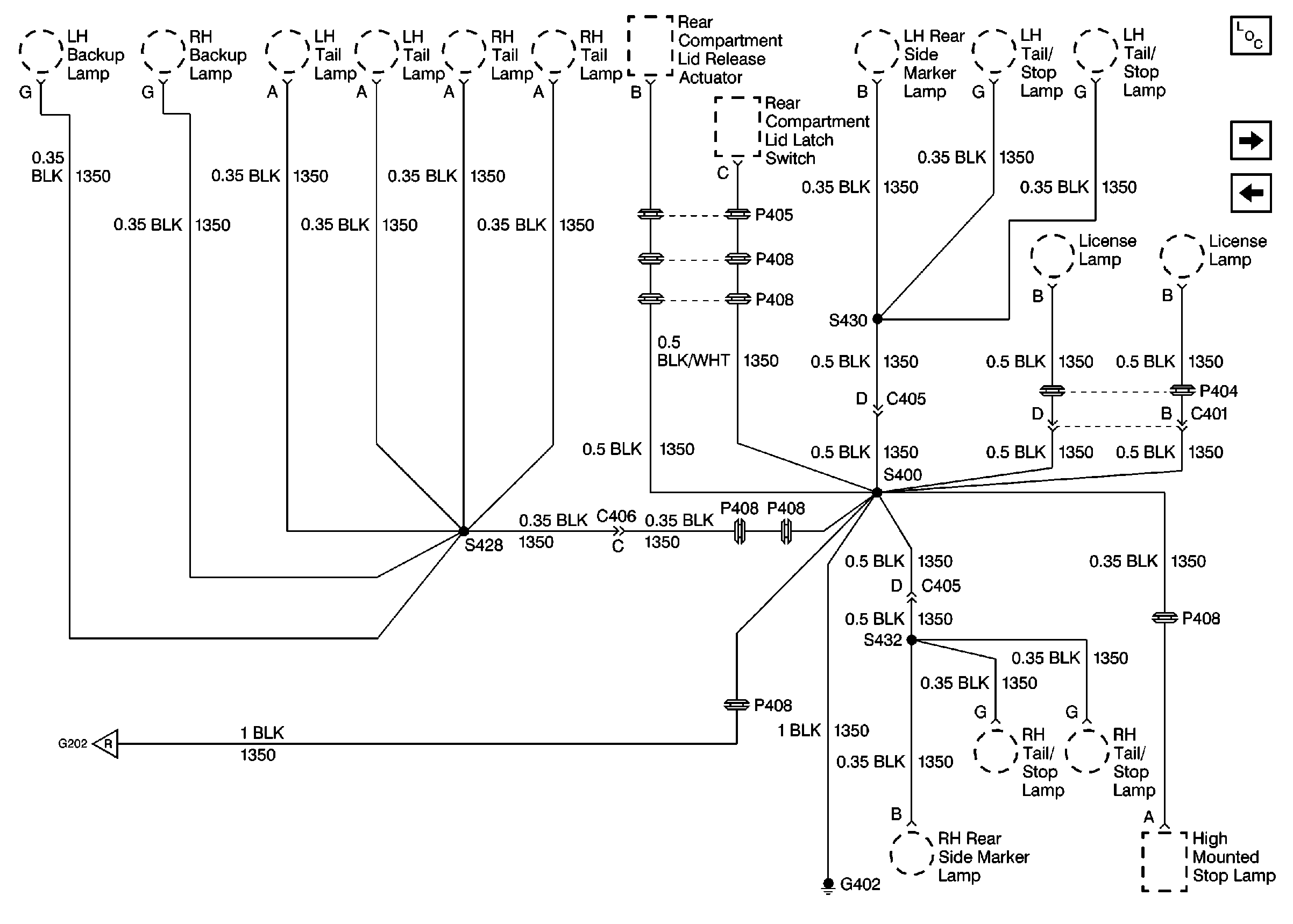

Figure 16:	Cell 14: G202 Continued (Oldsmobile) Power and Grounding Components Cell 14: G402 (Buick) Cell 14: G202 Continued (Pontiac) Cell 14: G202
Figure 17:	Cell 14: G402 (Buick) Power and Grounding Components Cell 14: G402 (Pontiac) Cell 14: G202 Continued (Oldsmobile) Cell 14: G202

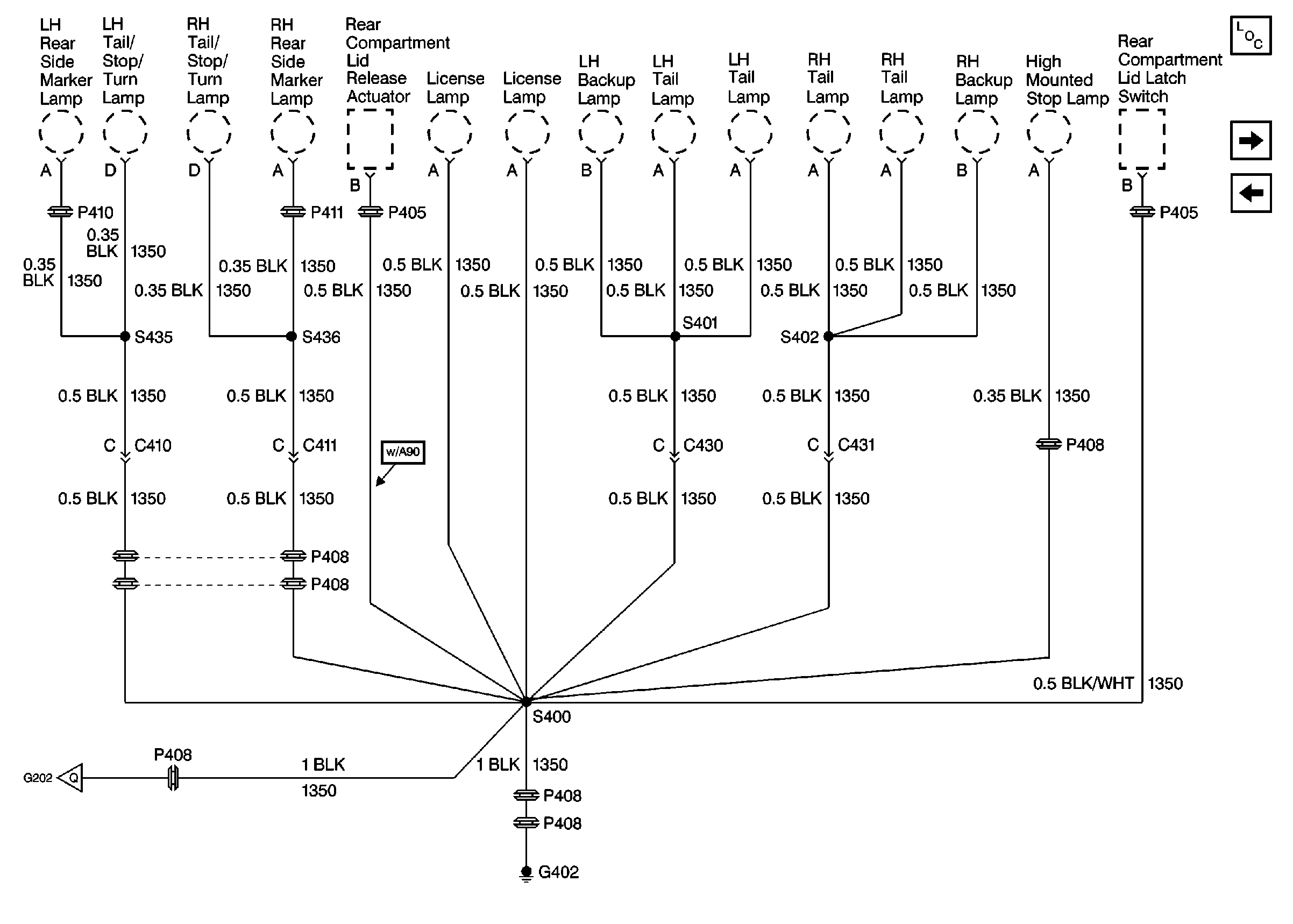

Figure 18:	Cell 14: G402 (Pontiac) Power and Grounding Components Cell 14: G402 (Oldsmobile) Cell 14: G402 (Buick) Cell 14: G202

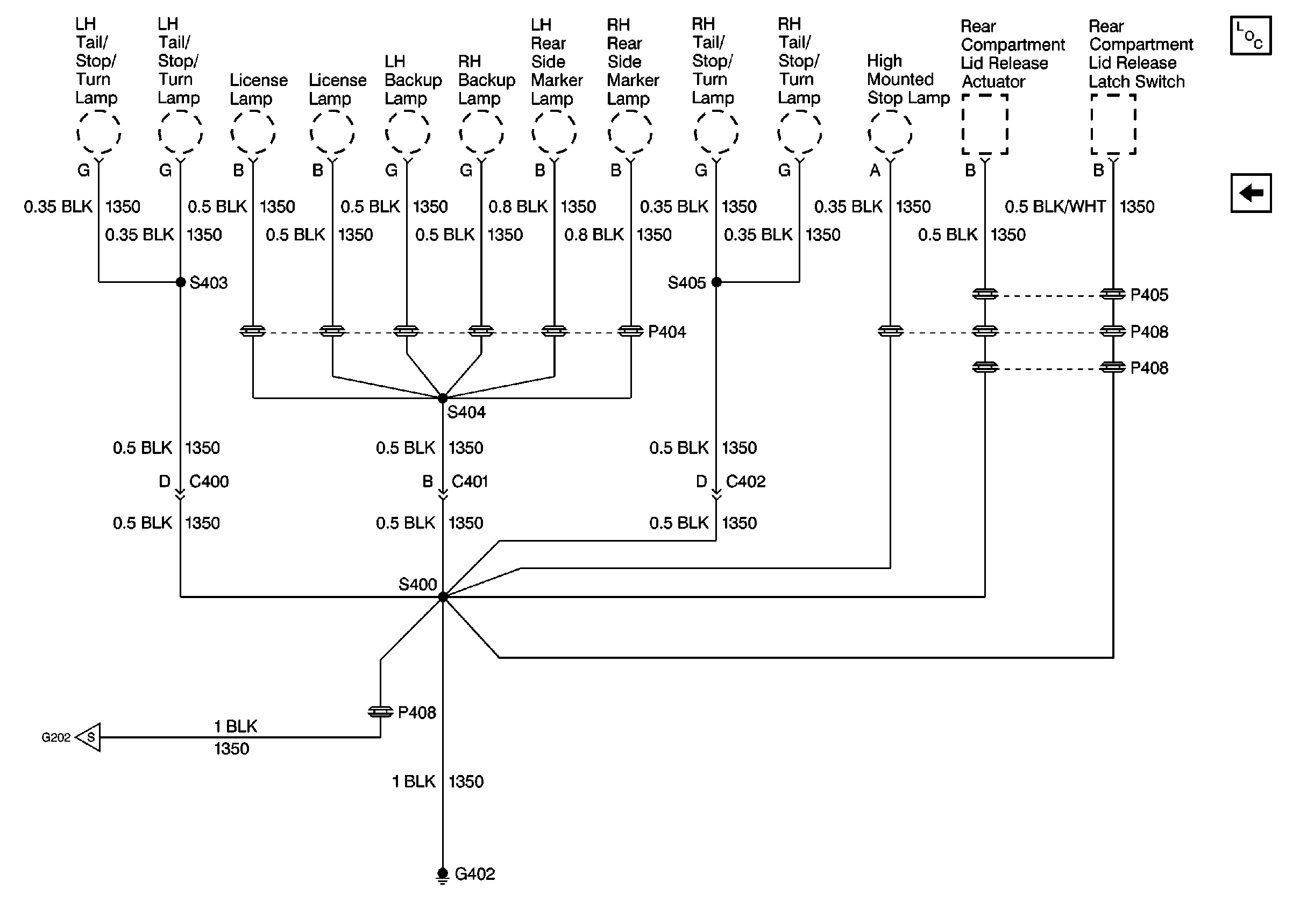

Figure 19:	Cell 14: G402 (Oldsmobile) Power and Grounding Components Cell 14: G402 (Pontiac) Cell 14: G202
