Preliminary Procedure

1. Remove the rear seat back . Refer to Rear Seat Back Replacement .
2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
3. Remove the rear seat armrest, if equipped. Refer to Rear Seat Armrest Replacement .

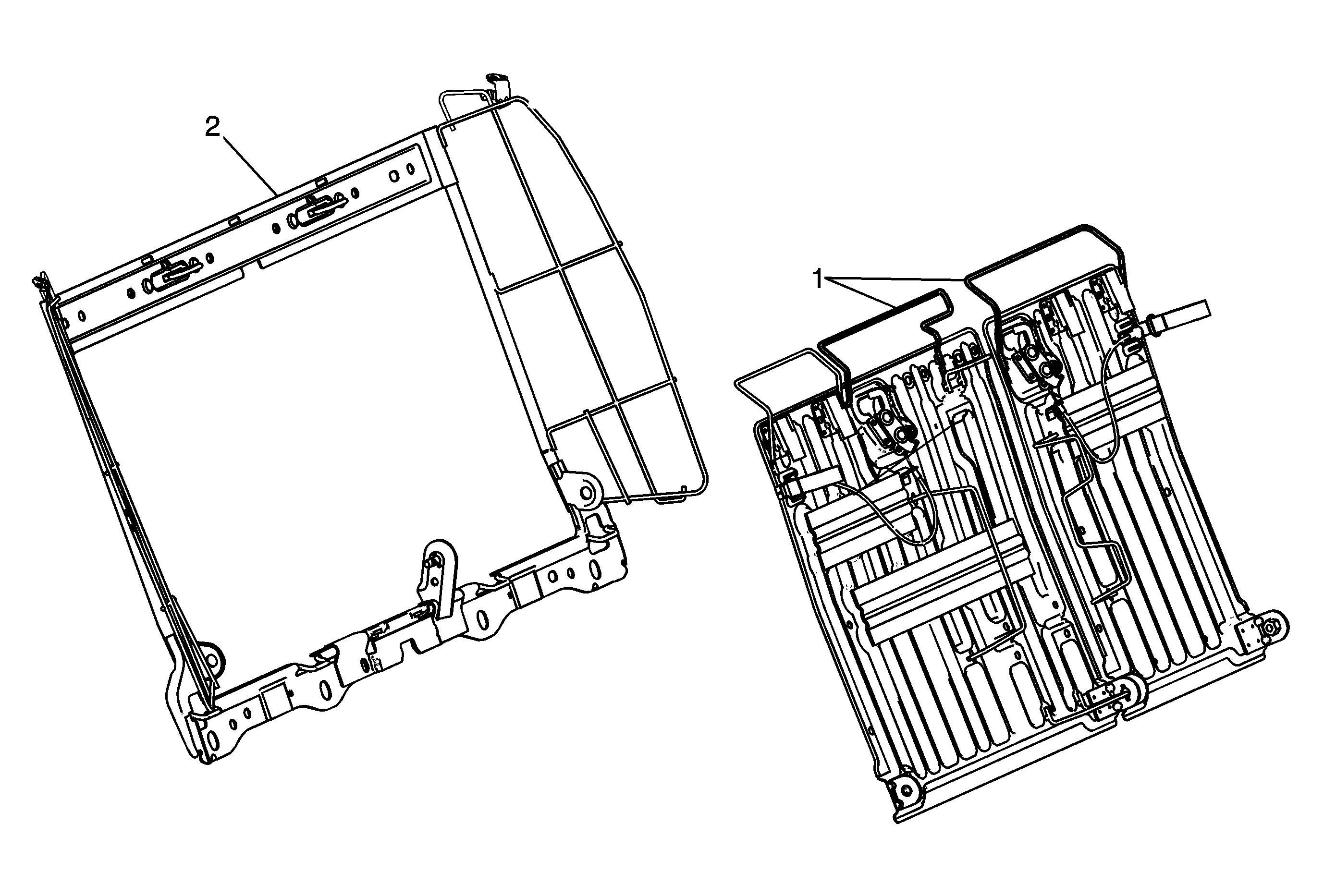

1

Rear Seat Back Cushion Opening Panel

Refer to Rear Seat Back Cushion Opening Panel Replacement .

2

Rear Seat Back Cushion Frame

Preliminary Procedure

1. Remove the rear seat back. Refer to Rear Seat Back Replacement.
2. Reposition the rear seat back trim to gain access to the fasteners.

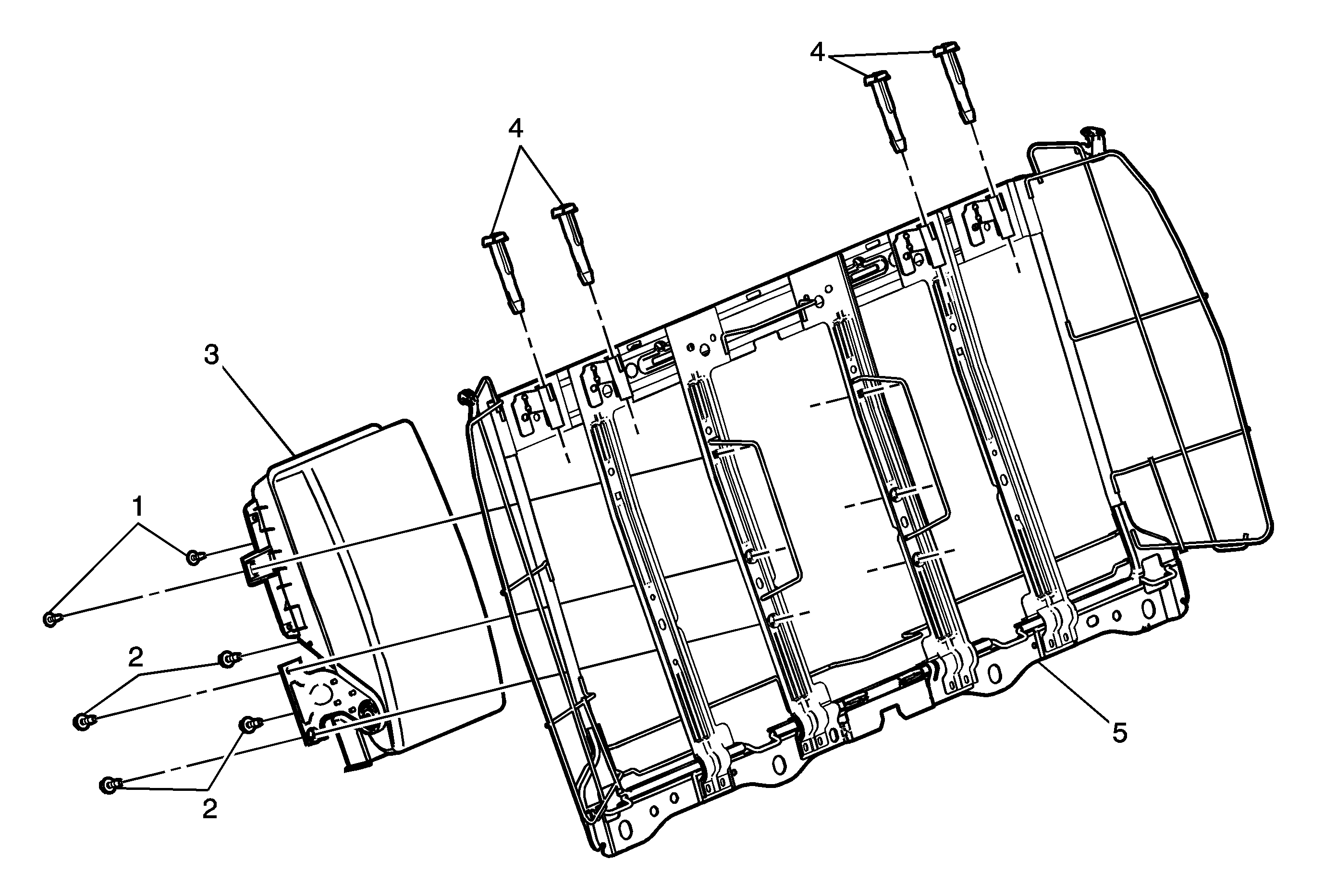

1

Rear Seat Armrest Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
3 N·m (27 lb in)

2

Rear Seat Armrest Bolt (Qty: 4)

Tighten
9 N·m (80 lb in)

3

Rear Seat Armrest

4

Rear Seat Head Restraint Guides (Qty: 4)

5

Rear Seat Back Cushion Frame

Procedure

Transfer any remaining components as necessary.
