Engine Controls Schematics. Chevrolet Cavalier 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Cavalier 🢒 Body and Accessories 🢒 Body Control System 🢒 Engine Controls Schematics

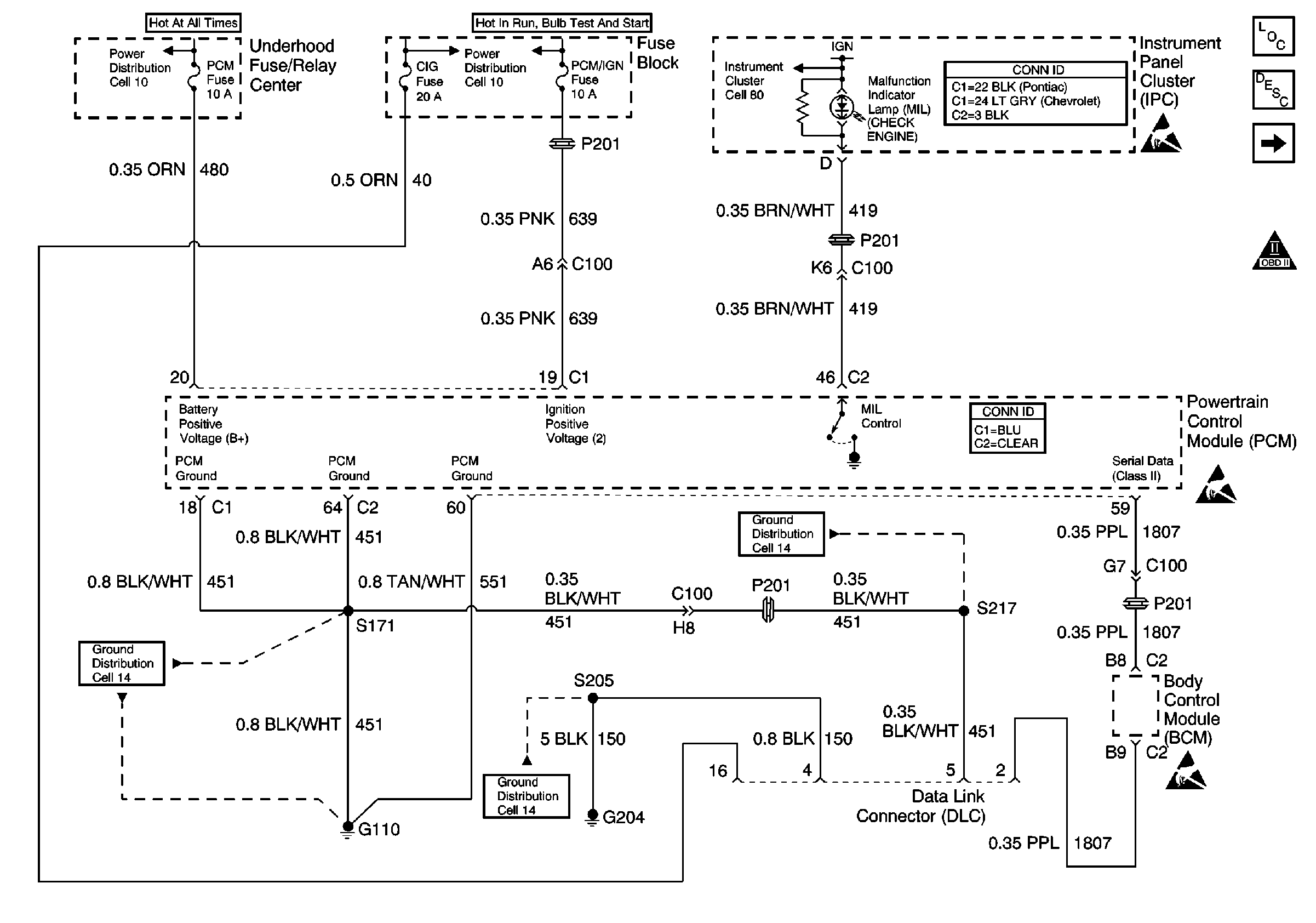

Figure 1:	Power, Ground, BCM, and DLC Engine Controls Components Powertrain Control Module Description Power, Ground, CMP, KS, and CKP OBD II Symbol Description Notice PCM, BLO, and A/C Fuses TURN-B/U, IGN, PCM IGN, and BCM/CLSTR Fuses Instrument Cluster: Analog Schematics G110 G204 (1 of 2) G204 (1 of 2) Engine Controls Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Power, Ground, CMP, KS, and CKP Engine Controls Components Powertrain Control Module Description Power, Ground, Fuel Tank Module, and Injectors Power, Ground, BCM, and DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice TURN-B/U, IGN, PCM IGN, and BCM/CLSTR Fuses G112 and G106
Figure 3:	Power, Ground, Fuel Tank Module, and Injectors Engine Controls Components Powertrain Control Module Description Engine Data Sensors Power, Ground, CMP, KS, and CKP OBD II Symbol Description Notice Ignition Switch, F/P -INJ, SIR, CRUISE, and ABS Fuses Engine Data Sensors Handling ESD Sensitive Parts Notice G304 (1 of 2) G110 Handling ESD Sensitive Parts Notice
Figure 4:	Engine Data Sensors-Pressure and Temperature Engine Controls Components Powertrain Control Module Description Power, Ground, and EVAP Power, Ground, Fuel Tank Module, and Injectors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Power, Ground, Fuel Tank Module, and Injectors
Figure 5:	Power, Ground, and EVAP Engine Controls Components Powertrain Control Module Description Power, Ground, and O2 Sensors Engine Data Sensors OBD II Symbol Description Notice ALARM, and ERLS Fuses ALARM, and ERLS Fuses ALARM, and ERLS Fuses Handling ESD Sensitive Parts Notice
Figure 6:	Power, Ground, and O2 Sensors Engine Controls Components Powertrain Control Module Description Generator, IAC, PNP Switch, and Oil Pressure Sensor Power, Ground, and EVAP HVAC, O2 HTR, and PWR WDO/SUNROOF Fuses G112 and G106 Handling ESD Sensitive Parts Notice

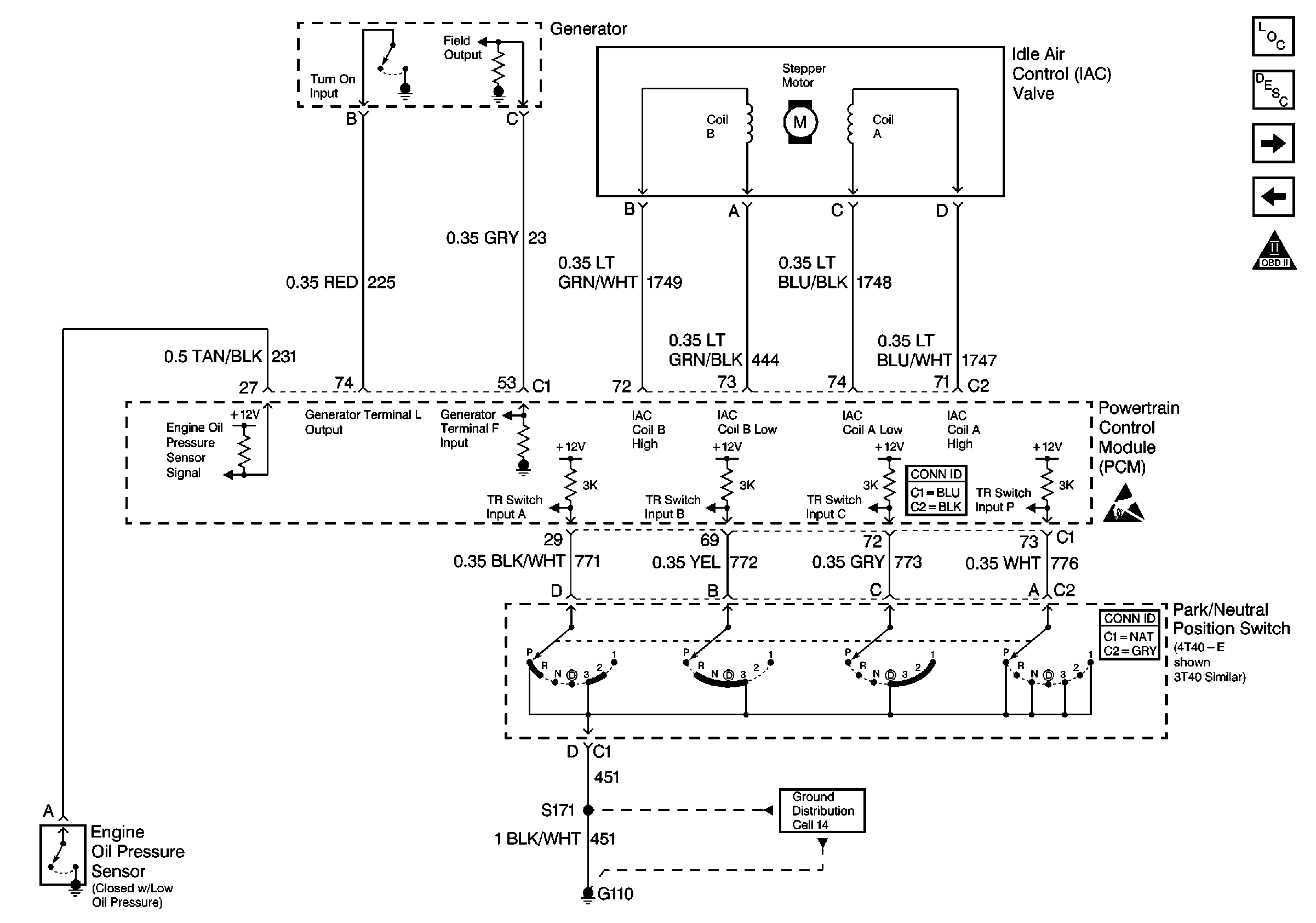

Figure 7:	Generator, IAC, PNP Switch, and Oil Pressure Sensor Engine Controls Components Powertrain Control Module Description Cruise Control Module and VSS Power, Ground, and O2 Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice G110

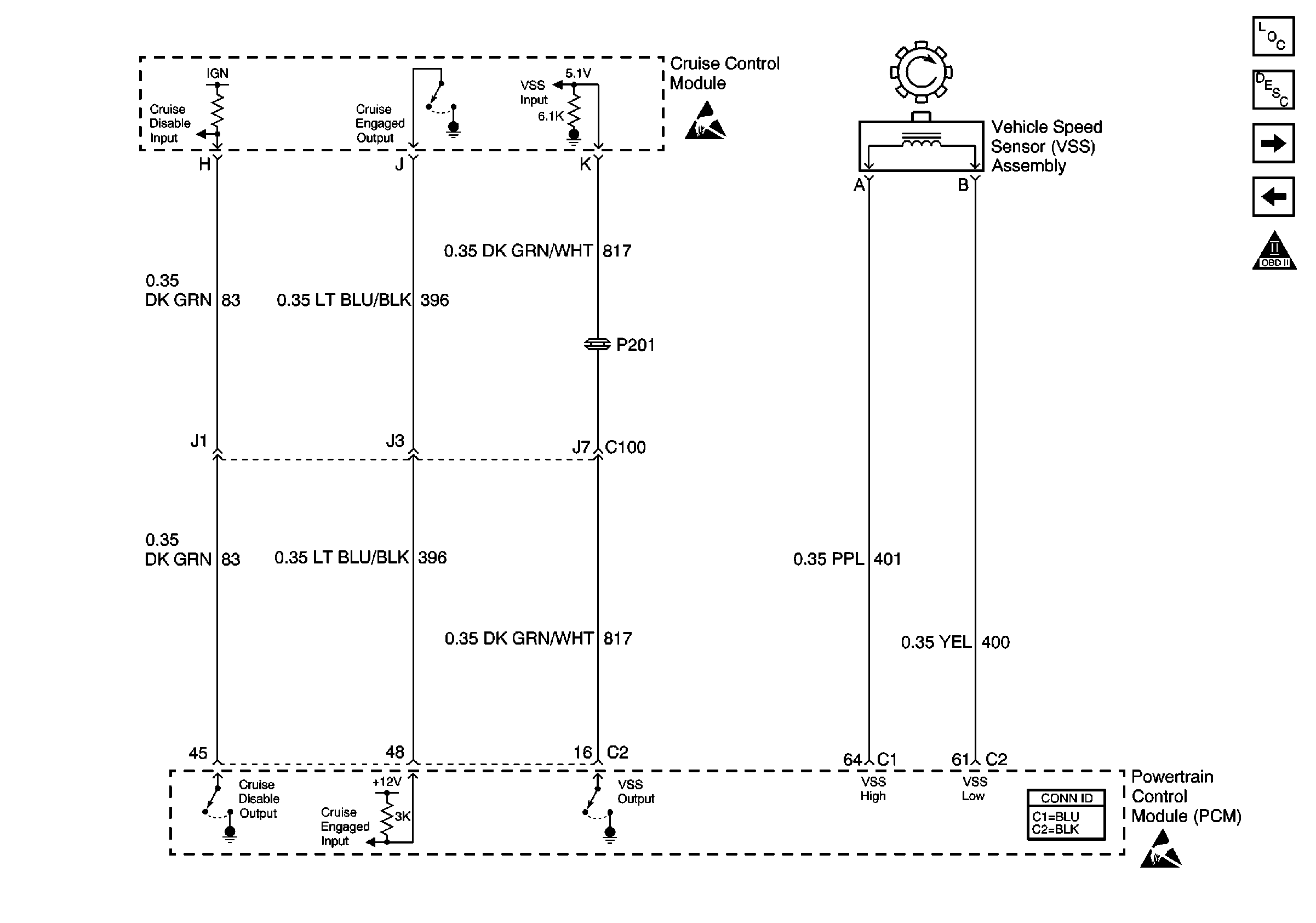

Figure 8:	Cruise Control Module and VSS Engine Controls Components Powertrain Control Module Description A/C Compressor Clutch Generator, IAC, PNP Switch, and Oil Pressure Sensor OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

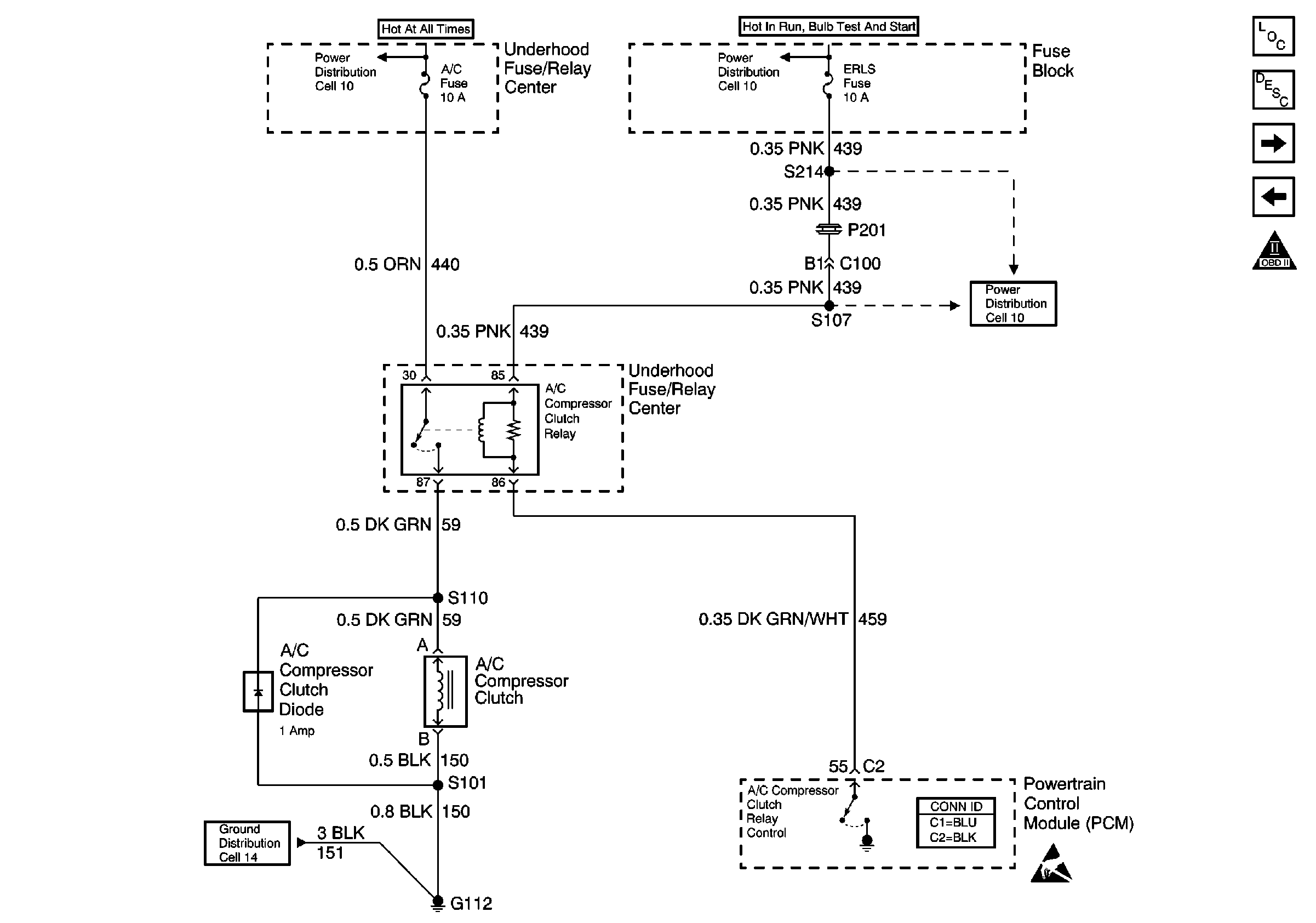

Figure 9:	A/C Compressor Clutch Engine Controls Components Powertrain Control Module Description Power, Ground, Automatic Transaxle, and Brake Switch Cruise Control Module and VSS OBD II Symbol Description Notice PCM, BLO, and A/C Fuses ALARM, and ERLS Fuses ALARM, and ERLS Fuses G112 and G106 Handling ESD Sensitive Parts Notice

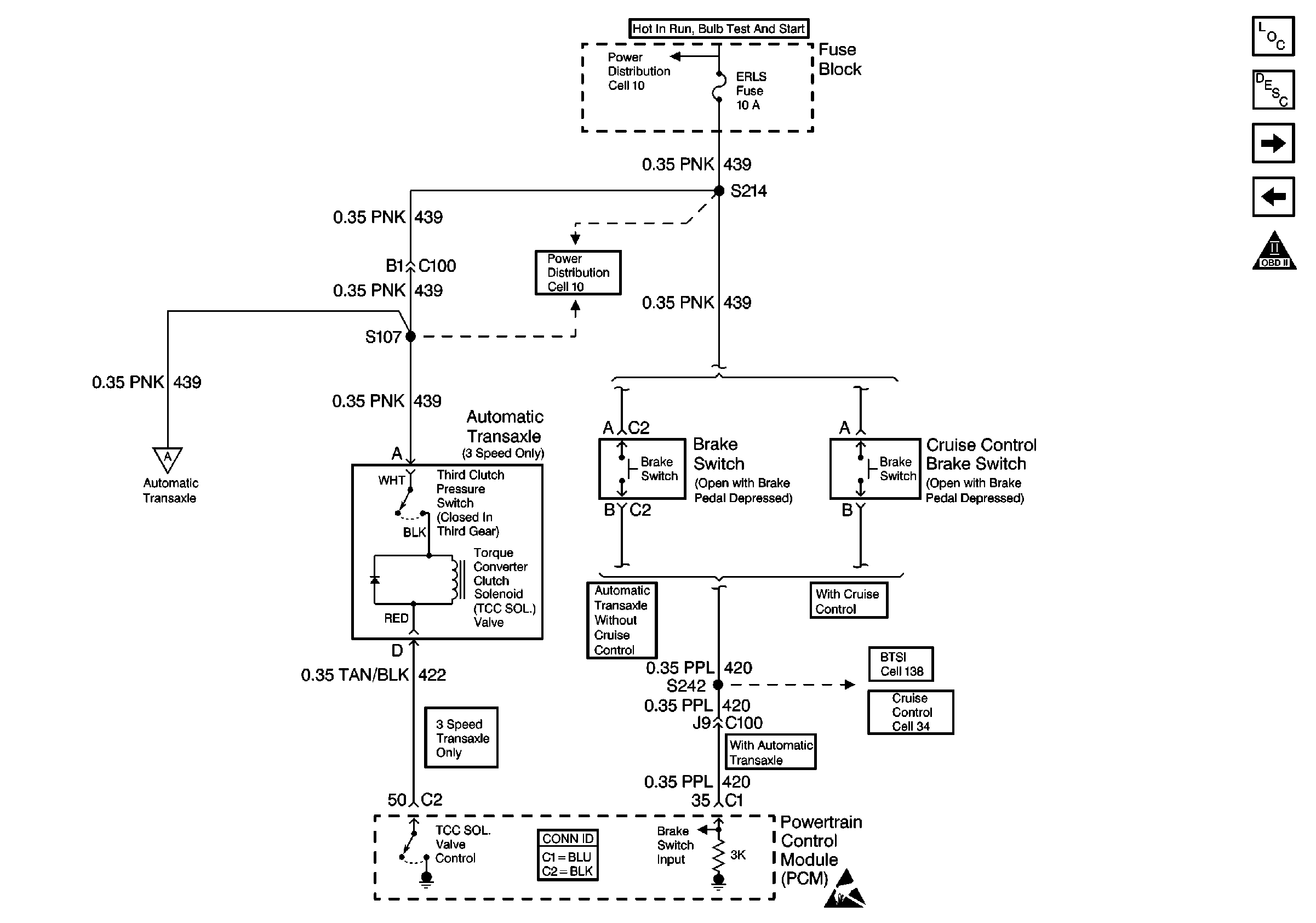

Figure 10:	Power, Ground, Automatic Transaxle,and Brake Switch Engine Controls Components Powertrain Control Module Description Automatic Transaxle A/C Compressor Clutch OBD II Symbol Description Notice ALARM, and ERLS Fuses ALARM, and ERLS Fuses Automatic Transaxle Handling ESD Sensitive Parts Notice Cruise Control Schematics

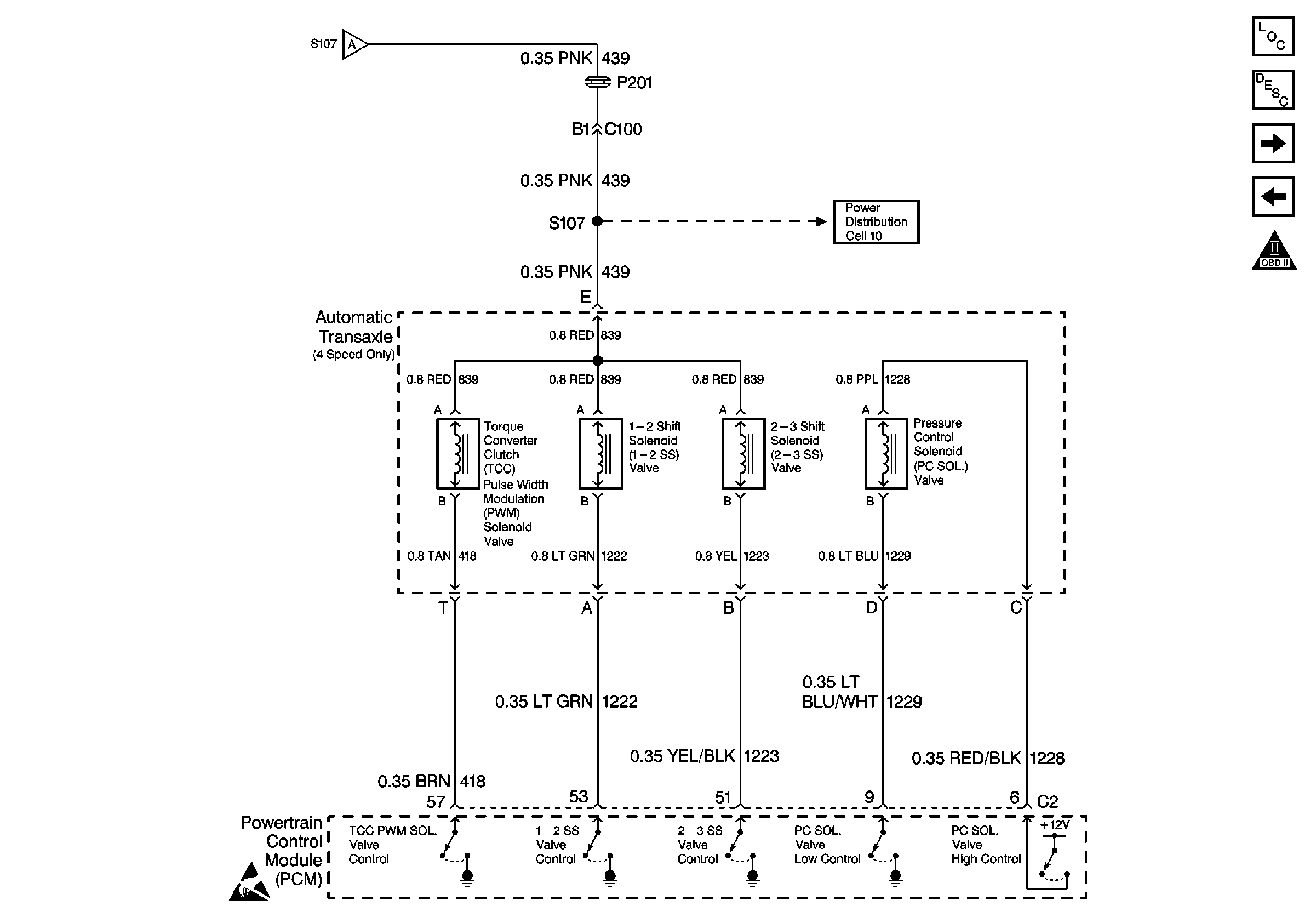

Figure 11:	Automatic Transaxle Engine Controls Components Powertrain Control Module Description Automatic Transaxle Power, Ground, Automatic Transaxle, and Brake Switch OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

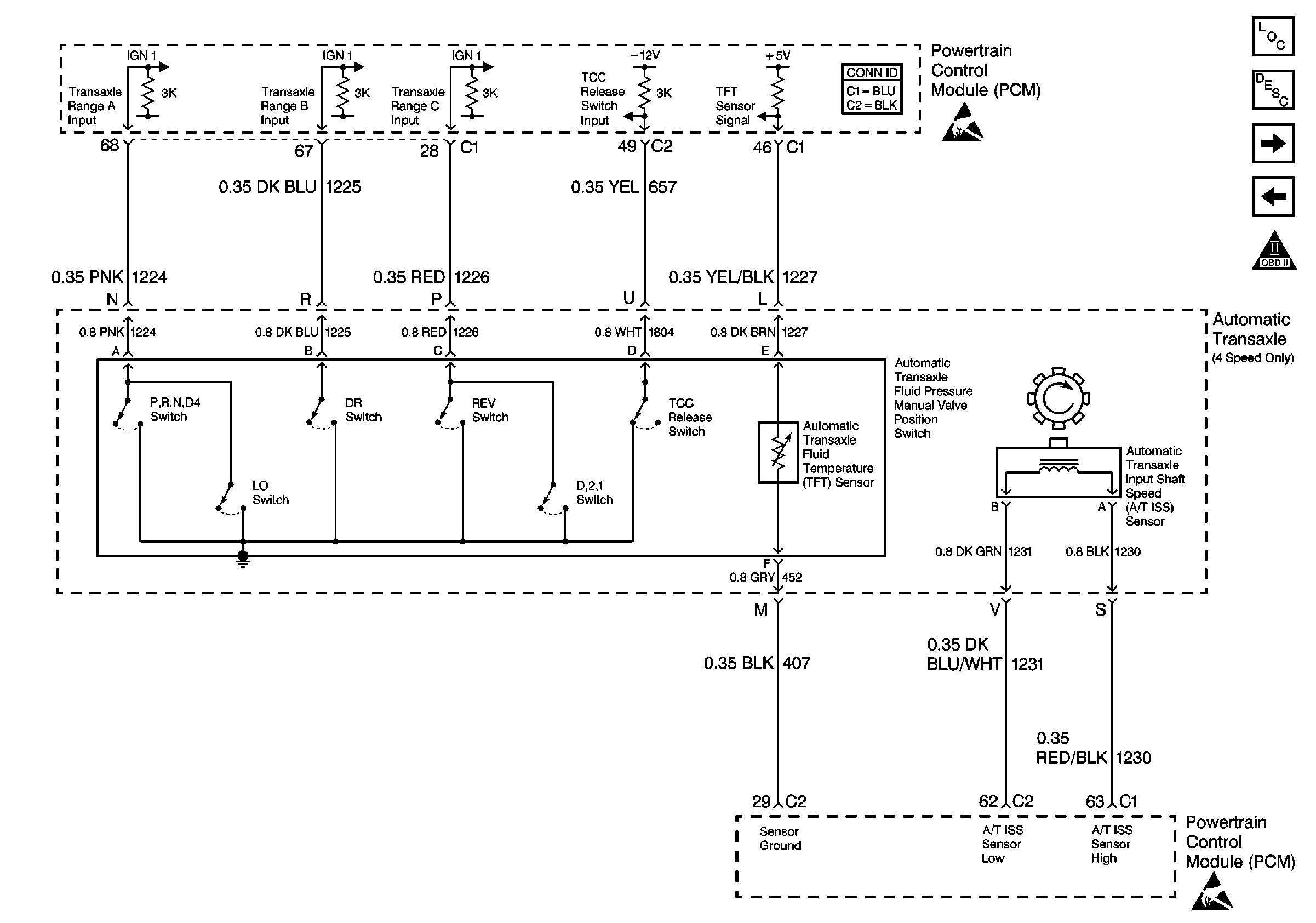

Figure 12:	Automatic Transaxle Engine Controls Components Powertrain Control Module Description Power, Ground, EBCM, and Cooling Fan Motor Automatic Transaxle OBD II Symbol Description Notice Power, Ground, Automatic Transaxle, and Brake Switch ALARM, and ERLS Fuses Handling ESD Sensitive Parts Notice

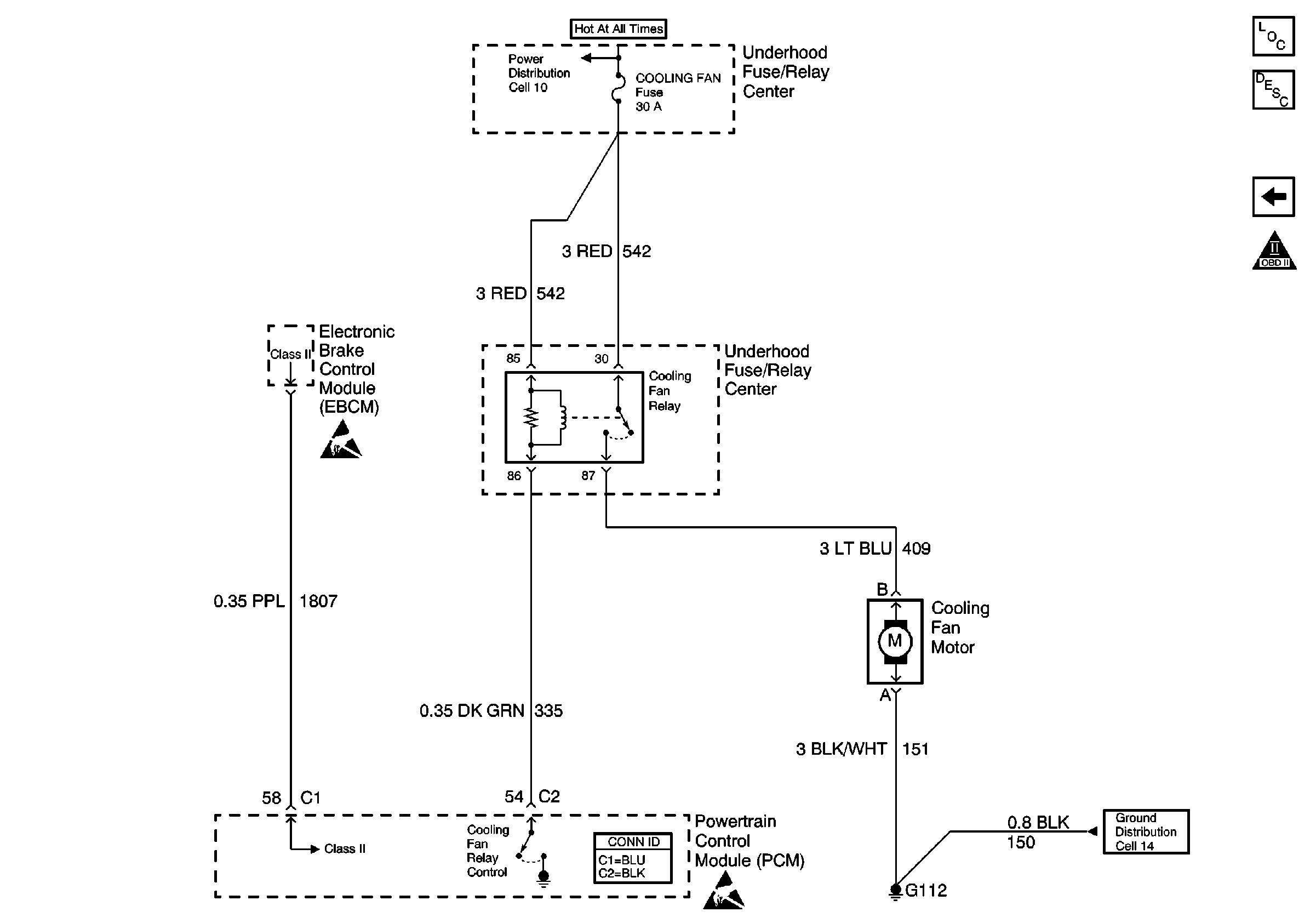

Figure 13:	Power, Ground, EBCM, and Cooling Fan Motor Engine Controls Components Powertrain Control Module Description Automatic Transaxle OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G112 and G106 Cooling Fan, BATT1, BATT2, IGN, PCM/HVAC and ABS Fuses
