Body Control System Schematics. Chevrolet Chevy K Silverado

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Chevy K Silverado - 4WD 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

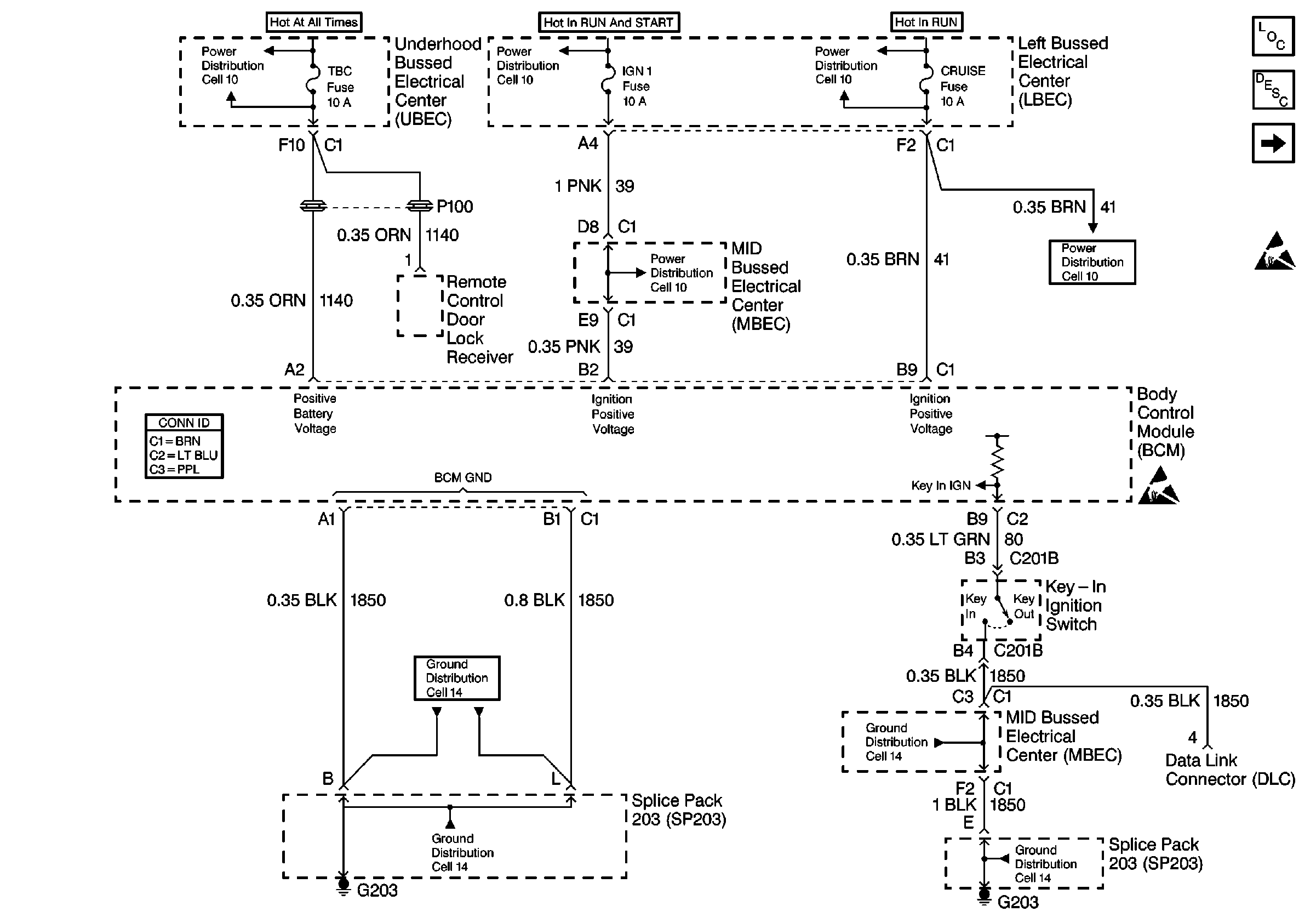

Figure 1:	Cell 51: Power, Grounds Key-In Ignition Switch Body Control Module Components Body Control System Circuit Description Cell 51: Serial Data, DRL Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics

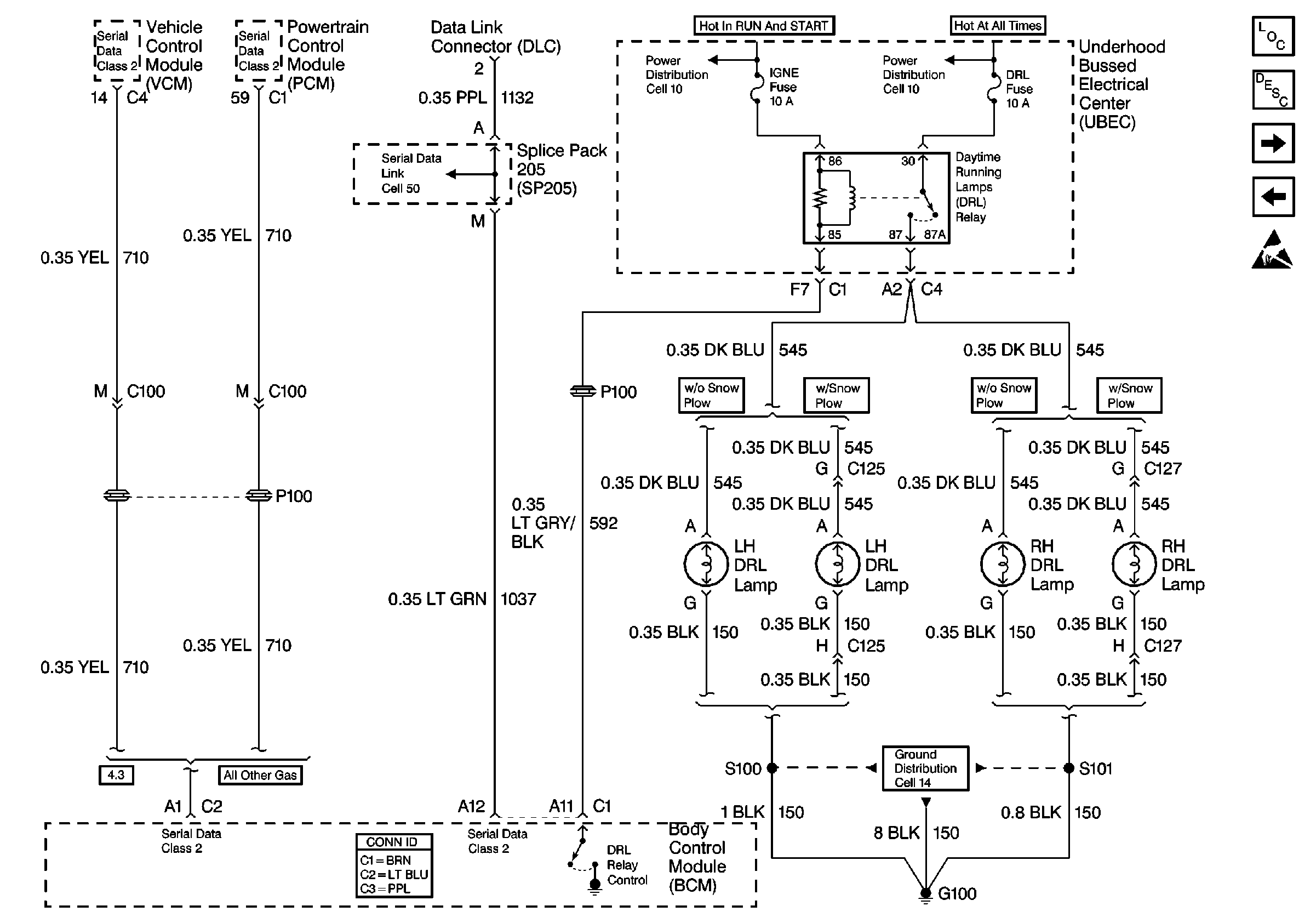

Figure 2:	Cell 51: Serial Data, DRL Body Control Module Components Body Control System Circuit Description Cell 51: Fog Lamps System Cell 51: Power, Grounds Key-In Ignition Switch Handling ESD Sensitive Parts Notice Data Link Connector Schematics Power Distribution Schematics Power Distribution Schematics Ground Distribution Schematics

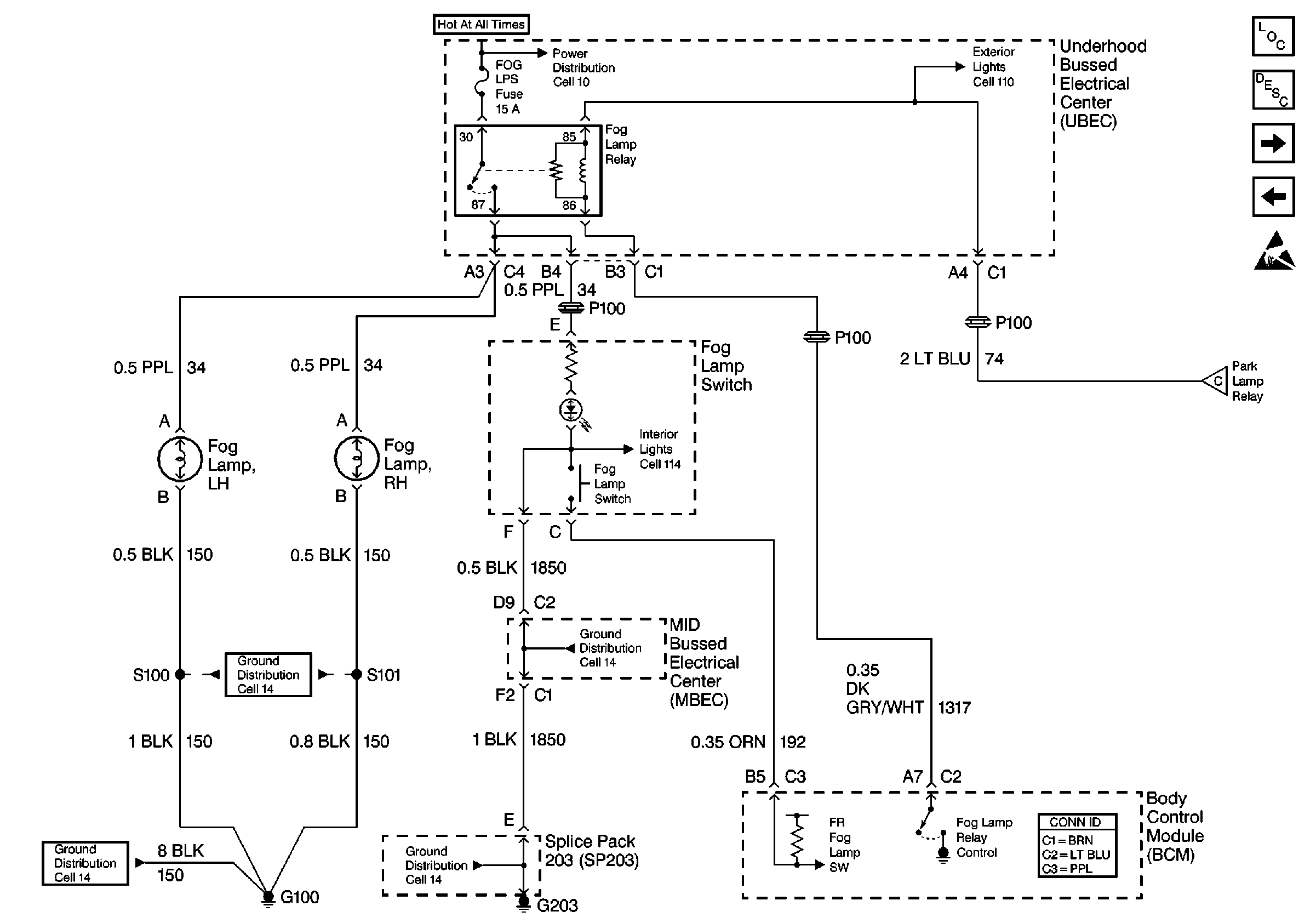

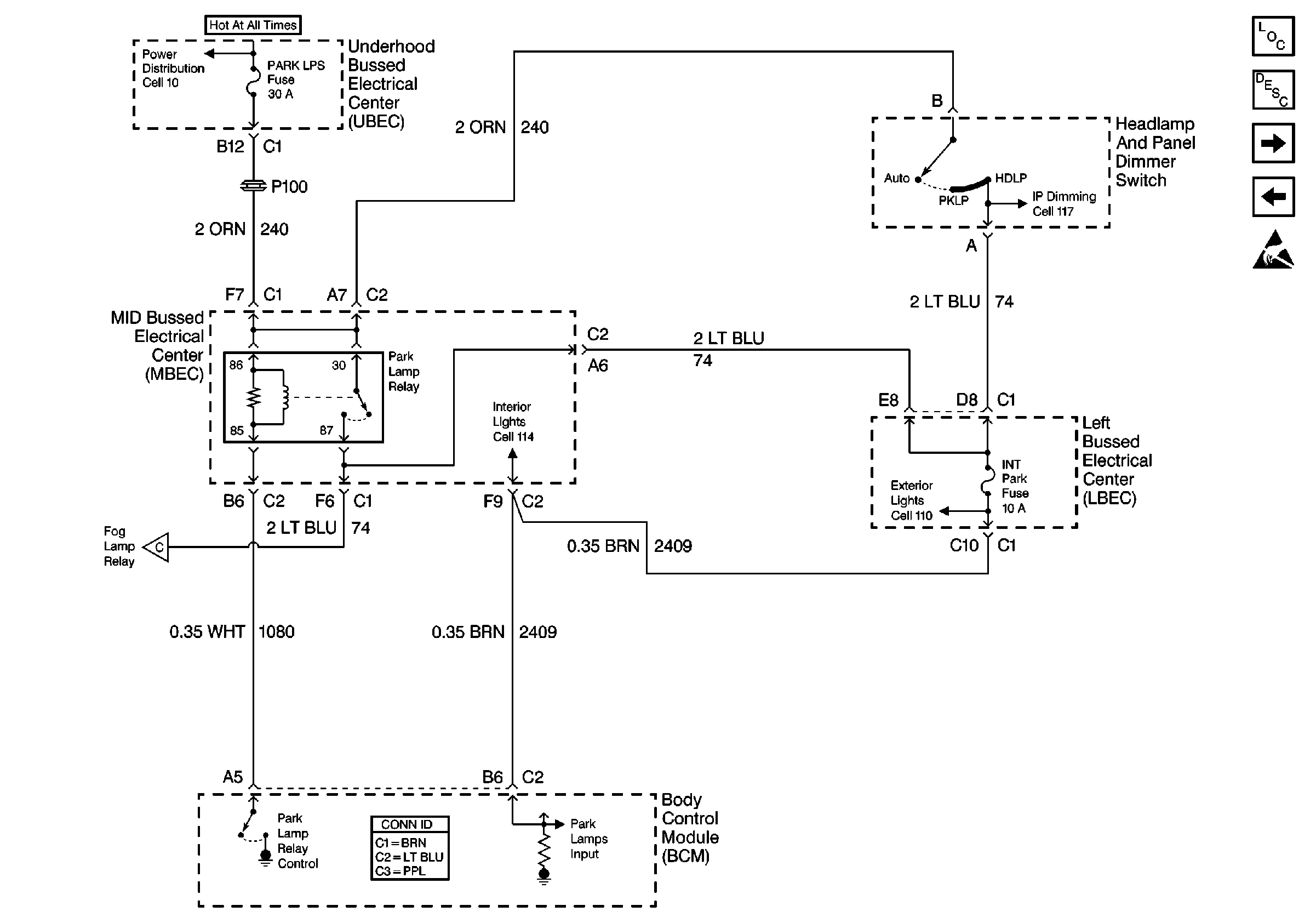

Figure 3:	Cell 51: Fog Lamps System Body Control Module Components Body Control System Circuit Description Park Lamps Control Cell 51: Serial Data, DRL Handling ESD Sensitive Parts Notice Power Distribution Schematics Exterior Lights Schematics Interior Lights Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Park Lamps Control
Figure 4:	Park Lamps Control Body Control Module Components Body Control System Circuit Description Cell 51: Horns, Dome Lamps, IP Dimming, Ambient Light Sensor Cell 51: Fog Lamps System Handling ESD Sensitive Parts Notice Power Distribution Schematics Cell 51: Fog Lamps System Interior Lights Schematics Exterior Lights Schematics

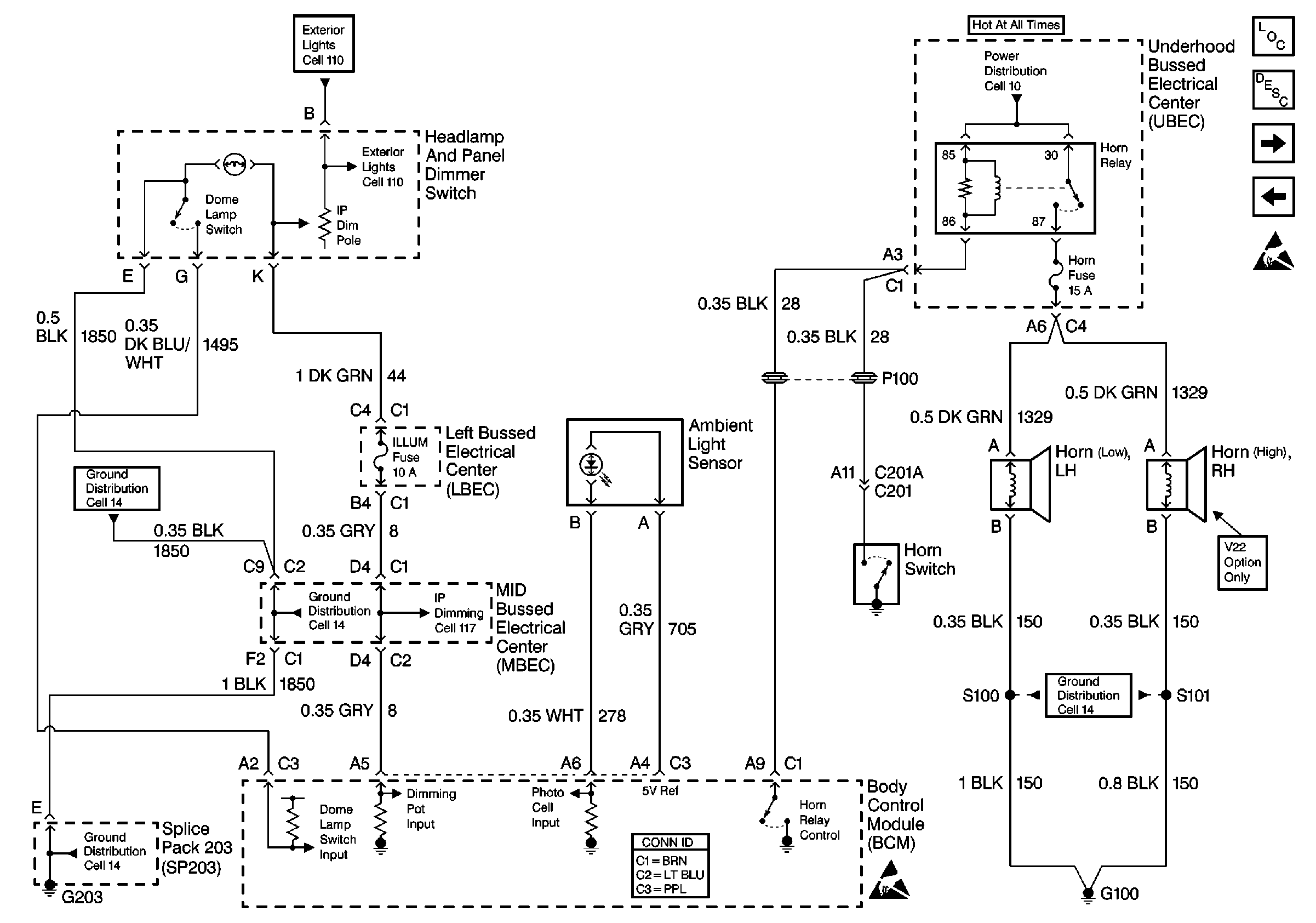

Figure 5:	Cell 51: Horns, Dome Lamps, IP Dimming, Ambient Light Sensor Body Control Module Components Body Control System Circuit Description Cell 51: Head Lights Park Lamps Control Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Exterior Lights Schematics Power Distribution Schematics Interior Lights Dimming Schematics Ground Distribution Schematics Exterior Lights Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics
Figure 6:	Cell 51: Head Lights Body Control Module Components Body Control System Circuit Description Cell 51: Inadvertent Power Relay, Courtesy Lamp Relay Cell 51: Horns, Dome Lamps, IP Dimming, Ambient Light Sensor Handling ESD Sensitive Parts Notice Power Distribution Schematics Ground Distribution Schematics Power Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics

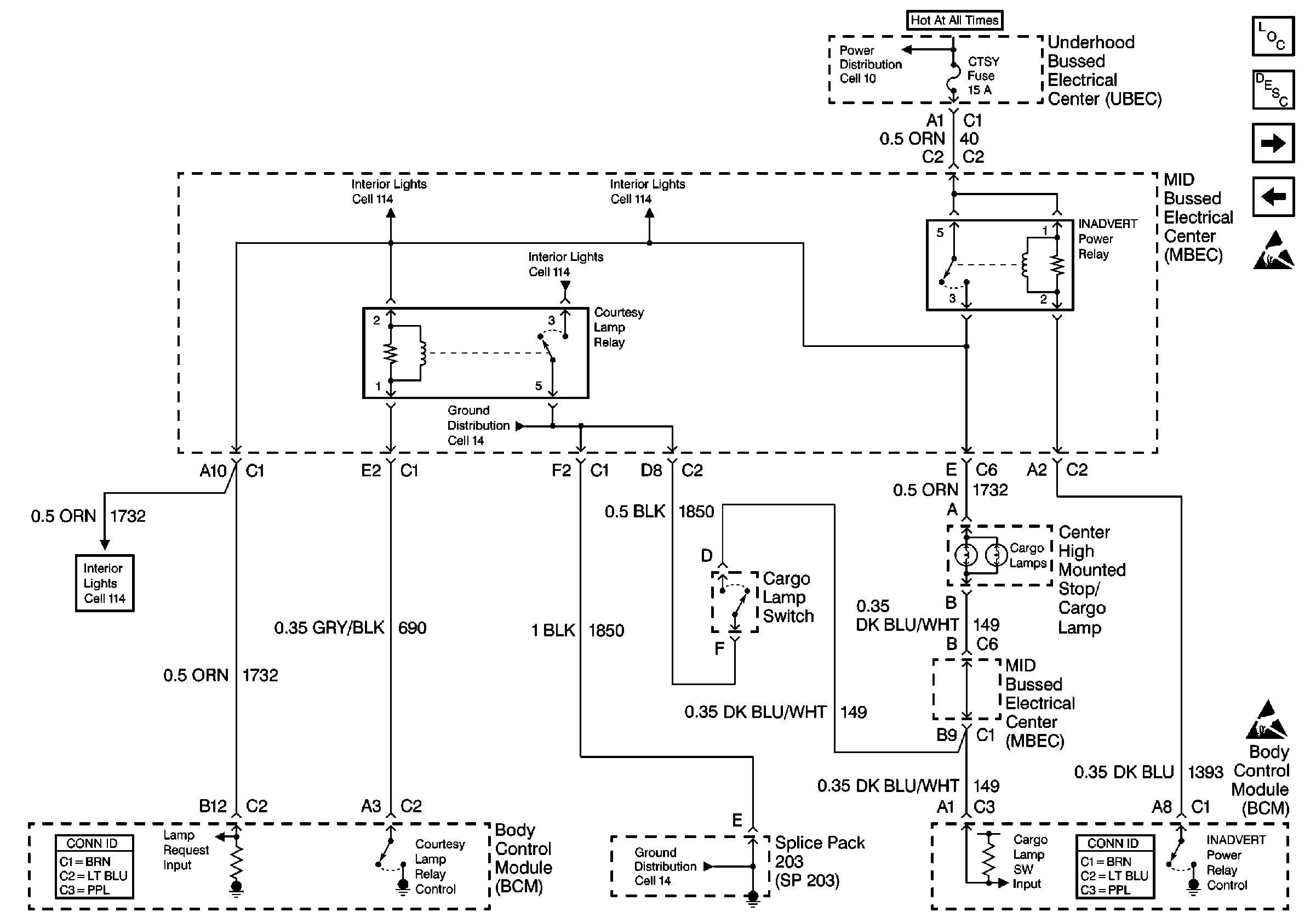

Figure 7:	Cell 51: Inadvertent Power Relay, Courtesy Lamp Relay Body Control Module Components Body Control System Circuit Description Cell 51: Turn Signals, RAP Relay (uplevel only) Cell 51: Head Lights Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power Distribution Schematics Interior Lights Schematics Interior Lights Schematics Interior Lights Schematics Ground Distribution Schematics Interior Lights Schematics Ground Distribution Schematics

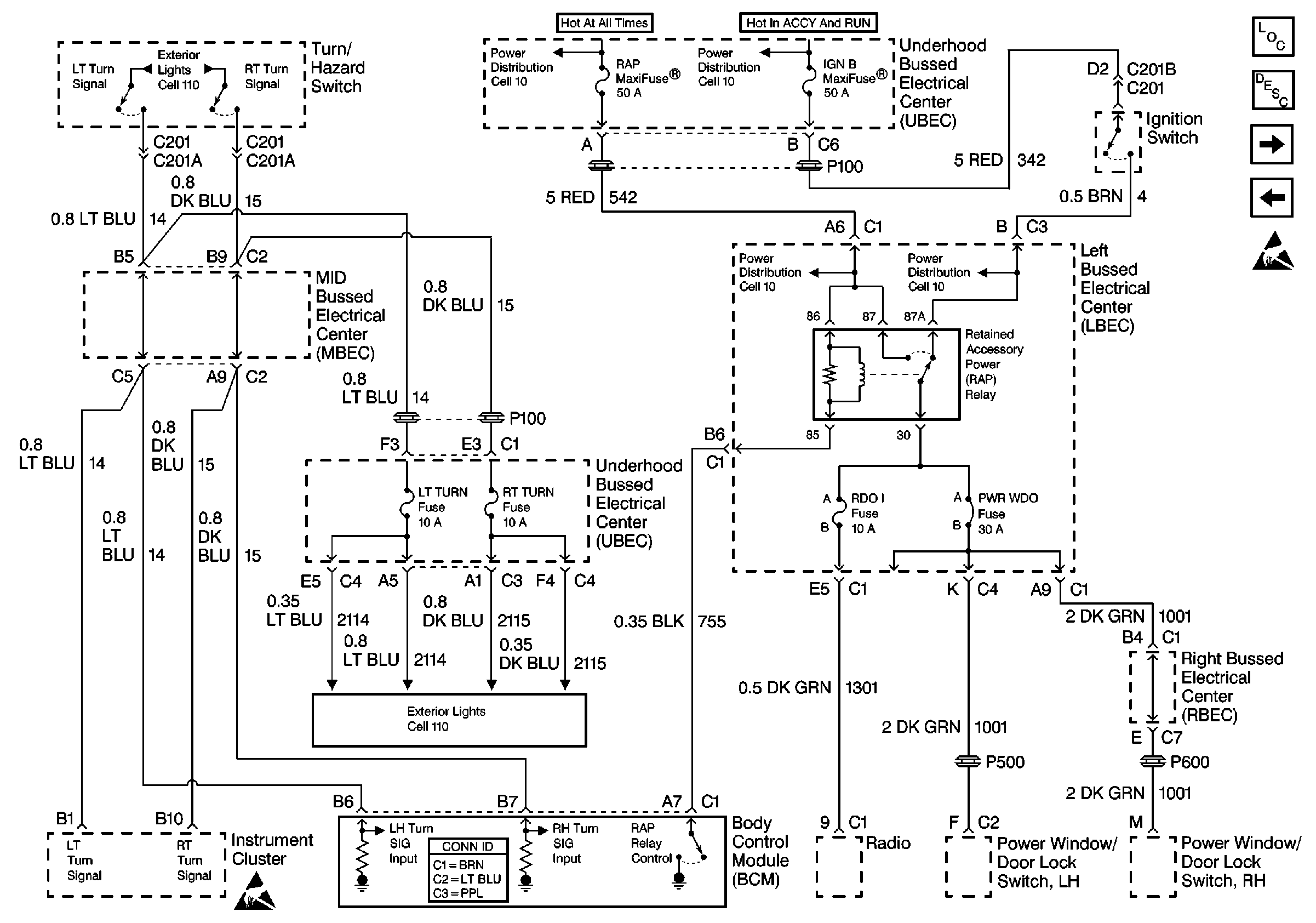

Figure 8:	Cell 51: Turn Signals, RAP Relay (uplevel only) Body Control Module Components Body Control System Circuit Description Cell 51: Passlock Sensor, VSS Signal Cell 51: Inadvertent Power Relay, Courtesy Lamp Relay Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Exterior Lights Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Exterior Lights Schematics

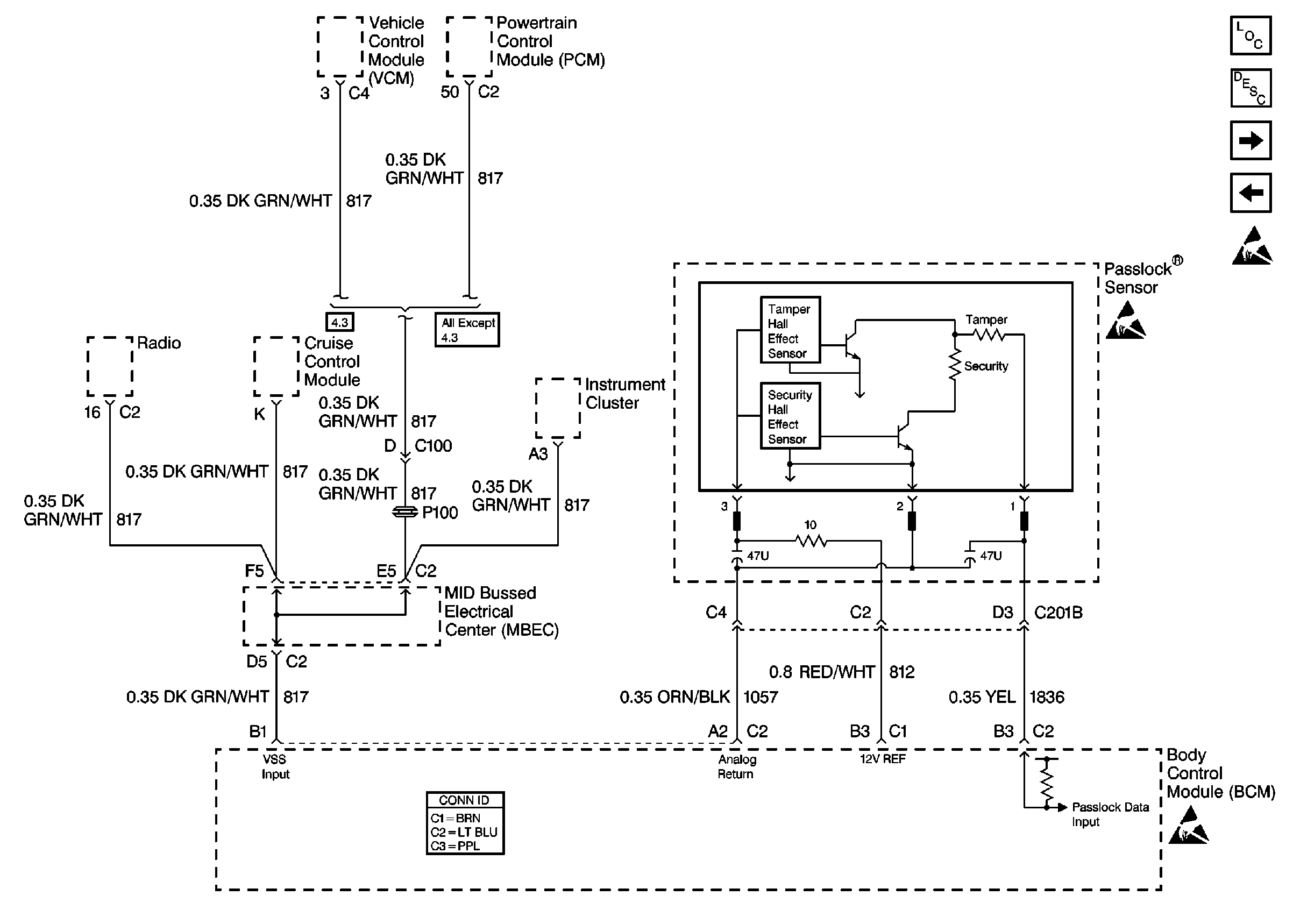

Figure 9:	Cell 51: Passlock Sensor, VSS Signal Body Control Module Components Body Control System Circuit Description Cell 51: Uplevel Door Locks Cell 51: Turn Signals, RAP Relay (uplevel only) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 10:	Cell 51: Uplevel Door Locks Body Control Module Components Body Control System Circuit Description Cell 51: Base Power Door Locks Cell 51: Passlock Sensor, VSS Signal Handling ESD Sensitive Parts Notice Power Distribution Schematics Power Distribution Schematics Door Lock/Indicator Schematics Ground Distribution Schematics Door Lock/Indicator Schematics

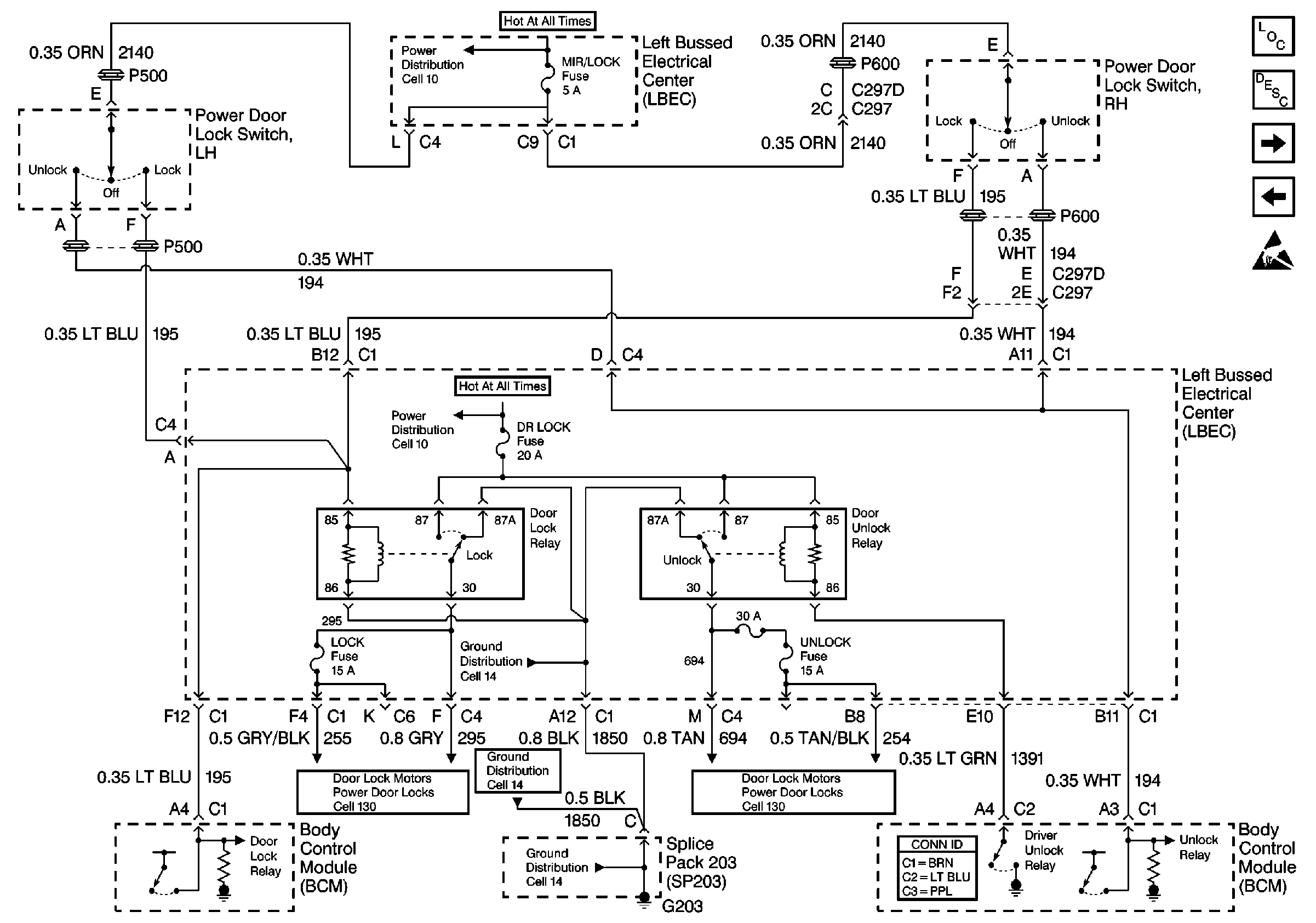

Figure 11:	Cell 51: Base Power Door Locks Body Control Module Components Body Control System Circuit Description Cell 51: Parade Mode, Park Brake Switch, RKE Cell 51: Uplevel Door Locks Handling ESD Sensitive Parts Notice Power Distribution Schematics Power Distribution Schematics Door Lock/Indicator Schematics Ground Distribution Schematics Door Lock/Indicator Schematics

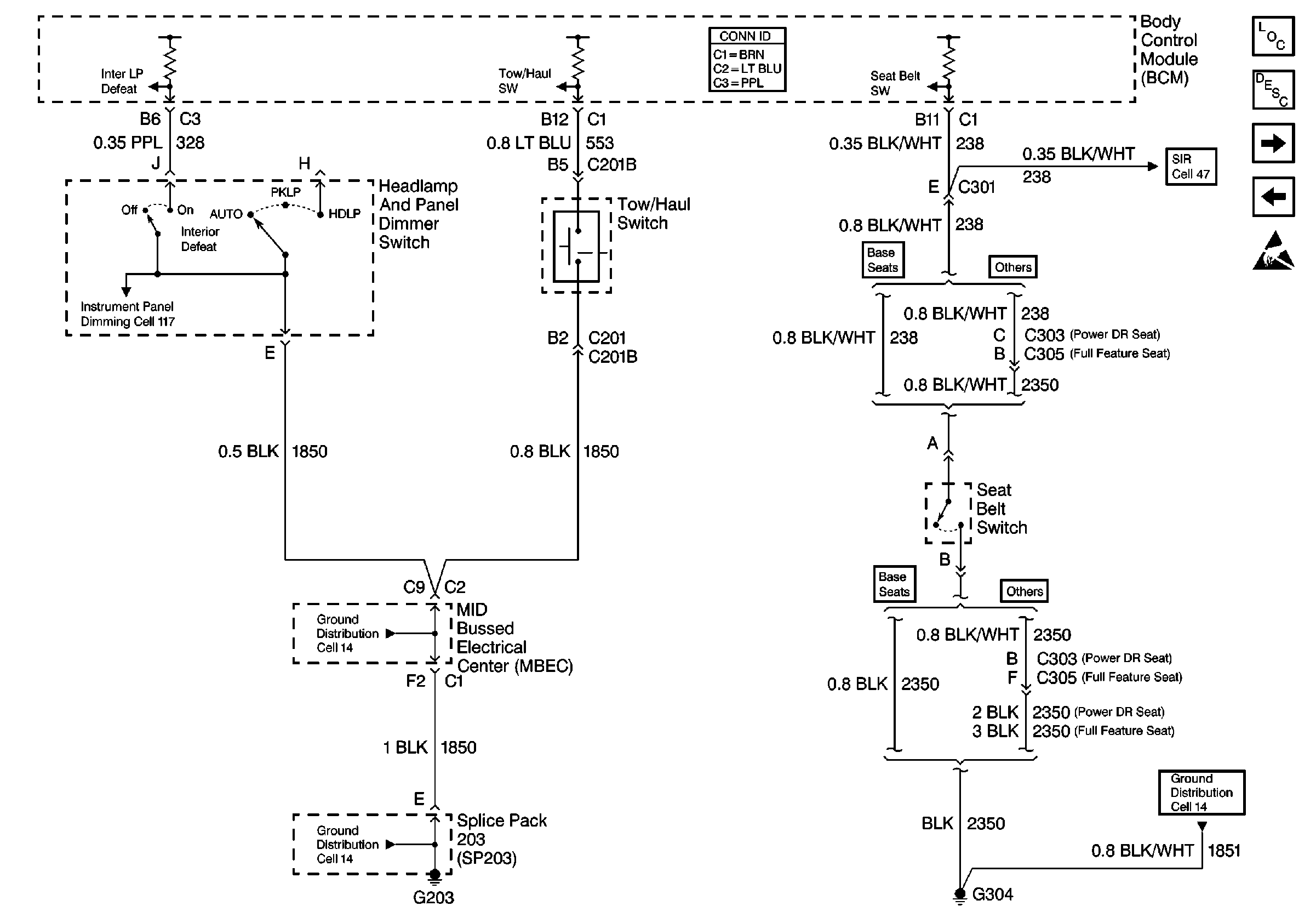

Figure 12:	Cell 51: Dome Defeat Switch, Seat Belts, Tow/Haul Switch Body Control Module Components Body Control System Circuit Description Cell 51: Uplevel Door Jamb Cell 51: Parade Mode, Park Brake Switch, RKE Handling ESD Sensitive Parts Notice Interior Lights Dimming Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics

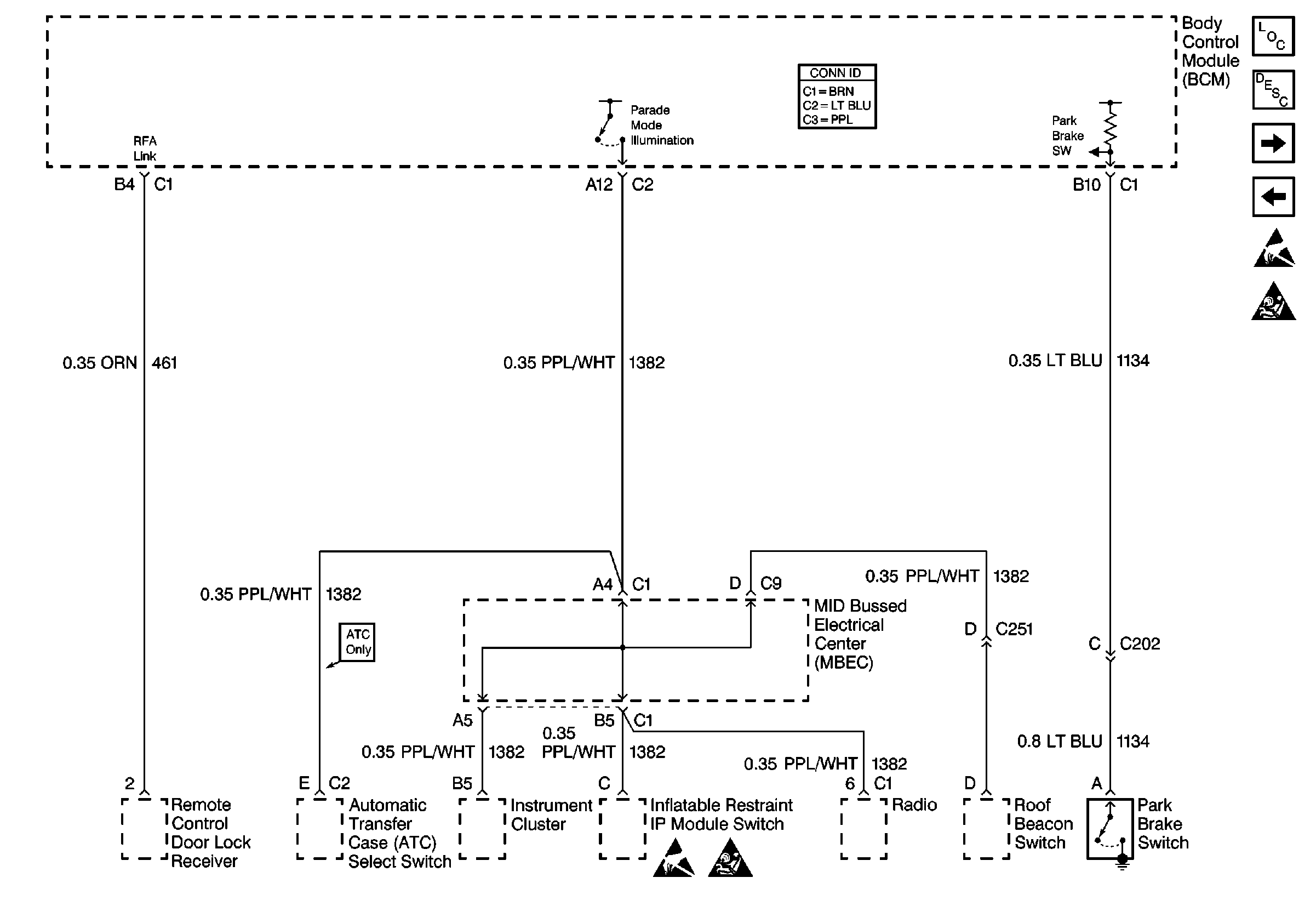

Figure 13:	Cell 51: Parade Mode, Park Brake Switch, RKE Body Control Module Components Body Control System Circuit Description Cell 51: Dome Defeat Switch, Seat Belts, Tow/Haul Switch Cell 51: Base Power Door Locks Handling ESD Sensitive Parts Notice SIR Handling Caution Handling ESD Sensitive Parts Notice SIR Handling Caution

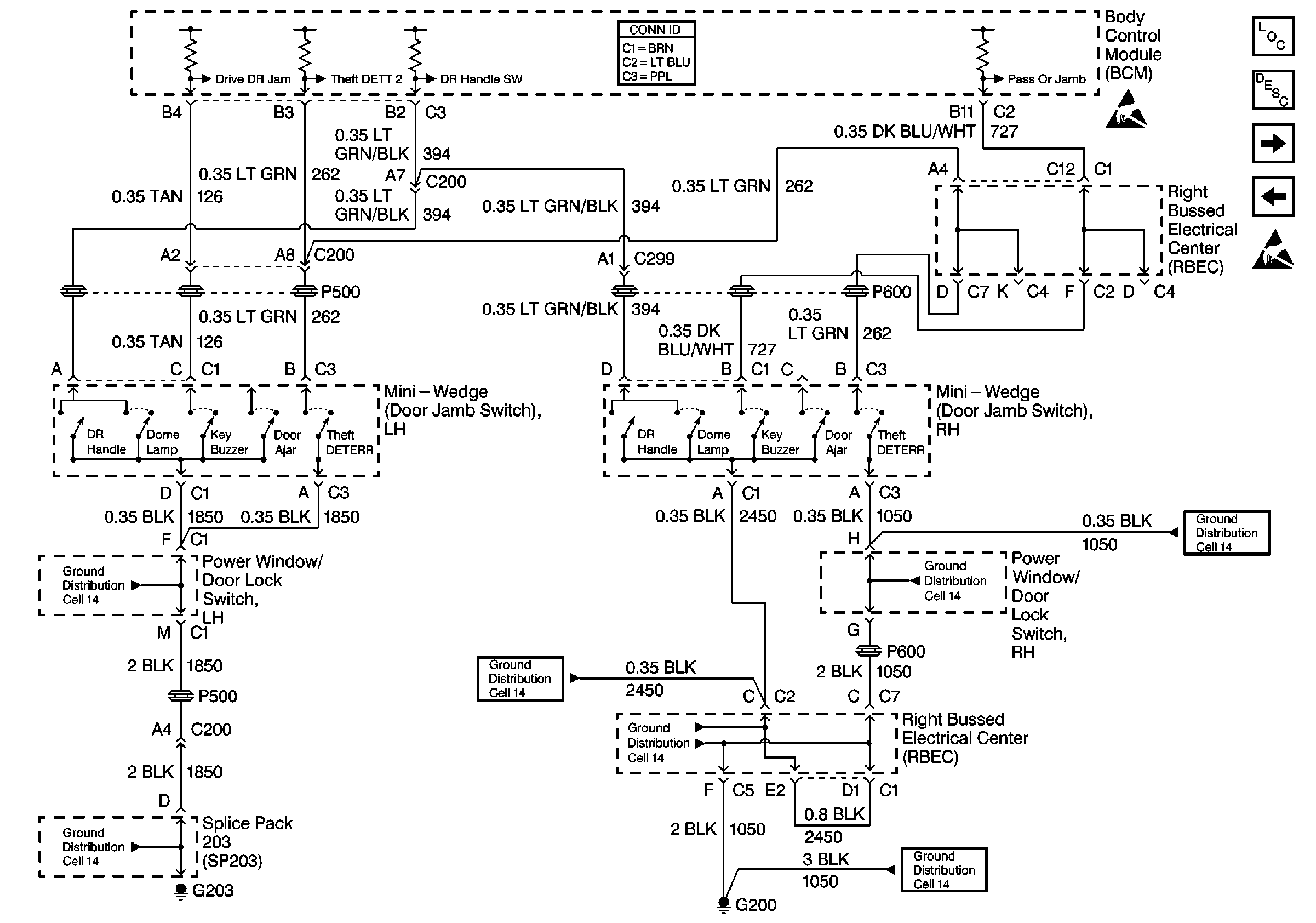

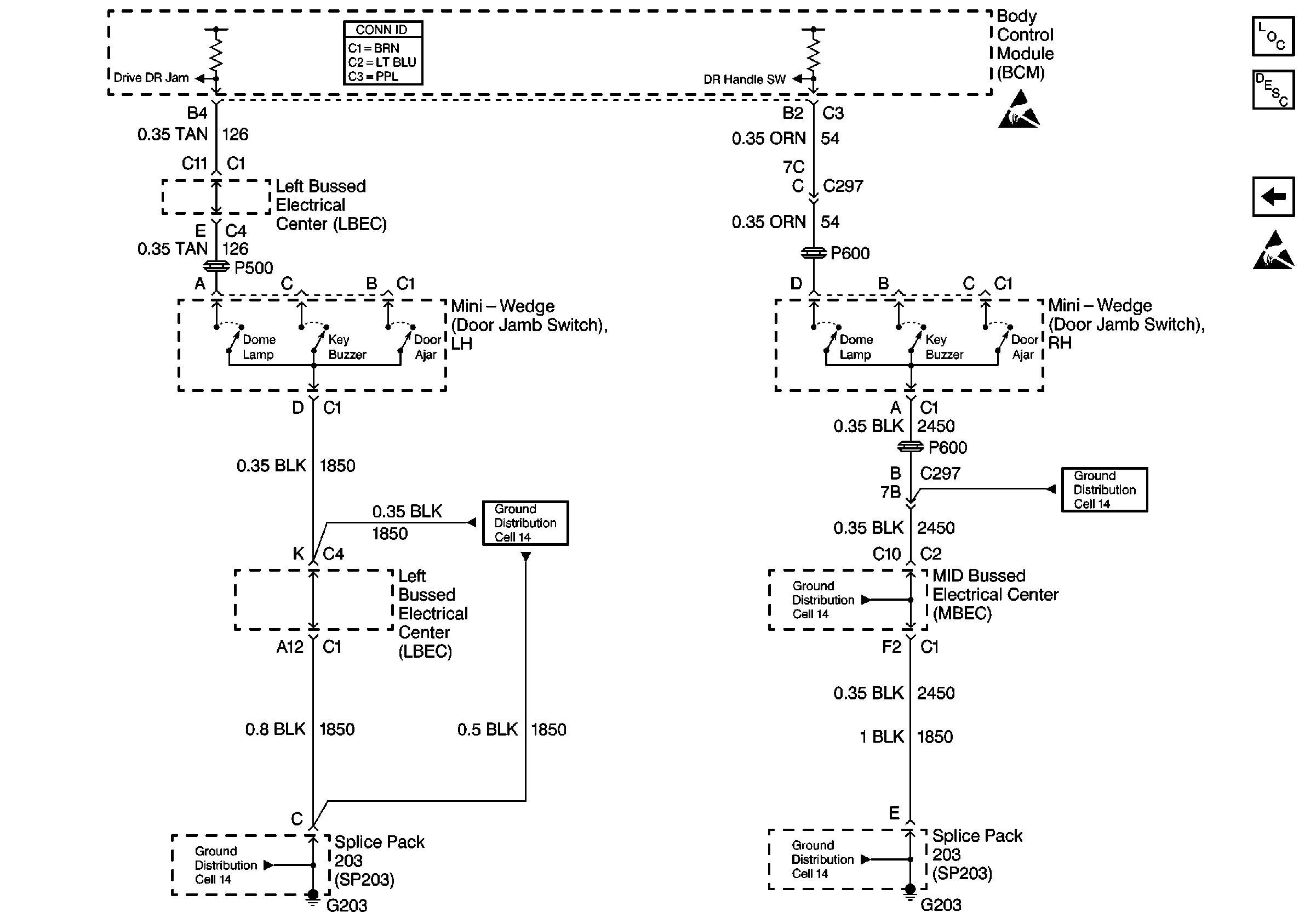

Figure 14:	Cell 51: Uplevel Door Jamb Body Control Module Components Body Control System Circuit Description Cell 51: Base Door Jamb Switches Cell 51: Dome Defeat Switch, Seat Belts, Tow/Haul Switch Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics
Figure 15:	Cell 51: Base Door Jamb Switches Body Control Module Components Body Control System Circuit Description Cell 51: Uplevel Door Jamb Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics
