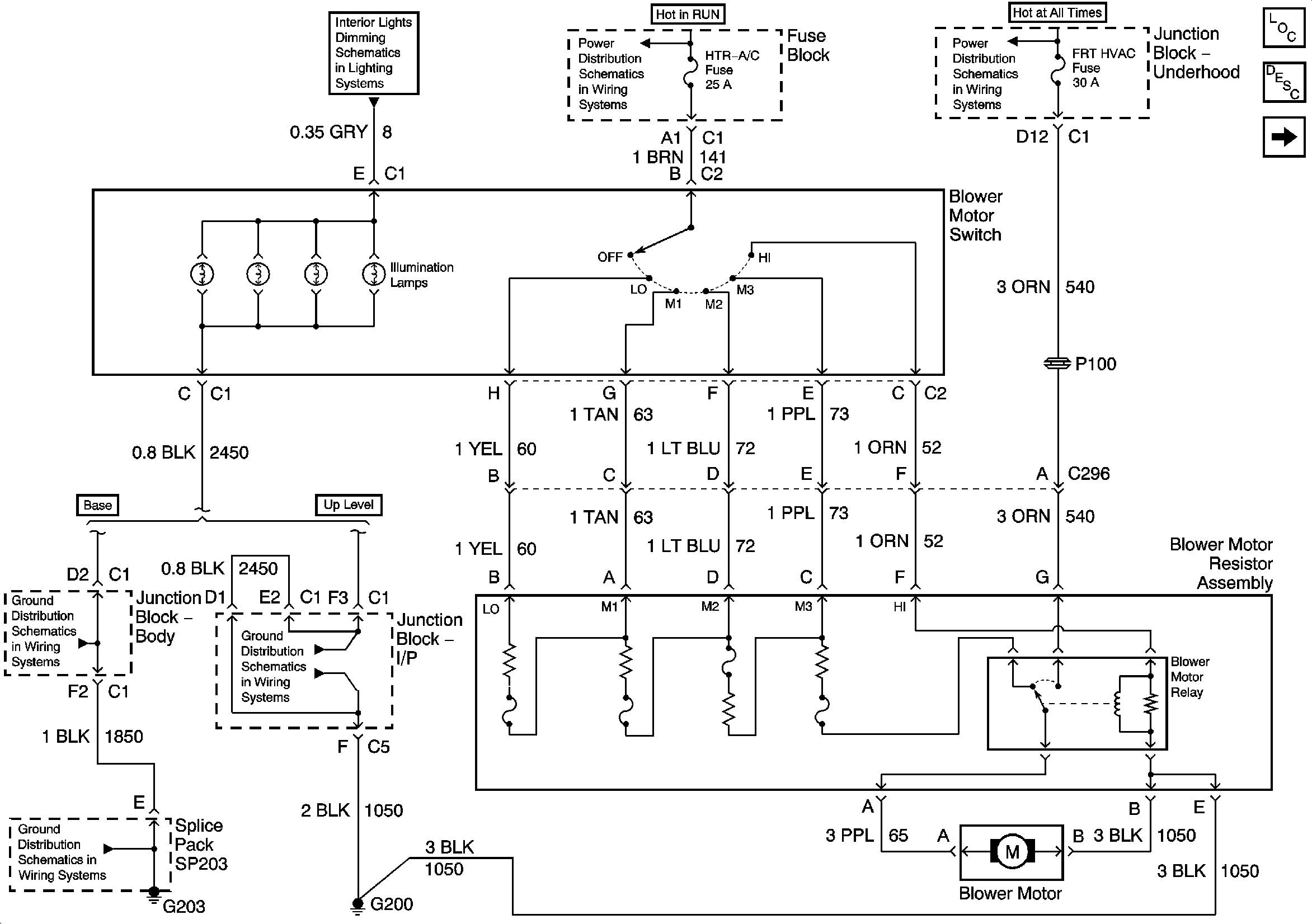

HVAC Schematics Blower Controls - Primary

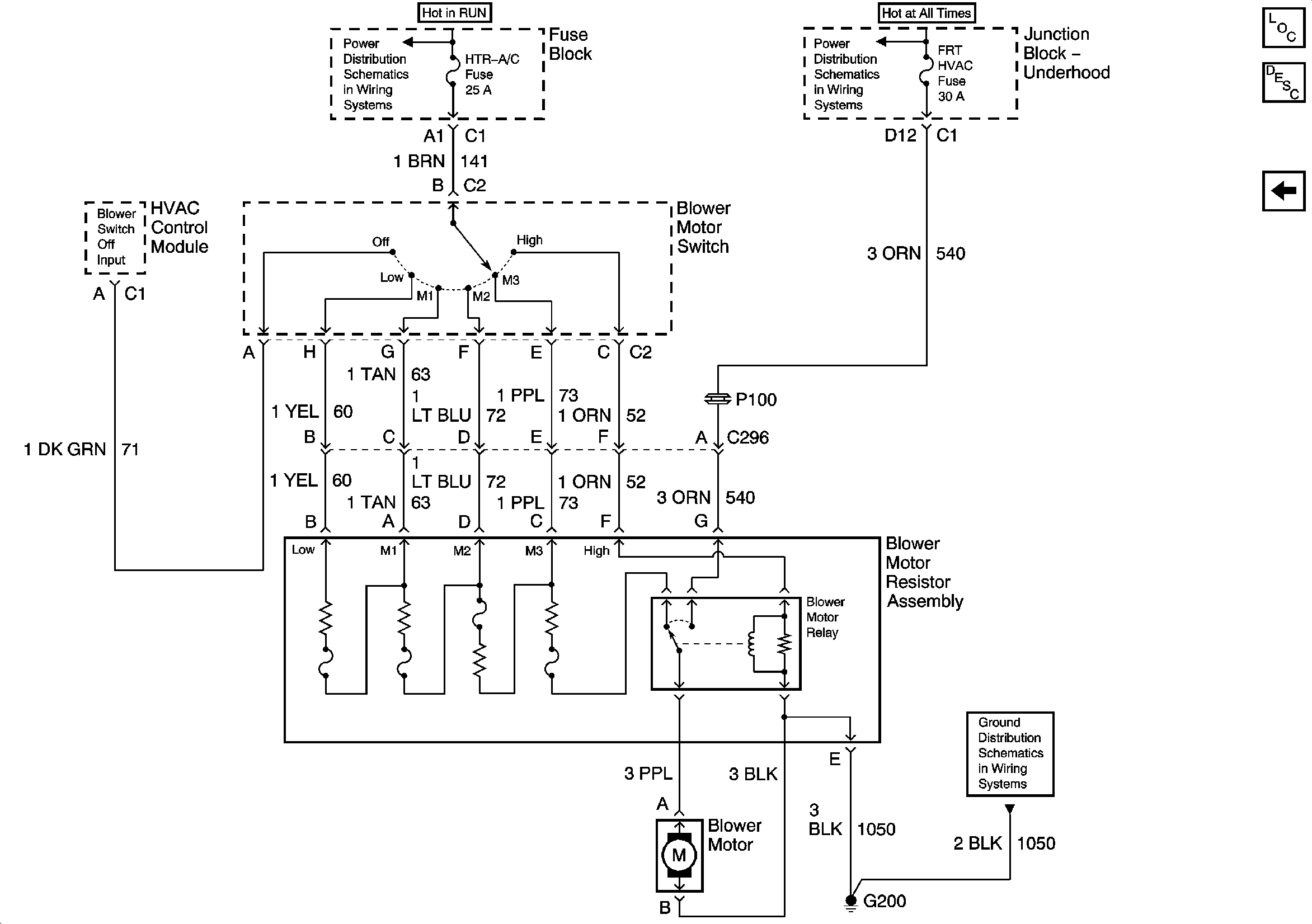

Figure 1:	(w/o A/C)
Figure 2:	w/Heat and A/C

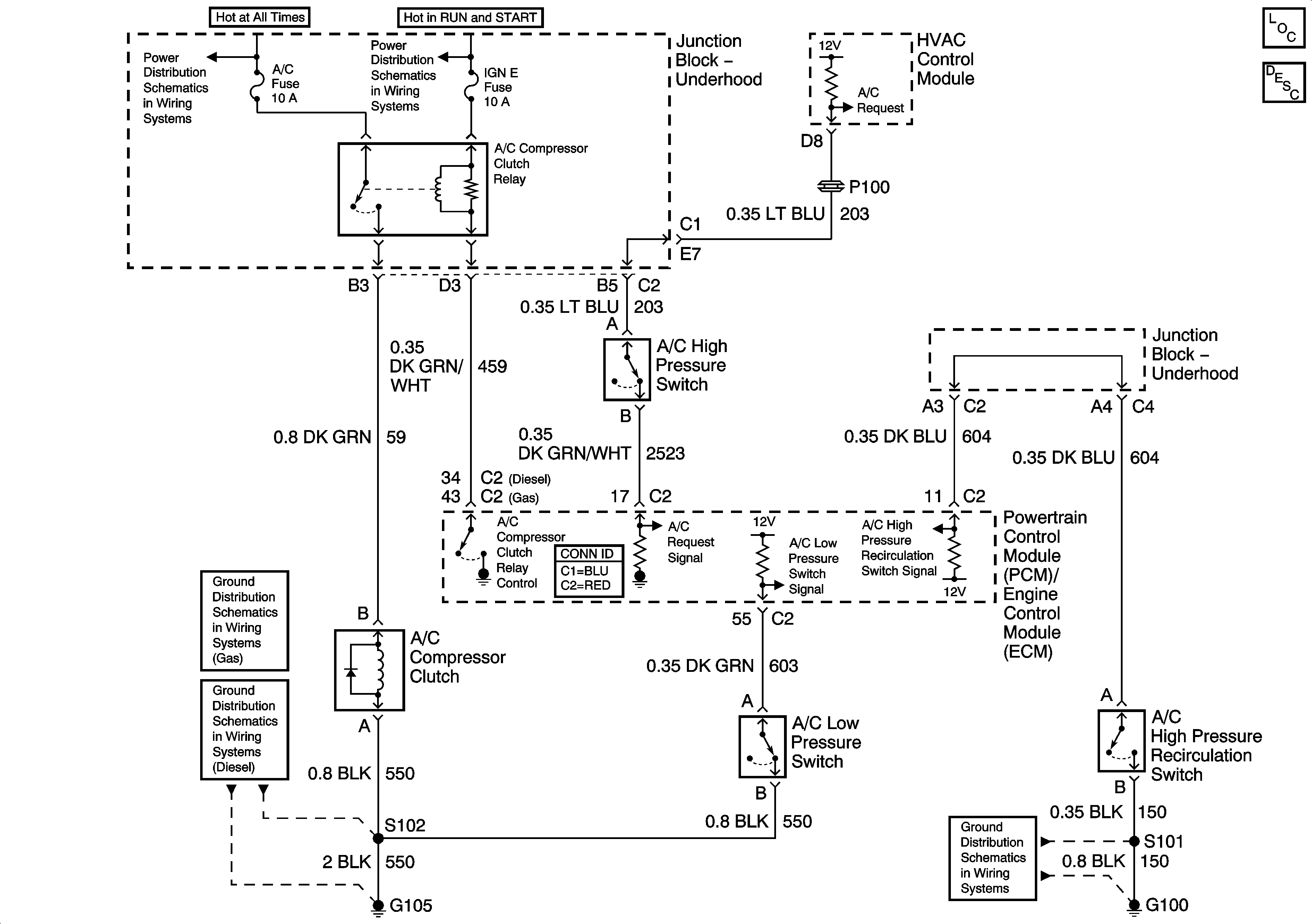

HVAC Schematics Compressor Controls - All Models

HVAC Schematics Air Delivery Controls - Primary

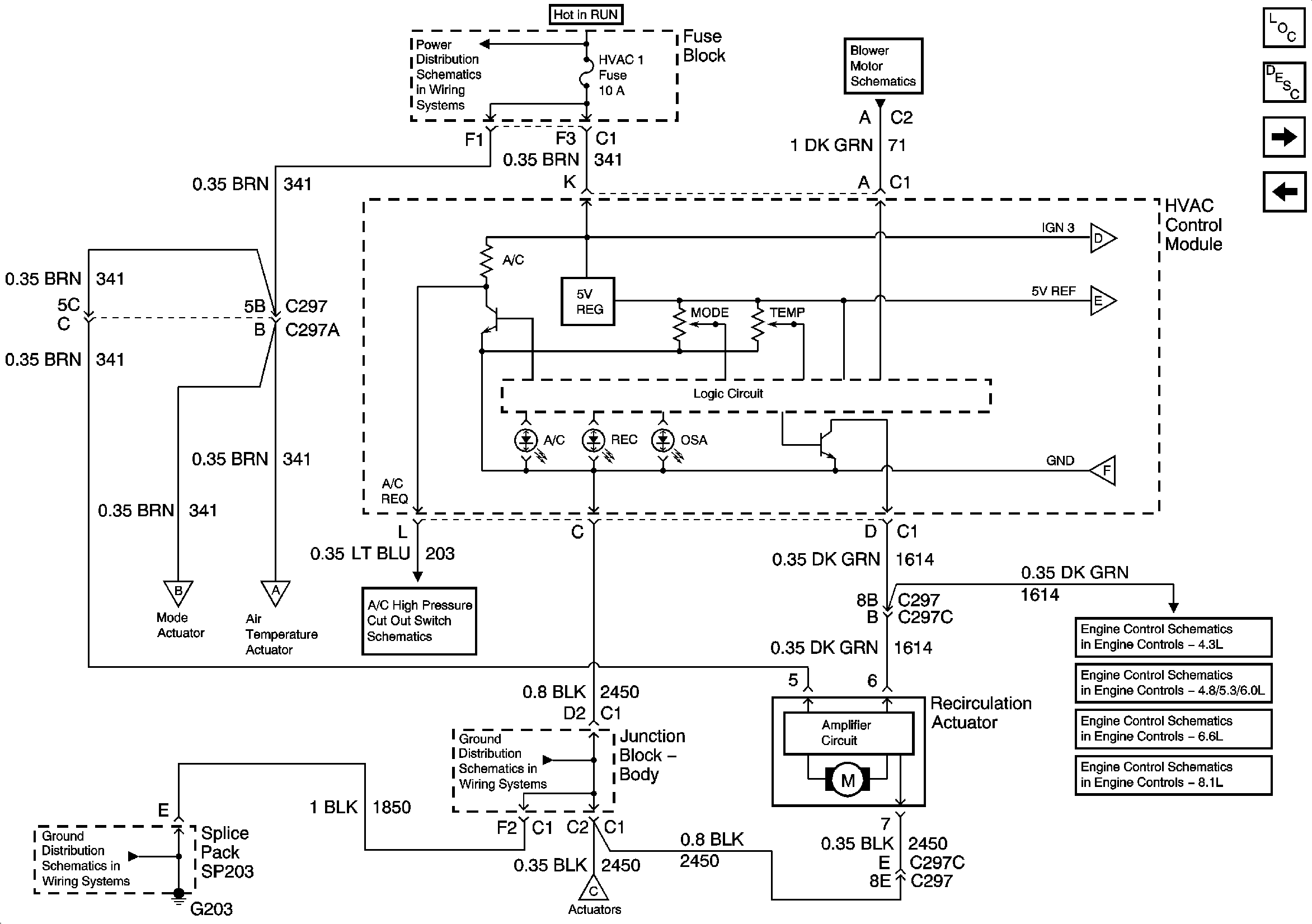

Figure 1:	Recirculation Actuator (Uplevel Pickup and All Utilities)

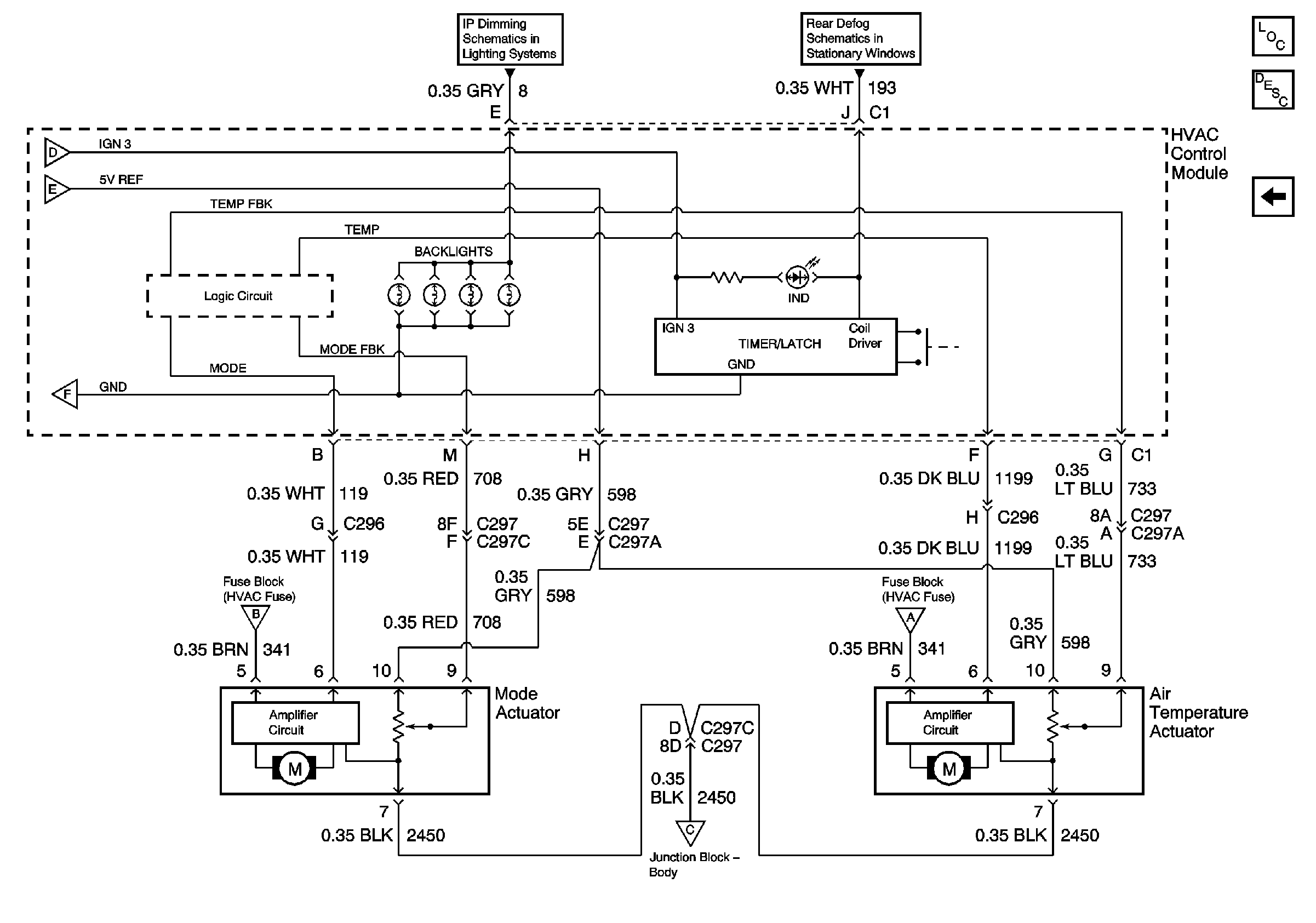

Figure 2:	Mode and Air Temperature Actuators (Uplevel Pickup and All Utilities)

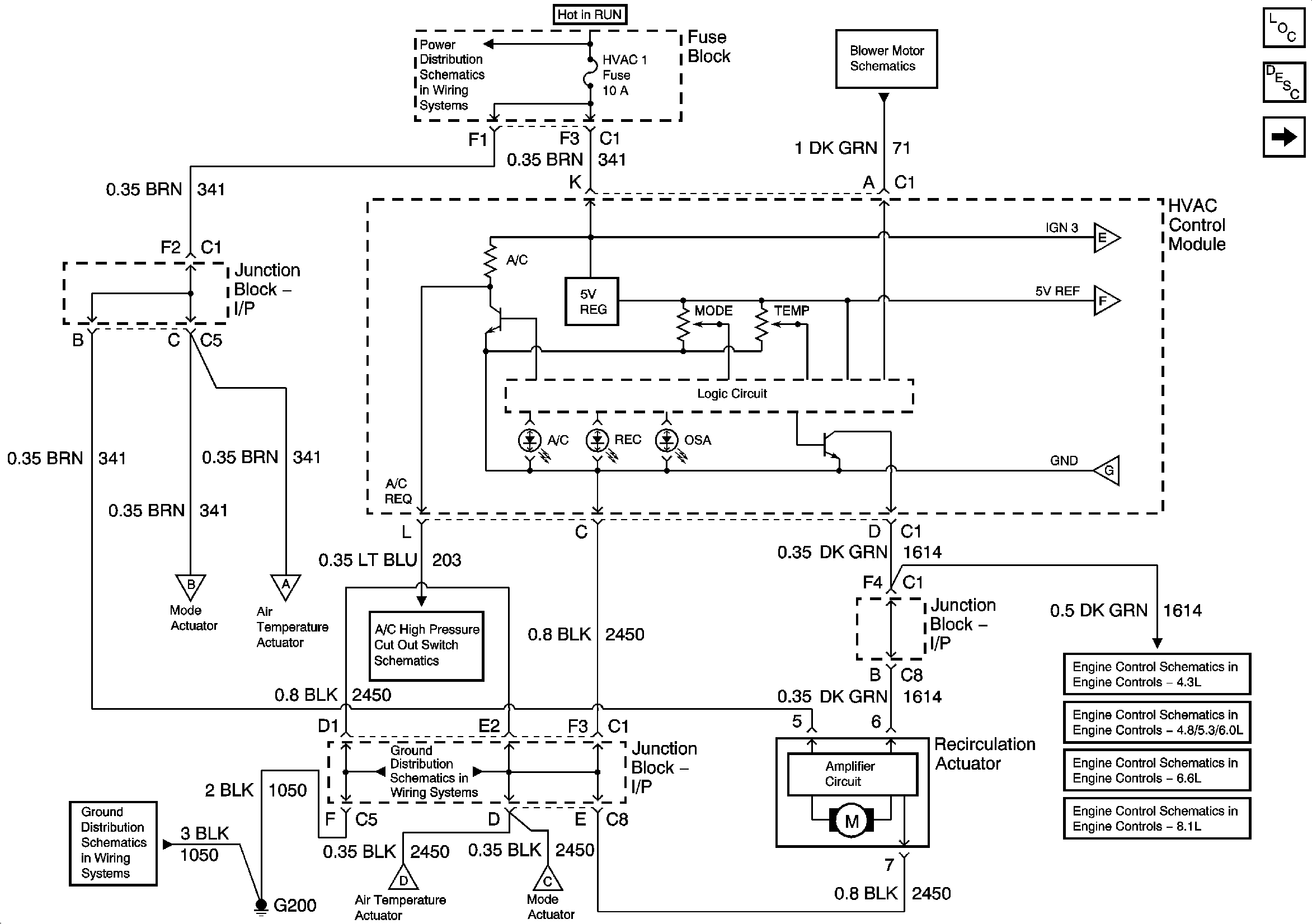

Figure 3:	Recirculation Actuator (Base Pickup)

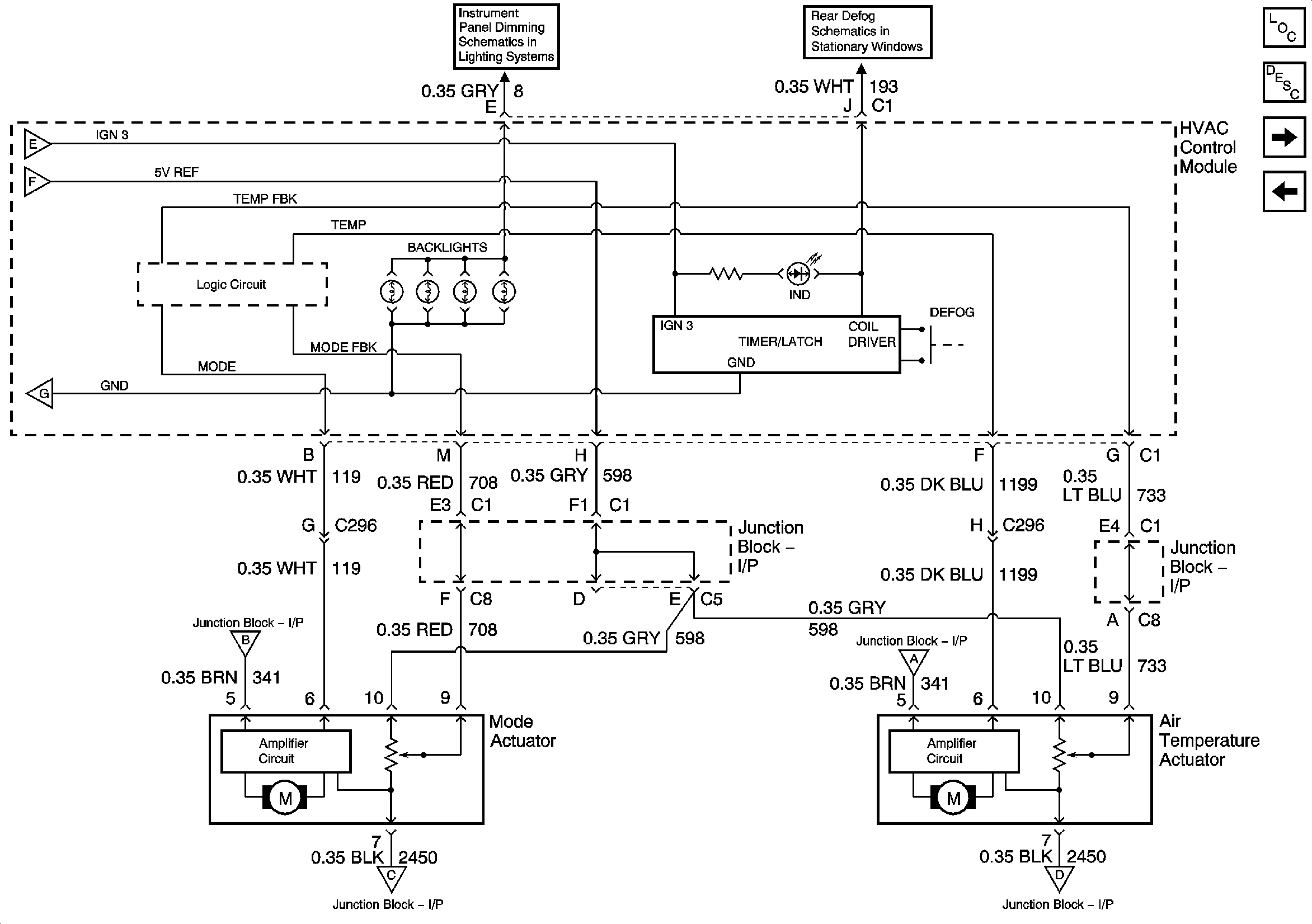

Figure 4:	Mode and Air Temperature Actuators (Base Pickup)

HVAC Schematics Blower Controls - Auxiliary

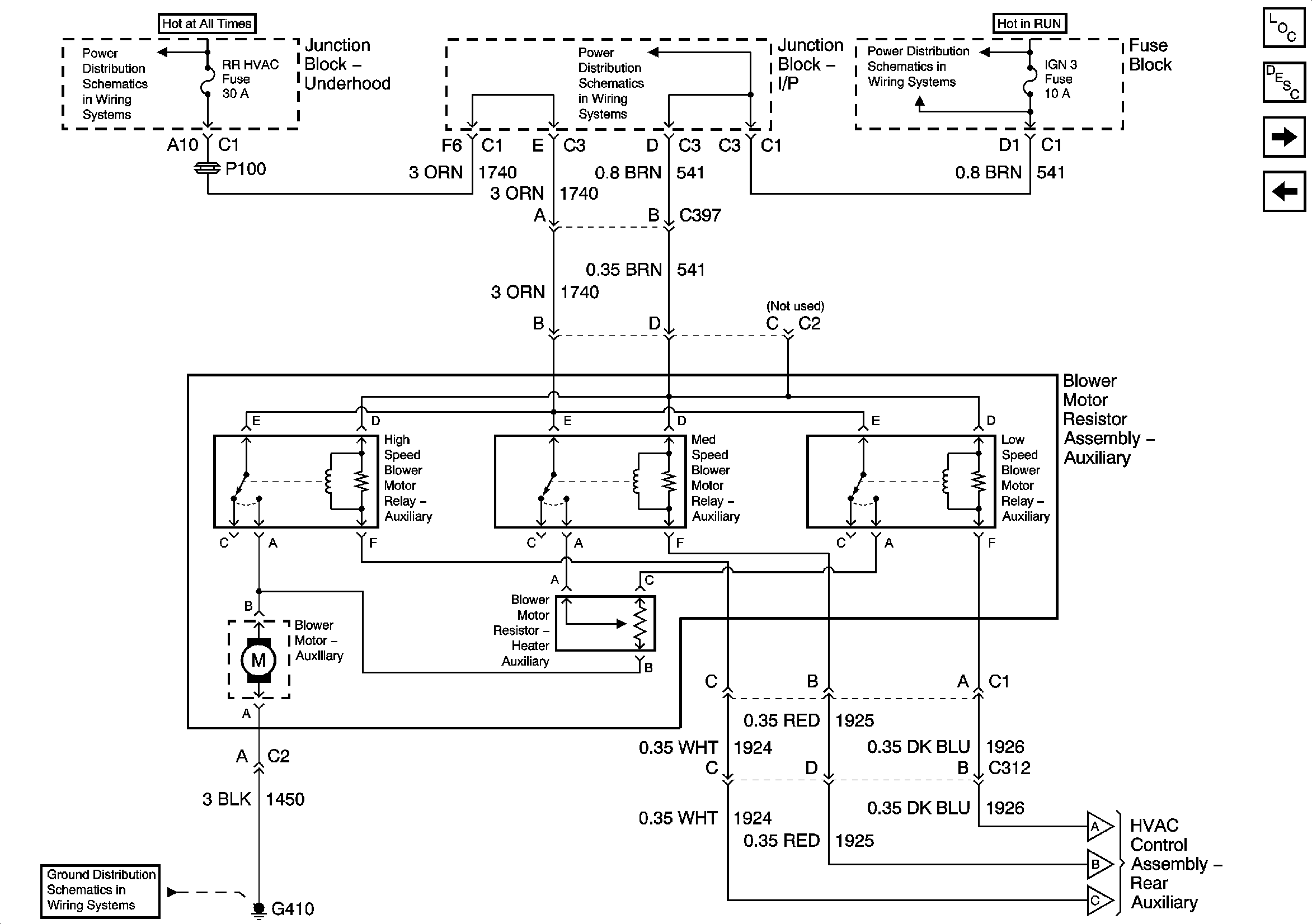

Figure 1:	w/Sunroof (w/Heat or A/C only)

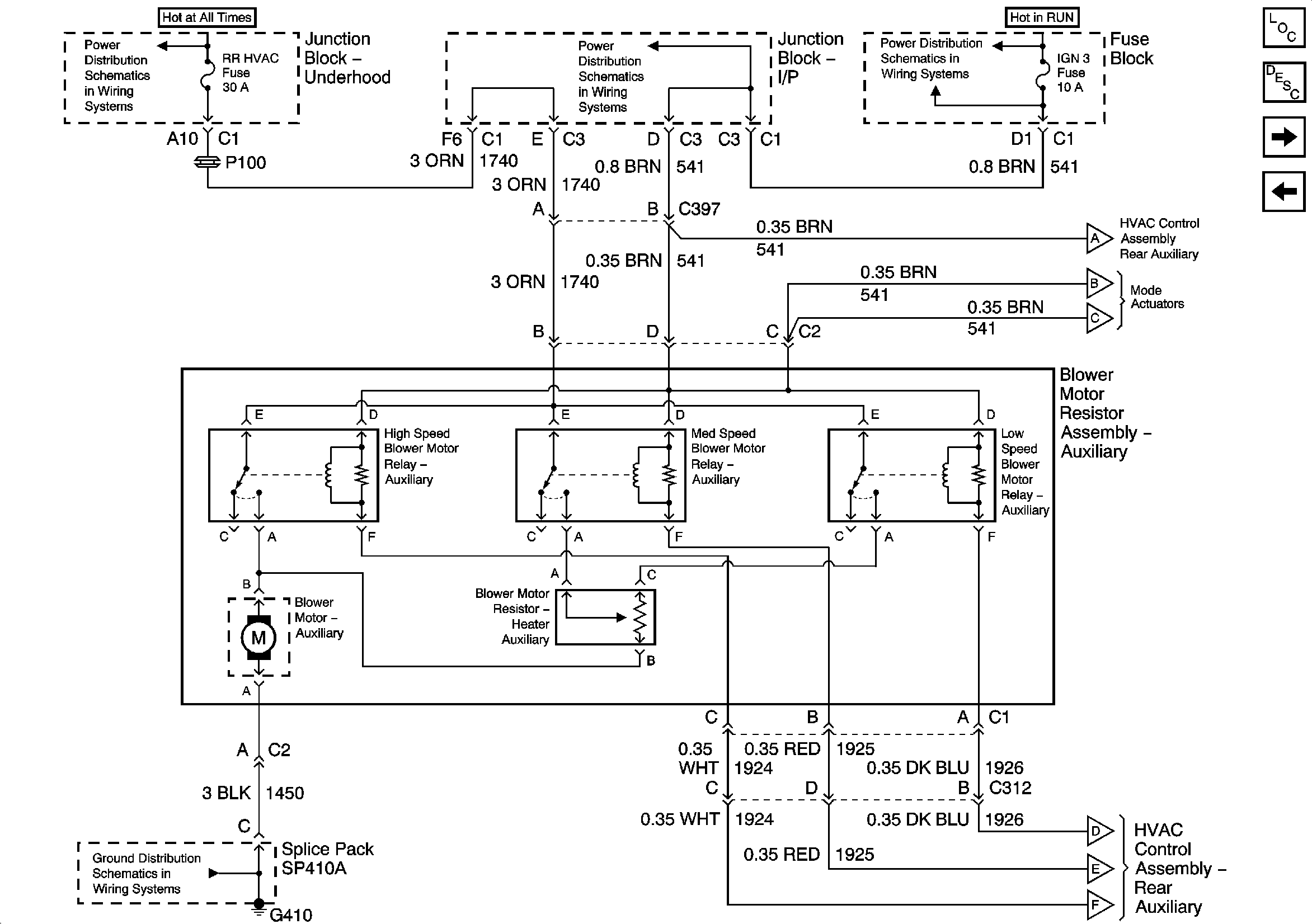

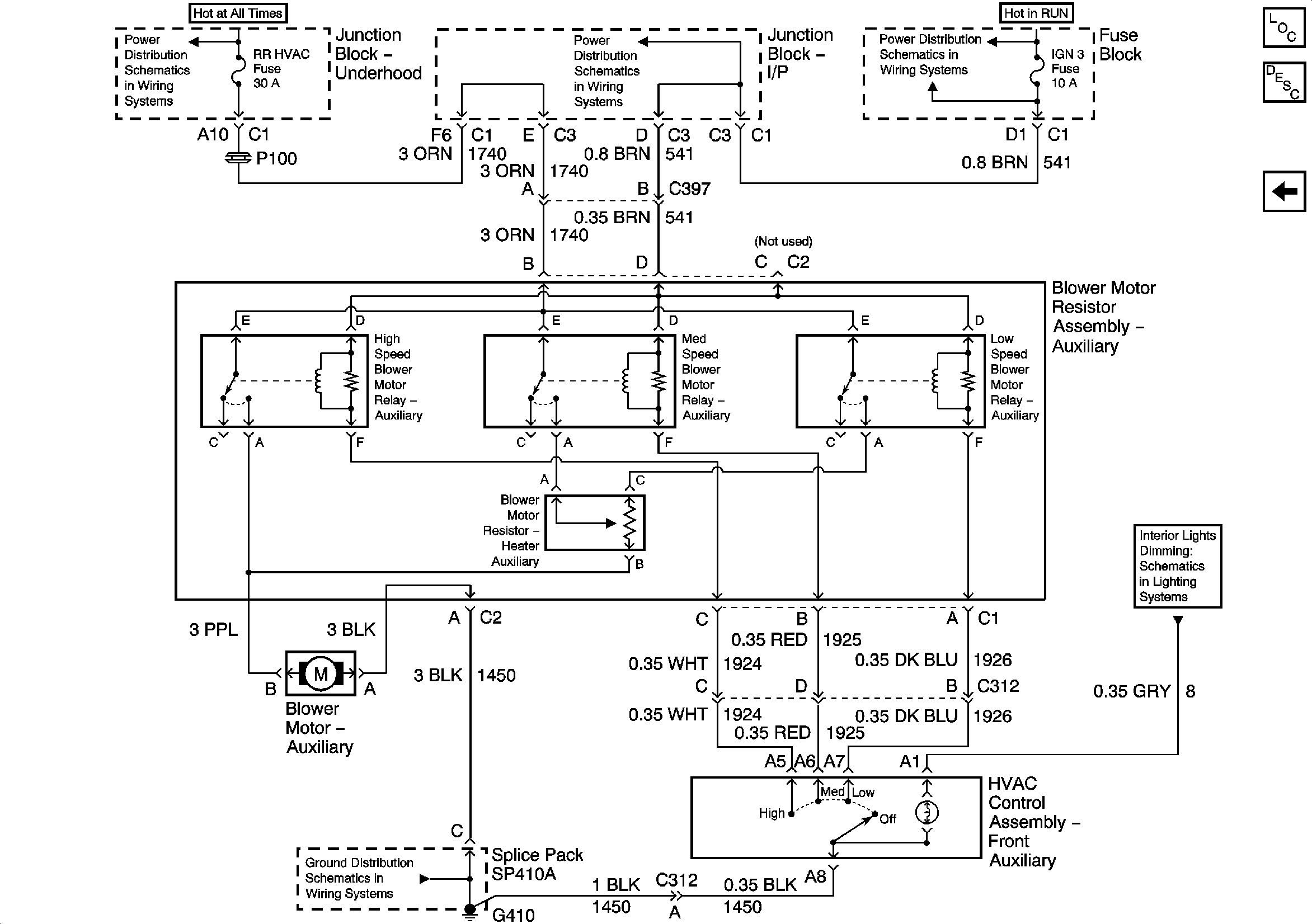

Figure 2:	w/o Sunroof -- Relays and Motor (A/C Only)

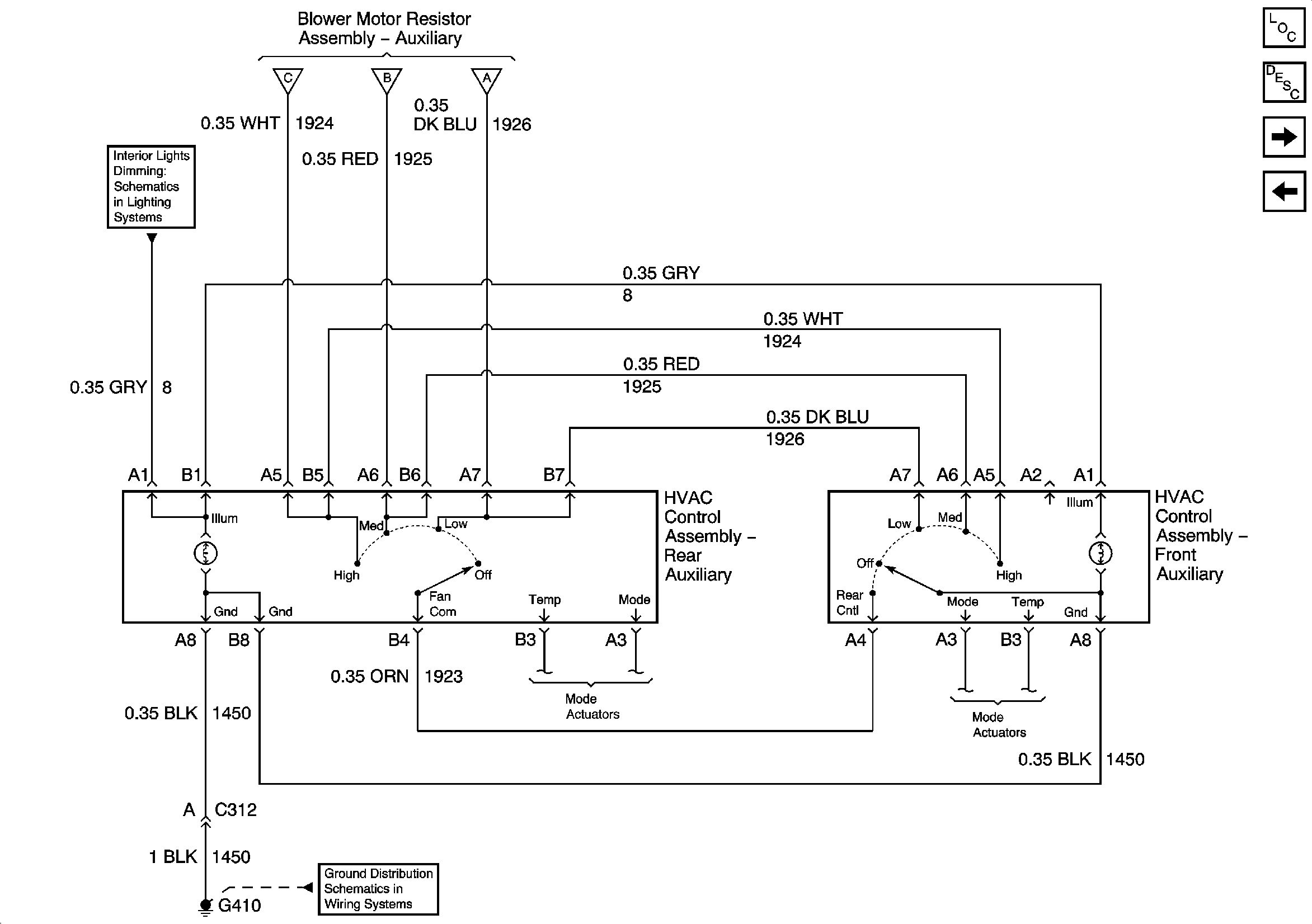

Figure 3:	w/o Sunroof -- Device Controls (A/C Only)

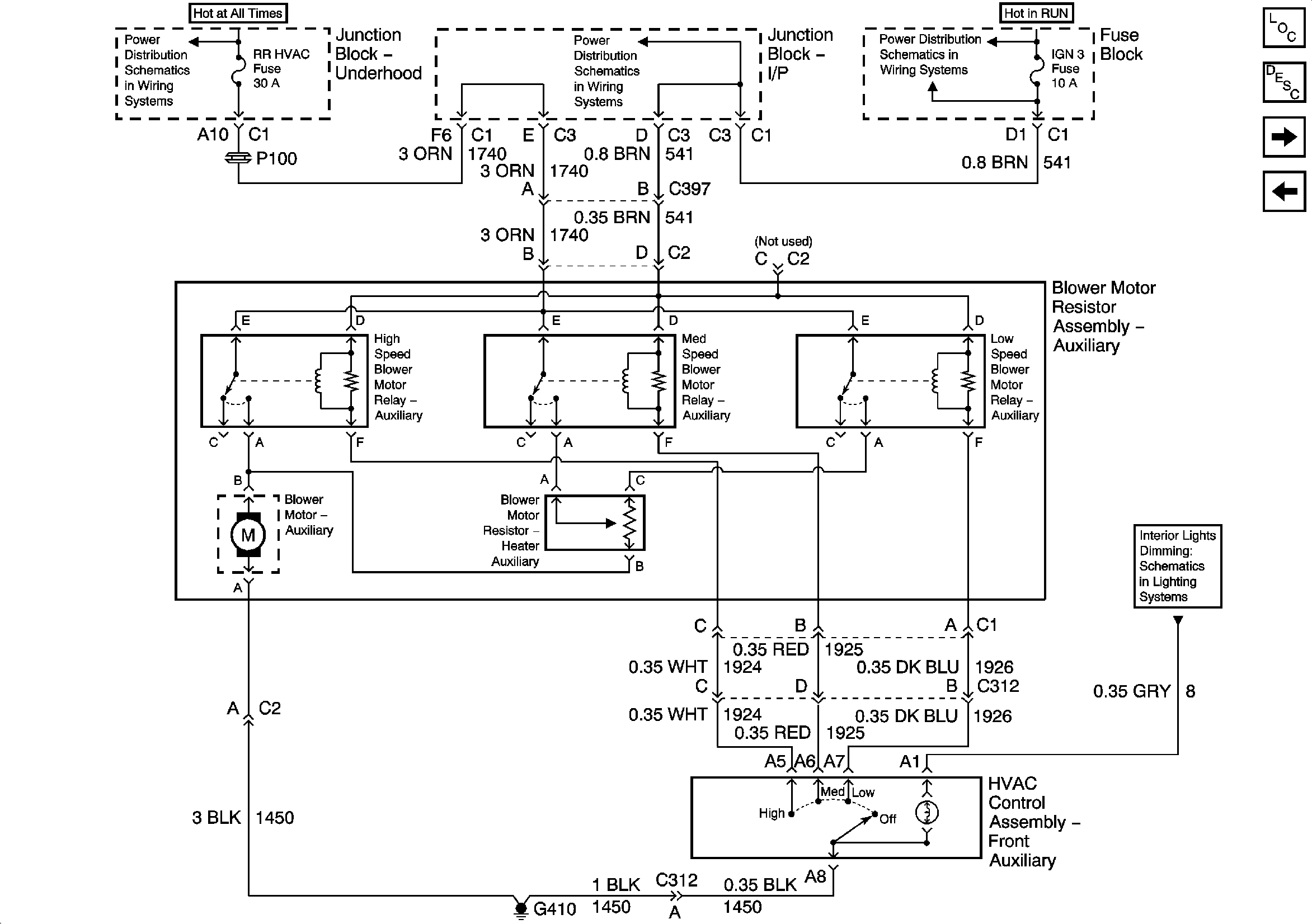

Figure 4:	w/o Sunroof -- Relays and Motor (w/Heat and A/C)

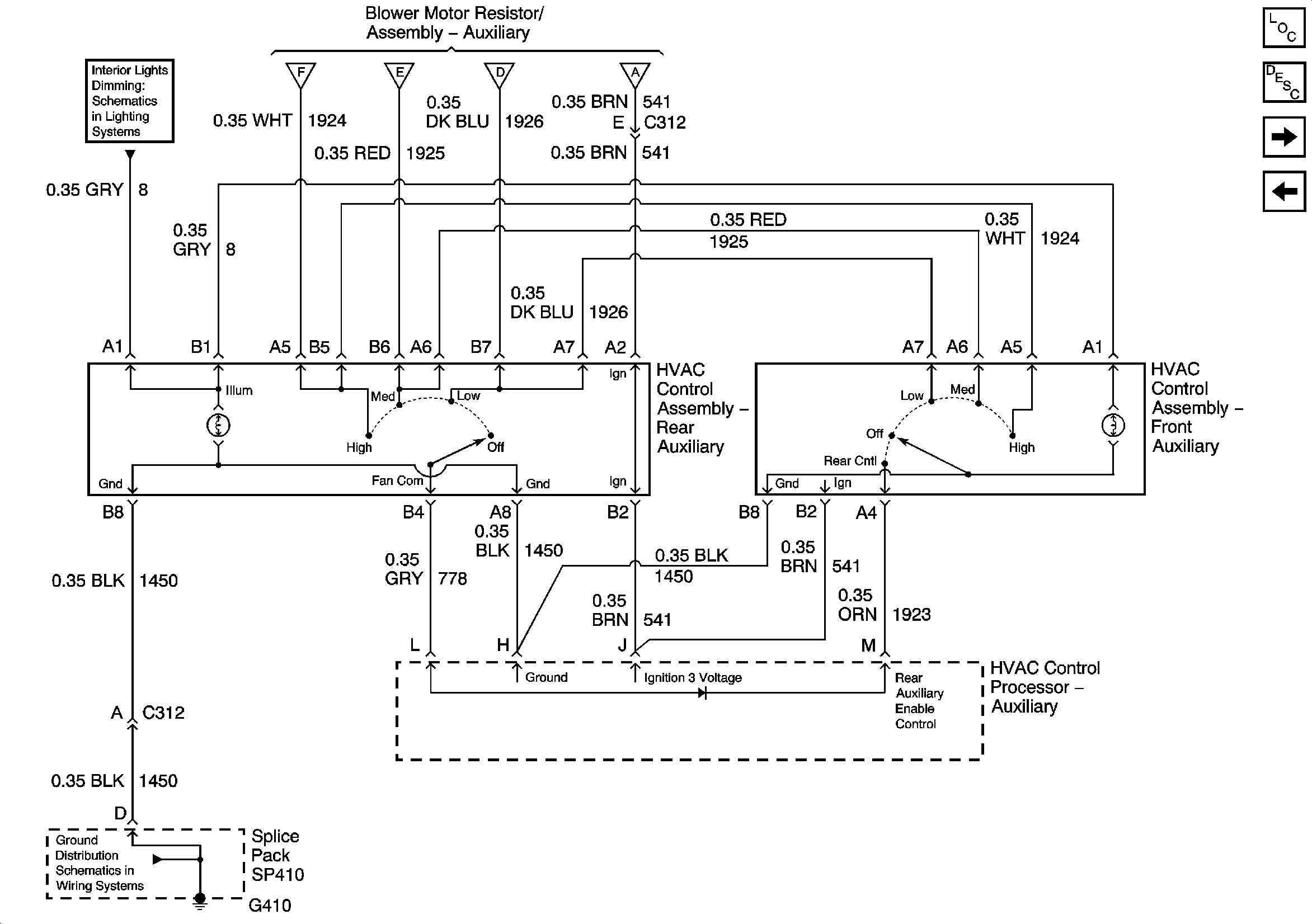

Figure 5:	w/o Sunroof -- Device Controls (w/Heat and A/C)
Figure 6:	w/Sunroof (Heat and A/C)

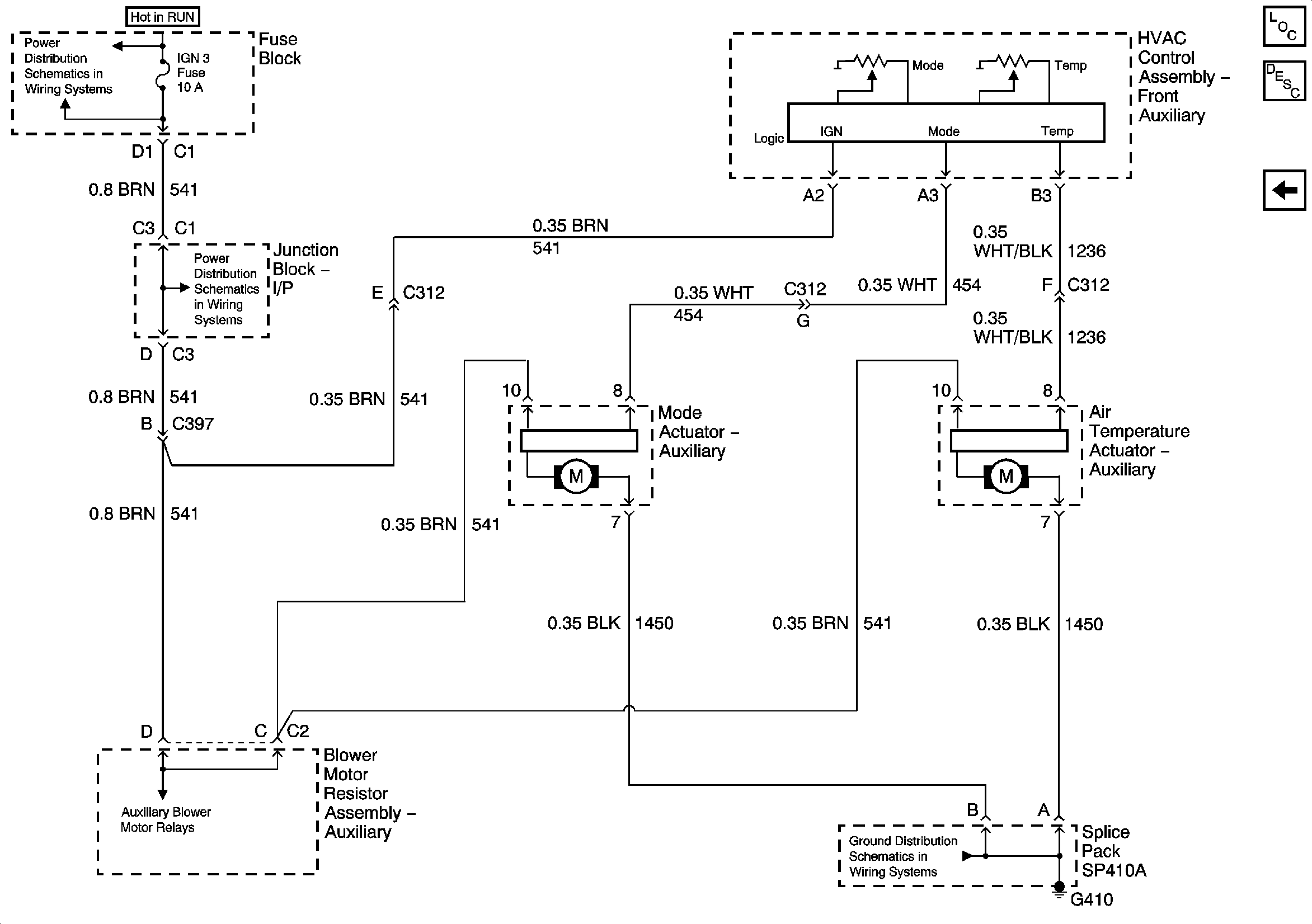

HVAC Schematics Air Delivery Controls - Auxiliary

Figure 1:	w/o Sunroof

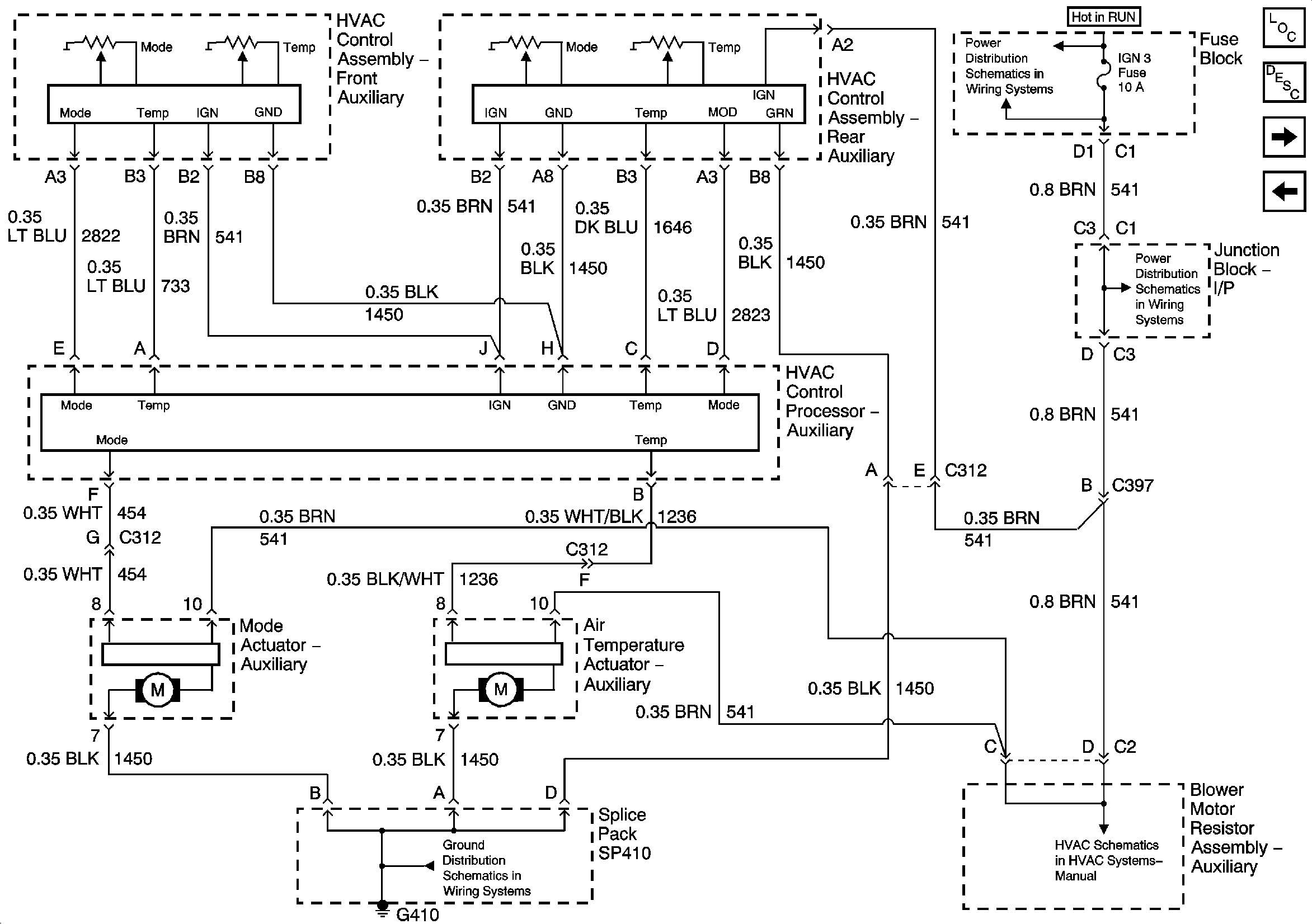

Figure 2:	w/Sunroof
