HVAC Schematics Blower Controls - Primary

HVAC Schematics Compressor Controls - All Models

HVAC Schematics Air Delivery Controls - Primary

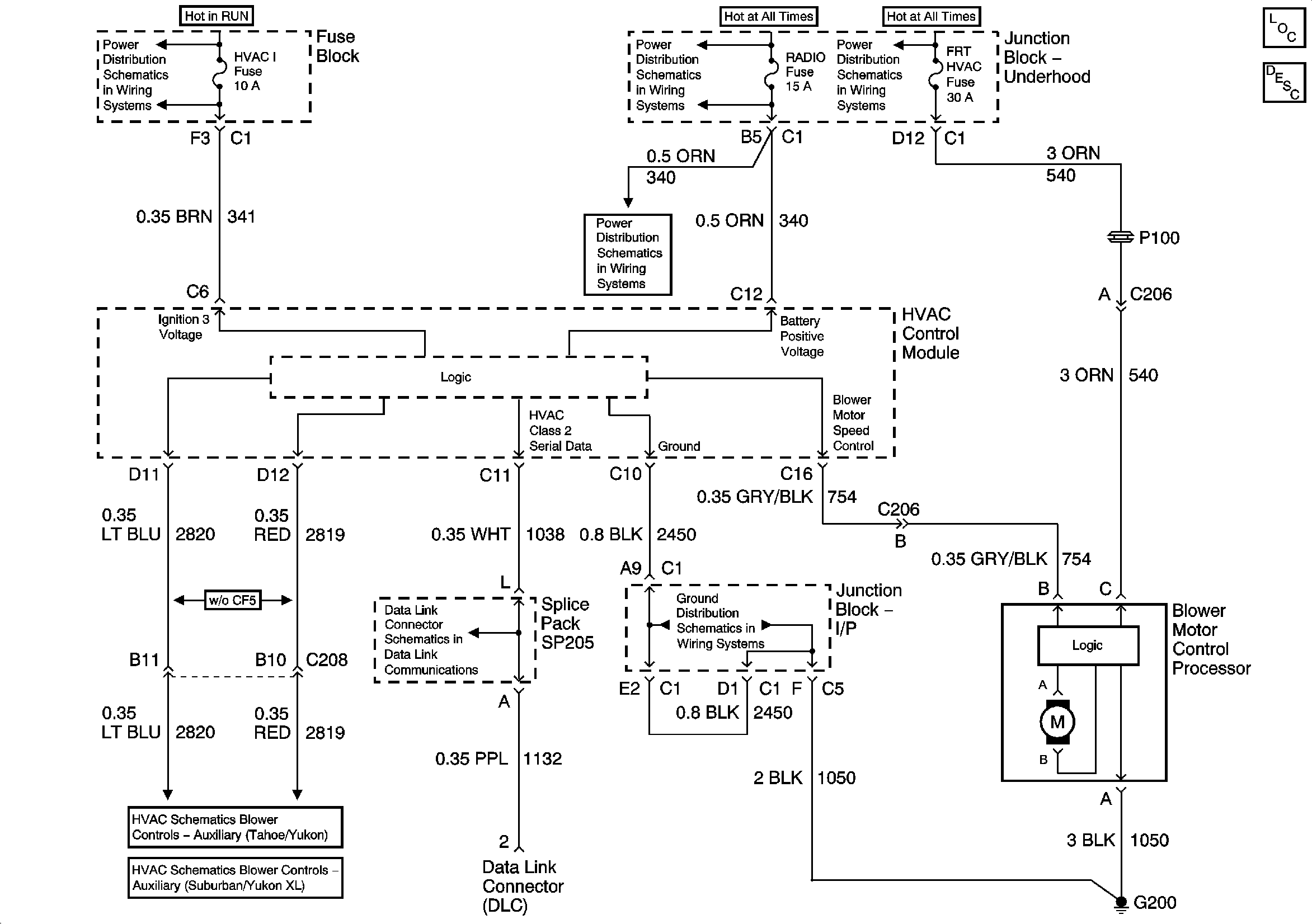

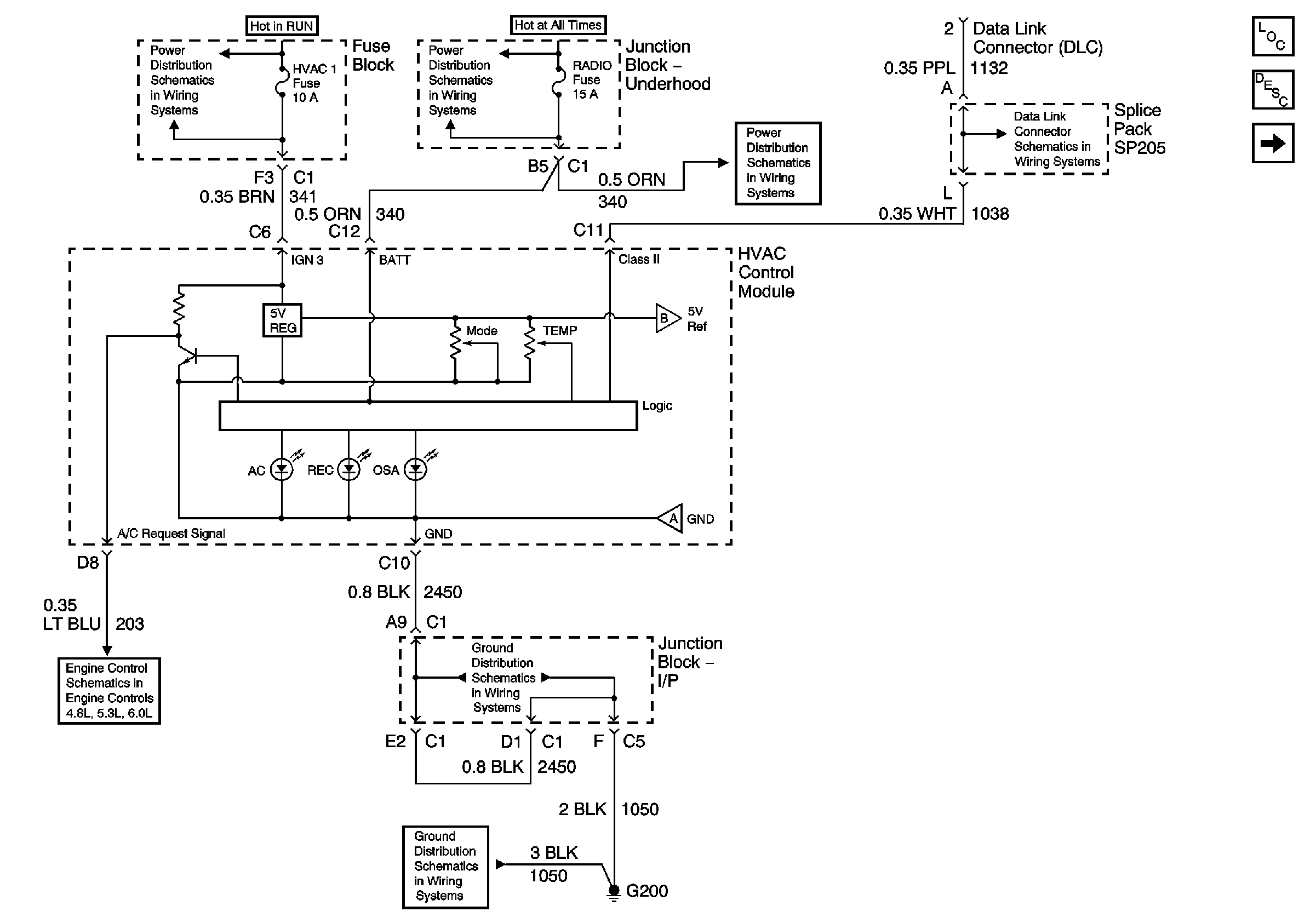

Figure 1:	HVAC Control Module Power, Ground, and Serial Data

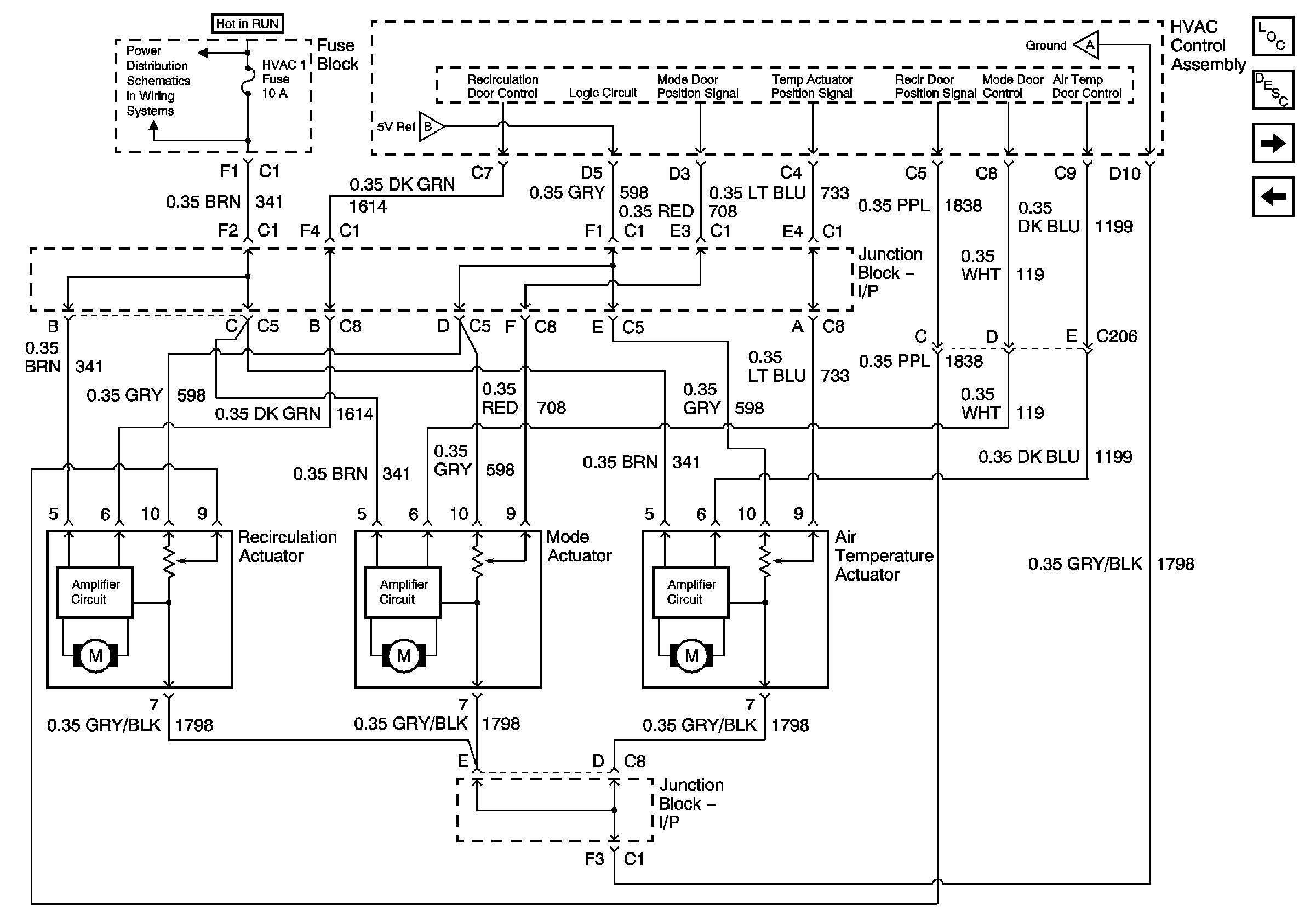

Figure 2:	Actuators

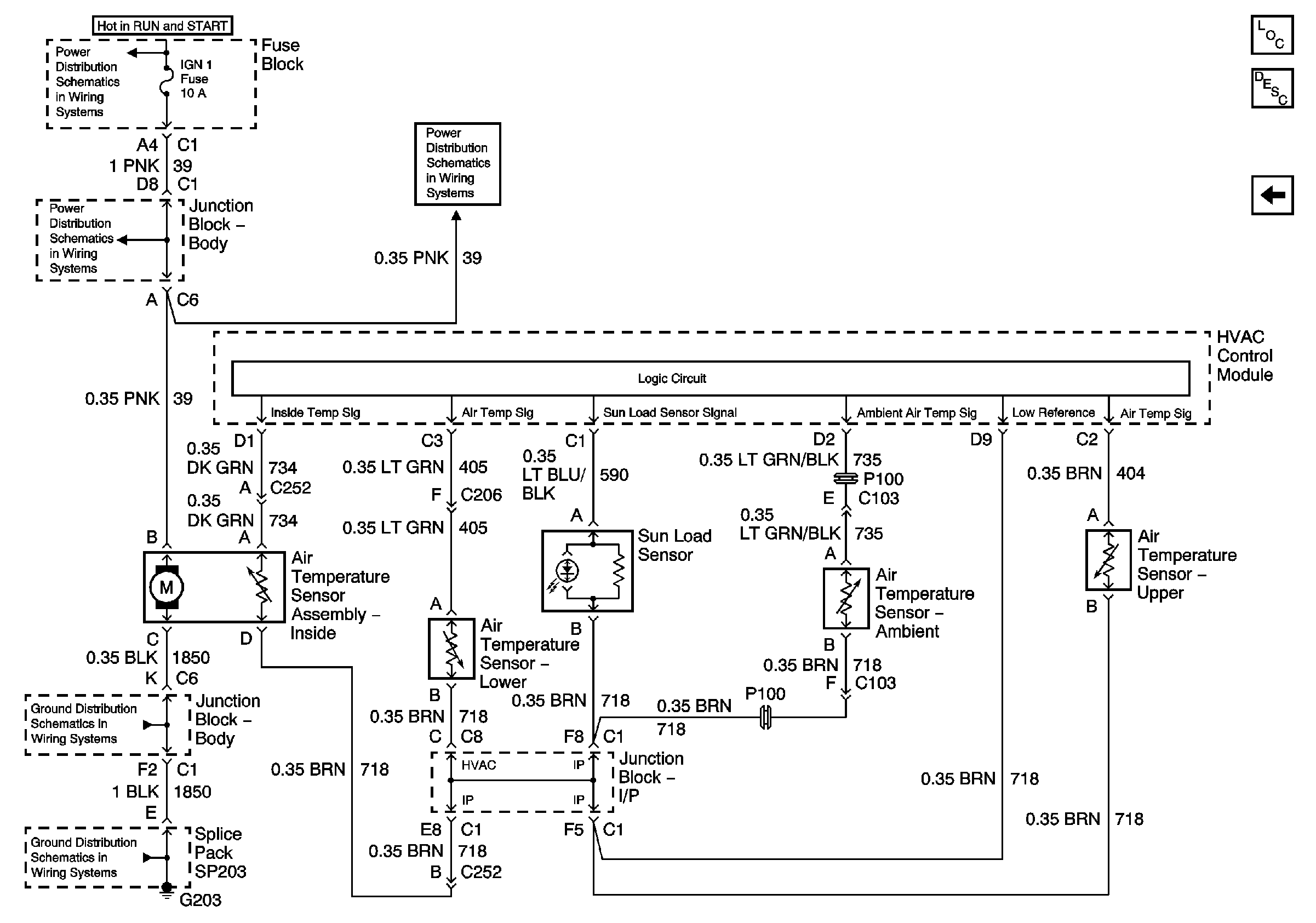

Figure 3:	Sensors

HVAC Schematics Blower Controls - Auxiliary

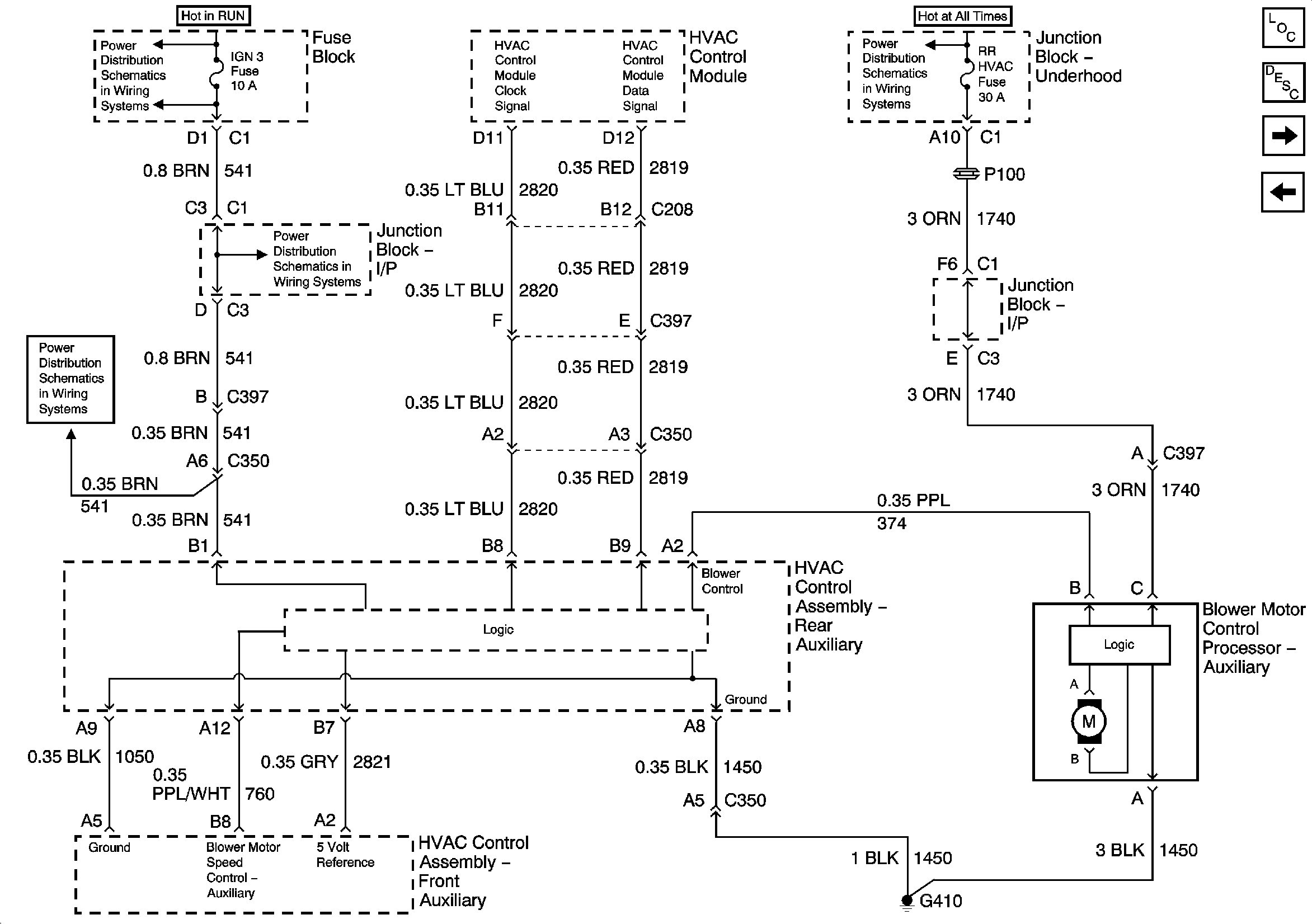

Figure 1:	w/o Sunroof (Tahoe/Yukon)

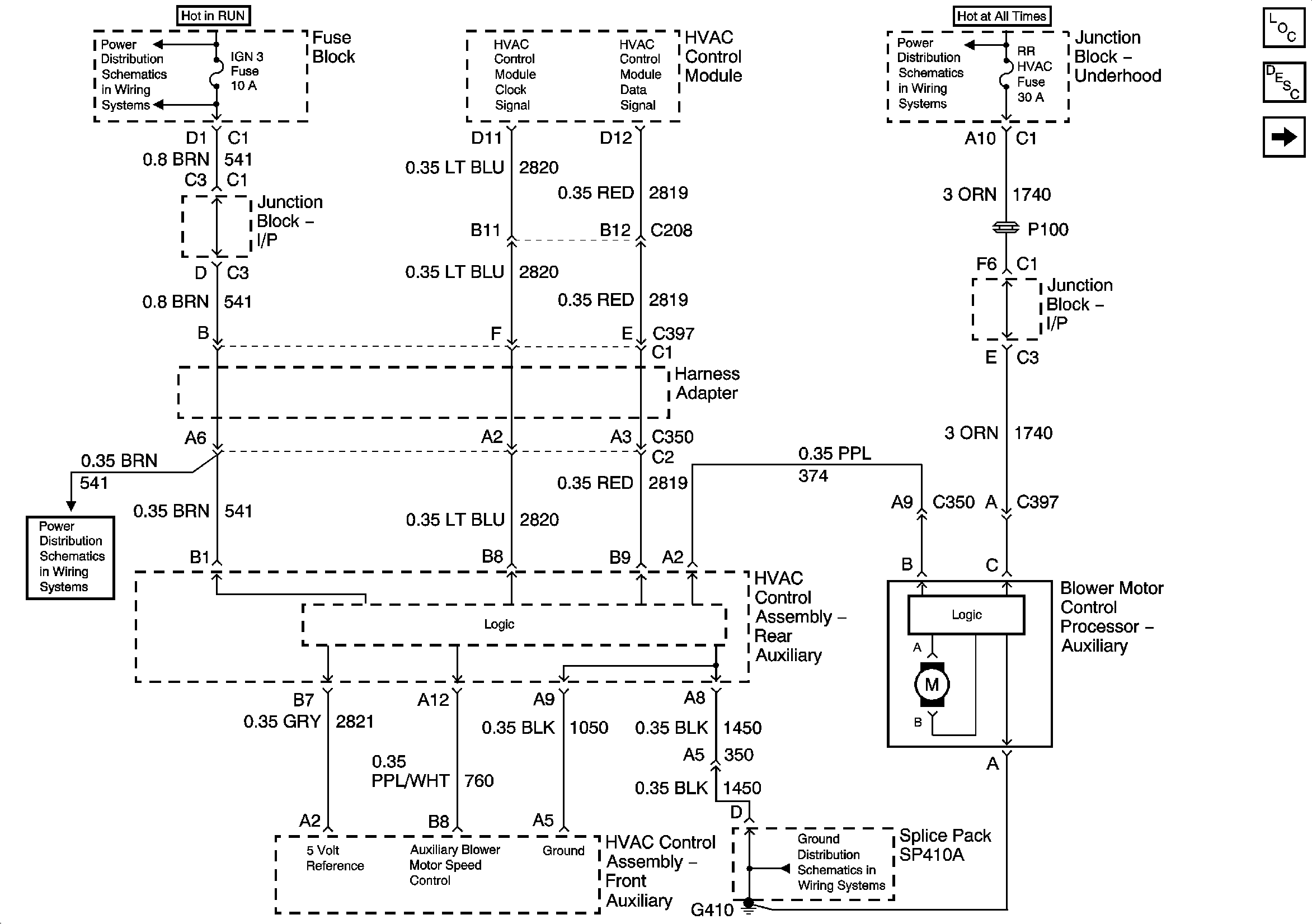

Figure 2:	w/o Sunroof (Suburban/Yukon XL)
Figure 3:	w/Sunroof (w/Heat or A/C only)
Figure 4:	w/Sunroof (w/Heat and A/C)

HVAC Schematics Air Delivery Controls - Auxiliary

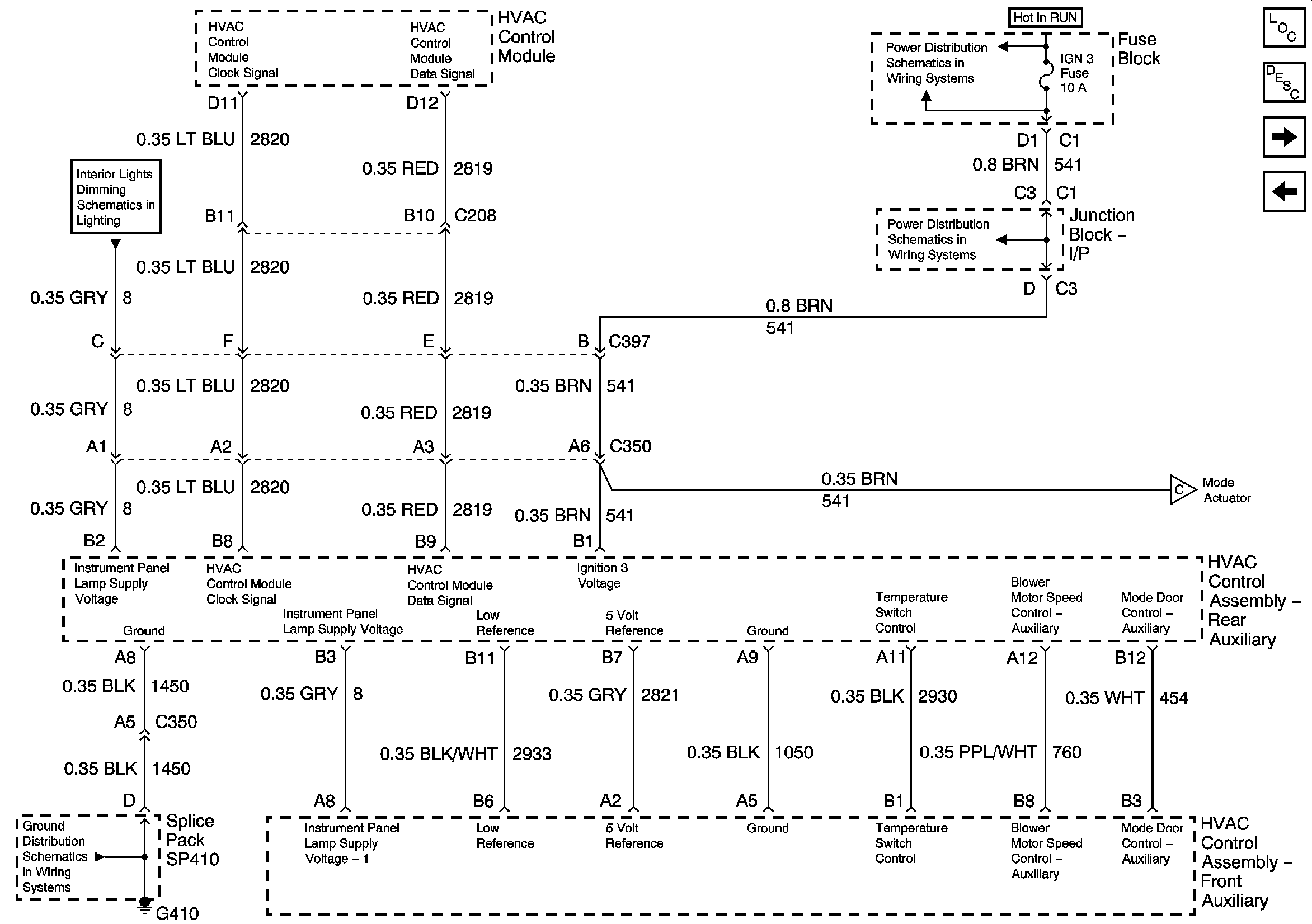

Figure 1:	Automatic Auxiliary Device Controls -- w/o Sunroof (Tahoe/Yukon)

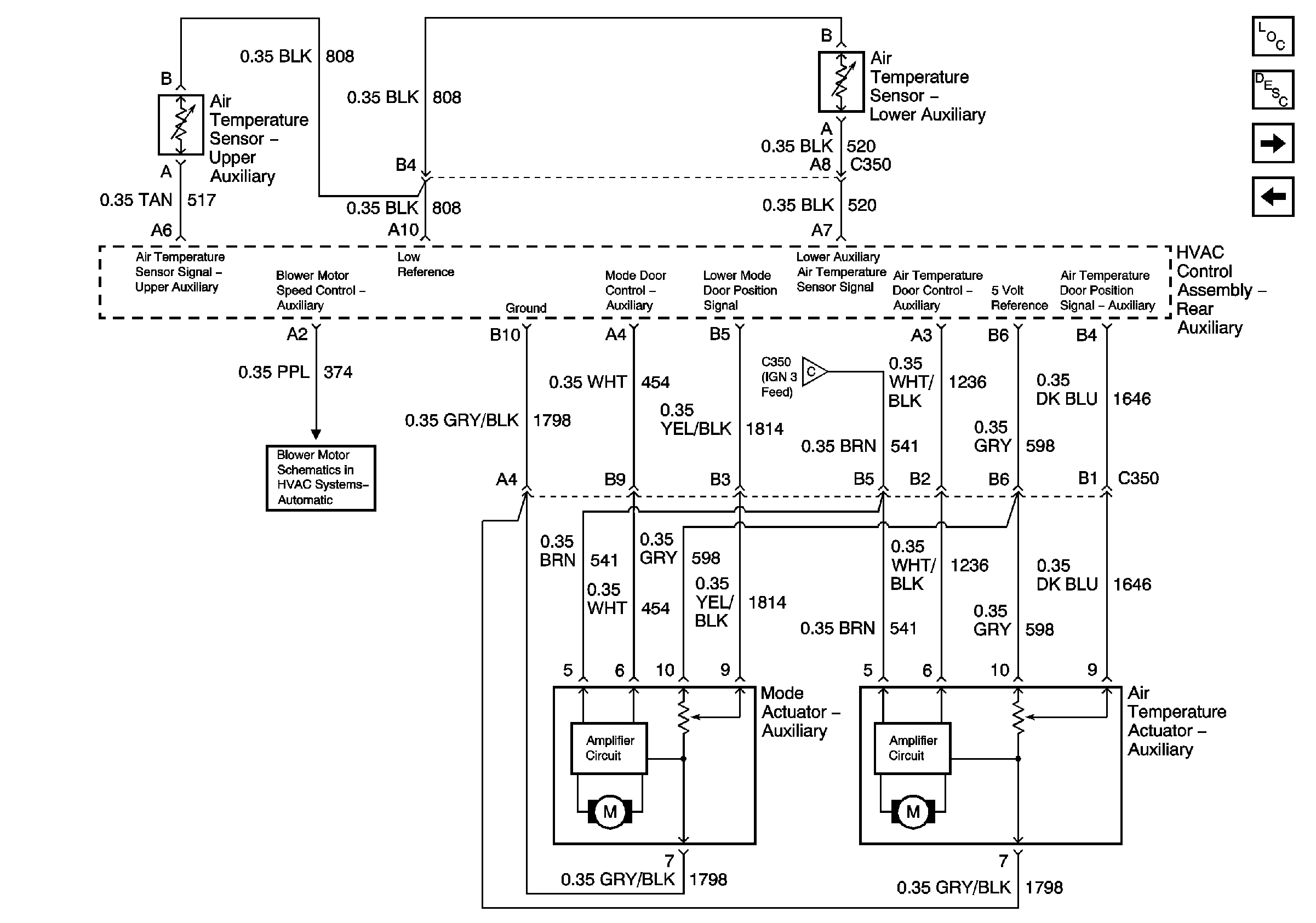

Figure 2:	Automatic Auxiliary Sensors and Actuators-- w/o Sunroof (Tahoe/Yukon)

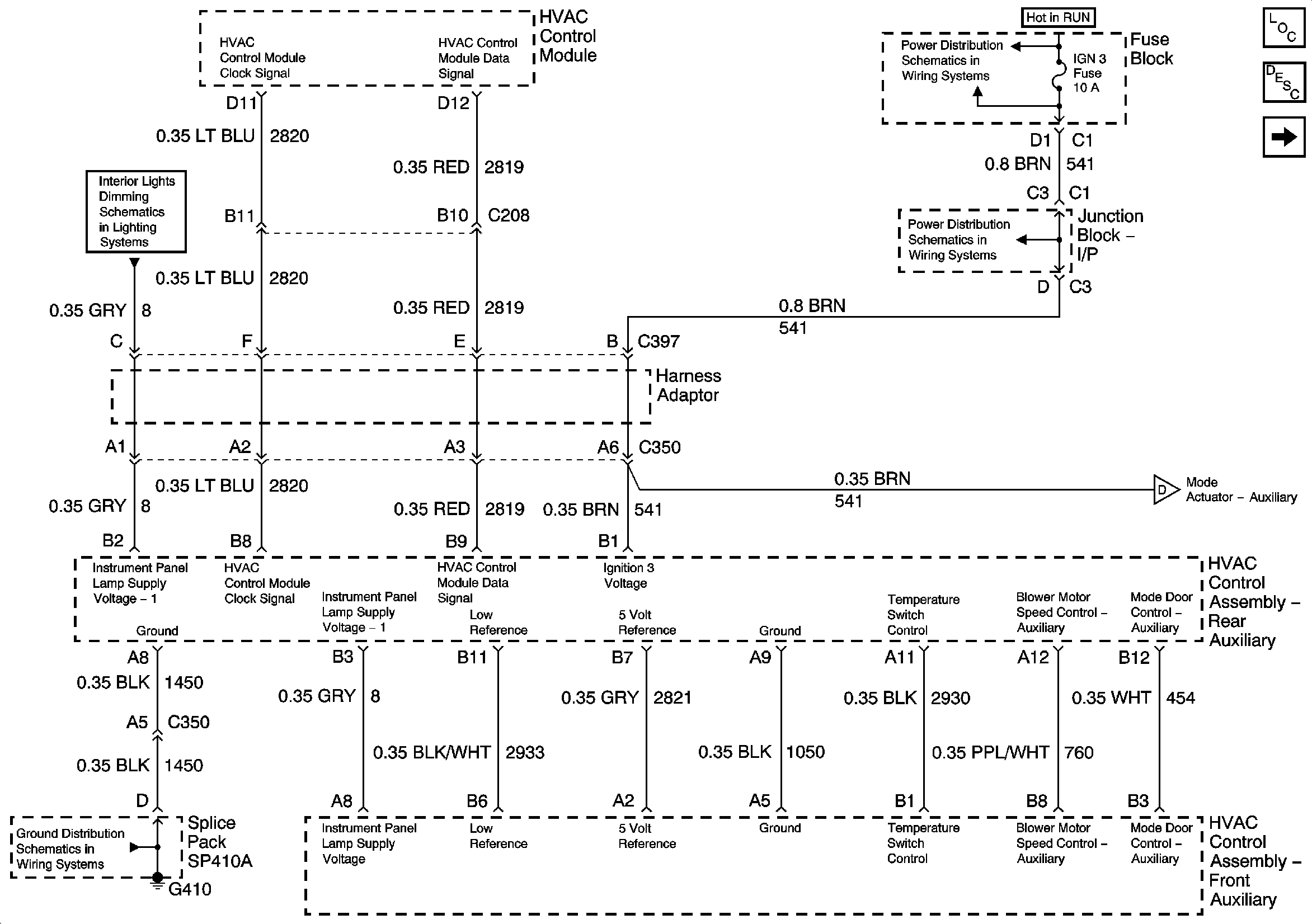

Figure 3:	Automatic Auxiliary Device Controls -- w/o Sunroof (Suburban/Yukon XL)
Figure 4:	Automatic Auxiliary Sensors and Actuators-- w/o Sunroof (Suburban/Yukon XL)
Figure 5:	Manual Auxiliary Air Delivery Controls w/Sunroof and Automatic Primary Controls
