Engine Controls Schematics. Chevrolet Express 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Express 🢒 Engine 🢒 Engine Controls - 6.5L (L65) 🢒 Engine Controls Schematics

Figure 1:	Fuses, MIL, PCM, DLC, G101, G103, G201 Engine Controls Components Powertrain Control Module Description Glow Plug Controls-Federal Emissions LIGHTING and BATT Fuses Battery, Auxiliary Battery, and Underhood Fuse/Relay Center ECM B, HORN, and A/C Fuses ECM 1 and IGN E Fuses (6.5L) GAUGES Fuse STOP, PWR AUX, CIG LTR, and RADIO B Fuses IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G103 (6.5L Engine) G101 (Diesel Engine) GAUGES Fuse, WATER-IN-FUEL Indicator Sensor, G103
Figure 2:	Glow Plug Controls--Federal Emissions Engine Controls Components Powertrain Control Module Description Glow Plug Controls - California Emissions Fuses, MIL, PCM, DLC, G101, G103, G201 Battery, Auxiliary Battery, and Underhood Fuse/Relay Center IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch GAUGES Fuse ECM 1 and IGN E Fuses (6.5L) ECM 1 and IGN E Fuses (6.5L) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G103 (6.5L Engine) GAUGES Fuse, WATER-IN-FUEL Indicator Sensor, G103
Figure 3:	Glow Plug Controls--California Emissions Engine Controls Components Powertrain Control Module Description Fuel Pump Controls Glow Plug Controls-Federal Emissions Battery, Auxiliary Battery, and Underhood Fuse/Relay Center IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch GAUGES Fuse ECM 1 and IGN E Fuses (6.5L) ECM 1 and IGN E Fuses (6.5L) GAUGES Fuse, WATER-IN-FUEL Indicator Sensor, G103 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G103 (6.5L Engine)
Figure 4:	Fuel Pump Controls Engine Controls Components Powertrain Control Module Description Fuel Solenoid Controls, Water-in-fuel Sensor Glow Plug Controls - California Emissions Battery, Auxiliary Battery, and Underhood Fuse/Relay Center ECM B, HORN, and A/C Fuses Handling ESD Sensitive Parts Notice G101 (Diesel Engine) G103 (6.5L Engine)
Figure 5:	Fuel Solenoid Controls, Water-in-fuel Sensor Engine Controls Components Powertrain Control Module Description Fuel Temperature Controls, ITS Motor Fuel Pump Controls IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch GAUGES Fuse GAUGES Fuse, WATER-IN-FUEL Indicator Sensor, G103 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G103 (6.5L Engine)
Figure 6:	Fuel Temperature Controls, ITS Motor Engine Controls Components Powertrain Control Module Description Sensor Controls: CKP, Boost Pressure Sensor, IAT, ECT Fuel Solenoid Controls, Water-in-fuel Sensor Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

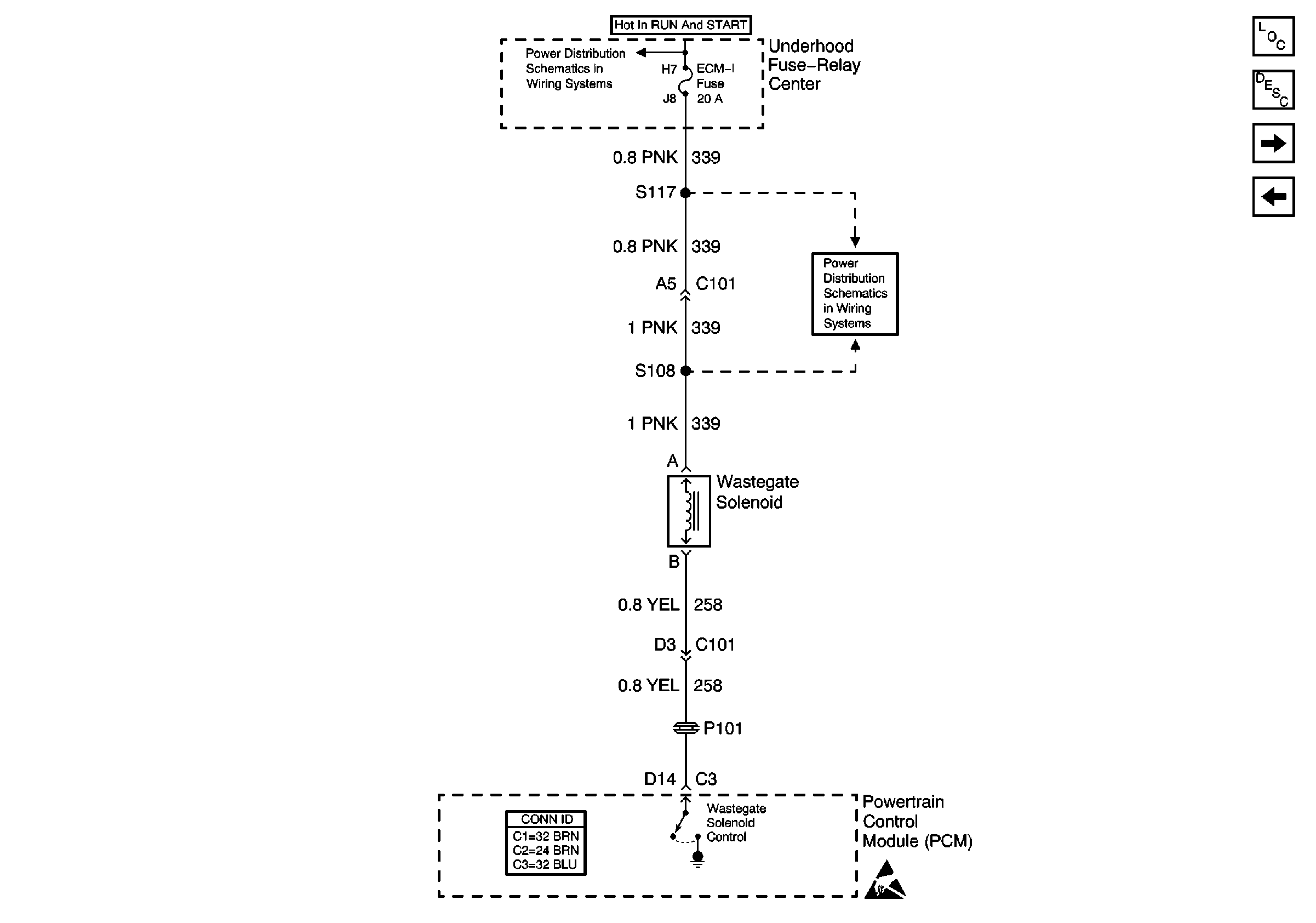

Figure 7:	Sensor Controls: CKP, Boost Pressure Sensor, IAT, ECT Engine Controls Components Powertrain Control Module Description Wastegate Controls Fuel Temperature Controls, ITS Motor 4L80-E Switch and ISS Controls Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 8:	Wastegate Controls Engine Controls Components Powertrain Control Module Description Cruise Control, APP Module Sensor Controls: CKP, Boost Pressure Sensor, IAT, ECT IGN A, IGN B Fuses, and Ignition Switch ECM 1 and IGN E Fuses (6.5L) Handling ESD Sensitive Parts Notice
Figure 9:	Cruise Control, APP Module Engine Controls Components Powertrain Control Module Description VSS Controls Wastegate Controls IGN A, IGN B Fuses, and Ignition Switch Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 10:	VSS Controls Engine Controls Components Powertrain Control Module Description 4L80-E Solenoid Controls Cruise Control, APP Module IGN A, IGN B Fuses, and Ignition Switch GAUGES Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Engine Controls Schematic Icons G101 (Diesel Engine) G101 (Diesel Engine)
Figure 11:	4L80-E Solenoid Controls Engine Controls Components Powertrain Control Module Description 4L80-E Switch and ISS Controls VSS Controls LIGHTING and BATT Fuses IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch CRUISE, HTR A/C, and BRAKE Fuses RADIO 1, WIPER, TRANS, and CRANK Fuses ABS System Schematics (IP, VCM, EBCM, and VSS) Handling ESD Sensitive Parts Notice PARK LPS, TURN B/U, HAZARD, STOP Fuses

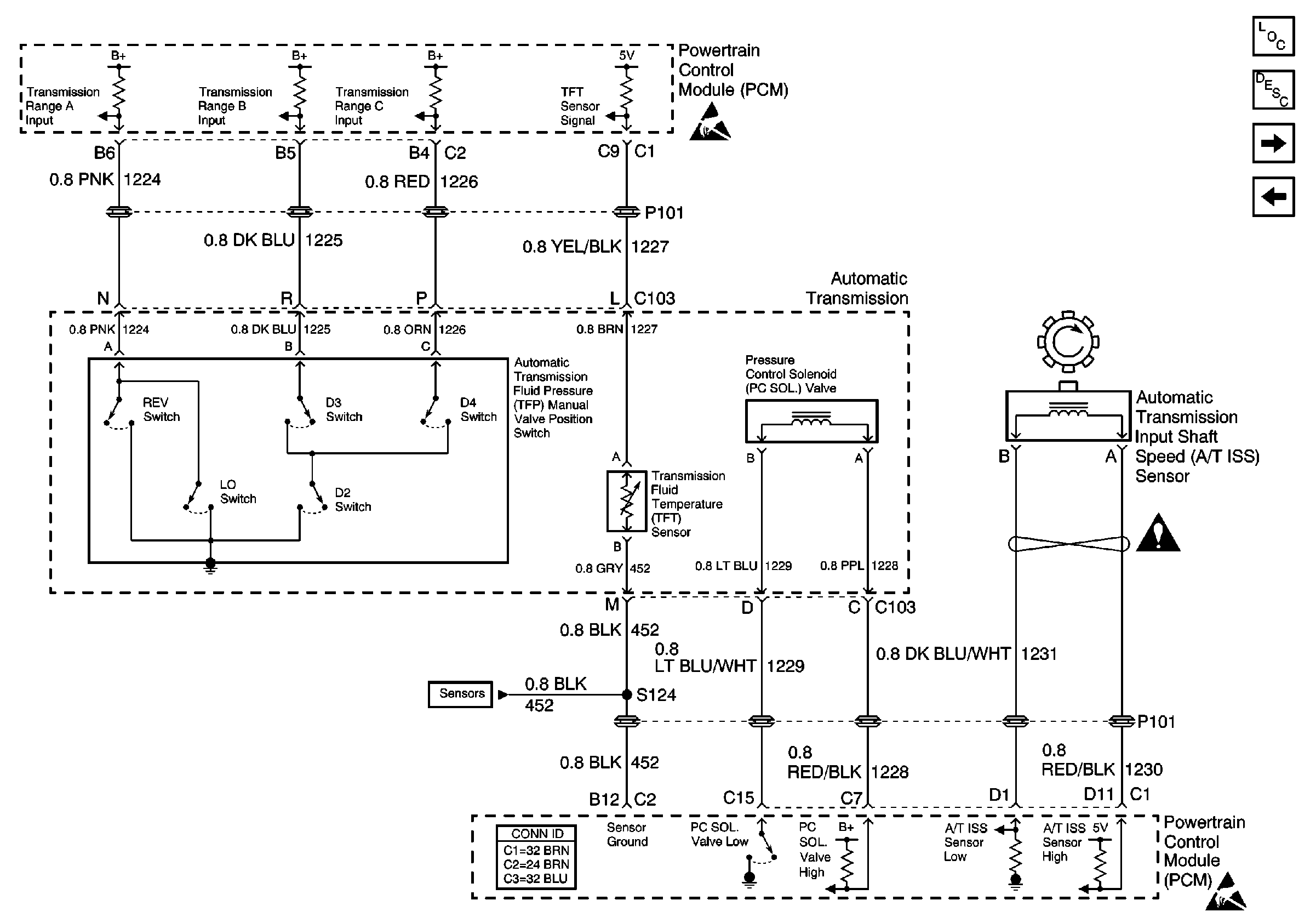

Figure 12:	4L80-E Switch and ISS Controls Engine Controls Components Powertrain Control Module Description A/C Controls 4L80-E Solenoid Controls Sensor Controls: CKP, Boost Pressure Sensor, IAT, ECT Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Engine Controls Schematic Icons

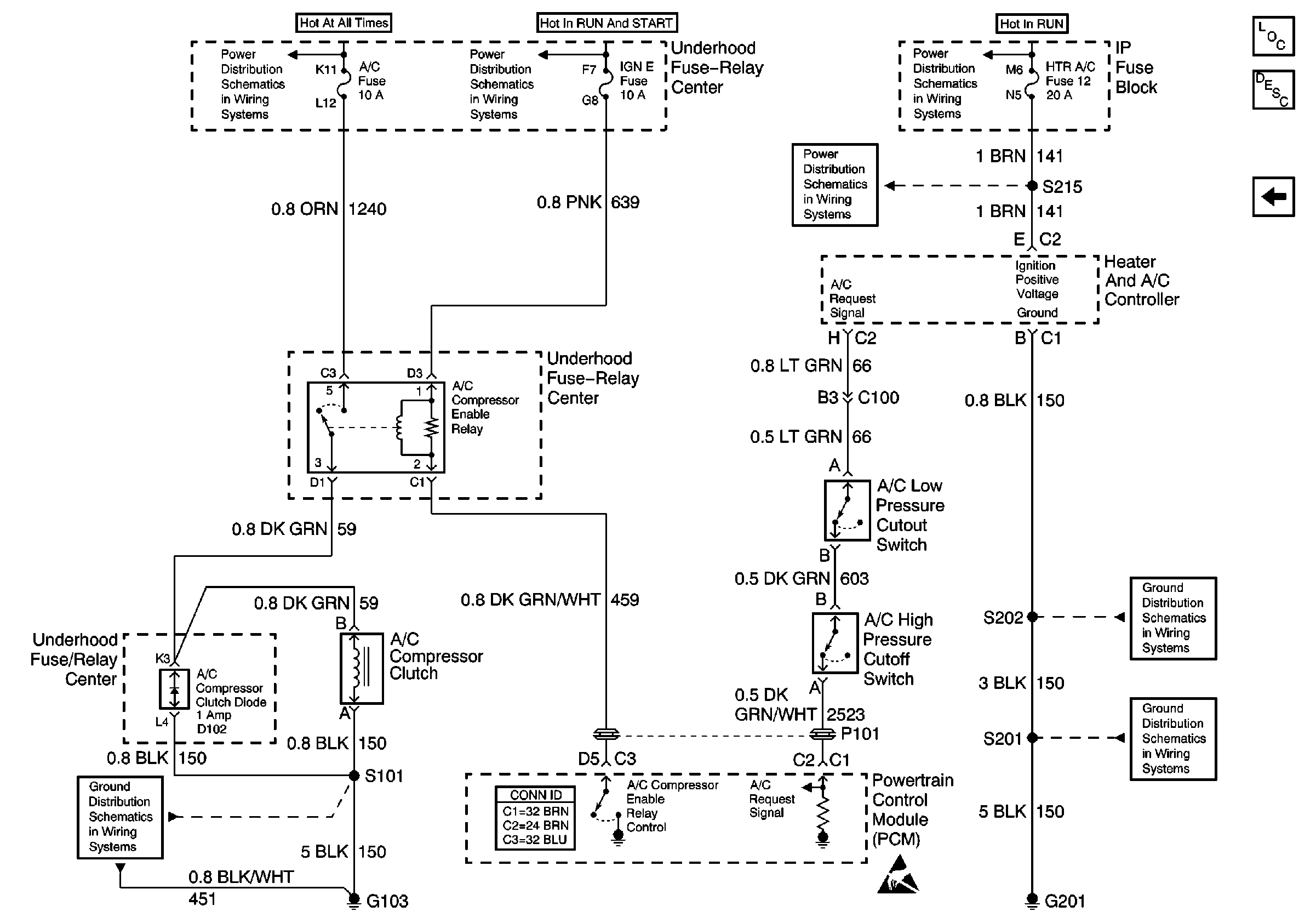

Figure 13:	A/C Controls Engine Controls Components Powertrain Control Module Description 4L80-E Switch and ISS Controls IGN A, IGN B Fuses, and Ignition Switch IGN A, IGN B Fuses, and Ignition Switch Battery, Auxiliary Battery, and Underhood Fuse/Relay Center CRUISE, HTR A/C, and BRAKE Fuses Handling ESD Sensitive Parts Notice Components through S202 and S205 to G201 G201 G103 (6.5L Engine)
