Ground Distribution Schematics. Chevrolet Express 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Express 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

Figure 1:	G108 and G109 (Domestic) Power and Grounding Components G108 and G109 (Export)
Figure 2:	G108 and G109 (Export) Power and Grounding Components G100, G102, G104, G105, G106, G110, G112, G300 G108 and G109 (Domestic)
Figure 3:	G100, G102, G104, G105, G106, G110, G112, G300 Power and Grounding Components G101 (Gasoline Engines) G108 and G109 (Export) Handling ESD Sensitive Parts Notice
Figure 4:	G101 (Gasoline Engines) Power and Grounding Components G101 (Diesel Engine) G100, G102, G104, G105, G106, G110, G112, G300 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	G101 (Diesel Engine) Power and Grounding Components G103 (4.3L, 5.0L, and 5.7L Engines) G101 (Gasoline Engines) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 6:	G103 (4.3L, 5.0L, and 5.7L Engines) Power and Grounding Components G103 (7.4L Engine) G101 (Diesel Engine) Components through S152 to G103 (Gasoline Engines) Handling ESD Sensitive Parts Notice
Figure 7:	G103 (7.4L Engine) Power and Grounding Components G103 (6.5L Engine) G103 (4.3L, 5.0L, and 5.7L Engines) Components through S152 to G103 (Gasoline Engines) Handling ESD Sensitive Parts Notice
Figure 8:	G103 (6.5L Engine) Power and Grounding Components Components through S152 to G103 (Gasoline Engines) G103 (7.4L Engine)

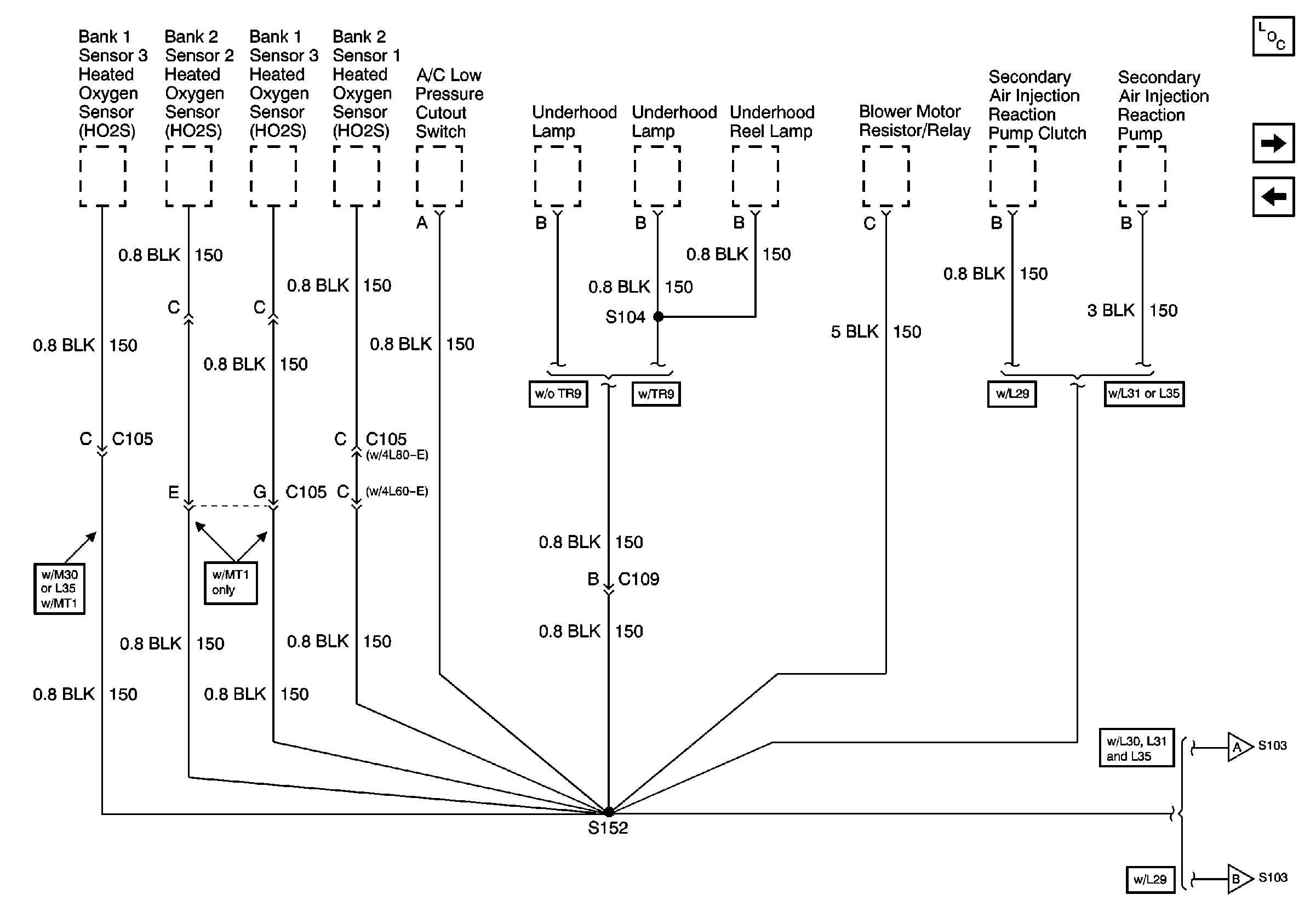

Figure 9:	Components through S152 to G103 (Gasoline Engines) Power and Grounding Components G201 G103 (6.5L Engine) G103 (4.3L, 5.0L, and 5.7L Engines) G103 (7.4L Engine)
Figure 10:	G201 Power and Grounding Components Components through S202 and S205 to G201 Components through S152 to G103 (Gasoline Engines) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G200 Components through S202 and S205 to G201
Figure 11:	Components through S202 and S205 to G201 Power and Grounding Components G200 G201 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G201
Figure 12:	G200 Power and Grounding Components G202 and G301 Components through S202 and S205 to G201 G201 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 13:	G202 and G301 Power and Grounding Components G400 G200 SIR Handling Caution Handling ESD Sensitive Parts Notice SIR Handling Caution

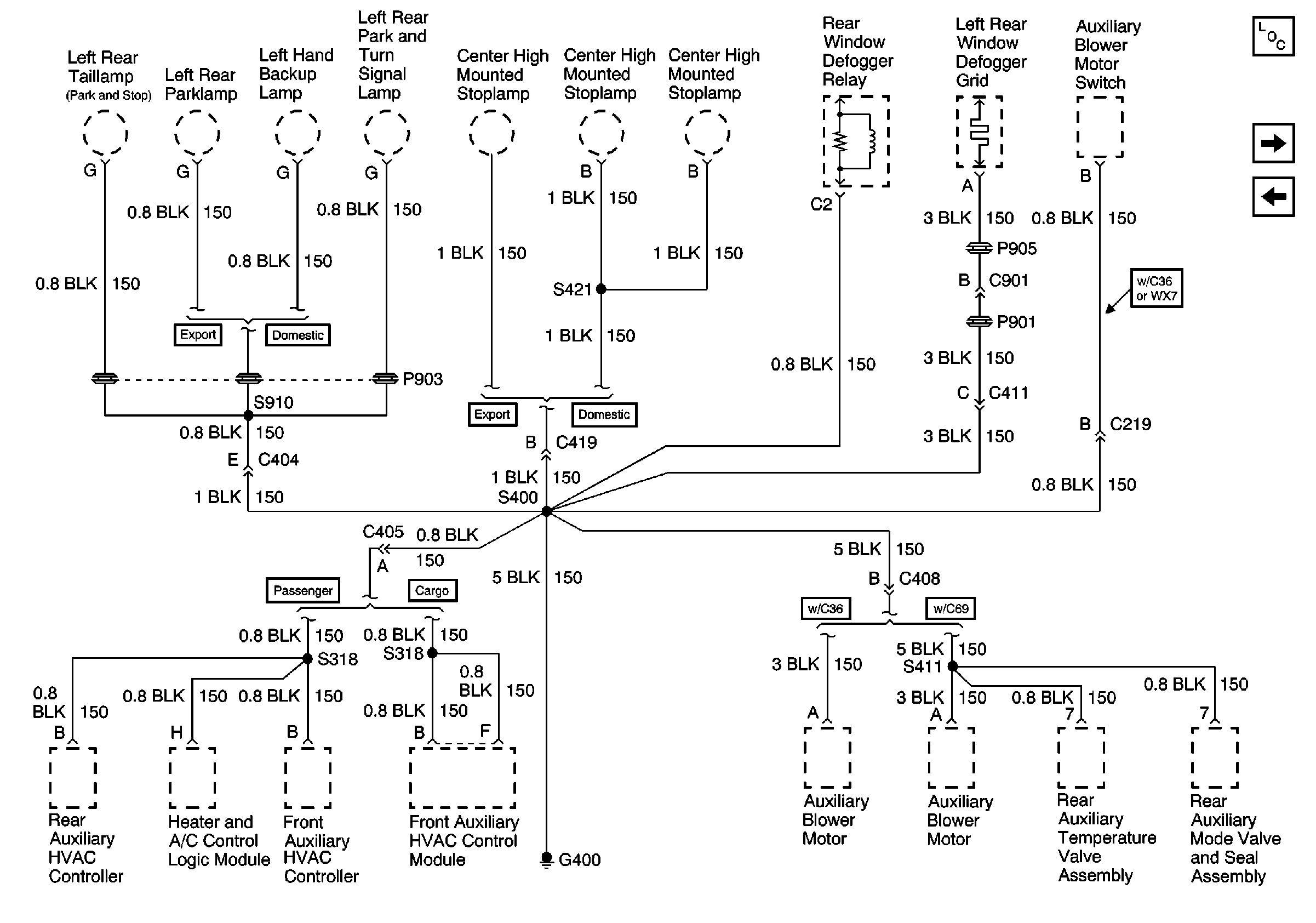

Figure 14:	G400 Power and Grounding Components G401 G202 and G301

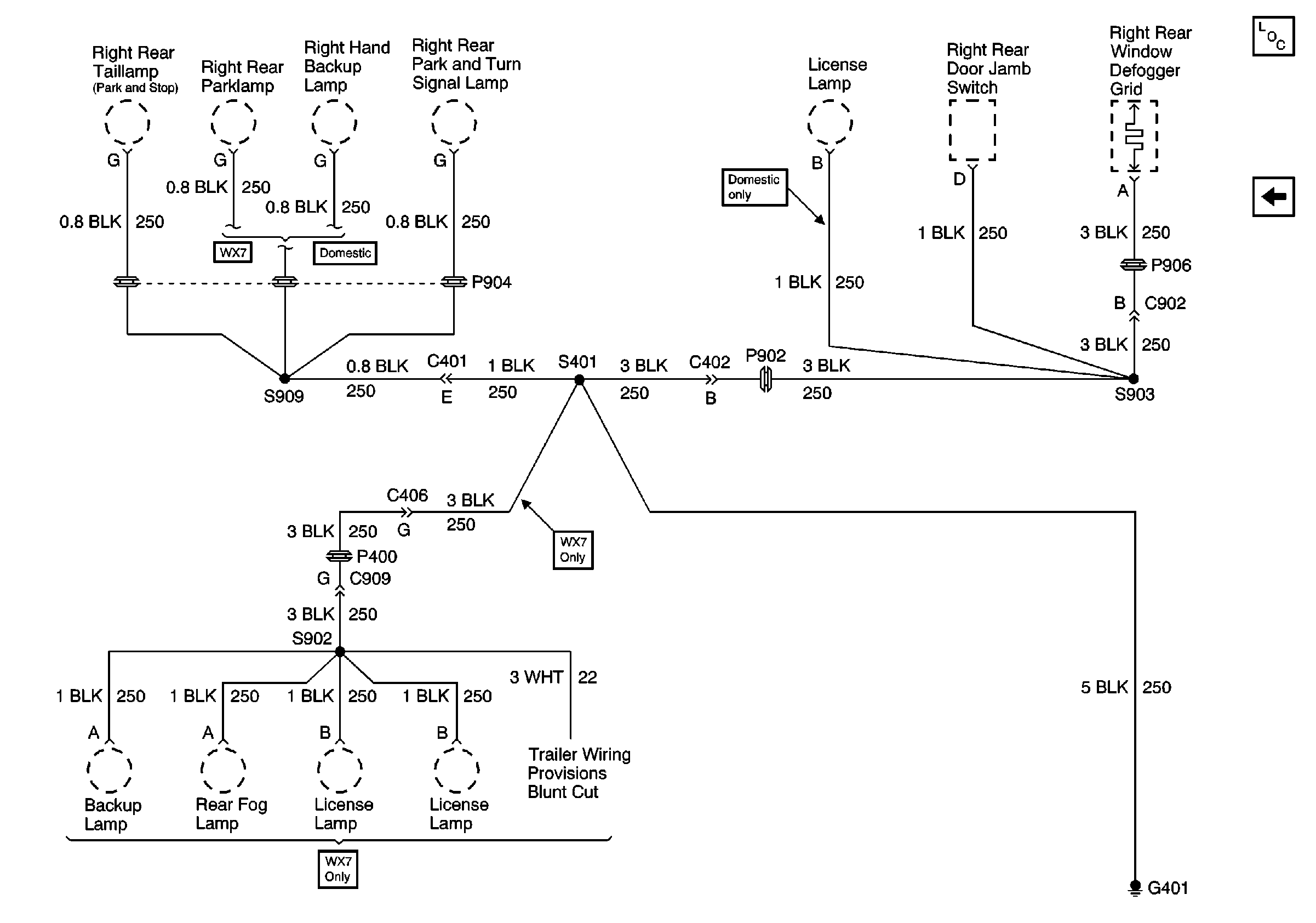

Figure 15:	G401 Power and Grounding Components G400
