Theft Deterrent System Schematics Passlock

Figure 1:

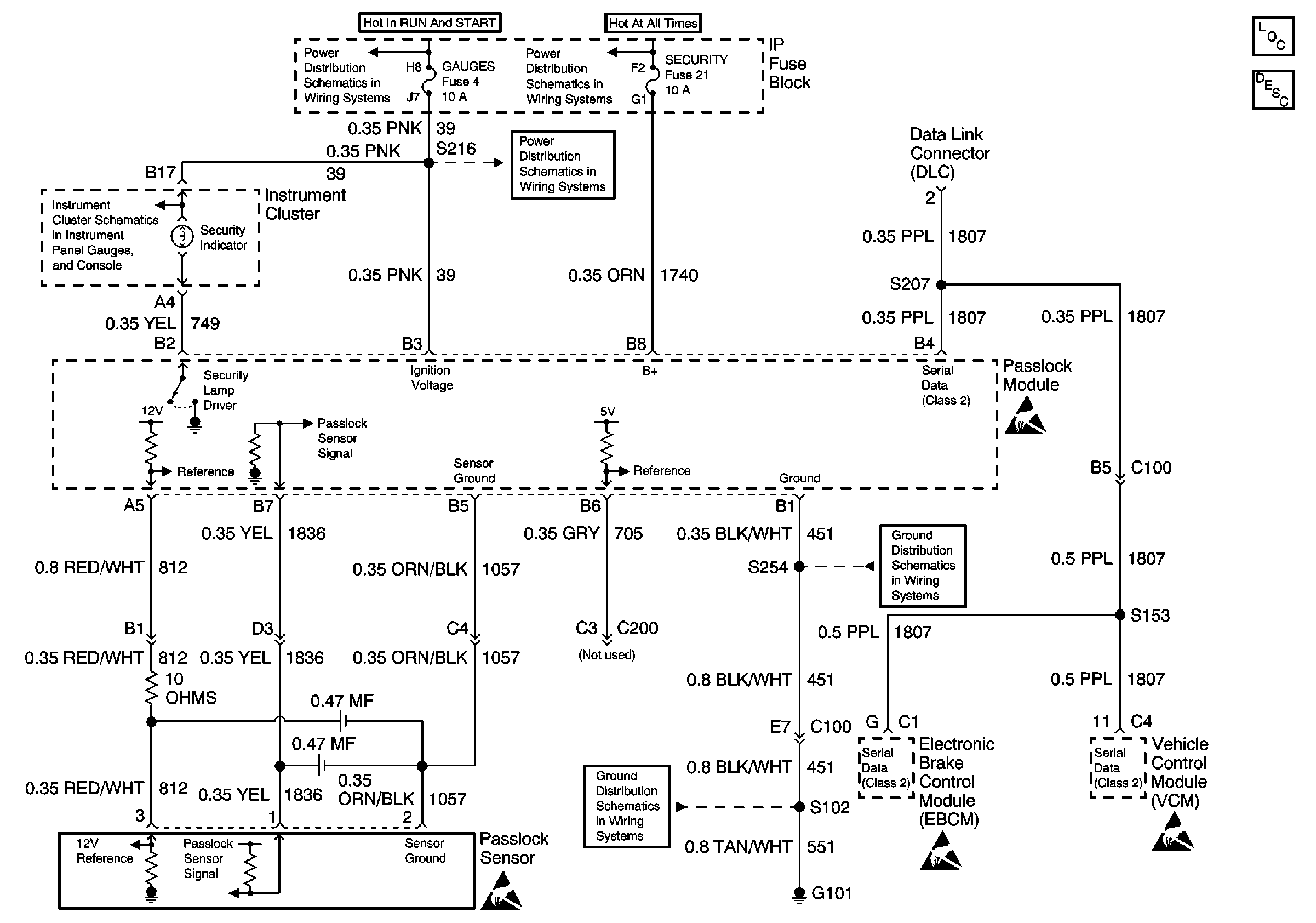

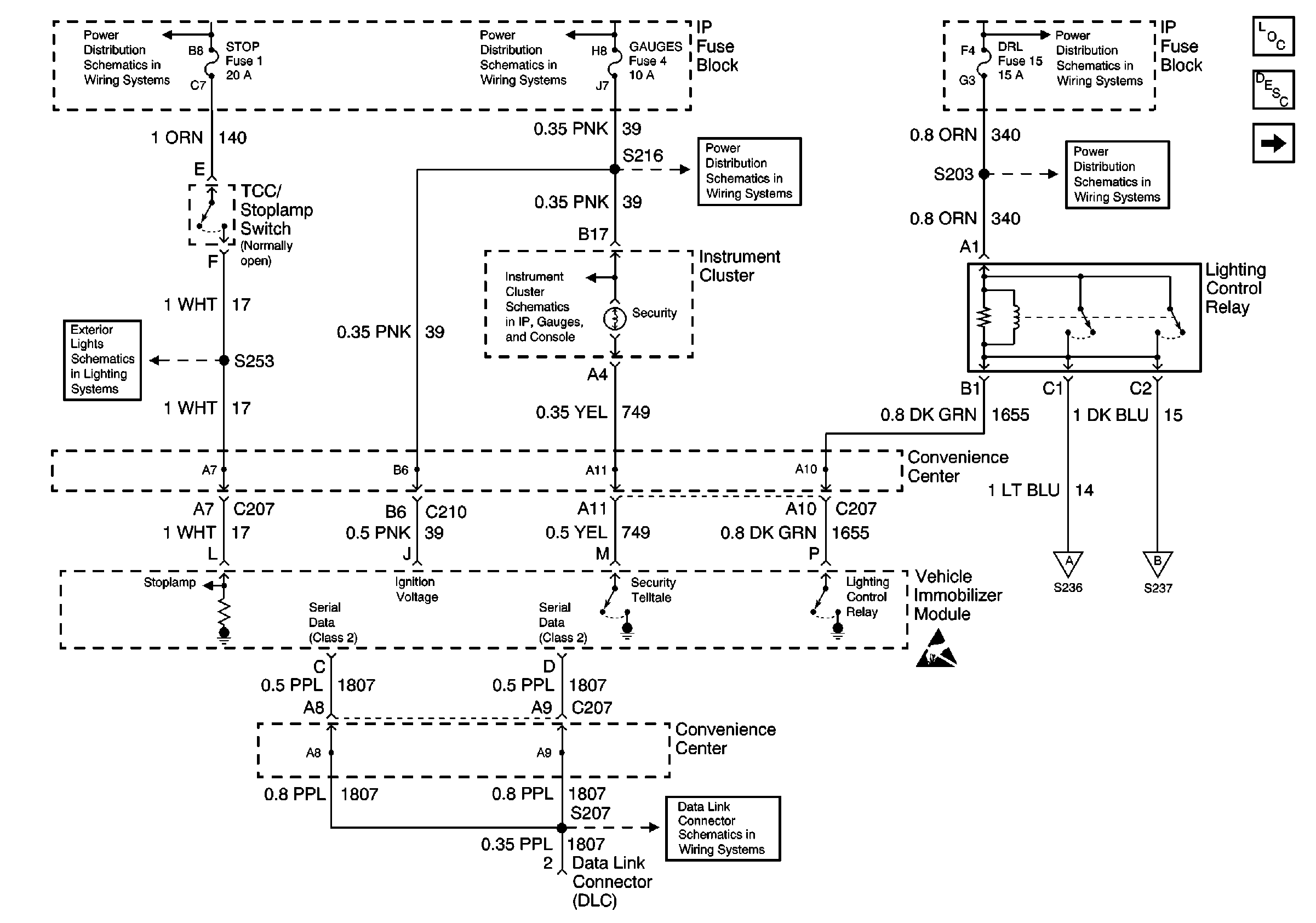

Passlock ™ Theft Deterrent System (Gas)

Object Number: 521741 Size: FS

Theft Deterrent System Components
Instrument Cluster: Analog Schematics
Power Distribution Schematics
Power Distribution Schematics
Instrument Cluster: Analog Schematics
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Ground Distribution Schematics

Figure 2:

Passlock™ Theft Deterrent System (Diesel)

Object Number: 578716 Size: FS

Theft Deterrent System Components
Vehicle Theft Deterrent (VTD) Operation
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
GAUGES Fuse, WATER-IN-FUEL Indicator Sensor, G103
IGN A, IGN B Fuses, and Ignition Switch
GAUGES Fuse, Fuel Sender Buffer Module, Low Engine Coolant Level Indicator Module, Low Engine Coolant Indicator Sensor, G103, G201, G209
LIGHTING and BATT Fuses
GAUGES Fuse

Theft Deterrent System Schematics Export

Figure 1:	VIM, Lighting Control, IP Fuse Block Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic IP Fuse Block, Pwr Dr Lock Sw, VIM LIGHTING and BATT Fuses PARK LPS, TURN B/U, HAZARD, and STOP Fuses IGN A, IGN B Fuses, and Ignition Switch 00 GMT600 IP Water-in-Fuel, G103 (Export) GAUGES Fuse Fuse Block, Theft Deterrent, VCM/PCM, Remote Control Door Lock Receiver, SDM, G101, and G201 LIGHTING and BATT Fuses PARK LPS, SECURITY STRG, and DRL Fuses Front Lamps Front Lamps Handling ESD Sensitive Parts Notice

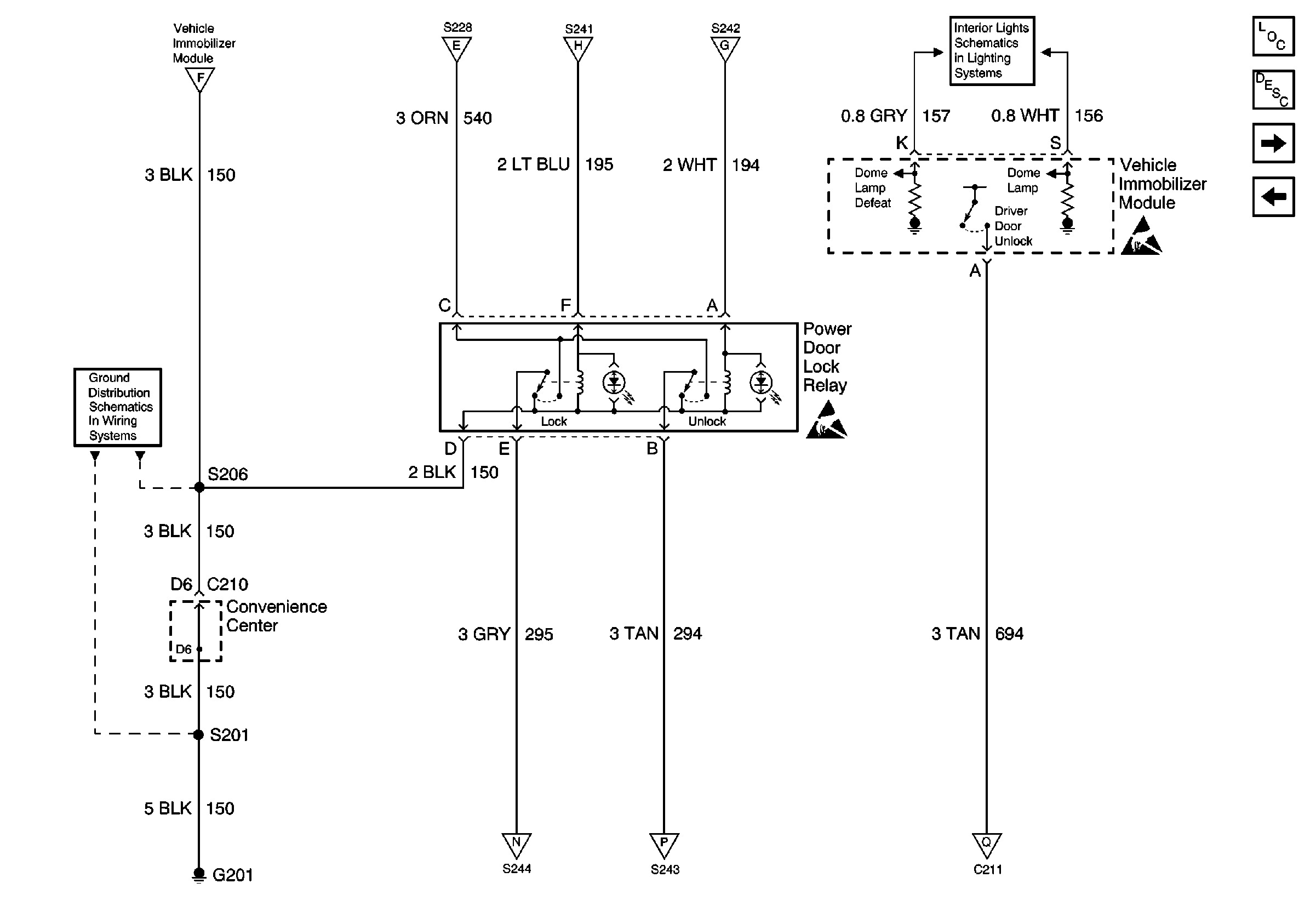

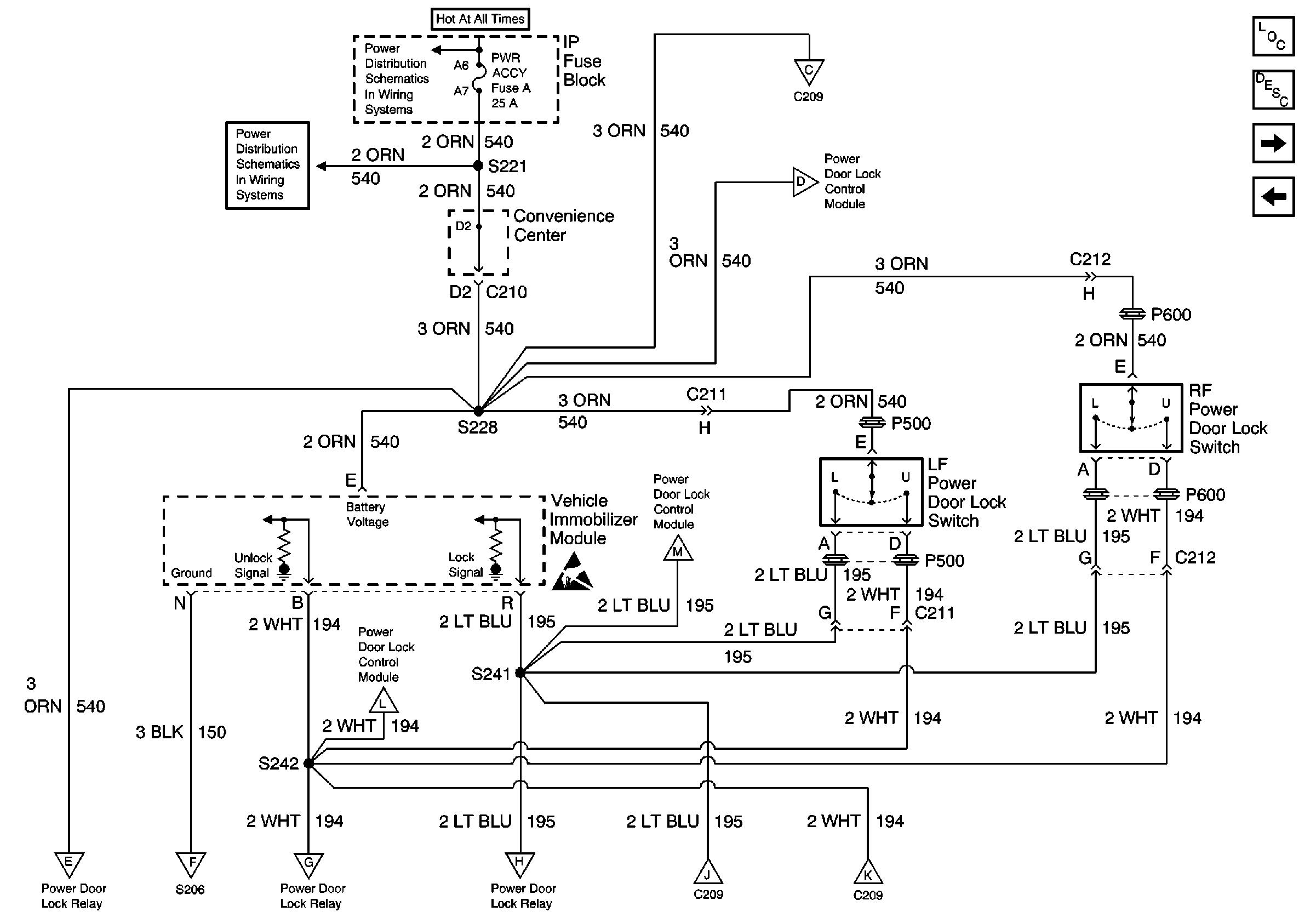

Figure 2:	IP Fuse Block, Pwr Dr Lock Sw, VIM Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw VIM, Lighting Control, IP Fuse Block Pwr Dr Lk Relay, VIM Pwr Dr Lk Relay, VIM PWR ACCY Fuse Pwr Dr Lk Relay, VIM LIGHTING and BATT Fuses Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Pwr Dr Lk Relay, VIM Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Handling ESD Sensitive Parts Notice

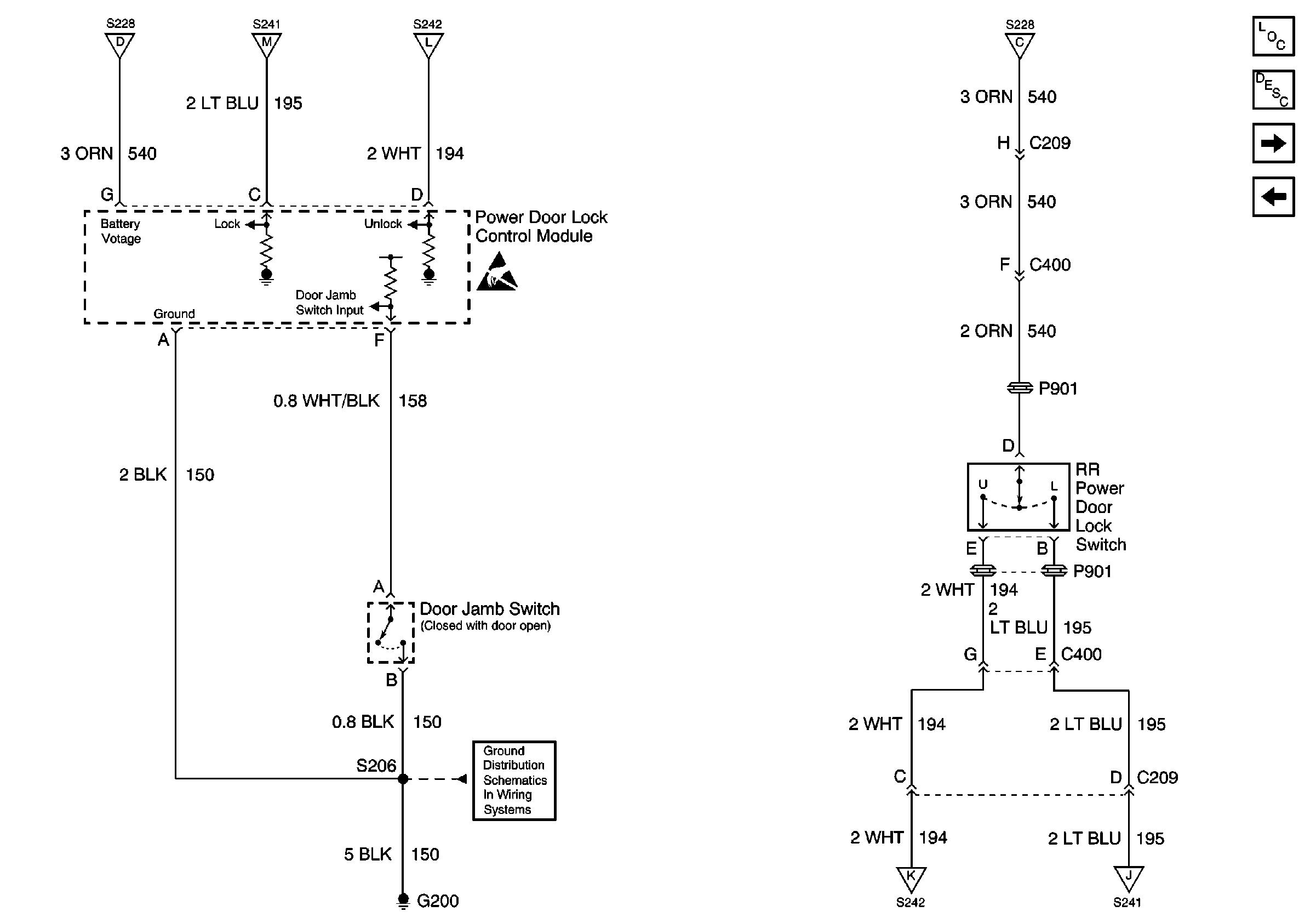

Figure 3:	Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Pwr Dr Lk Relay, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM G200 IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM Handling ESD Sensitive Parts Notice

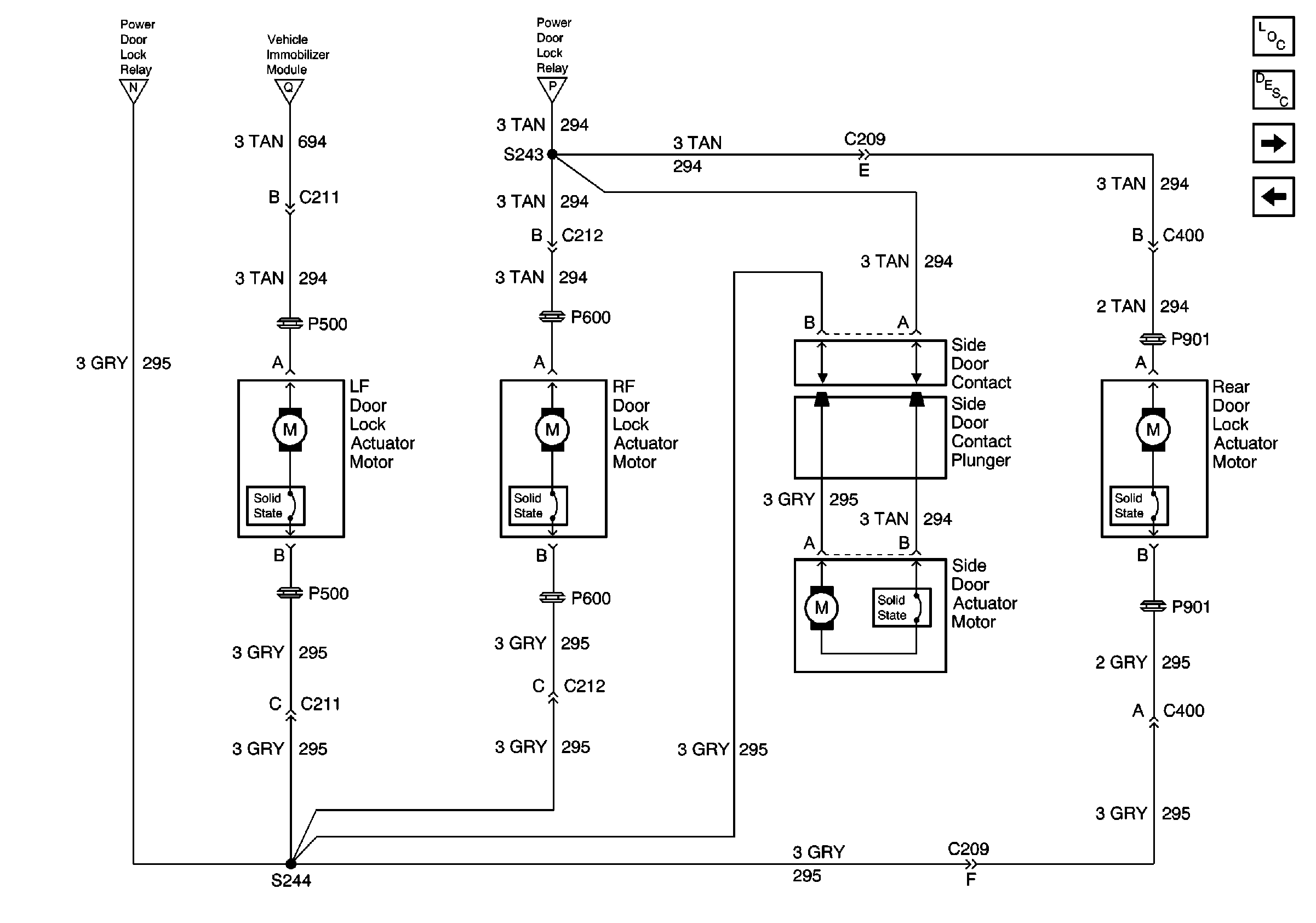

Figure 4:	Pwr Dr Lk Relay, VIM Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Dr Lk Actuator, Side Door Contacts Pwr Dr Lk Mdl, Dr Jamb Sw, Dr Lk Sw IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM IP Fuse Block, Pwr Dr Lock Sw, VIM Dr Lk Actuator, Side Door Contacts Dr Lk Actuator, Side Door Contacts Dr Lk Actuator, Side Door Contacts PWR ACCY, GAUGES, PARK LPS Fuses (w/Keyless Entry) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	Dr Lk Actuator, Side Door Contacts Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Front Lamps Pwr Dr Lk Relay, VIM Pwr Dr Lk Relay, VIM Pwr Dr Lk Relay, VIM Pwr Dr Lk Relay, VIM

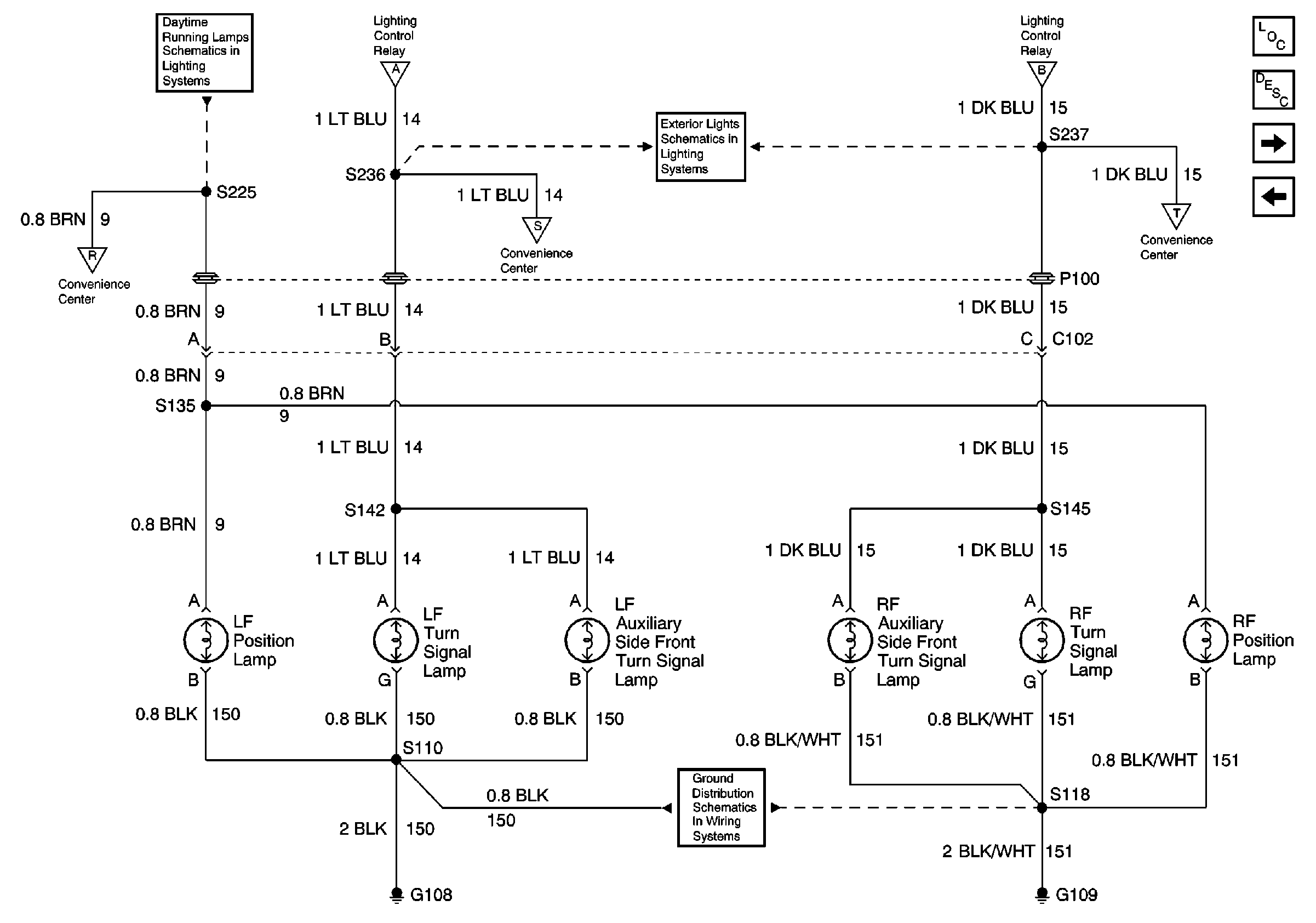

Figure 6:	Front Lamps Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Rear Lamps Dr Lk Actuator, Side Door Contacts Headlamp Switch, DRL Control Module Rear Lamps Turn/Hazard Lamp Flasher Rear Lamps Rear Lamps VIM, Lighting Control, IP Fuse Block VIM, Lighting Control, IP Fuse Block G108 and G109 (Export)

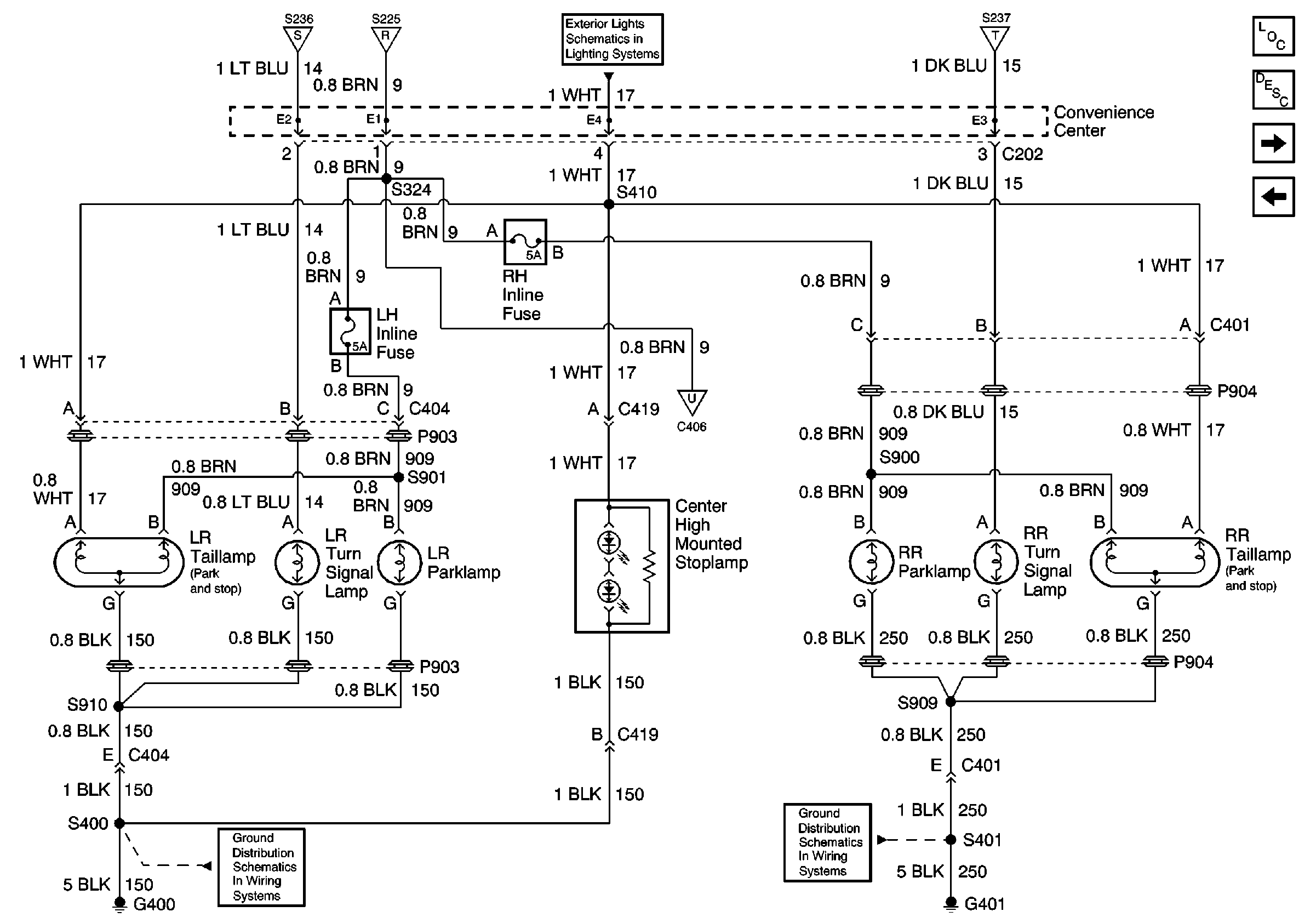

Figure 7:	Rear Lamps Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic License Plate Lamps Front Lamps Front Lamps Front Lamps G401 Front Lamps License Plate Lamps PARK LPS, TURN B/U, HAZARD, and STOP Fuses G400

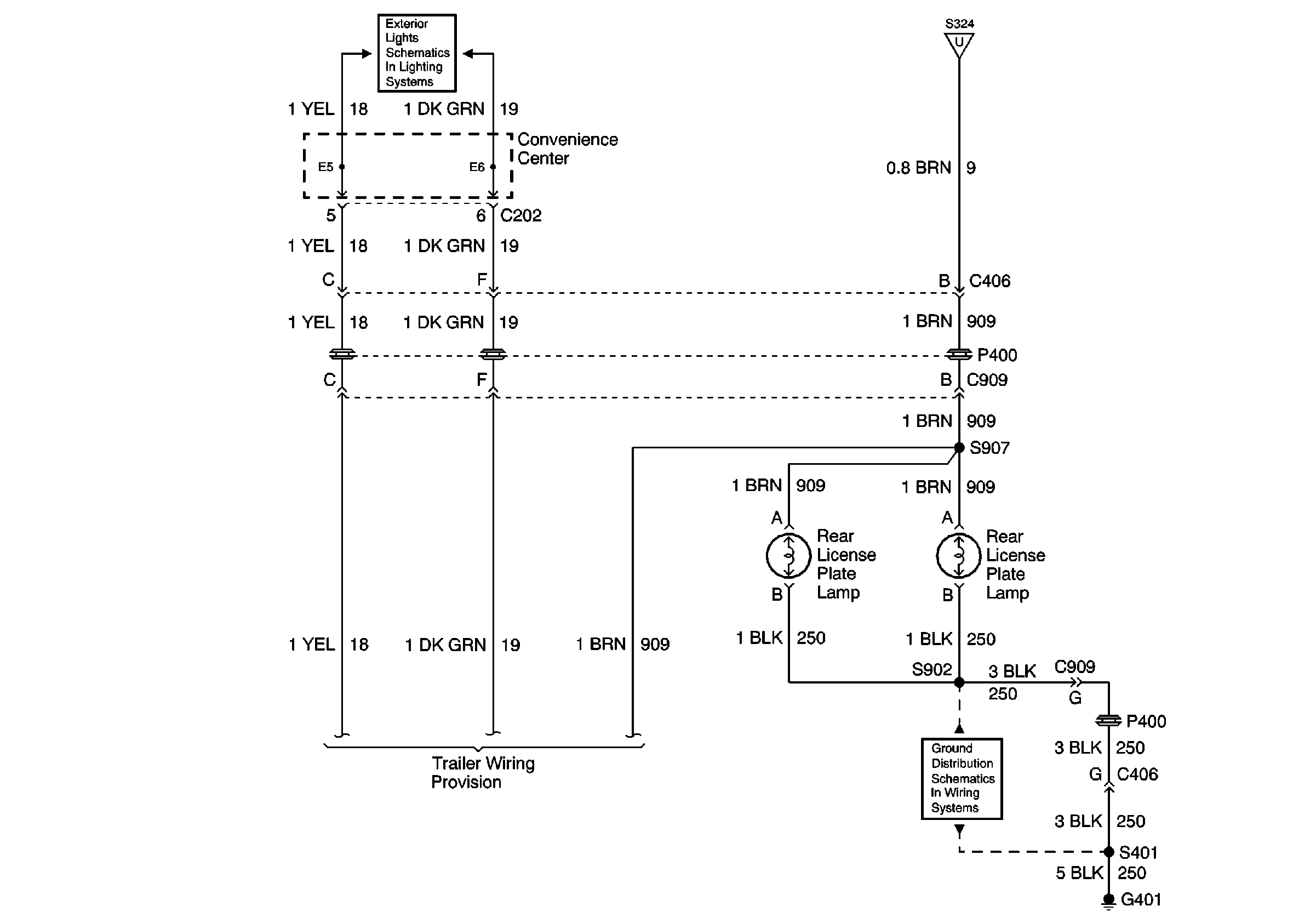

Figure 8:	License Plate Lamps Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Domestic Rear Lamps Turn/Hazard Lamp Flasher Rear Lamps G401
