Removal Procedure

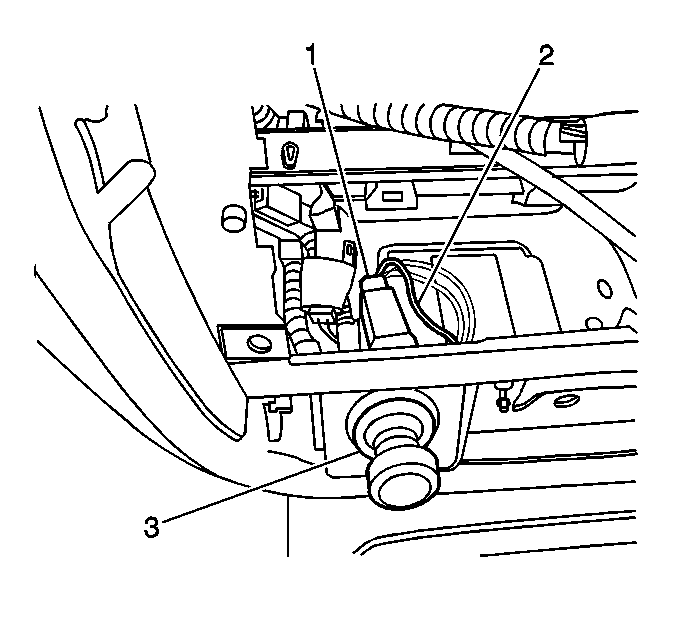

    Object Number: 477539 Size: SH
  1. Remove the radio from the instrument panel. Refer to Radio Replacement in Entertainment.
  2. Remove the cigar lighter bulb socket (1) from the back of the cigar lighter (3).
  3. Remove the bulb from the cigar lighter bulb socket (1).

Installation Procedure

    Object Number: 477539 Size: SH
  1. Install the bulb to the cigar lighter bulb socket (1).
  2. Install the cigar lighter bulb socket (1) to the back of the cigar lighter (3).
  3. Install the radio to the instrument panel. Refer to Radio Replacement in Entertainment.
