Power Distribution Schematics. Chevrolet Vivant 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Vivant 🢒 Engine 🢒 Engine Controls - 2.0L (L34 GMDAT) 🢒 Power Distribution Schematics

Figure 1:	Underhood Fuse Block - Battery Feeds Master Electrical Component List Underhood Fuse Block - Battery Feeds Underhood Fuse Block - Battery Feeds
Figure 2:	Underhood Fuse Block - Battery Feeds Master Electrical Component List ABS, ECM and SIREN Fuses Underhood Fuse Block - Battery Feeds Underhood Fuse Block - Battery Feeds
Figure 3:	ABS, ECM, and SIREN Fuses Master Electrical Component List PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Underhood Fuse Block - Battery Feeds
Figure 4:	PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Master Electrical Component List PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (LHD) ABS, ECM and SIREN Fuses PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (LHD)
Figure 5:	PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (LHD) Master Electrical Component List PARKING LAMP, LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (RHD) PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay
Figure 6:	PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (RHD) Master Electrical Component List HEADLAMP Fuse and HEADLAMP Relay PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (LHD) PARKING LAMP LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (LHD)
Figure 7:	HEADLAMP Fuse and HEADLAMP Relay Master Electrical Component List FRONT FOG Relay, SIREN and HORN Fuses PARKING LAMP, LH, PARKING LAMP RH Fuses, PARKING LAMP Relay Continued (RHD)
Figure 8:	FRONT FOG Relay, SIREN and HORN Fuses Master Electrical Component List BLOWER MOTOR, POWER WINDOW, and REAR DEFOGGER Fuses HEADLAMP Fuse and HEADLAMP Relay
Figure 9:	BLOWER MOTOR, POWER WINDOW, and REAR DEFOGGER Fuses Master Electrical Component List ENGINE MAIN and FUEL PUMP Fuses (MR-140) FRONT FOG Relay, SIREN and HORN Fuses
Figure 10:	ENGINE MAIN and FUEL PUMP Fuses (MR-140) Master Electrical Component List ENGINE MAIN and FUEL PUMP Fuses (ITMS) BLOWER MOTOR, POWER WINDOW, and REAR DEFOGGER Fuses
Figure 11:	ENGINE MAIN and FUEL PUMP Fuses (ITMS) Master Electrical Component List ENGINE MAIN and FUEL PUMP Fuses (Sirius) ENGINE MAIN and FUEL PUMP Fuses (MR-140)
Figure 12:	ENGINE MAIN and FUEL PUMP Fuses (Sirius) Master Electrical Component List FUEL PUMP, RADIATOR, FAN HIGH, A/C COMP, and RADIATOR FAN LOW Fuses ENGINE MAIN and FUEL PUMP Fuses (ITMS)
Figure 13:	FUEL PUMP, RADIATOR FAN HIGH, A/C COMP, and RADIATOR FAN LOW Fuses Master Electrical Component List IGNITION 1 and IGNITION 2 Fuses (MR-140) ENGINE MAIN and FUEL PUMP Fuses (Sirius)
Figure 14:	IGNITION 1 and IGNITION 2 Fuses (MR-140) Master Electrical Component List IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) FUEL PUMP, RADIATOR, FAN HIGH, A/C COMP, and RADIATOR FAN LOW Fuses IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F)
Figure 15:	IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) Master Electrical Component List IGNITION 1 and IGNITION 2 Fuses (Sirius D4) IGNITION 1 and IGNITION 2 Fuses (MR-140) IGNITION 1 and IGNITION 2 Fuses (MR-140) IGNITION 1 and IGNITION 2 Fuses (MR-140) IGNITION 1 and IGNITION 2 Fuses (MR-140)
Figure 16:	IGNITION 1 and IGNITION 2 Fuses (Sirius-D4) Master Electrical Component List CLUSTER, AIR BAG, TURN SIGNAL, and CRUISE Fuses (LHD) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F) IGNITION 1 and IGNITION 2 Fuses (ITMS-6F)

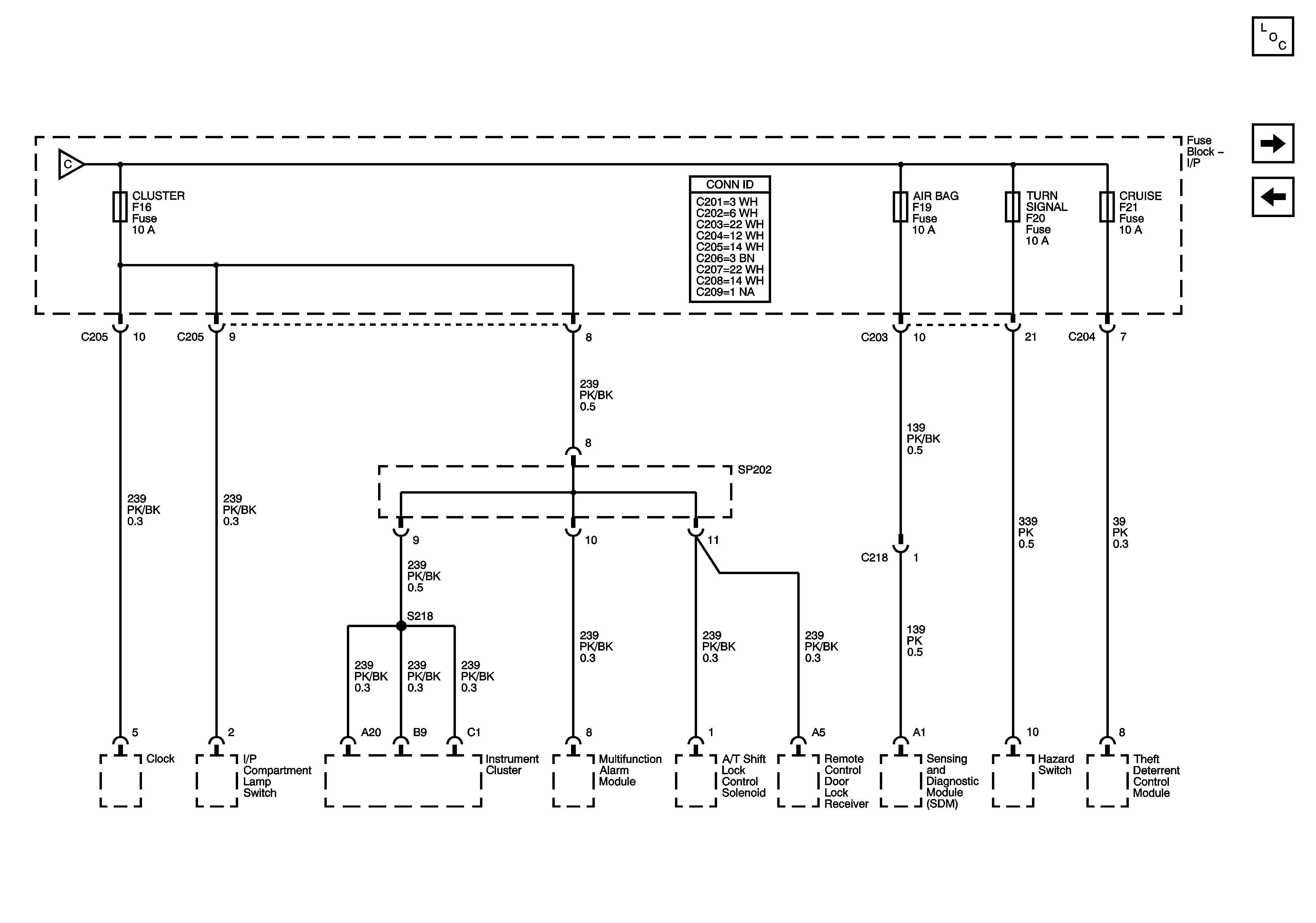

Figure 17:	CLUSTER, AIR BAG, TURN SIGNAL, and CRUISE Fuses (LHD) Master Electrical Component List CLUSTER AIR BAG, TURN SIGNAL, and CRUISE Fuses (RHD) IGNITION 1 and IGNITION 2 Fuses (Sirius D4) CLUSTER AIR BAG, TURN SIGNAL, and CRUISE Fuses (RHD)
Figure 18:	CLUSTER, AIR BAG, TURN SIGNAL, and CRUISE Fuses (RHD) Master Electrical Component List RELAY IGN Fuse CLUSTER, AIR BAG, TURN SIGNAL, and CRUISE Fuses (LHD) CLUSTER, AIR BAG, TURN SIGNAL, and CRUISE Fuses (LHD)
Figure 19:	RELAY IGN Fuse Master Electrical Component List AUDIO and CIGAR LIGHTER Fuses (LHD) CLUSTER AIR BAG, TURN SIGNAL, and CRUISE Fuses (RHD) CLUSTER AIR BAG, TURN SIGNAL, and CRUISE Fuses (RHD)

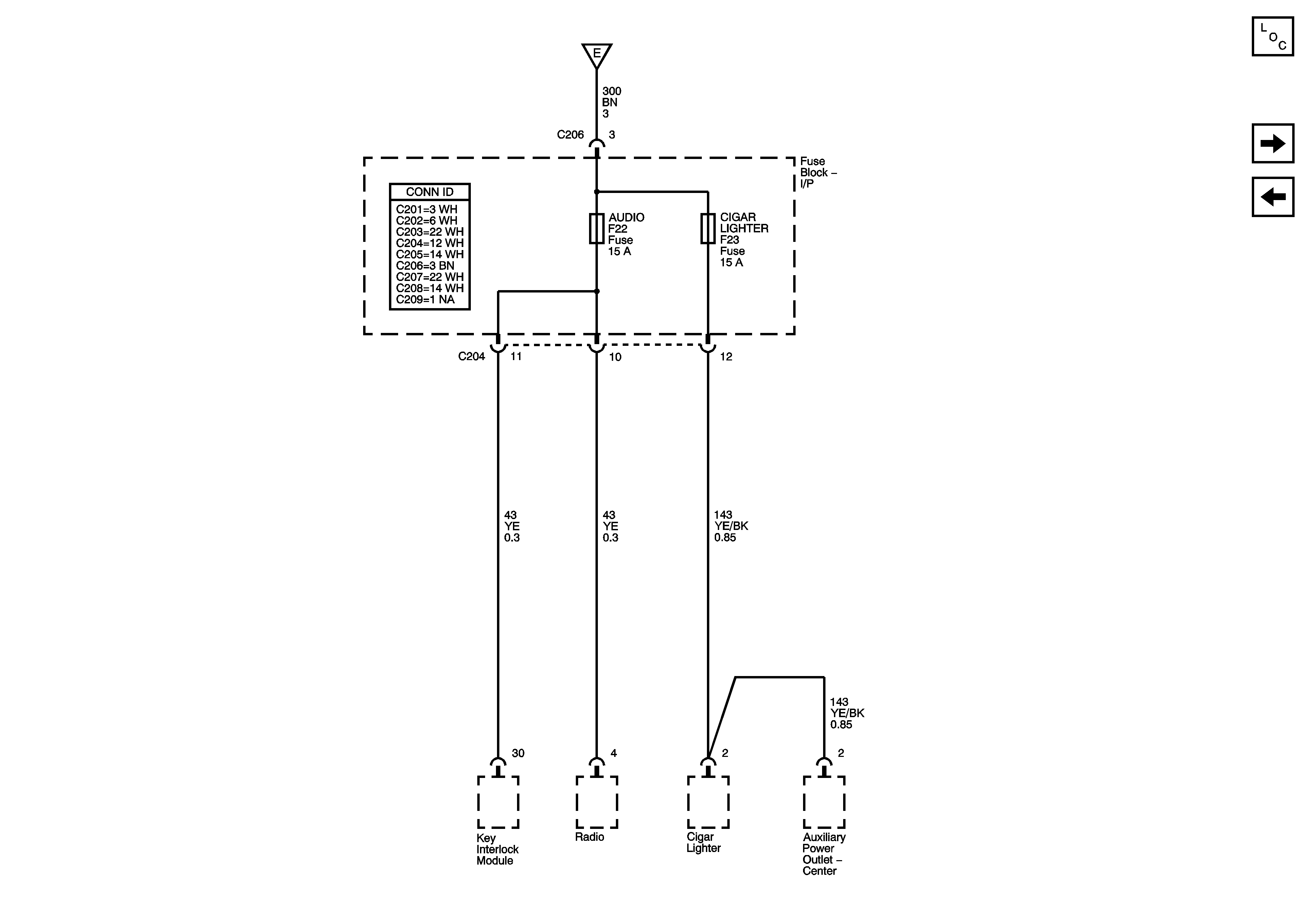

Figure 20:	AUDIO and CIGAR LIGHTER Fuses (LHD) Master Electrical Component List AUDIO and CIGAR LIGHTER Fuses (RHD) RELAY IGN Fuse RELAY IGN Fuse
Figure 21:	AUDIO and CIGAR LIGHTER Fuses (RHD) Master Electrical Component List MAIN Fuse (LHD) AUDIO and CIGAR LIGHTER Fuses (LHD) AUDIO and CIGAR LIGHTER Fuses (LHD)

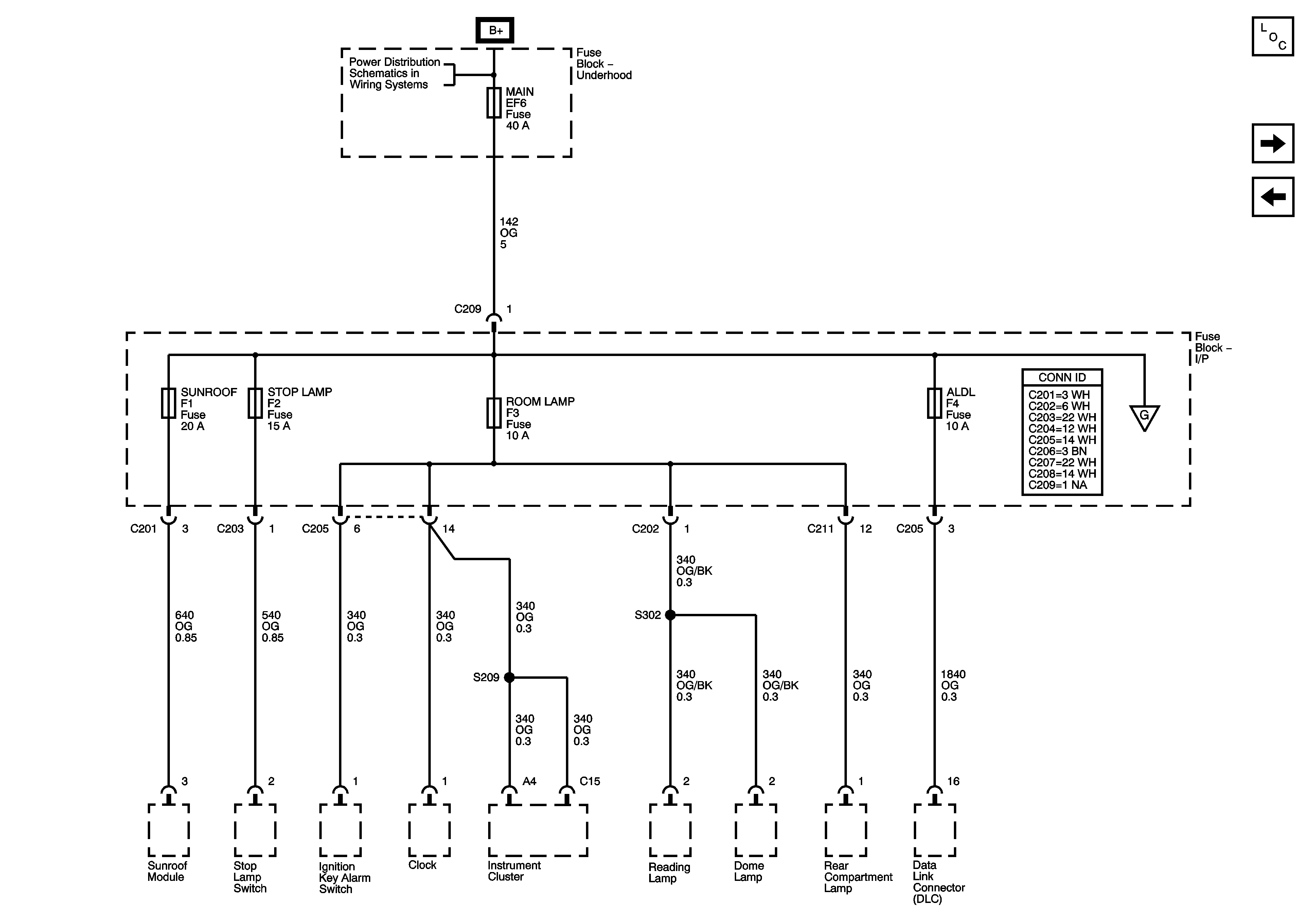

Figure 22:	MAIN Fuse (LHD) Master Electrical Component List MAIN Fuse (RHD) AUDIO and CIGAR LIGHTER Fuses (RHD) MAIN Fuse (RHD)

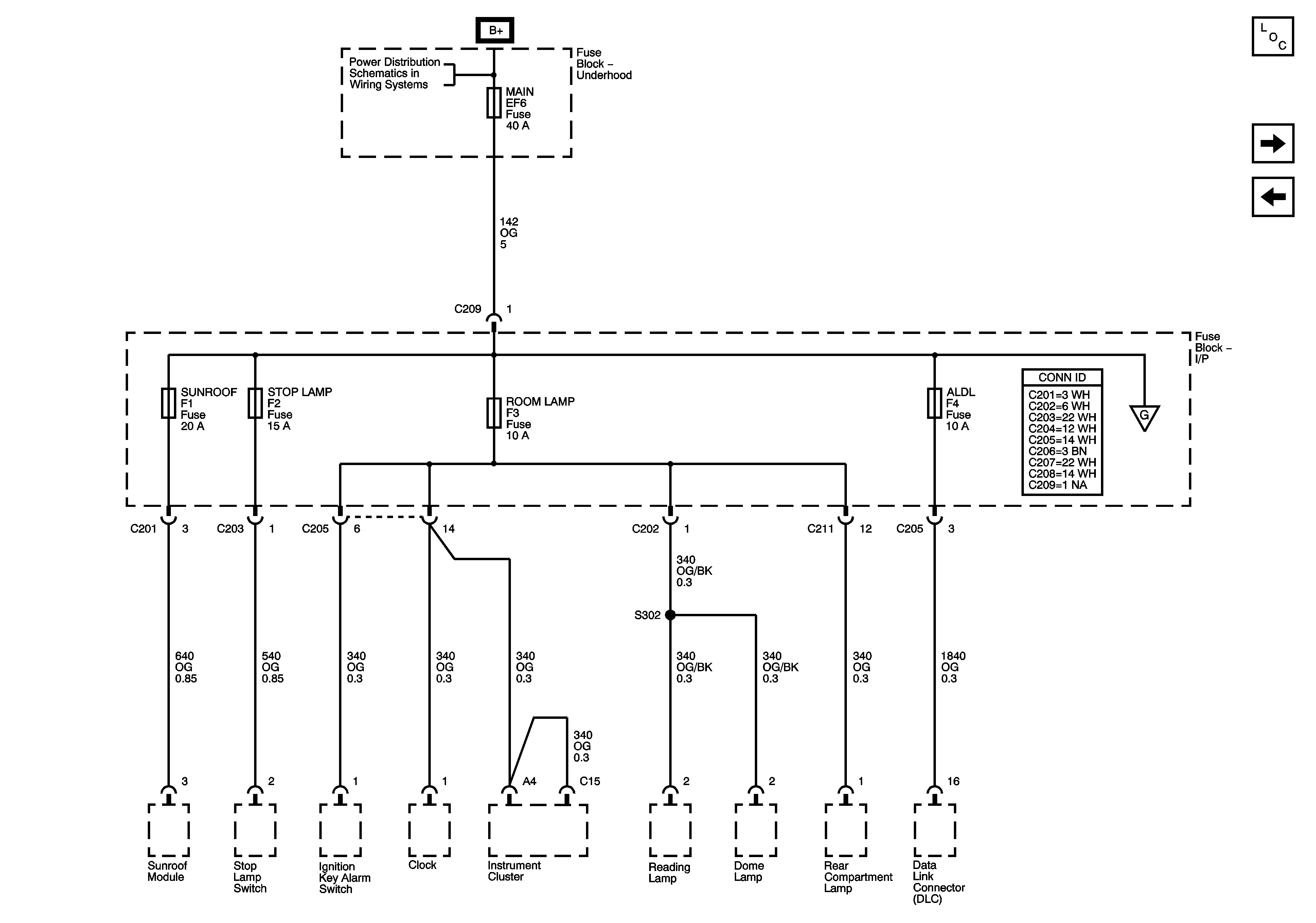

Figure 23:	MAIN Fuse (RHD) Master Electrical Component List DOOR LOCK, HAZARD FLASHER, TCM and AUDIO Fuses MAIN Fuse (LHD) MAIN Fuse (LHD)
Figure 24:	DOOR LOCK, HAZARD FLASHER, TCM, and AUDIO Fuses Master Electrical Component List ELECTRICAL MIRROR and HEATER Fuses (RHD) MAIN Fuse (RHD) MAIN Fuse (RHD)

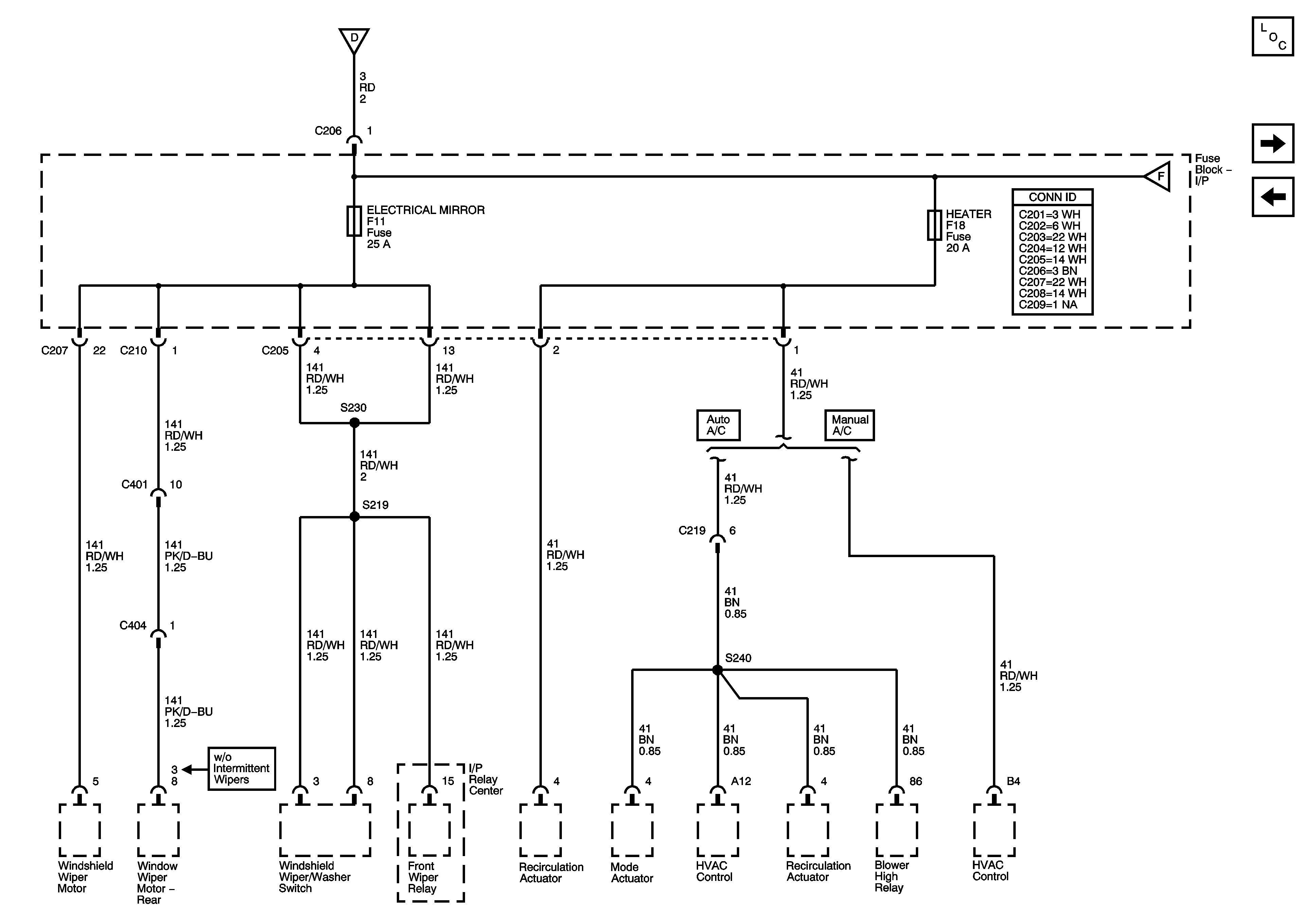

Figure 25:	ELECTRICAL MIRROR and HEATER Fuses (RHD) Master Electrical Component List ELECTRICAL MIRROR - and HEATER Fuses (LHD) DOOR LOCK, HAZARD FLASHER, TCM and AUDIO Fuses ELECTRICAL MIRROR - and HEATER Fuses (LHD) ELECTRICAL MIRROR - and HEATER Fuses (LHD)

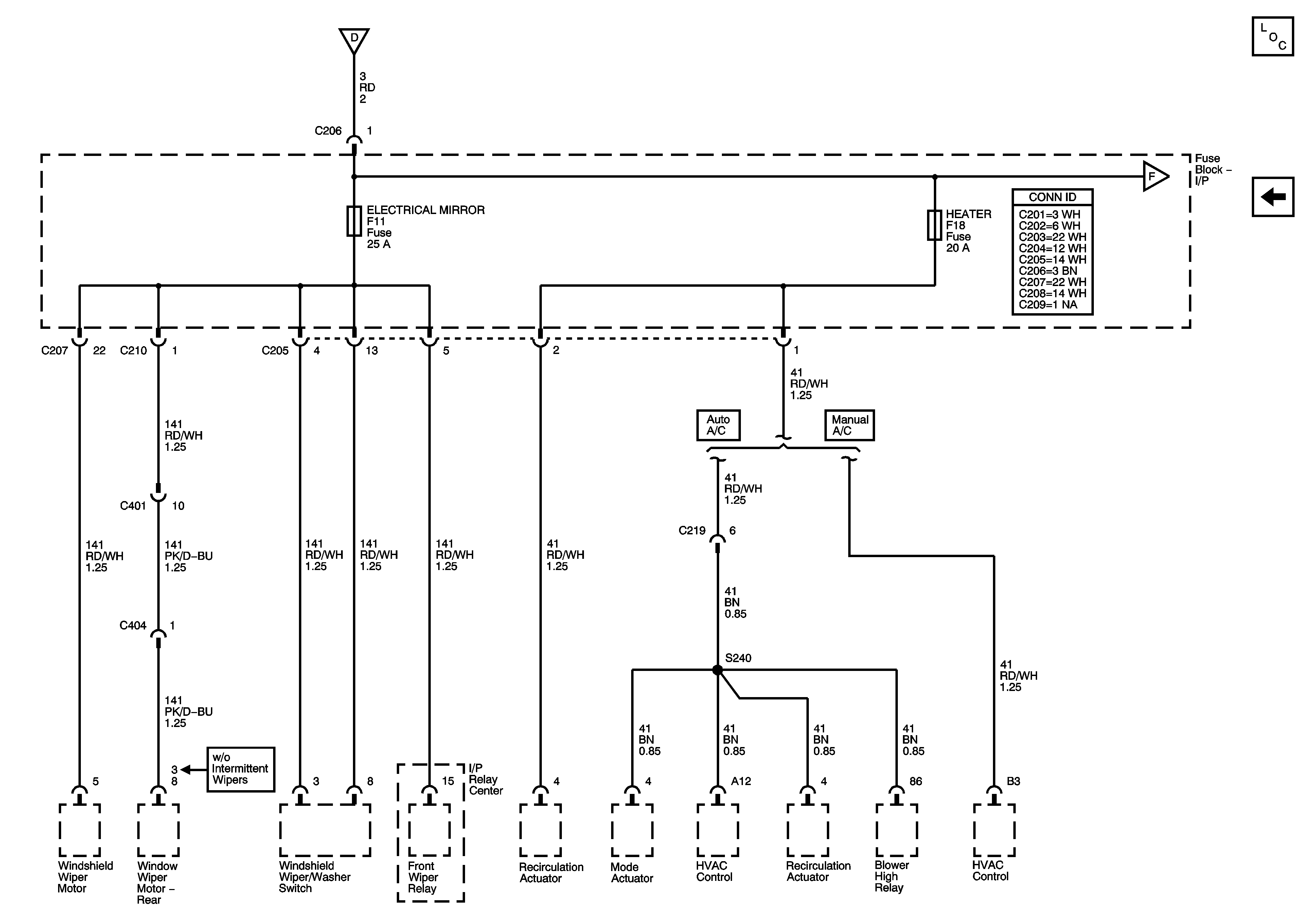

Figure 26:	ELECTRICAL MIRROR and HEATER Fuses (LHD) Master Electrical Component List ELECTRICAL MIRROR and HEATER Fuses (RHD) ELECTRICAL MIRROR and HEATER Fuses (RHD) ELECTRICAL MIRROR and HEATER Fuses (RHD)
