HVAC Air Delivery/Temperature Control Schematics. GMC Truck Savana 1998

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 GMC_Truck 🢒 1998 🢒 Savana 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 HVAC Air Delivery/Temperature Control Schematics

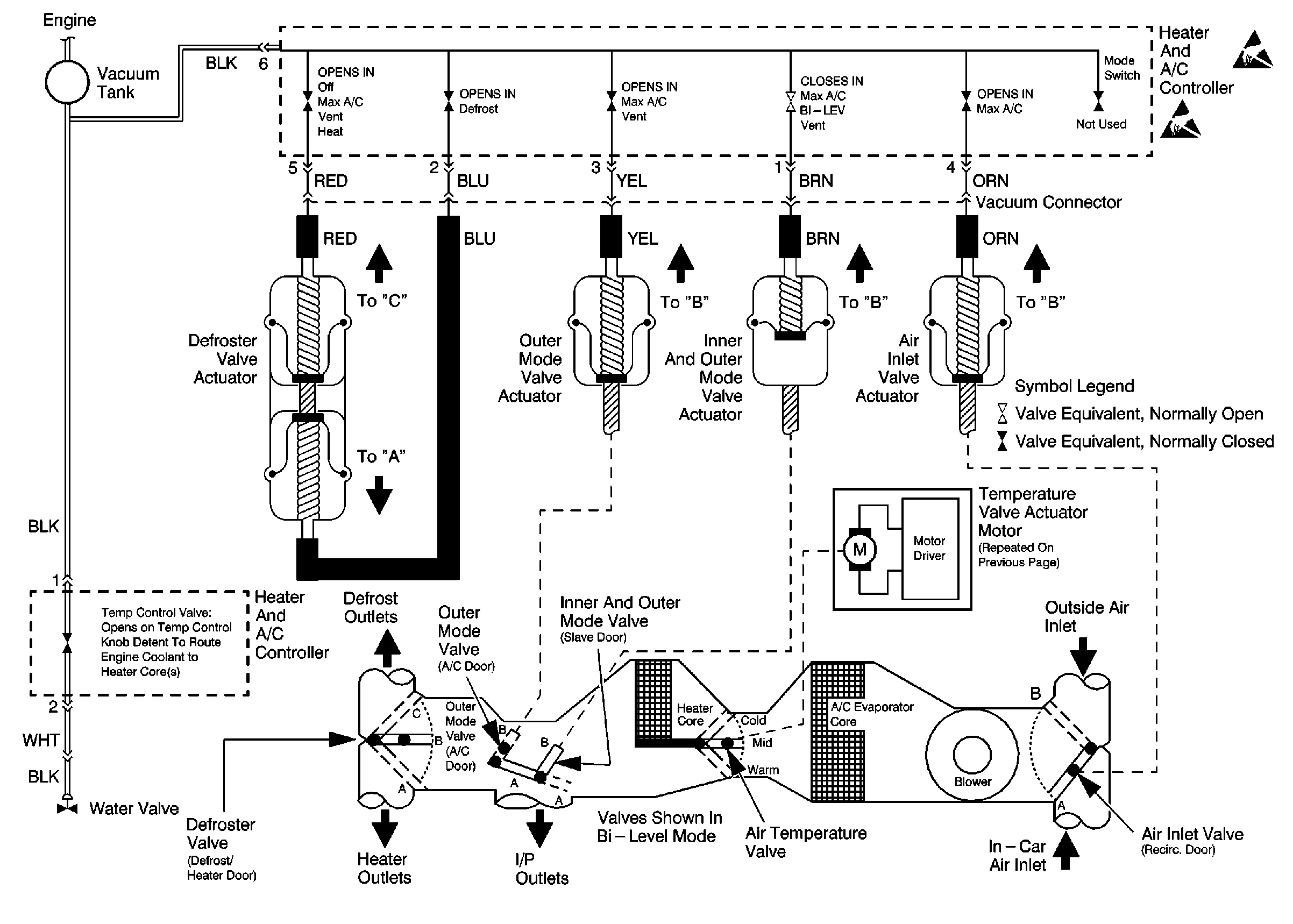

Figure 1:	Cell 65: 98 GMT 600 Vacuum System Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

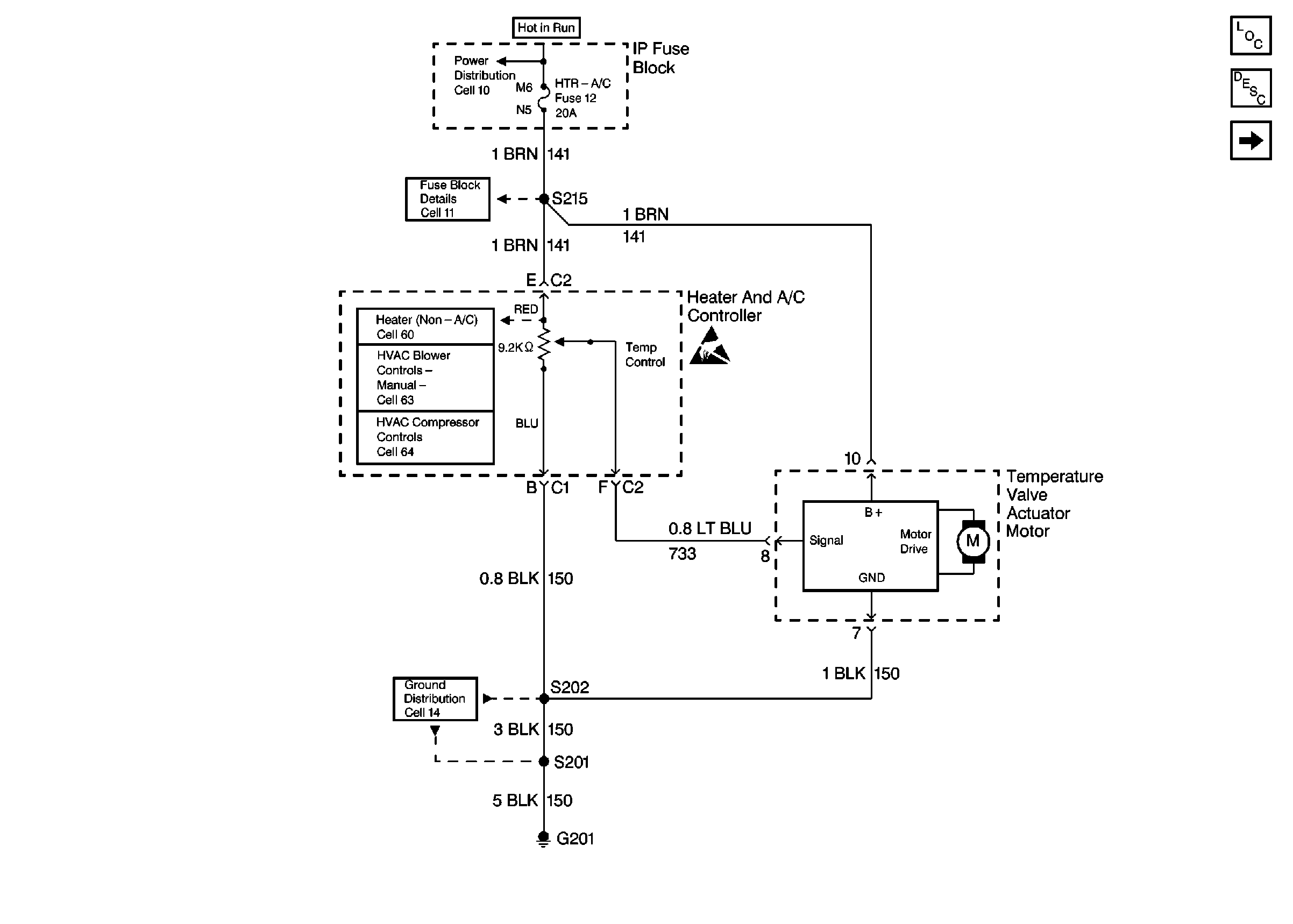

Figure 2:	Cell 65: 98 GMT600 Front Temperature Controls Power Distribution Schematics Fuse Block Schematics Heater Blower Controls Schematics HVAC Blower Control Schematics HVAC Compressor Control Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice HVAC Air Delivery/Temperature Control Schematics HVAC Air Delivery/Temperature Control Circuit Description Cell 65: Passenger Van Rear Ventilation Controls
Figure 3:	Cell 65: Passenger Van Rear Ventilation Controls Power Distribution Schematics HVAC Blower Control Schematics HVAC Blower Control Schematics Interior Lights Dimming Schematics HVAC Blower Control Schematics Handling ESD Sensitive Parts Notice Interior Lights Dimming Schematics Handling ESD Sensitive Parts Notice Cell 65: Rear Auxiliary Ventilation Valves HVAC Air Delivery/Temperature Control Schematics HVAC Air Delivery/Temperature Control Circuit Description Cell 65: Cargo Van Rear Ventilation Controls Cell 65: 98 GMT600 Front Temperature Controls Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Rear Auxiliary Ventilation Valves
Figure 4:	Cell 65: Cargo Van Rear Ventilation Controls Power Distribution Schematics HVAC Blower Control Schematics Interior Lights Dimming Schematics Handling ESD Sensitive Parts Notice Cell 65: Rear Auxiliary Ventilation Valves HVAC Air Delivery/Temperature Control Schematics HVAC Air Delivery/Temperature Control Circuit Description Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Passenger Van Rear Ventilation Controls Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Rear Auxiliary Ventilation Valves
Figure 5:	Cell 65: Rear Auxiliary Ventilation Valves Cell 65: Passenger Van Rear Ventilation Controls Cell 65: Cargo Van Rear Ventilation Controls Cell 65: Passenger Van Rear Ventilation Controls Cell 65: Cargo Van Rear Ventilation Controls Cell 65: Passenger Van Rear Ventilation Controls Cell 65: Cargo Van Rear Ventilation Controls Cell 65: Passenger Van Rear Ventilation Controls Cell 65: Cargo Van Rear Ventilation Controls HVAC Blower Control Schematics HVAC Blower Control Schematics HVAC Air Delivery/Temperature Control Schematics HVAC Air Delivery/Temperature Control Circuit Description Cell 65: Cargo Van Rear Ventilation Controls
