For 1990-2009 cars only
| Figure 1: |

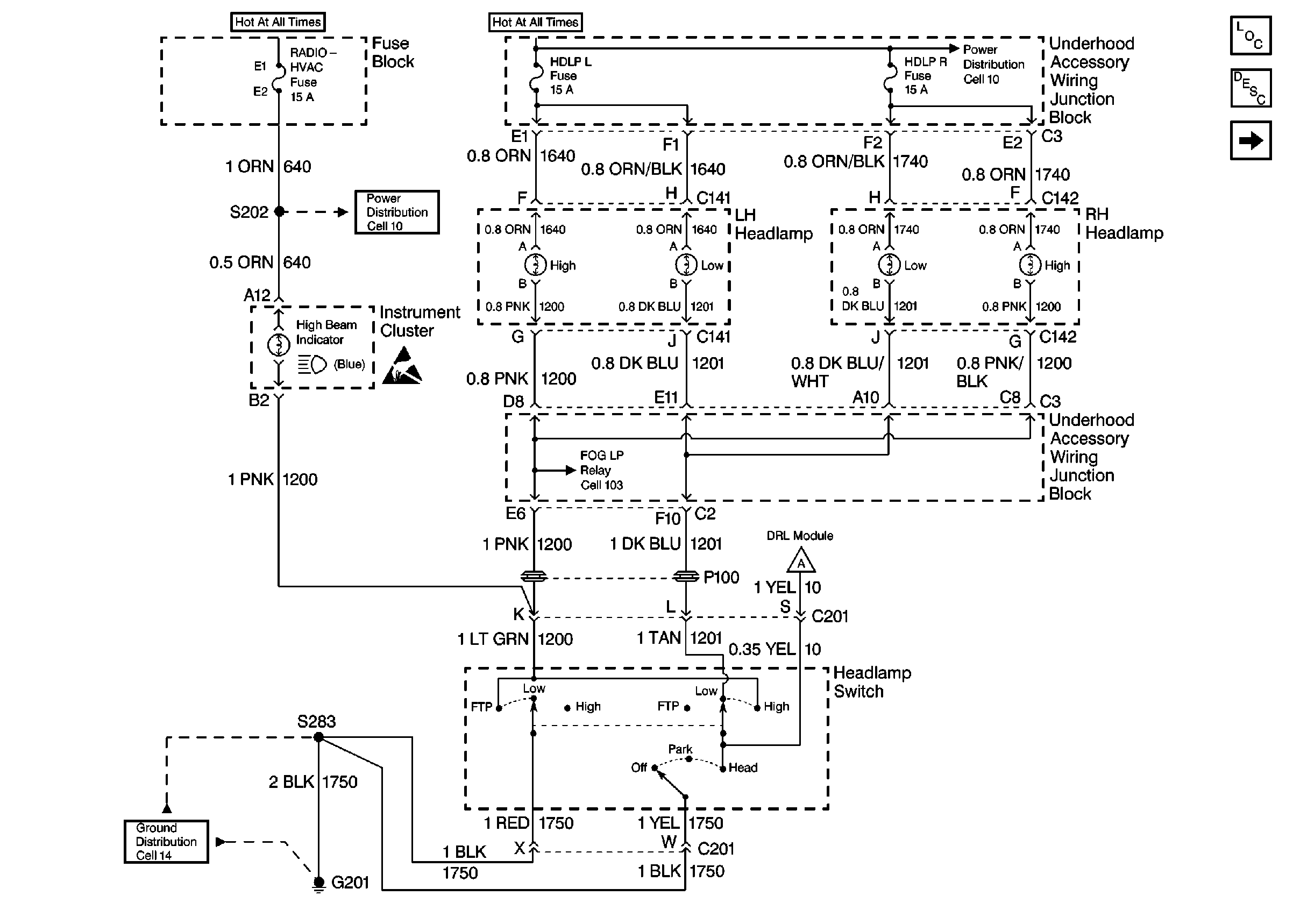

Cell 100: Power Distribution, Headlamps, Headlamp Switch and Ground Distribution
|
| Figure 2: |

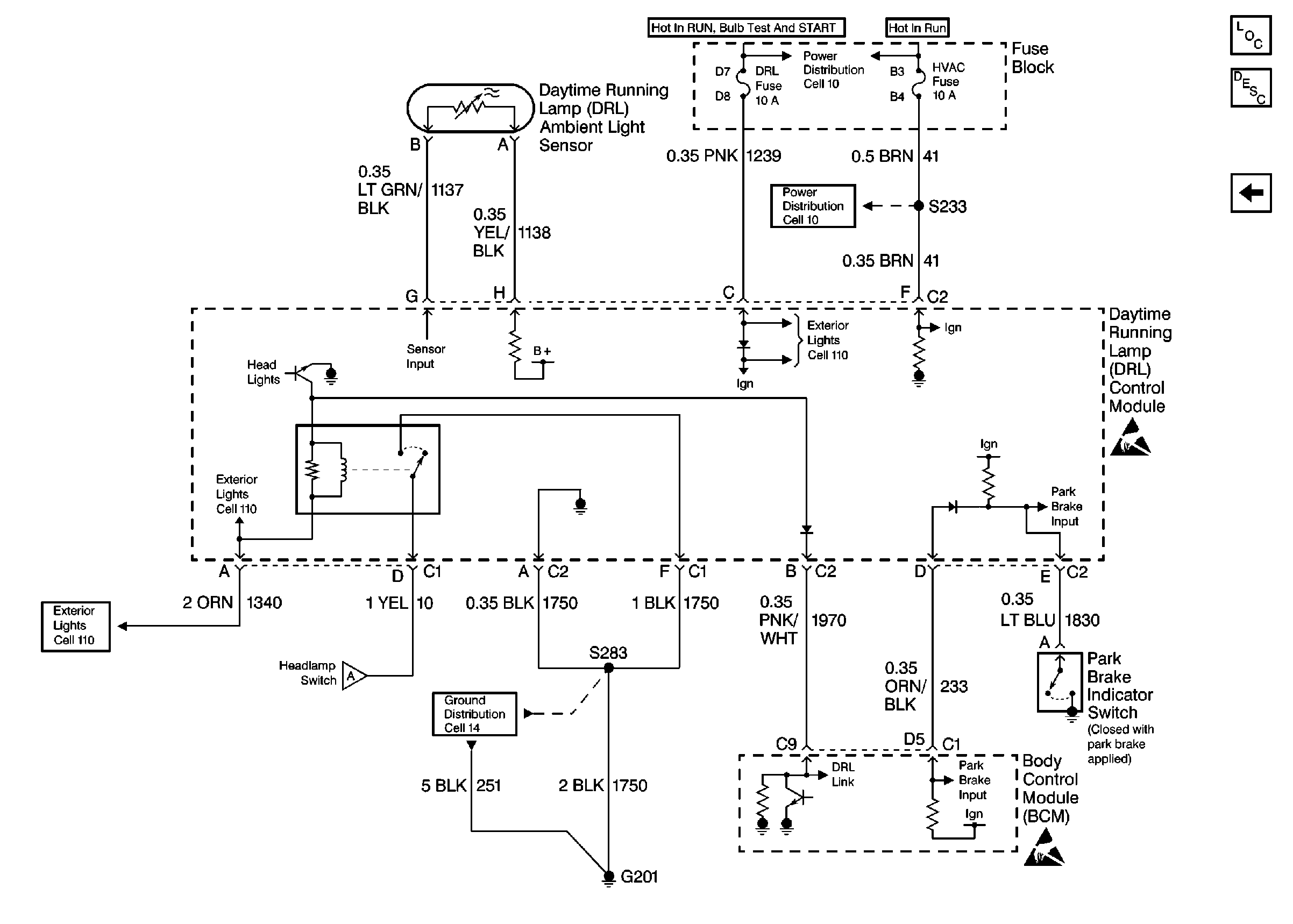

Cell 100: DRL Control Module and BCM
|
| Figure 1: |
Cell 100: Power Distribution, Headlamps, Headlamp Switch and Ground Distribution
|
| Figure 2: |
Cell 100: DRL Control Module and BCM
|
