Radio/Audio System Schematics. Pontiac Bonneville 2000

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2000 🢒 Bonneville 🢒 Body and Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

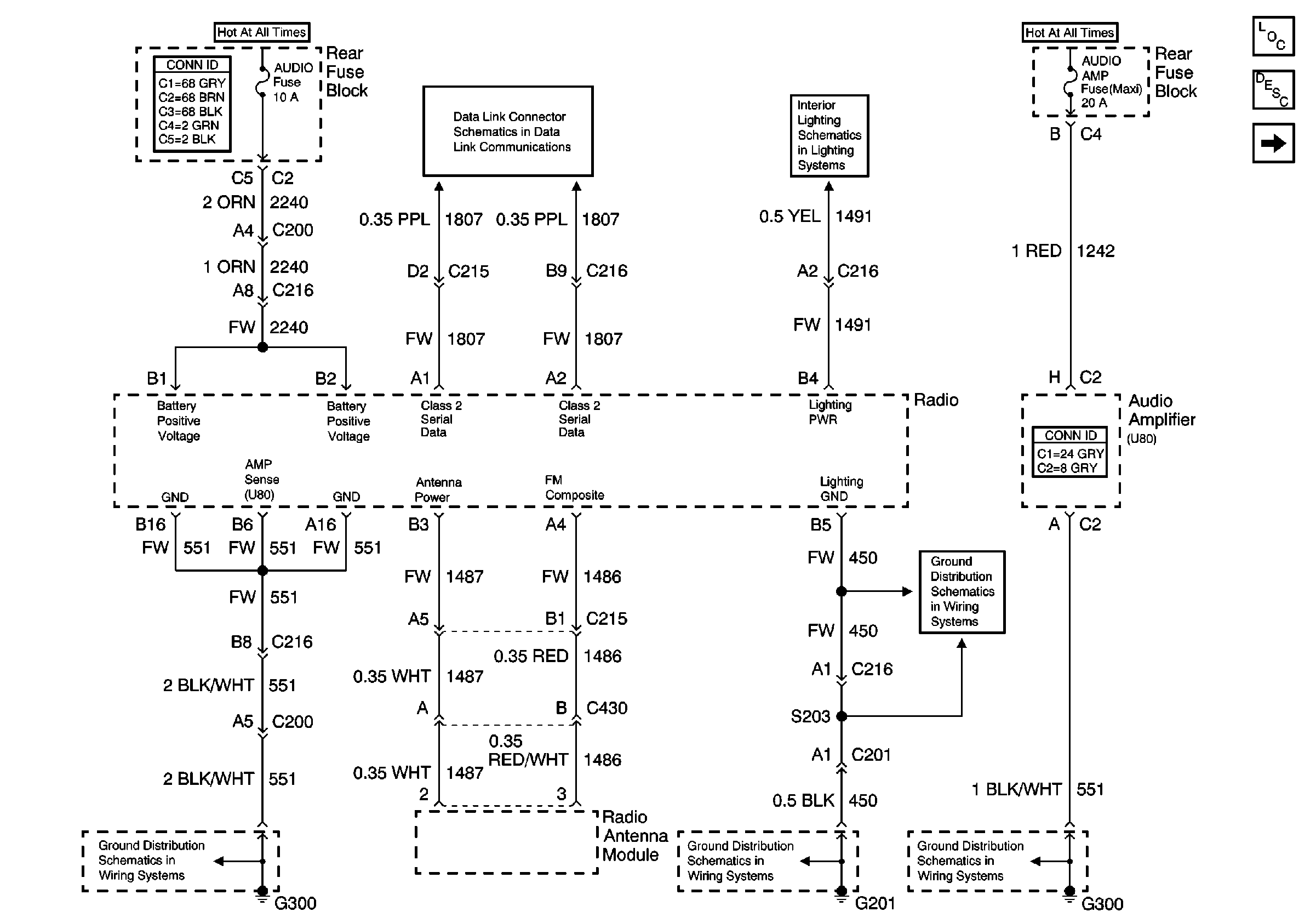

Figure 1:	Power and Grounds Entertainment Components Radio/Audio System Description Radio Speaker Output Instrument Panel and Console Dimming G300 G200 (1 of 2) G401 (1 of 2)

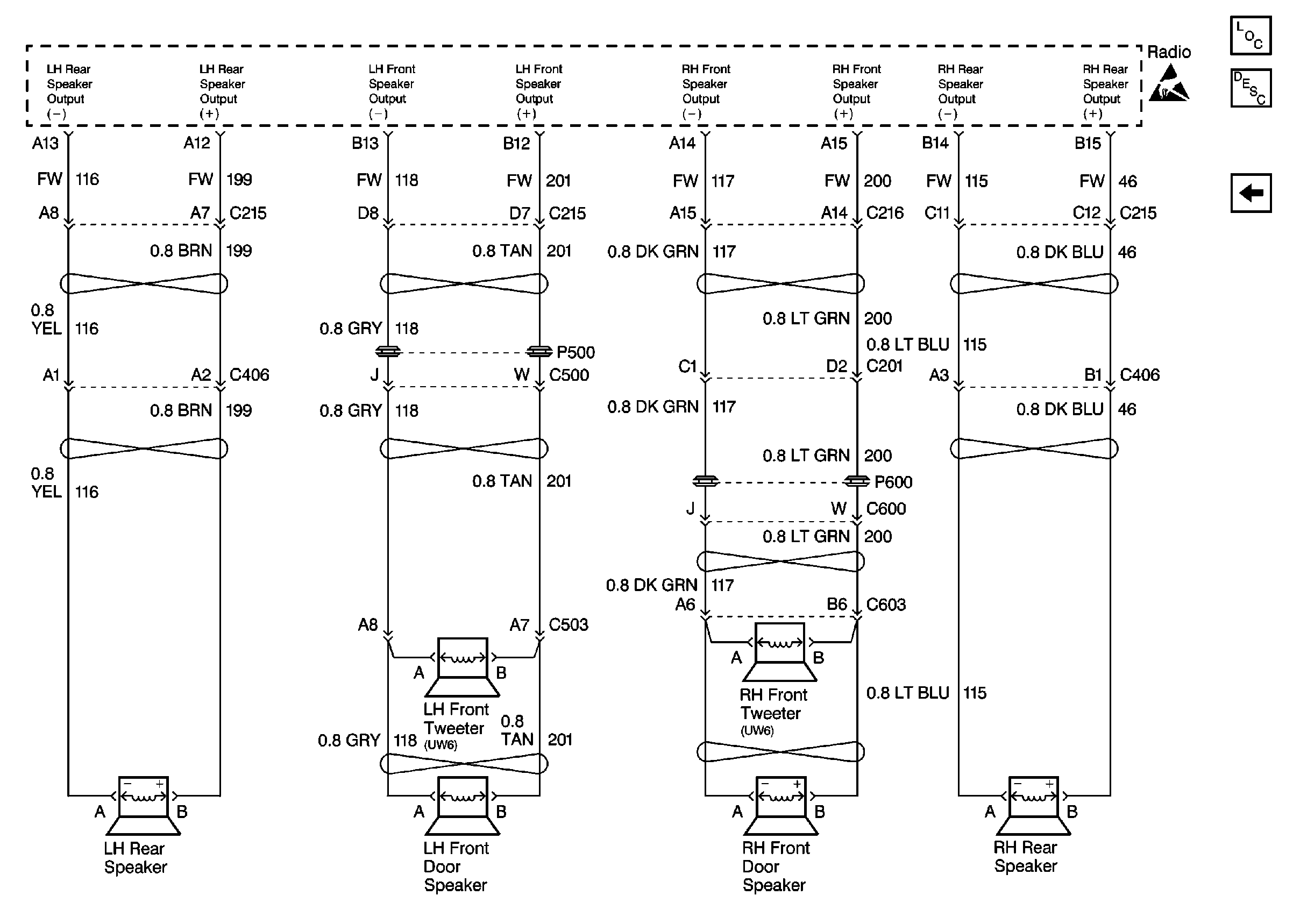

Figure 2:	Radio Speaker Output Entertainment Components Radio/Audio System Description Radio Output (U80) Power and Grounds

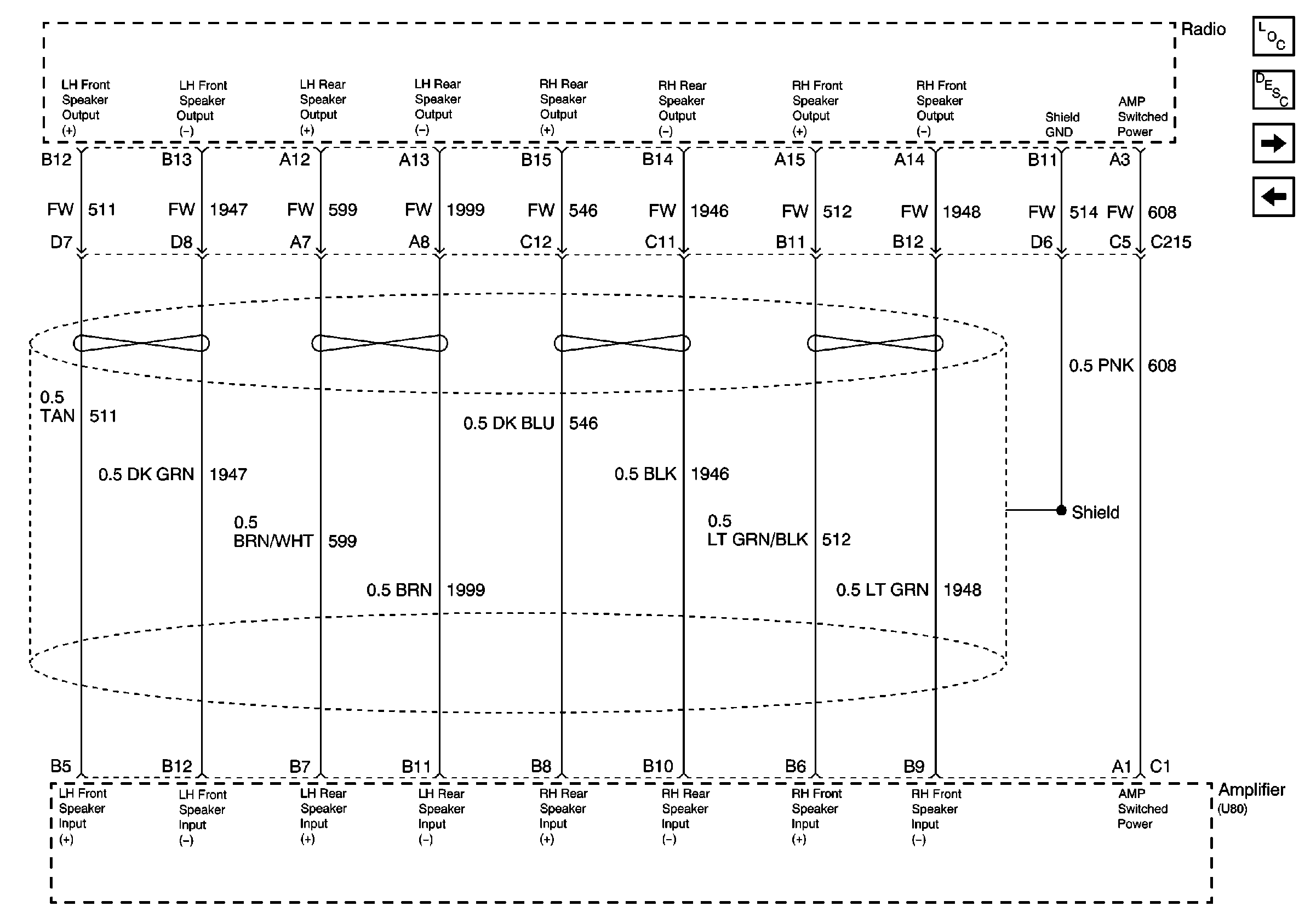

Figure 3:	Radio Output (U80) Entertainment Components Radio/Audio System Description Remote Compact Disc (CD) Player Front Speaker Output (U80)

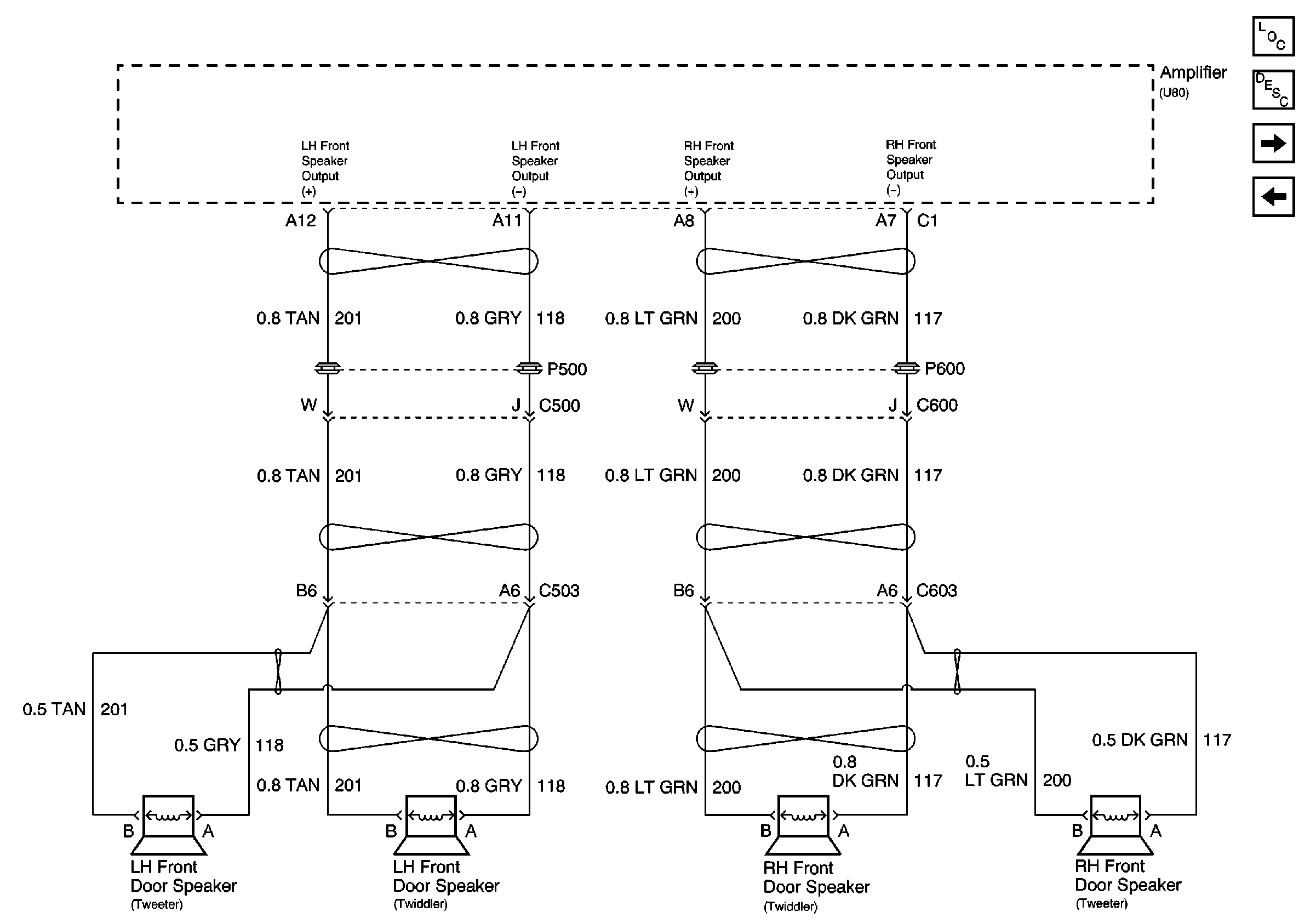

Figure 4:	Front Speaker Output (U80) Entertainment Components Radio/Audio System Description Rear Speaker Output (U80) Radio Output (U80)

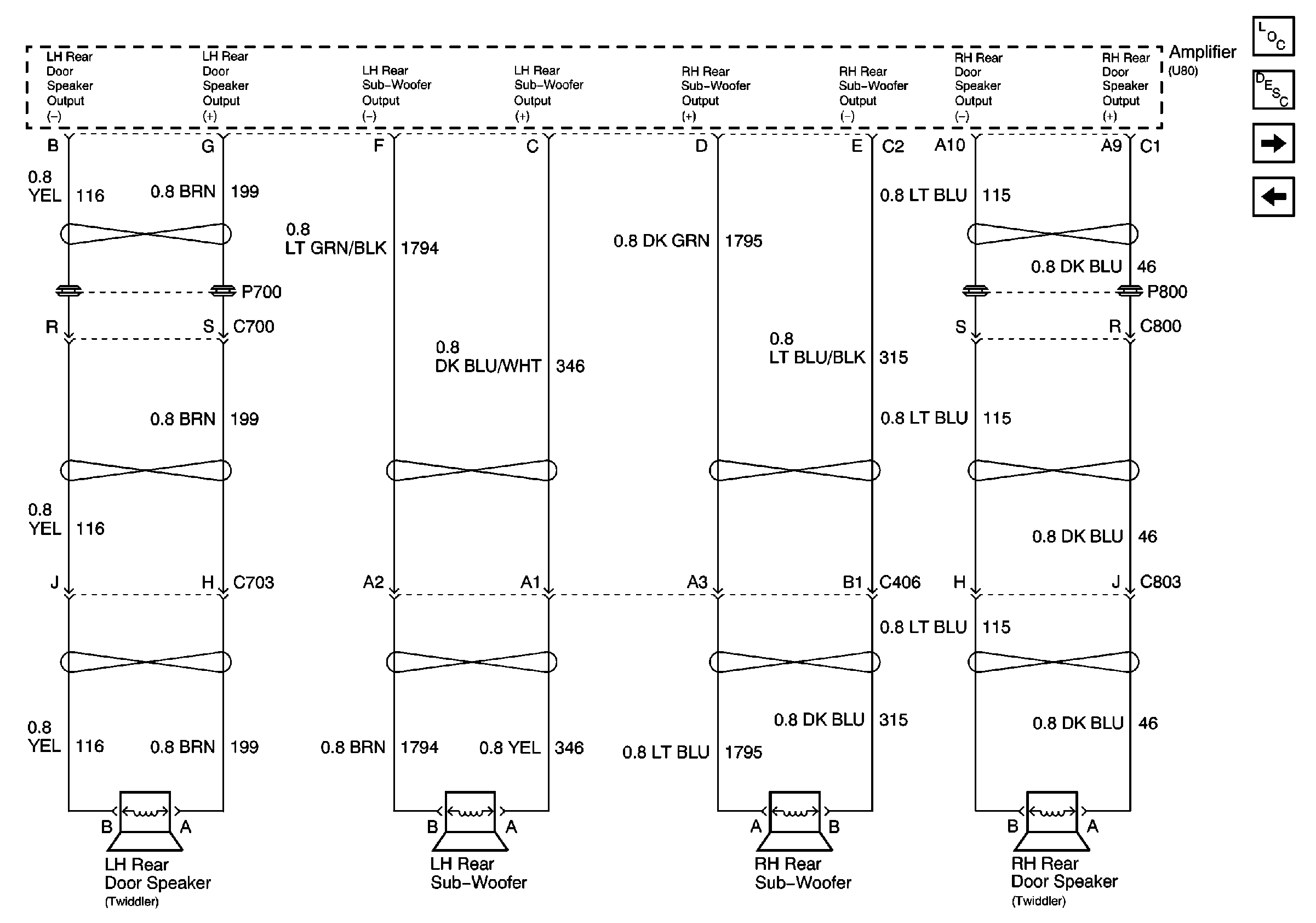

Figure 5:	Rear Speaker Output (U80) Entertainment Components Radio/Audio System Description Radio Output (U80) Power and Grounds
Figure 6:	Remote Compact Disc (CD) Player Entertainment Components Radio/Audio System Description Steering Wheel Controls Rear Speaker Output (U80)
Figure 7:	Antenna Module
