Exterior Lights Schematics. Pontiac Firebird 2002

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2002 🢒 Firebird 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

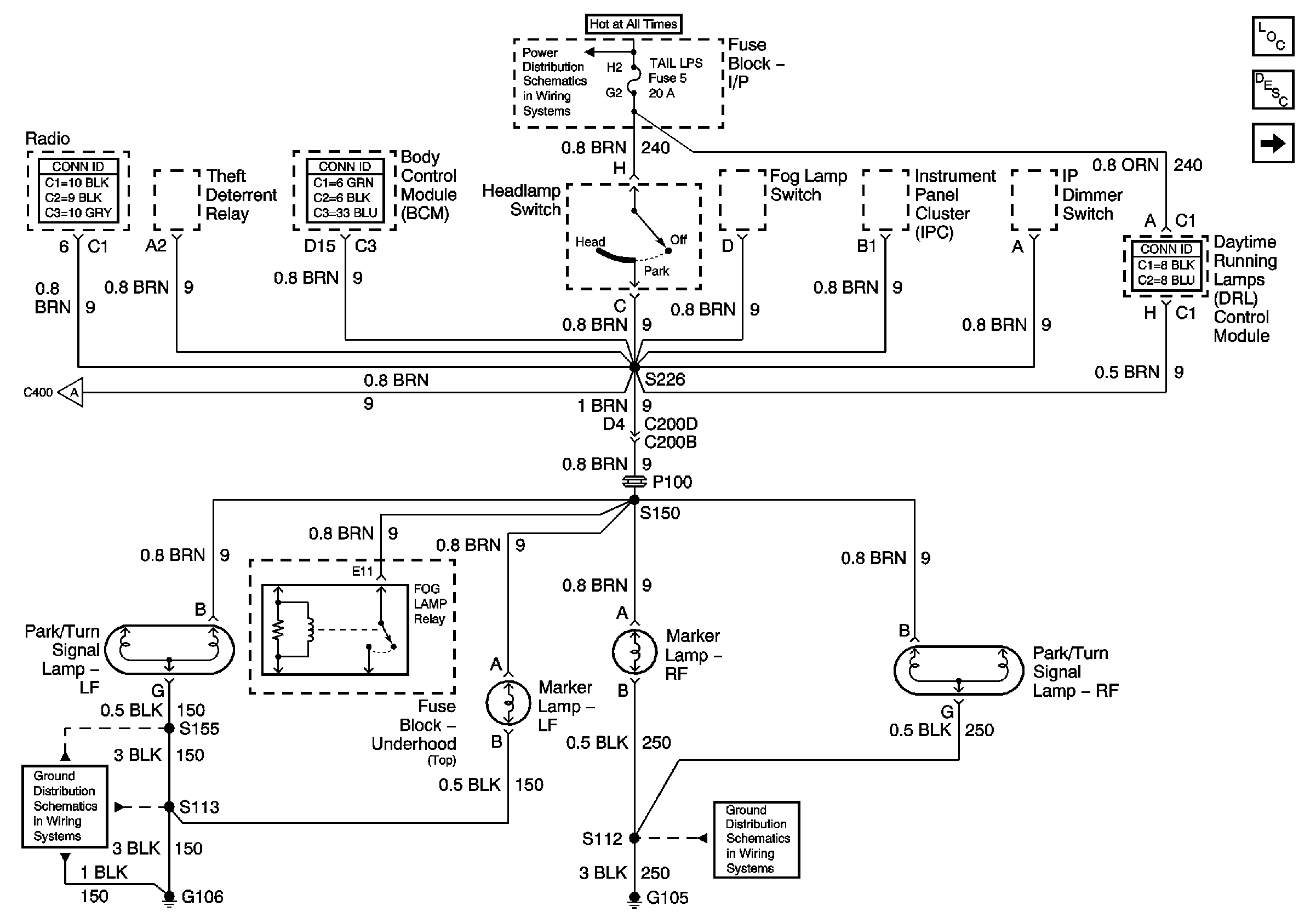

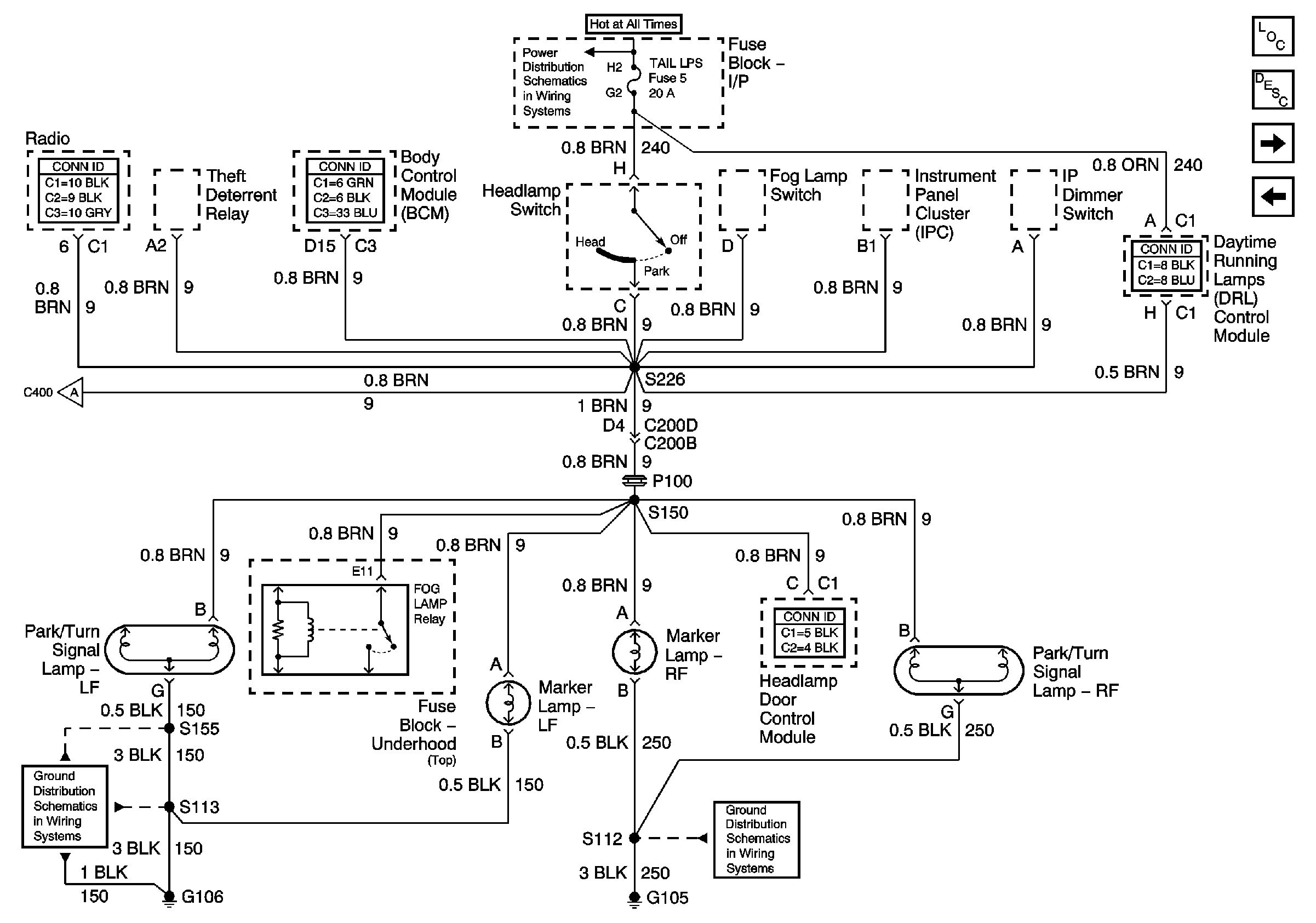

Figure 1:	Front Parklamps - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Parklamps Chevrolet Domestic and Gulf I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Rear Parklamps Chevrolet Domestic and Gulf G106 G105

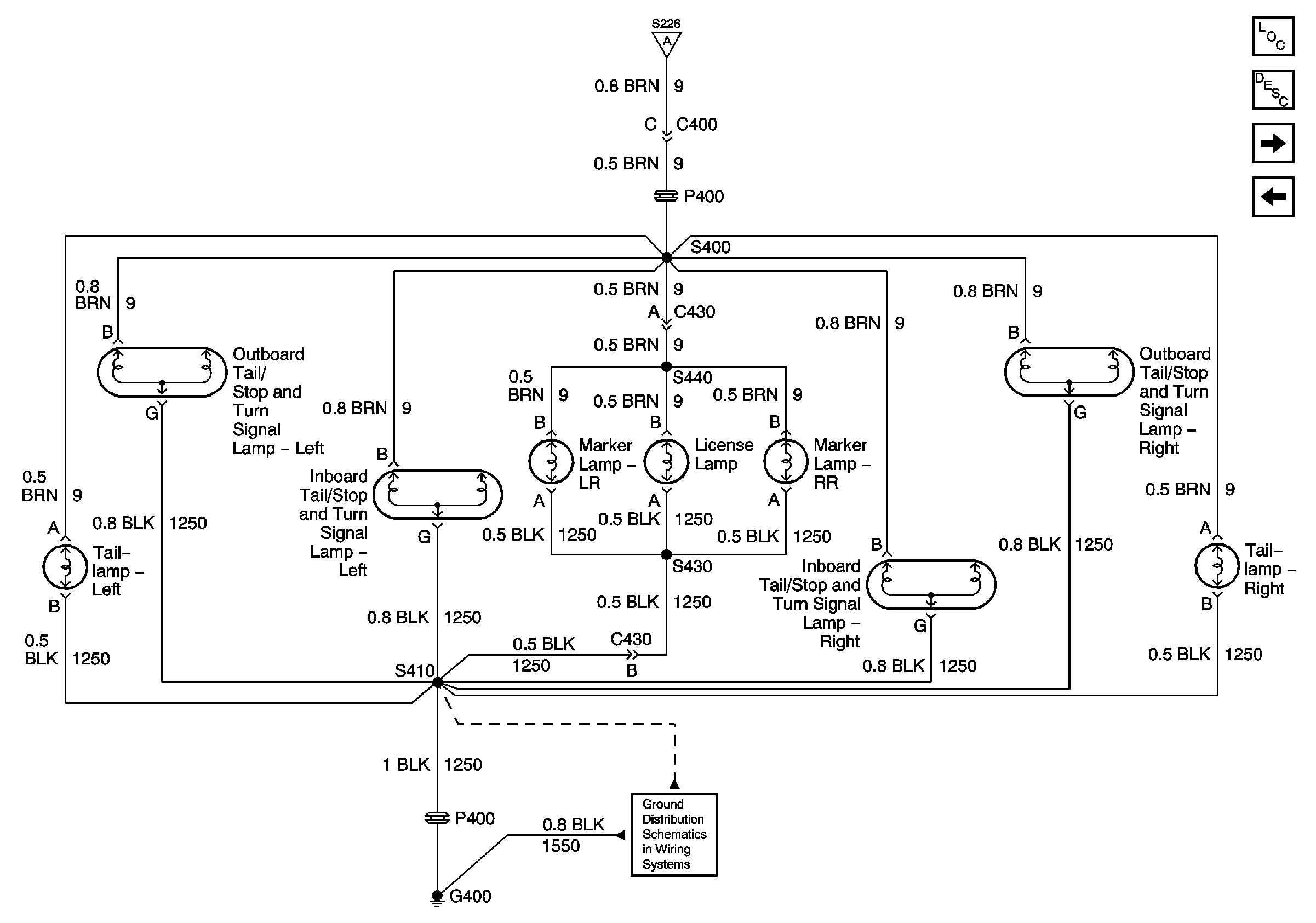

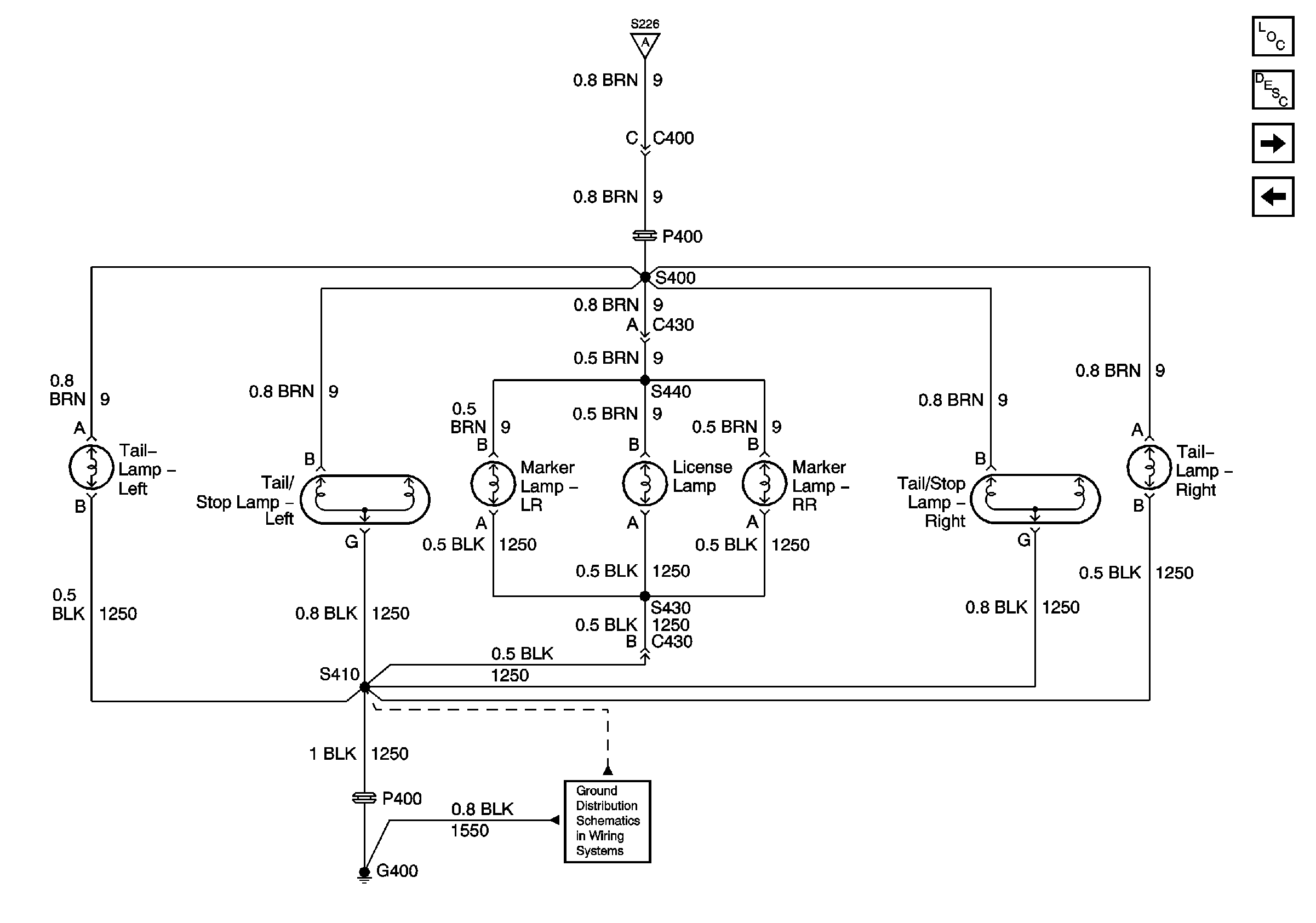

Figure 2:	Rear Parklamps - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Control Chevrolet Domestic and Gulf Front Parklamps Chevrolet Domestic and Gulf Front Parklamps Chevrolet Domestic and Gulf G400 Chevrolet

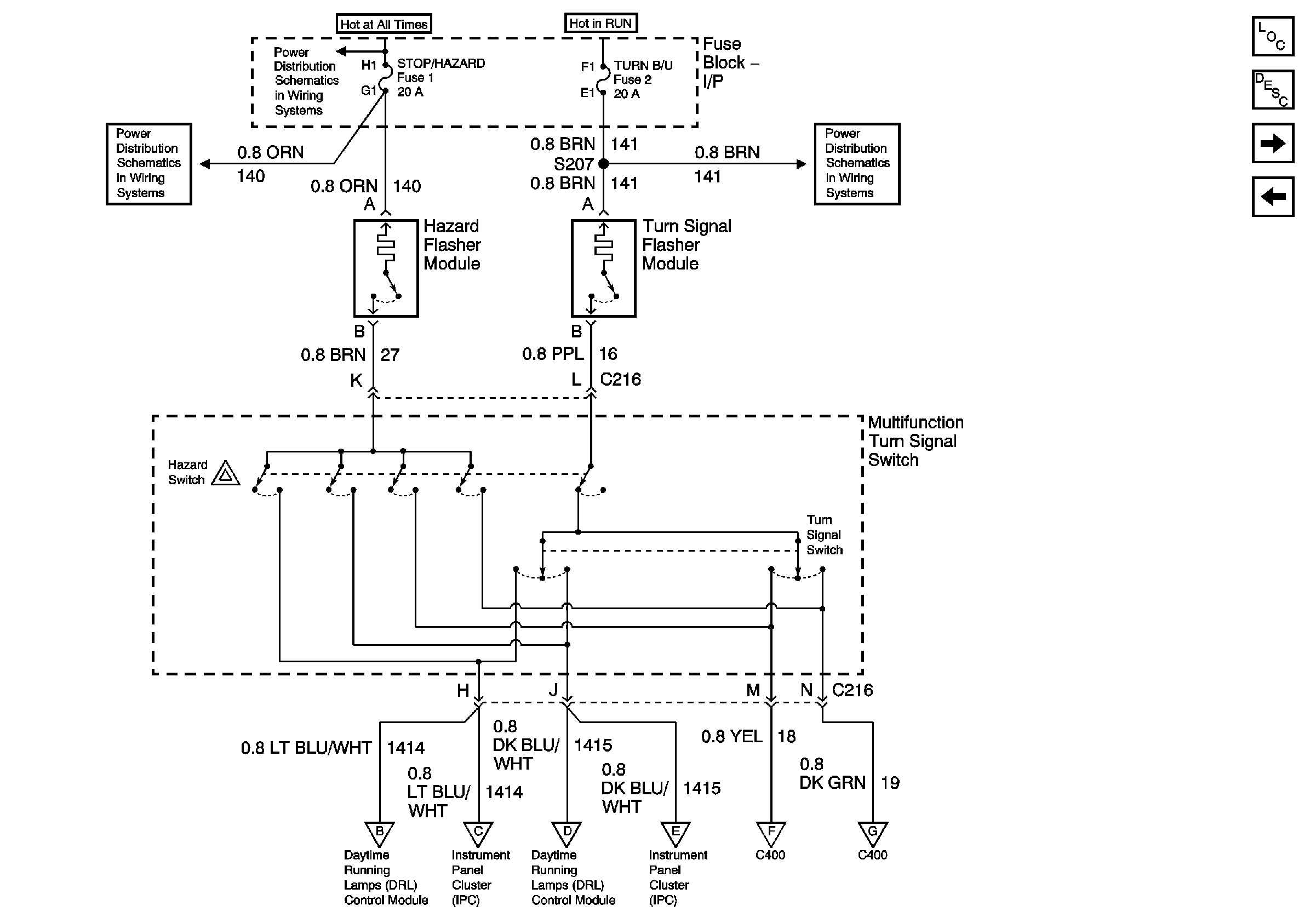

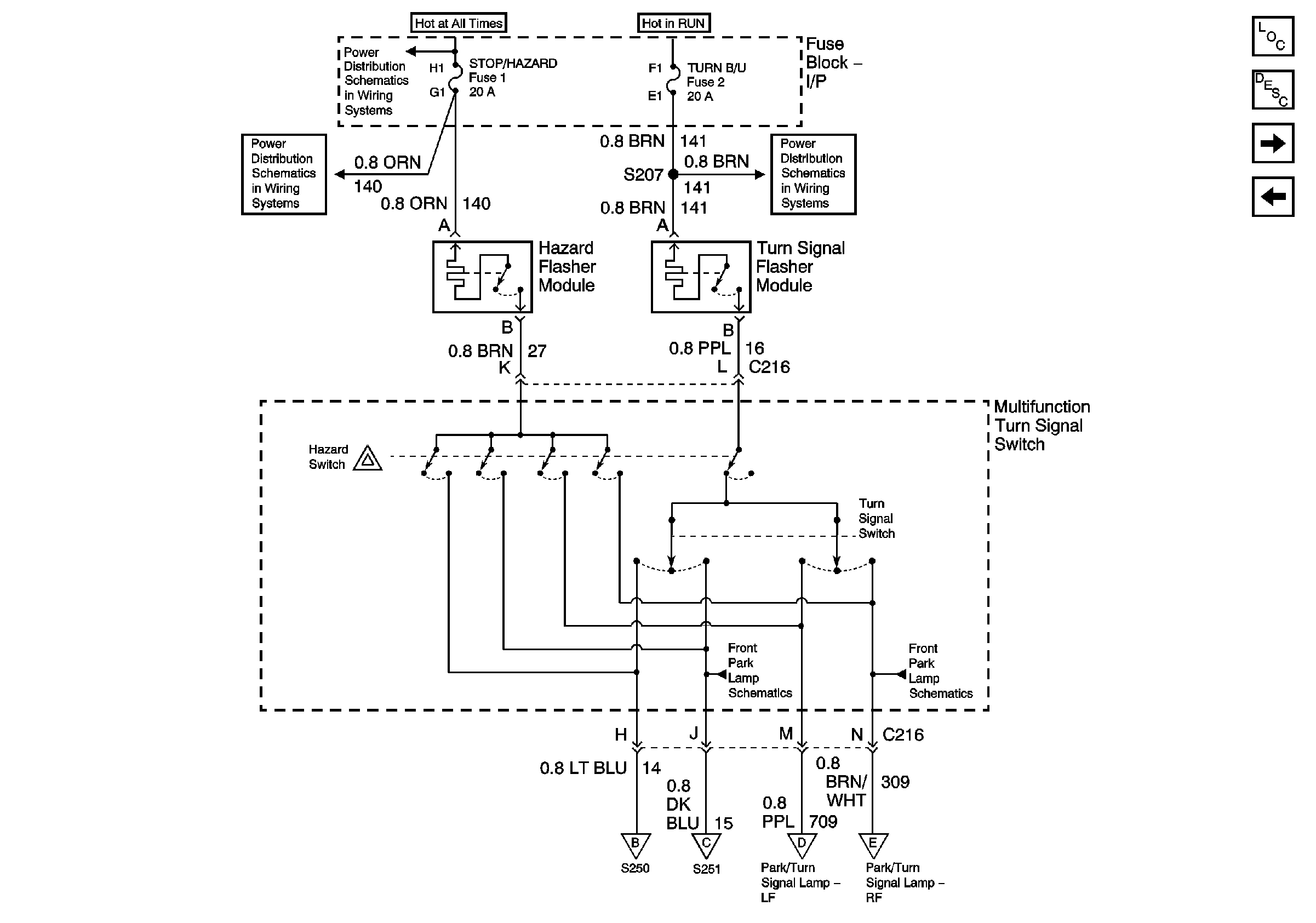

Figure 3:	Turn Signal Controls - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Lamps Chevrolet Domestic and Gulf Rear Parklamps Chevrolet Domestic and Gulf I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses HVAC and TURN B/U Fuses Turn Signal Lamps Chevrolet Domestic and Gulf Turn Signal Lamps Chevrolet Domestic and Gulf Turn Signal Lamps Chevrolet Domestic and Gulf Turn Signal Lamps Chevrolet Domestic and Gulf Turn Signal Lamps Chevrolet Domestic and Gulf Turn Signal Lamps Chevrolet Domestic and Gulf

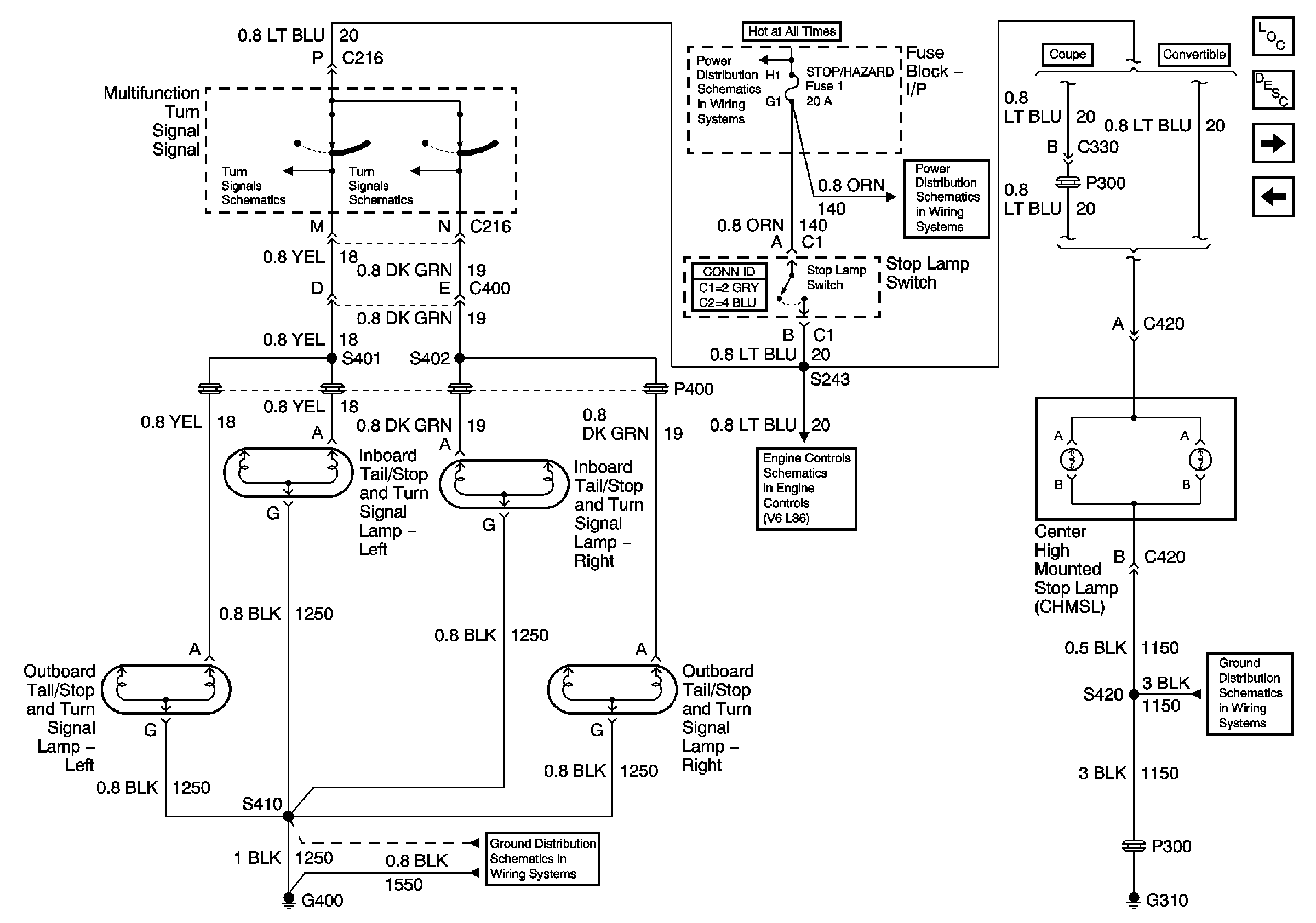

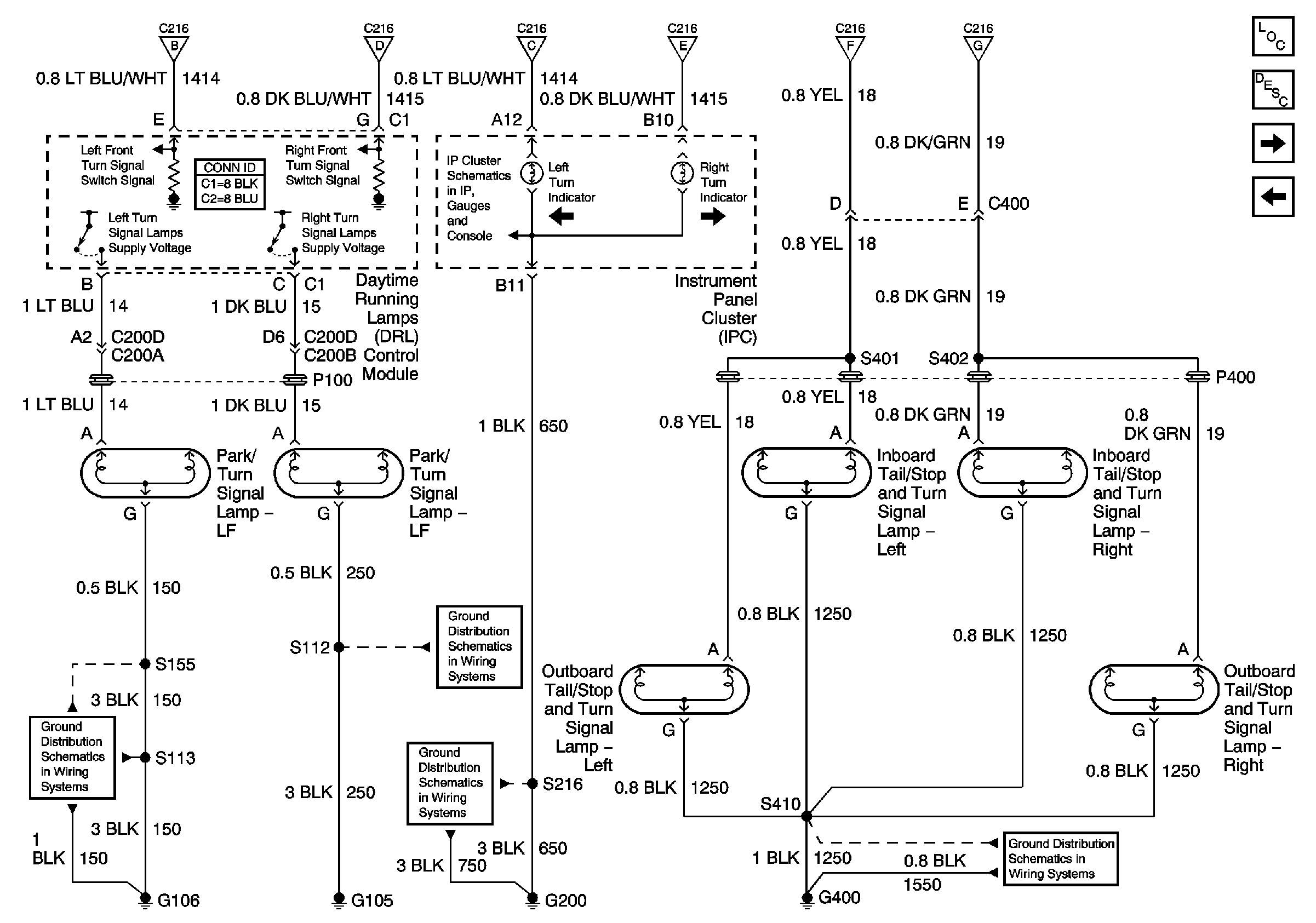

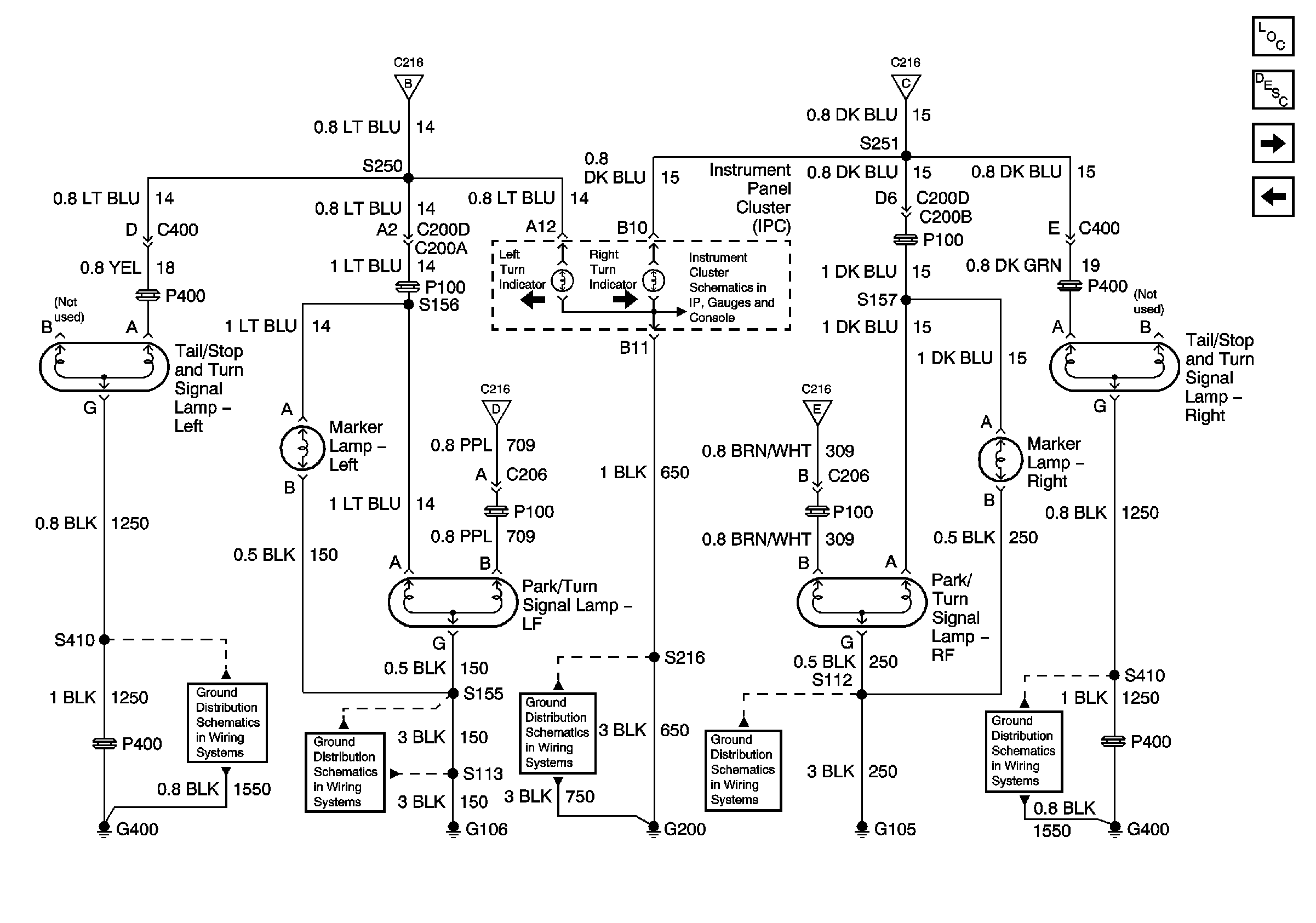

Figure 4:	Turn Signal Lamps - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Stoplamps Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Turn Signal Control Chevrolet Domestic and Gulf Lamp Indicators G106 G105 G200 Page 1 of 3 G400 Chevrolet

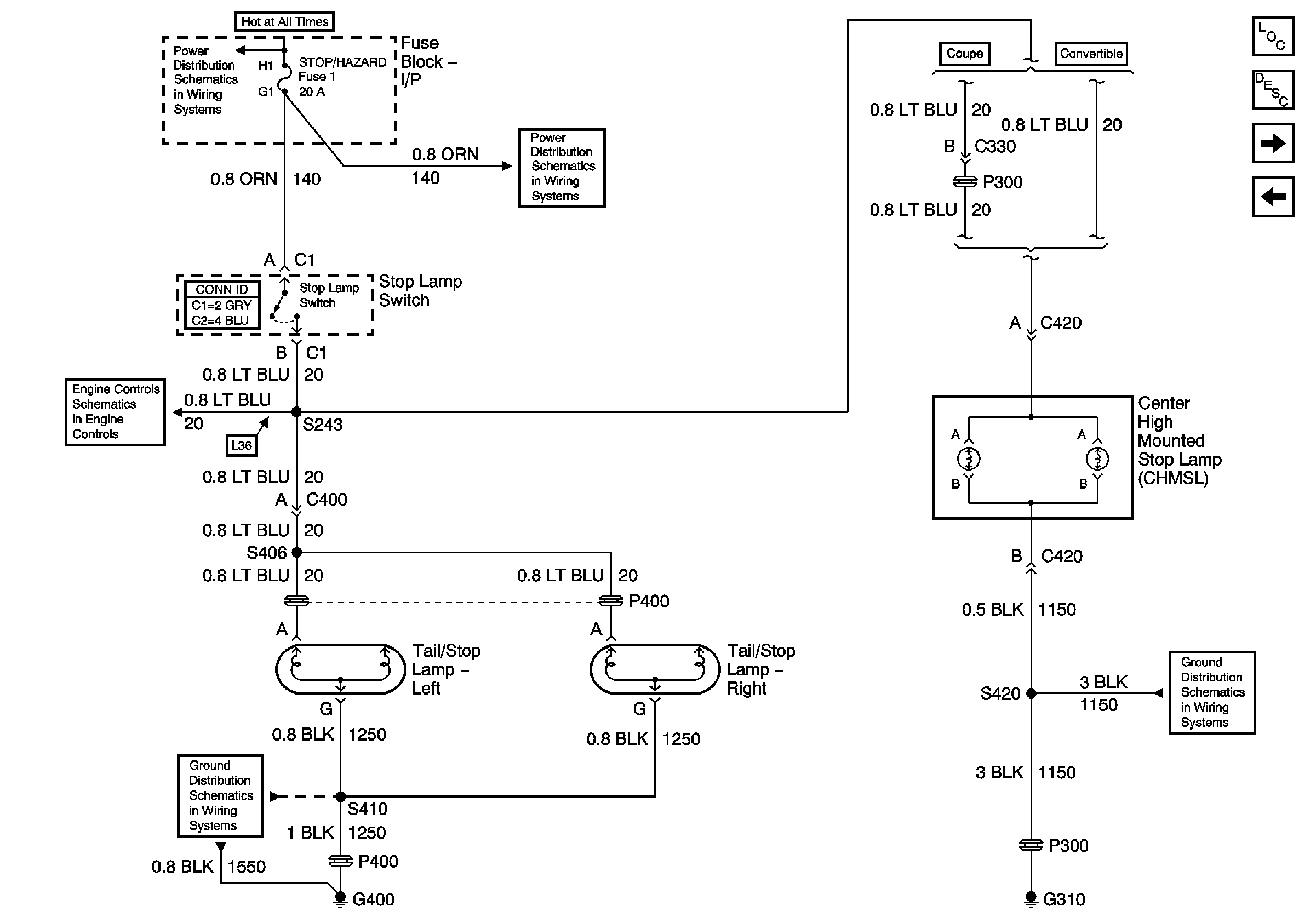

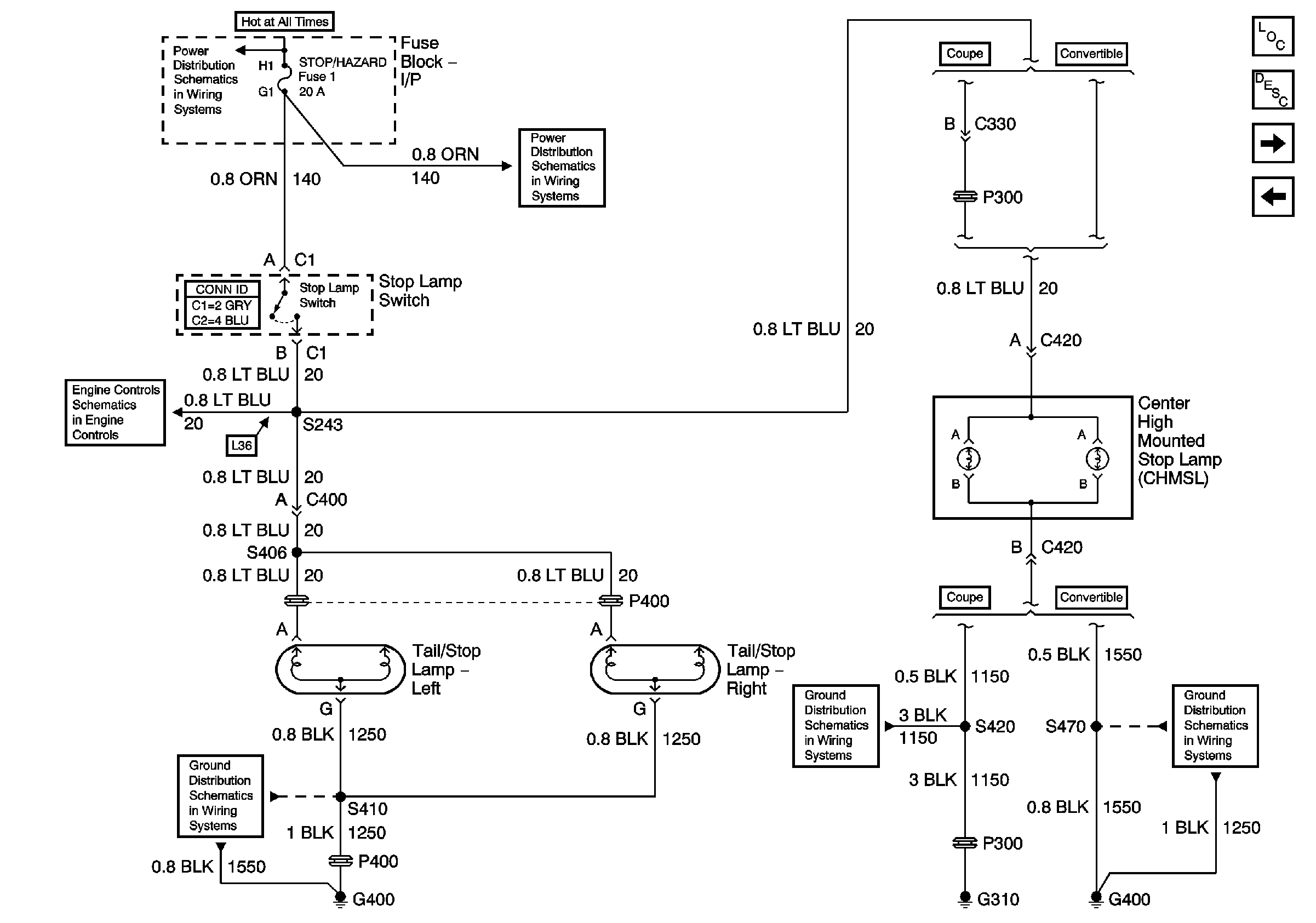

Figure 5:	Stoplamps - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Front Park Lamps Pontiac Turn Signal Lamps Chevrolet Domestic and Gulf I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Engine Data Sensors-Electronic Throttle Controls G400 Chevrolet G305, G310, G320

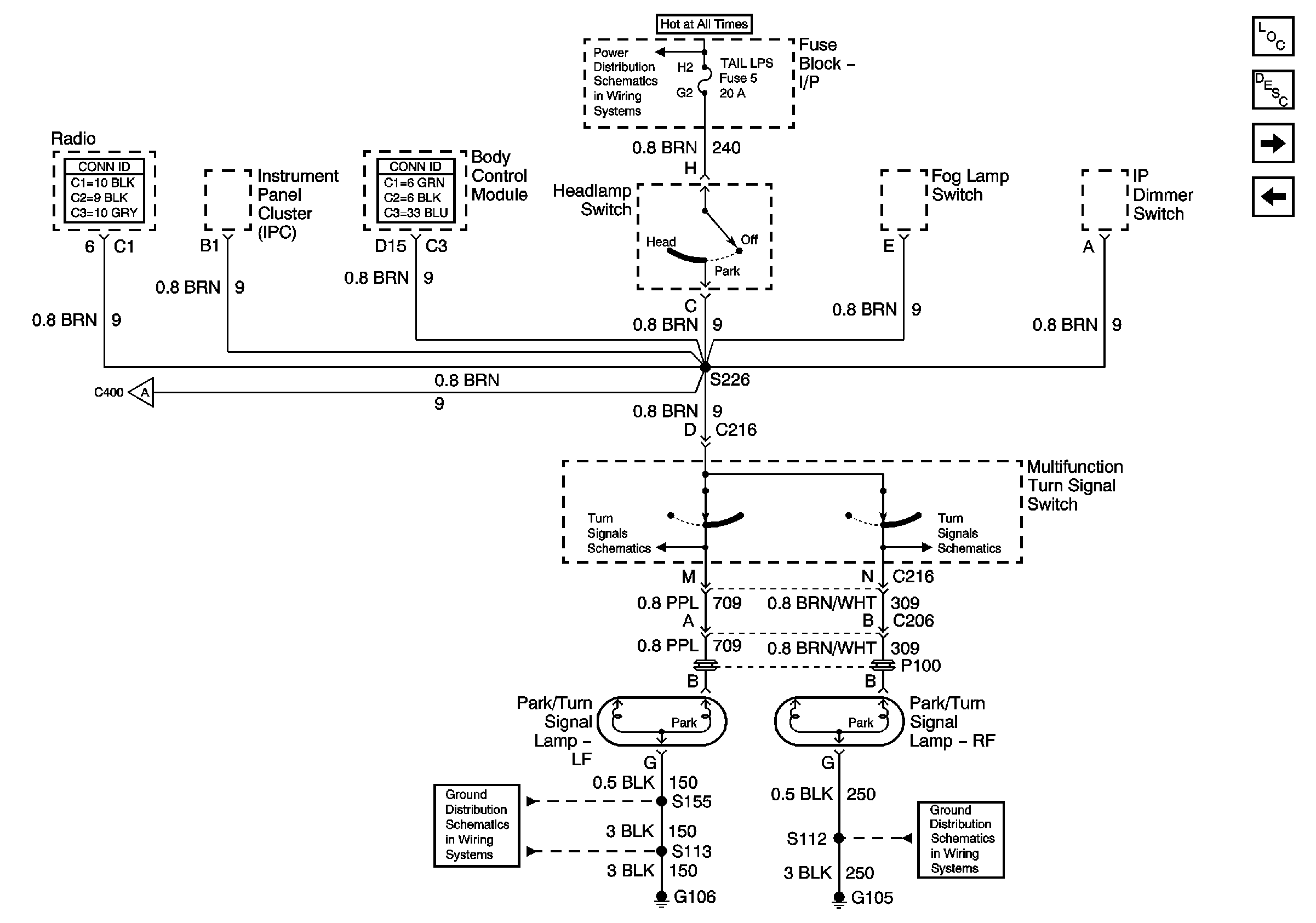

Figure 6:	Front Park Lamps - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Park Lamps Pontiac Stoplamps Chevrolet Domestic and Gulf I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Rear Park Lamps Pontiac G106 G105

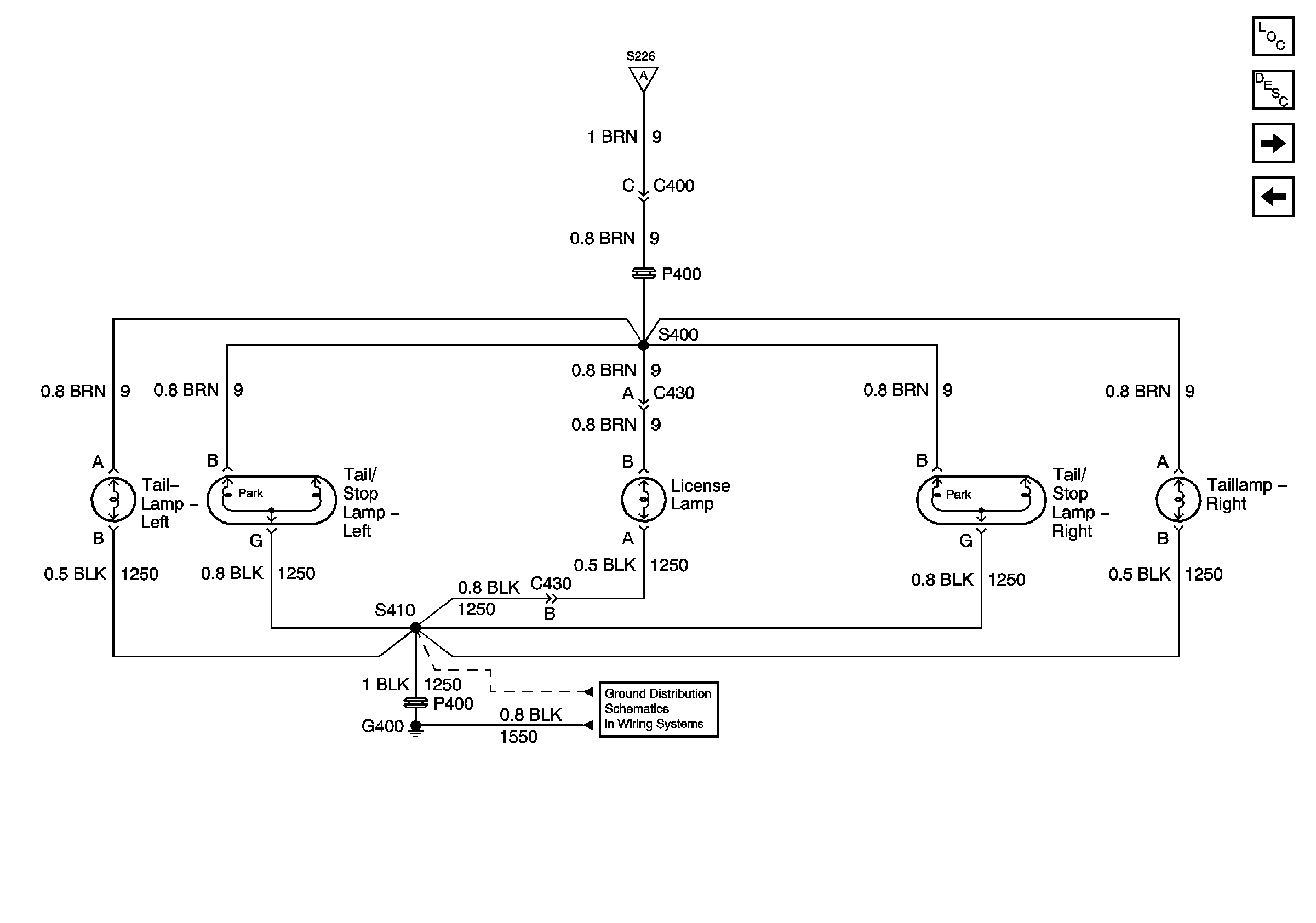

Figure 7:	Rear Park Lamps - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Controls Pontiac Front Park Lamps Pontiac Front Park Lamps Pontiac G400 Chevrolet

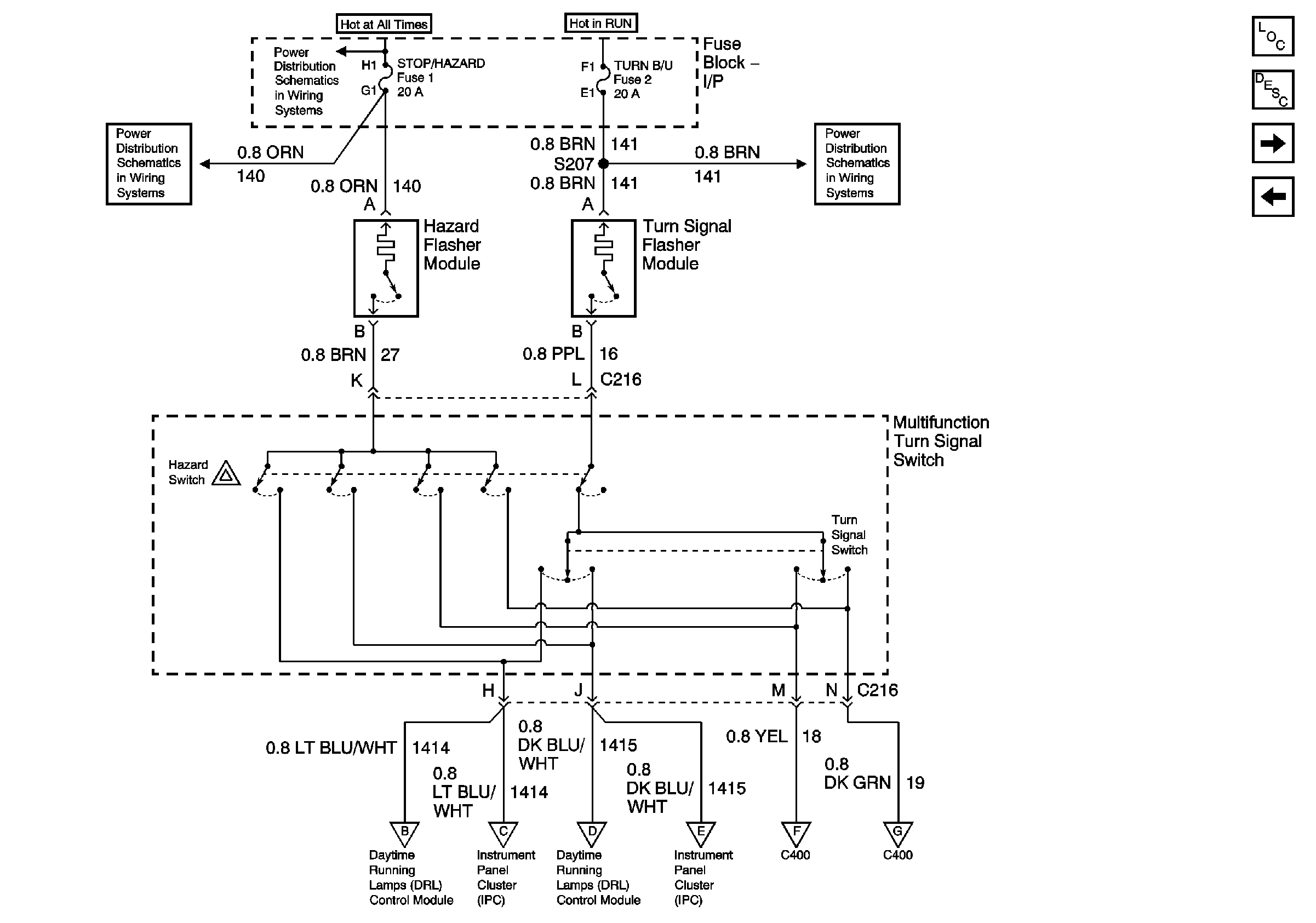

Figure 8:	Turn Signal Controls - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Lamps Pontiac Rear Park Lamps Pontiac I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses HVAC and TURN B/U Fuses Turn Signal Lamps Pontiac Turn Signal Lamps Pontiac Turn Signal Lamps Pontiac Turn Signal Lamps Pontiac Turn Signal Lamps Pontiac Turn Signal Lamps Pontiac
Figure 9:	Turn Signal Lamps - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Stoplamps Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac Turn Signal Controls Pontiac G106 G105 G200 Page 1 of 3 G400 Chevrolet
Figure 10:	Stoplamps - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Parklamps Chevrolet Europe and Scandanavia Turn Signal Lamps Pontiac I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Engine Data Sensors-Electronic Throttle Controls G400 Chevrolet G305, G310, G320

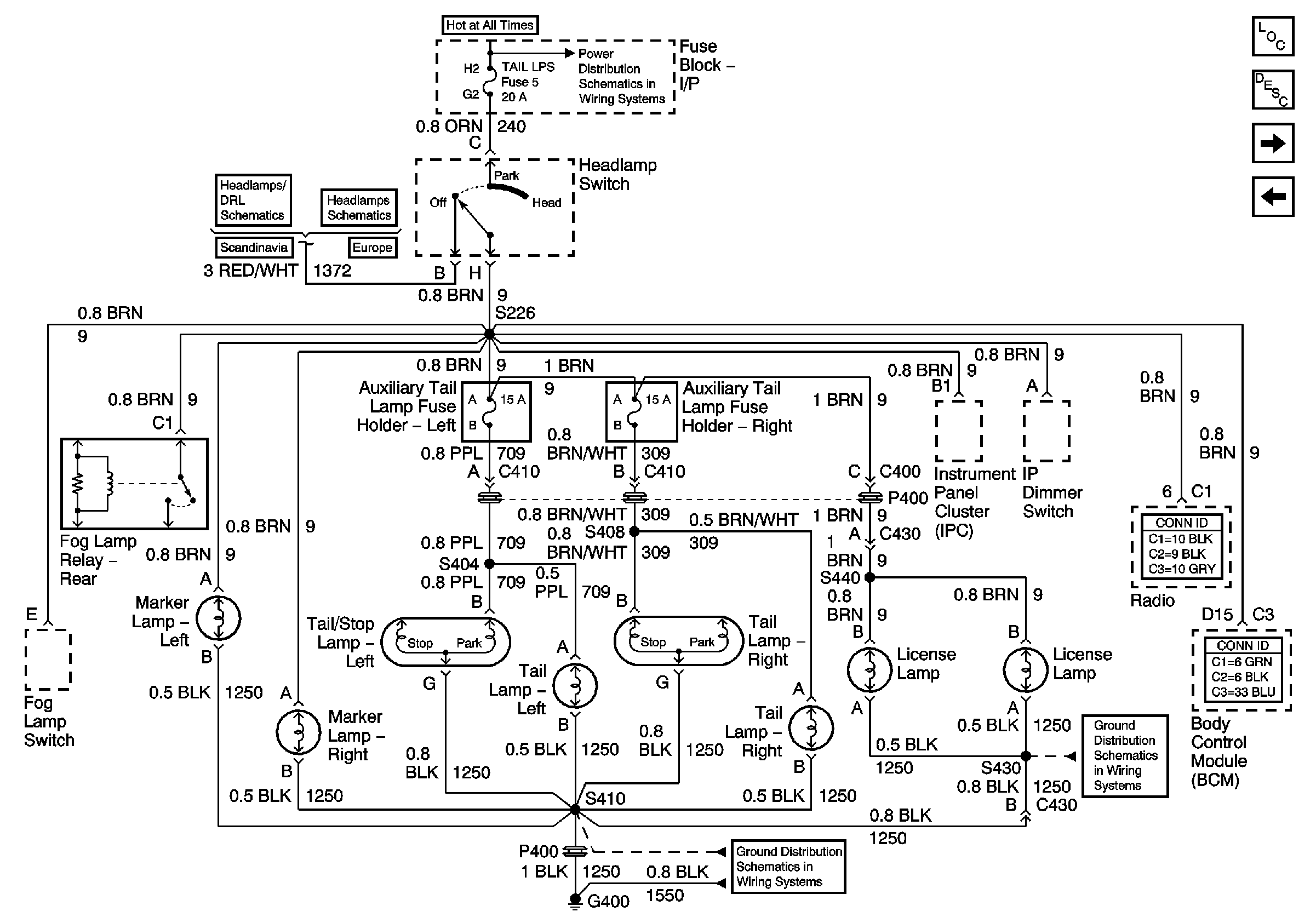

Figure 11:	Parklamps - Chevrolet - Europe and Scandanavia Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Control Chevrolet Europe and Scandinavia Stoplamps Pontiac I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Power,Ground and Headlight Switch Control Chevrolet Scandanavia Chevrolet (Europe) G400 Chevrolet G400 Chevrolet

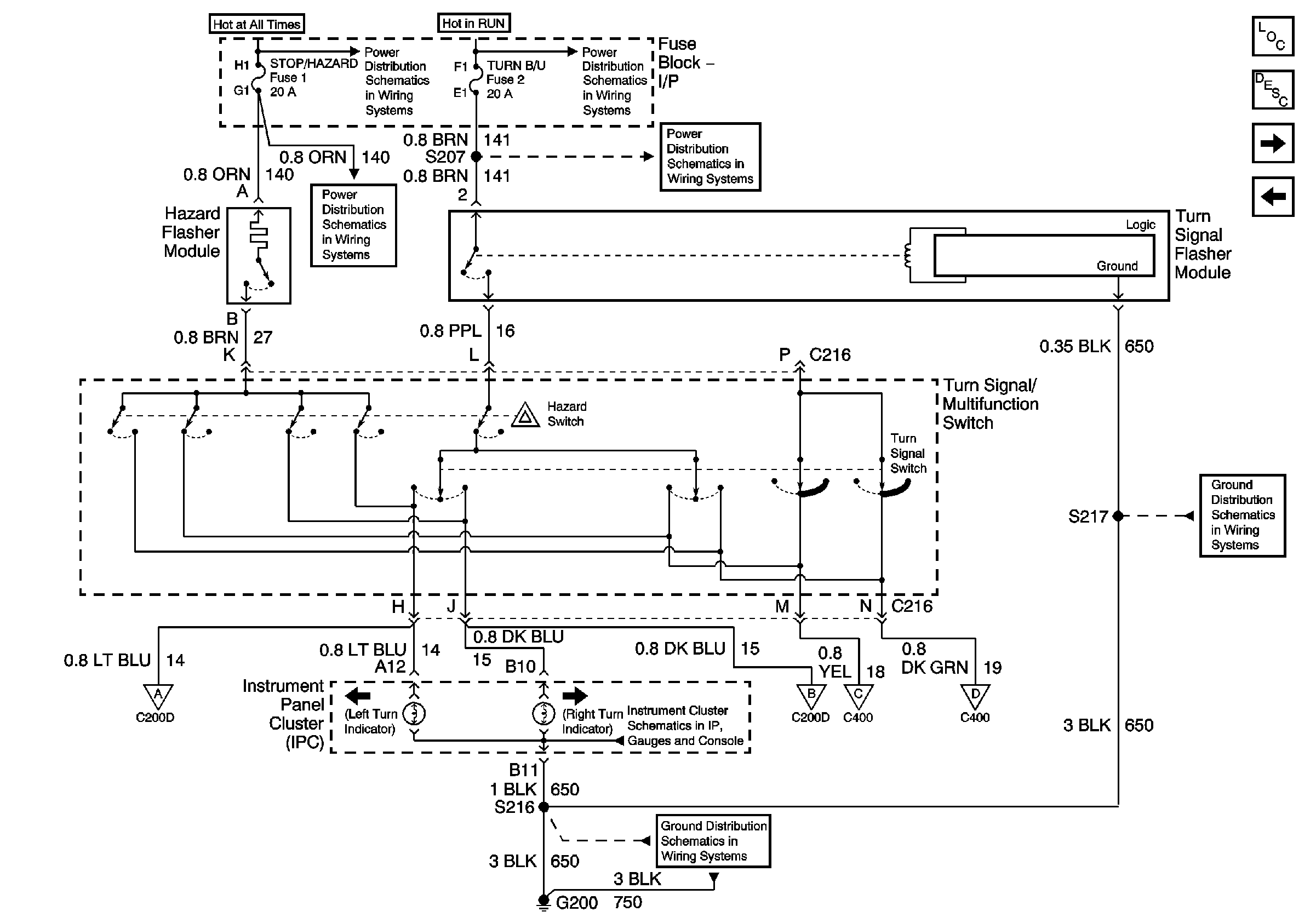

Figure 12:	Turn Signal Controls - Chevrolet - Europe and Scandanavia Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Lamps Chevrolet Europe and Scandanavia Parklamps Chevrolet Europe and Scandanavia I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses HVAC and TURN B/U Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses HVAC and TURN B/U Fuses Turn Signal Lamps Chevrolet Europe and Scandanavia Lamp Indicators Turn Signal Lamps Chevrolet Europe and Scandanavia Turn Signal Lamps Chevrolet Europe and Scandanavia Turn Signal Lamps Chevrolet Europe and Scandanavia G200 Page 1 of 3 G200 Page 1 of 3

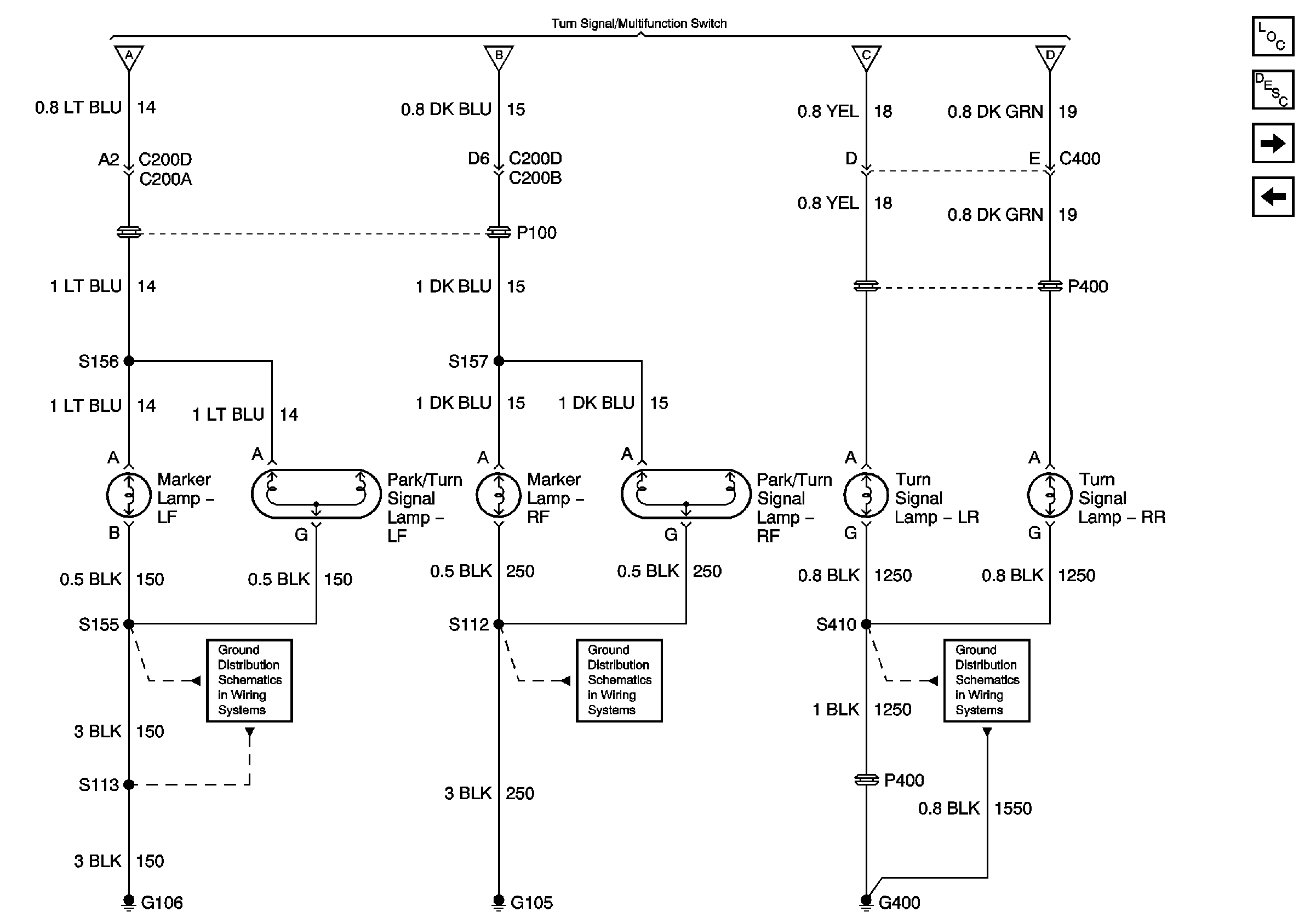

Figure 13:	Turn Signal Lamps - Chevrolet - Europe and Scandanavia Master Electrical Component List Interior Lighting Systems Description and Operation Stoplamps Chevrolet Europe and Scandanavia Turn Signal Control Chevrolet Europe and Scandinavia Turn Signal Control Chevrolet Europe and Scandinavia Turn Signal Control Chevrolet Europe and Scandinavia Turn Signal Control Chevrolet Europe and Scandinavia Turn Signal Control Chevrolet Europe and Scandinavia G106 G105 G400 Chevrolet
Figure 14:	Stoplamps - Chevrolet - Europe and Scandanavia Master Electrical Component List Exterior Lighting Systems Description and Operation Front Park Lamps Chevrolet Japan Turn Signal Lamps Chevrolet Europe and Scandanavia I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Engine Data Sensors-Electronic Throttle Controls G400 Chevrolet G305, G310, G320 G400 Coupe and Convertible
Figure 15:	Front Park Lamps - Chevrolet - Japan Master Electrical Component List Exterior Lighting Systems Description and Operation Rear Park Lamps Chevrolet Japan Stoplamps Chevrolet Europe and Scandanavia I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Rear Park Lamps Chevrolet Japan G106 G105
Figure 16:	Rear Park Lamps - Chevrolet - Japan Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Controls Chevrolet Japan Front Park Lamps Chevrolet Japan Front Park Lamps Chevrolet Japan G400 Chevrolet
Figure 17:	Turn Signal Controls - Chevrolet - Japan Master Electrical Component List Interior Lighting Systems Description and Operation Turn Signal Lamps Chevrolet Japan Rear Park Lamps Chevrolet Japan I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses HVAC and TURN B/U Fuses Turn Signal Lamps Chevrolet Japan Turn Signal Lamps Chevrolet Japan Turn Signal Lamps Chevrolet Japan Turn Signal Lamps Chevrolet Japan

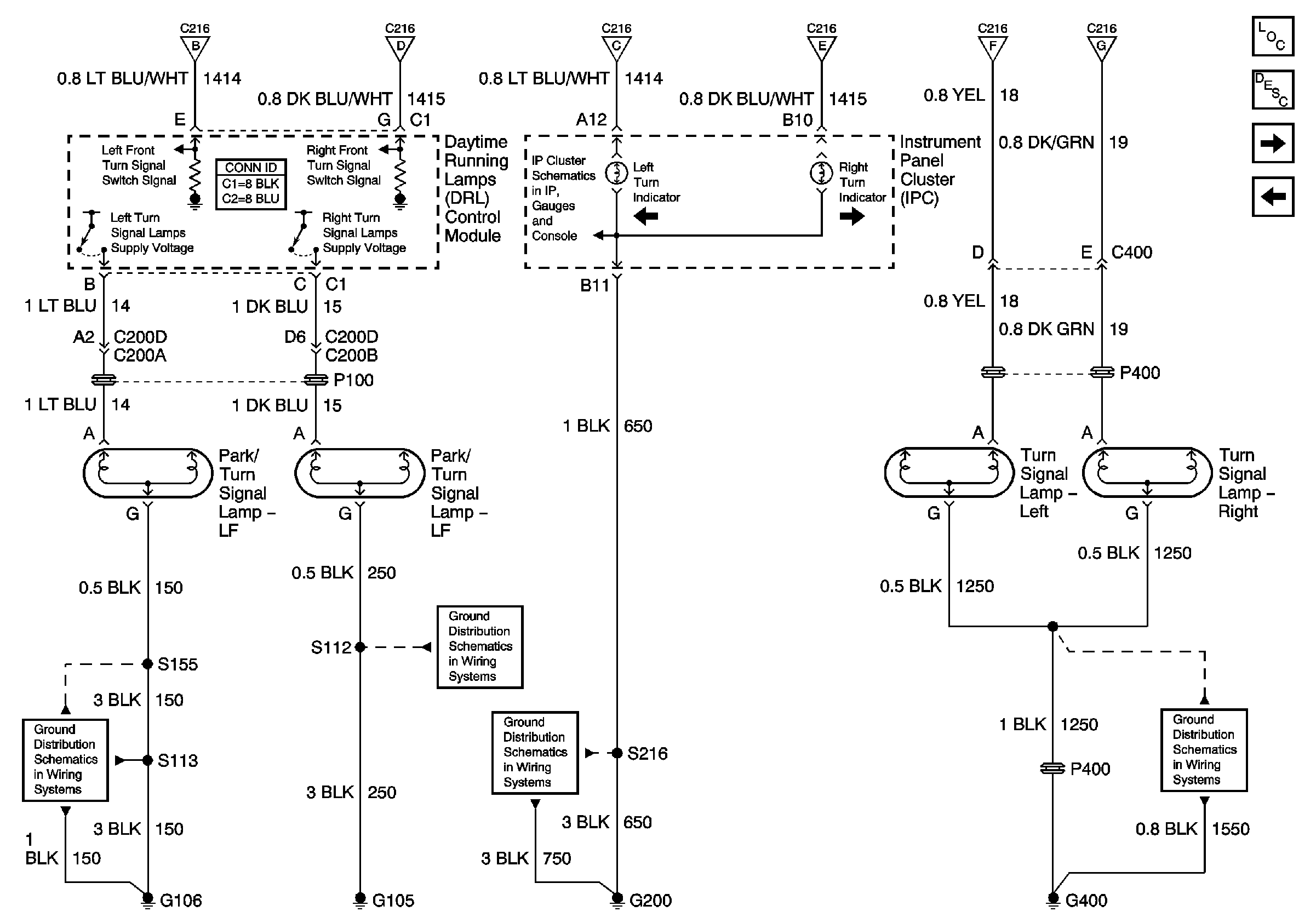

Figure 18:	Turn Signal Lamps - Chevrolet - Japan Master Electrical Component List Interior Lighting Systems Description and Operation Stoplamps Chevrolet Japan Turn Signal Controls Chevrolet Japan Turn Signal Controls Chevrolet Japan Turn Signal Controls Chevrolet Japan Turn Signal Controls Chevrolet Japan Turn Signal Controls Chevrolet Japan Lamp Indicators G400 Chevrolet G106 G200 Page 1 of 3 G105 G400 Chevrolet
Figure 19:	Stoplamps - Chevrolet - Japan Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps Turn Signal Lamps Chevrolet Japan I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Engine Data Sensors-Electronic Throttle Controls G400 Chevrolet G305, G310, G320 G400 Coupe and Convertible

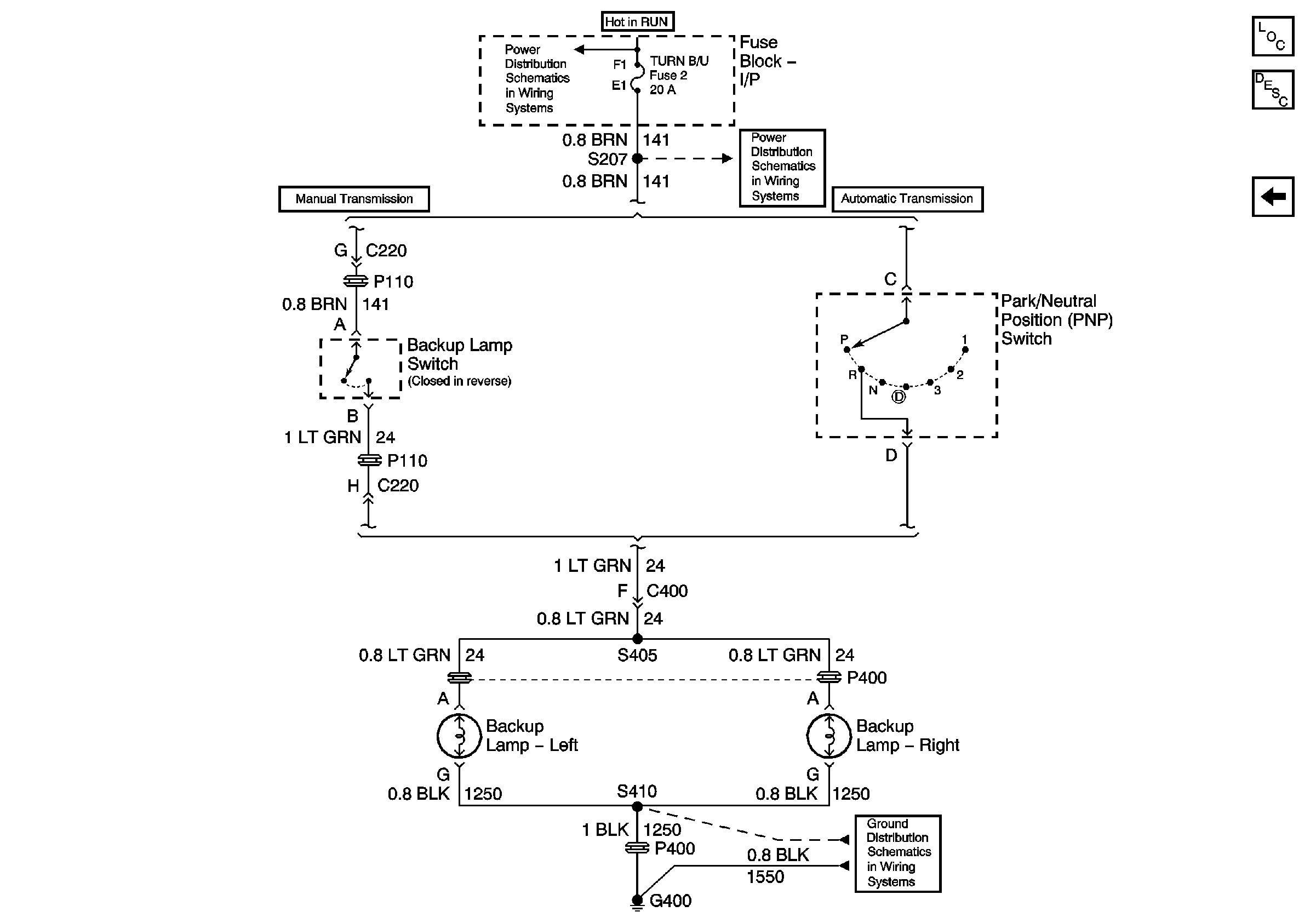

Figure 20:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Stoplamps Chevrolet Japan HVAC and TURN B/U Fuses HVAC and TURN B/U Fuses G400 Chevrolet
