Makes 🢒 Pontiac 🢒 2008 🢒 G3 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - Aisin 81-40LE 🢒 Gearshift Control Lever Replacement

Removal Procedure

    Caution: Refer to Battery Disconnect Caution in the Preface section.


    Object Number: 1245816 Size: SH
  1. Disconnect the negative battery cable.
  2. Remove the floor console. Refer to Front Floor Console Replacement .
  3. Disconnect the wiring harness connectors from the shift control lever.

    4. Object Number: 1245812 Size: SH
  4. Loosen the control cable adjusting nut.
  5. Disconnect the control cable from the shift control lever assembly.

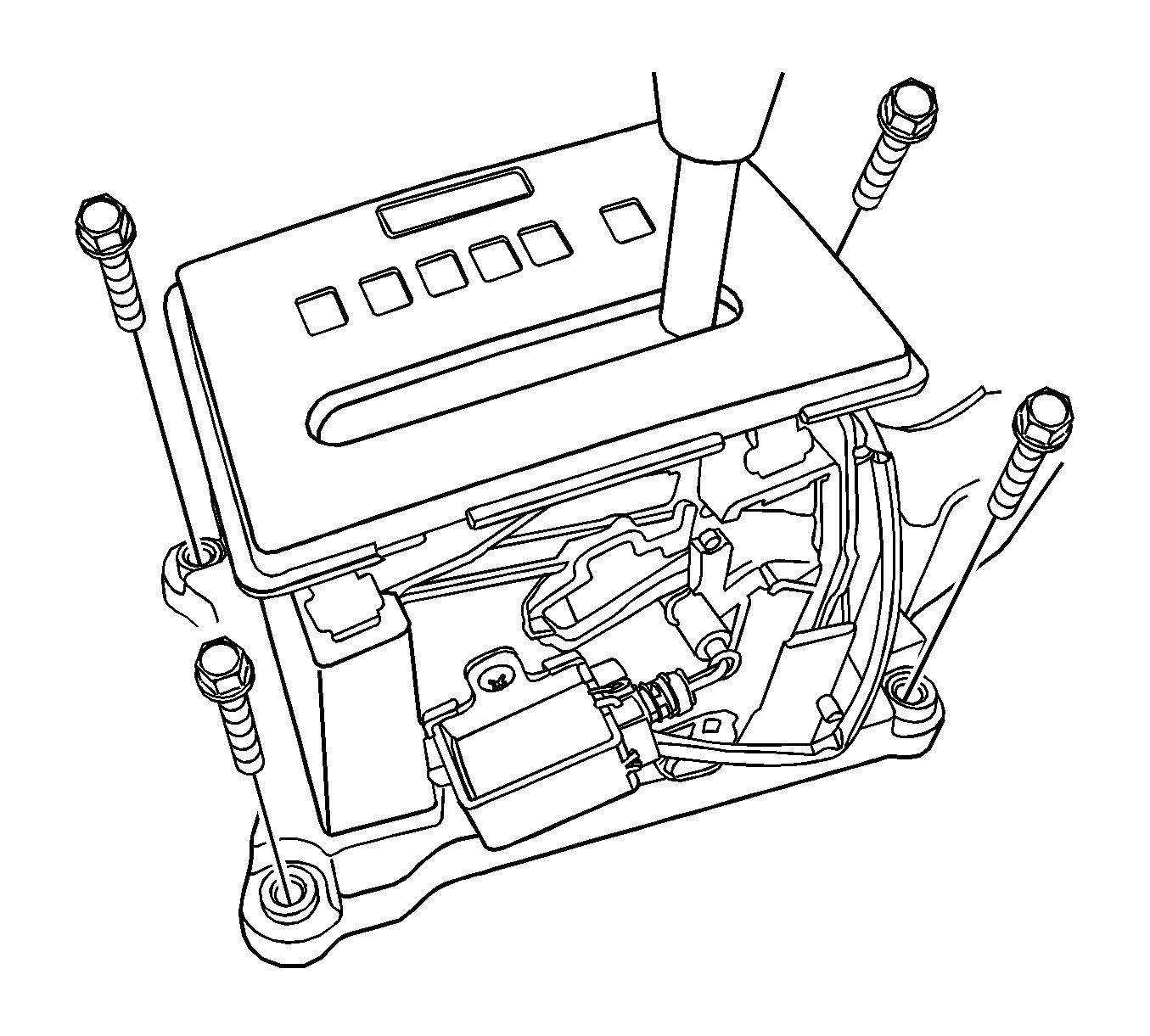

    6. Object Number: 1889697 Size: SH
  6. Remove the shift control lever assembly mounting bolts.
  7. Remove the shift control lever assembly.

Installation Procedure

    Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 1889697 Size: SH
  1. Install the shift control lever assembly and mounting bolts.

    2. Tighten
    Tighten the shift control lever assembly mounting bolts to 8 N·m (71 lb in).


    Object Number: 1245812 Size: SH
  2. Connect the control cable to the shift control lever assembly.
  3. Tighten the control cable adjusting nut.

    4. Tighten
    Tighten the control cable adjusting nut to 8 N·m (71 lb in).


    Object Number: 1245816 Size: SH
  4. Connect the harness connector.
  5. Adjust the control cable. Refer to Range Selector Lever Cable Adjustment .
  6. Install the floor console. Refer to Front Floor Console Replacement .
  7. Connect the negative battery cable.
