Engine Controls Schematics. Pontiac Grand Prix 2004

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2004 🢒 Grand Prix 🢒 Engine 🢒 Engine Electrical 🢒 Engine Controls Schematics

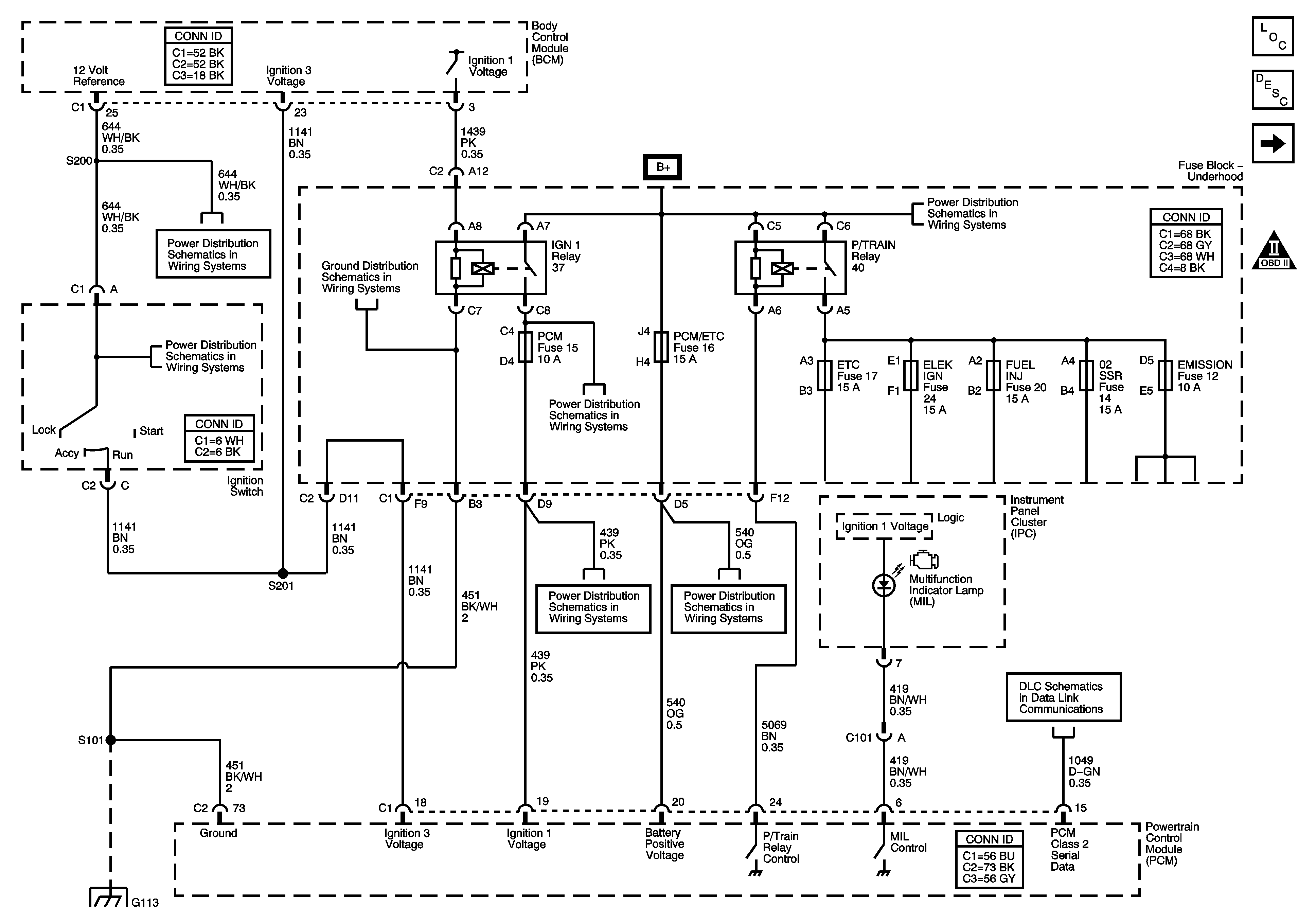

Figure 1:	PCM Power, Ground, MIL, and Serial Data Master Electrical Component List Powertrain Control Module Description 5 Volt and Low Reference Bussing Engine Controls Schematic Icons Ignition Switch Ignition Switch G101, G112 and G113 Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing ABS, TRANS SOL, PCM, SIR, DISPLAY, CRUISE SW Fuses, and CRANK Relay BATT MAIN 3, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, WASHER RVC, and AUX PWR Fuses Data Link Connector (DLC) Schematics G101, G112 and G113

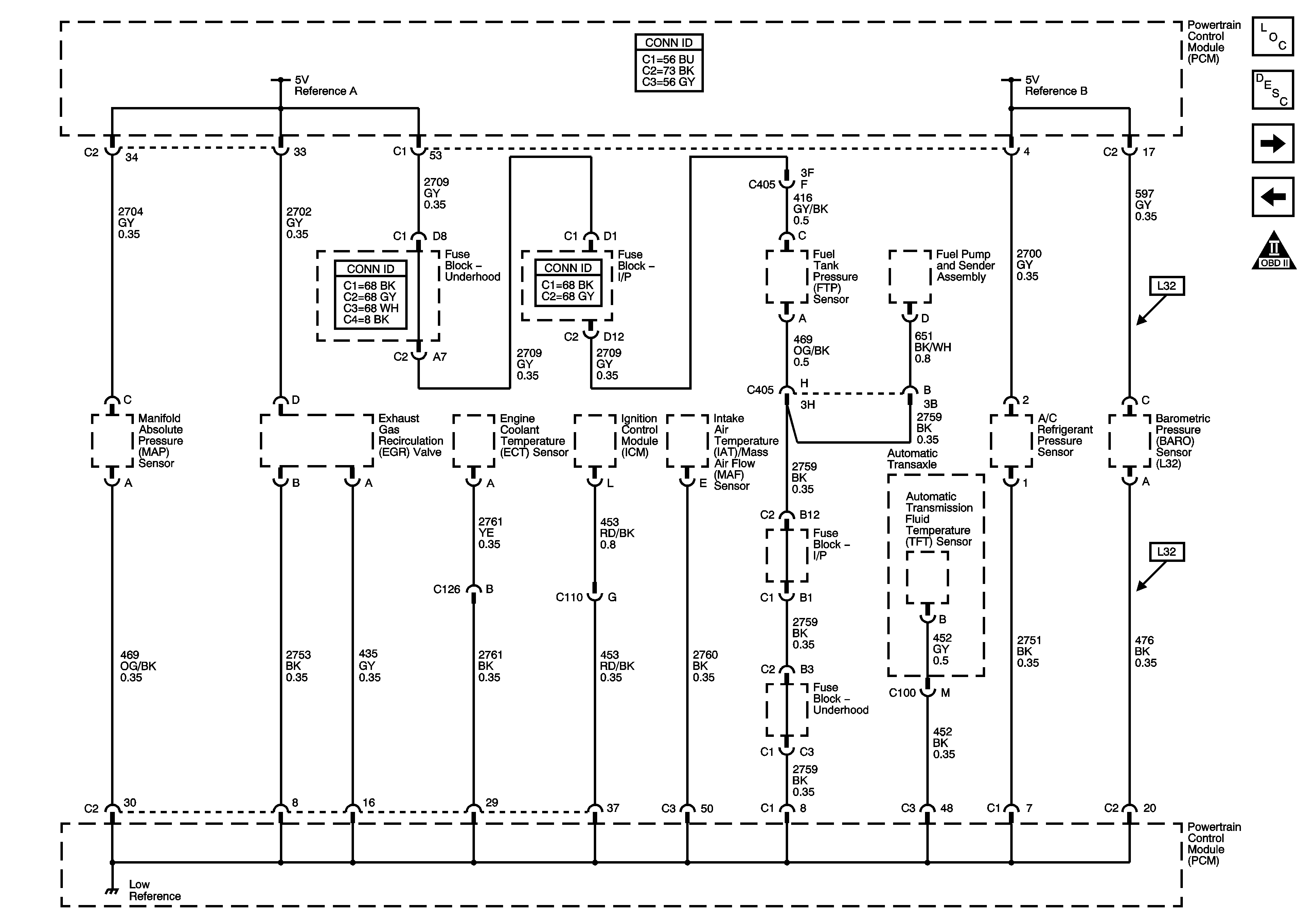

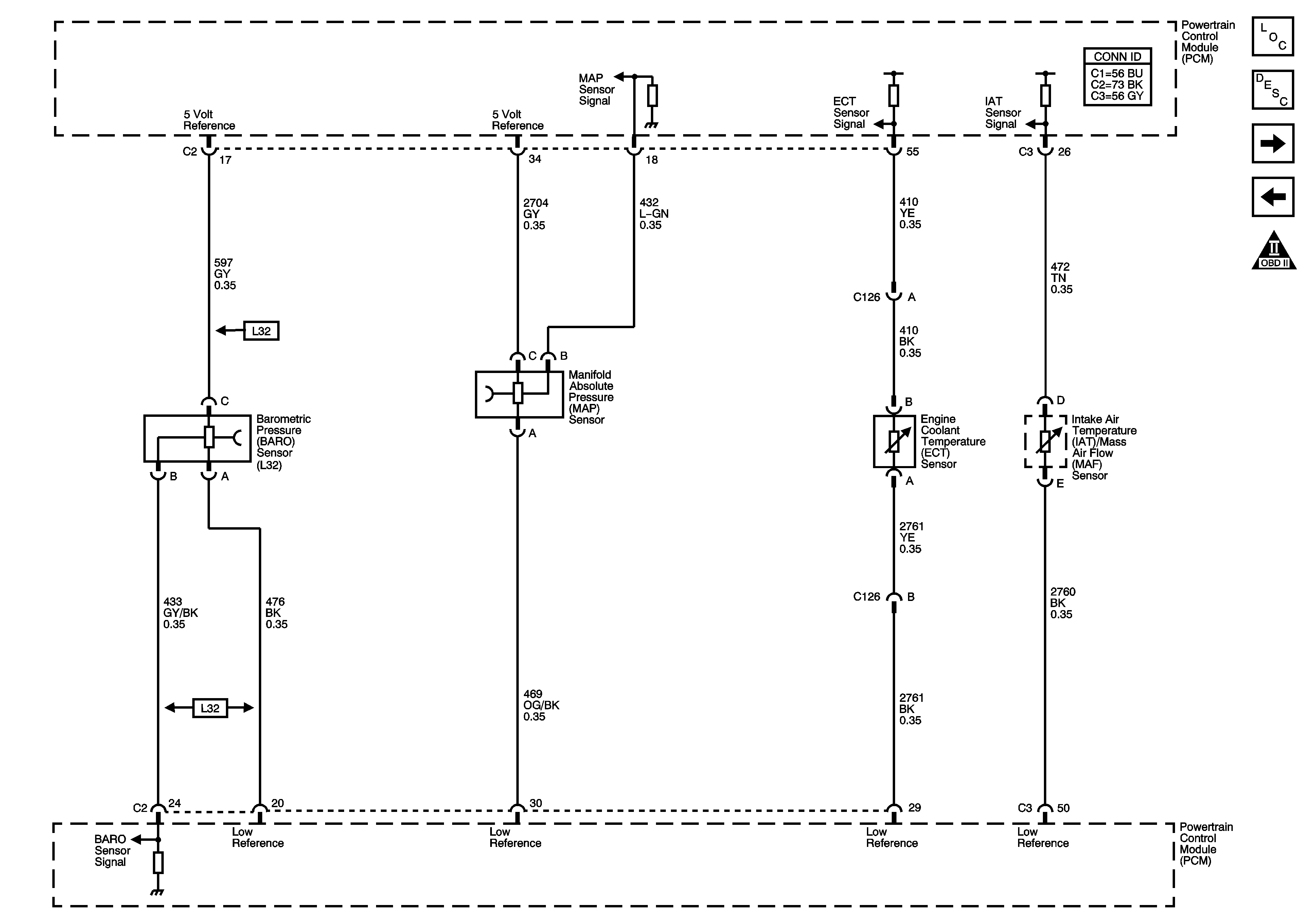

Figure 2:	5 Volt and Low Reference Bussing Master Electrical Component List Powertrain Control Module Description BARO, MAP, ECT, and IAT/MAF Sensors PCM Power, Ground, MIL, and Serial Data Engine Controls Schematic Icons

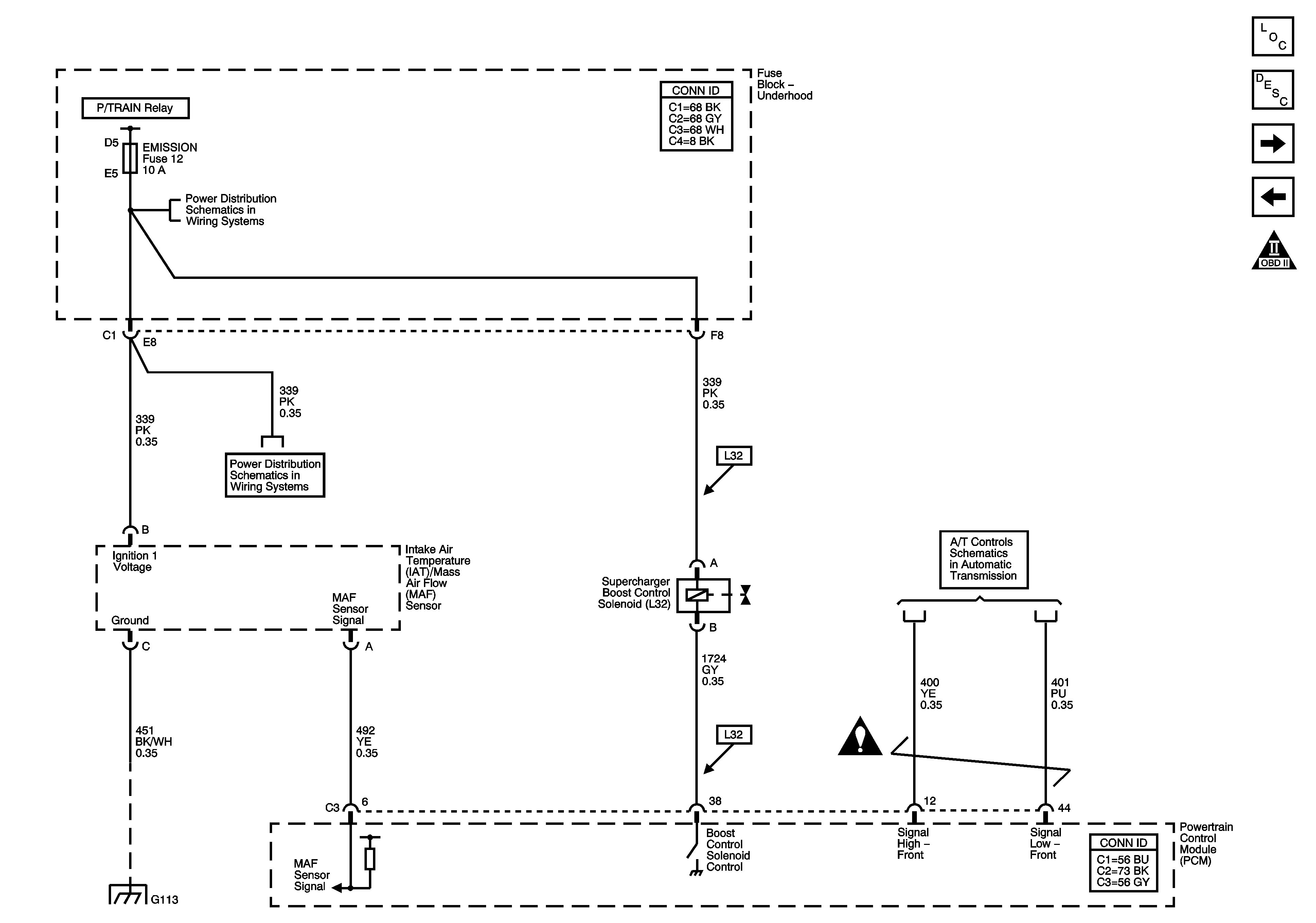

Figure 3:	BARO, MAP, ECT, and IAT/MAF Sensors Master Electrical Component List Evaporative Emission Control System Description IAT/MAF Sensor, Super Charger Boost Control Solenoid, and A/T Controls VSS References 5 Volt and Low Reference Bussing Engine Controls Schematic Icons
Figure 4:	IAT/MAF Sensor, Super Charger Boost Control Solenoid, and A/T Controls VSS References Master Electrical Component List Boost Control System Description Heated Oxygen Sensors BARO, MAP, ECT, and IAT/MAF Sensors Engine Controls Schematic Icons PCM Power, Ground, MIL, and Serial Data ETC, ELEK IGN, FUEL INJ, 02 SSR, and Emission Fuses ETC, ELEK IGN, FUEL INJ, 02 SSR, and Emission Fuses VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch G101, G112 and G113 Engine Controls Schematic Icons

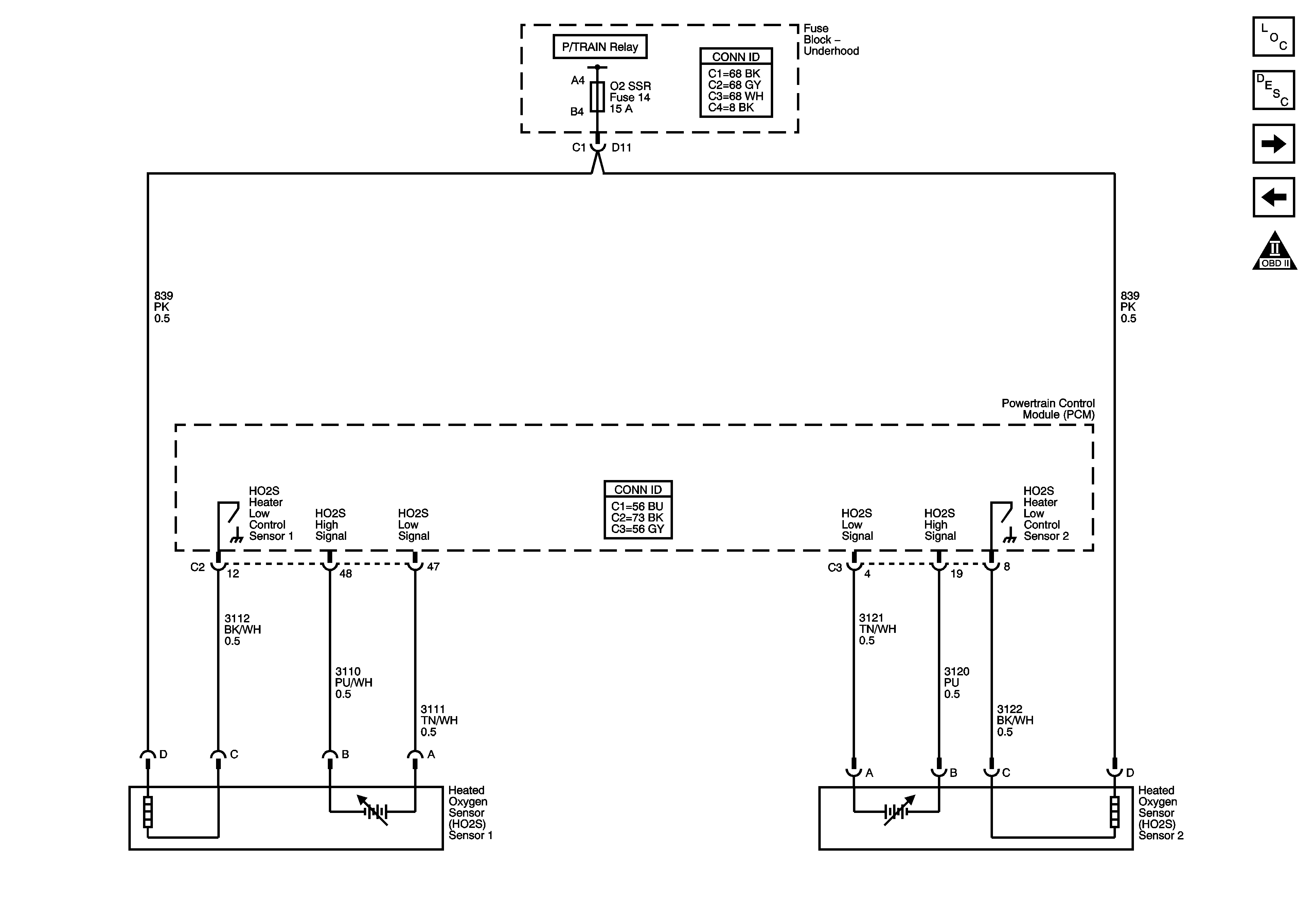

Figure 5:	Heated Oxygen Sensors Master Electrical Component List Evaporative Emission Control System Description Electronic Throttle Controls IAT/MAF Sensor, Super Charger Boost Control Solenoid, and A/T Controls VSS References Engine Controls Schematic Icons PCM Power, Ground, MIL, and Serial Data

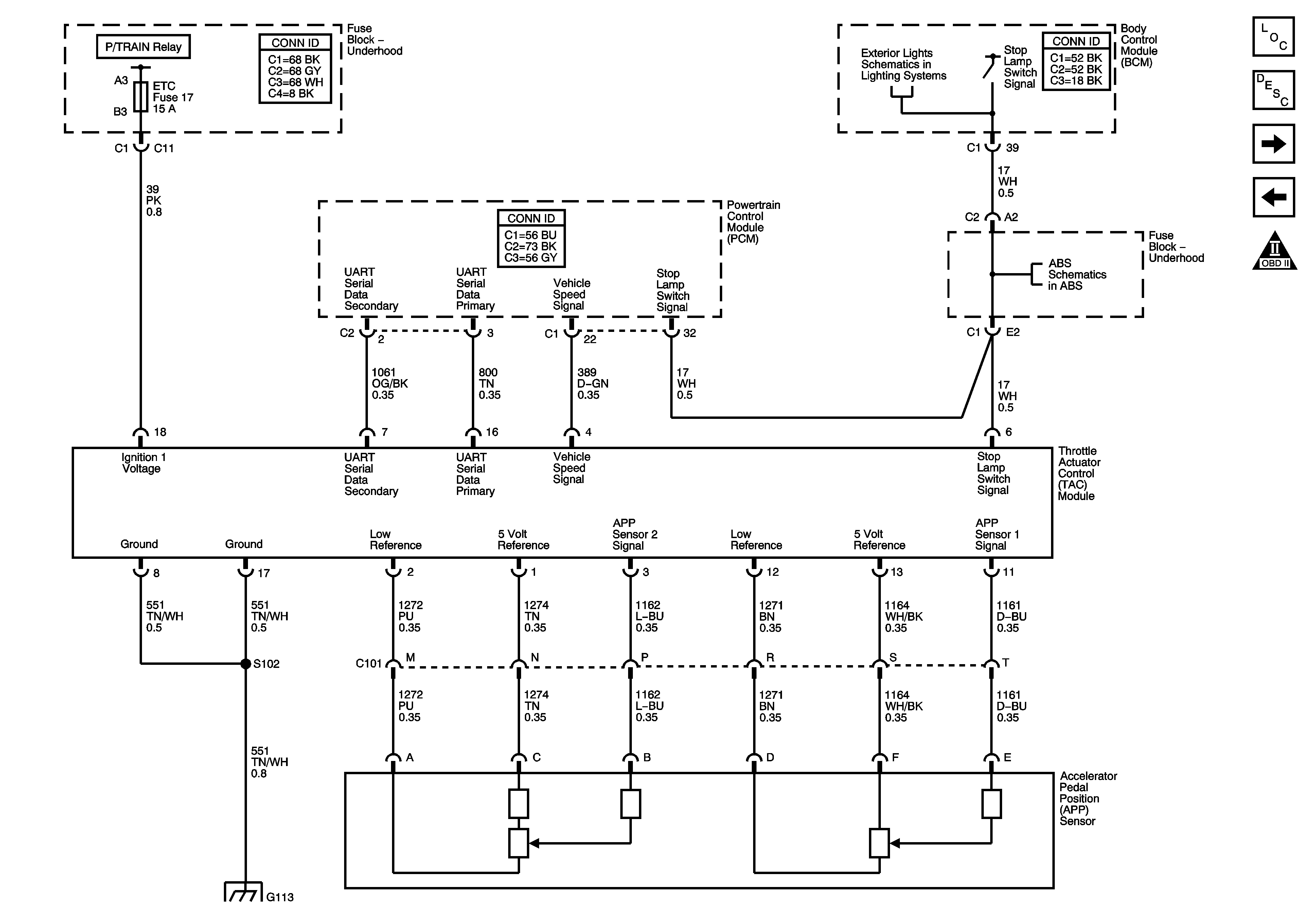

Figure 6:	Electronic Throttle Controls Master Electrical Component List Throttle Actuator Control (TAC) System Description Ignition control Module Heated Oxygen Sensors Engine Controls Schematic Icons PCM Power, Ground, MIL, and Serial Data Turn Signal, Hazard and Stop Lamps ABS Indicators, Torque Signals, Steering andTraction Control G101, G112 and G113

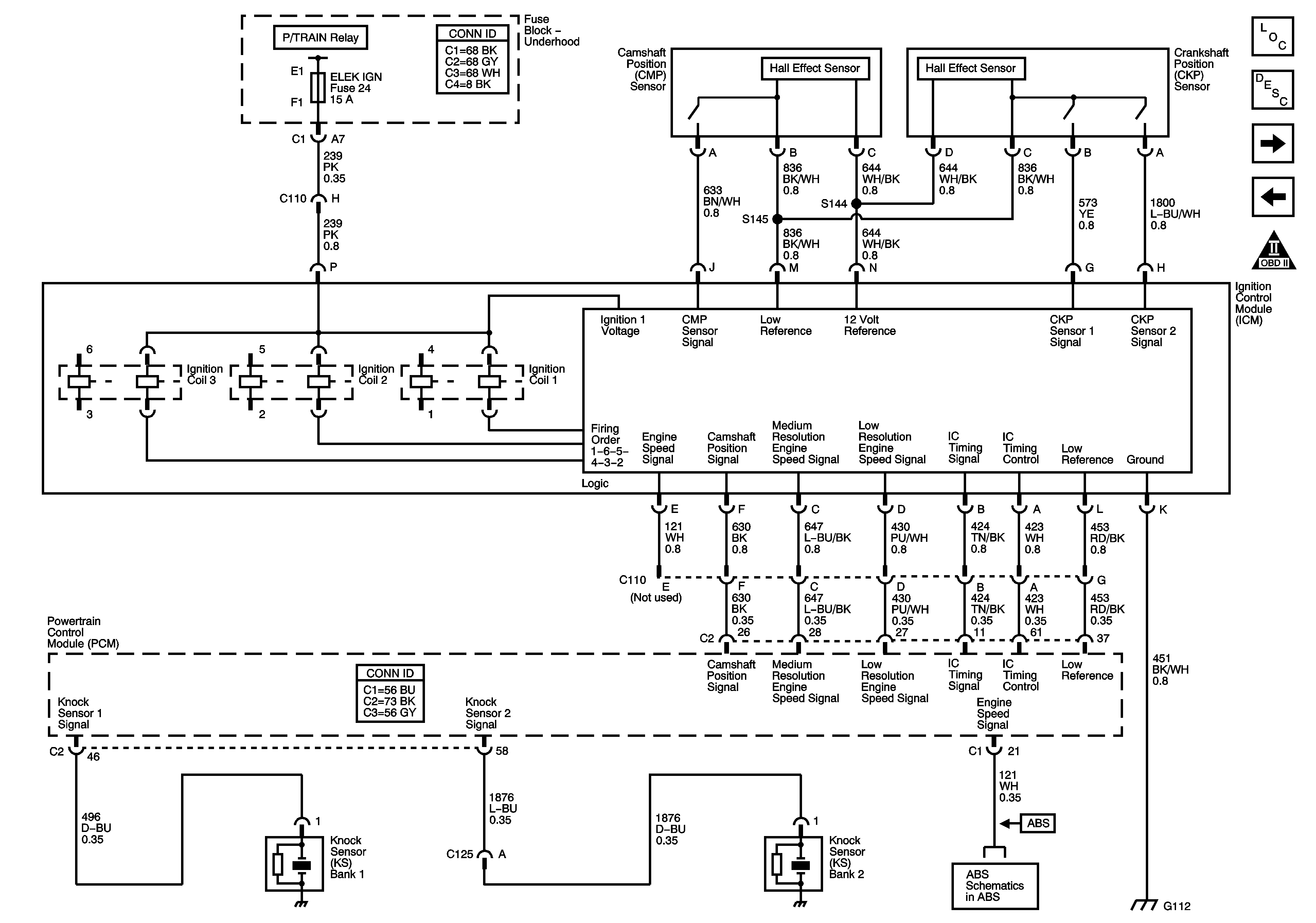

Figure 7:	Ignition Control Module Master Electrical Component List Electronic Ignition (EI) System Description Fuel Pump Controls Electronic Throttle Controls Engine Controls Schematic Icons PCM Power, Ground, MIL, and Serial Data ABS Indicators, Torque Signals, Steering andTraction Control

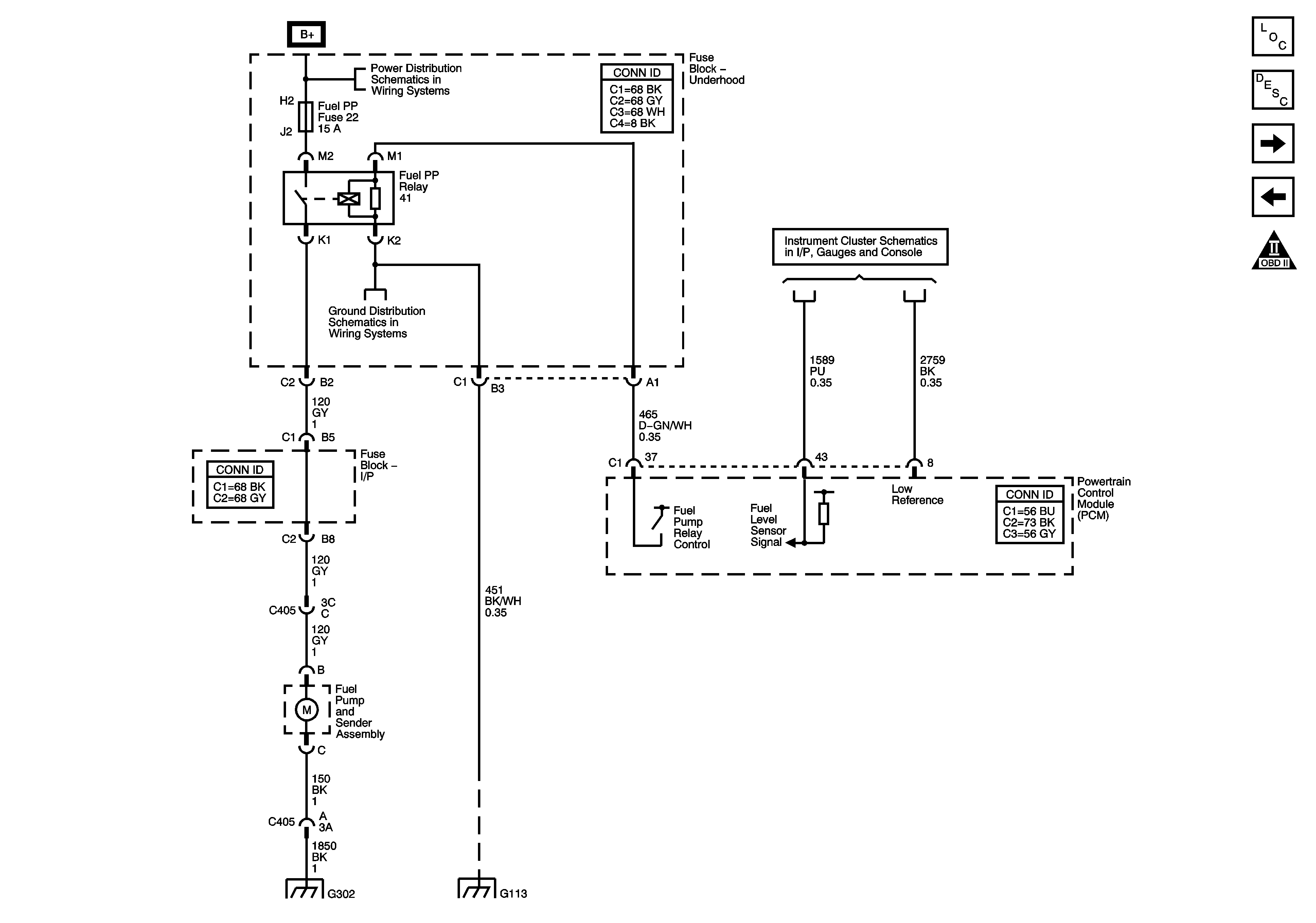

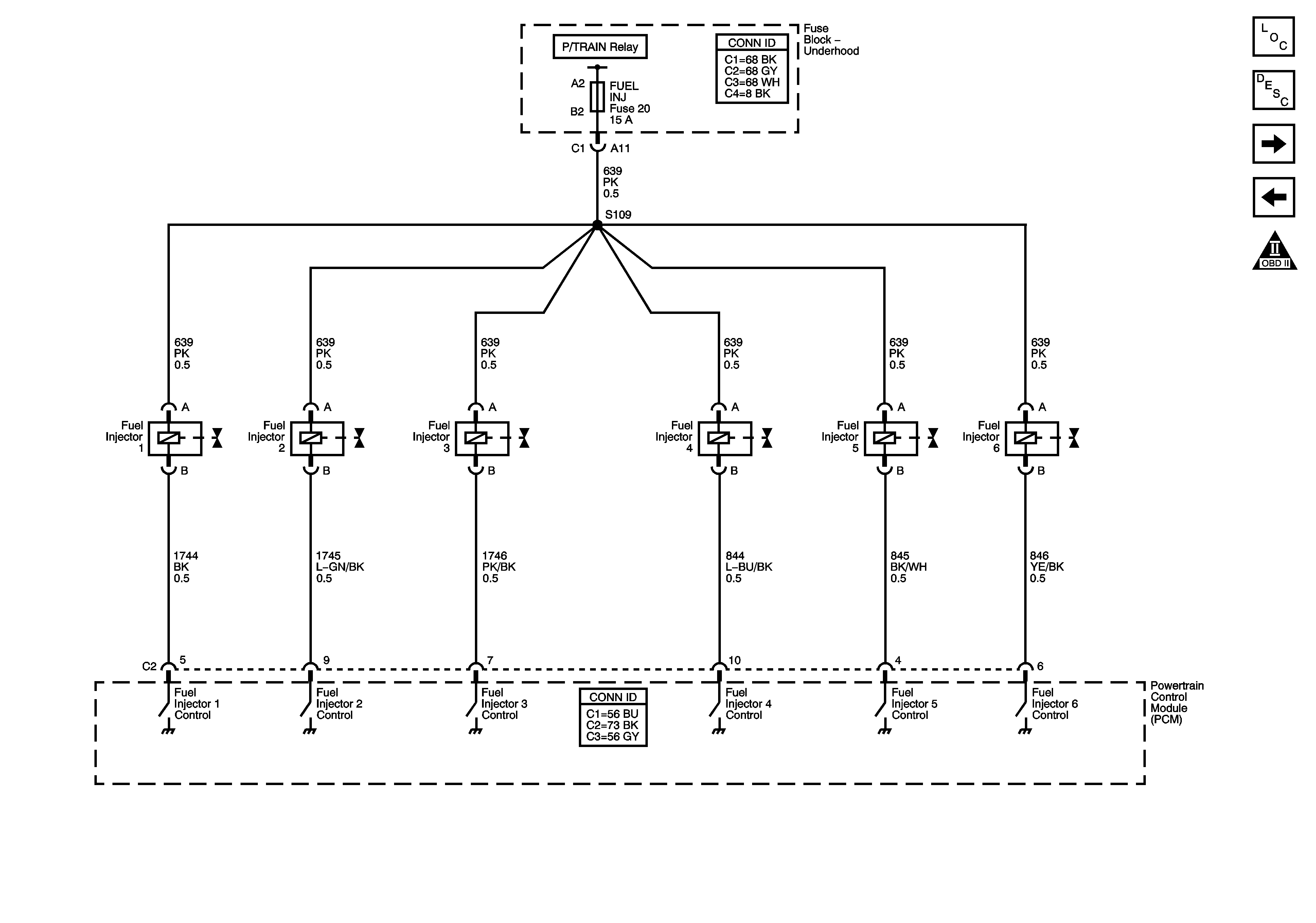

Figure 8:	Fuel Pump Controls Master Electrical Component List Fuel System Description Fuel Injectors Ignition control Module Engine Controls Schematic Icons Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing G101, G112 and G113 04 W Pontiac Instrument Cluster Schematics - Power, Ground and Gages G302 G101, G112 and G113
Figure 9:	Fuel Injectors Master Electrical Component List Fuel System Description EVAP Solenoids, FTP Sensor, and EGR Valve Fuel Pump Controls Engine Controls Schematic Icons PCM Power, Ground, MIL, and Serial Data

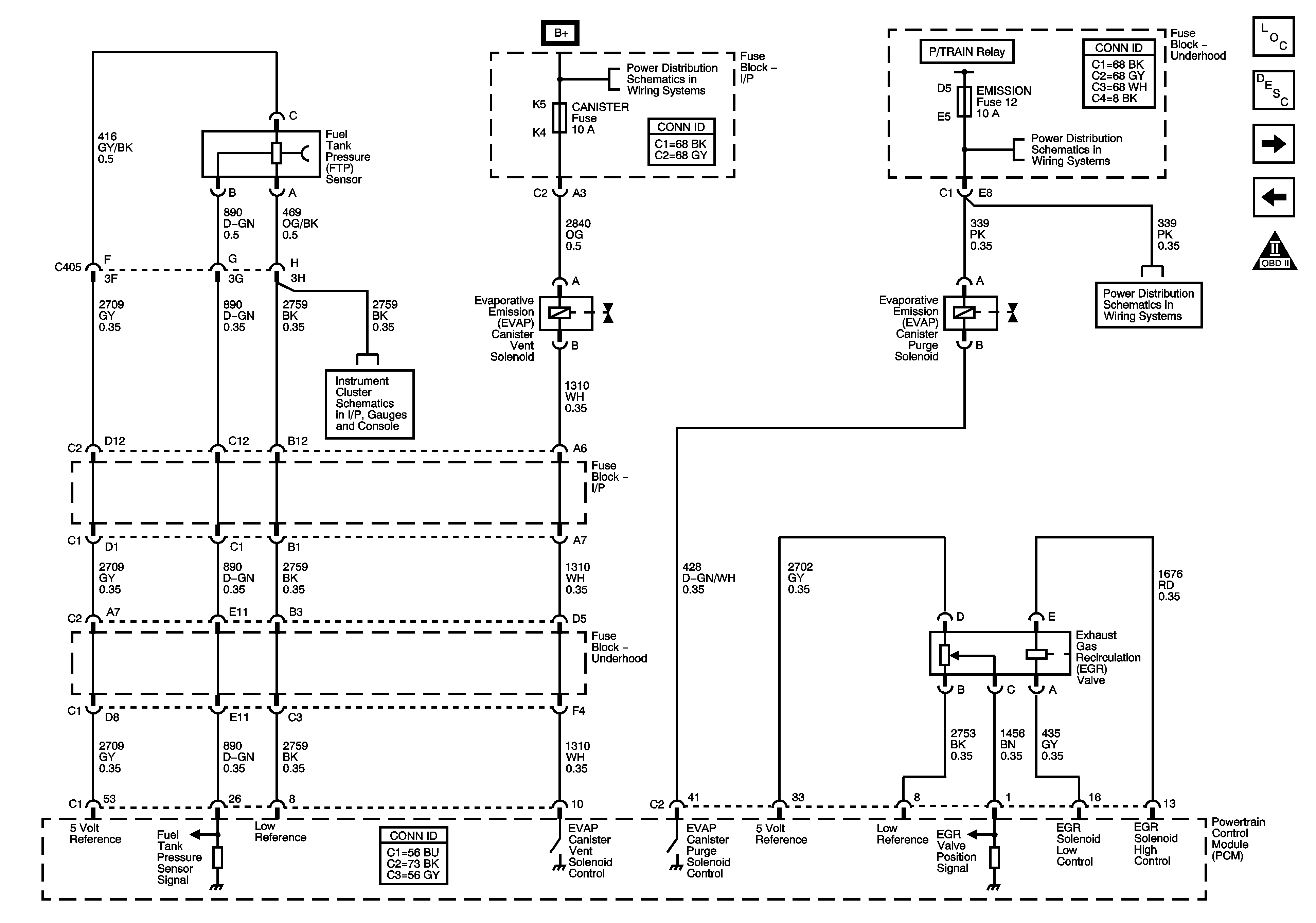

Figure 10:	EVAP Solenoids, FTP Sensor, and EGR Valve Master Electrical Component List Evaporative Emission Control System Description Controlled/Monitored Subsystem References Fuel Injectors Engine Controls Schematic Icons BATT MAIN 1, PK LAMPS, DISPLAYS, CHMSL/BKUP, INT LIGHT, RFA/MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses, and PK LP Relay BATT MAIN 1, PK LAMPS, DISPLAYS, CHMSL/BKUP, INT LIGHT, RFA/MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses, and PK LP Relay PCM Power, Ground, MIL, and Serial Data ETC, ELEK IGN, FUEL INJ, 02 SSR, and Emission Fuses 04 W Pontiac Instrument Cluster Schematics - Power, Ground and Gages ETC, ELEK IGN, FUEL INJ, 02 SSR, and Emission Fuses

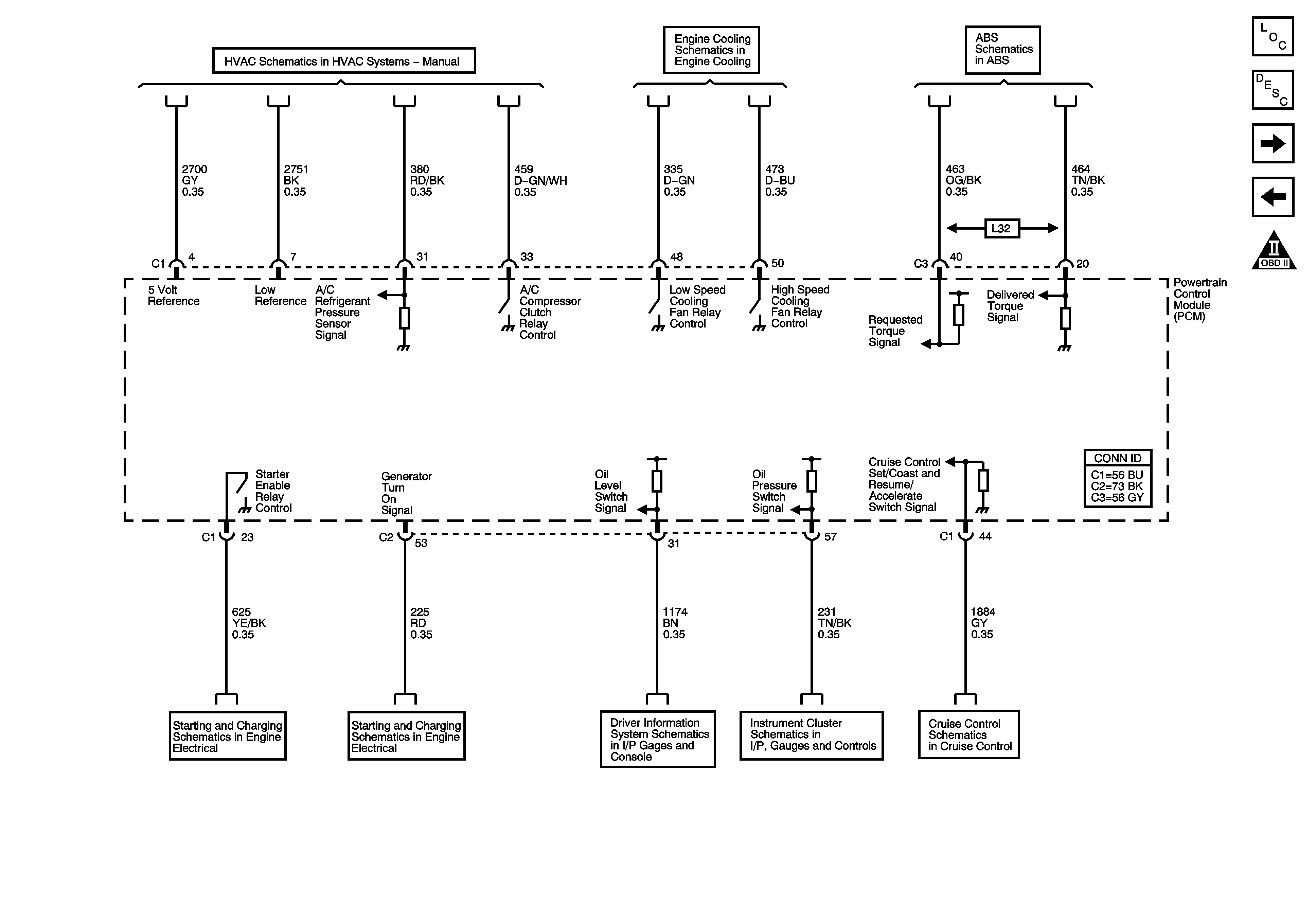

Figure 11:	Controlled/Monitored Subsystem References Master Electrical Component List Powertrain Control Module Description Automatic Transmission Controls References EVAP Solenoids, FTP Sensor, and EGR Valve Engine Controls Schematic Icons A/C Compressor Controls Engine Cooling Schematics ABS Indicators, Torque Signals, Steering andTraction Control Starter Generator Driver Information System Schematics 04 W Pontiac Instrument Cluster Schematics - Indicators Cruise Control Schematics

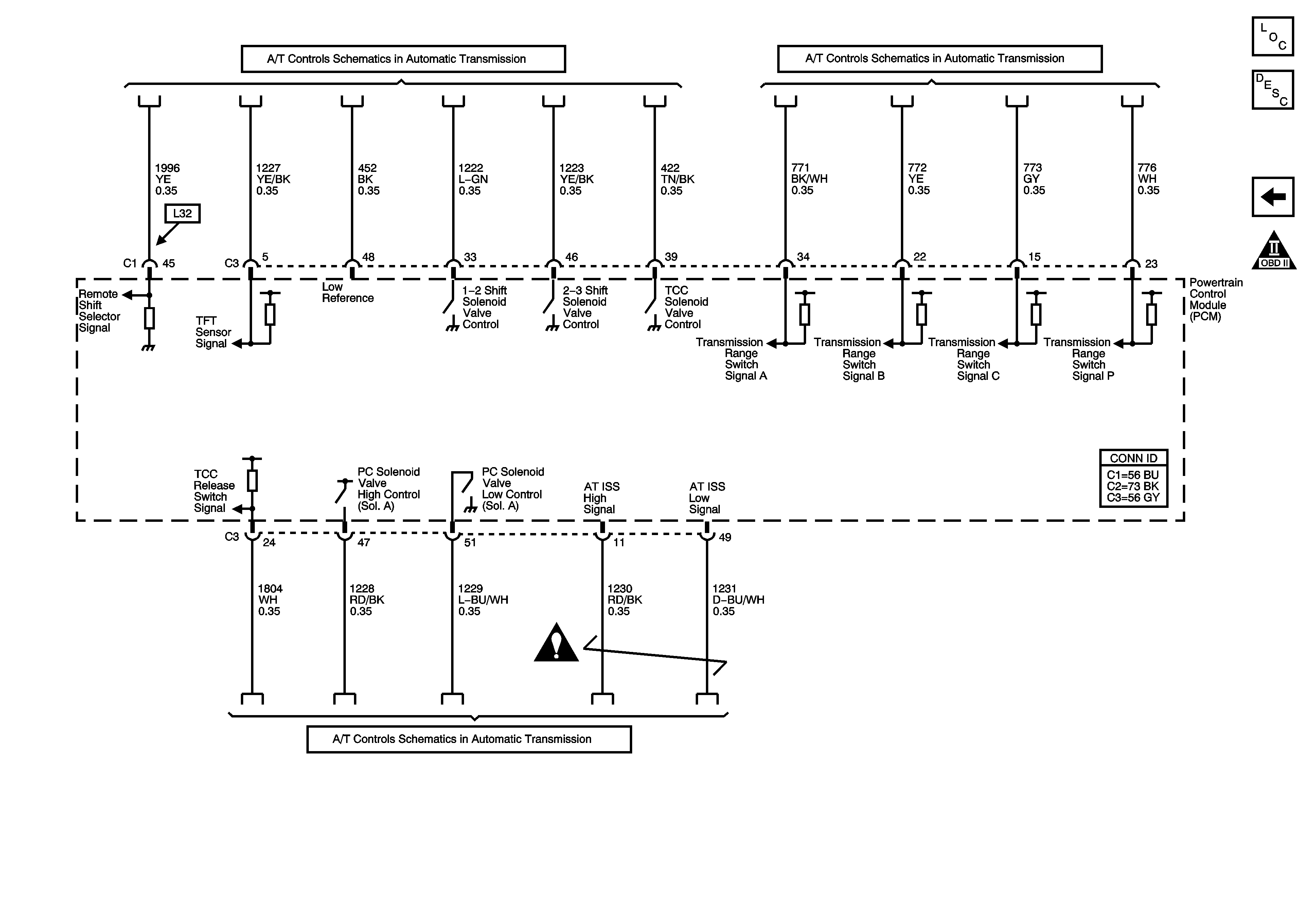

Figure 12:	Automatic Transmission Controls References Master Electrical Component List Powertrain Control Module Description Controlled/Monitored Subsystem References Engine Controls Schematic Icons TAP Shift Switches, Stop Lamp Signal, TFT Sensor, and TCC, Shift Solenoids PRNDL, and IMS Switch VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch Engine Controls Schematic Icons
